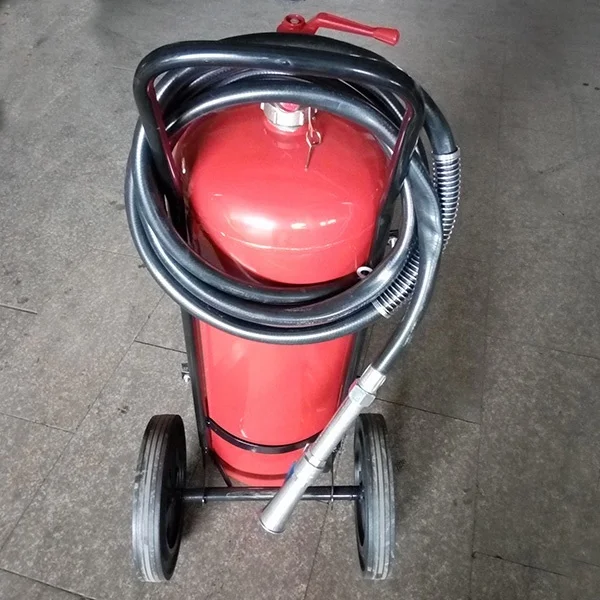

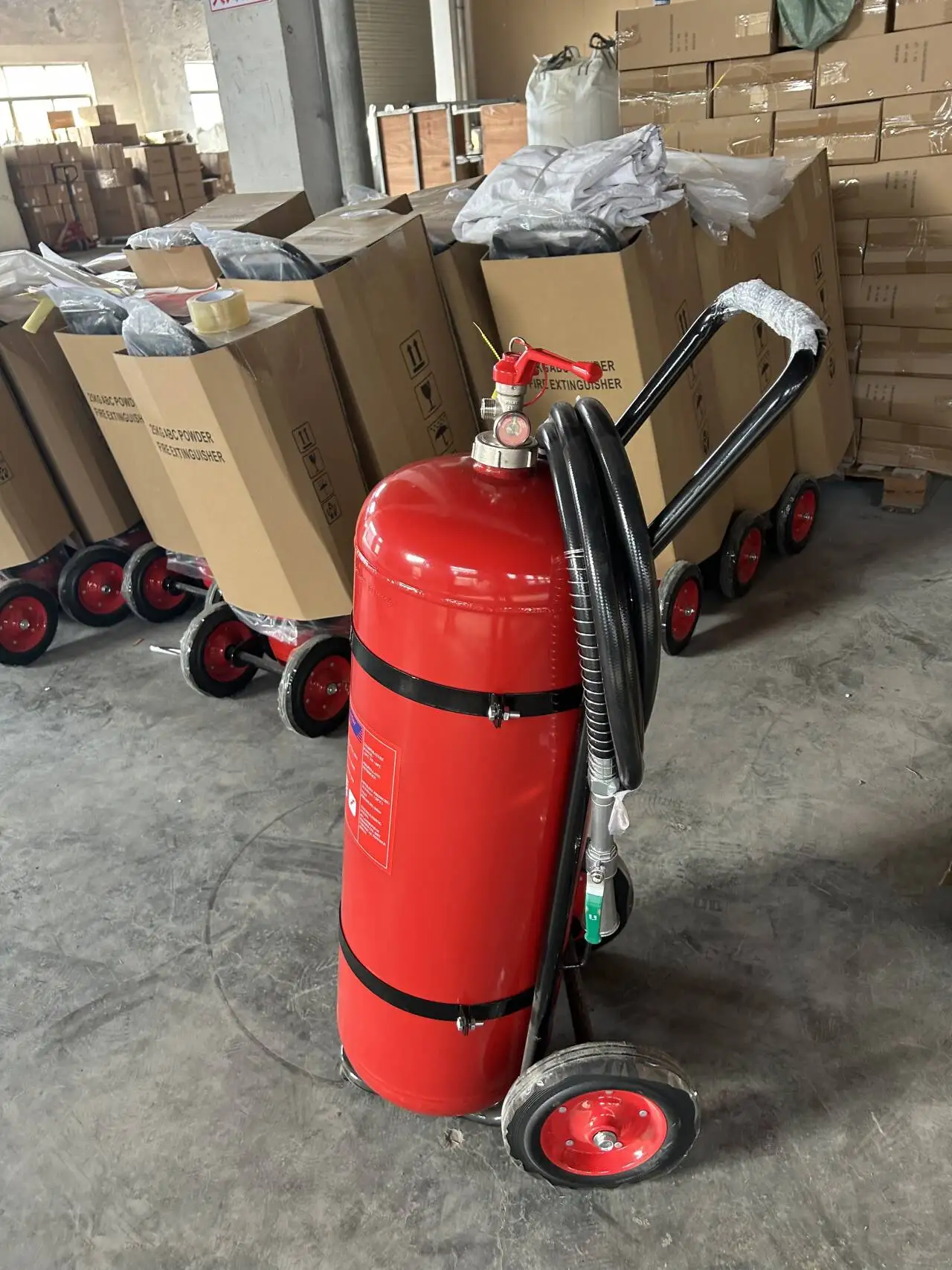

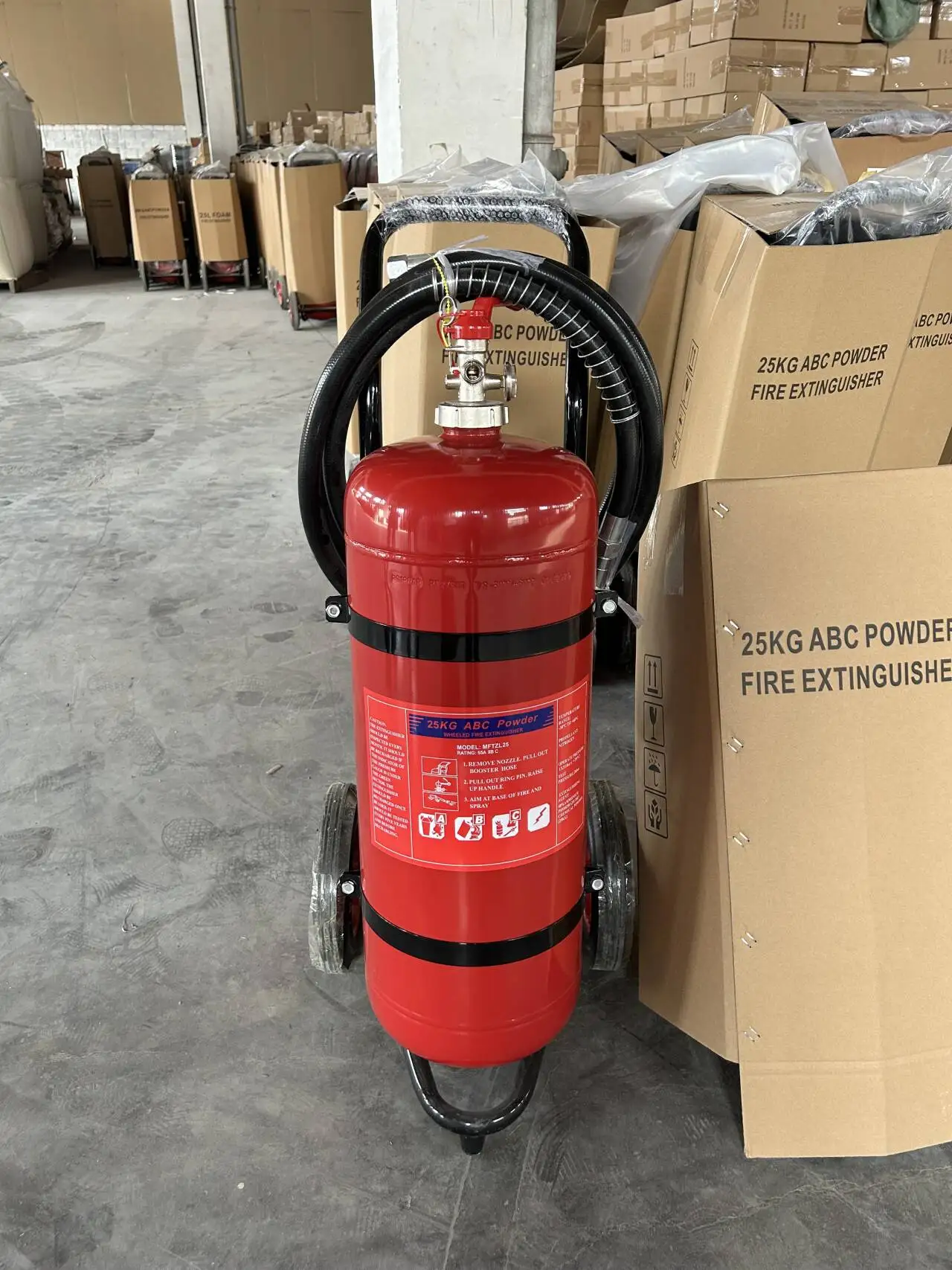

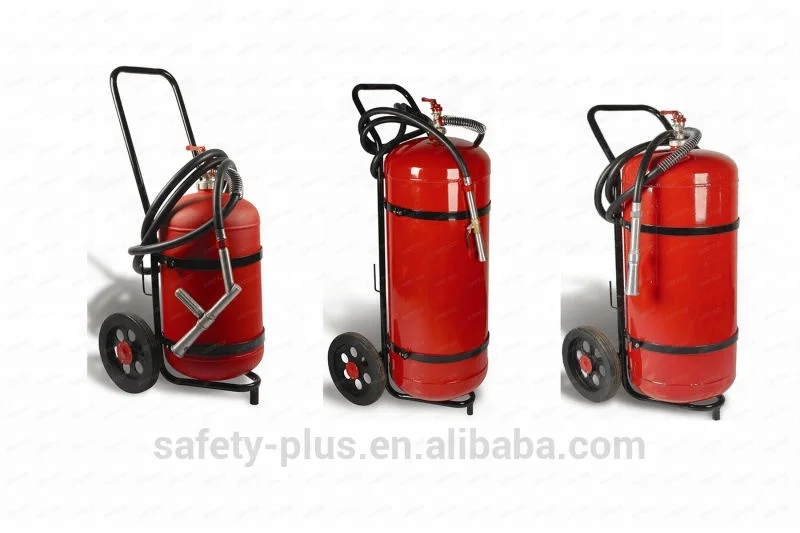

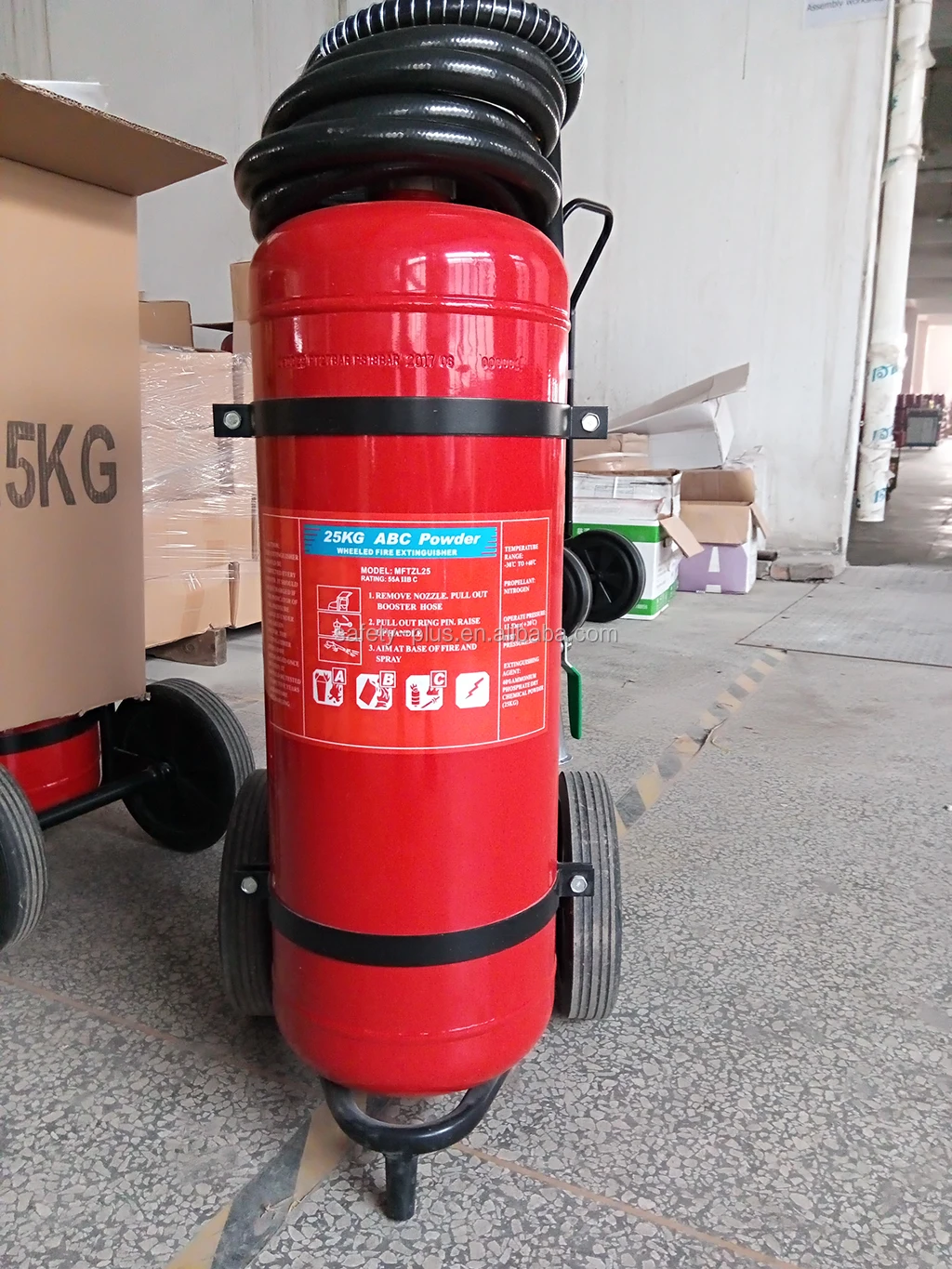

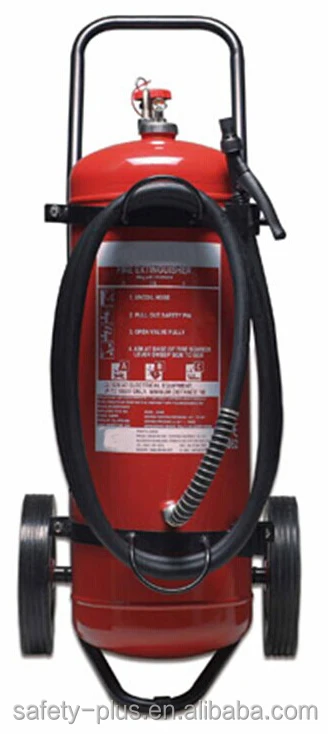

Trolley 25kg/50kg 40% ABC DCP Fire Extinguisher Wheeled Fire Extinguisher

Product Overview

Description

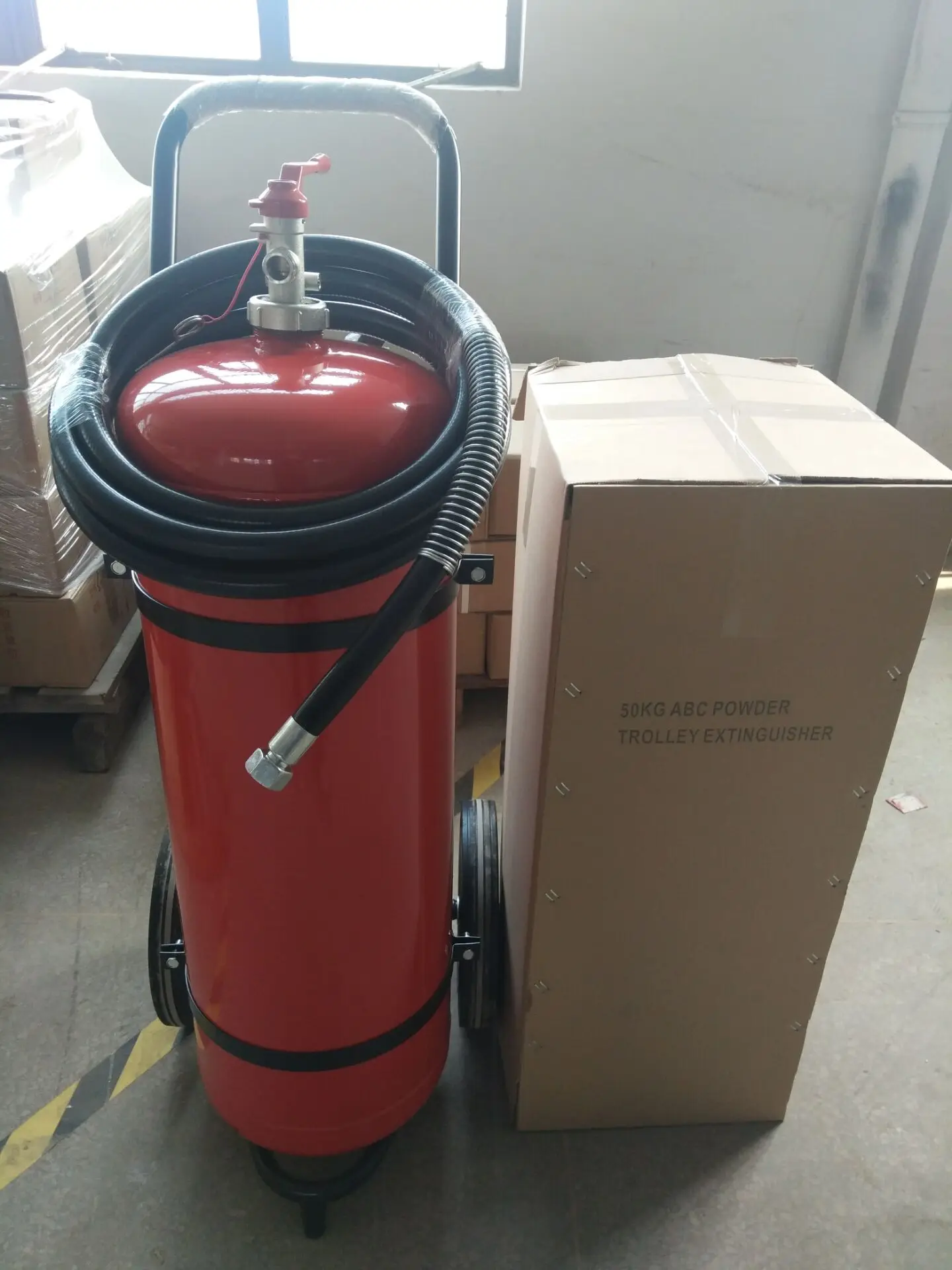

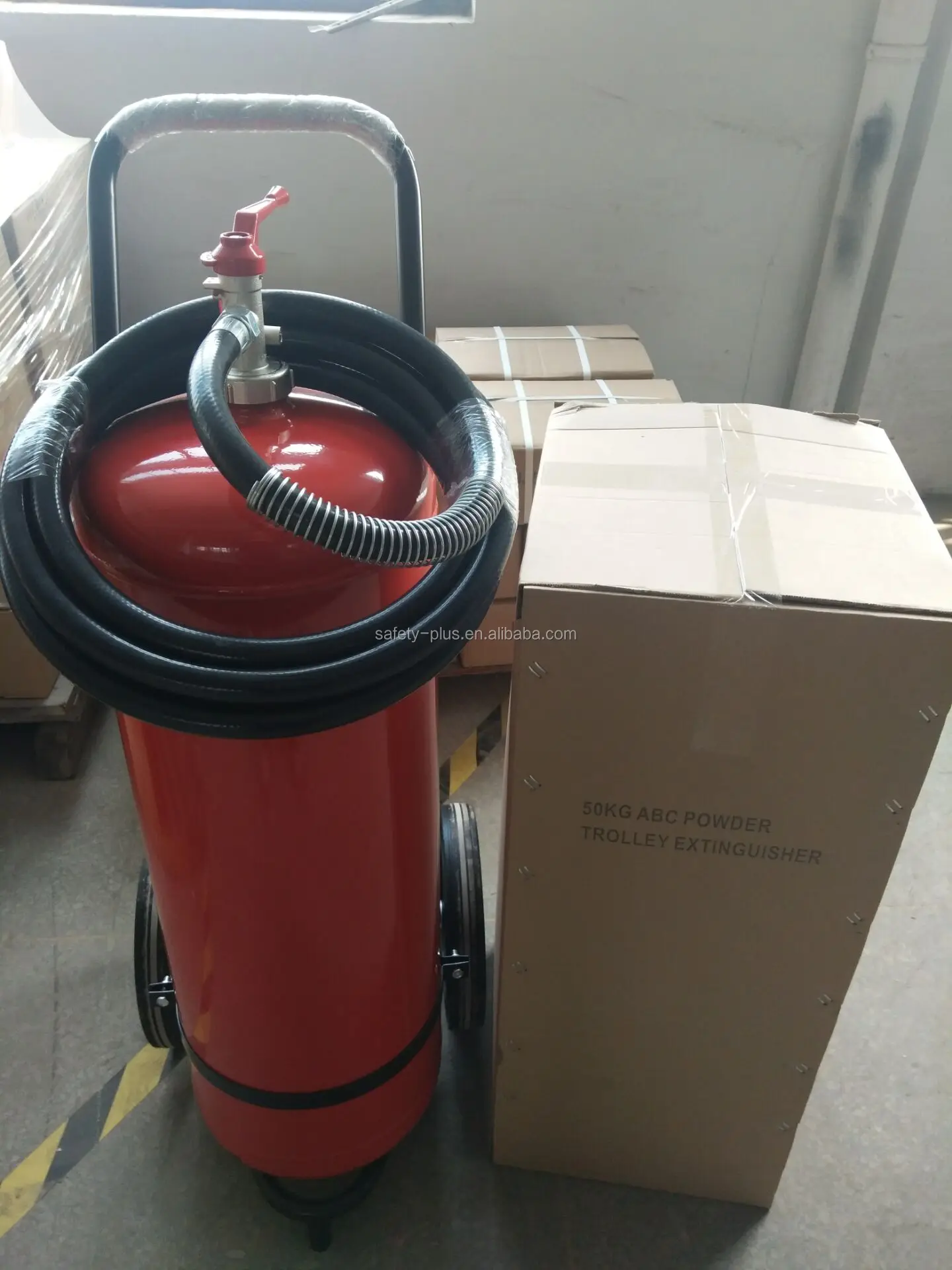

50kg 40% ABC Dry Chemical powder Trolley Fire Extinguisher

Specification of 50kg abc dry powder trolley fire extinguisher as below:

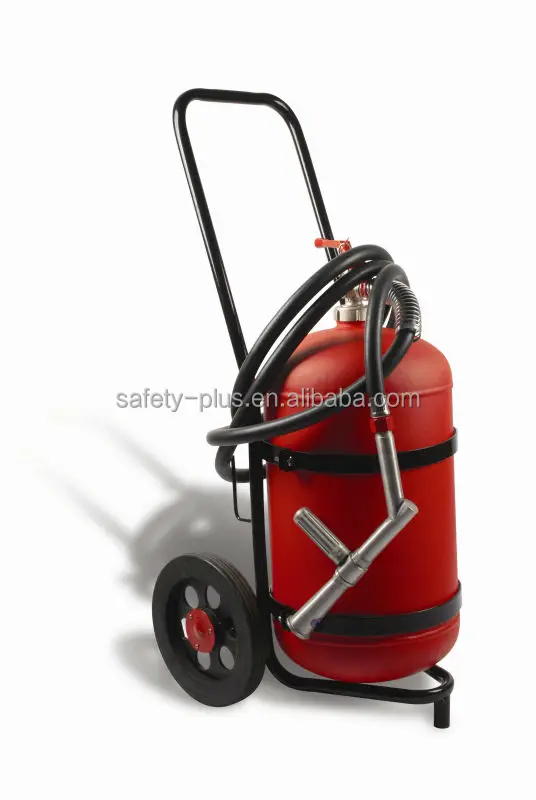

Model No.	SP01-07-25P	SP01-07-50P	SP01-07-100P

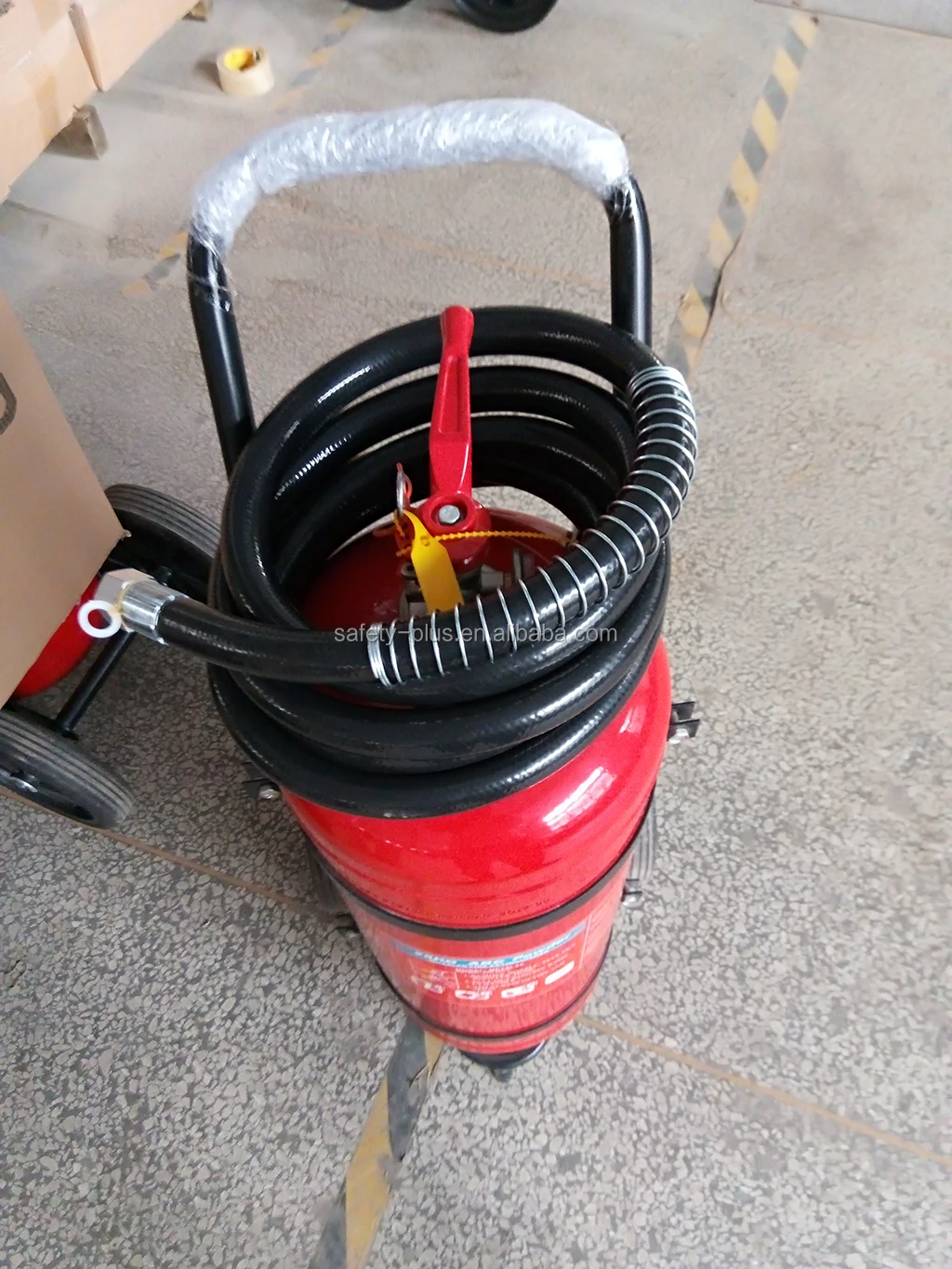

Type	25kg	50kg	100kg
Out Diameter (mm)	256	305	406
Height(mm)	595	930	1050
Volume (L)	31	59.5	121
Min.Thickness(mm)	2.5	2.5	2.8
Working Pressure (Bar)	14	14	14
Test Pressure(Bar)	30	30	30
Operating temp.	-30℃ to +60℃	-30℃ to +60℃	-30℃ to +60℃
Fire rating	55A ⅠB C	55A ⅡB C	57A ⅢB C
Extinguisher weight (kg)	37.5	77	145

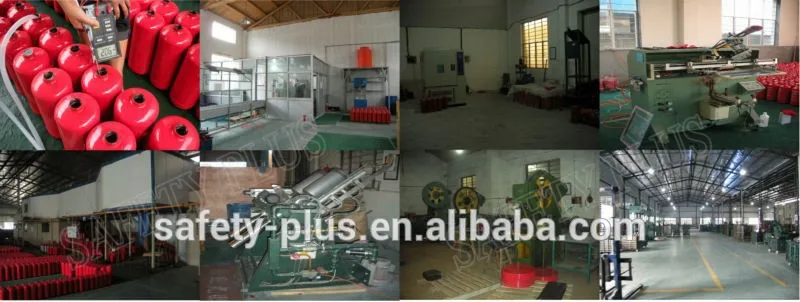

The Procedure for Production of fire extinguisher

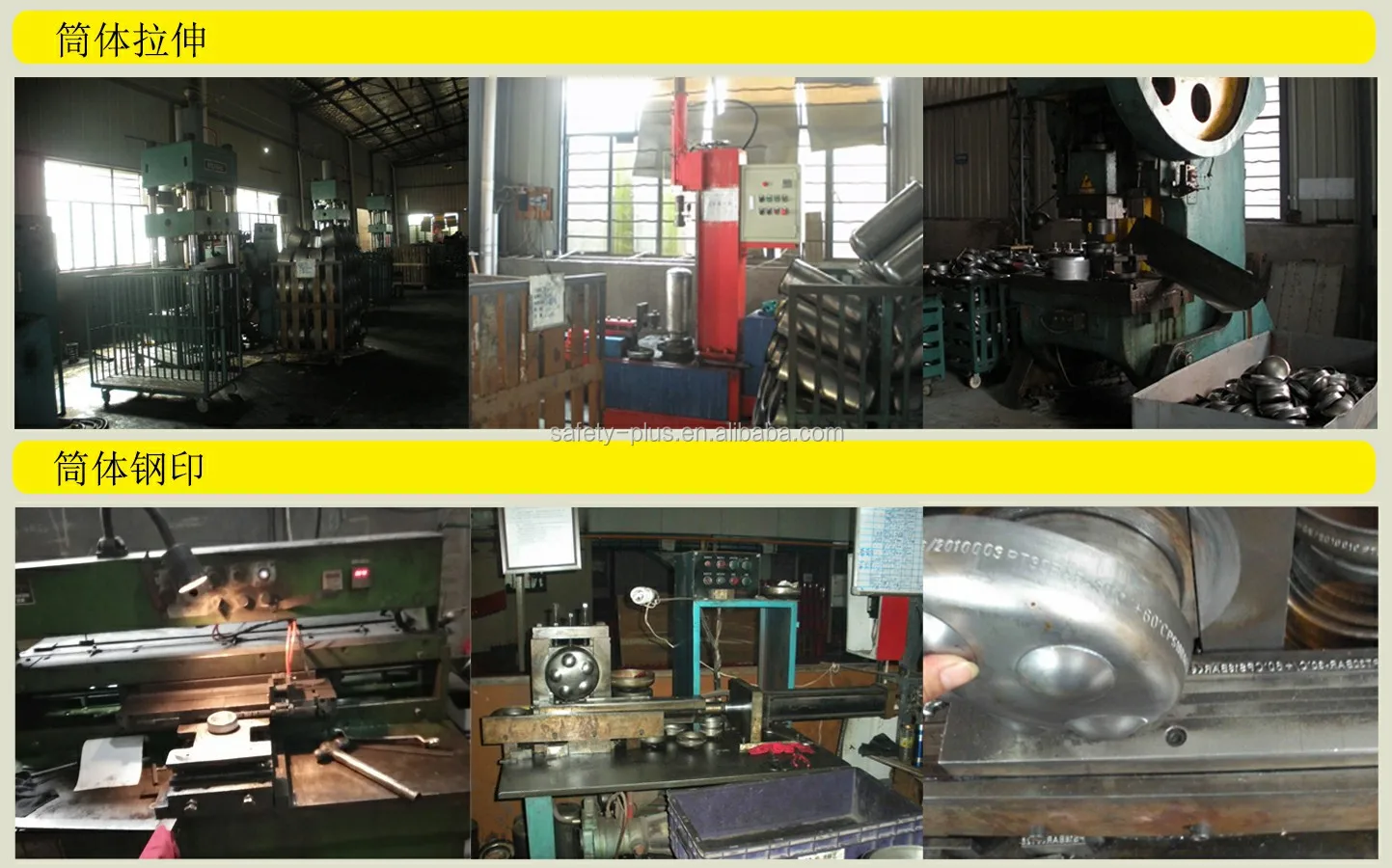

First Step: Stretching and Steel seal for cylinder

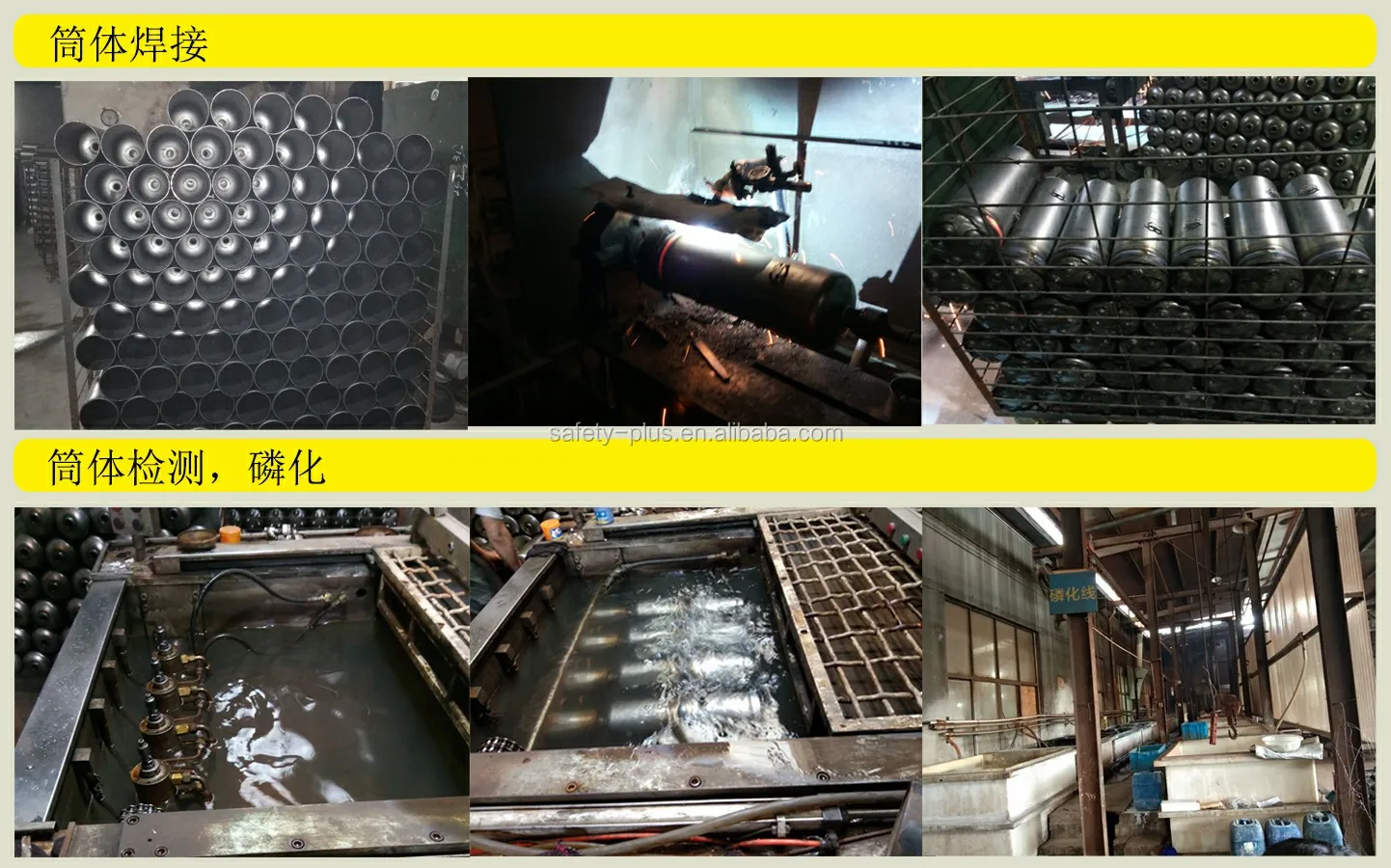

Second Step: Welding and phosphating of Cylinders

Third Step: Inner and Outer powder coating

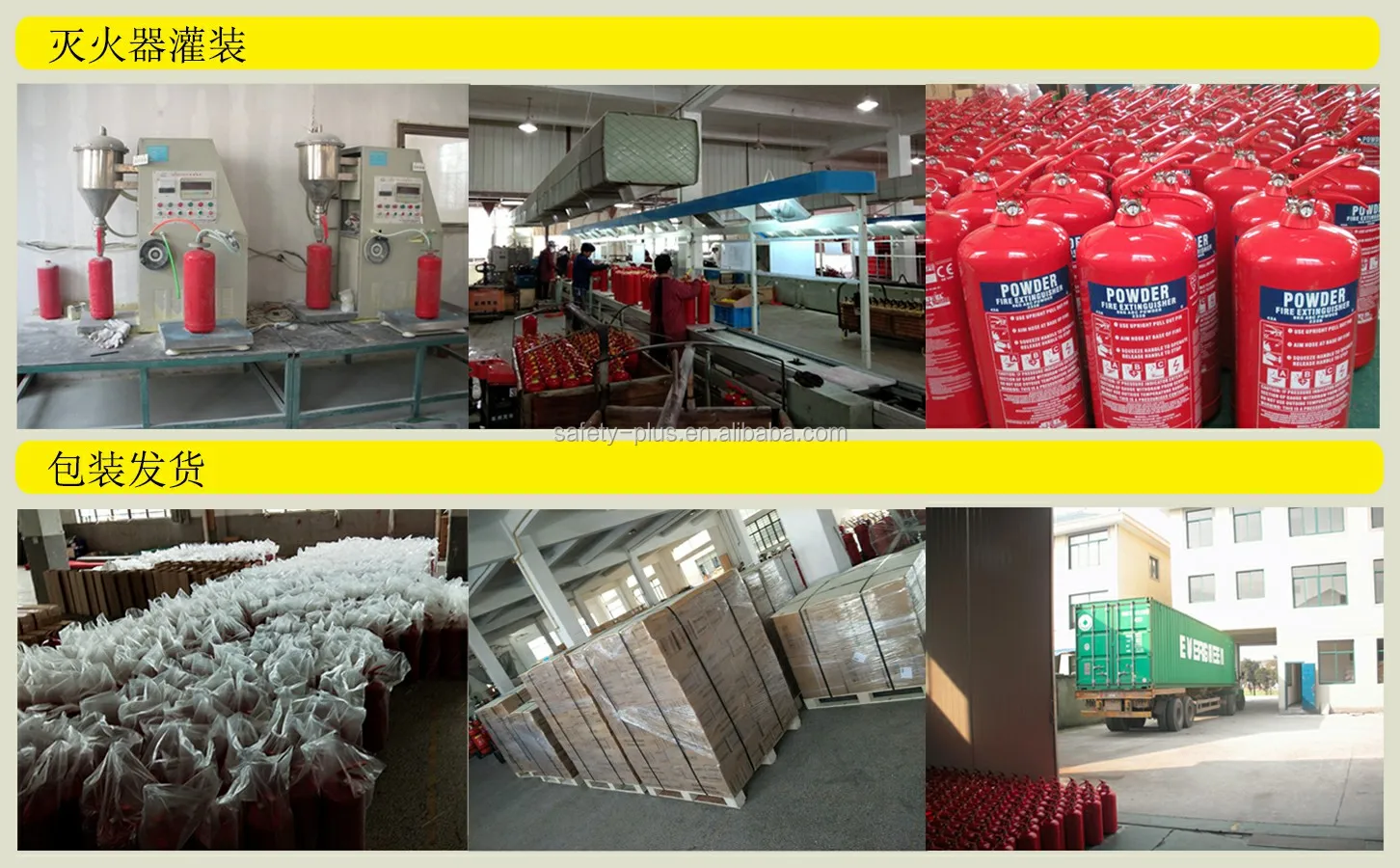

Fouth step: Filling and Package







• European standard extinguisher manufacturer with ISO and CE/PED certificate


• Professional, well maintained, high efficient machines and equipments


• Independent testing room with listed testing machines according to European standard


• Professional technical team with more than 10 years’ experience in fire extinguisher industry


• Internationalized sales team with 100% working enthusiasm


• Well trained workers who works in factory no less than 3years

• Fire extinguisher is used to save life in fire. There is no any cheating on extinguisher quality.


• CE/PED certified cylinder. Minimum thickness of cylinder complies with CE/PED standard. bURST pressure is higher than 90Bar.


• CE/PED certified valve with safety device. It complies with European standard fully. Some characteristics, such like Wall thickness, thread numbers, tightness, burst pressure etc. are higher than European standard.


• Very Strong discharge hose and Horn.


• Each cylinder pass hydrostatic test at 27bar for 30 seconds in workshop


• Each extinguisher pass water leakage test before leaves factory


• Very strong Wheels


• Label, screen printing, stamp, logo, marking and carton could be designed per your standard.


• Once we confirm your order, it means that we take responsibility to make you are happy.





SafetyPlus is a professional supplier which specializes in exporting excellent Chinese fire fighting product.

We focuses on providing one stop Chinese fire-fighting products to global medium to high level clients.



A Glasmpls of Safety Plus







Why choose us?



We are professional for exporting fire extinguisher & fire fighting equipment for many  yeas

We supply the suitable products what you needed

We can provide right price for right goods

We insist” your demands, our effort; your satisfaction, our goal”

We focus on perfect after-sales service.

Main prouducts



Fire Extinguishers: CO2 Extinguisher, Dry Chemical Powder Extinguisher, Vehicle Extinguisher, Foam /Water Extinguisher,  Trolley  Extinguisher, Stainless steel fire extinguisher, Automatic fire extinguisher.

Fire extinguisher Parts : Extinguisher cylinder, valve ,pressure gauge,extinguisher agent (ABC powder ,Foam…

Fire Water Systems : Fire Hose Reel, Fire Cabinet, Flat Hose, Spray Nozzle,  Coupling, Fire Hydrant, Fire monitor.

Fiber glass products: Fire blanket, welding blanket, Fiber glass cabinet
