Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

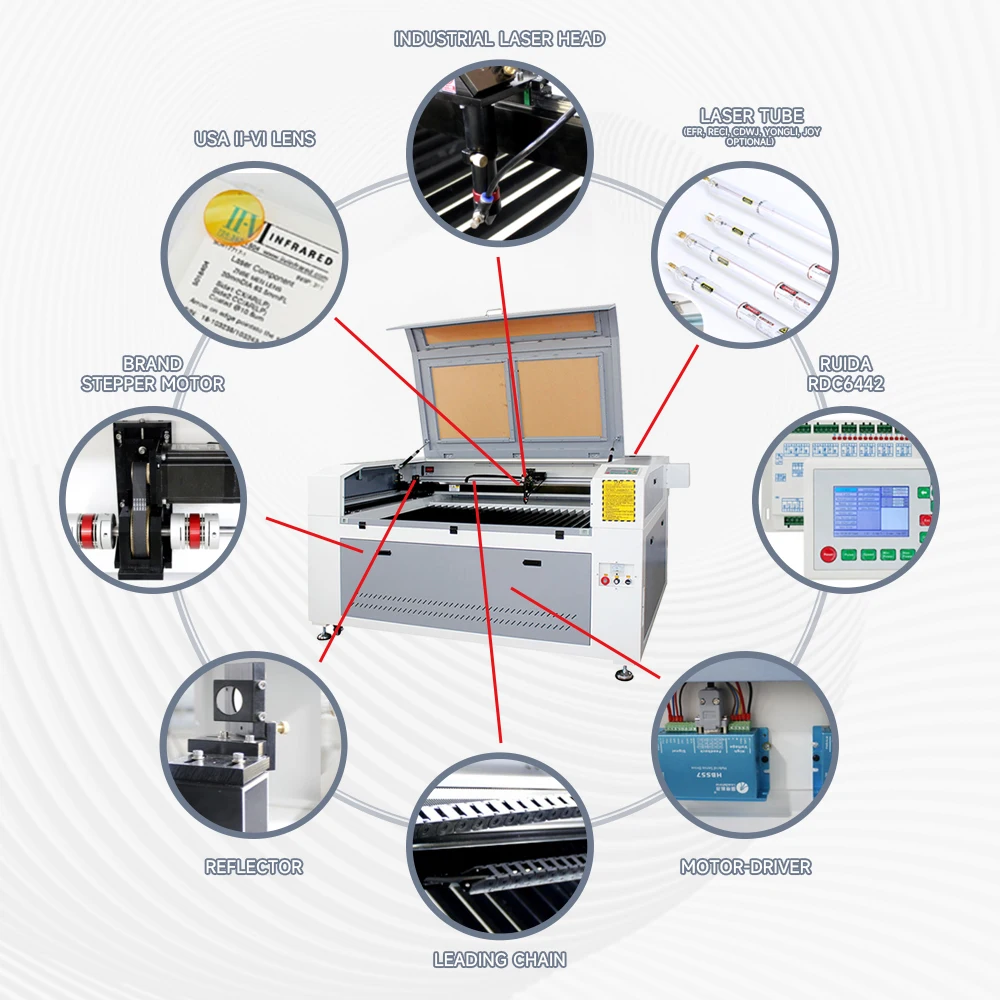

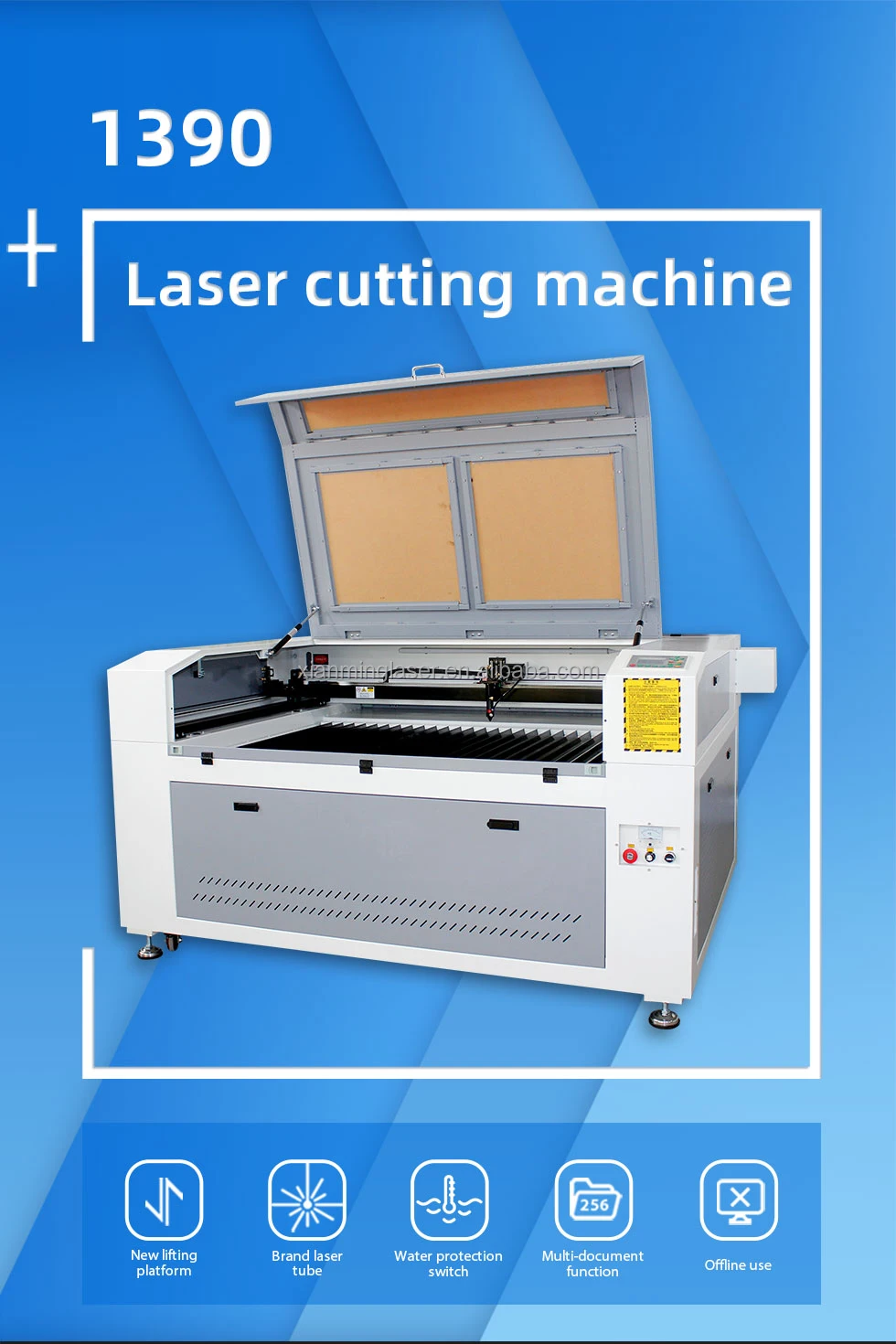

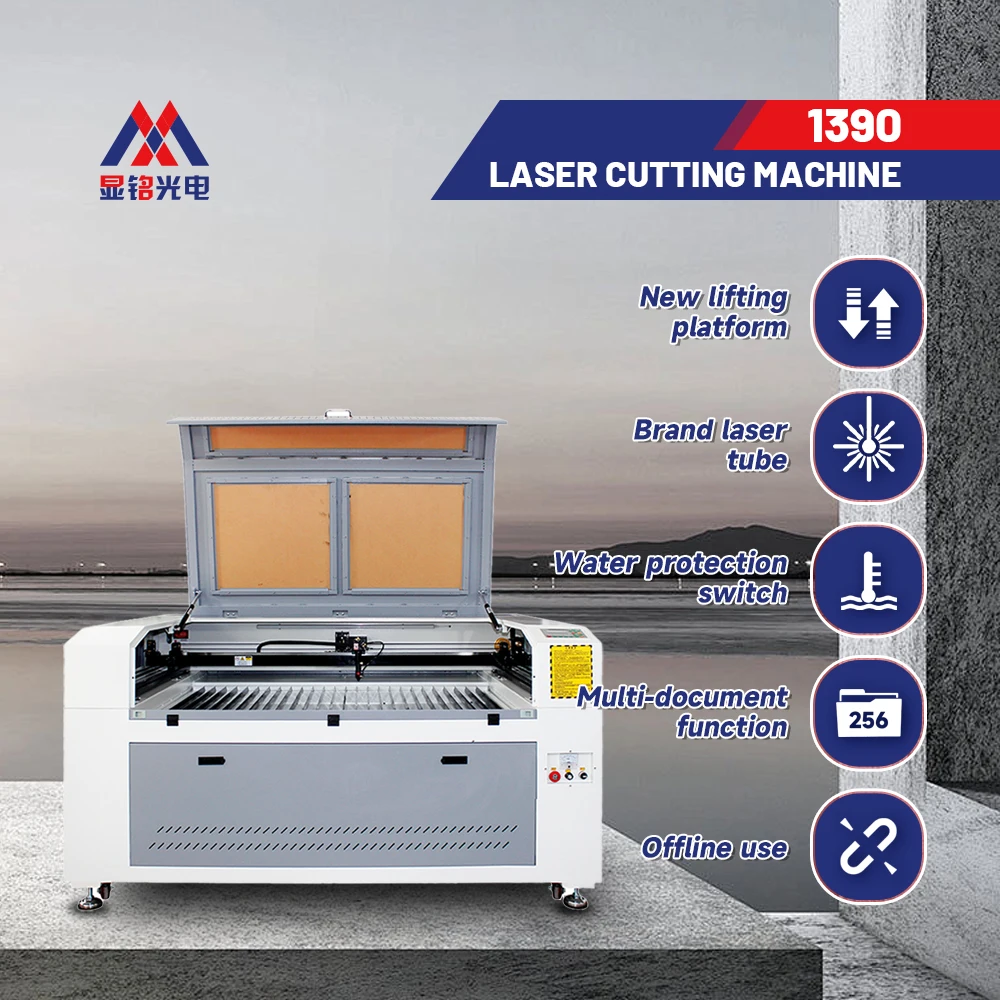

High Quality High Precision Dsp Control System 1390 CO2 Laser Cutting Machine Factory Supply Wood Plastic MDF Leather
- Category: >>>
- Supplier: Liaocheng Xianming Laser Co. Ltd.
Share on (10000017185051):
Product Overview
Description
PRODUCT DETAILS
DETAILS
Product Parameters
Model | Model | ||||||
Worktable | honeycomb or blade | ||||||

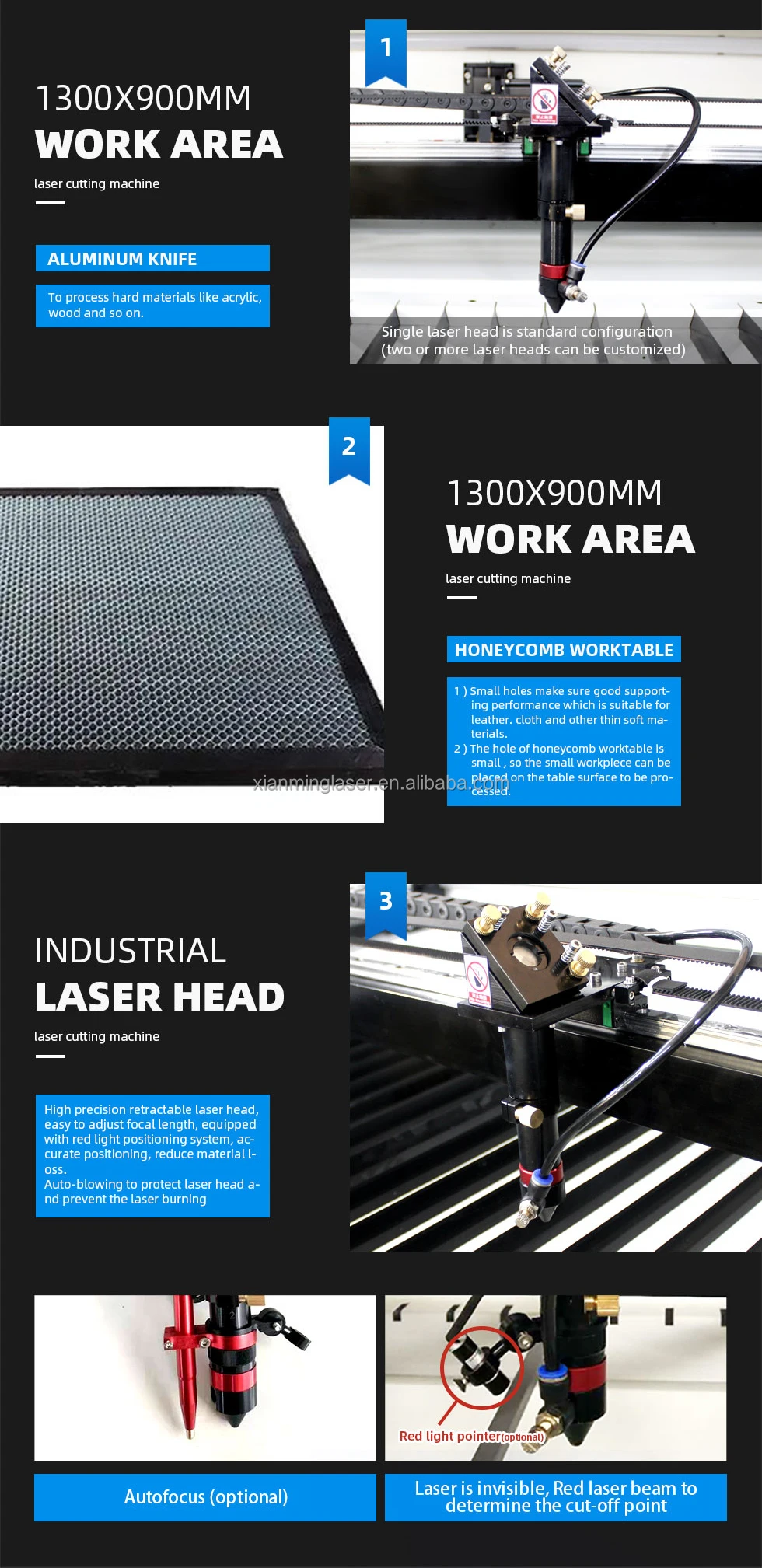

Eneraving area | 1300*900mm | ||||||
Laser Power | 60w/80w/ 100w/ 150w / 300w | ||||||
Engraving Speed | 0-60000mm/min | ||||||
Engraving Depth | 5mm | ||||||
Cutting Speed | 0-5000mm/min | ||||||
Cutting Depth (Acrylic) | 0-30mm (acrylic) | ||||||
Up and down work table | Up and down work table | ||||||
Minimum Shaping Character | 1*1mm | ||||||
Resolution Ratio | 0.0254mm (1000dpi) | ||||||
Power Supply | 220V(or110V)+/-10% 50Hz | ||||||
Resetting Positioning | Accuracy less than or equal to 0.01mm | ||||||

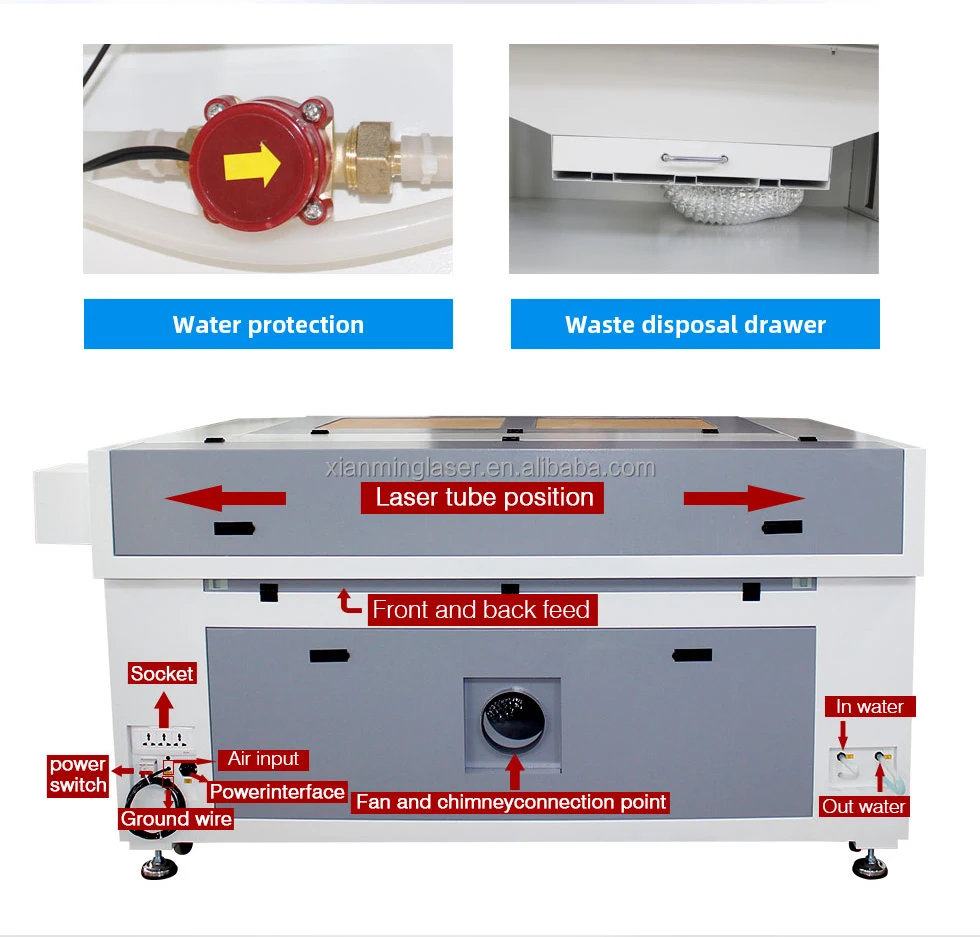

Water protecting sensor and alarm | Yes | ||||||
Operating Temperature | 0-45℃ | ||||||
Operating Humidity | 35-70℃ | ||||||
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF | ||||||
Operation System | Windows 98/ME/2000/XP/VISTA/Windows 7/8 | ||||||
Software | RDWorks/LaserCAD | ||||||
Engraving on Curve Surfaces(Yes/No) | No | ||||||

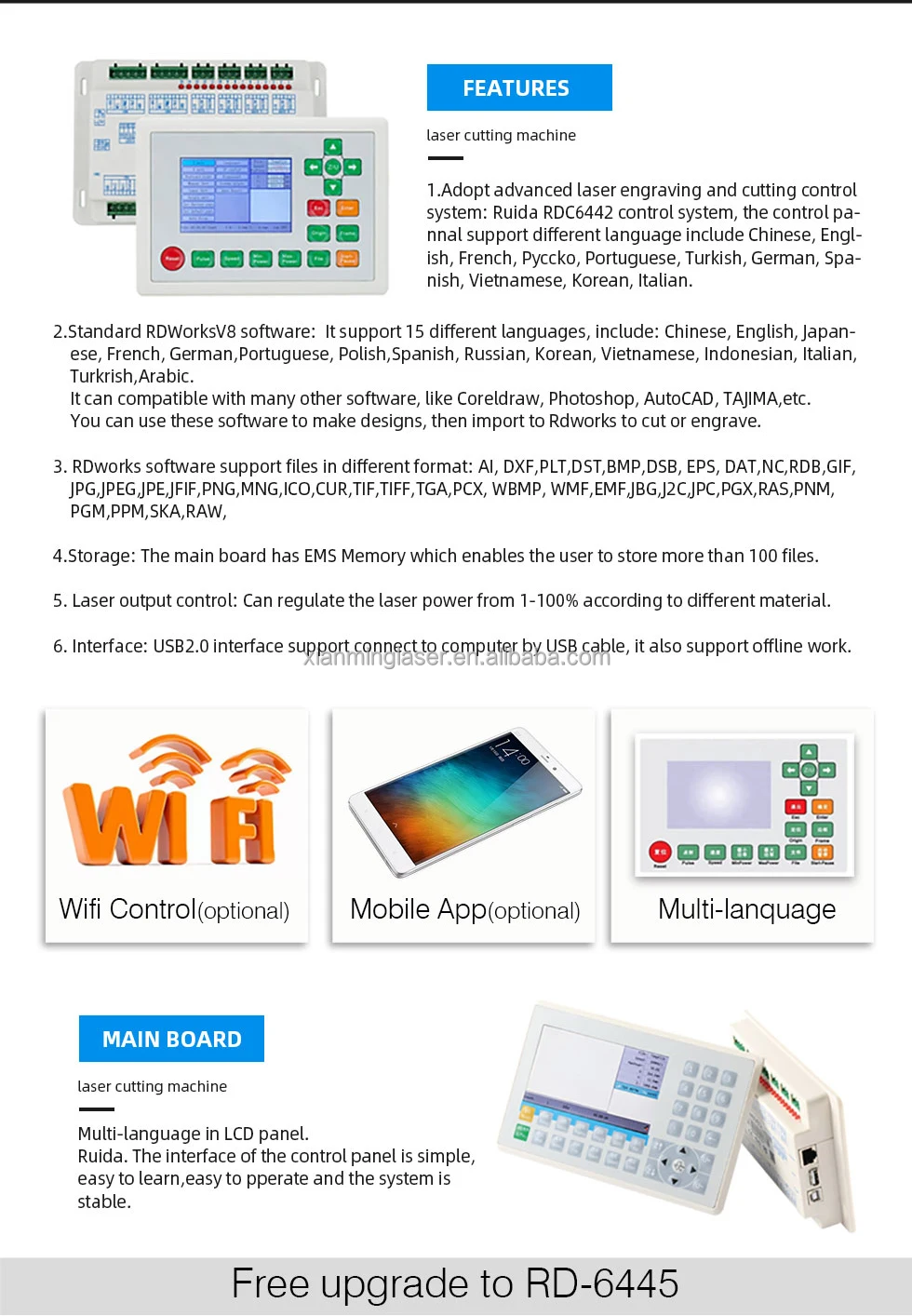

Control Configuration | DSP | ||||||
Water Cooling(Yes/No) | Yes | ||||||
Maximum Height Of Materials To Engrave(mm) | Maximum Height Of Materials To Engrave(mm) | ||||||

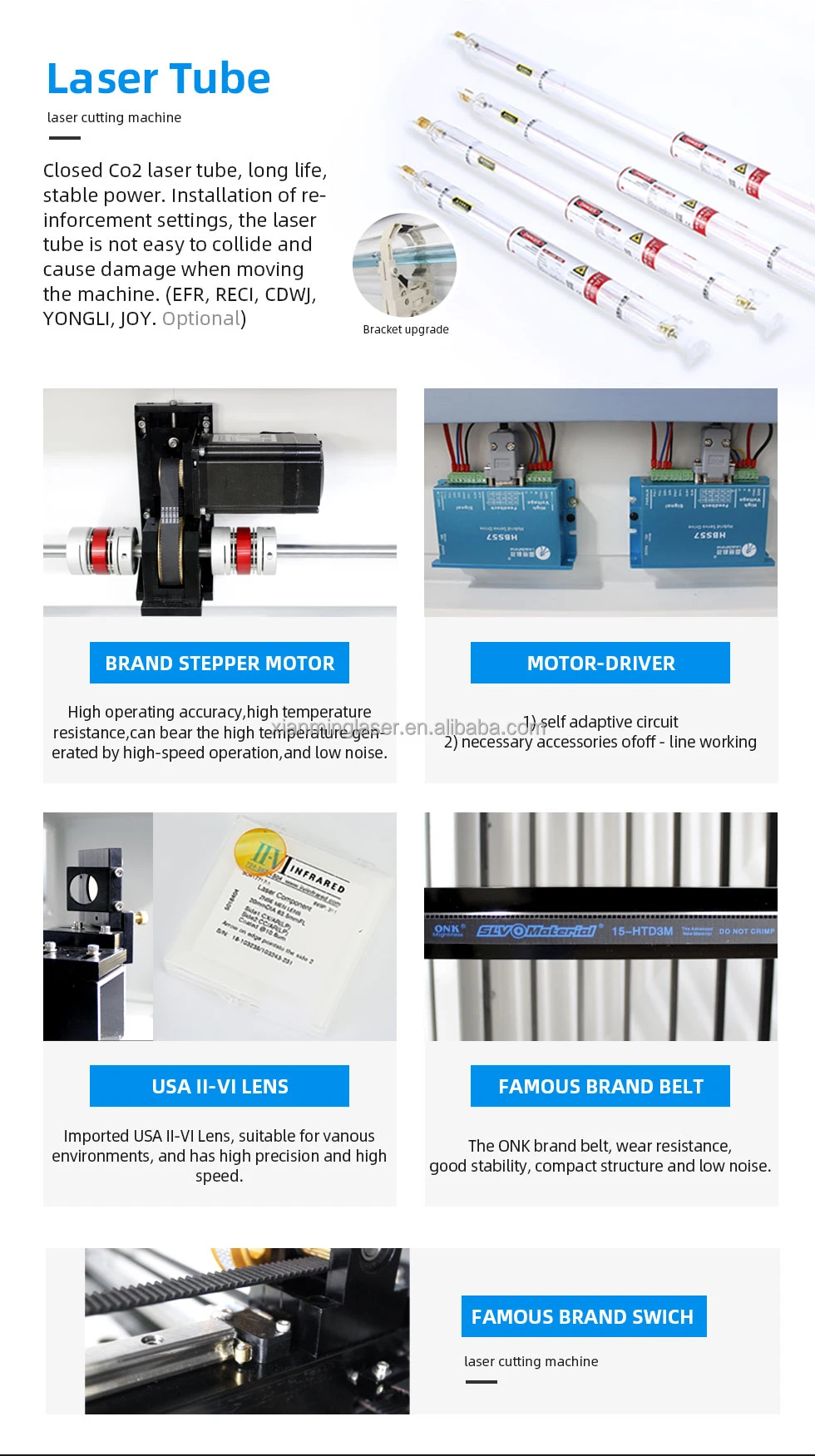

Laser Tube | Sealed CO2 glass laser tube | ||||||

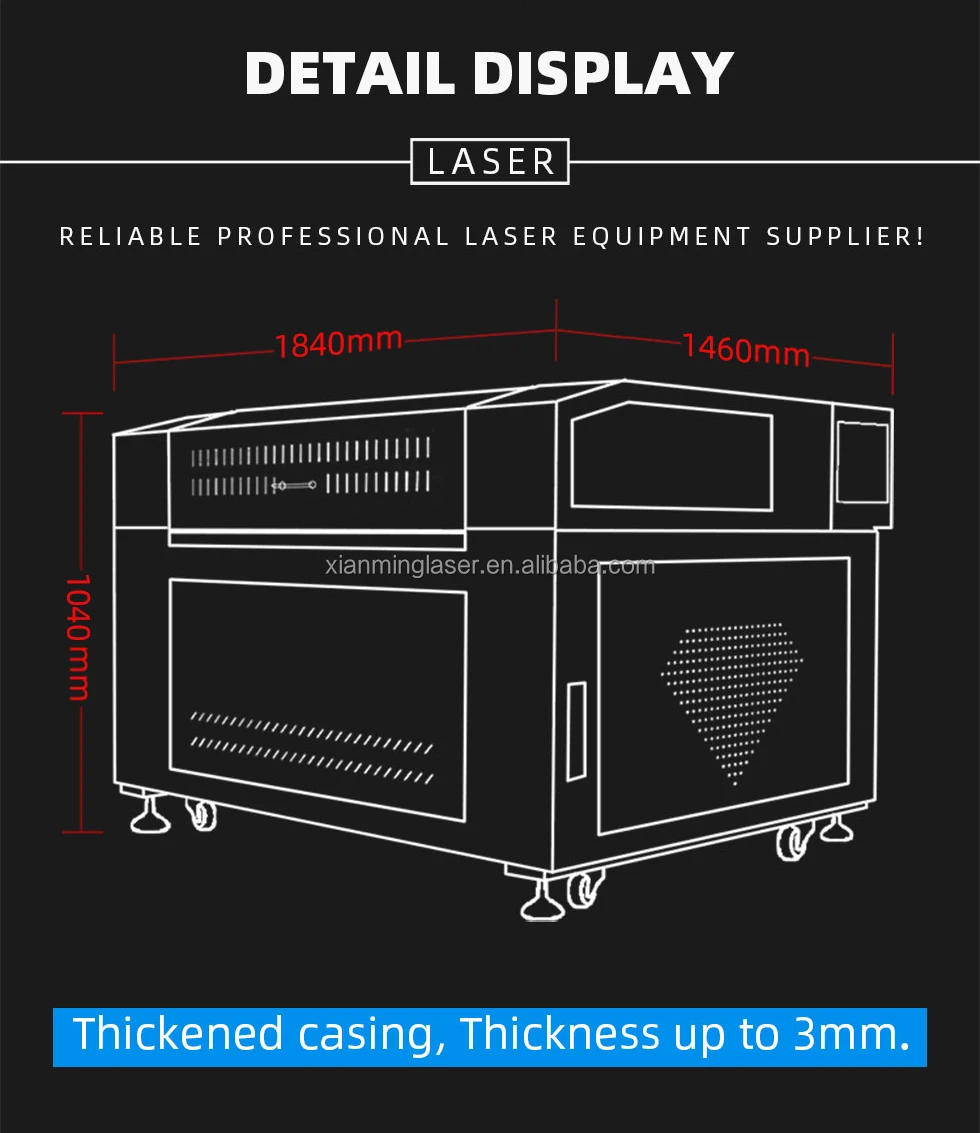

Machine Dimension | 1840x1400x1030(mm) | ||||||
Packing Dimension | 2040×1600×1320mm | ||||||
Gross Weight | 410kg | ||||||
OUR CERTIFICATE

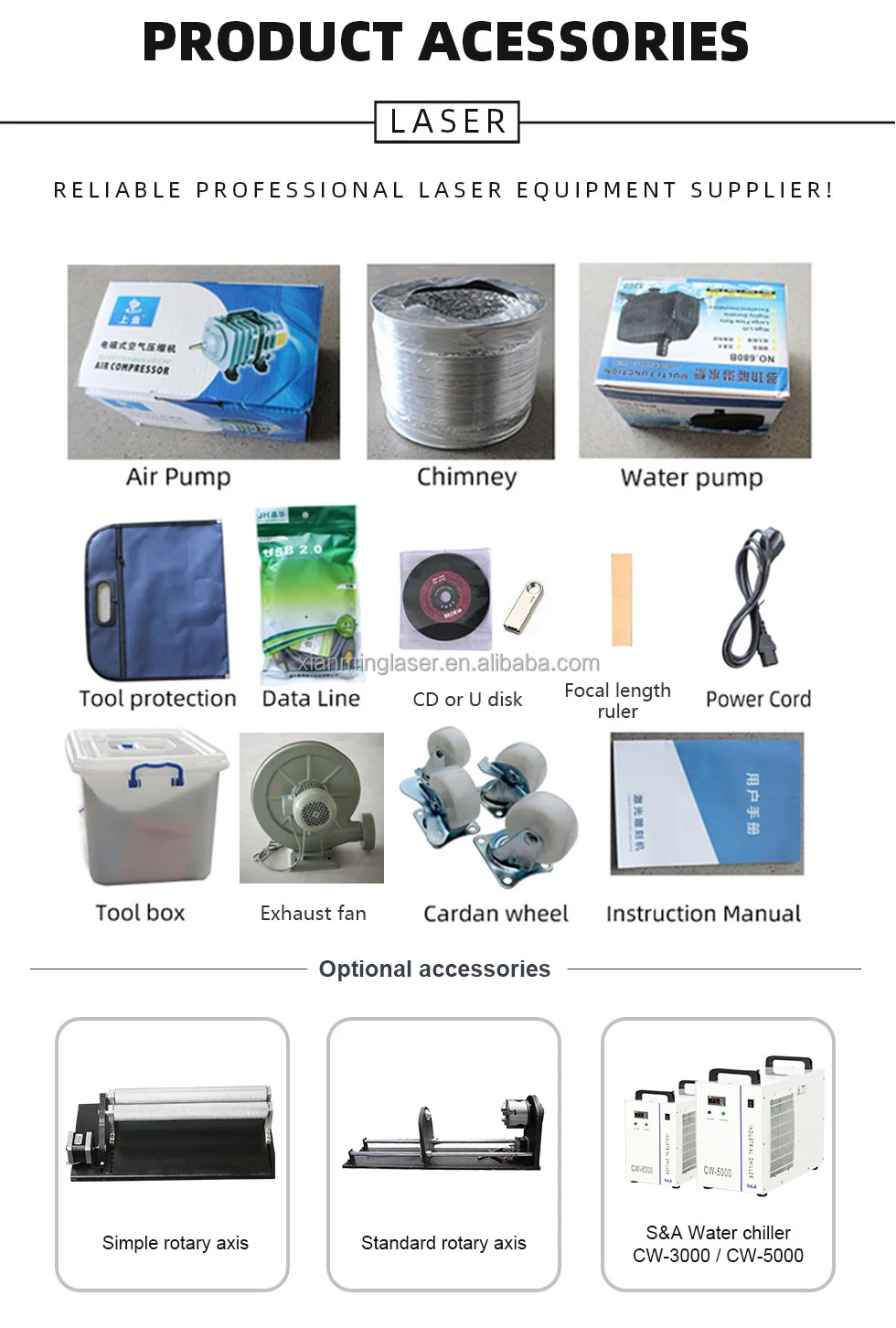

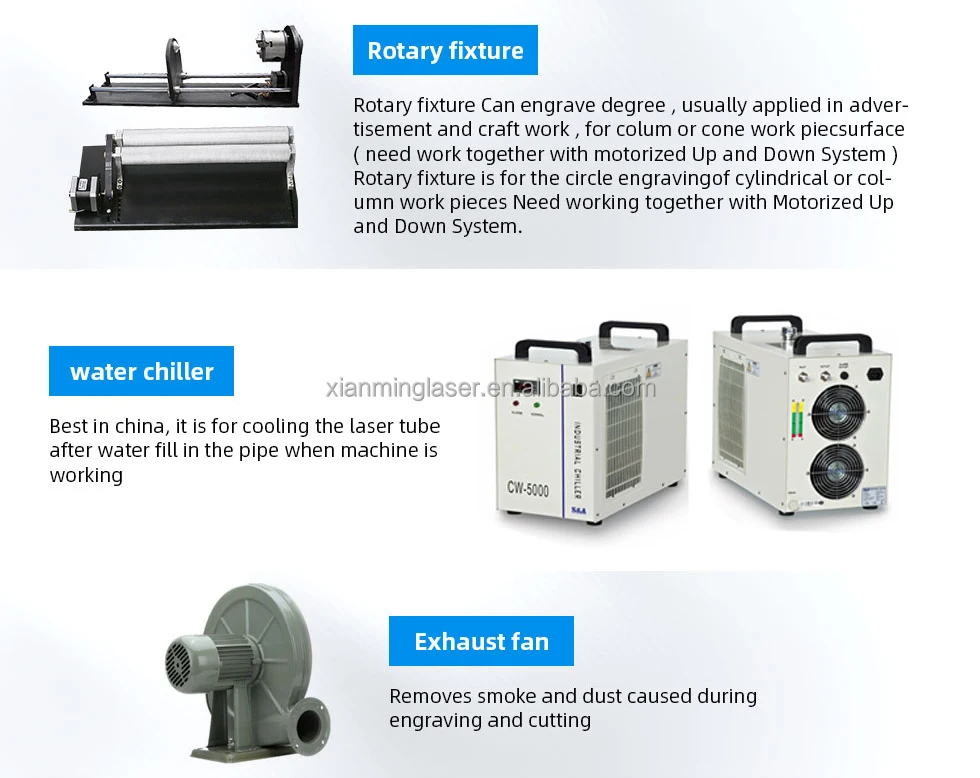

Product Acessories
APPLICATION
Product packaging
