EU Deye BOS G High Voltage 48V ESS LiFePO4 Battery Pack Container 30kWh 50Kwh deye battery 15kw Lithium Ion Battery with BMS
EU Deye BOS-G High Voltage 48V ESS LiFePO4 Battery Pack Container 30kWh 50Kwh deye battery 15kw Lithium Ion Battery with BMS
EU Deye BOS-G High Voltage 48V ESS LiFePO4 Battery Pack Container 30kWh 50Kwh deye battery 15kw Lithium Ion Battery with BMS
EU Deye BOS-G High Voltage 48V ESS LiFePO4 Battery Pack Container 30kWh 50Kwh deye battery 15kw Lithium Ion Battery with BMS
EU Deye BOS-G High Voltage 48V ESS LiFePO4 Battery Pack Container 30kWh 50Kwh deye battery 15kw Lithium Ion Battery with BMS
EU Deye BOS-G High Voltage 48V ESS LiFePO4 Battery Pack Container 30kWh 50Kwh deye battery 15kw Lithium Ion Battery with BMS
EU Deye BOS-G High Voltage 48V ESS LiFePO4 Battery Pack Container 30kWh 50Kwh deye battery 15kw Lithium Ion Battery with BMS

EU Deye BOS G High Voltage 48V ESS LiFePO4 Battery Pack Container 30kWh 50Kwh deye battery 15kw Lithium Ion Battery with BMS

Share on (10000017390364):


Price:$830.00 - $930.00

Quantity:


Product Overview

Description





Products Description




Specification


Model
BOS-G
Main Parameter
Cell Chemistry
LiFePO4
Module Energy(kWh)
5.12
Module Capacity(Ah)
100
Battery Module Qty in series.(Optional)
3
(Min)
8
(Standard US Cluster)
12
(Standard EU Cluster)
System Nominal Voltage (V)
153.6
409.6
614.4
SystemOperating Voltage(V)
124.8~175.2
332.8~467.2
499.2~700
SystemEnergy(kWh)
15.36
40.96
61.44
System Usable Energy (kWh) 1
13.8
36.86
55.29


Charge/Discharge Current (A) 2
Recommend
50
Nominal
100
Peak Discharge
(2 mins,25°C)
125
Working Temperature(°C)
Charge: 0~55/Discharge:-20~55
Status Indicator
Yellow: Battery HighVoltage Power On
Red: Battery SystemAlarm
Communication Port
CAN2.0/RS485
Humidity
5~85%RH
Altitude
≤2000m
IPRating of Enclosure
IP20
Dimension(W/D/H,mm)
589*590*1640
589*590*2240
Weight Approximate(kg)
258
434
628
Installation Location
Rack Mounting
Storage Temperature(°C)
0~35
Recommend Depth of Discharge
90%
Cycle Life
25±2°C, 0.5C/0.5C,EOL70%≥6000
Warranty 3
10years
Certification
CE/IEC62619/UL1973/UL9540A/UN38.3


1 DC Usable Energy, test conditions: 90% DOD, 0.2C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
2 The current is affected by temperature and SOC.
3 The warranty is due whichever reached first of warranty period or life cycle power.

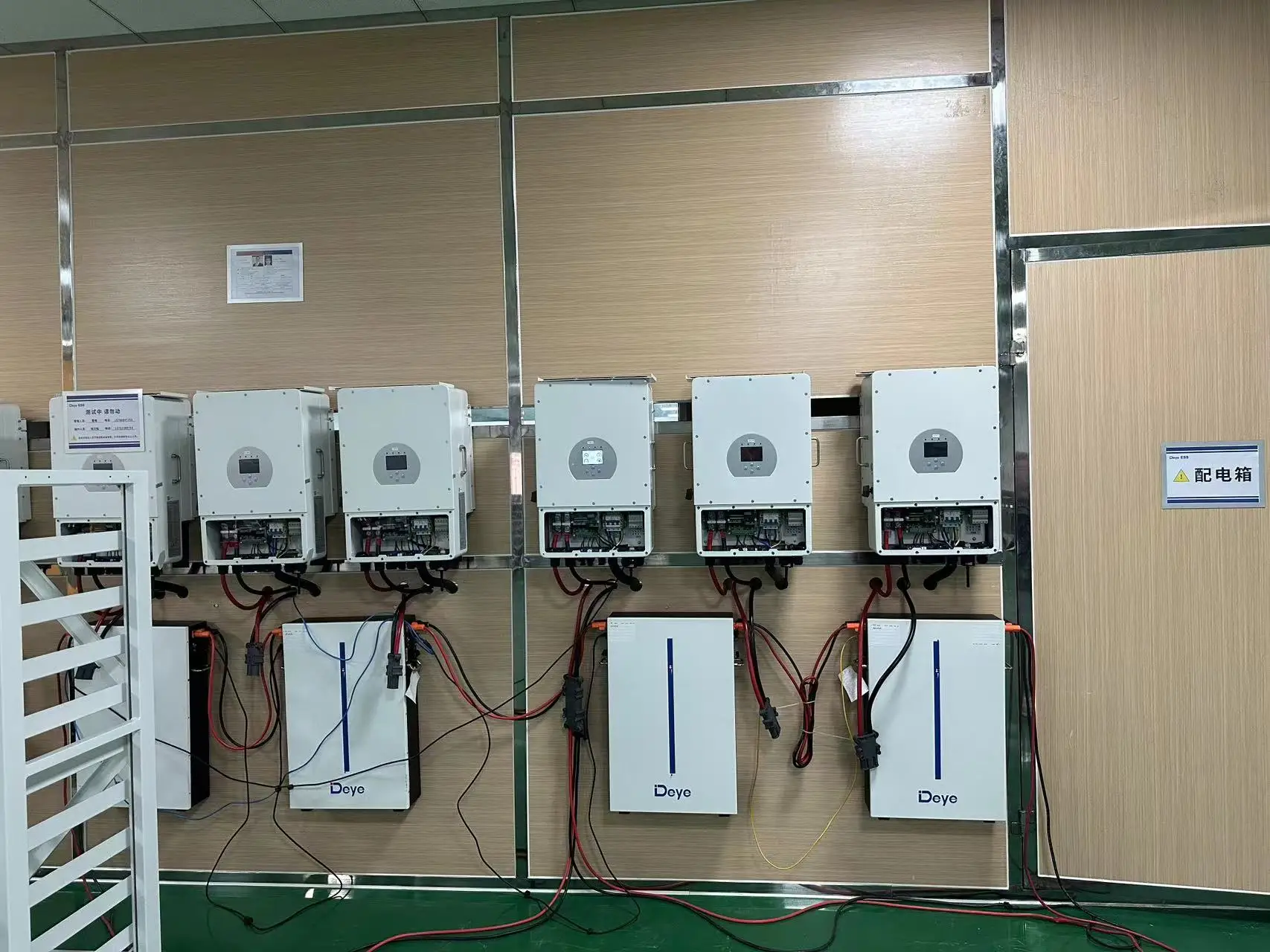

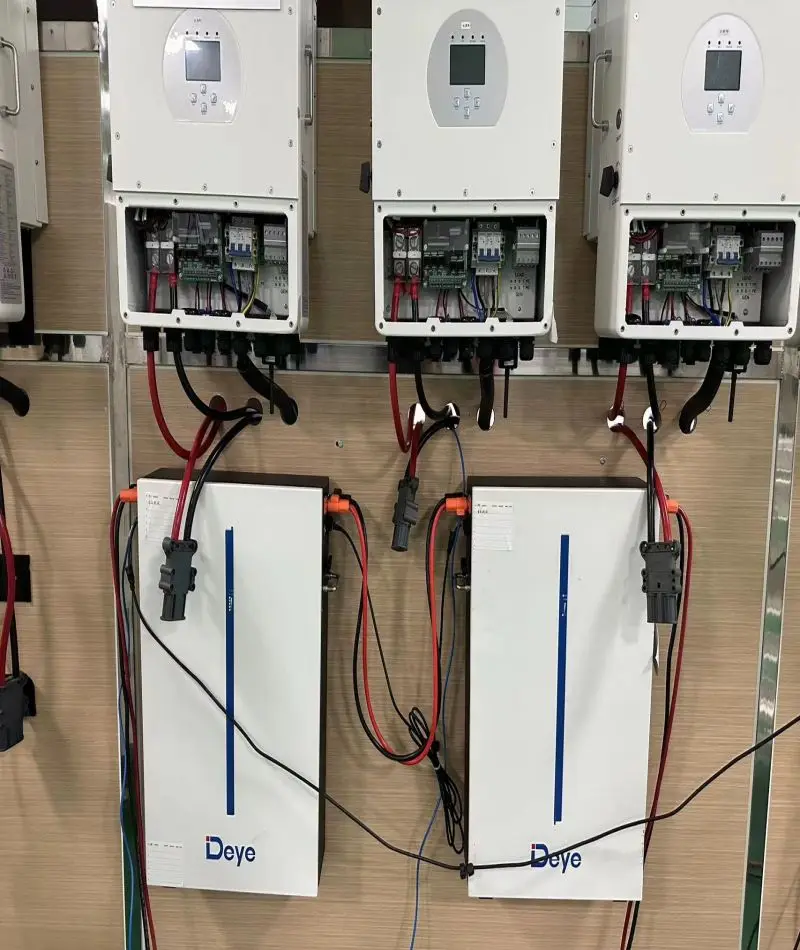

Product Usage






Company Profile




We have established long term strategic partnershipswith the following brands: Deye, Goodwe, Solis,Growatt, SRNE, SMA, Hoymiles,MUST, HUAWEl, etc




FAQ


1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.

2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.

3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.

4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.

5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders,dates may vary depending on quantity.
