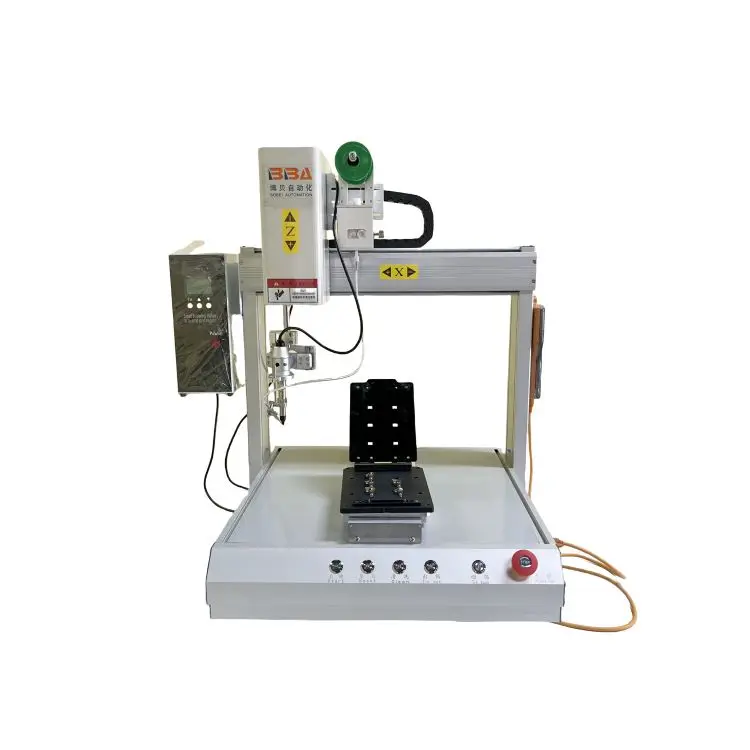

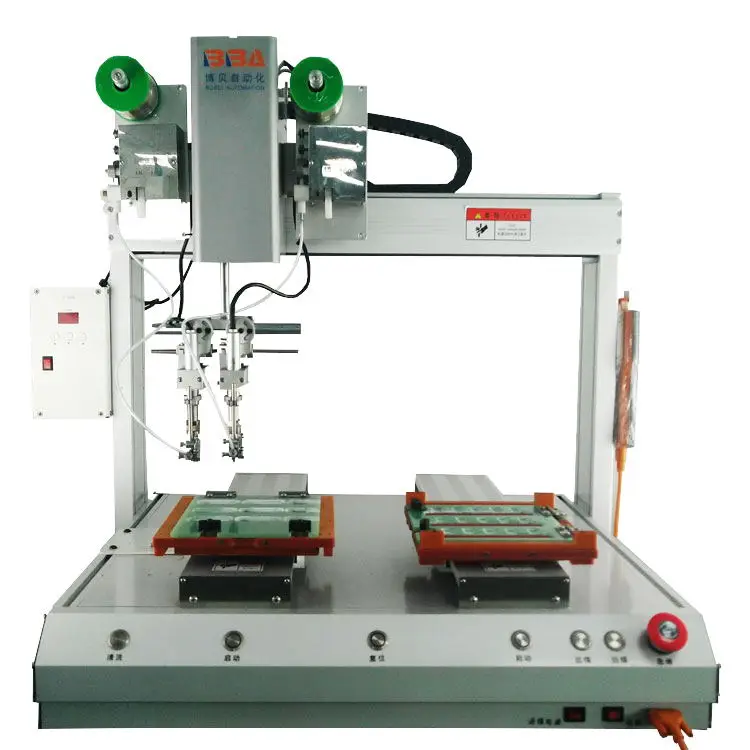

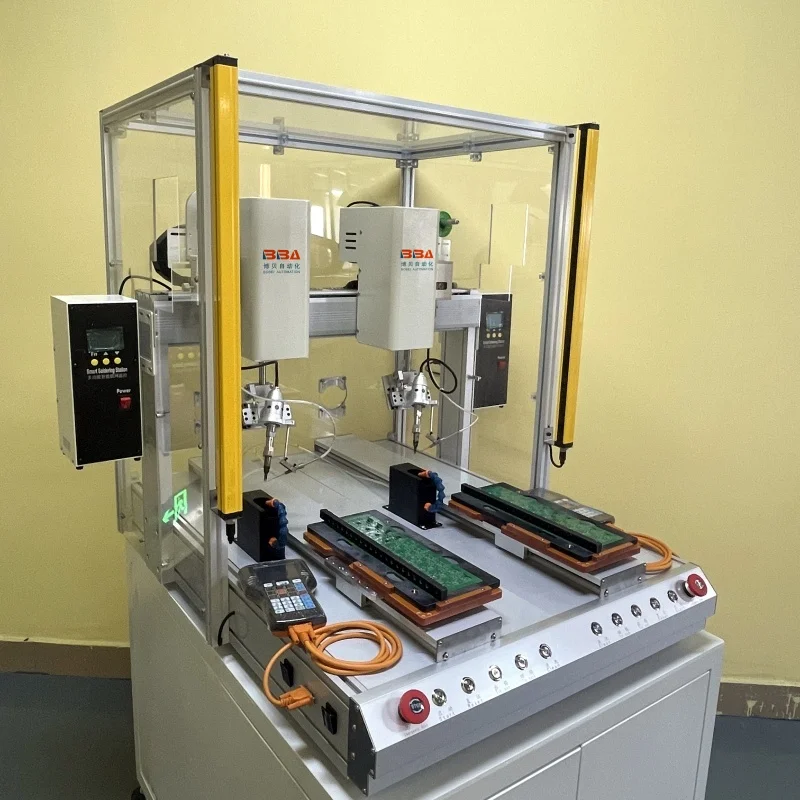

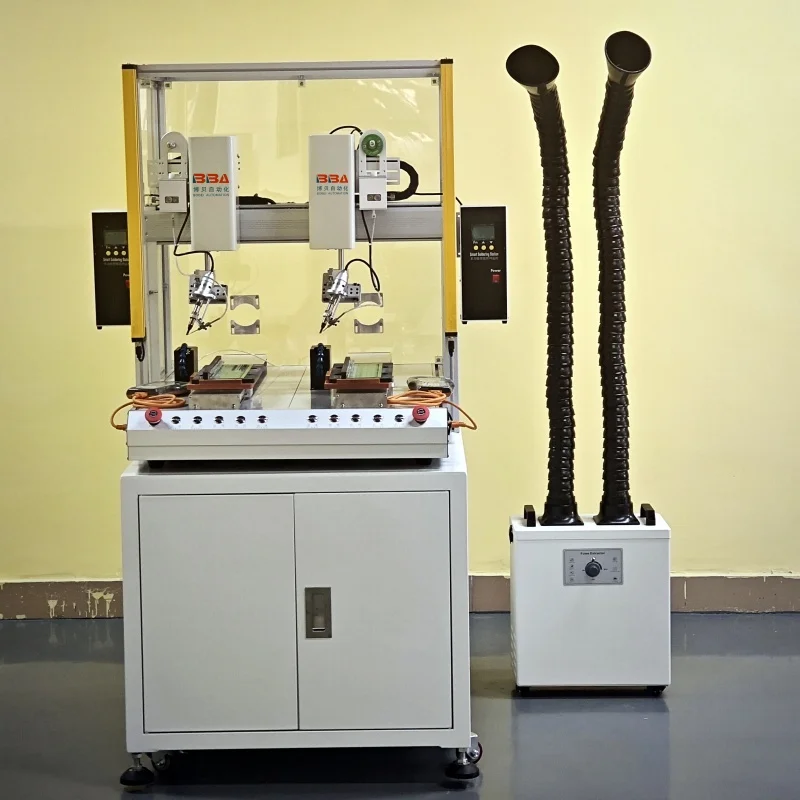

BBA Automatic Soldering equipment machine with Safety cover fume extractor tin soldering machine welding robot soldar machine
- Category: >>>
- Supplier: Dongguan City Bobang Intelligent Technology Co. Ltd.
Share on (10000017571978):
Product Overview
Description
BBA Automatic Soldering equipment machine with Safety cover fume extractor tin soldering machine welding robot soldar machine
Automatic soldering machines, also known as automated tin soldering machine or soldering robot, offer a range of features to streamline and improve soldering processes in industrial settings. Here are some common features found in auto soldering machines:

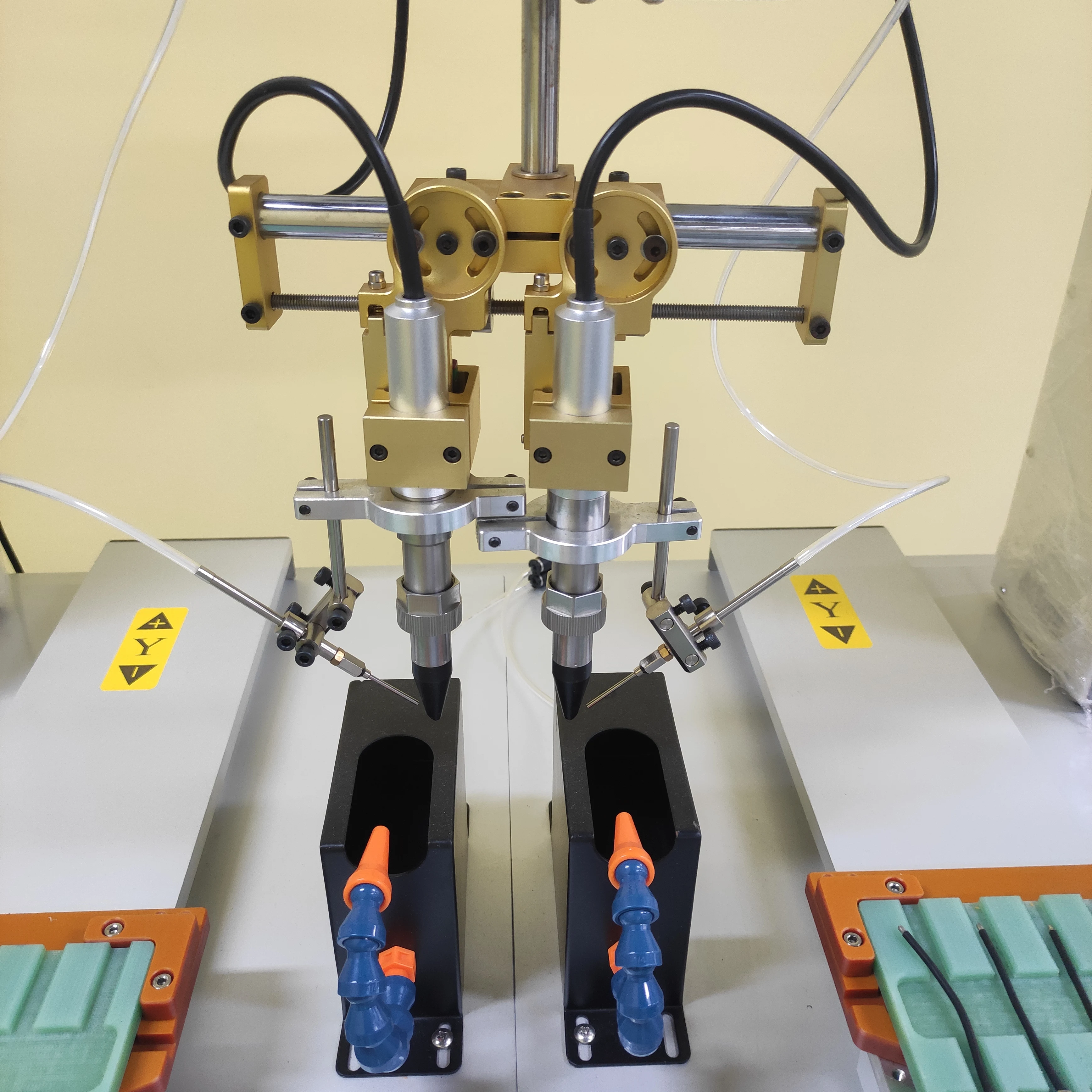

1. Soldering Iron or Soldering Head: These machines come with soldering irons or soldering heads that deliver heat to melt solder and join components. The soldering tools may have interchangeable tips to accommodate different soldering tasks and component sizes.
3. Temperature Control: Auto soldering machines feature precise temperature control mechanisms to ensure that the soldering iron operates at the correct temperature for the soldering process. This helps prevent overheating or under heating, ensuring reliable solder joints.
4. Solder Feed System: Many auto soldering machines include a solder feed system that automatically supplies solder to the soldering iron or soldering head during the soldering process. This ensures a consistent supply of solder and reduces the need for manual solder feeding.
3. Temperature Control: Auto soldering machines feature precise temperature control mechanisms to ensure that the soldering iron operates at the correct temperature for the soldering process. This helps prevent overheating or under heating, ensuring reliable solder joints.
4. Solder Feed System: Many auto soldering machines include a solder feed system that automatically supplies solder to the soldering iron or soldering head during the soldering process. This ensures a consistent supply of solder and reduces the need for manual solder feeding.
Products Description

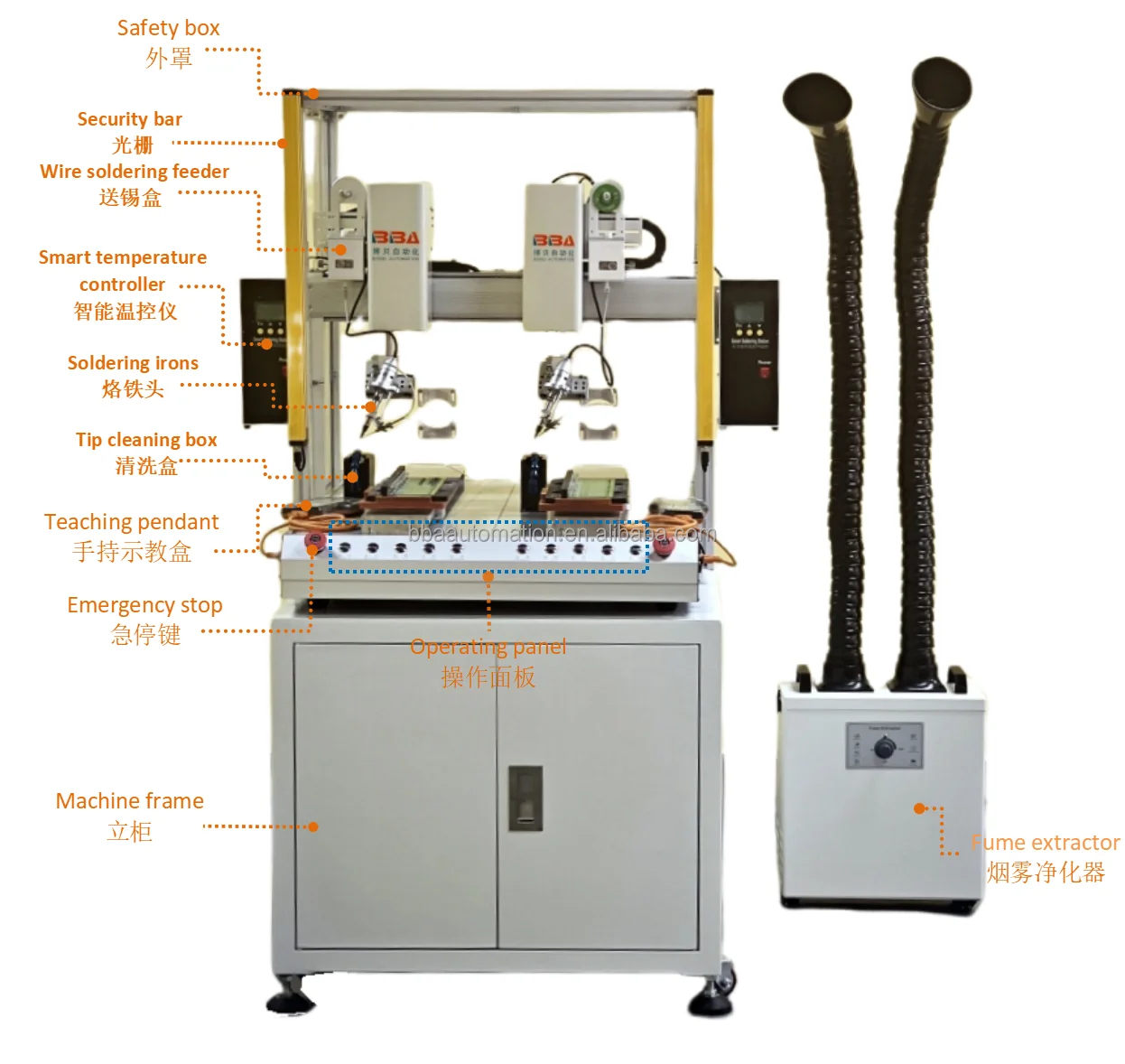

Machine external accessories
Detailed operating instructions & videos prepared to teach you step by step
Customaztion available
Specifications of soldering machine series
Model | BBA-331HX (Single Y platform) | BBA-5331HX (Dual Y platforms) | BBA-6331HX (Dual soldering systems) | BBA CUSTOMIZED | |||||||||
Voltage | AC 110/220V 50/60HZ | ||||||||||||
Power | 350W | 350W | 700W | To order | |||||||||
Movable range | X | 300mm | X | 500mm | X | 500mm | To order | ||||||
Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 300mm | ||||||||
Z | 100mm | Z | 100mm | Z | 100mm | ||||||||
R | 360° | R | 360° | R | 360° | ||||||||
Max moving speed | X | 600mm/s | X | 600mm/s | X | 600mm/s | To order | ||||||
Y | 600mm/s | Y1/Y2 | 600mm/s | Y1/Y2 | 600mm/s | ||||||||
Z | 400mm/s | Z | 400mm/s | Z | 400mm/s | ||||||||
R | 300°/s | R | 300°/s | R | 300°/s | ||||||||
Repeat Positioning Accuracy | ±0.02mm (X * Y * Z), ±0.05° (R) | To order | |||||||||||
Maximum Load Weight | 8KG (For Work Platform) | To order | |||||||||||
Programming File Capacity | 256MB, up to 999 files, single file up to 1000 points | To order | |||||||||||
Preheating Temperature Range | 0℃~ 550℃ | To order | |||||||||||
Solder Wire Diameter | 0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm) | To order | |||||||||||
Tin feeding control | Precision stepper motor | To order | |||||||||||
External Dimensions(L*W*H) | 70*60*85(CM） | 85*60*85(CM） | 100*60*85(CM） | To order | |||||||||
Weight | 65KG | 90KG | 120KG | To order | |||||||||
Customer case
Packing & Delivery
Company Profile
FAQ
Q: Why choose us? | ||||||||
A: We are factory and provide overall solutions for processing equipment. Our standard equipment is very complete,all are in stock and can be shipped quickly. We have our own equipment factory, which can fully customize equipment according to customer requirements, such as ordering different machine size& appearance and brand for agents. | ||||||||
Q: How can we guarantee quality? | ||||||||
A: We implement strict incoming materials inspection and 100% tests before shipment. Furthermore, our products have CE certificate. | ||||||||
Q: How long is your warranty? | ||||||||
A: Lasts for 12 months, lifetime technical support. | ||||||||
Q: Why need use automatic soldering machine? | ||||||||
A: Can guarantee all soldering point are uniform and precise by iron soldering machine | ||||||||
Q: What solder wire can be used for automatic soldering robot? | ||||||||
A: 0.4~2.0mm solder wire. | ||||||||
Q: What's the bulk order delivery time? | ||||||||
A: Order lead time will be 3~10 working days, depends on your product. | ||||||||
