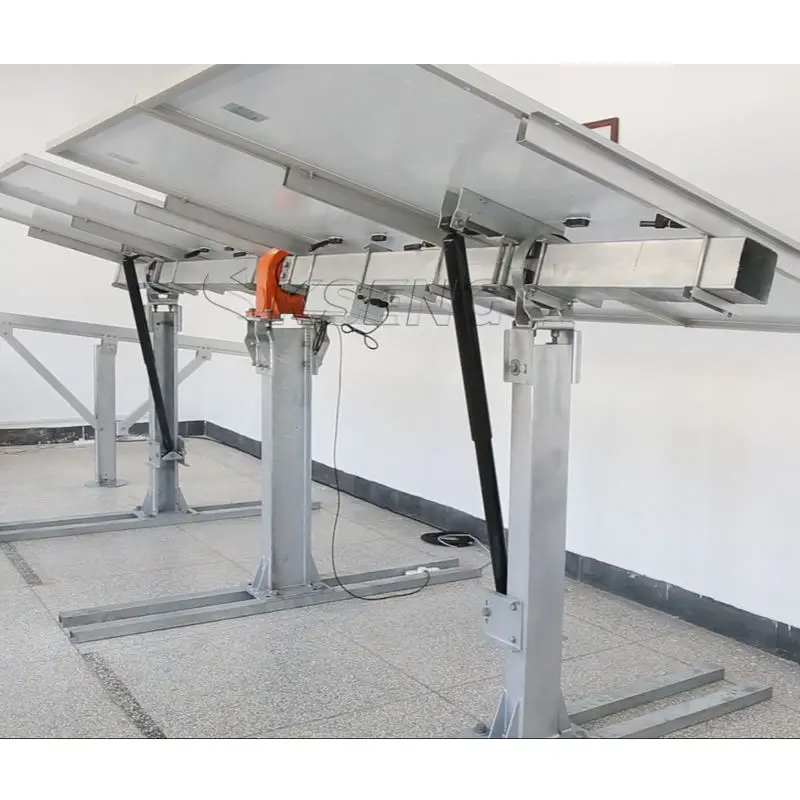

Eco Worthy Solar Tracking System Pv Tracking System Solar Brackets Single Axis Solar Tracker
- Category: >>>
- Supplier: Xiamen Kseng New Energy Co. Ltd.
Share on (10000017695075):
Product Overview
Description
Products Description
Why choose single-axis solar tracking over dual-axis?
1.Single-axis tracking systems offer a longer lifespan, outlasting dual-axis tracking solutions.
2.Boasting a straightforward design, single-axis tracking systems incur lower operational expenses and come ata more affordable price point than their dual-axis counterparts.
3.Single-axis tracking is particularly advantageous for projects with budget constraints or those located inregions with frequent cloud cover.
4.The efficiency of single-axis tracking installations is nearly 32.17% higher than that of fixed solar panels.
2.Boasting a straightforward design, single-axis tracking systems incur lower operational expenses and come ata more affordable price point than their dual-axis counterparts.
3.Single-axis tracking is particularly advantageous for projects with budget constraints or those located inregions with frequent cloud cover.
4.The efficiency of single-axis tracking installations is nearly 32.17% higher than that of fixed solar panels.
What's Suitable Region For Solar Tracking System?
(1) lf require high energy output and consistentperformance.
(2) For regions those with high latitudes or variable weather conditions.
(3)Rugged and hilly terrain.
① Fully fit for 210 larger modules.
② Intelligent AI algorithm,can increase 15%-30% yield gain
③ Adopt ion to various terrains allowing a north-south slope up to 10%-20%.
④ Easy installation and easy maintenance. ⑤ Stable and reliable operation.
Kseng Solar Tracking System Advantages
3. Reduce the force on the drive column by 50%.
4. Reduce spindle torsion angle by 60%.
5. Better system wind resistance.

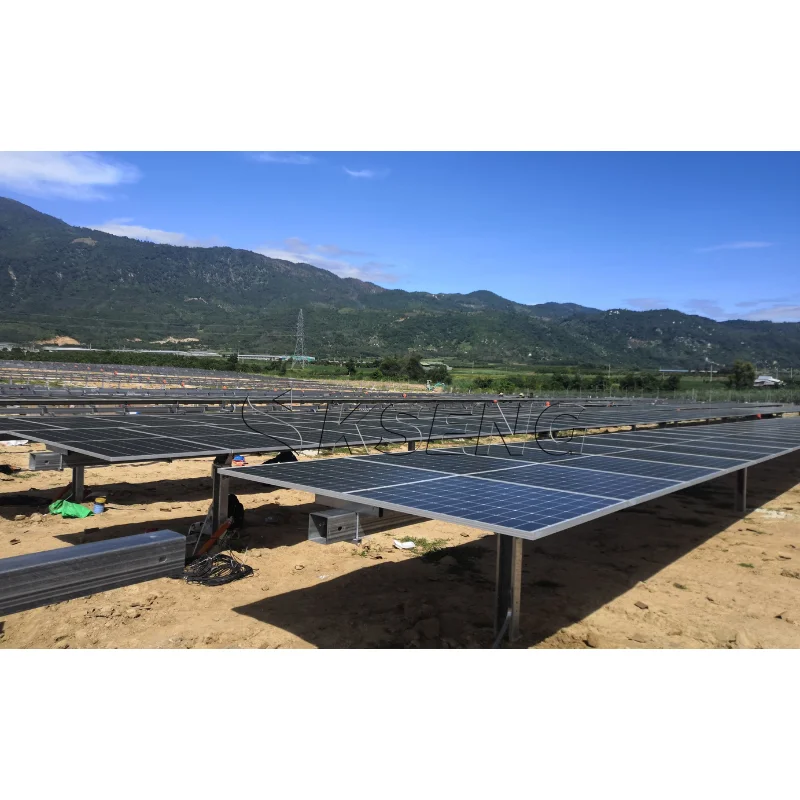

Terrain adaptability
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
3. Unlimited slope in the east-west.
CPP Wind Tunnel Test
Kseng established a partnership with CPP WIND ENGINEERING，the first American company to provide wind engineering services to
architects and engineers. Combining the frequency and characteristics of damping ratio of the KS-tracker tracking system, study
the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the
operation of the system.
architects and engineers. Combining the frequency and characteristics of damping ratio of the KS-tracker tracking system, study
the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the
operation of the system.
Component arrangement scheme
Tracking Structure Parameters | ||||||||
Tracking Technology | Dual-Portrait Horizontal flat single-axis tracking system | Maximum capacity per row | 72KWp(3 or 4 Strings of 210 Type Module) | |||||
PV-Modules quantity per row | 45PCS (2Px45) or 60PCS (2PX60) | Tracking range | ±45°to ±60° | |||||
Tracking accuracy | ±1° | Terrain Adaptability | 10°north-south, east -west unlimited | |||||
Protection of wind speed | 18m/s | Foundation form | Concrete (customizable all steel foundation) | |||||
Tracking Controller Parameters | ||||||||
Control system | MCU | Communication type | RS485 or wireless Zigbee | |||||
Night stow mode | Have | Backtracking algorithm | Have | |||||
Overload prevention | Have | Self trouble checking Function | Have | |||||

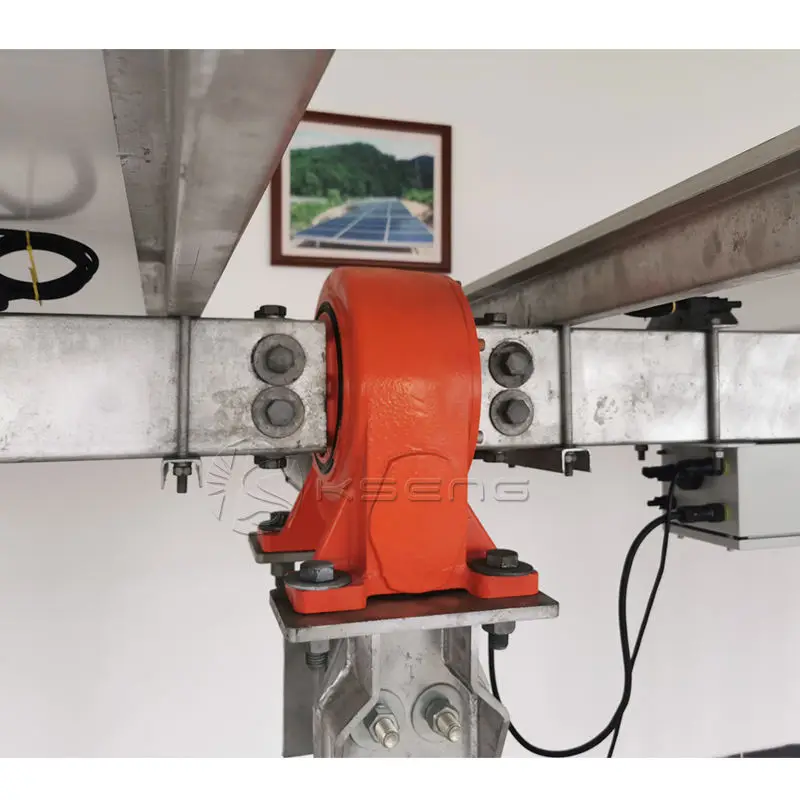

System voltage | DC24 | Drive System | Linear Motor | |||||
Power Acquisition Mode | External Supply/Self-Powered supply | Control algorithm | Astronomical Multi-point algorithm + closed loop（AI Control） | |||||
Product packaging

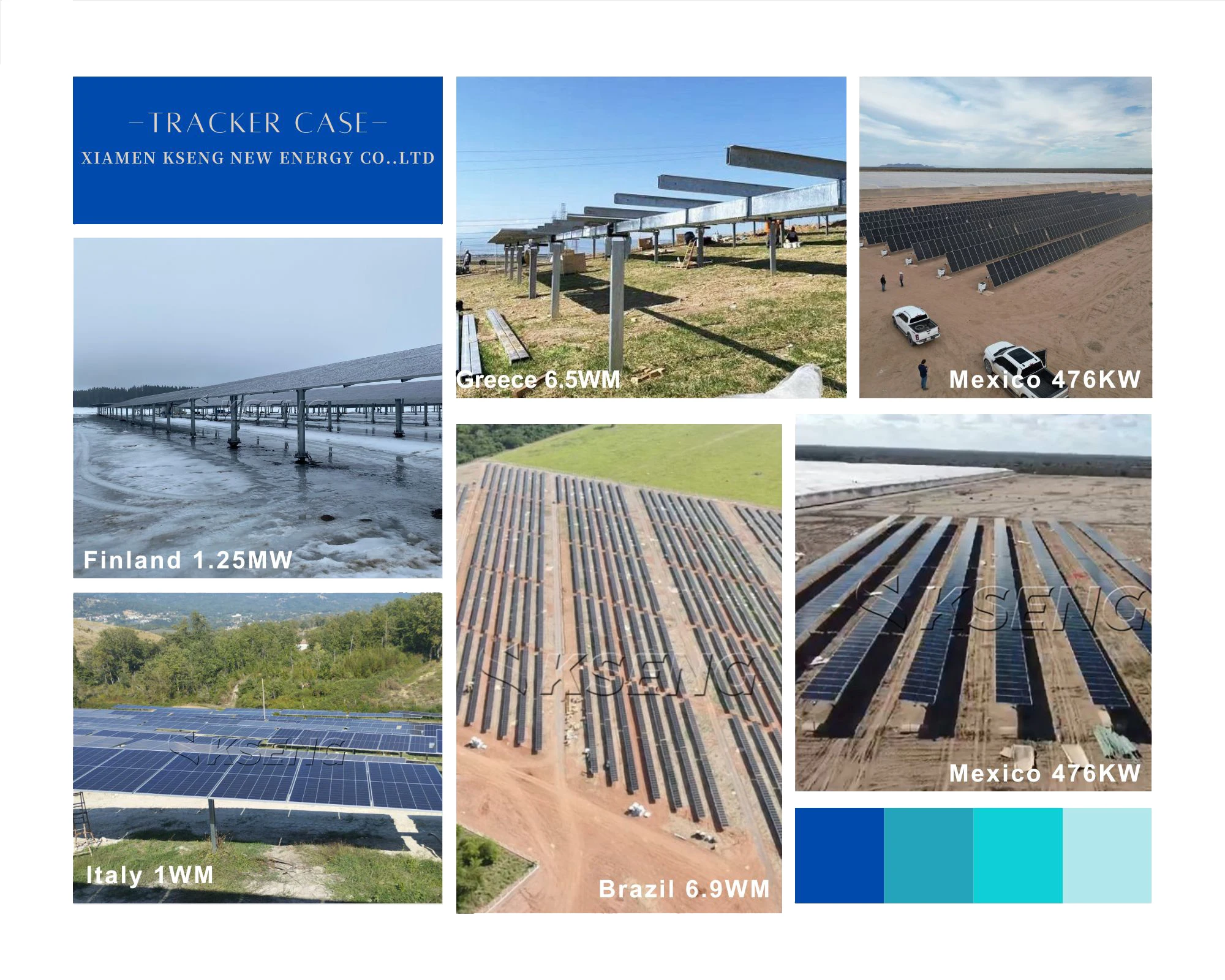

Project
Provide your requirement,
We can customized for you!
We can customized for you!
