Best Price Silk Screen Printer Printing Machine Silk Print Machine
- Category: >>>
- Supplier: Zhengzhou Jawo Machinery Co. Ltd.
Share on (10000018104074):
Product Overview
Description
Product Overview
Best Price Silk Screen Printer Printing Machine Silk Print Machine
Semi auto screen printer machine is suitable for flat surface printing on various sizes of glass, compact discs, credit cards, PCB flexible circuit boards, SMT, solder paste, all kinds of film, card, board, paper, high precision and fine print screen printing. Such as various types of printing paper, all kinds of PVC, PET, PC and other soft, hard film, the various panels, films,paper, nameplate, keyboards and electronics products.
Various sizes of glass, compact discs, credit cards, PCB flexible circuit boards, SMT, solder paste, all kinds of film, card,
board, paper, high precision and fine print screen printing. Such as various types of printing paper, all kinds of PVC, PET, PC
and other soft, hard film, the various panels, films, paper, nameplate, keyboards and electronics products.
board, paper, high precision and fine print screen printing. Such as various types of printing paper, all kinds of PVC, PET, PC
and other soft, hard film, the various panels, films, paper, nameplate, keyboards and electronics products.
Features:

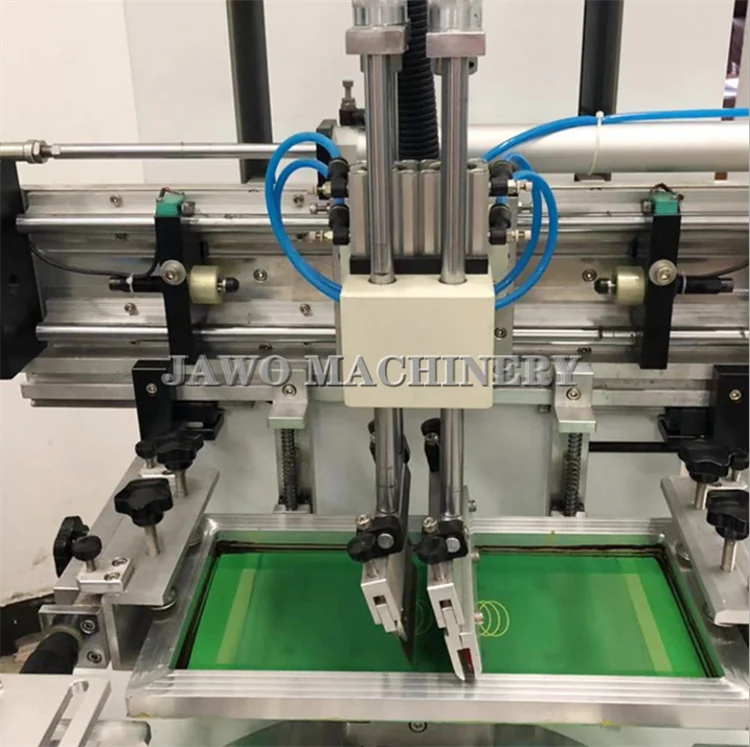

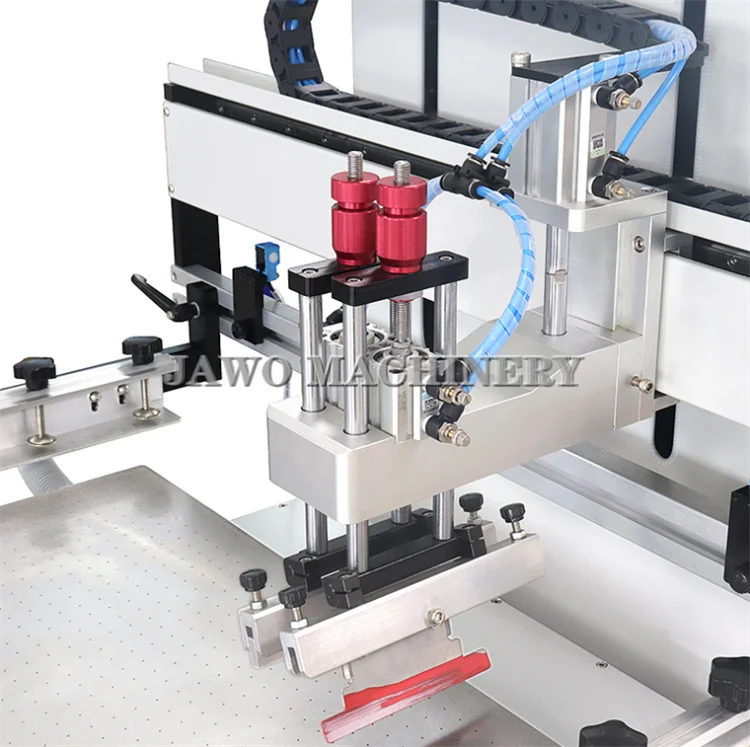

1.Squeegee carriage on Hard Chrome Plated solid steel shaft with linear bearing motion.

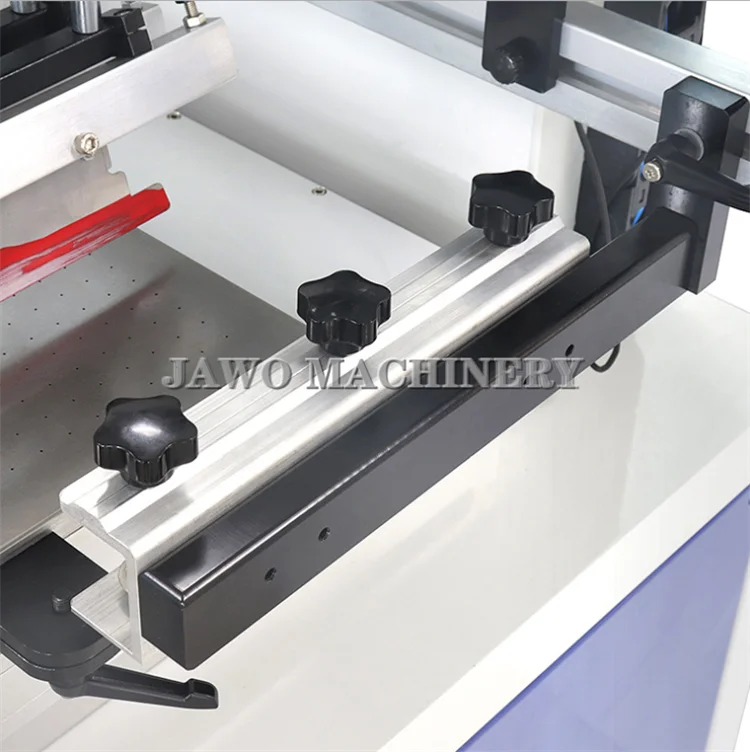

2. Adjustable screen frame holder
3. Variable printing stroke length
4. Single/Double stroke selection
5. Parallel screen frame movement (Convenient for spot UV varnish and low viscosity inks to avoid ink spillage all over the screen)
6. Peel off mechanism (To achieve fine reproduction of halftone dots and avoid smudging, bleeding and smearing)
7.Adjustable squeegee angle from 0 to 30º
8.Aluminium extruded squeegee holder & coater for even pressure
9.Bed movement for registration x, y, & Rotary ±10 mm
10.Emergency Rod / Stop for safety of operator
11.Castor wheels for easy mobility
12.Printing operation by foot switch or automatic cycle, with dwell timer 0-10 sec.
2. Adjustable screen frame holder
3. Variable printing stroke length
4. Single/Double stroke selection
5. Parallel screen frame movement (Convenient for spot UV varnish and low viscosity inks to avoid ink spillage all over the screen)
6. Peel off mechanism (To achieve fine reproduction of halftone dots and avoid smudging, bleeding and smearing)
7.Adjustable squeegee angle from 0 to 30º
8.Aluminium extruded squeegee holder & coater for even pressure
9.Bed movement for registration x, y, & Rotary ±10 mm
10.Emergency Rod / Stop for safety of operator
11.Castor wheels for easy mobility
12.Printing operation by foot switch or automatic cycle, with dwell timer 0-10 sec.
Product Paramenters
Model | JW-TD5070 | JW-TD6090 | JW-TD80120 | ||
Max printing area | 500*700mm/20"*32" | 600×900mm/24"*35" | 800×1200mm/31"*47" | ||
Size of printing table | 600×800mm/24"*32" | 700×1000mm/28"*39" | 900×1300mm/35"*51" | ||
Max size of screen frame | 700×1000mm/28"*39" | 800×1200mm/31"*47" | 1000×1500mm/39"*59" | ||
Max printing speed | 960(pcs/h) | 900(pcs/h) | 600(times/h) | ||
Printing Thickness | ≤30mm/1" | ||||
Air pressure | 0.45~0.6Mpa/C㎡ | ||||
Gross Power | 1.67kw | 2.25kw | 3.35kw | ||
Voltage | 380V/50HZ | ||||
Weight | 350kg/772lbs | 500kg/1102lbs | 1000kg/2204lbs | ||
Overall dimensions | 126*111*184cm | 150*137*175cm | 180*157*177cm | ||
(50"*44"*72") | (59"*54"*69") | (71"*62"*70") | |||
Features at a Glance
Related Products
Company Profile
Introduction
1.Zhengzhou Jawo Machinery Co., Ltd is very professional in Manufacturing and exporting machines, and we established our factory since 1998, so, we are the senior leader already in China in machinery line.
2. And we start to trade since 2018. In order to let more clients enjoy good machines and service, we join in Alibaba 2021.
3.We are factory, so, our advantages are supplying common machines in short delivery time and customizing machines according to client's require. We have our own excellent quality control department and well-trained skilled workers, all machines will be tested well before delivery,we will send machine pictures and videos before delivery.
4.We are gold member of Alibaba.Our machines have been exported to more than 100 countries, including countries in EU. Most machines have been passed through the CE certification, and we can accept any type of Inspection before shipment. We look forward to a Double-win cooperation with you.
