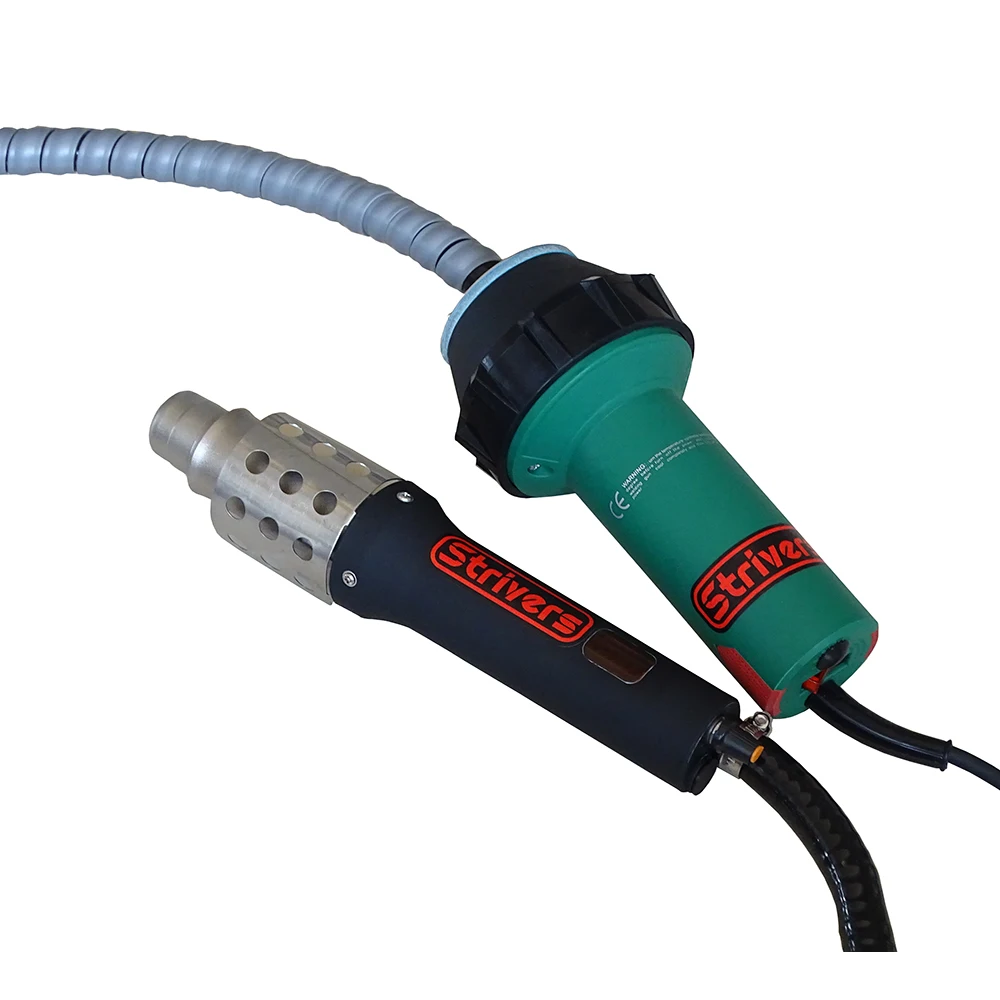

( DG 1600S) Digital 1600W mini plastic hot air welding gun with temperature display for heat weld PP PVC PE PPR
- Category: >>>
- Supplier: Zeng Gong Fu Welding Equipment (wuhan) Co. Ltd.
Share on (10000018206530):
Product Overview
Description

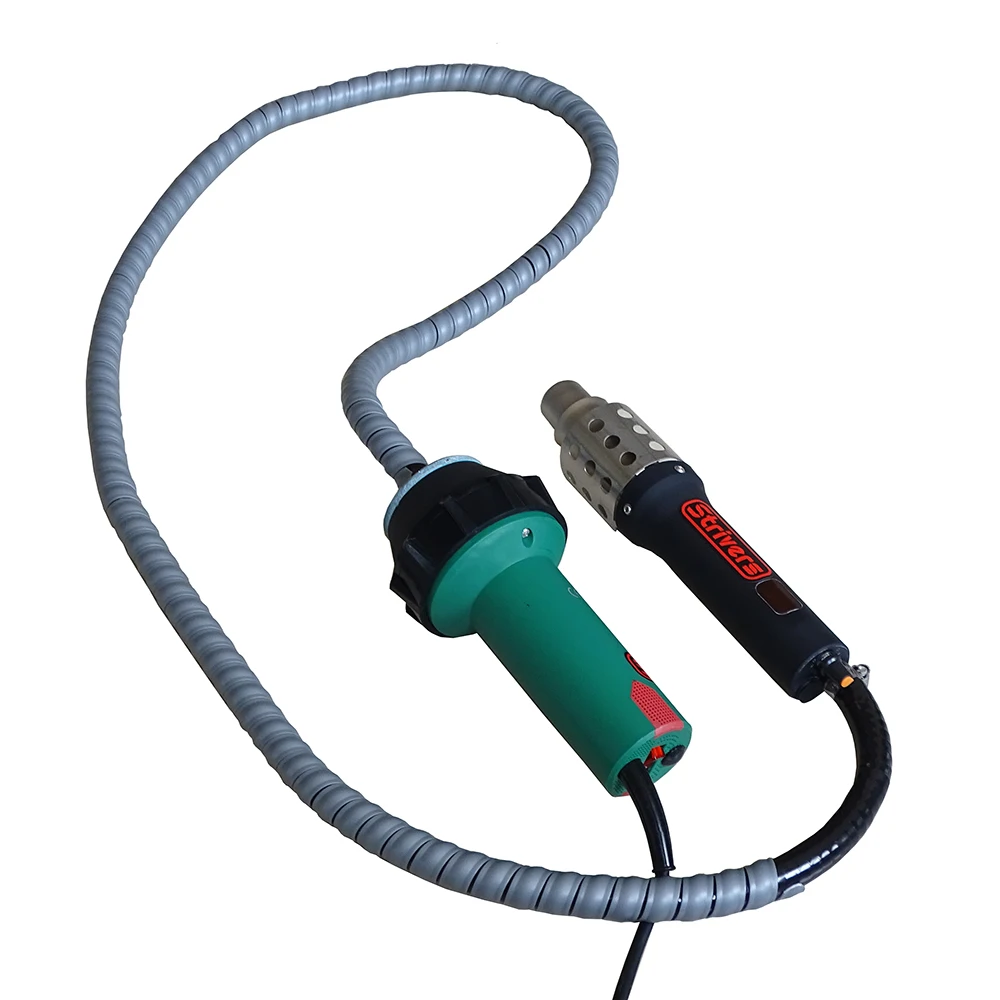

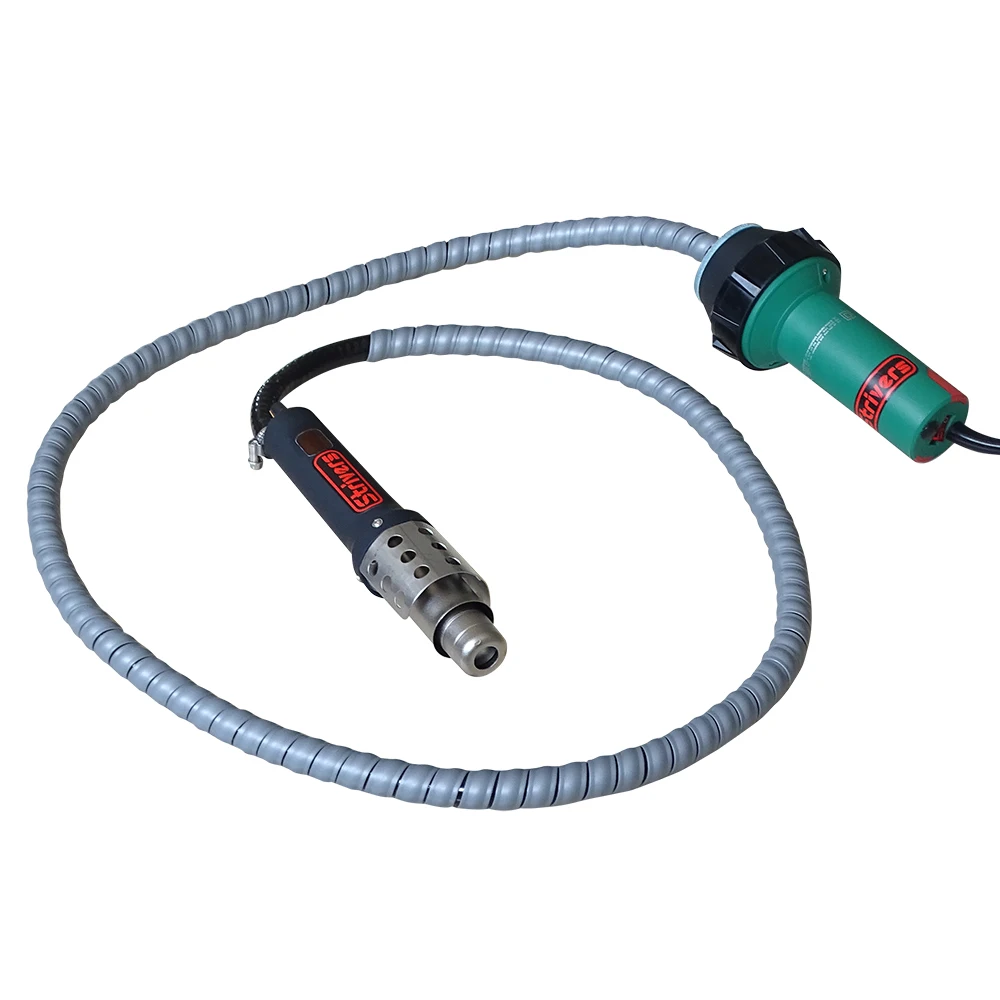

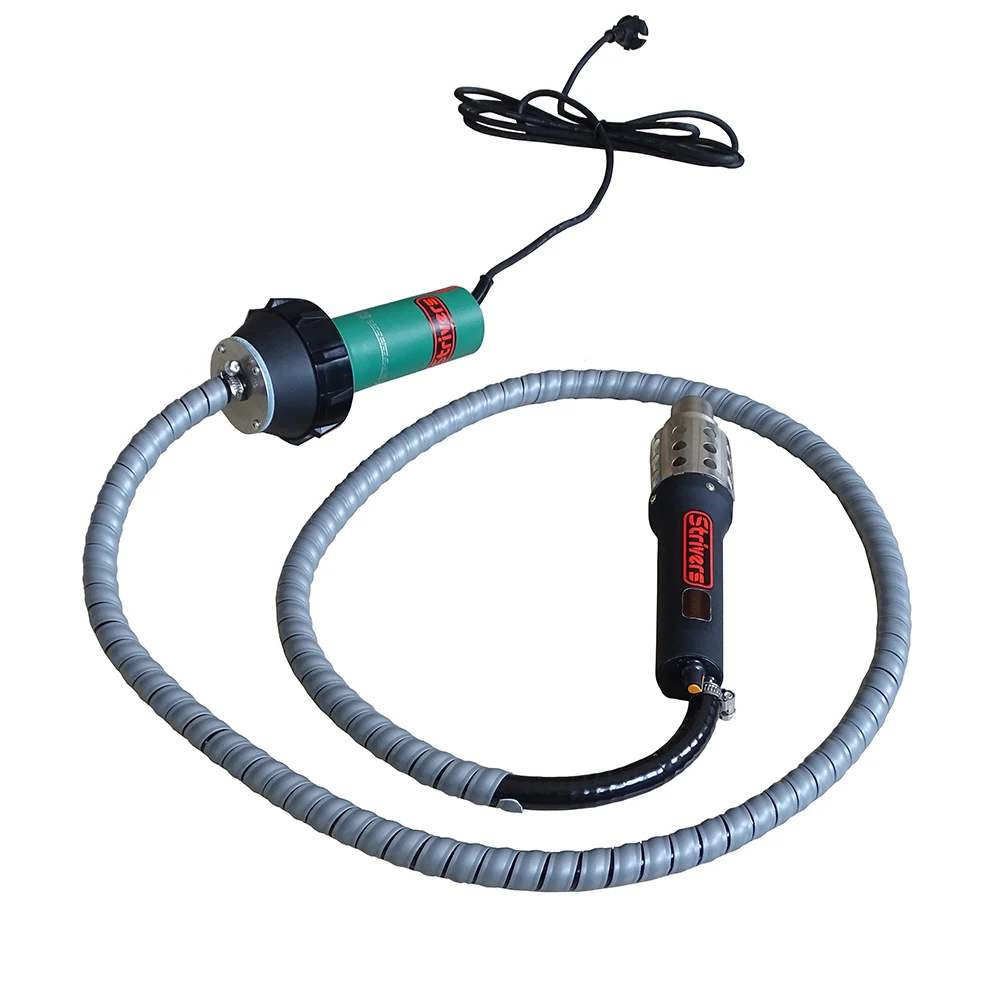

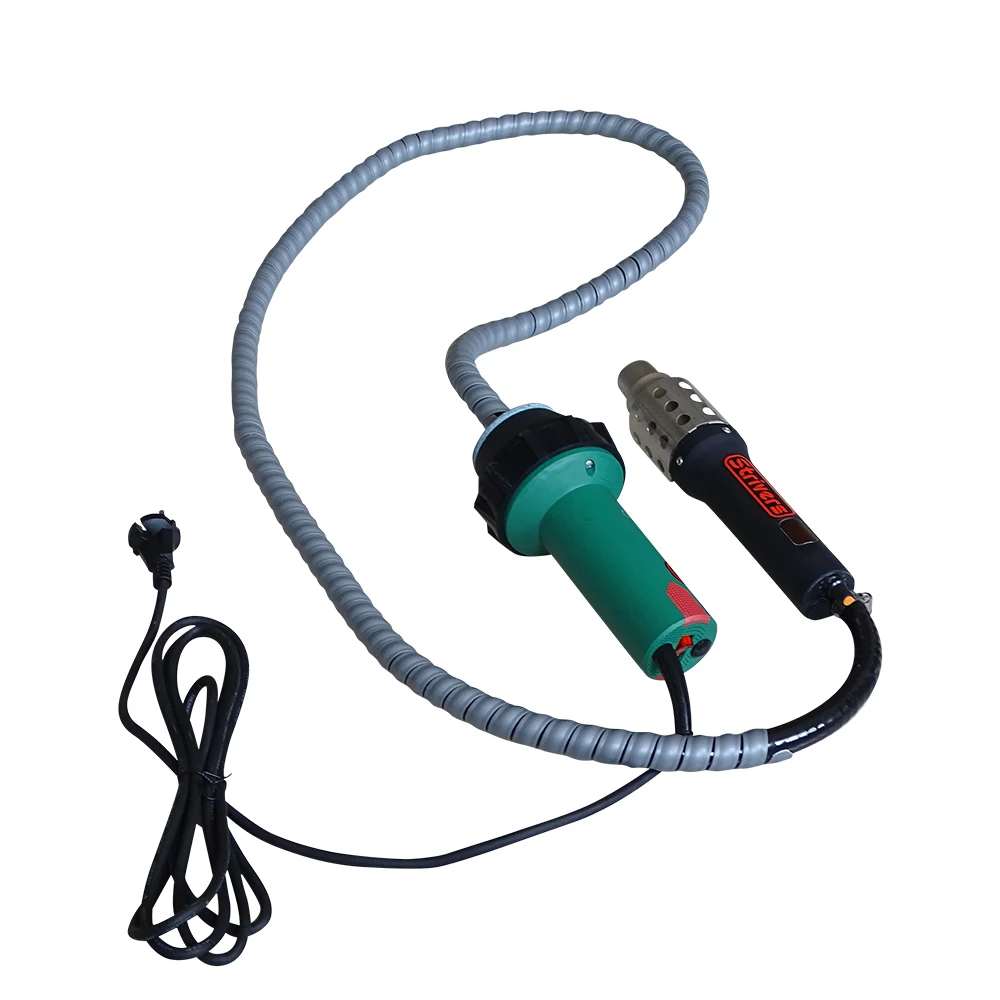

1600W mini hot air Welding gun with temperature display
"Strivers" DG-1600S is a professional industrial mini plastic welder, it is easy and convenient to use, thanks to the air hose connection for an external blower ,it is used in welding hot melt plastic materials such as PVC,PVDF ,TPO PP, PE for welding roofing,vinly floor,tarpaulin banners,etc ,Also it is used in other works like hot forming,shrinking,drying ,and igniting.This model has temperature and Auto cooling function
Introduction to Auto cooling function
You don’t need to adjust the potentiometer to “0” position after finish your welding job. You can turn off the power switch of the weld gun directly (press the power switch to “О” place, the weld gun stops heating) , but do remember it is prohibited to unplug the power plug now . At this moment the weld gun already stops heating, the motor will still rotate for about 3 minutes until the air gun temperature drops less than 70 degrees , it will power off automatically, after that you can unplug the power plug.
You don’t need to adjust the potentiometer to “0” position after finish your welding job. You can turn off the power switch of the weld gun directly (press the power switch to “О” place, the weld gun stops heating) , but do remember it is prohibited to unplug the power plug now . At this moment the weld gun already stops heating, the motor will still rotate for about 3 minutes until the air gun temperature drops less than 70 degrees , it will power off automatically, after that you can unplug the power plug.
Power switch : at “－” place is heating condition, at “О” place is not heating condition!
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Model No. | DG-1600S | ||
2 | Rated Voltage & Power | 230V/1600W, 50HZ | ||
3 | Welding Temperature | 50~750C(adjustable) | ||
4 | Static Pressure | Approx. 3000pa | ||
5 | Noise Emission Level | <=65dB | ||
6 | Dimension(LXWXH) | |||
7 | Protection class | ll(double insulation) | ||
8 | Motor | Brush | ||
9 | Air Volume | Max. 300l/min | ||
10 | Net weight | Air blower Net weight is 0.85kgs mini plastic welder gun is 0.5kgs | ||
11 | length of air hose | 2 meters air hose with protect sleeve | ||
12 | Certificate | CE ,RHOS | ||
13 | Warranty | 1 Years for distributors (we don't sell to end users for overseas market, so don't have warranty for end users) |
Our company name: ZENG GONG FU WELDING EQUIPMENT (WUHAN) CO., LTD
We have been doing OEM production for overseas customer many years!
We have been doing OEM production for overseas customer many years!
Our boss is Mr. ZENG
"GONG FU" is a Chinese word, In other countries, people say it Chinese Kung fu!
There is a Chinese saying goes: Deep Gong fu can turn the iron rod into a needle! It means that if we will always strive to do one thing with great patience, we will get success finally.
"GONG FU" is a Chinese word, In other countries, people say it Chinese Kung fu!
There is a Chinese saying goes: Deep Gong fu can turn the iron rod into a needle! It means that if we will always strive to do one thing with great patience, we will get success finally.
we will strive to be Strivers! Brand name:Strivers
What we will strive for?
1)We will always Strive to make our products with” Good quality , Innovative, Best service, Lowest price” to our distributors.2)We will always strive to design our tools with excellent performance, simple maintenance and easy to repair!
3)We will always carefully consider our partner’s idea and then strive to improve and improve again and again!
4) We will always Strive to be loyal to our partners and work together with our partners to seek development.
What we can do for our partners?
* We are a professional manufacturer for hot air tools, hot air welding machines, hot wedge welders, plastic extrusion welders for years, heaters, rollers, weld nozzles, etc. we do OEM production for many global traders many years. Not only make business, but also make friends with our trader partners! We will still search for some more new partner friends all over the world!
* We won’t sell our brand products from Cross border e-commerce platforms. Because we think many of product there are disposable products without after-sales service. This is neither economical nor environmentally friendly.
* As you know, the after-sale service for many tools, machines is very difficult for those producdts export to another countries. Even some well-known global brand tool manufacturers have expensive after-sales service and cannot handle it in a timely manner. So for our products, we will always prepare some spare parts for our partners for free. Our company ensure our partner has sufficient spare part for repair,and also we will design our products is easy for repair.also we will guide you how to repair in very details.
* We won’t sell our brand products from Cross border e-commerce platforms. Because we think many of product there are disposable products without after-sales service. This is neither economical nor environmentally friendly.
* As you know, the after-sale service for many tools, machines is very difficult for those producdts export to another countries. Even some well-known global brand tool manufacturers have expensive after-sales service and cannot handle it in a timely manner. So for our products, we will always prepare some spare parts for our partners for free. Our company ensure our partner has sufficient spare part for repair,and also we will design our products is easy for repair.also we will guide you how to repair in very details.
FEATURES AT A GLANCE
Quality is in details !
Details of the external structure and materials of the product
①compact design and light weight.the mini heat gun is only 0.5KGS and it is comfortable to hold in hand.②the air gun nozzle made of SUS304 stainless steel with thickness of 1mm.
③the plastic material we use is Glass-Fiber reinforced PA66.
④the sealing ring we use is silicone material, other supplier use rubber material. Silicone is more soft and more
environmentally friendly. Rubber is susceptible to hardening and aging.
⑤our power cord sleeve is also silicone material. Most of others use rubber material.
⑥our power cord use very good quality copper and pure rubber, so it is softer than others.
Quality is in details !

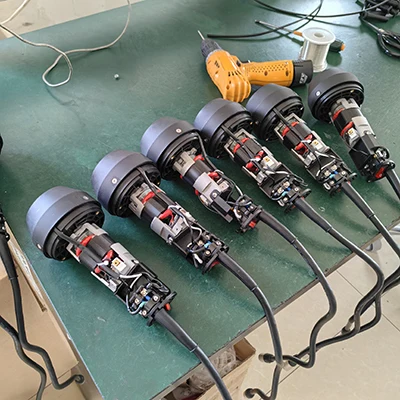

Details of the internal structure and materials of the product

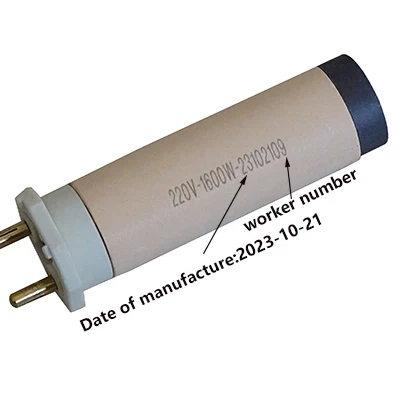

①Our heating elements are made by skilled workers with many years of experience, and each product is laser-numbered for quality tracking. We are very strict about quality management!②our mica tube is very good quality made by Phlogopite material which can bear temperatures of 800 degrees for long time. You can use your finger to pinch it and will find it’s difficult to break it.
③For electronic parts, our light sensor and overheat protector, thyristor, potentiometer, power switch , etc. all very good
quality, as our years’ experience, Damage rate of 1 in 1000. For Circuit control board, damage rate of 2 in 1000, because

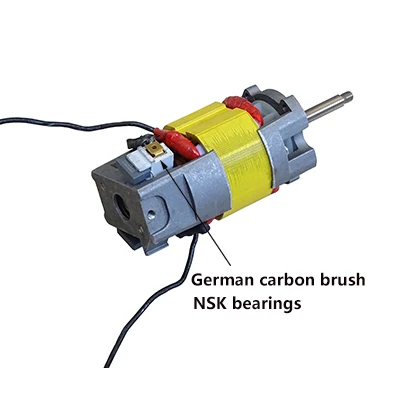

sometimes voltage problem at working site may cause it broken. However, we will always prepare enough parts to our distributors for free.④Our motor adopts Japan NSK bearings and German material carbon brush. we have both brushed and brushless motors

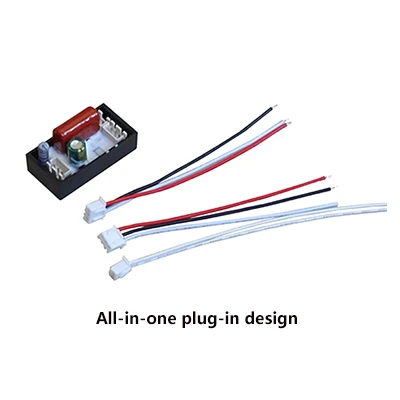

⑤ Our circuit board adopts All-in-one plug-in design, so it is very easy to replace.

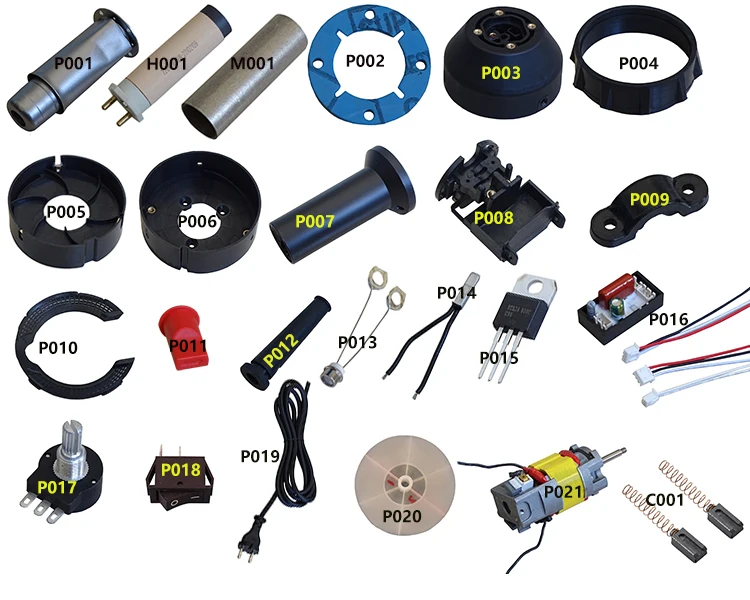

Spare parts list
P001-gun nozzle | H001-heat element | M001-mica tube | P002-Asbestos gasket | P003 - plastic cover |
P004-silicone sealing ring | P005-Blade fairing | P006-Blade fairing seat | P007-handle | P008-Circuit holders |
P009-cable clip | P010-Dust filter | P011-knob | P012-cable protection sleeve | P013-light sensor |
P014-overheat protector | P015-thyristor | P016-circuit board | P017-potentiometer | P018-power switch |
P019-power cord | P020-fan blade | P021-Motor | C001-carbon brush |

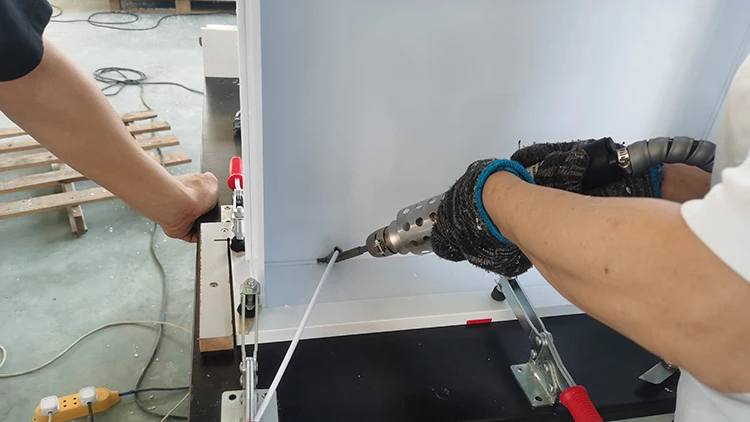

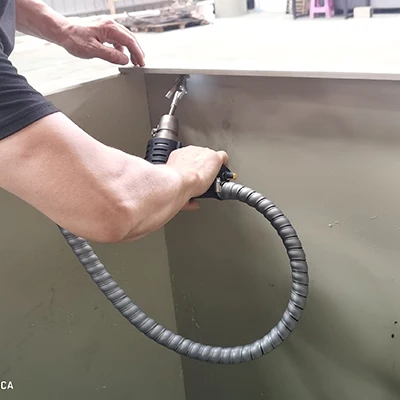

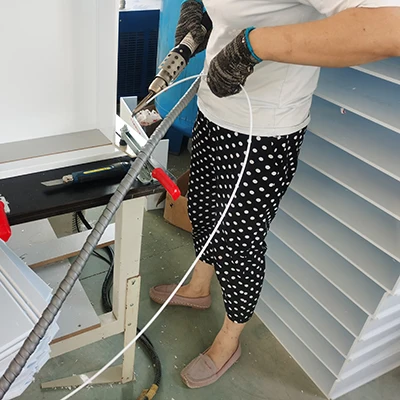

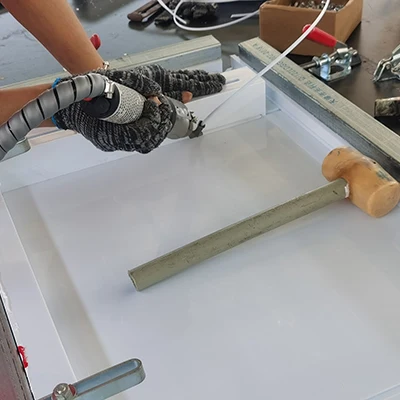

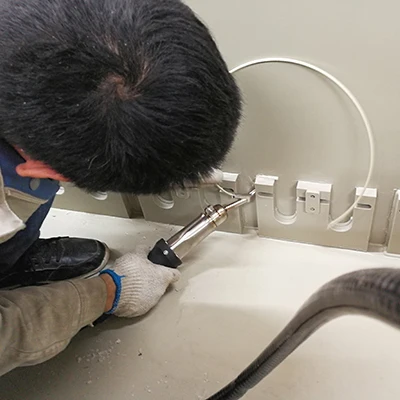

Application
Welding PVC TPO EPDM single ply roofing membranesWelding advertising banners
Welding pvc vinyl flooring covering and linoleum
Welding all thermoplastics
Welding of technical textiles
Welding pond foil liners
Welding swimming pools
Welding vinyl decking
Welding Roofing flashing
Repairing automobile tarpaulins and tents
Shrinking packaging foils and moulding
Sterilizing packaging materials
Removing plastic flashes and shining plastic surfaces
Using in elector mechanical work
Shrinking shrink tubes, packaging foils
Welding pvc vinyl flooring covering and linoleum
Welding all thermoplastics
Welding of technical textiles
Welding pond foil liners
Welding swimming pools
Welding vinyl decking
Welding Roofing flashing
Repairing automobile tarpaulins and tents
Shrinking packaging foils and moulding
Sterilizing packaging materials
Removing plastic flashes and shining plastic surfaces
Using in elector mechanical work
Shrinking shrink tubes, packaging foils
Certifications

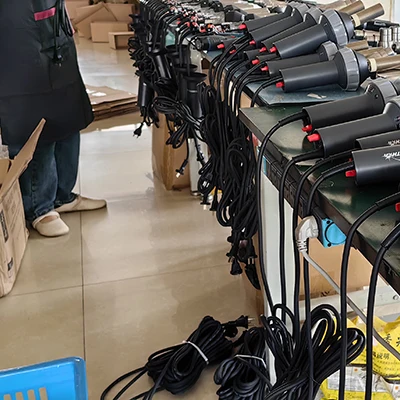

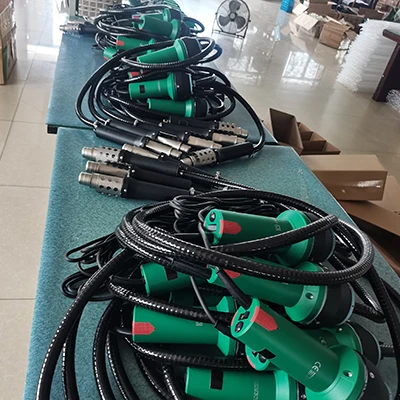

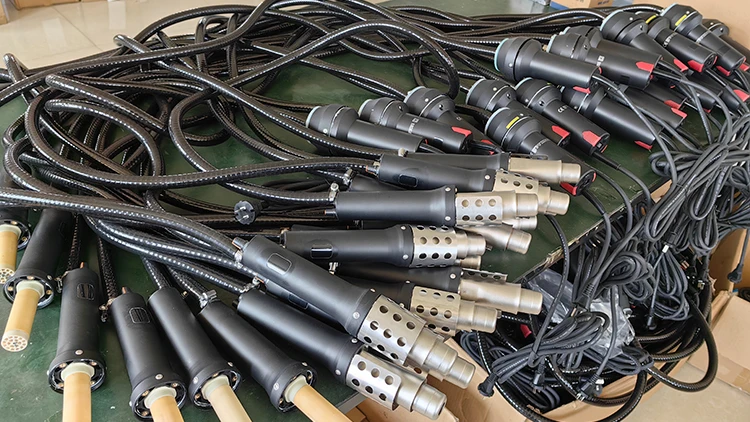

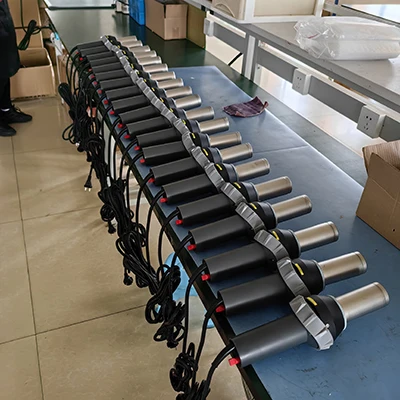

Pictures of daily shipments

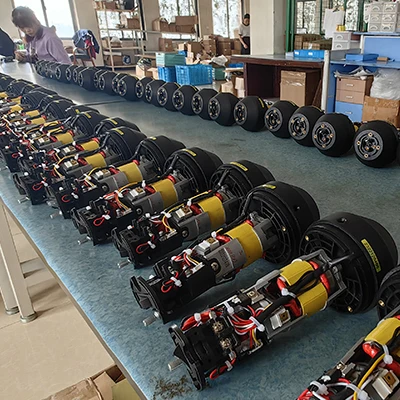

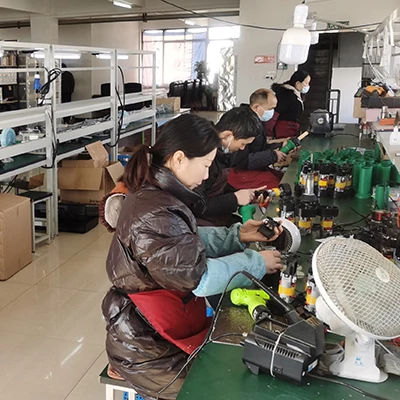

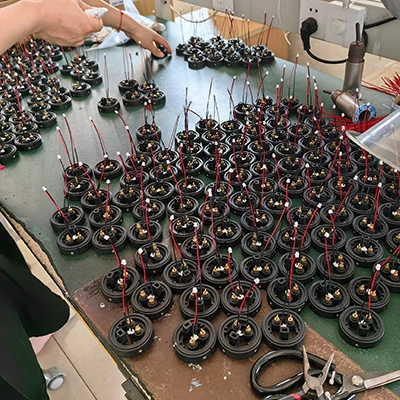

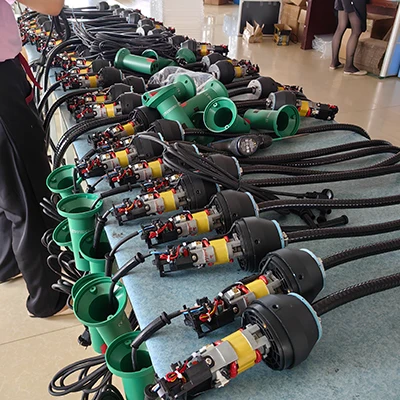

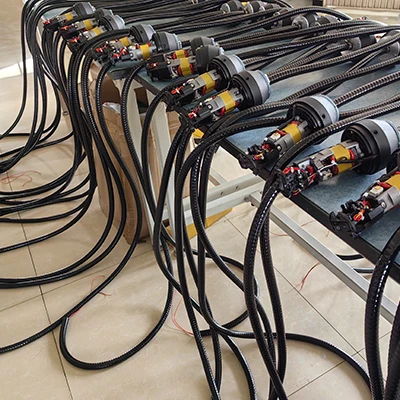

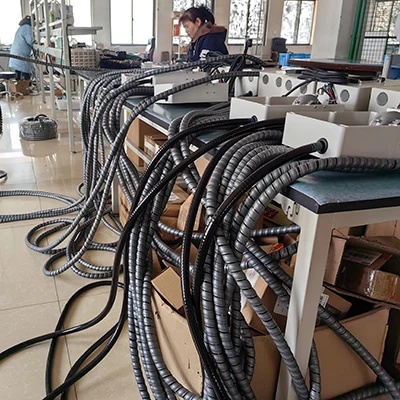

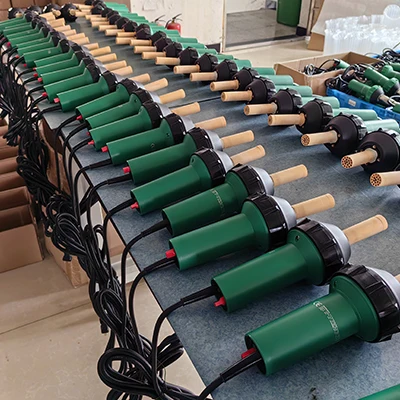

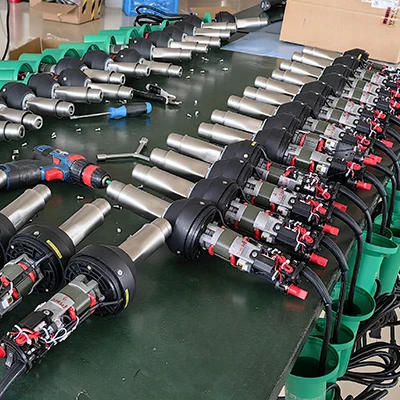

Production workshop
