Fire Resistance Swinging Door Bottom Seal
- Category: >>>
- Supplier: SECUTOR CORPORATION
Share on (10000018266709):
Product Overview
Description
Product Description

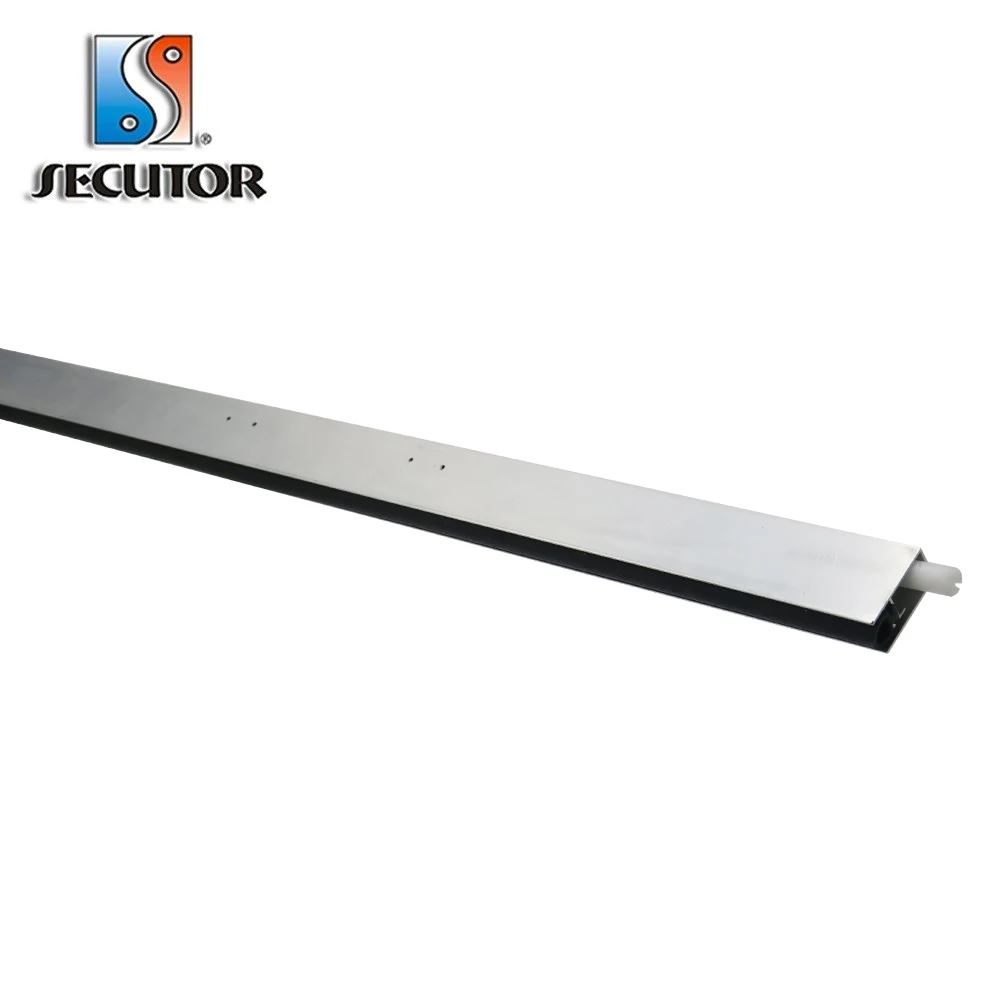

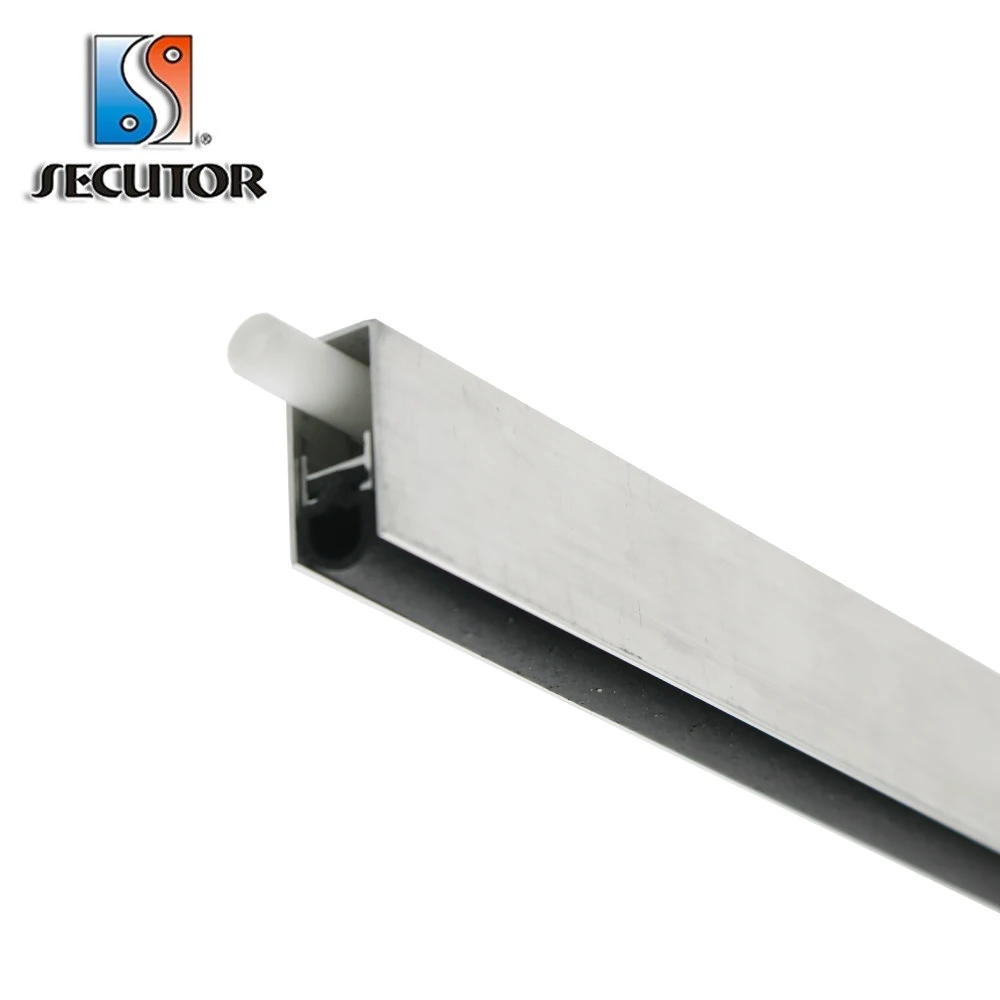

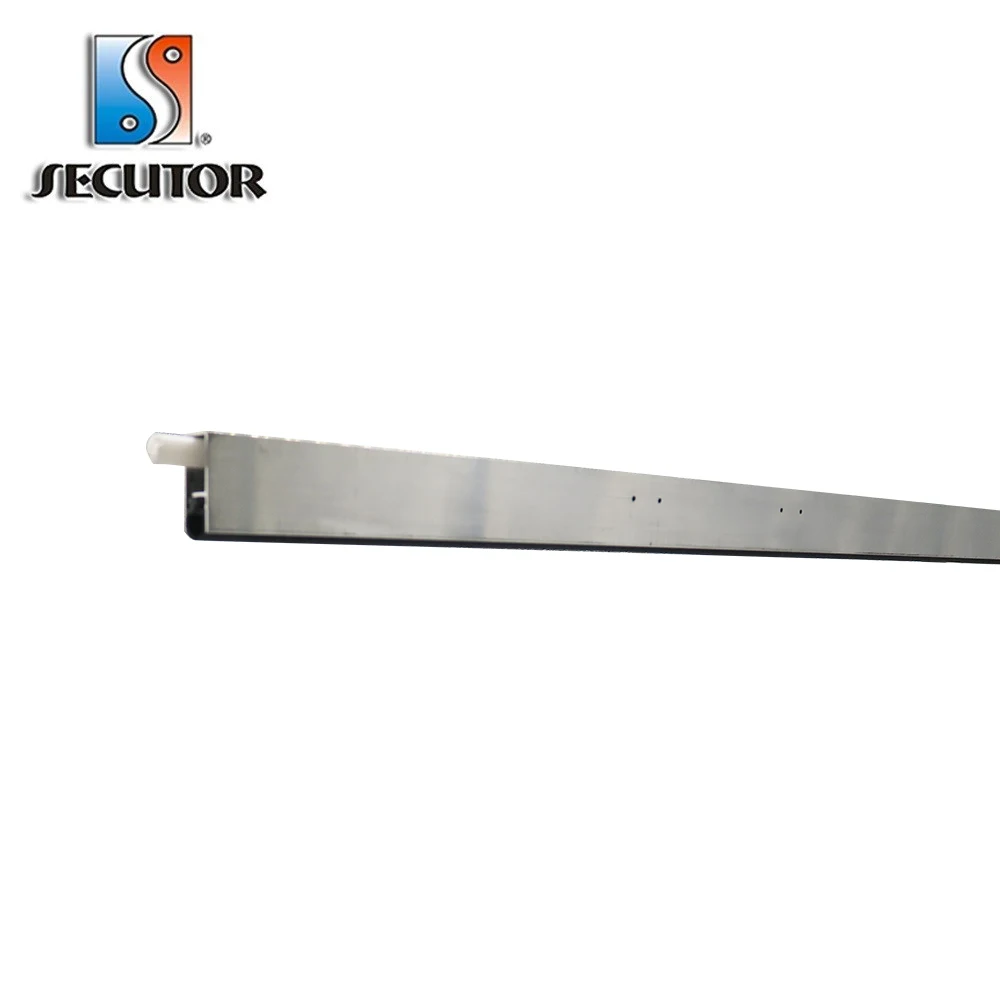

Fire Resistance Swinging Door Bottom Seal
* Silver anodized aluminium with end plates and black silicon rubber gasket
* To ensure that the gap between the floor and the swing door is tightly closed
* With Spring loaded to lift clear of the floor when the door is opened. When the door is closed, the seal lowers automatically
due to a release mechanism.
* Standard Length: 660 mm / 1000 mm / 1200 mm / 1300 mm / 1500 mm (It can be trimmed to size)
* High-quality soundproofing drop seals against noise, draught and cold, dust and dirt, vermin no longer have a chance to enter the room.
* The high-performing seal expand during the fire-resistance testing. It is suitable for fire and smoke protection doors.
* Self-levelling on uneven floors.
* To ensure that the gap between the floor and the swing door is tightly closed
* With Spring loaded to lift clear of the floor when the door is opened. When the door is closed, the seal lowers automatically
due to a release mechanism.
* Standard Length: 660 mm / 1000 mm / 1200 mm / 1300 mm / 1500 mm (It can be trimmed to size)
* High-quality soundproofing drop seals against noise, draught and cold, dust and dirt, vermin no longer have a chance to enter the room.
* The high-performing seal expand during the fire-resistance testing. It is suitable for fire and smoke protection doors.
* Self-levelling on uneven floors.
* Seal height can be adjusted
Length | 660 mm / 1000 mm / 1200 mm / 1300 mm / 1500 mm | ||||||
Material | Anodised aluminium with silicon rubber gasket | ||||||
Finish | Silver anodized aluminium finish | ||||||
Max Gap | 15mm | ||||||
Door/Frame Construction | Timber, Aluminium | ||||||
Application | Single swing doors. For use on both right and left handed doors | ||||||
Size | Max Drop | Cutting Length (L) | For Door Width |
660mm | 15mm | 320mm | 340mm~660mm |
1000 mm | 15mm | 350mm | 650mm~1000mm |
1200 mm | 15mm | 250mm | 950mm~1200mm |
1300 mm | 15mm | 350mm | 950mm~1300mm |
1500 mm | 15mm | 250mm | 1250mm~1500mm |
Door Groove Size
Fits into a 15 mm wide x 30 mm deep groove
Product Size
Drop Down : 15 mm Max.
