Hot Sale Laminate Machine for Plywood from Reliable Manufacture

Product Overview

Description

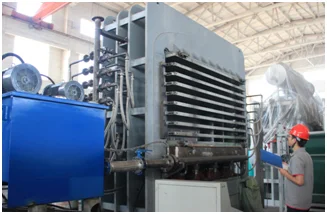

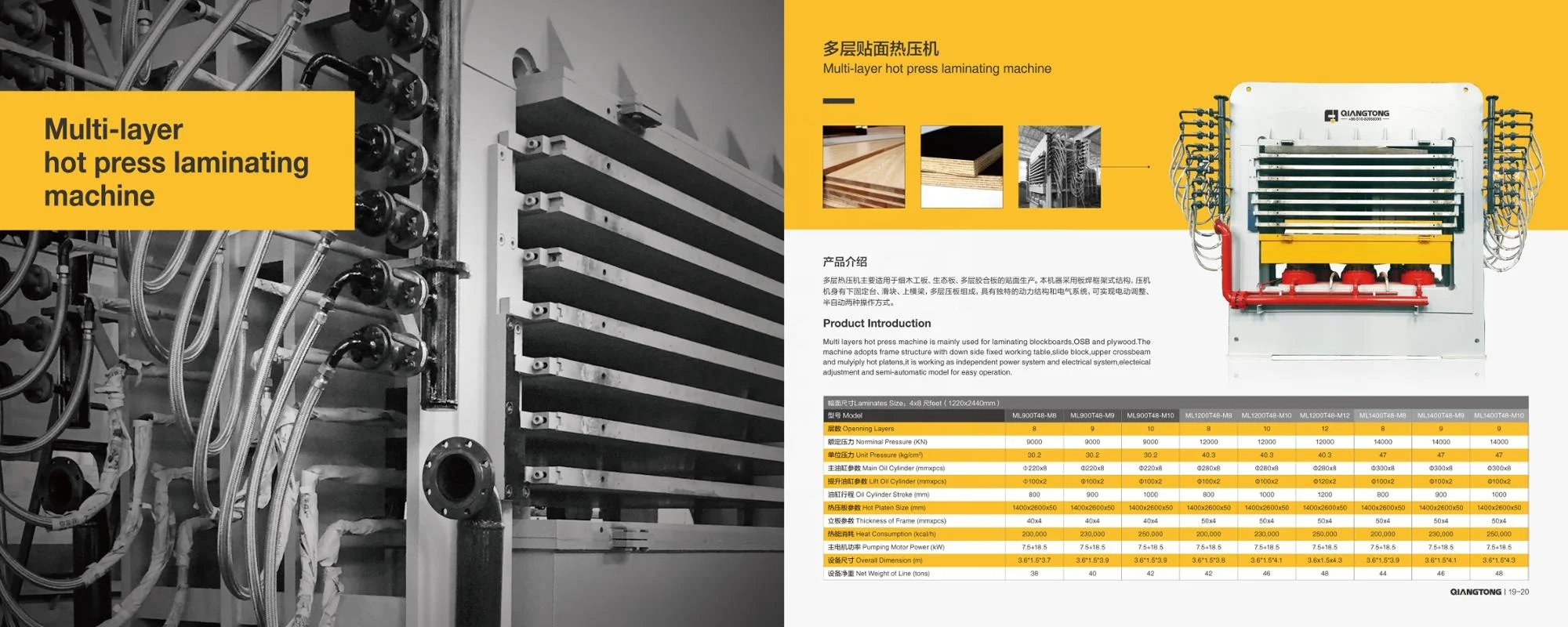

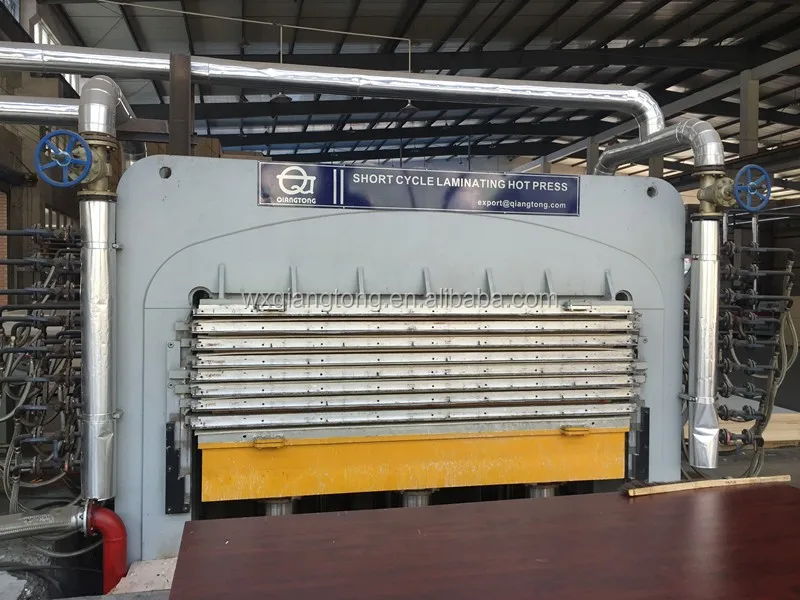

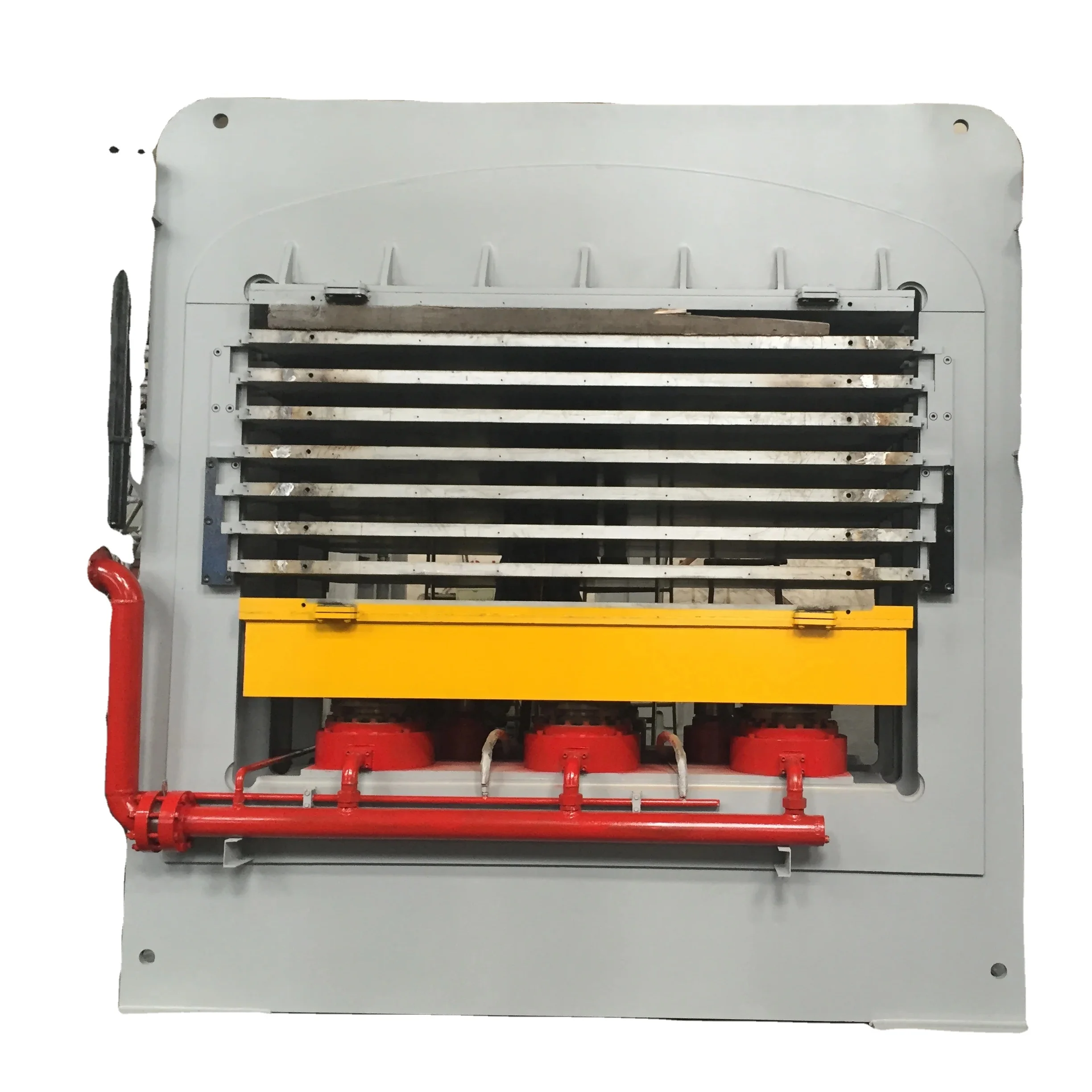

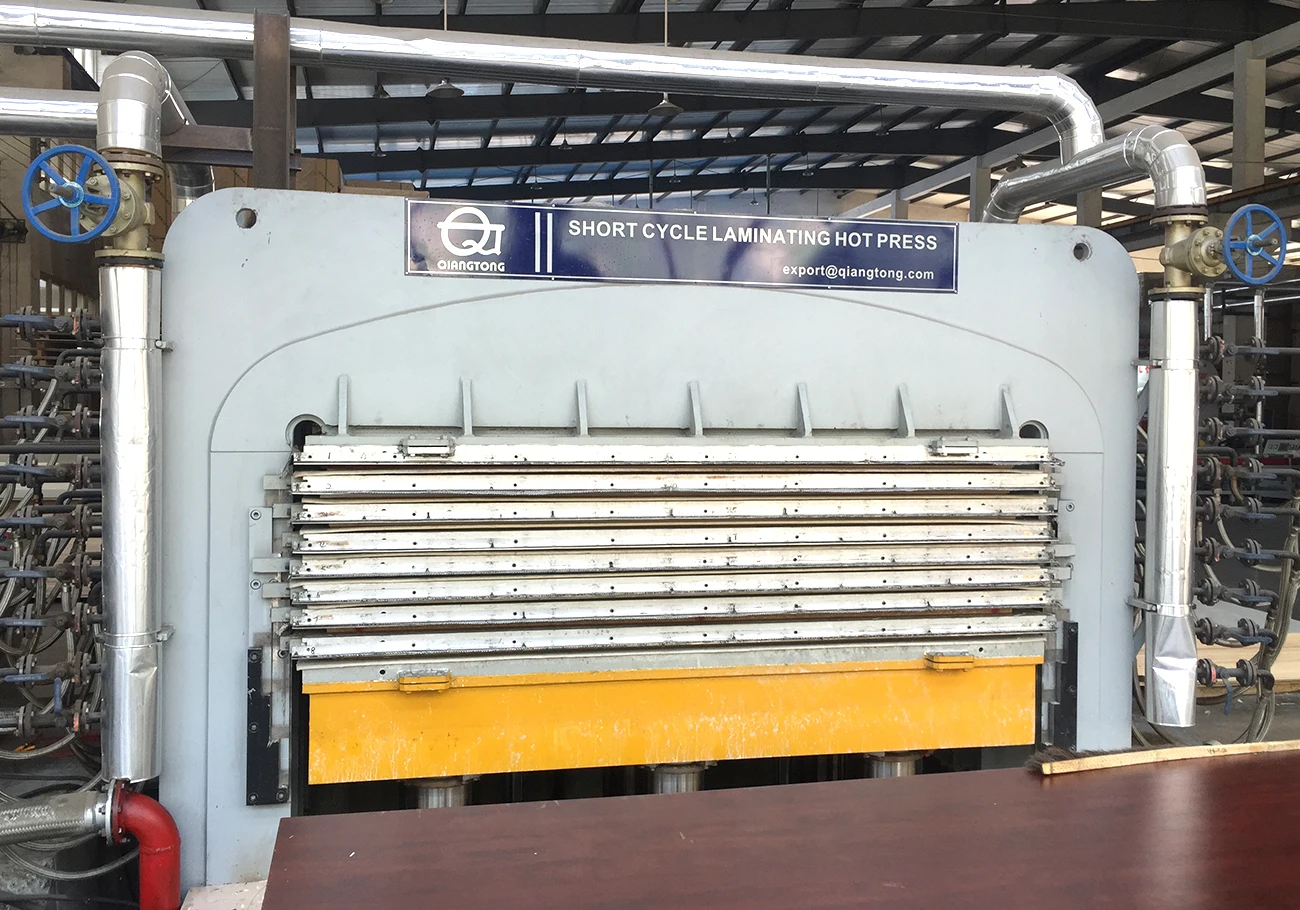

Multi layers hot press machine is mainly used for laminating blockboards, OSB and plywood. The machine adopts frame sturcture with down side fixed working table, slide block, uper crossbeam and electrical adjustment and smei-automatic model for easy operation.

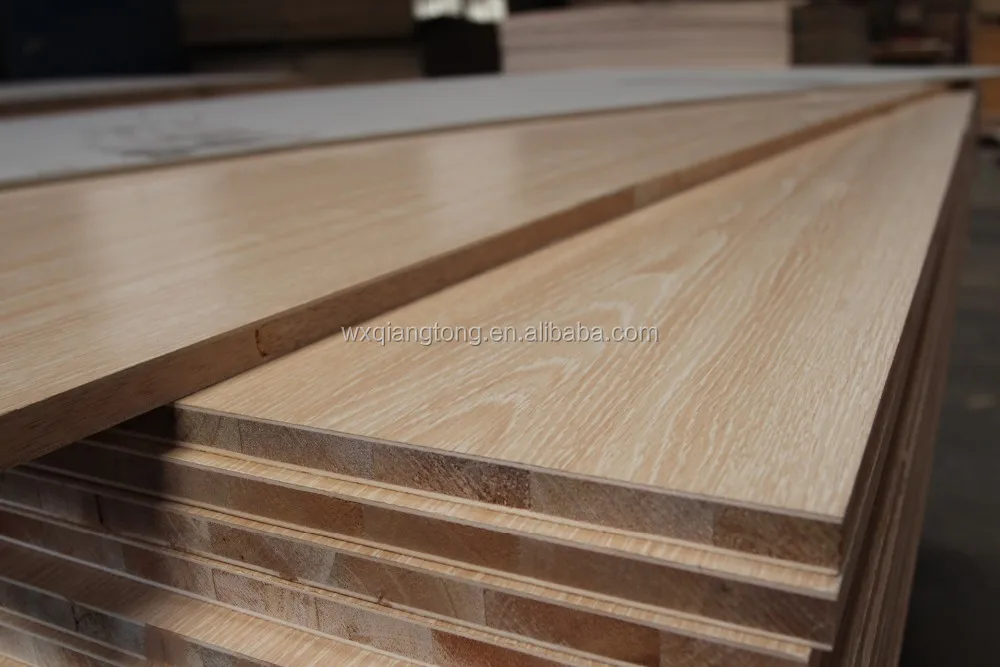

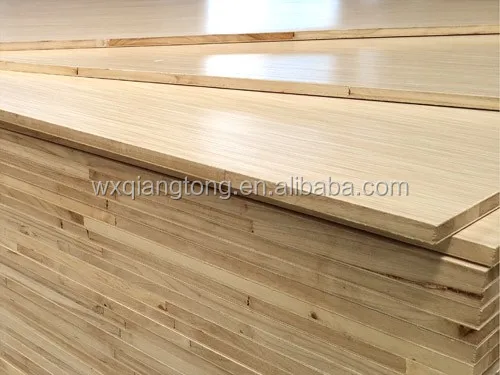

Finished Boards





Main Technical Parameters

Machine Model	MH600-4*8	MH900-4*8	MH1200-4*8
Max. Pressure(kn)	6000	9000	9000
Unit Pressure(kg/cm²)	20.2	26.8	30.3
Hot platen size(mm)	1400*2600*50	1400*2600*50	1400*2600*50
No. of hot platenss(pcs)	9-16	9-16	9-16
Daylight opening(mm)	80-100	80-100	80-100
Working temperature of hot platen(℃)	25-250	25-250	25-250
Main cylinder(mm*pcs)	220*6	220*8	280*8
Lifting cylinder(mm*pcs)	80*2	90*2	90*2
Closing time(s)	≤13	≤13	≤13
Thickness of frame(mm*pcs)	30*4	40*4	40*4





To watch full video

https://www.youtube.com/watch?v=du2DAGteJp0&t=57s

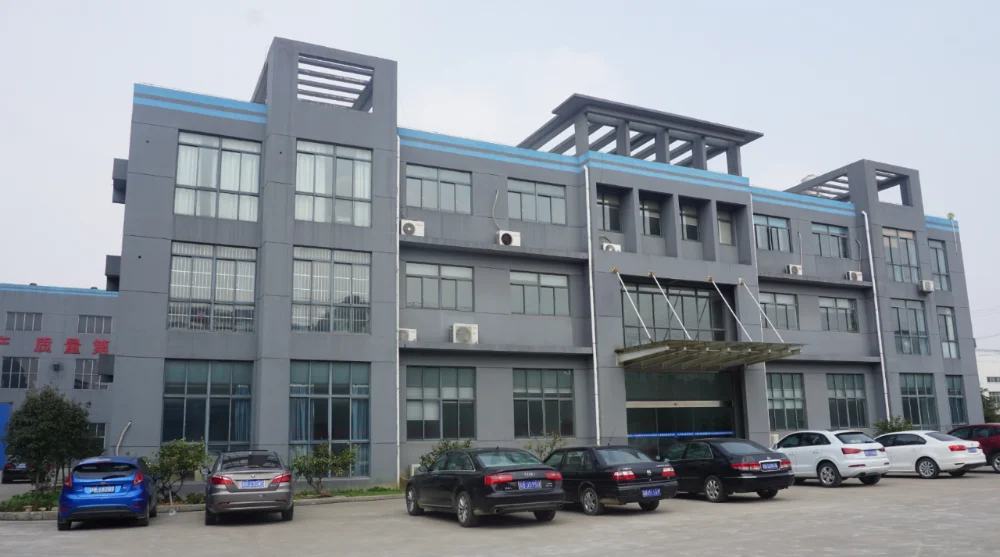

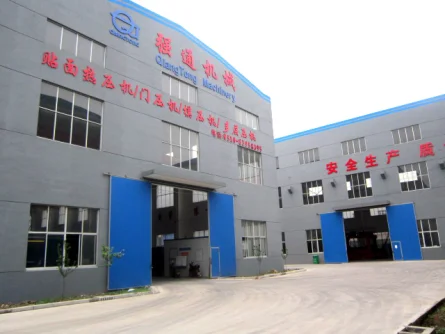

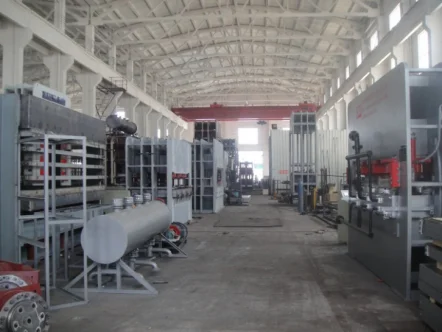

WUXI QIANGTONG MACHINERY CO., LTD.

2003: The Company has been founded

2009: We started to export machine worldwide

2012: We established our own import & export company DELIM GROUP

2016: We have sold out nearly 2000 sets press machine, exported to nearly 20 countries

2017: We settle up another factory name WISEWAY.

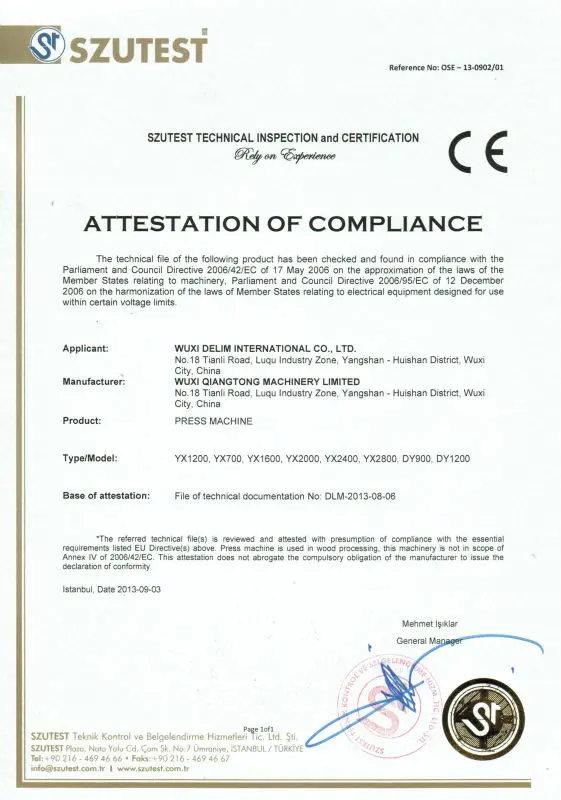

Certificates



Professional Technical Team



Strict Inspection



Attend Domestic&Foreign Exhibitions
