Perfect Laser CCD Automatic Positioning Single Head Mobile Phone Camera Rearview Mirror Small CNC Thin Glass Cutting Machine
- Category: >>>
- Supplier: Perfect Laser (wuhan) Co. Ltd.
Share on (10000018482334):
Product Overview
Description

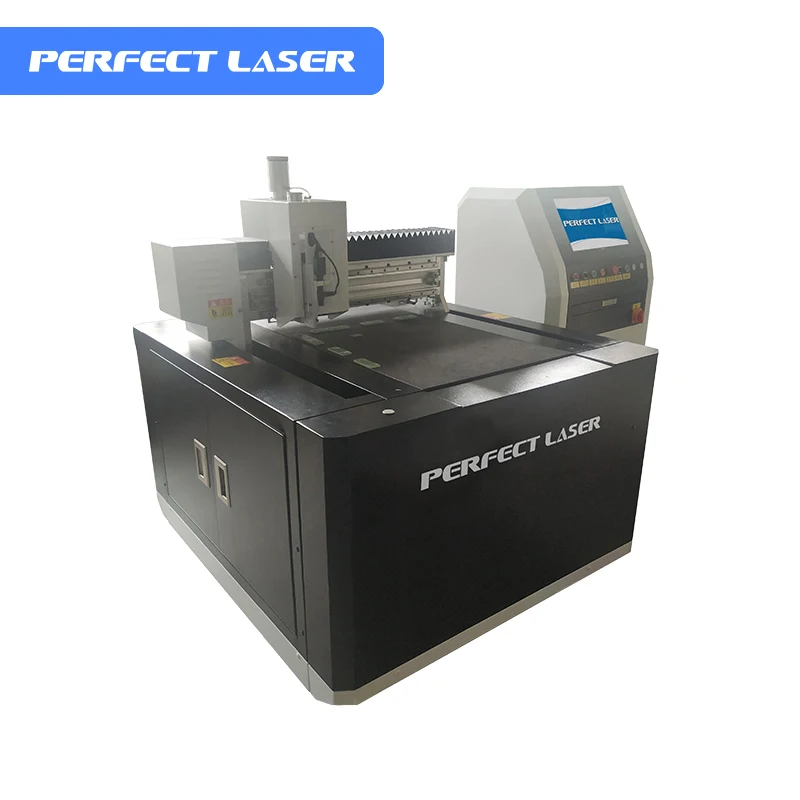

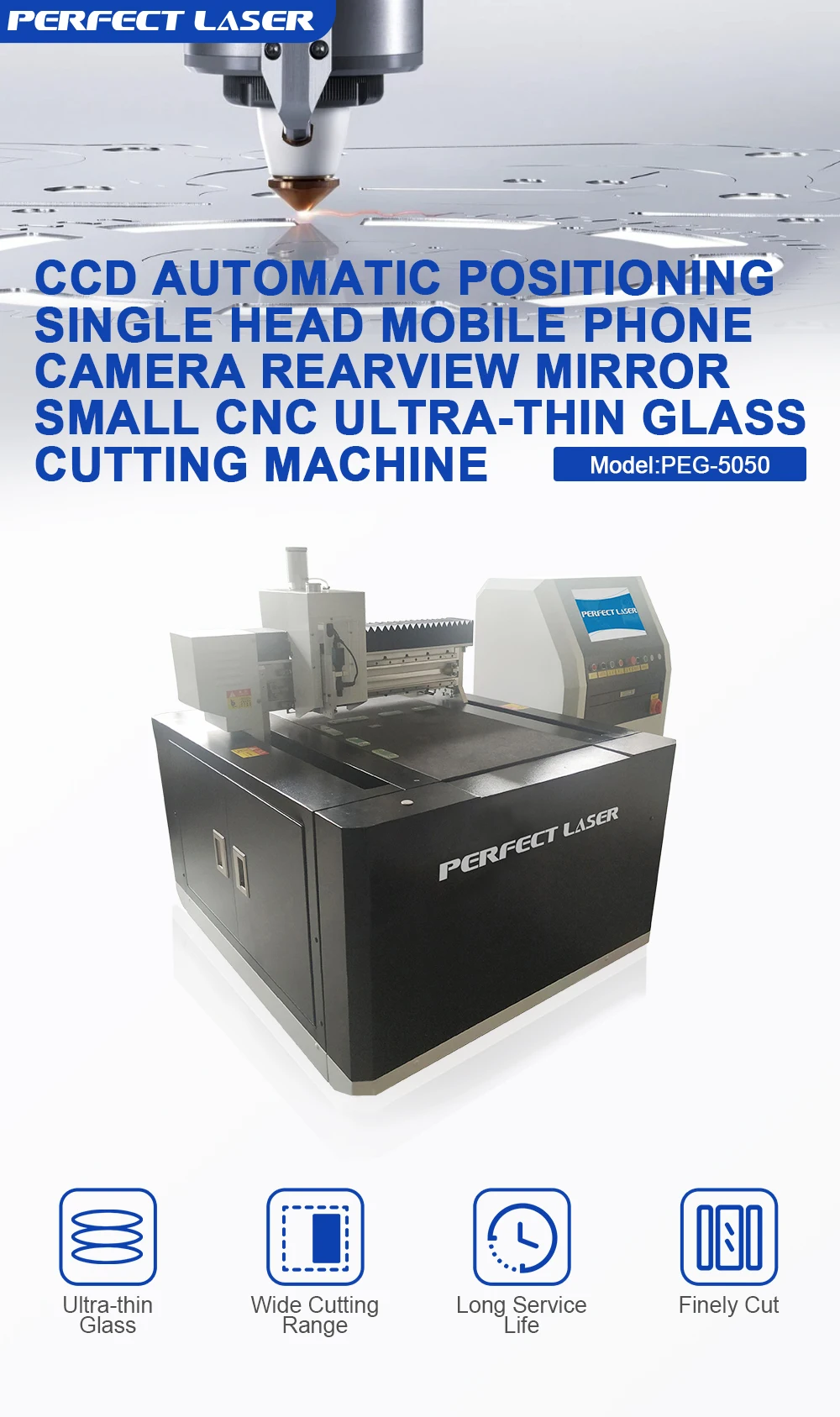

Perfect Laser CCD Automatic Positioning Single Head Mobile Phone Camera Rearview Mirror Small CNC Ultra-thin Glass Cutting Machine
Model:(PEG-5050)
Contact: Eva Whatsapp/Wechat: +8618107233344 Email:sales18@perfectlaser.net
Product Introduction
Application
1. Free test samples - We can carry out free marking effect tests according to your product materials
2. Video Live - You can connect with our sales consultants to watch the production process
and the operation of the machine in online video.
3. Customised /OEM-Customised machines on request，Contact us !
2. Video Live - You can connect with our sales consultants to watch the production process
and the operation of the machine in online video.
3. Customised /OEM-Customised machines on request，Contact us !

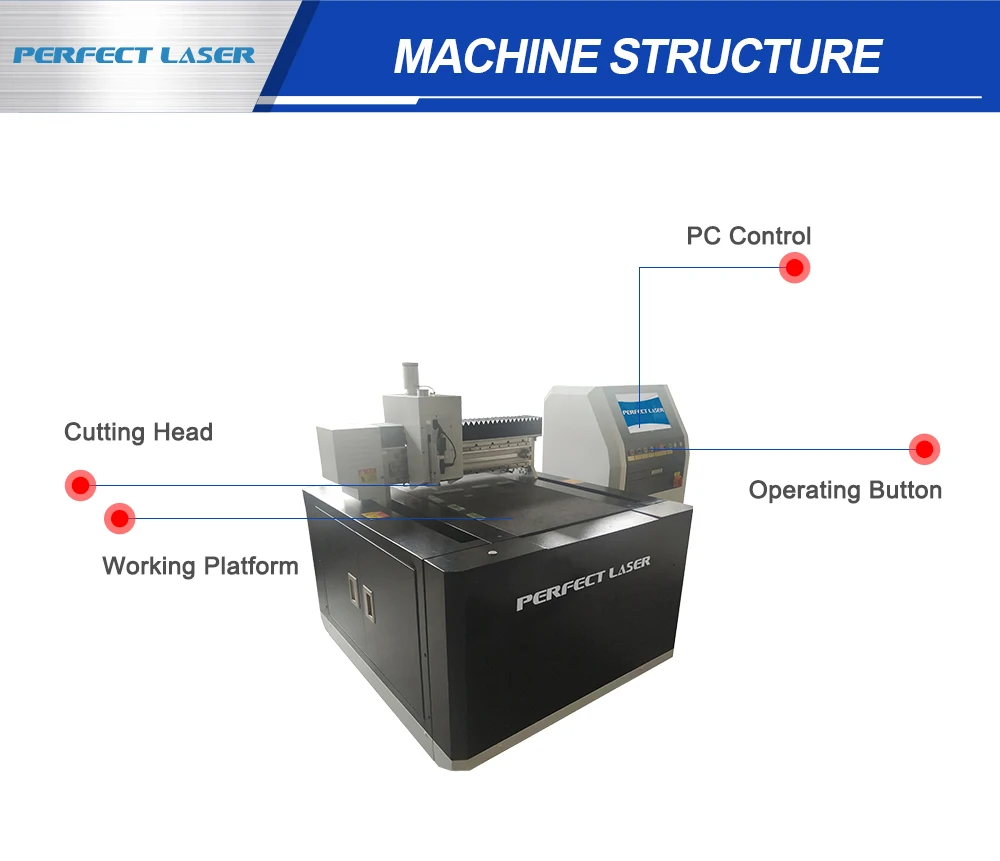

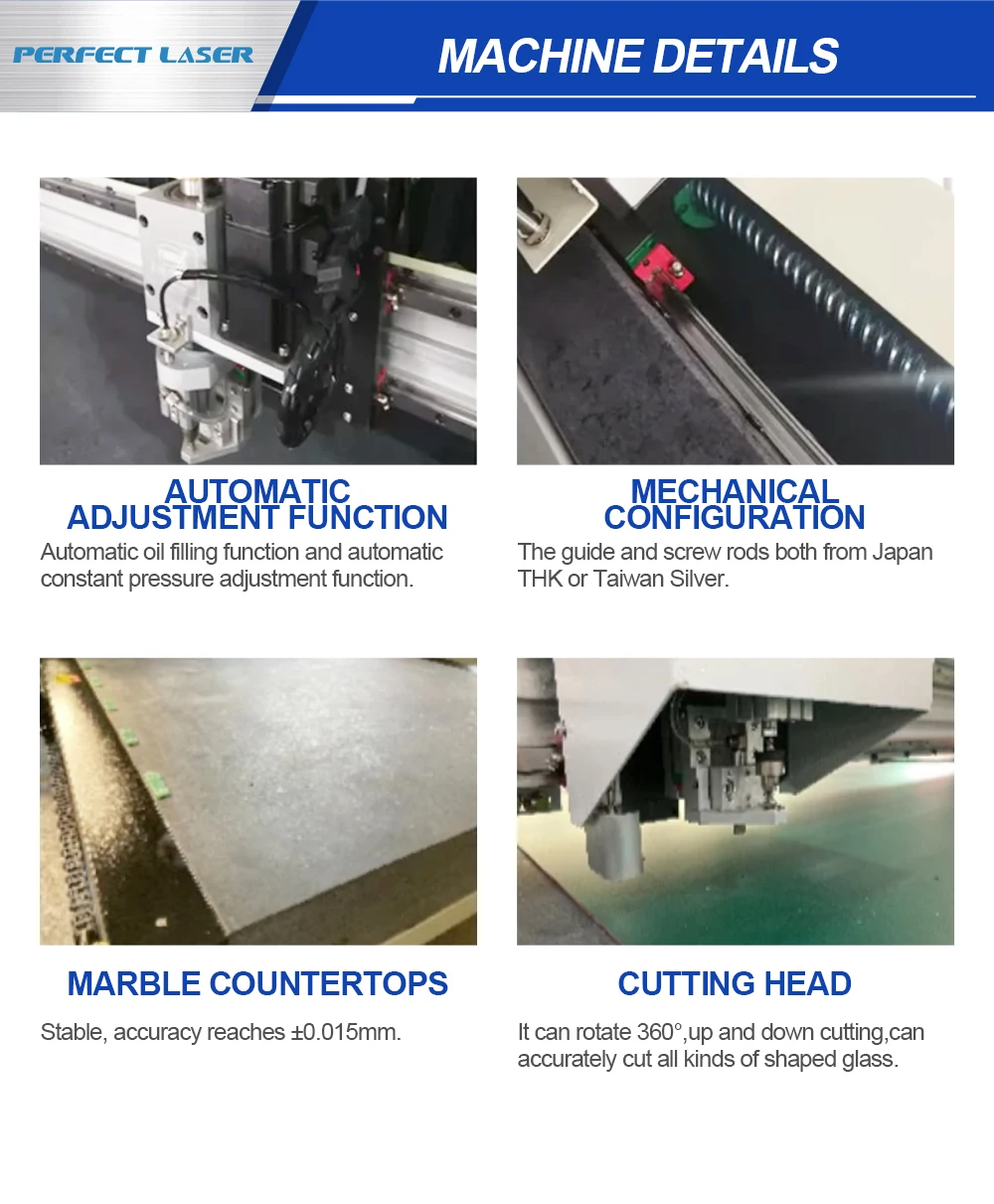

Machine Details
The Features of CCD Automatic Positioning Single Head Mobile Phone Camera Rearview Mirror Small CNC Ultra-thin Glass Cutting Machine
1.Automatic glass cutter uses professional glass cutting software, CAD drawing, you can cut rectangles, and all kinds of graphics that you want.
2.X,Y,Z axis is with servo motor, itcan achieve high accuracy, smooth operation, low cost and long service life.
3.The working positioning pin of this ultra-thin cncautomatic glass cutter is the upper left corner of the machine.The positioning method is mechanical positioning and vacuum adsorption, which is conducive to the stability of operation.
4.Uses CCD camera, field of view is 6.04mm*5.12mm, CCD pixel is 1.3 million pixels, magnification can reach 40 to 60 times, PC controller.
5.CCD camera adopts coaxial adjustable light source, effective target size: + cursor ￠3-1.6mm; Round cursor ￠0.3-1.0mm; Special standards require experiments.
6.The mobile glass cutter machine the cutting origin position can be changed at will, with the function of origin correction,Typesetting function standard is with wide variety of patterns.
7. The mobile glass cutter machine multi-zone cutting can automatically optimize the tool path, and there are many options for optimization (the default is to cut the optimal path), It can realize the conversion of blowing and inhaling (controlled by foot switch), Pause function during the cutting.
8.The cutting software has 360 groups of size memory function, each piece of glass can be cut 16 sizes, the software area cutting setting is 10 sizes, CAD drawing can be cut more sizes, easy to operate and intelligent.
1.Automatic glass cutter uses professional glass cutting software, CAD drawing, you can cut rectangles, and all kinds of graphics that you want.
2.X,Y,Z axis is with servo motor, itcan achieve high accuracy, smooth operation, low cost and long service life.
3.The working positioning pin of this ultra-thin cncautomatic glass cutter is the upper left corner of the machine.The positioning method is mechanical positioning and vacuum adsorption, which is conducive to the stability of operation.
4.Uses CCD camera, field of view is 6.04mm*5.12mm, CCD pixel is 1.3 million pixels, magnification can reach 40 to 60 times, PC controller.
5.CCD camera adopts coaxial adjustable light source, effective target size: + cursor ￠3-1.6mm; Round cursor ￠0.3-1.0mm; Special standards require experiments.
6.The mobile glass cutter machine the cutting origin position can be changed at will, with the function of origin correction,Typesetting function standard is with wide variety of patterns.
7. The mobile glass cutter machine multi-zone cutting can automatically optimize the tool path, and there are many options for optimization (the default is to cut the optimal path), It can realize the conversion of blowing and inhaling (controlled by foot switch), Pause function during the cutting.
8.The cutting software has 360 groups of size memory function, each piece of glass can be cut 16 sizes, the software area cutting setting is 10 sizes, CAD drawing can be cut more sizes, easy to operate and intelligent.
Technical Data
Product Name | Ultra-thin CNC Glass Engraving Machine | |
Model | PEG-5050 | |
Power | 3.1kw | |
Cut Glass Dimension | 550*500mm 100*100mm （minimum processing size） | |
Cutting Accuracy | ±0.03-±0.05mm(straight line) | |
Cutting Thickness | 0.1-5mm | |
Marble Countertop Tolerance | ±0.015mm | |
Cutting Speed | 0-80m/min（adjustable） | |
Total Weight | 950KG | |

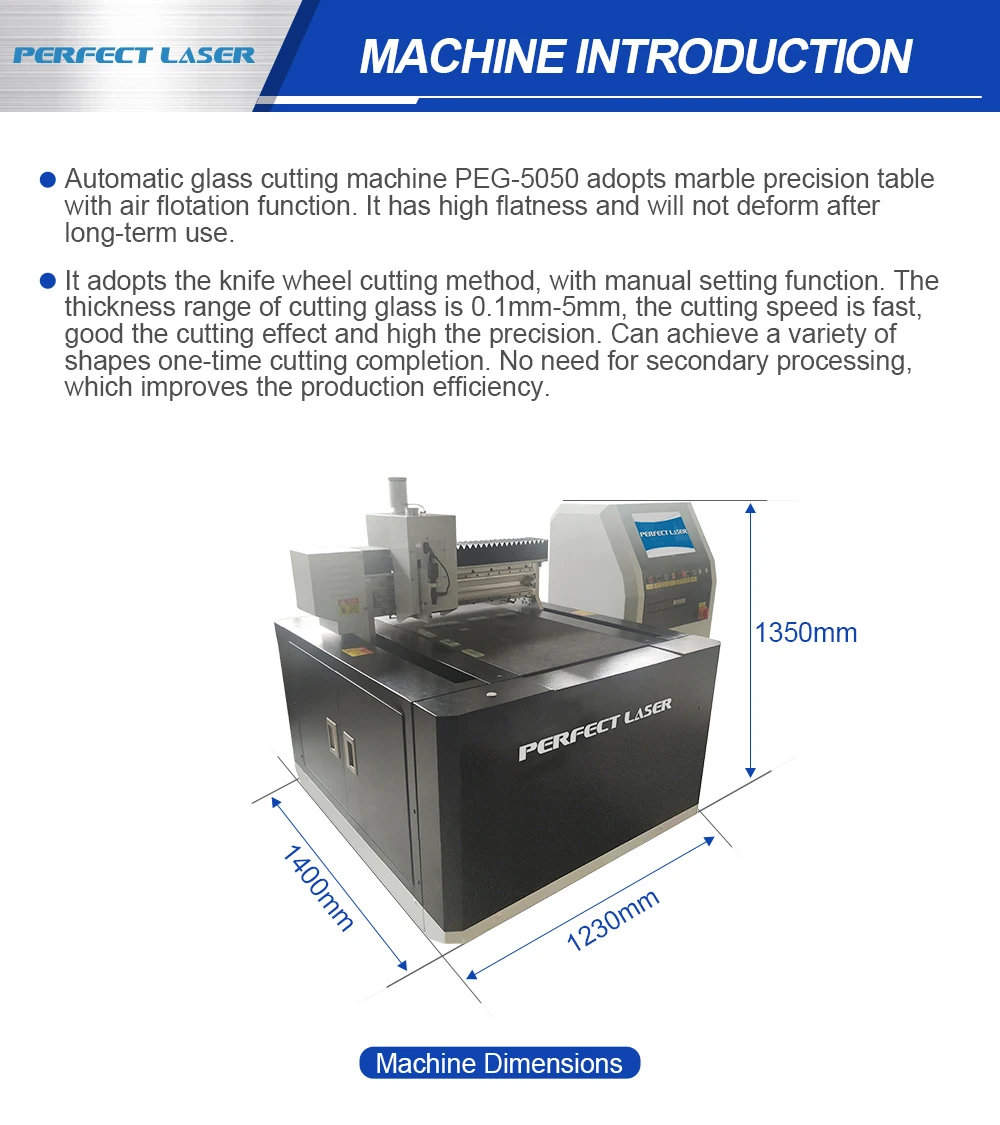

Boundary Dimension | 1400*1230*1350mm | |
Oil Supply System | automatic oiling device | |
Positioning Device | mechanical positioning device | |
Machine Layout | Lead screw and guide rail are Taiwan Shangyin | |
Bearings | Japan NSK | |
Electrical Configuration | ||
Pneumatic Element | Japan SMC | |
Electrical Apparatus Element | Taiwan SHANHO | |
Relay | Taian,Taiwan | |
Proportional Valve | Japan SMC | |
Filter, Solenoid Valve | Japan SMC | |
Switching Power Supply | Japan OMRON | |
Button, Indicator, Select Switch | IDEC | |
AC Contactor | Taian, Taiwan | |
Air Switch | Taian, Taiwan (with leakage protection function) | |
Computer Configuration | ASUS | |
CCD Parameters | ||
CCD Field of View | 6.04mm*5.12mm | |
CCD pixels | 1.3 million pixels | |
Controller | PC | |
Gain | 40-60 times | |
Light Source | Coaxial adjustable light source | |
Effective Target Size | +cursor￠0.3-1.6mm; round cursor￠0.3-1.0mm; special markings require experimentation | |
