Customized Pleated AC Furnace HVAC 16x25x1 16x20x1 20x20x1 20x25x1 Air Filter MERV 8 10 13 16 Replacement Air Conditioner Filter
- Category: >>>
- Supplier: Xinxiang Dongfeng Filter Technology Co. Ltd.
Share on (10000018493410):
Product Overview
Description
Product introduction

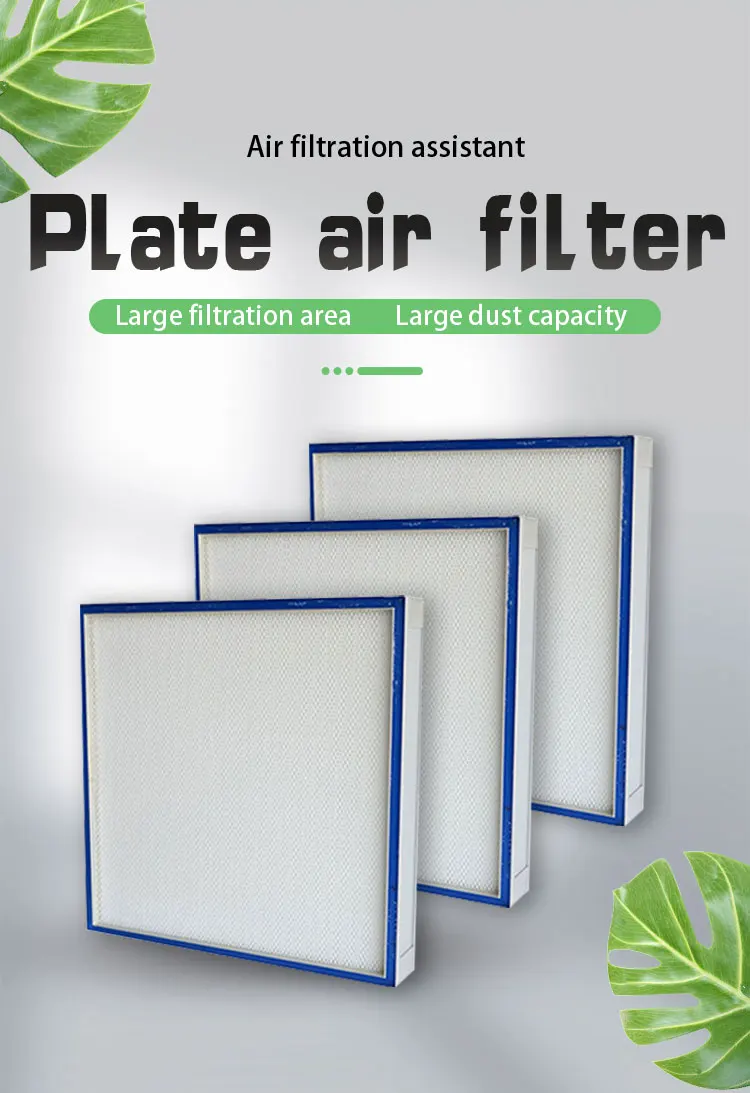

The Paper frame coarse initial effect filter mainly consists of an outer frame made of cardboard and an internal filtering material (such as primary synthetic fiber filter cotton). In addition, there is often a metal mesh support behind the filter material to increase its structural stability and filtration effect.
Product Paramenters
Thickness （inch''） | Size （inch） | Actual size | Filter area （㎡） | Air flow resistance （m³/h&pa） | Fold count/foot （1 foot=305mm） | ||||||
length （mm） | width （mm） | thickness （mm） | |||||||||
4‘’ | 24x24x4 | 594 | 594 | 95 | 2.66 | 1700/18 | 3400/68 | 11 | |||
24x12x4 | 594 | 289 | 1.3 | 850/18 | 1700/68 | ||||||
24x20x4 | 594 | 492 | 2.2 | 1420/18 | 2840/68 | ||||||
20x20x4 | 492 | 492 | 1.82 | 1180/18 | 2360/68 | ||||||
20x16x4 | 492 | 391 | 1.45 | 935/18 | 1870/68 | ||||||
25x20x4 | 619 | 492 | 2.3 | 1480/18 | 2960/68 | ||||||
25x25x4 | 619 | 619 | 2.9 | 1860/18 | 3720/68 | ||||||
2'' | 24x24x2 | 594 | 594 | 45 | 1.75 | 1700/20 | 3400/70 | 15 | |||
24x12x2 | 594 | 289 | 0.85 | 850/20 | 1700/70 | ||||||
24x20x2 | 494 | 495 | 1.46 | 1420/20 | 2840/70 | ||||||
24x18x2 | 594 | 445 | 1.31 | 1275/20 | 2550/70 | ||||||
20x20x2 | 495 | 495 | 1.21 | 1180/20 | 2360/70 | ||||||
20x18x2 | 495 | 445 | 1.09 | 1060/20 | 2120/70 | ||||||
20x16x2 | 495 | 394 | 0.97 | 935/20 | 1870/70 | ||||||
20x12x2 | 495 | 289 | 0.74 | 715/20 | 1430/70 | ||||||
25x20x2 | 622 | 495 | 1.52 | 1480/20 | 2960/70 | ||||||
25x18x2 | 622 | 445 | 1.37 | 1325/20 | 2650/70 | ||||||
25x16x2 | 622 | 394 | 1.18 | 1180/20 | 2360/70 | ||||||
1‘’ | 24x24x1 | 597 | 597 | 22 | 0.88 | 1190/20 | 2380/70 | 16 | |||
24x12x1 | 597 | 292 | 0.43 | 590/20 | 1190/70 | ||||||
24x20x1 | 597 | 495 | 0.74 | 995/20 | 1990/70 | ||||||
20x20x1 | 495 | 495 | 0.6 | 825/20 | 1650/70 | ||||||
20x16x1 | 495 | 394 | 0.48 | 660/20 | 1325/70 | ||||||
25x20x1 | 622 | 495 | 0.76 | 1035/20 | 2070/70 | ||||||
25x16x1 | 622 | 394 | 0.61 | 825/20 | 1650/70 | ||||||
Use scenario
Company Profile
Xinxiang Dongfeng Filter Technology Co., Ltd. was founded in 1994, the registered capital reaches 50 million Yuan, and The company was elected "Vice-chairman Unit" by filtration & separation industry association in 2006. At present, has formed four series leading products, they are "Hydraulic System Cleaning & Filtration Device", "Complete Hydraulic Filters", "Hydraulic System Accessories", "Pump Valve Components".
Packaging & Shipping
FAQ
Q: Are you a manufacturer or a trading company?
A: Manufacturer and our own factory.
Q: What is the payment method?
A: Usually, we accept telegraphic transfer, letter of credit, Western Union remittance, Paypal and Alipay payment. Other payment methods are subject to the situation.
Q: How long will it take you to deliver?
A: The goods will be delivered within 3 days. A large number of goods need to be confirmed through negotiation.
Q: Can I buy some for my initial order?
A: Yes, we can accept the trial order before the formal order.
Q: Can I get some free samples?
A: Of course. Sometimes, we can provide you with free samples, but you should pay the express fee.
Q: After placing an order, how do we ensure product quality?
A: Before delivery, we will send you the picture, video and test report of the filter for your inspection.
A: Manufacturer and our own factory.
Q: What is the payment method?
A: Usually, we accept telegraphic transfer, letter of credit, Western Union remittance, Paypal and Alipay payment. Other payment methods are subject to the situation.
Q: How long will it take you to deliver?
A: The goods will be delivered within 3 days. A large number of goods need to be confirmed through negotiation.
Q: Can I buy some for my initial order?
A: Yes, we can accept the trial order before the formal order.
Q: Can I get some free samples?
A: Of course. Sometimes, we can provide you with free samples, but you should pay the express fee.
Q: After placing an order, how do we ensure product quality?
A: Before delivery, we will send you the picture, video and test report of the filter for your inspection.
