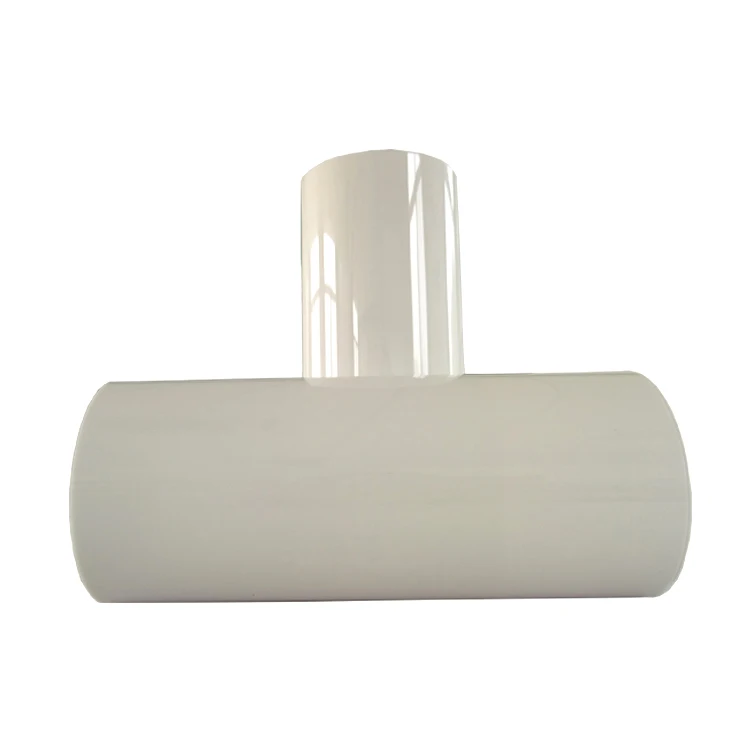

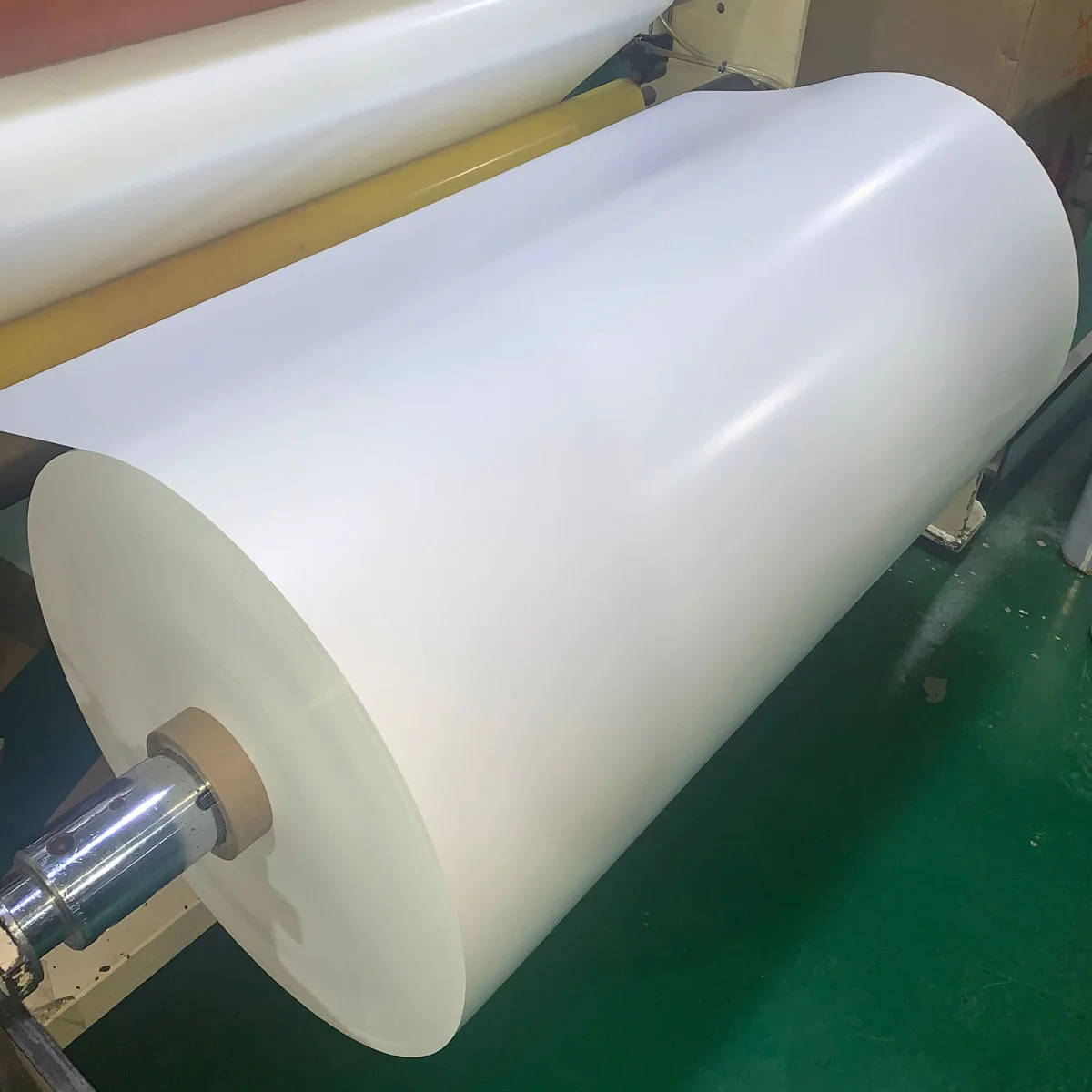

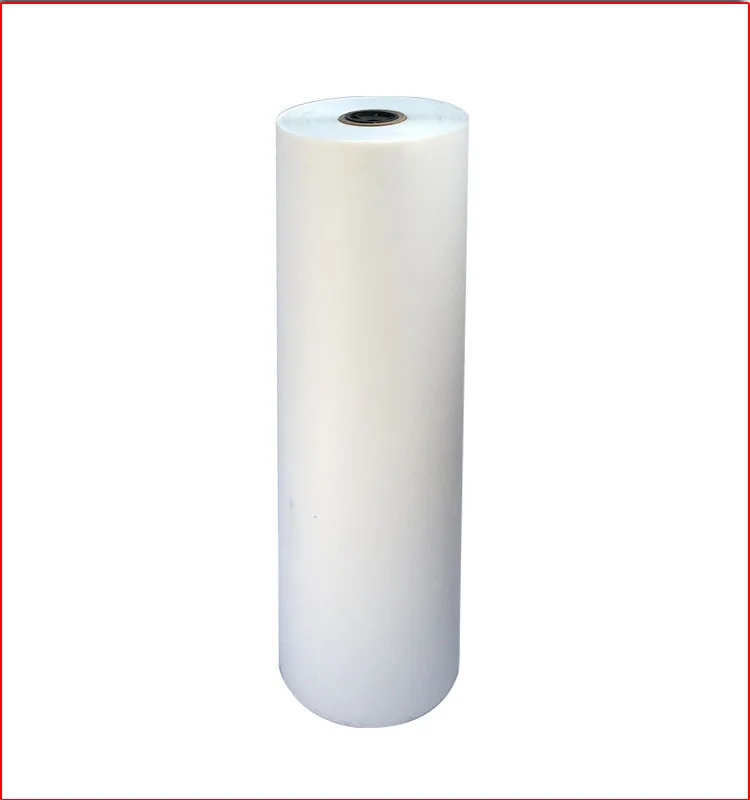

High Performance Diamond Polyester Film for Superior Insulation and Durability
- Category: >>>
- Supplier: Yantai Libo International Trade Co. Ltd.
Share on (10000018553034):
Product Overview
Description
Specification
Properties | Units | Values | ||||
Tensile strength(MD and TD) | 25μm~100μm | MPa | ≥150 | |||
100μm~190μm | ≥140 | |||||
>190μm | ≥110 | |||||
Elongation at break (MD and TD) | 25μm~50μm >50μm~350μm | % | ≥60 ≥80 | |||
Shrinkage (MD and TD) | 25~190μm >190μm | % | ≤3.0 ≤2.0 | |||
Volume resistivity | Ω·M | ≥1.0×1014 | ||||
Relative dielectric constant (50Hz) | / | 2.9~3.4 | ||||
Dielectric dissipation factor (50Hz) | / | ≤5.0×10-3 | ||||
Density | kg/m3 | 6020 | 6021 | |||
1390±10 | 1400+10-20 | |||||
Melting point | ℃ | ≥256 | ||||
Surface resistivity | Ω | ≥1.0×1013 | ||||
Electrolytic corrosion | Ocular Estimate | Class | A1 | |||
Metallic Conductivity Tensile Strength Method | % | ≤2 | ||||
Dimensional stability Under high Temp. | When tension | ℃ | ≥200 | |||
When pressure | ≥200 | |||||
Products Description

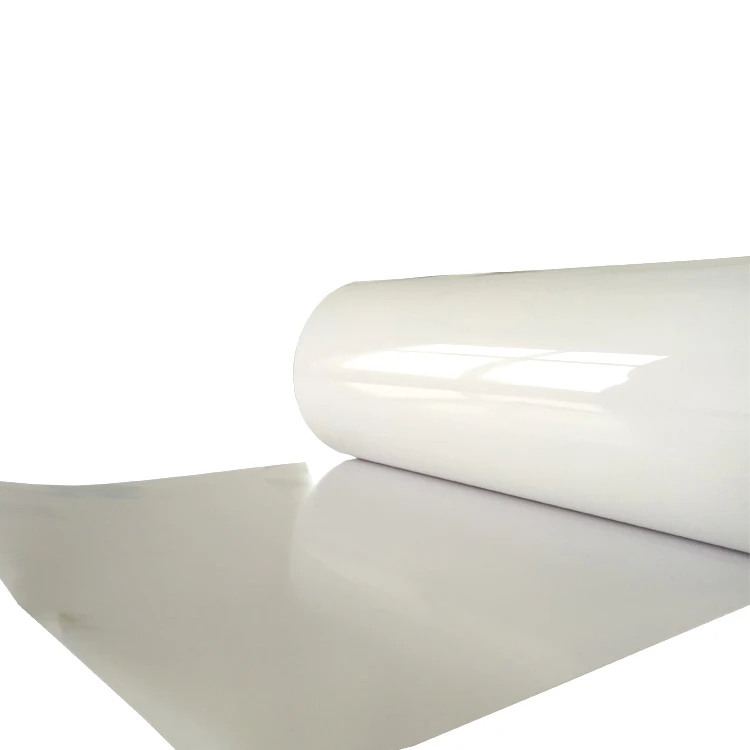

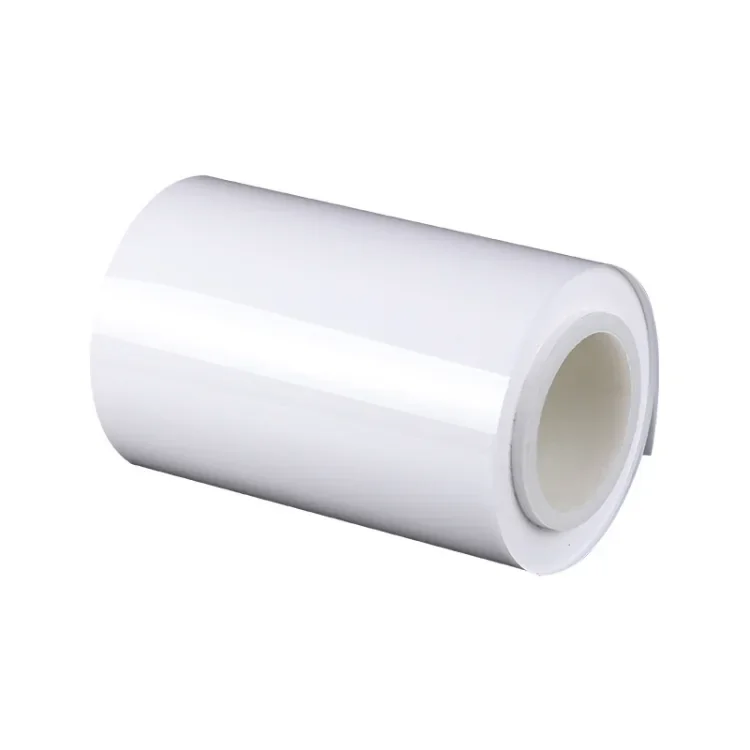

Hot selling Electrical heat insulation clear milky white roll mylar polyester pet film is made from Polyethylene terephthalate by casting & Biaxially.
Class E insulation (120) - High mechanical strength and excellent dielectric property.
It is widely used for the end wrap insulation, liner insulation of electrical oils, electromagnetic wire wrap insulation, cable wrapping on motor, transformer or other electrical appliances.
It also be used for packaging, glass-steel, collar of clothes, etc.
Class E insulation (120) - High mechanical strength and excellent dielectric property.
It is widely used for the end wrap insulation, liner insulation of electrical oils, electromagnetic wire wrap insulation, cable wrapping on motor, transformer or other electrical appliances.
It also be used for packaging, glass-steel, collar of clothes, etc.
Recommend Products
Why Choose Us
Customization
Company Profile
Yantai Libo International Trade Co.,Ltd.

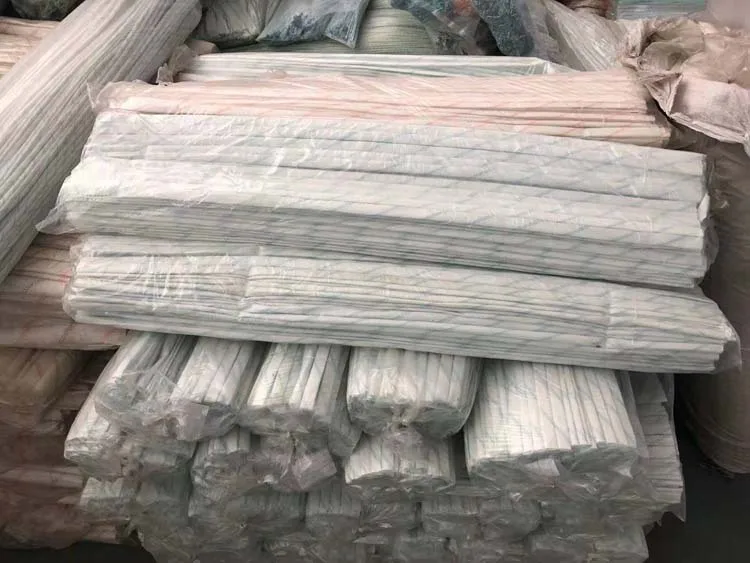

The company are specialized in pro aminated paper DMD(with product thickness: 0.02 mm-0.23mm, and width:510mm-1500mm),Insulation Composite Laminated Material(DMD,NMN,NHN,100% saturated DMD,Aramid Paper,Diamond dotted paper),Insulation fiberglass Sleeving(2715PVC fiberglass sleeves,2751Siliconerubber fiberglass sleeves,2740Acrylic fiberglass sleeve,2753Silicone fiberglass sleeves,PU fiberglass sleeve) ,Mylar film(Polyester film,Milky white mylar film),Insulation tape(insulation pvc tape) and other electrical insulating material. They are used in motor,transformer, generator,reactor,etc. We have gained ISO9001,SGS and material ROHS and REACH certificate.
