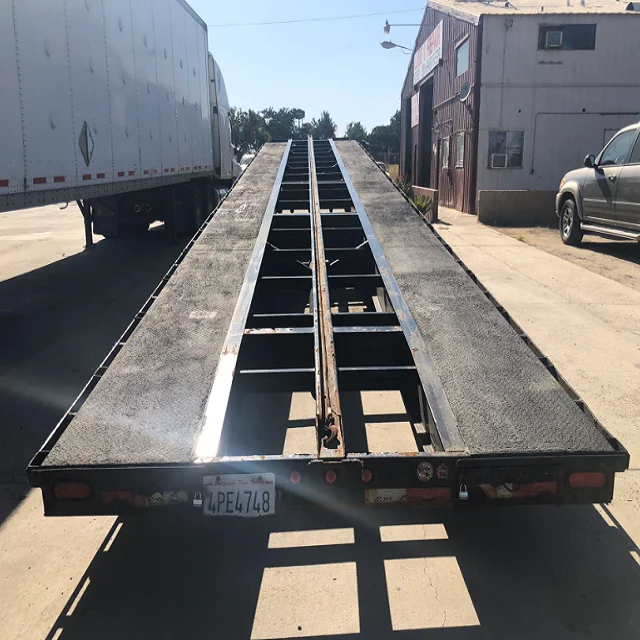

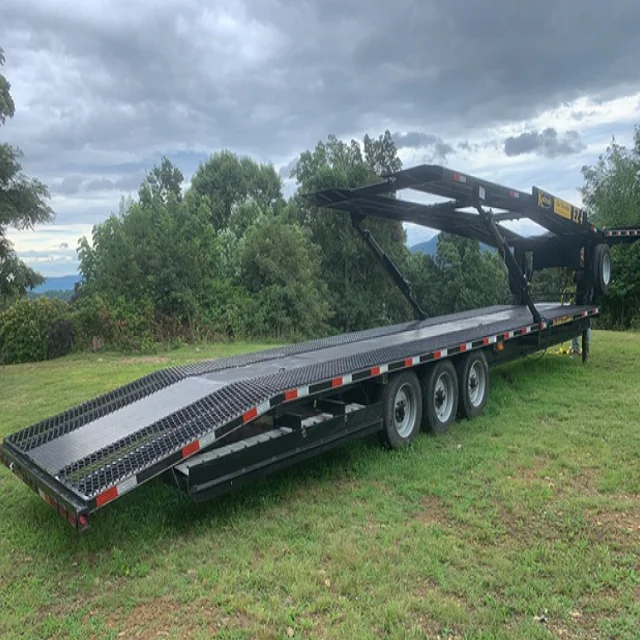

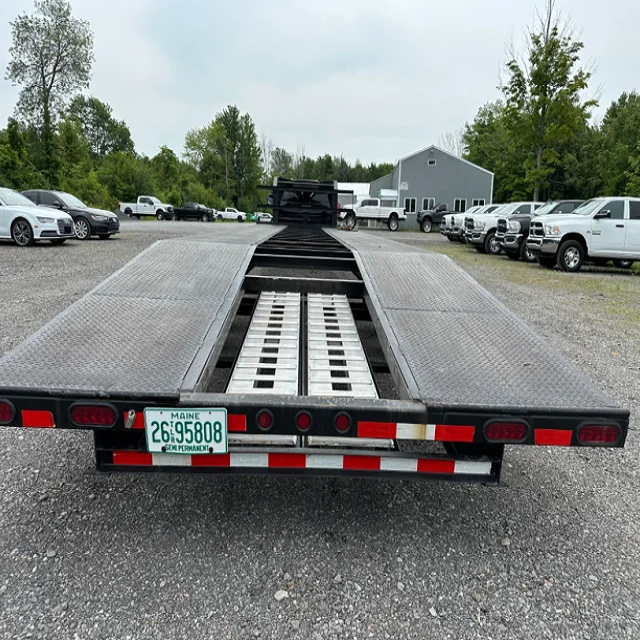

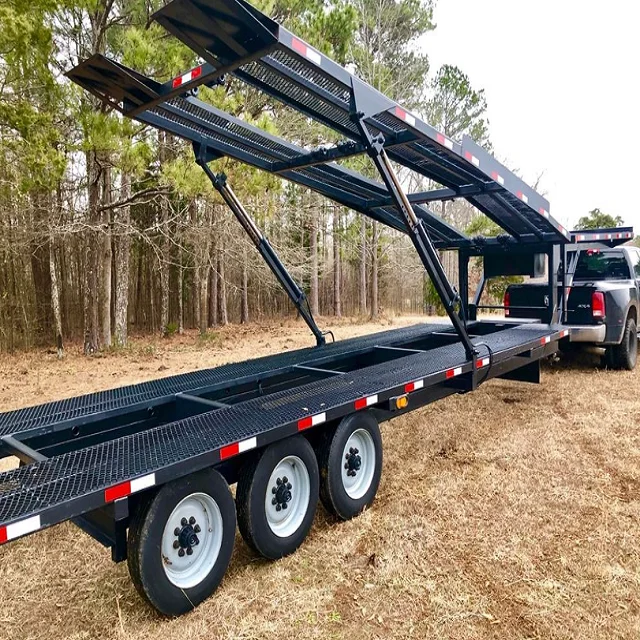

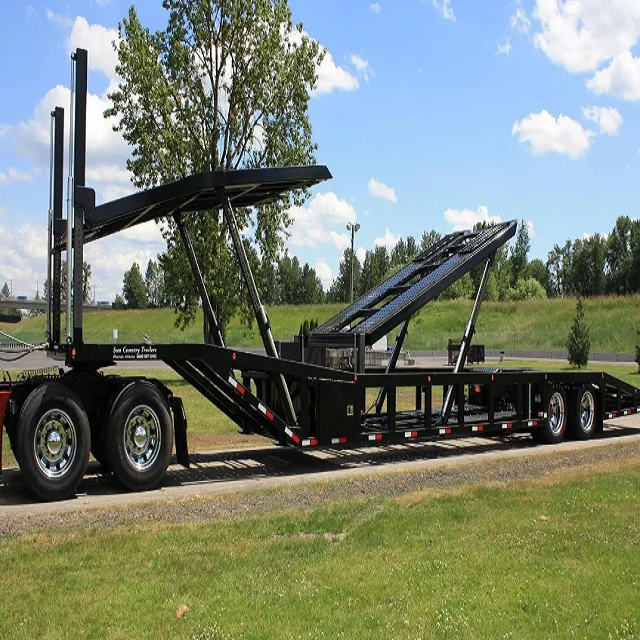

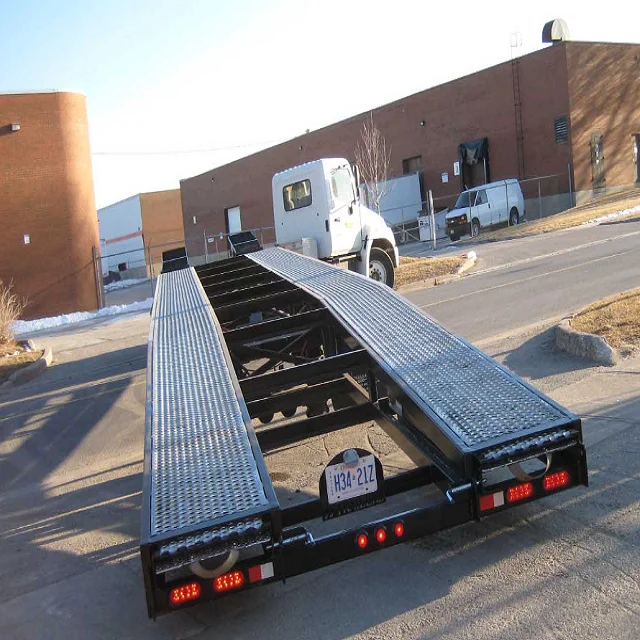

8/10 Cars Carrying Vehicle Car Transporter Trailer Car Carrier Semi Trailer For Sale

8/10 Cars Carrying Vehicle Car Transporter Trailer Car Carrier Semi Trailer For Sale

Name: 8/10 Cars Carrying Vehicle Car Transporter Trailer Car Carrier Semi Trailer For Sale
SKU: 10000018595447
Availability: InStock

Price:

Quantity:

Specifications of car carrier semi trailer

Below are specifications for the main parts of the trailer.contact us for more details.

Cars Transportation Hydraulic Loading Truck Semi Trailer
	Axle Number	Rating Capacity	Tire Qty	Tire Model
6 Cars Loading	2 Axles	50Tons	8 sets	825R20
10 Cars Loading	3 Axles	60-70Tons	12sets	10.00R20
More than 10 cars	4 Axles	80Tons	16sets	11.00R20
Rear tread(mm)	1840/1840
Outside Dimension L×W×H	13000-21000x2550x4000 mm
Main Frame	Q345B manganese plates, automatic submerged arc welded
Floor	Steel Sheet 3mm thickness or diamond plate
Suspension	Steel leaf spring suspension system
Pin Size	2'(50mm) and 3.5'(90mm) inter-changeable Pin
Spare Wheel Carrier	One set of spare wheel carrier including a riser
Braking System	2-Line compressed air brake system on all wheels with additional parking brake
Brake Air Chamber	Automatic Air Chambers
Electrical System	1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Accessory	One tooling box with a set of standard trailer tool
Landing gear	Capacity of 28ton,factory brand
Lights System	LED electrical system to international standards includes taillights, sidelights and direction indicators
Loading Capacity	2 floors
Pictures and configuration information are for reference only.The final product can be made according to specific requirements.
