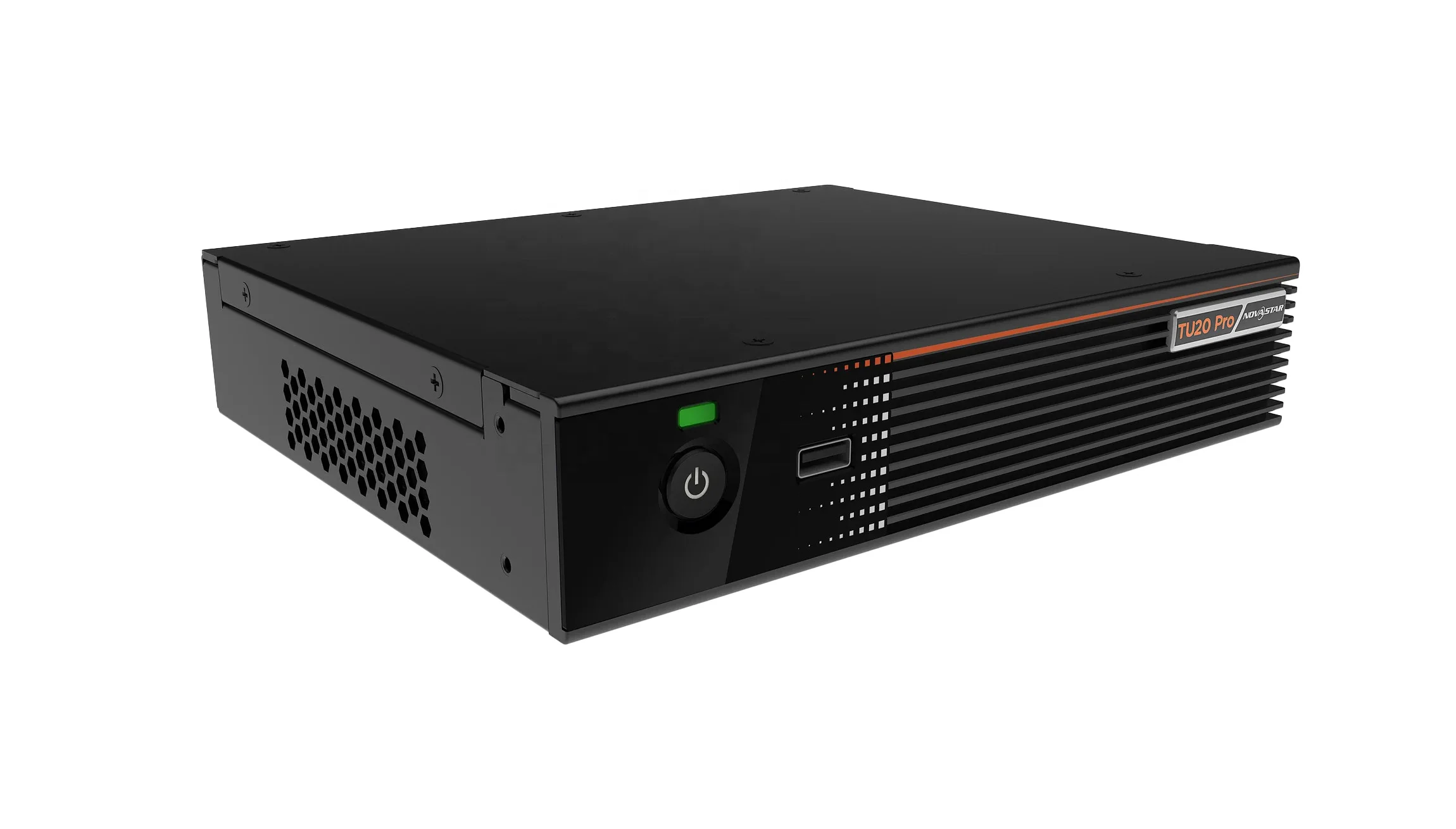

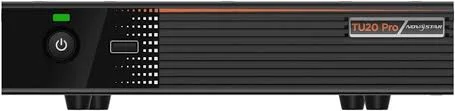

2K Video Processor Novastar TU20 Pro LED Playback Control Processor
- Category: >>>
- Supplier: Shenzhen Jingcan Opto-Tec Co. Ltd.
Share on (10000018604474):
Product Overview
Description
TU20 PRO
The NovaStar TU20 Pro belongs to the latest generation of multimedia players from NovaStar. The TU20 Pro combines the functions of an LED controller and a media player in one device. The device supports screen mirroring with Windows, macOS, iOS and Android devices.
FEATURES:
Inputs:
* 2x HDMI 1.3
* 3x USB 2.0 for multimedia playback
Outputs:
* 6x LED-Out (RJ45)
* 2x audio output (1x SPDIF, 1x 3.5mm)
* 1x HDMI (1080p)
further features:
* Output Image Scaling
* Android 11 operating system
* Wireless screen mirroring
* Bluetooth 5.1
* 4GB RAM
* 32GB internal memory
general specifications:
* Supply voltage: DC 12V 3A
* Power consumption: 21W
* Dimensions: 211.7 x 185.0 x 50.6mm * Weight: 1,12kg
* Certifications: CE, RoHS, FCC, IC, FCC ID, IC ID, UKCA
FEATURES:
Inputs:
* 2x HDMI 1.3
* 3x USB 2.0 for multimedia playback
Outputs:
* 6x LED-Out (RJ45)
* 2x audio output (1x SPDIF, 1x 3.5mm)
* 1x HDMI (1080p)
further features:
* Output Image Scaling
* Android 11 operating system
* Wireless screen mirroring
* Bluetooth 5.1
* 4GB RAM
* 32GB internal memory
general specifications:
* Supply voltage: DC 12V 3A
* Power consumption: 21W
* Dimensions: 211.7 x 185.0 x 50.6mm * Weight: 1,12kg
* Certifications: CE, RoHS, FCC, IC, FCC ID, IC ID, UKCA
System Functions:
1.Android 11 based desktop UI system, supporting third-party apps
2.Wireless screen mirroring from multiple platforms Mirror from Windows, macOS, iOS and Android terminals.
3. Working with terminal app to control wireless screen mirroring
-Secondary mirror:
The speaker can reversely control the LED screen via the terminal.
− Wireless snapshot:
Take snapshots wirelessly via the terminal at any time to record the meeting details.
− Wireless speech:
The participants speak directly via the terminal microphone and the voice is transmitted wireless to the sound system of the LED display.
4.Playback control via different terminals
− Intelligent control via mobile app:
Install app on mobile phone to realize program editing and publishing and screen control.
− Convenient playback control via remote:
Perform playback control of local programs and simple program editing on the screen.
− USB playback:
Plug and play or copy and play. Support decoding of 4K HD videos in the HEVC, H.265, H.264 and other industrystandard coding formats.
5.Dual Wi-Fi modes Allow for Wi-Fi and wireless hotspot connections at the same time. Image quality enhancement Improve the display effect from the three dimensions of image contrast,detail and color. So that the overall sense of image gradation is richer and more delicate; the edge details are clear and sharp; the color is bright and vivid.
6. Effect adjustment Provide the standard, soft, theater and meeting scenario modes, and allow you to adjust the brightness, saturation, contrast, etc.
7.Eye comfort mode Screen drawing and commenting

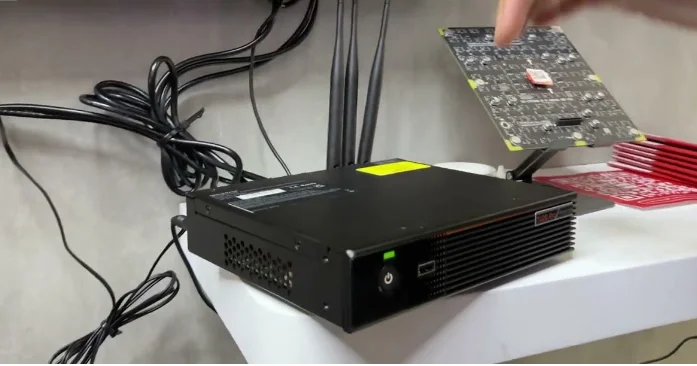

TU20 Pro controller control led display

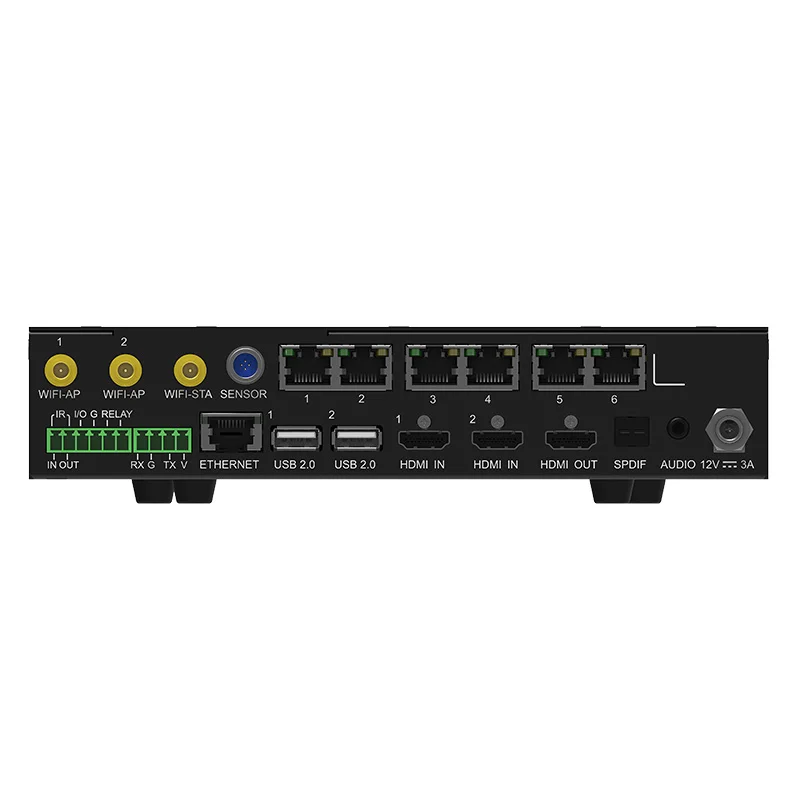

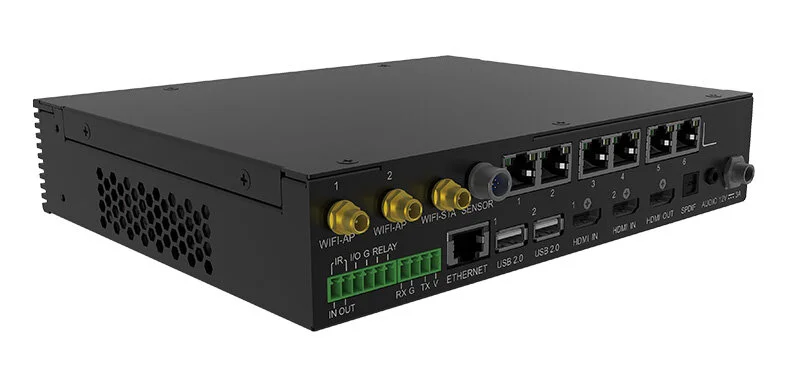

Input: HDMI IN 1-2 | 2x HDMI 1.3 (Type A) Max resolution: 2048×1152@60Hz Min resolution: 800×600@60Hz Custom resolutions supported Width range: 800–3840 pixels (Forced) Height range: 600–3840 pixels (Forced) Supported frame rates: 30 Hz, 50 Hz, 60 Hz Do NOT support interlaced signal input. HDCP 1.4 compliant, backwards compatible |
USB 2.0 1-2 | 2x USB 2.0 to support a mouse, keyboard, USB drive and other common USB devices Supported image formats: *.jpg, *.bmp, *.png Supported video formats: *.avi, *.mpg, *.vob, *.mov, *.mkv, *.rmvb, *.mp4, *.ts, *.flv Supported file systems: FAT32, NTFS; not supported: exFAT, FAT16 |
Output:1-6 | 6x RJ45 (1Gps) In pixel-to-pixel output mode: load capacity up to 2.6 million pixels When scaling function enabled: load capacity up to 3.9 million pixels (max width: 4096 pixels; max height: 1920 pixels) |
HDMI OUT | Support output of standard 1080p videos only. |
SPDIF | For digital fiber optic audio output |
ETHERNET | Connect to external network or to the NovaLCT software on the control PC |
SENSOR | 1x sensor connector to connect to the light sensor or temperature sensor |
Phoenix connector (4 pins) | 1x RS232 central control connector (4 pins) to connect to the central control device Baud rate: 115200 bps Data bits: 8; stop bits: 1; no parity bit; no flow control |
Phoenix connector (6 pins) | 1x IR IN Support the learning of the infrared control instructions. 1x IR OUT Support the programmable infrared control. 1xI/o − Trigger the execution of various function requirements via programming. − Support the input and output modes. − Input and output I/O voltage: 3.3 V 1x RELAY − Connect to a relay to control the switch on and off of the connected device. − Voltage: 30 V DC;max current: 3 A 1x GND A grounding connector |
Wi-Fi AP 1-2 | Specifications: 2T2R. Connect to the Wi-Fi antenna and Bluetooth antenna. |
Wi-Fi STA | Specifications: 1T1R. Connect to the Wi-Fi antenna |
