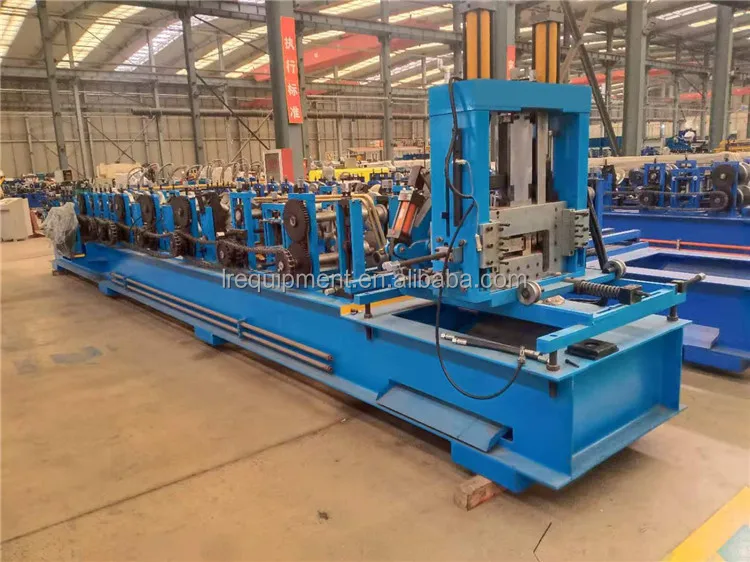

Purlin Frame Automatic C Shape Steel Frame Metal Making Production Line C Purlin Cold Roll Forming Machines

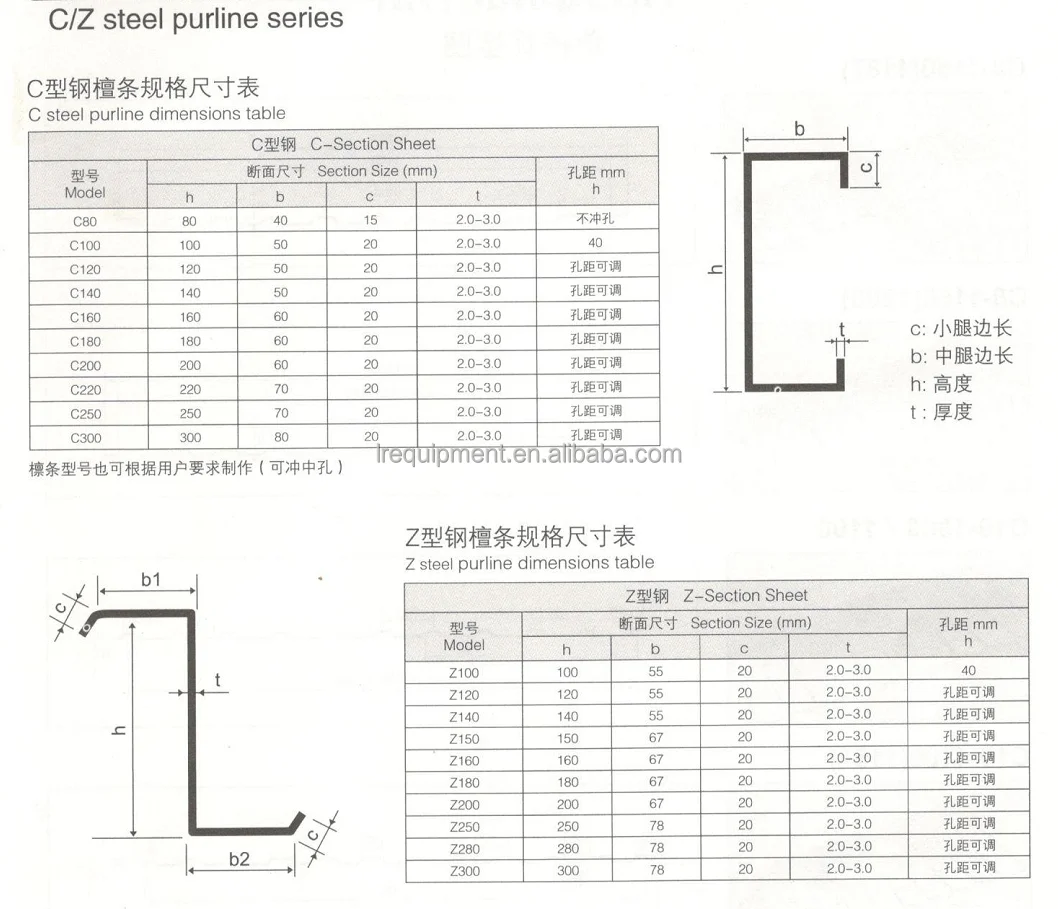

Steel Profile CZ purlin is widely used in purlin and metal steel structure building and wall beam.
Also can be assembled into the lightweight roof truss,bracket and other architectural components.
In addition, it can also be used in light industria manufacturing of machinery, such as columns, beams.
Also can be assembled into the lightweight roof truss,bracket and other architectural components.
In addition, it can also be used in light industria manufacturing of machinery, such as columns, beams.
Product Paramenters
1 | Rolling thickness | 1.5-3mm | Rolling material | PPGI, PPGL, GL etc |
2 | Motor power | 7.5KW | Oil pump station | 5.5KW |
3 | Middle plate | 16mm | Frame | 80*80 square tube |
5 | Shaft Dia. | 60mm | Roller material | Cr12 MOV |
6 | Material Width | As Required | Coil Weight | 3T |
7 | Product | C75/C100/C150 etc | Roller Stations | 16-18 Stations |
8 | Driving Type | By Chain or Gear or Gearbox | Brand of Electric Control System | Delta or Schneider or Siemens |
9 | Dimension(L*W*H) | Customized | Warranty | 2 years |
Configuration

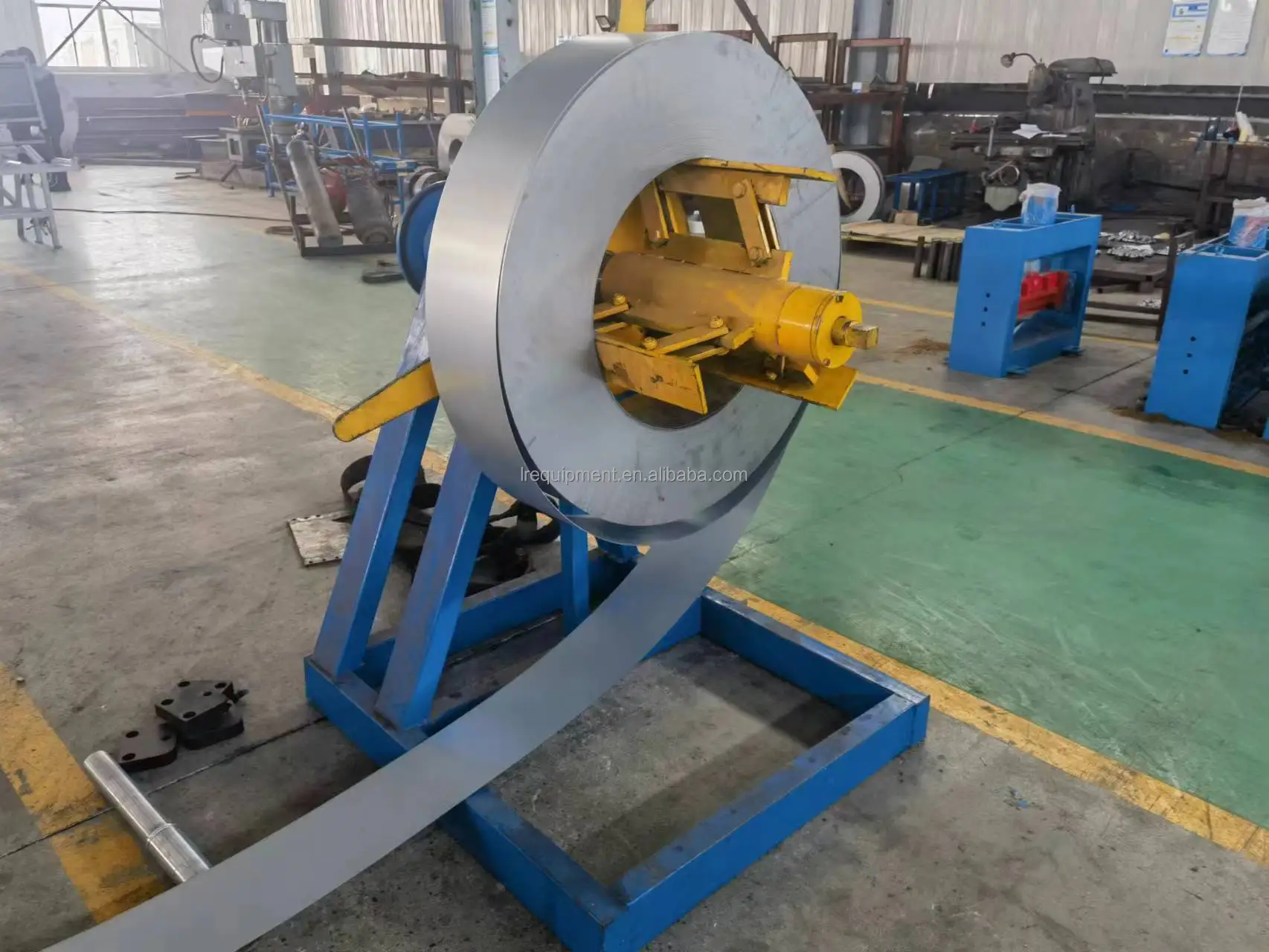

Feeding system
1. Loading Capacity: 3T
2. Coil Width: Max. 800mm3. Coil Inner Diameter: 450-550mm
4. Structure: Welded by The Steel Plates and Profiled Bar.
5. Size: ~1800×1600×1500mm(L×W×H)
6. Feature:
6.1.The Shrink and Expand of The Core is Manually, with Manual Brake;
6.2.The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
7. Founction: It is used to support the steel coil and uncoil it in a turnable way.

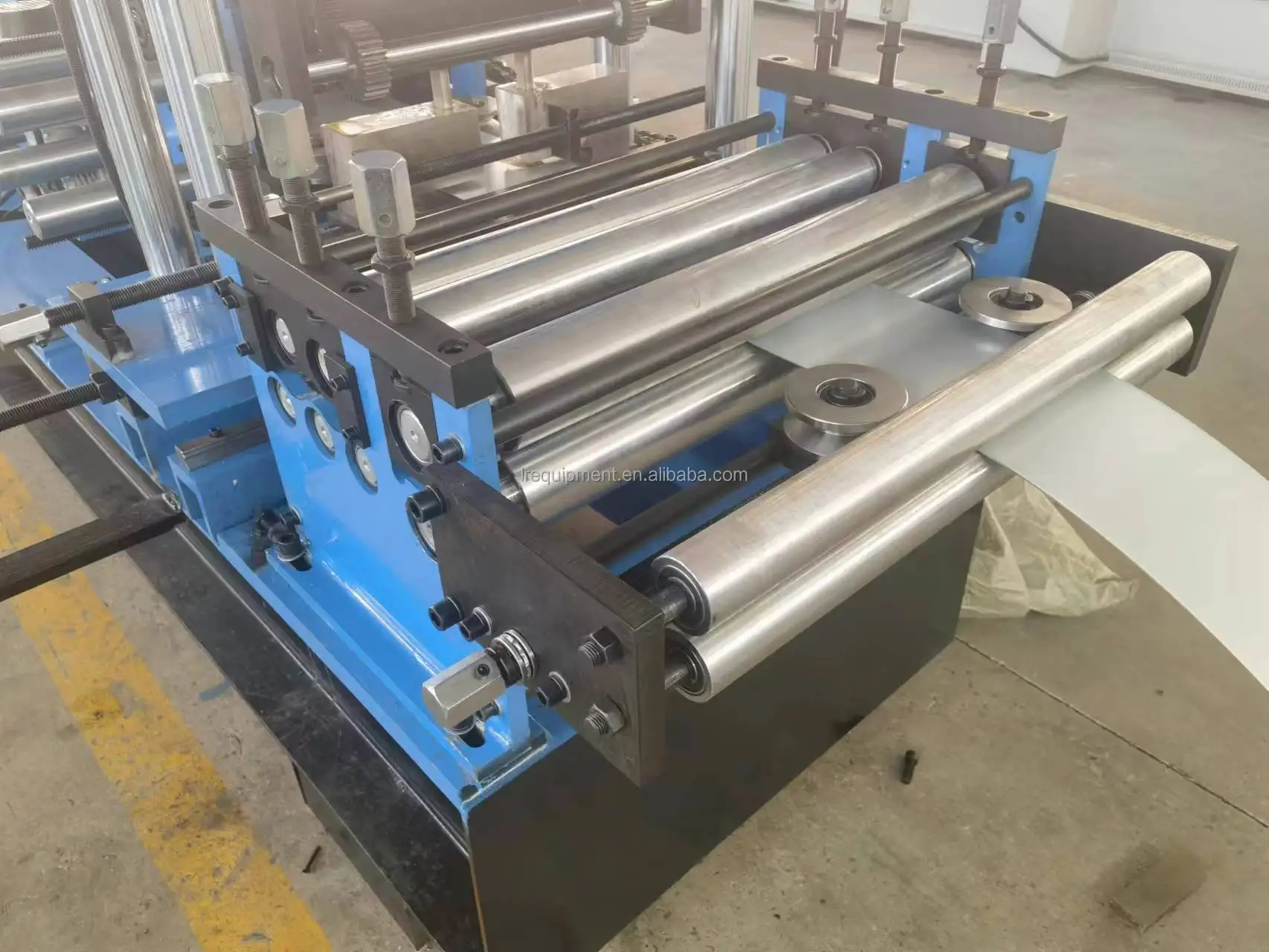

4 Wheel feeding&levelling system
Feeding Type:Adjustable
Feeding Width Range: 170-550mm
Adjustable Center of The Forming Rollers and of Sufficient Length to Prevent Laternal Movement of The Strip on its Entry to
Leveling Device. And The Material of Rollers Could Stop Scratching The Zinc of The Steel.
Leveling Device. And The Material of Rollers Could Stop Scratching The Zinc of The Steel.

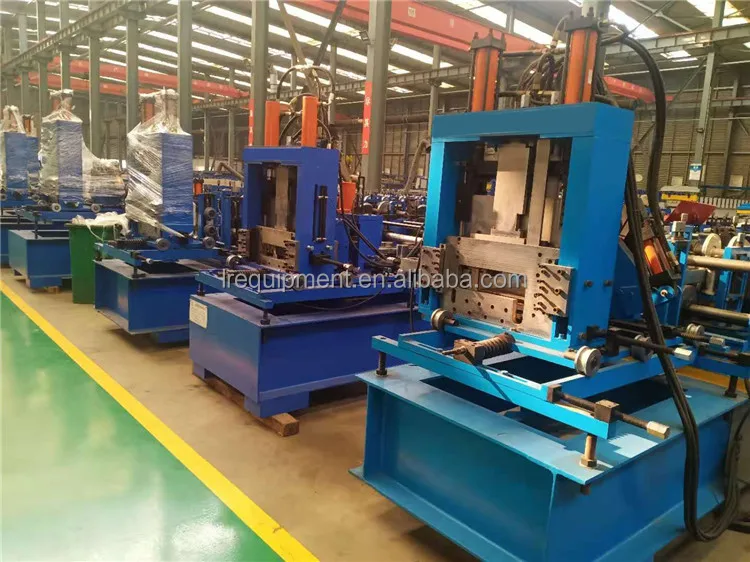

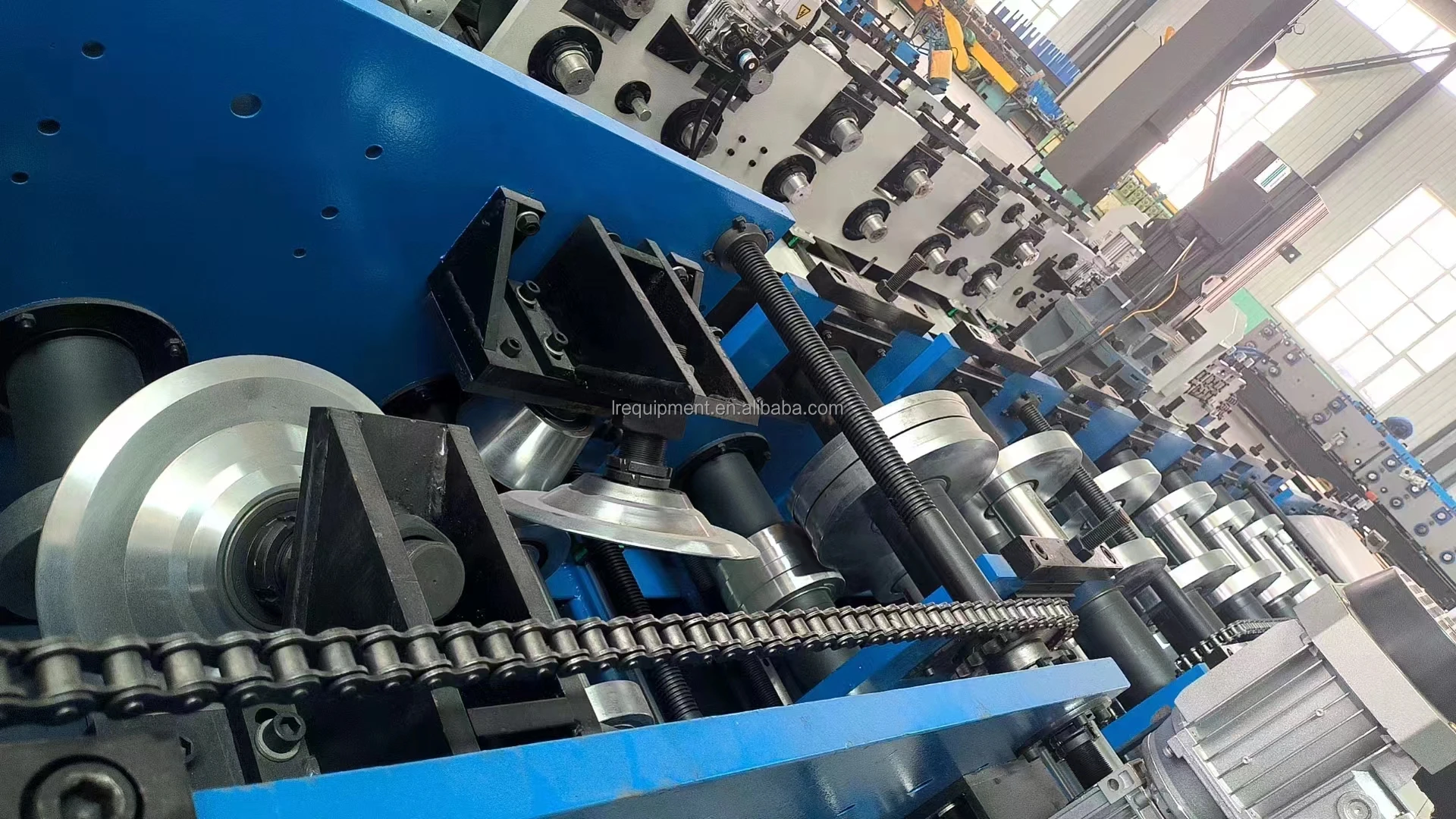

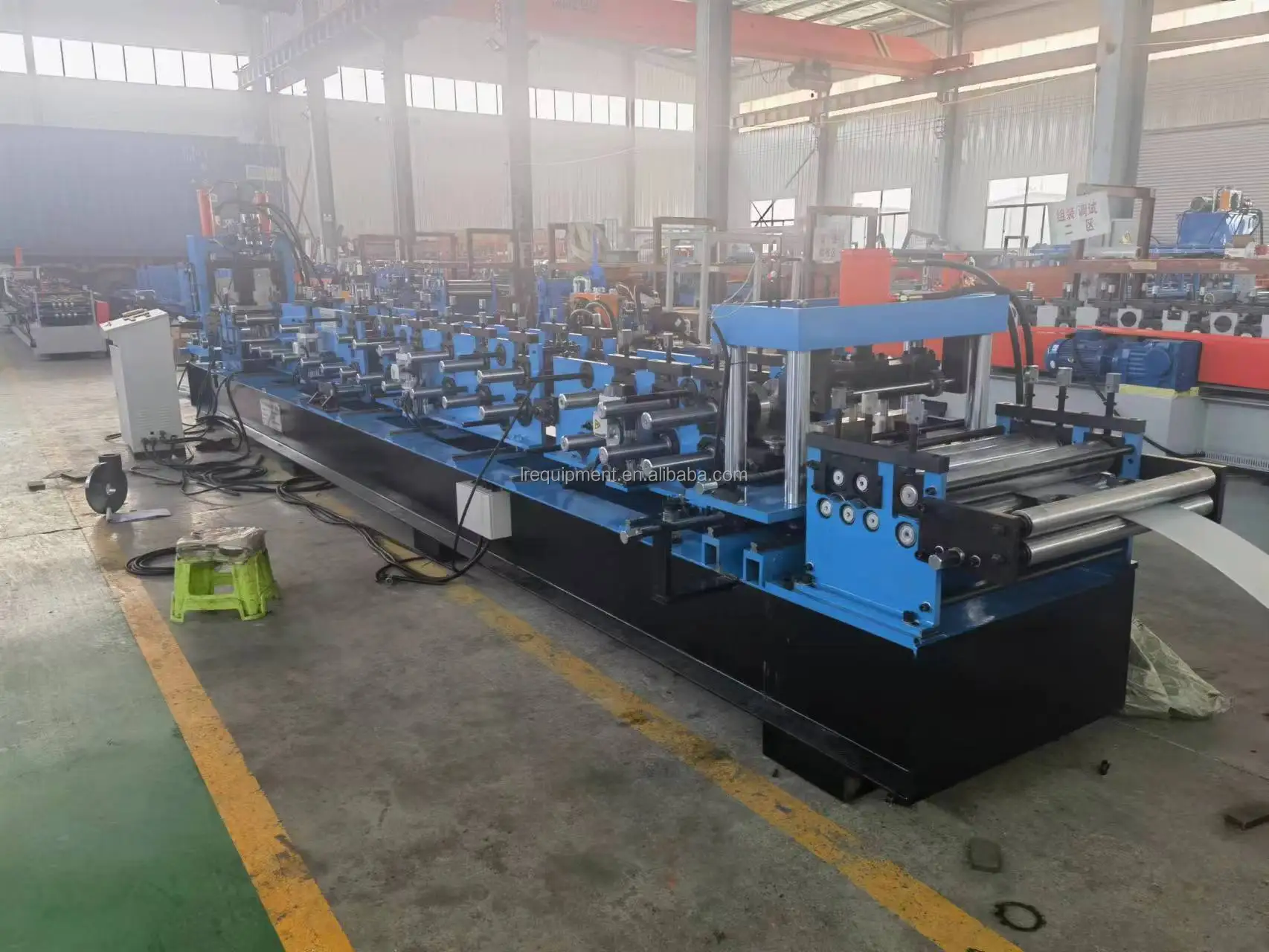

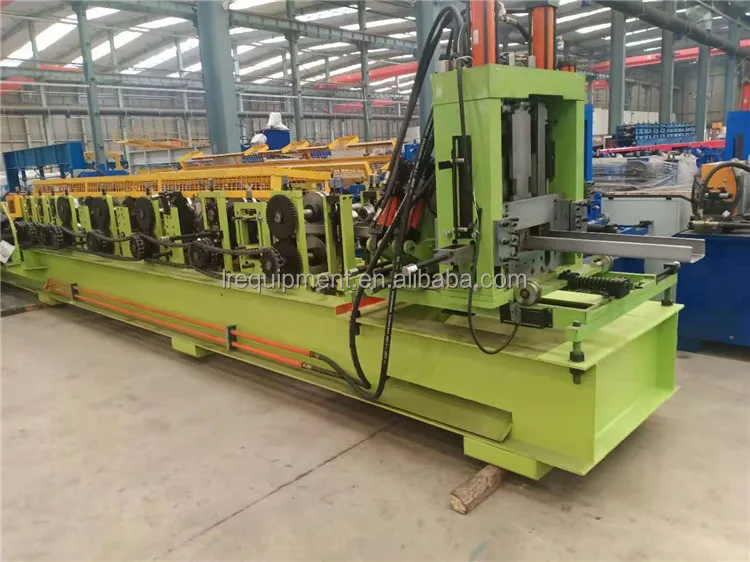

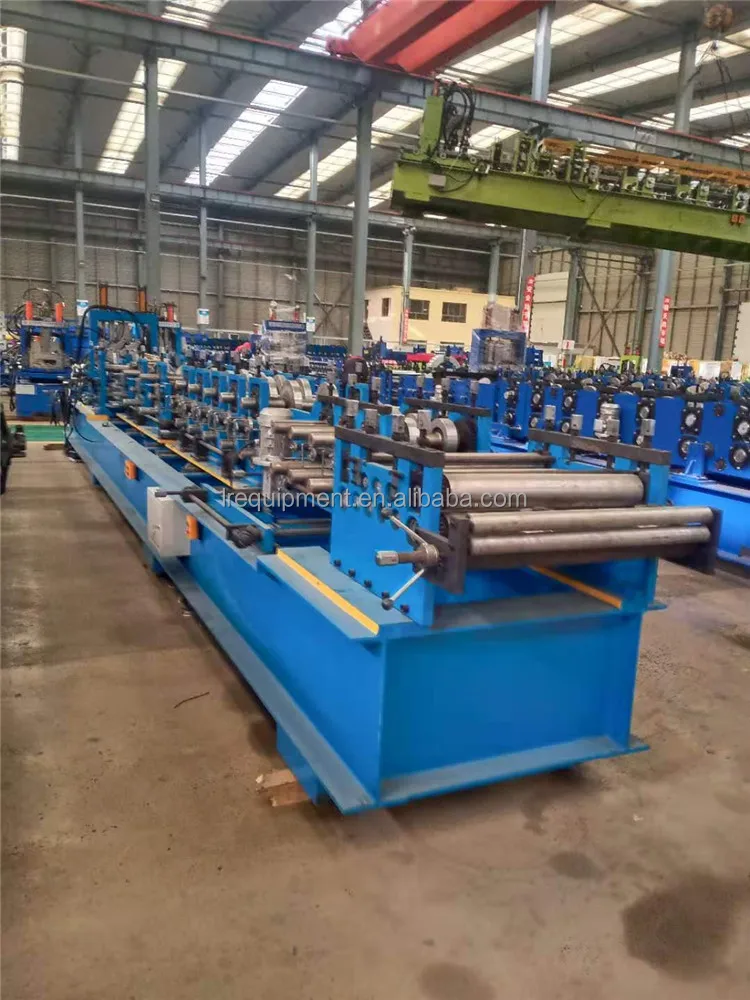

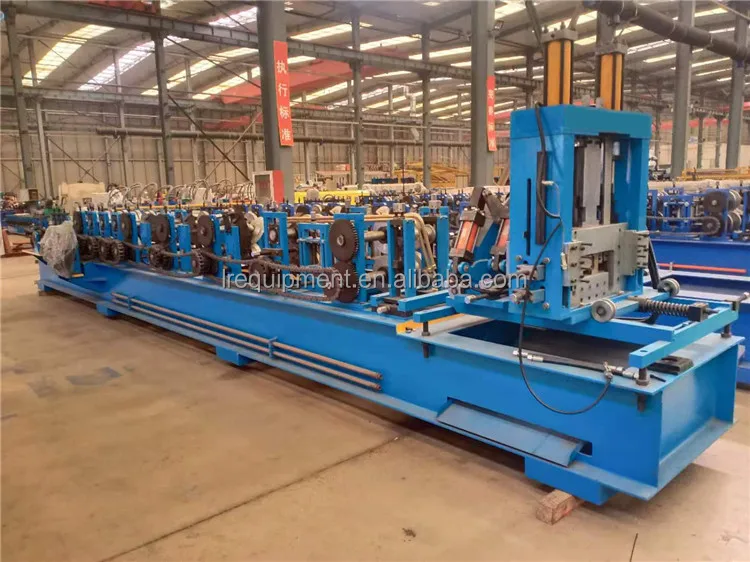

Main roll forming part
1. Machine frame:350mm H beam structure , 300H supporter
2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.
3. Roller Material:Main rollers:GCr15
Supporting side rollers:Cr12 Roller
4. Shafts Material:Motor drive shaft: 40Cr steel
Other roll shaft: 45# steel
6. Forming speed: 0-30 m/min
7. Transmission way: By chain
2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.
3. Roller Material:Main rollers:GCr15
Supporting side rollers:Cr12 Roller
4. Shafts Material:Motor drive shaft: 40Cr steel
Other roll shaft: 45# steel
6. Forming speed: 0-30 m/min
7. Transmission way: By chain

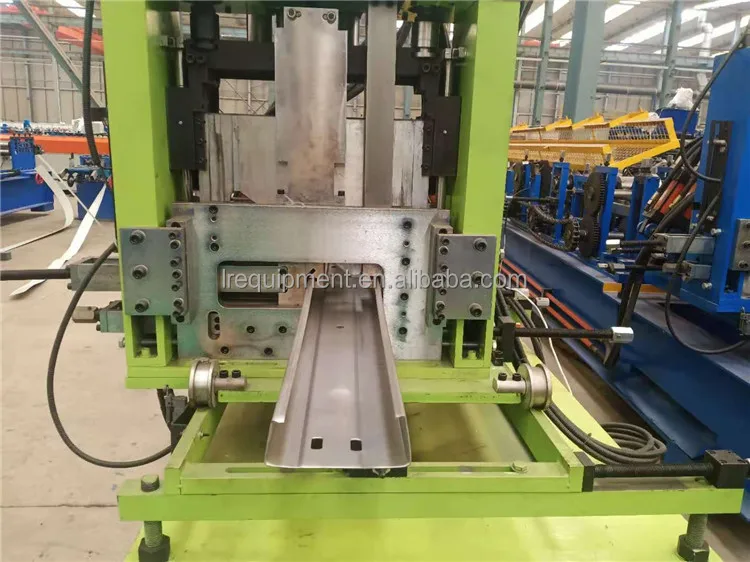

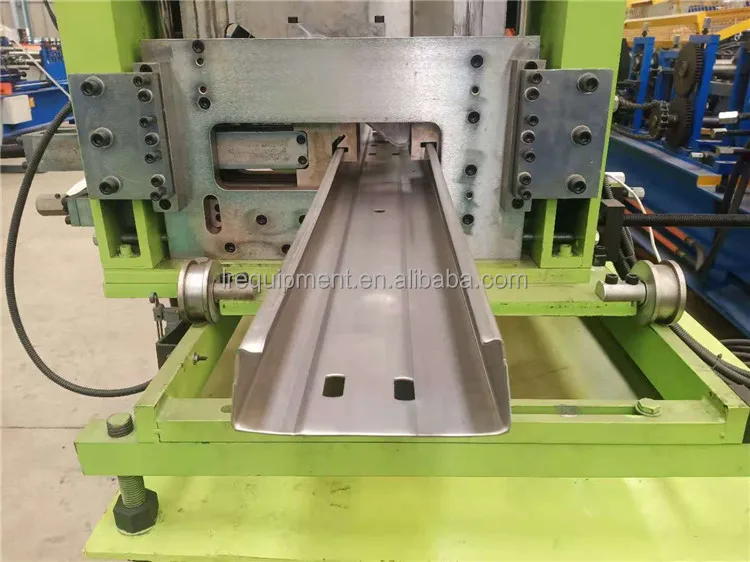

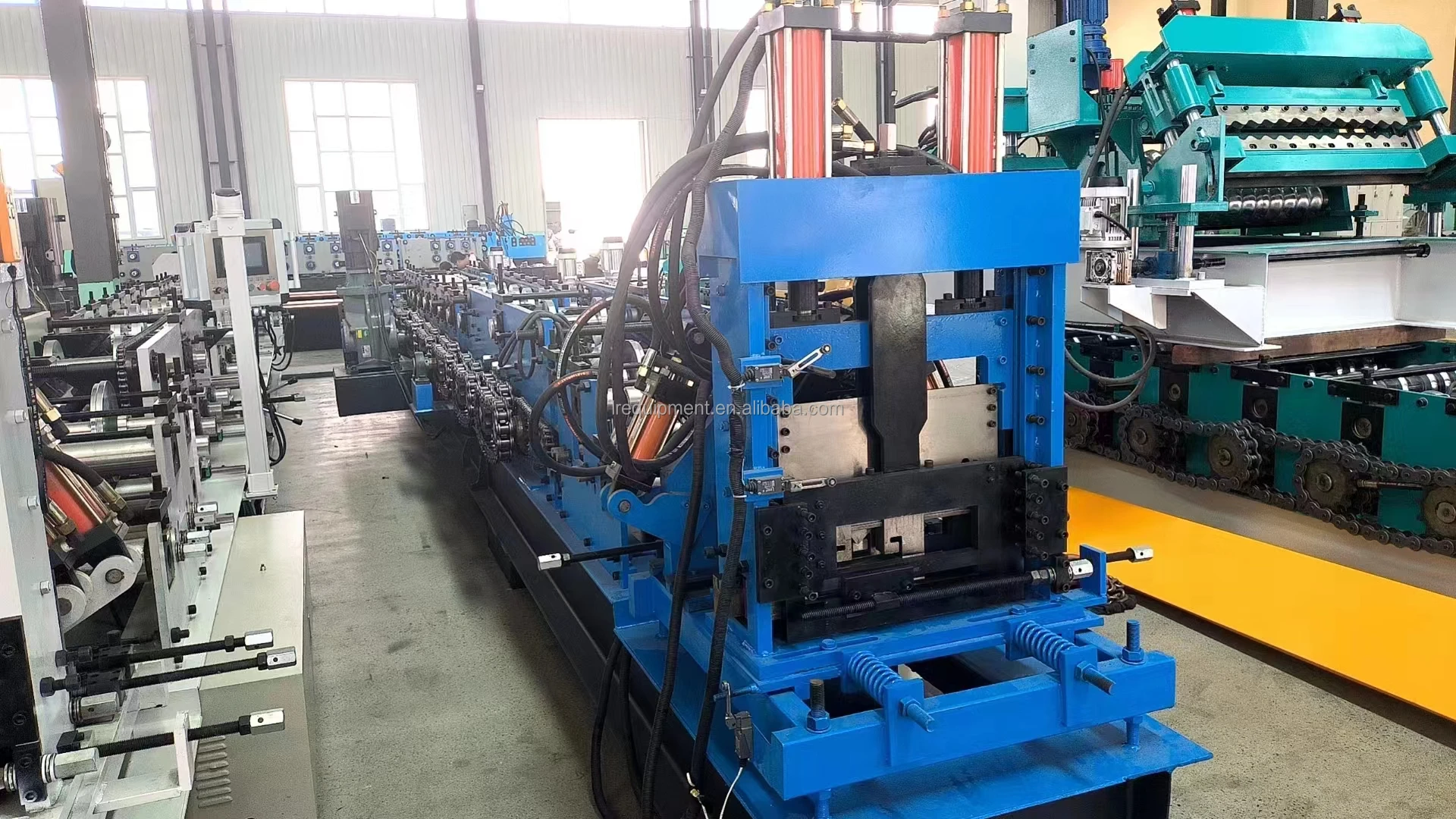

Cutting Blade: Cr12MoV
Cutting Tolerance: ±1.5mm/12m
Cutting Type: The Unbridled Shearing System, You can Cut All Size Products by Adjusting the Blade, It is much Easier than
Traditional Shearing System.
Feature: PLC Automatic Size Adjustment, You Can Adjust the Rollers by Using Buttons on the PLC Cabinet Screen, It can Save A
Lot Labor and Time.
Cutting Tolerance: ±1.5mm/12m
Cutting Type: The Unbridled Shearing System, You can Cut All Size Products by Adjusting the Blade, It is much Easier than
Traditional Shearing System.
Feature: PLC Automatic Size Adjustment, You Can Adjust the Rollers by Using Buttons on the PLC Cabinet Screen, It can Save A
Lot Labor and Time.
Hydraulic Oil Pump Station
Hydraulic Motor: 5.5 kW
Oil: 46#
Oil: 46#

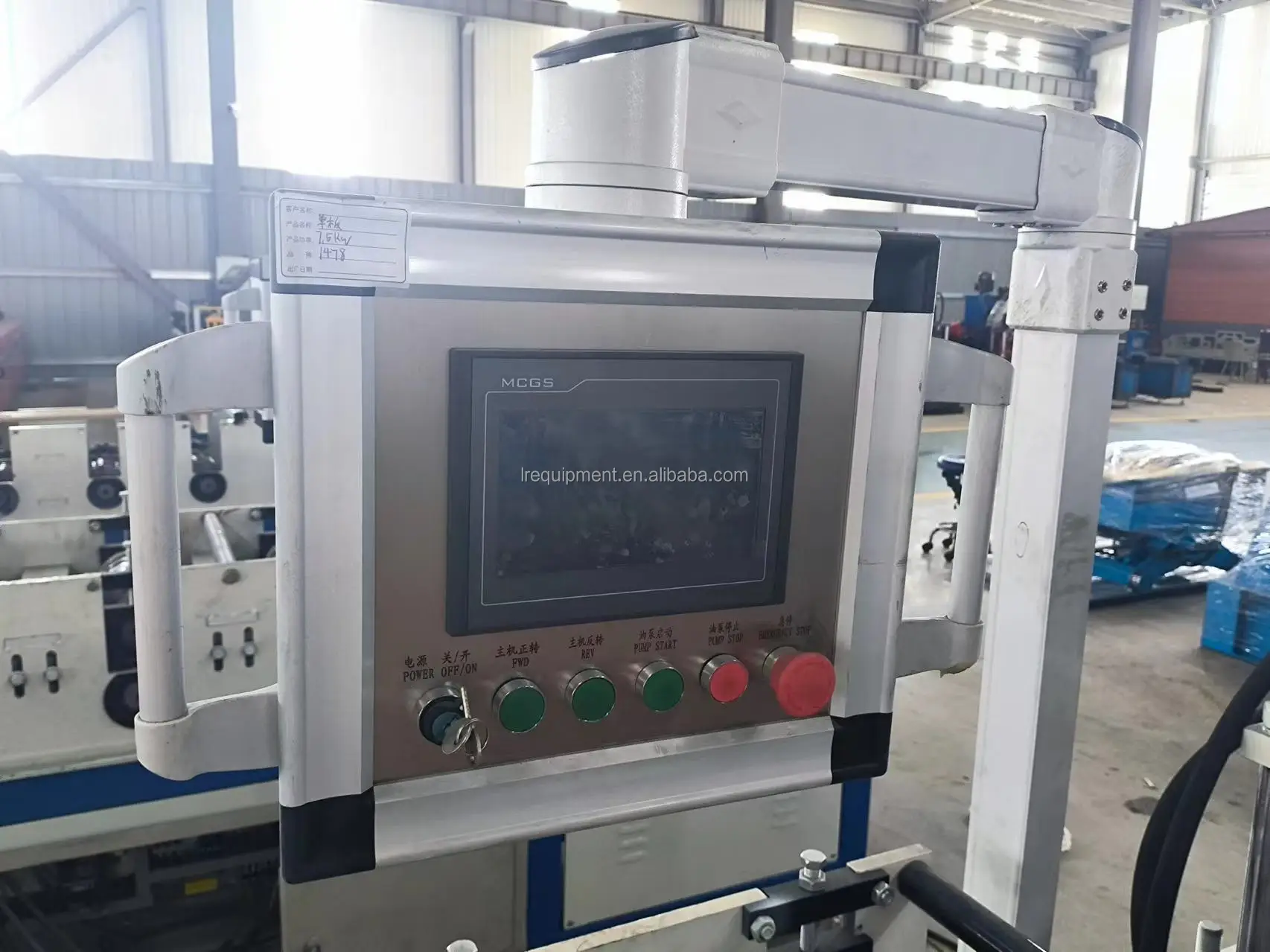

Control Cabinet
Main Accessories Origin:
PLC: Delta/Panasonic/Siemens/Schneider
Touch Screen: Delta or Others
Electrical Components: Schneider or Others
Length Encoder: Japan Omron
Languages: Chinese + English (+As Customized)
All of These Parts are World Fomous Brands, Accurate and Durable, and If it doesn't work, You can Buy Parts very easy.
PLC: Delta/Panasonic/Siemens/Schneider
Touch Screen: Delta or Others
Electrical Components: Schneider or Others
Length Encoder: Japan Omron
Languages: Chinese + English (+As Customized)
All of These Parts are World Fomous Brands, Accurate and Durable, and If it doesn't work, You can Buy Parts very easy.
Length: 3m
Structure: The Frame Body is Welded with Angle Steel and Angle Steel, and the Surface is Loaded with Rollers.
Feature: It is Simple and Welcomed by Many Customers, Low Cost and Portable.
Structure: The Frame Body is Welded with Angle Steel and Angle Steel, and the Surface is Loaded with Rollers.
Feature: It is Simple and Welcomed by Many Customers, Low Cost and Portable.

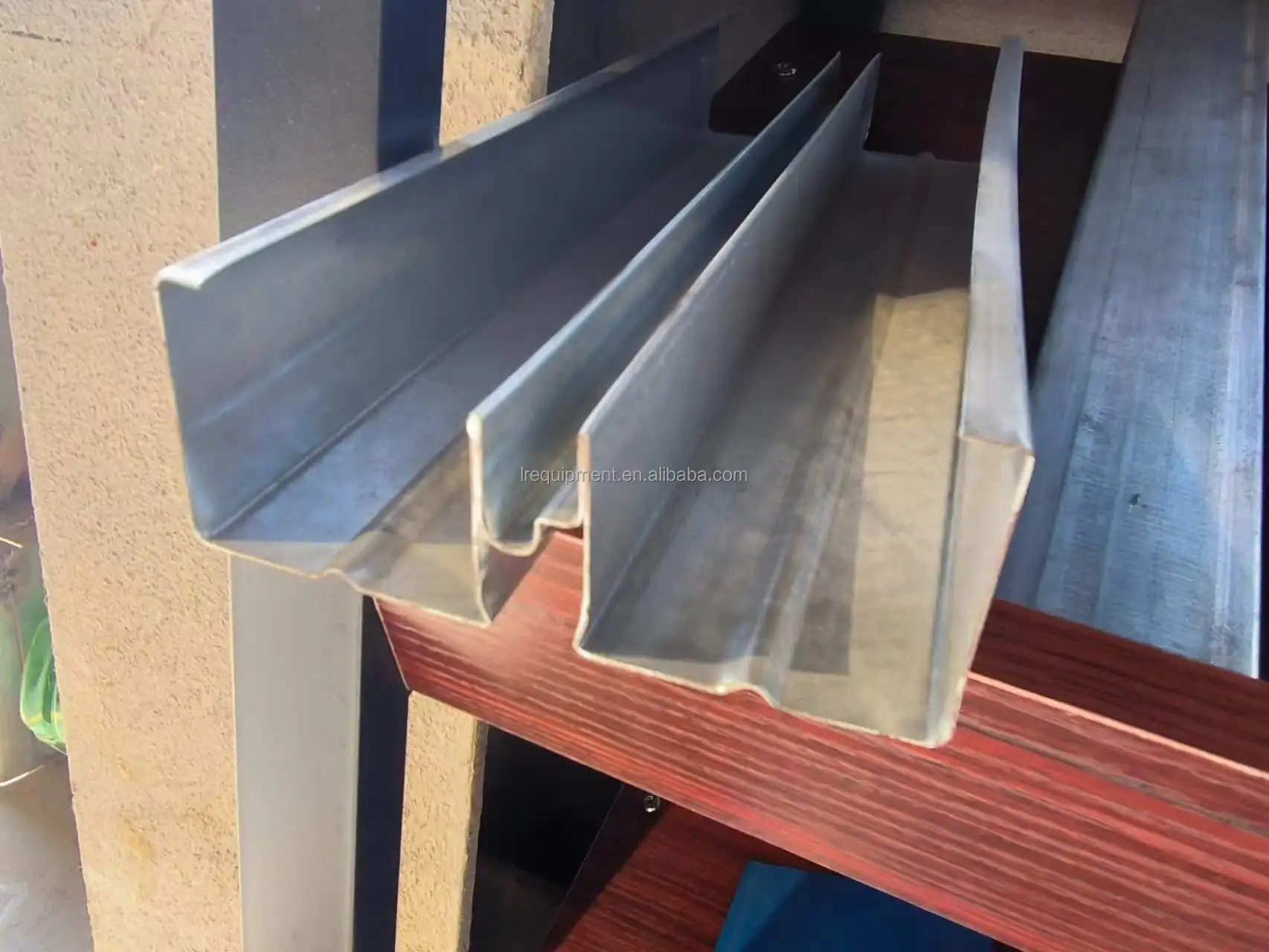

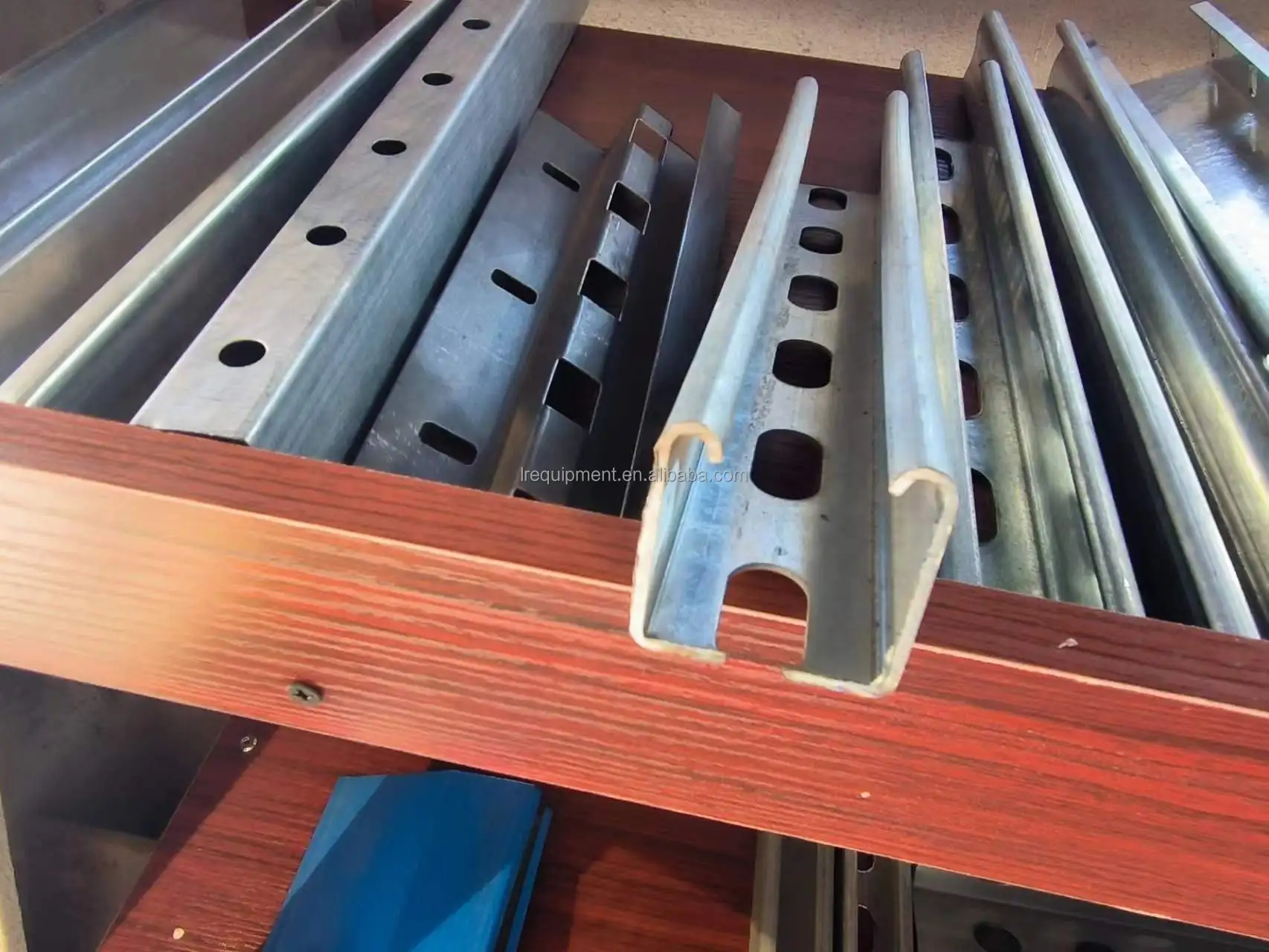

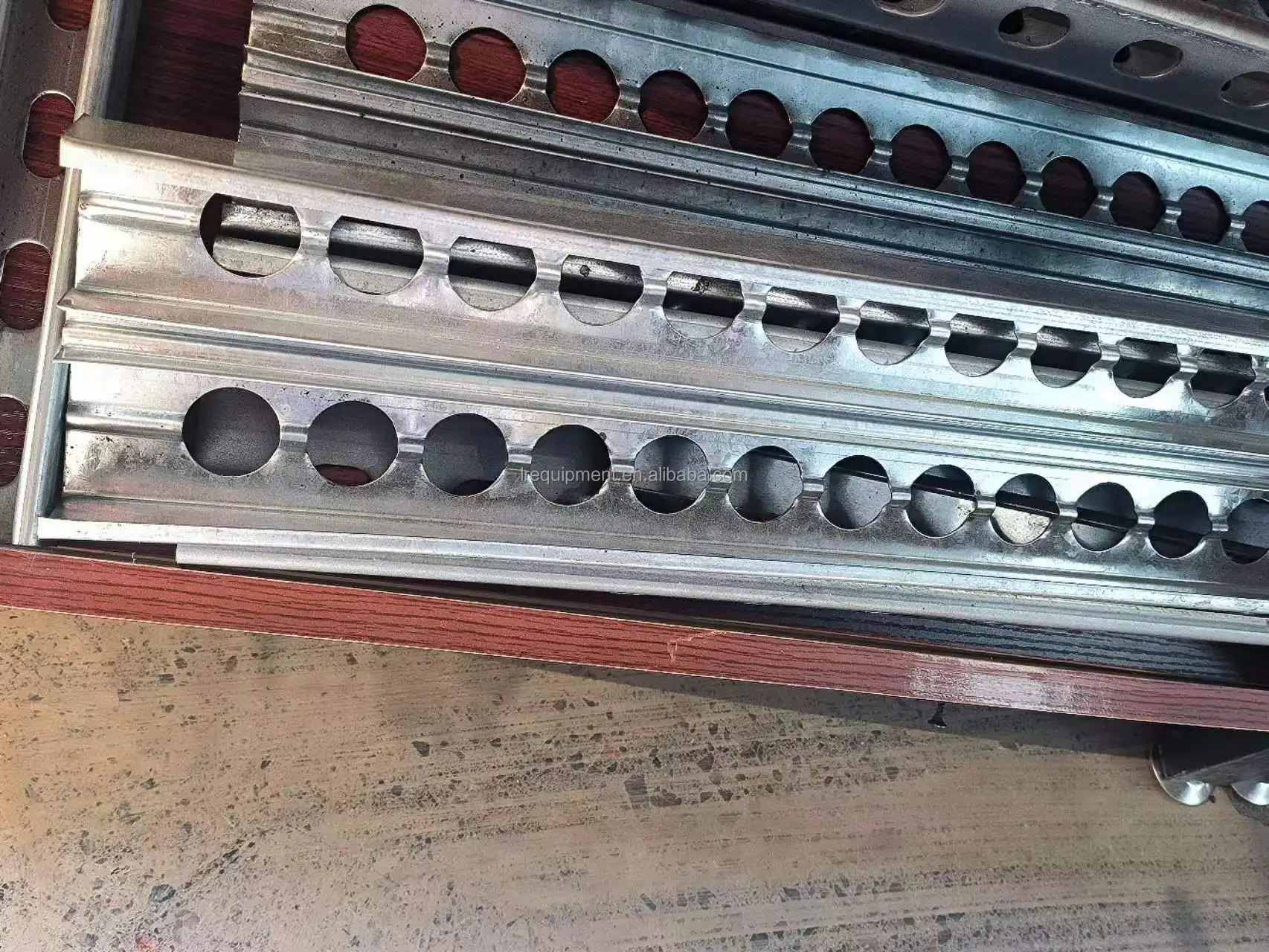

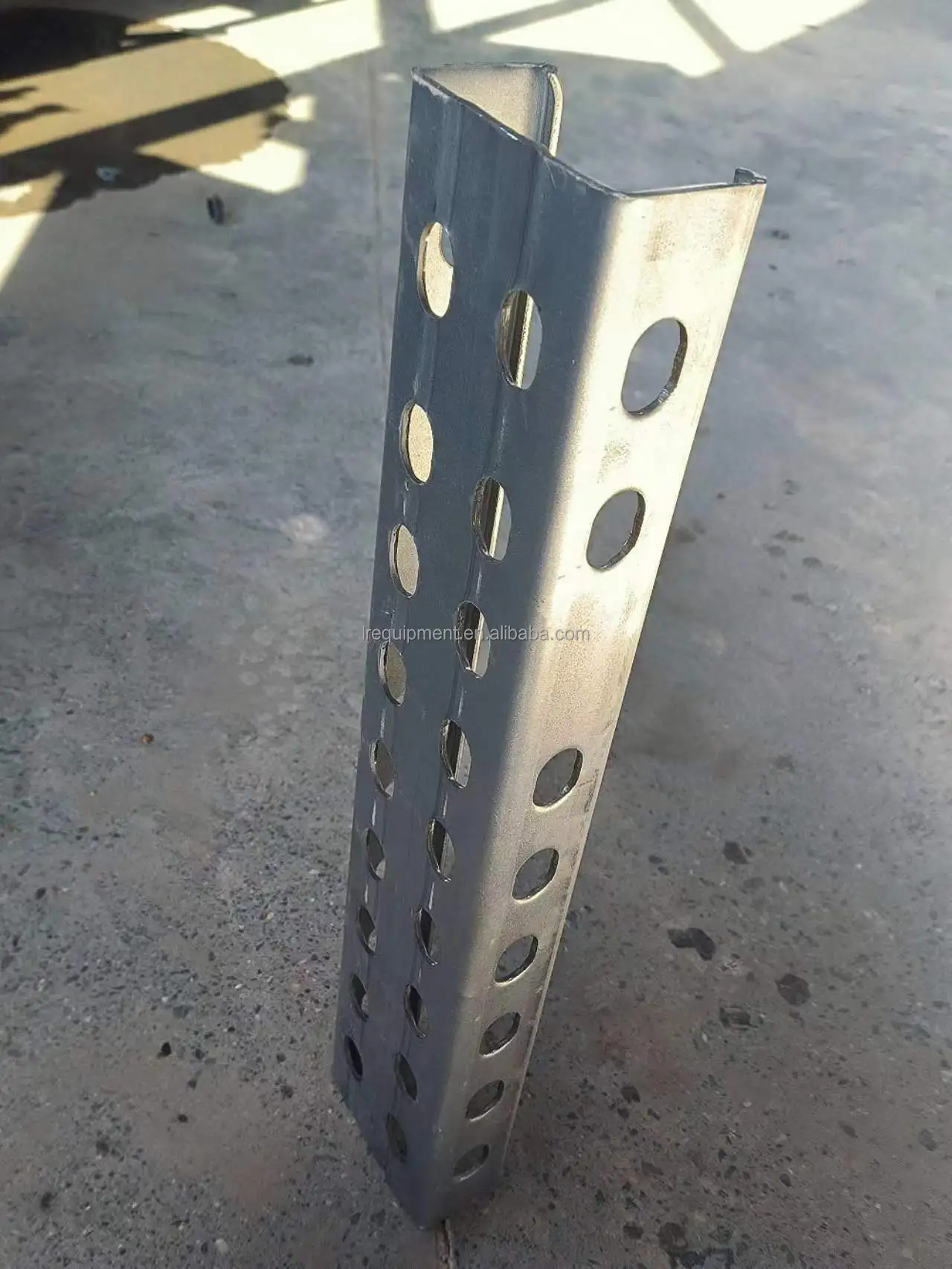

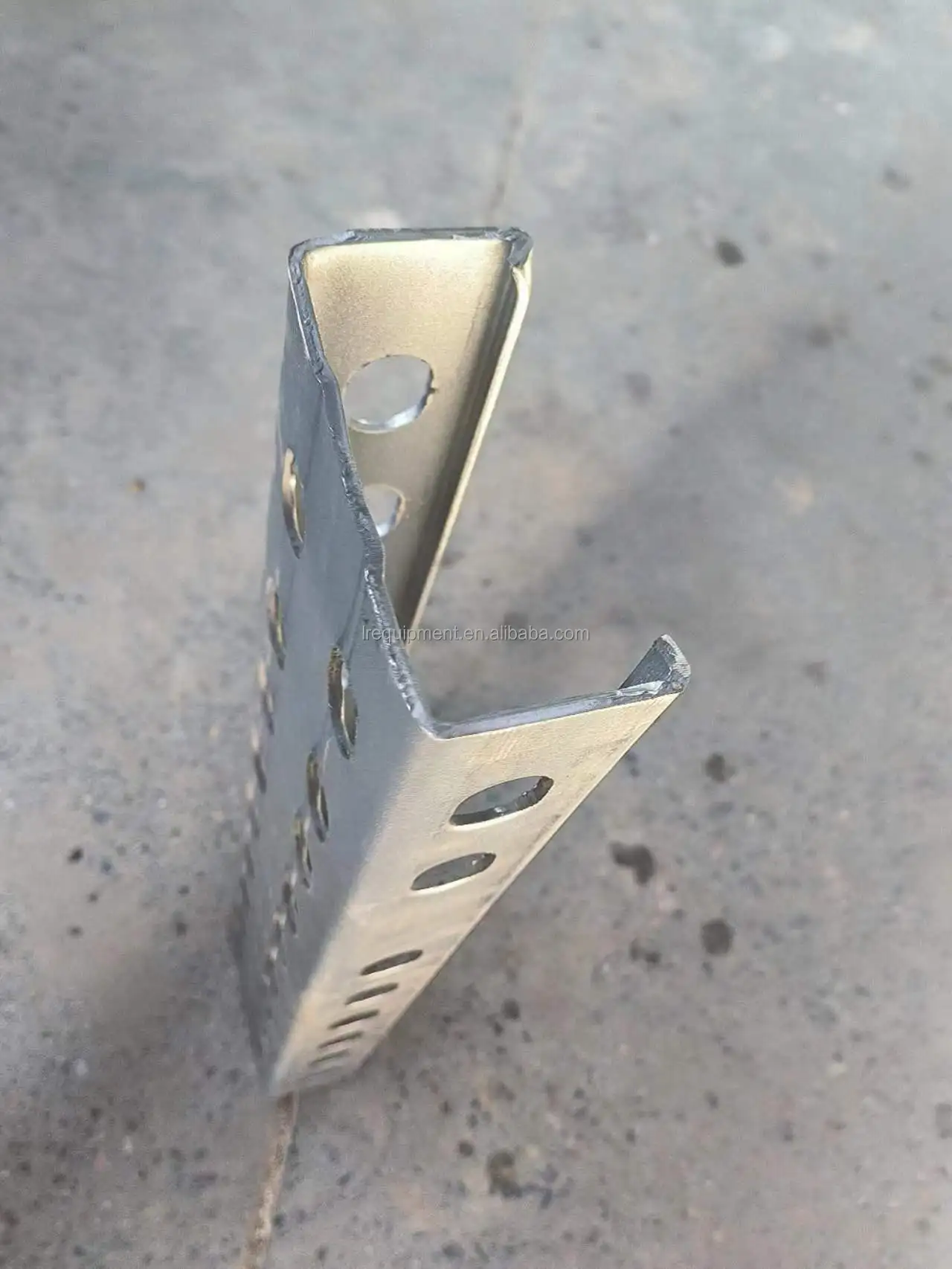

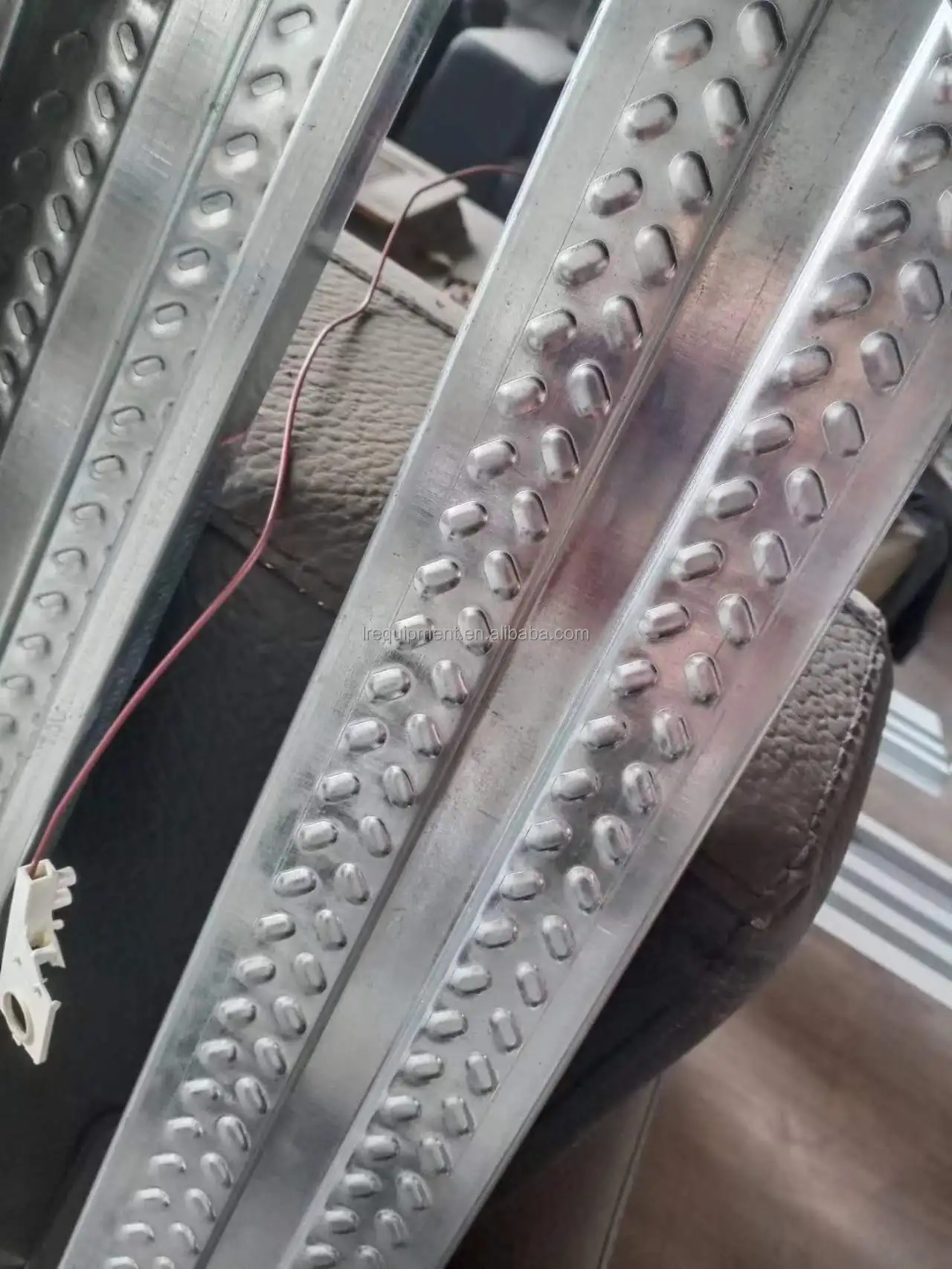

C Profile show
Recommend Products
Product packaging
Delivery by Sea, load container by plastic film wrapped and relate accessories by small tools;
Delivery by truck, by wooden box mainly for middle Asia customer

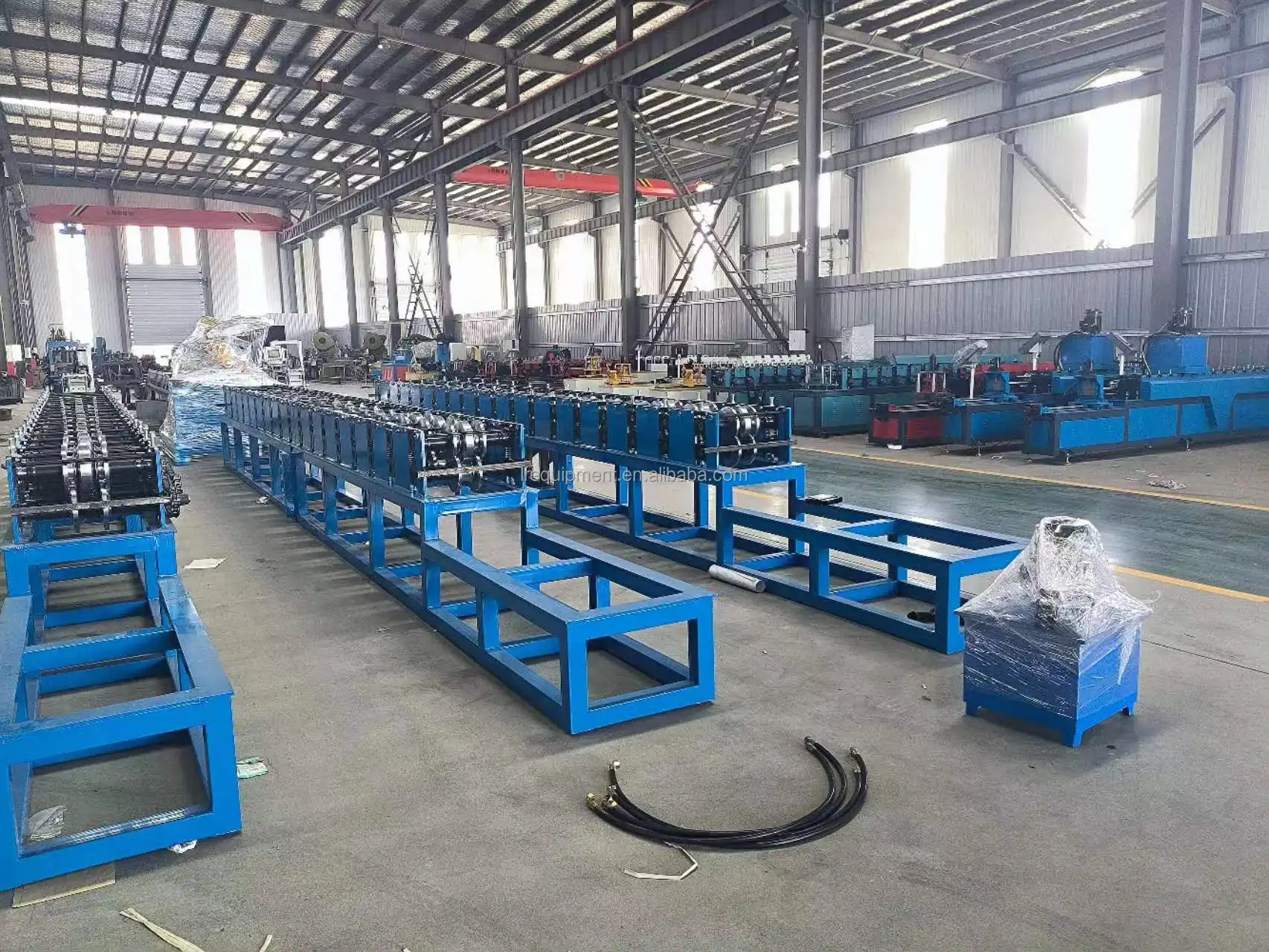

Manufacturing warehouse
