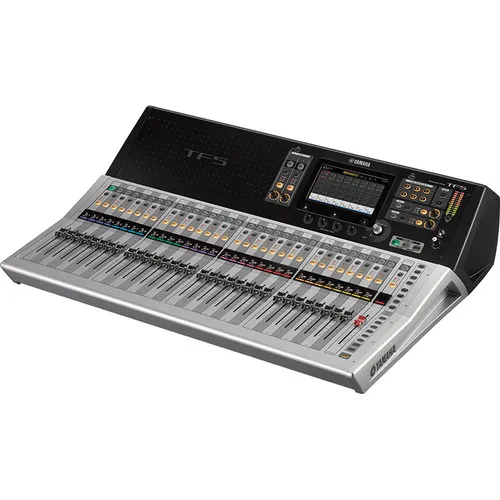

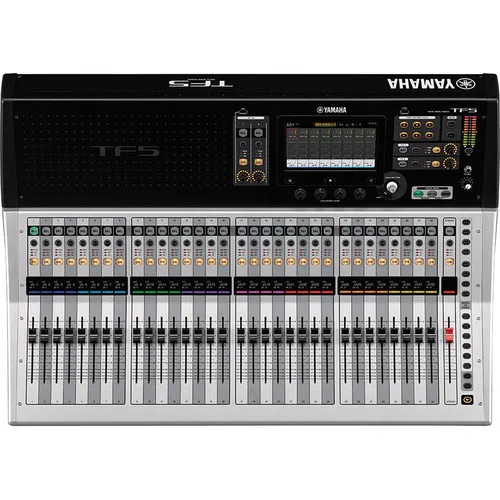

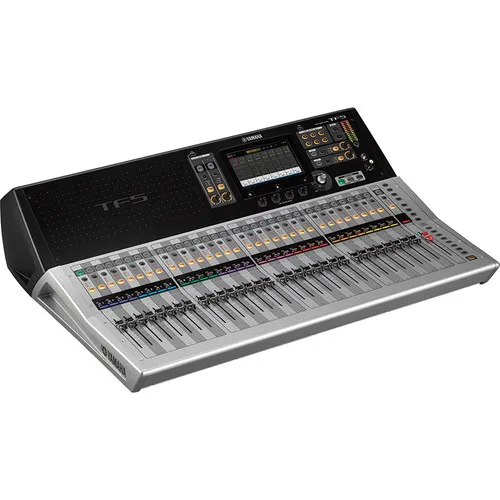

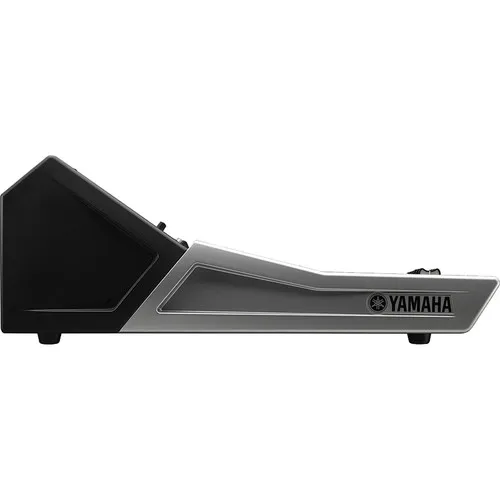

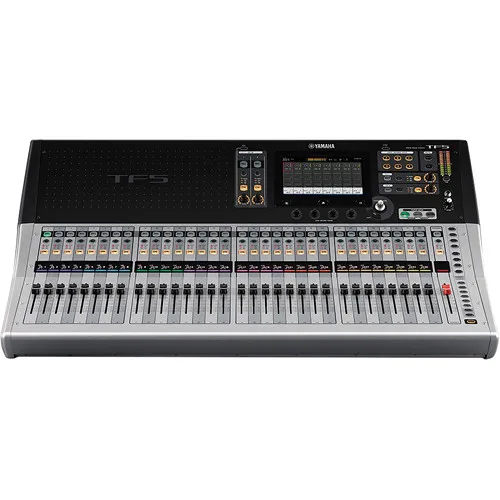

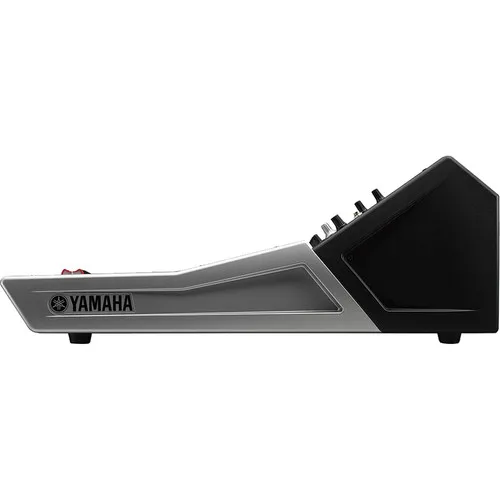

Yamah_a TF5 Digital Mixing Console

 * Touchscreen & 33 Motorized Faders
* 32 Analog XLR/TRS Combo Mic/Line Inputs
* 2 Analog RCA Pin Stereo Line Inputs
* 16 Analog XLR Outputs
* Per-Channel EQ /Comp & 8 FX Processors
* Recallable D-PRE Microphone Preamps
* Expandable Up to 48 Input Channels
* 34x34 Recording to Computer via USB 2.0
* Optional Tio1608-D I/O Rack
* Includes Steinberg's Nuendo Live

Max I/O Capacity

48x Input / 22x Output

Number of Analog Input Channels

32

Number of Mic Preamps

24

Number of Analog Output Channels

16

Faders & Level Adjustment

33x 3.9" / 100 mm Motorized Fader

Built-In Effects

8x Effect (Type Unspecified)

Analog Inputs

1x 1/4" TS Footswitch Input
32x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x Stereo RCA Unbalanced Input

Analog Outputs

16x XLR Balanced Output
1x 1/4" TRS Unbalanced Headphone Output

Digital I/O

1x RJ45 (Network)

USB I/O

1x USB-B (Host Connection)
2x USB-A (Control, External Memory)

Rack Mountable

No

Max I/O Capacity

48x Input / 22x Output

Number of Analog Input Channels

32

Number of Mic Preamps

24

Number of Analog Output Channels

16

Mix Routing

1x Main LRC
1x Subgroup
6x Stereo Aux Send
8x Mono Aux Send

Groups

8x DCA Group

Presets

Yes

Display

Touchscreen

Faders & Level Adjustment

33x 3.9" / 100 mm Motorized Fader

Gain/Trim Range

-6 dB to +66 dB

EQ

No

Graphic EQ

Yes

Built-In Effects

8x Effect (Type Unspecified)

Real Time Analyzer

Yes

Audio Delay

Yes

Sample Rates

48 kHz

Bit Depth

Record:
24-Bit

Converter Dynamic Range

D/A:
110 dB

Latency

< 2.6 ms (Analog Input to Analog Output)

Frequency Response

20 Hz to 20 kHz +0.5/-1.5 dB

Max Input Level

Mic/Line Input:
+30 dBu
Stereo Input:
+10 dBV

Output Level

Output:
+4 dBu (2901653169)
+24 dBu (2901653168)

Analog Dynamic Range

107 dB at Min Gain

Headphone Output Power

3 mW
75 mW (Max)

I/O Impedance

Combo XLR-1/4" Input:
7.5 Kilohms
Stereo RCA Input:
10 Kilohms
XLR Output:
75 Ohms
Headphone Output:
100 Ohms

Crosstalk

-100 dB

EIN

-128 dBu at Max Gain (2901653035)

Noise Floor

-85 dBu A-Weighted

THD

< 0.05% at Min Gain (+4 dBu)

Signal Generator

Yes

Analog Inputs

1x 1/4" TS Footswitch Input
32x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x Stereo RCA Unbalanced Input

Analog Outputs

16x XLR Balanced Output
1x 1/4" TRS Unbalanced Headphone Output

Digital I/O

1x RJ45 (Network)

MIDI I/O

No

USB I/O

1x USB-B (Host Connection)
2x USB-A (Control, External Memory)

Expansion Ports

1x I/O Card

Mobile App Compatible

Yes: Android & iOS
App Name: TF Editor, TF StageMix, MonitorMix
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed

Max Multitrack Recording

34 Tracks

File Format Support

Playback: MP3, WAV
Record: WAV

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

120 W

Rack Mountable

No

Dimensions

34.1 x 8.9 x 23.6" / 866 x 225 x 599 mm

Weight

44.1 lb / 20 kg

Package Weight

57.2 lb

Box Dimensions (LxWxH)

38 x 29 x 13"
