vibro sifter machine

Product Overview

Description

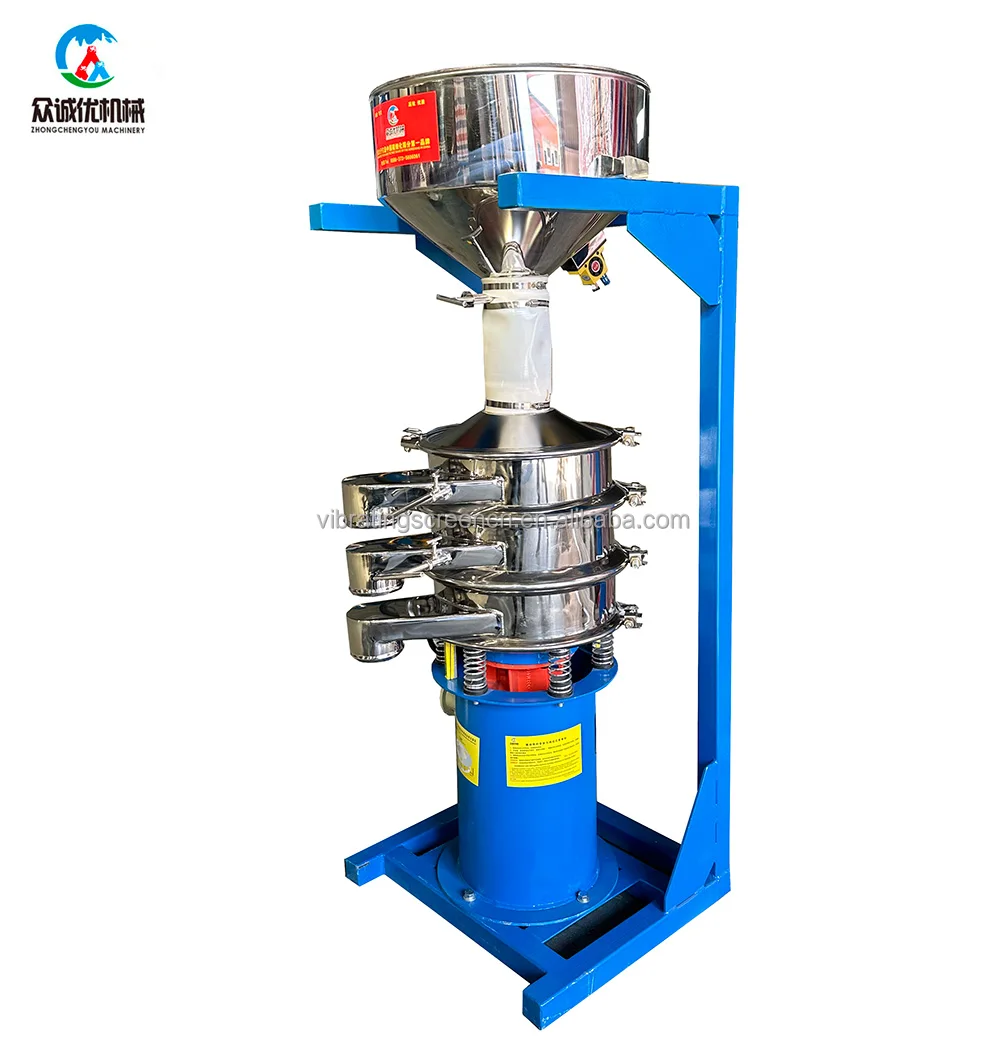

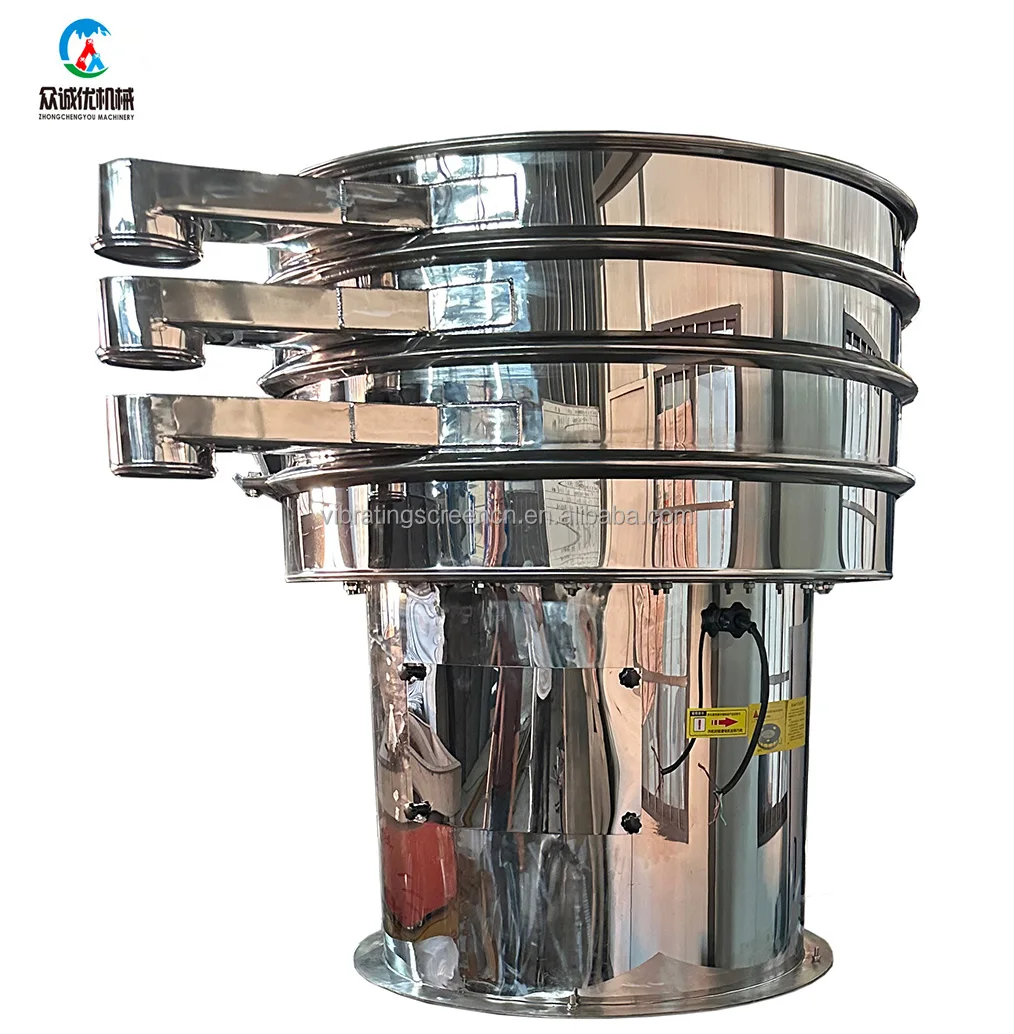

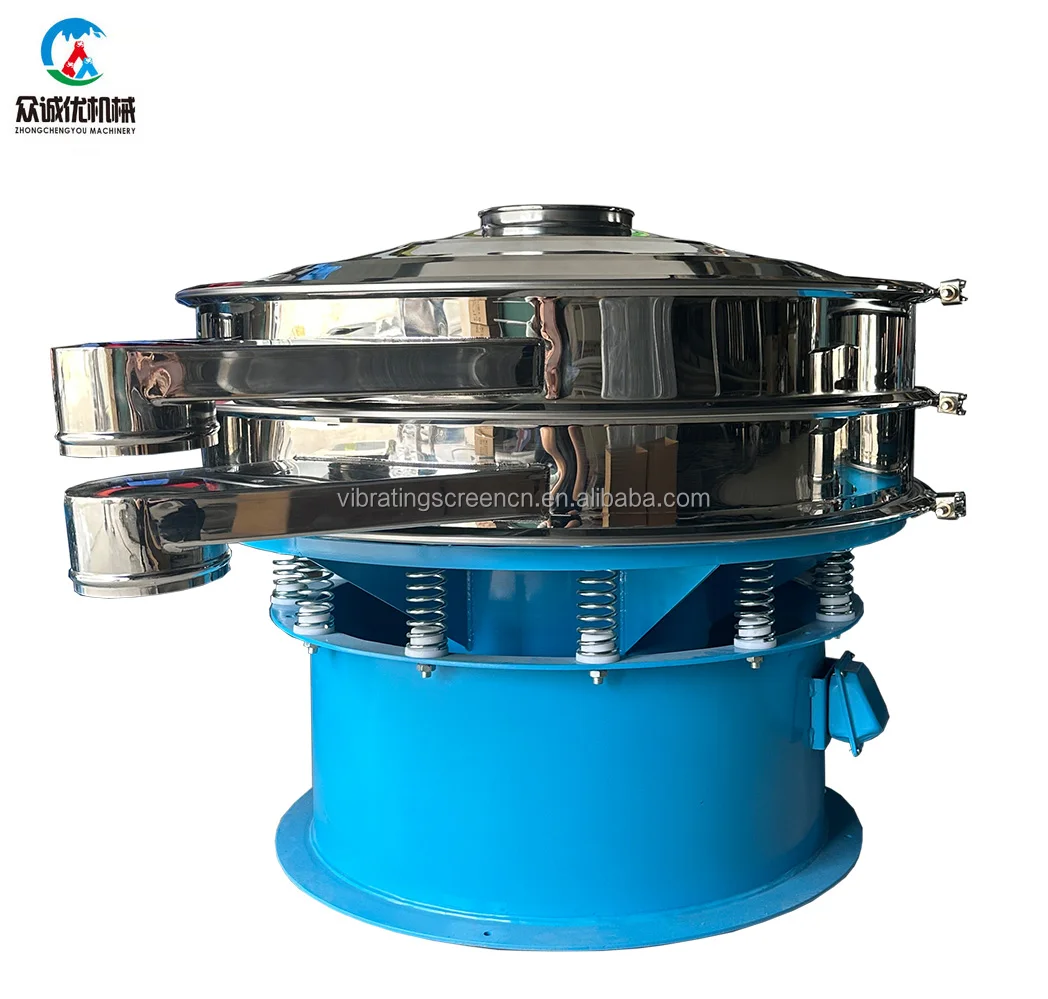

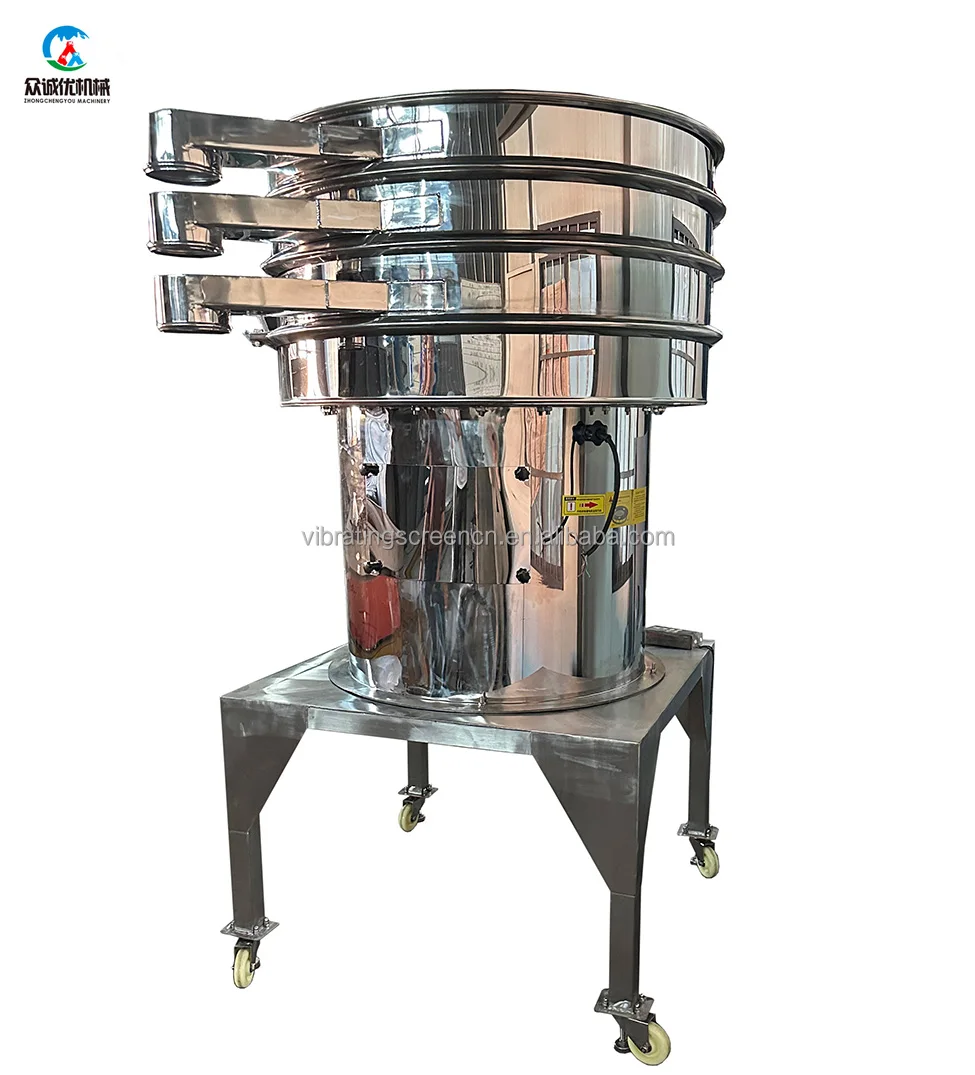

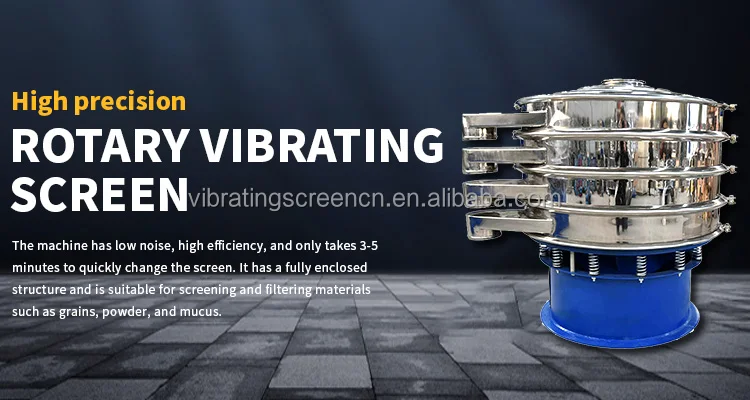

Rotary vibrating screen machine is a high-precision powder grading machine, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. Rotary Vibrating Screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface. Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface.

Model	XZS-400	XZS-600	XZS-800	XZS-1000	XZS-1200	XZS-1500	XZS-1800
Screen diameter(mm)	Φ380	Φ580	Φ780	Φ970	Φ1170	Φ1470	Φ1770
Effective screening area(m2)	0.1	0.23	0.41	0.66	0.99	1.58	2.32
Screen specification	2-400
Number of layers	1-3
Vibrating machine	0.25	0.55	0.75	1.1	1.5	2.2	3.0



1 Q: Can I get special design for my own products?

A: We have our own R&D department to offer customization service for our customer.
2. Q: Are you a factory or a trading company?
A: We are a professional factory who gets 20+ years professional expericnce.
3.Q: How about price?
A:Yes, we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4. Q: What is your payment term?
A: T/T 100% before shipment, L/C at sight, western union or Trade Assurance order recommended.
