Framing for Building System Storage Rack Beam Upright Keel Roll Forming Machine Steel Angle Light Keel With Punching System
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (10000018703750):
Product Overview
Description
Products Description

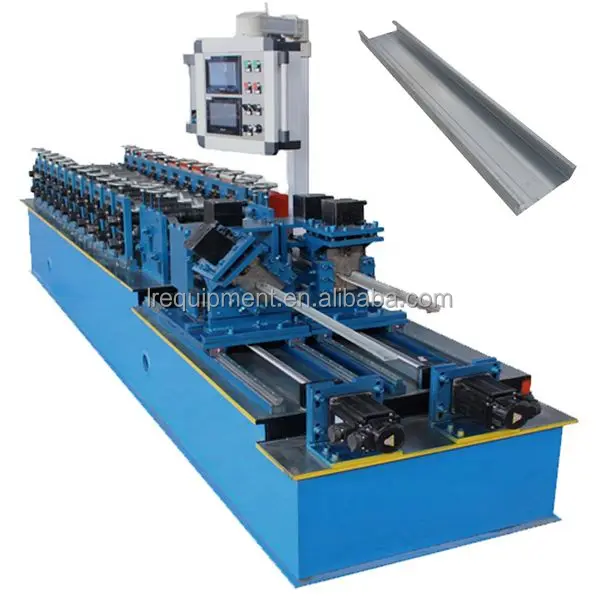

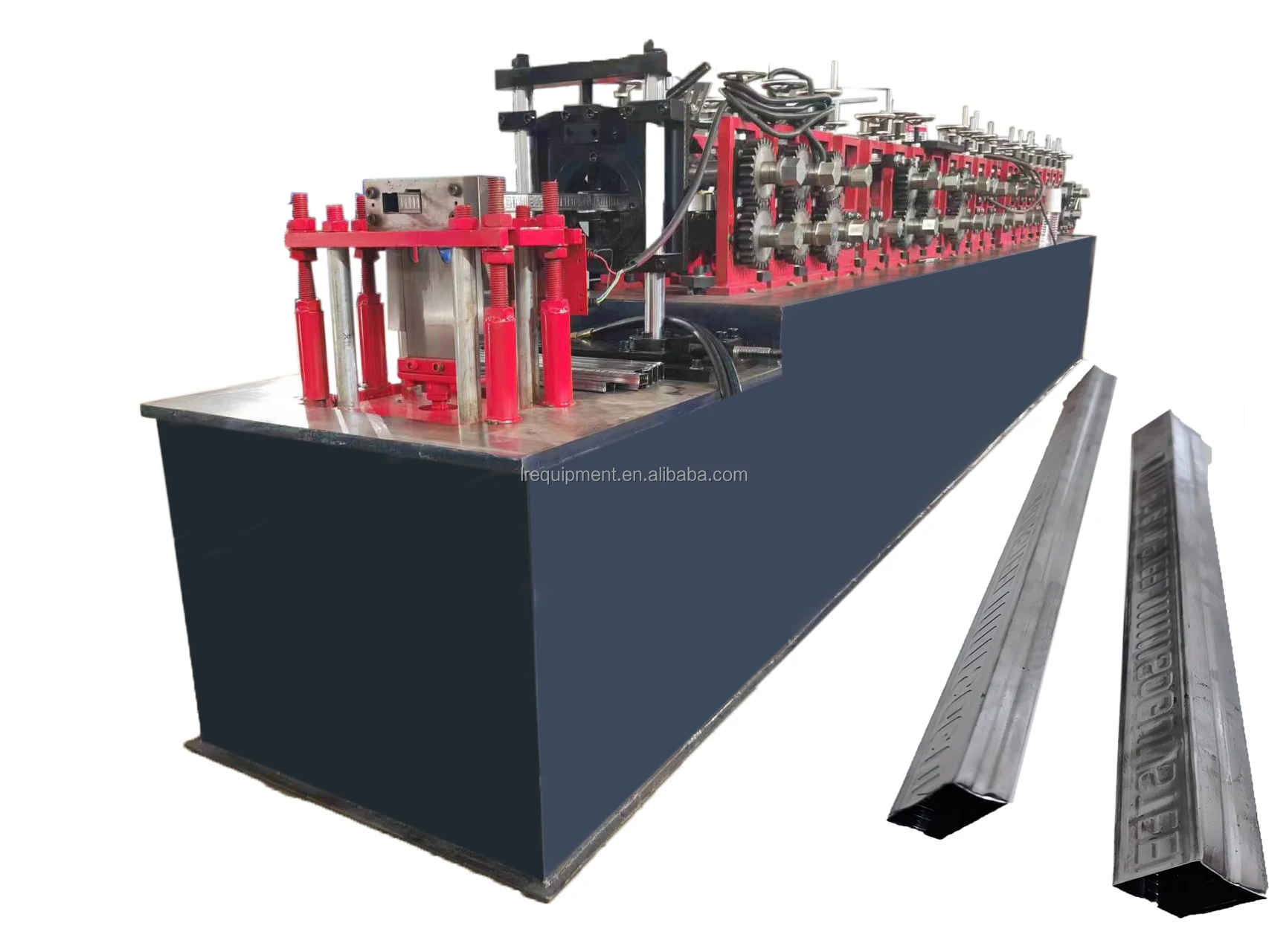

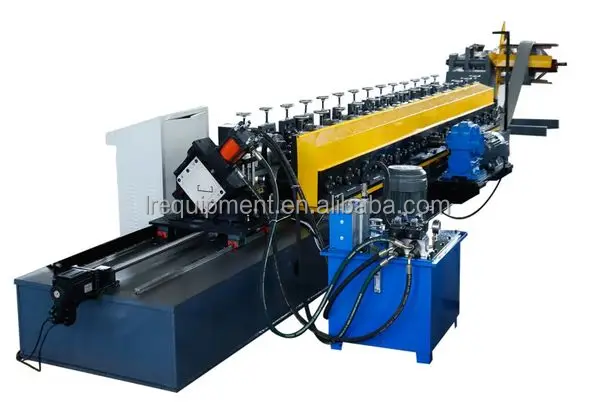

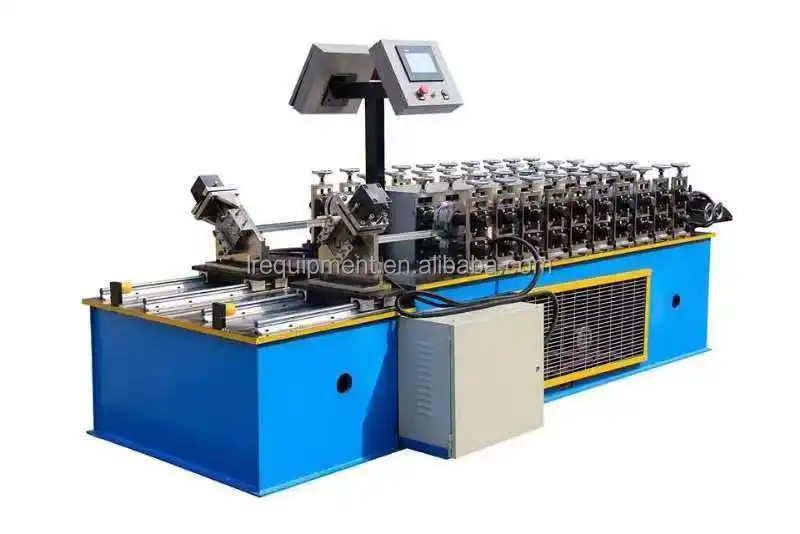

Framing for Building System Storage Rack Beam Upright Keel Roll Forming Machine Steel Angle Light Keel With Punching System
Manufacturing Technique
1 | Suitable material | Color steel, galvanized steel | Thickness(mm) | 0.35-0.7mm | ||
2 | Yield strength (Mpa) | ≤300mm | Width (mm) | About 120mm | ||
3 | Forming speed | About 15-20 m/m Not include cutting time | Motor power | 11kw | ||
4 | Hydraulic station power | 5.5kw | Voltage requirements | AC380V, 50Hz, 3PH | ||
5 | Roller material | #45 steel with heat treatment 58-62 degrees | ||||
6 | Shaft diameter | 70mm solid | Control system | PLC with touch screen | ||
Configuration
1.5/3ton Feeding rack
Coil Width: Max. 800mm
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Feeding table with hand pre-cut, when a customer wants to change the production line, the pre-cut can cut the material easily,
saving cost.
saving cost.
The roller and shafts are high-precision, solid shafts, and the finished product keeps an error of less than 2mm
1. Machine frame:350mm H beam structure , 300H supporter
2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.
3. Roller Material:Main rollers:GCr15
Supporting side rollers:Cr12 Roller
4. Shafts Material:Motor drive shaft: 40Cr steel
Other roll shaft: 45# steel
6. Forming speed: 0-30 m/min
7. Transmission way: By chain
2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.
3. Roller Material:Main rollers:GCr15
Supporting side rollers:Cr12 Roller
4. Shafts Material:Motor drive shaft: 40Cr steel
Other roll shaft: 45# steel
6. Forming speed: 0-30 m/min
7. Transmission way: By chain

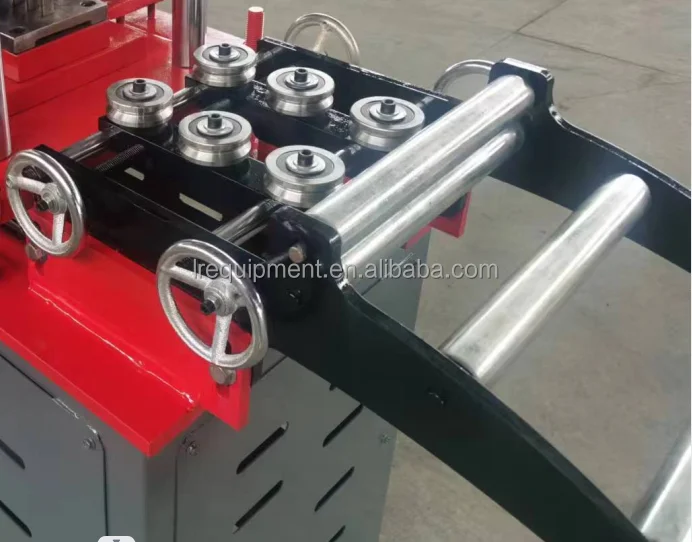

Multi-rotation Turkish straightening
Speed: 1-25m/min
Length: adjust casually
Speed: 1-25m/min
Length: adjust casually
Cutting Blade: Cr12MoV
Cutting Tolerance: ±1.5mm/12m
Cutting Type: The Unbridled Shearing System, You can Cut All Size Products by Adjusting the Blade, It is much Easier than
Traditional Shearing System.
Feature: PLC Automatic Size Adjustment, You Can Adjust the Rollers by Using Buttons on the PLC Cabinet Screen, It can Save A
Lot Labor and Time.
Cutting Tolerance: ±1.5mm/12m
Cutting Type: The Unbridled Shearing System, You can Cut All Size Products by Adjusting the Blade, It is much Easier than
Traditional Shearing System.
Feature: PLC Automatic Size Adjustment, You Can Adjust the Rollers by Using Buttons on the PLC Cabinet Screen, It can Save A
Lot Labor and Time.
Length: customized as per profile, usually 3m
Width:500-1200mm (Domestic and foreign design not same)
4/5/5/7/5 kW air-cooled hydraulic pump station Hydraulic station pressure in 10-12mpa plus 45 hydraulic oil Advantages: can be 24
hours uninterrupted work will not produce hydraulic pump station overheating phenomenon
hours uninterrupted work will not produce hydraulic pump station overheating phenomenon

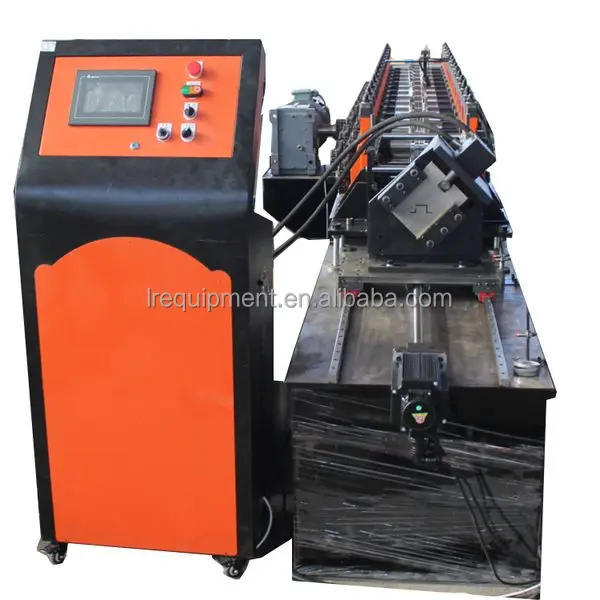

Control Cabinet
Main Accessories Origin:
PLC: Delta/Panasonic/Siemens/Schneider
Touch Screen: Delta or Others
Electrical Components: Schneider or Others
Length Encoder: Japan Omron
Languages: Chinese + English (+As Customized)
All of These Parts are World Fomous Brands, Accurate and Durable, and If it doesn't work, You can Buy Parts very easy.
PLC: Delta/Panasonic/Siemens/Schneider
Touch Screen: Delta or Others
Electrical Components: Schneider or Others
Length Encoder: Japan Omron
Languages: Chinese + English (+As Customized)
All of These Parts are World Fomous Brands, Accurate and Durable, and If it doesn't work, You can Buy Parts very easy.
7.5 kW cycloid reducer
Protection level IP55
Motor explosion-proof grade ExdIICT4
Motor explosion-proof grade ExdIICT4
