Product Overview
Description
Product Name
2024 New Version Original Z3x Easy Jtag Plus Box Red ICFRIEND Custom Edition Boot One Click Device EMMC Firmware Repair Data Recovery SPI Memory Programming Android Mobile Phone Repair Tools
Details Images
Z3x Easy Jtag Plus Box - Red Edition (without eMMC Socket), which boasts some MAJOR hardware improvements and Features including One click device repair, Boot repair, Data recovery, eMMC firmware repair, Partition management, eMMC service operations, SPI memory programming.
This Upgraded PLUS version features ultra fast data transfer, has the possibility of increasing functionality in the future:
hardware of the new box is ready to support new protocols like UFS* and NAND*.
Box Features
* One click device repair
* Boot repair
* Data recovery
* eMMC firmware repair
* Partition management
* eMMC service operations
* SPI memory programming
Socket Features
* Combining the top quality materials with best engineering and elegantly designed hardware for the powerful eMMC Socket.
* Made from the high quality materials
* Over 10K cycles of lifetime performance in your service center
* Wide range of eMMC IC supported by: BGA153/169, BGA162/186, BGA221, BGA529
* High-speed up to 30 MB per second over 8 bit bus.
* EMI resistant design, low noise components
* Integrated power logic. Additional power source is no more need
* Surge protection - smart fuse driven (0.5A threshold)
Software Features
* DUMP AND PINOUTS DATABASE
Free access to large dump and pinouts database and constantly updated software tools
* EASY JTAG TOOL
The main application allowing you to use most of the product features. It's the most powerful tool of all
* EASY JTAG PLUS TOOL
Lightweight software, made especially for mobile phones repair, eMMC memory chips replacement and user data recovery
* EASY JTAG SPI FLASHER
Identifying, reading, writing, verifying and erasing flash chips. It is designed to flash BIOS images on mainboards, routers,
e.t.c.
* EASY JTAG SINGLE PACKAGE REPAIR
Create user customized repair packages. This is partition layout, pinout, eMMC preconfig and instructions
* EASY JTAG API
Access to most useful box functionality to create your own decisions
Main benefits of new Z3x Easy Jtag Plus Box
* Updated CPU AT SAM3X8E vs LPC1768 in old box.
* Updated FPGA SPARTAN6 vs SPARTAN3 in old box
* Updated Power Logic – Full Digital PWM with ADC control.
* MicroUSB Connector if additional power required.
* VCC and VCCQ overload protection.
* Updated host interface: USB 2.0 Device/Mini Host: 480 Mbps
* Integrated ISP engine: Z3X High Power Pro Engine
* ISP Support 1 and 4 bit connection now **
* Added eMMC 8 bit high speed interface up to 48Mhz
* Integrated NAND engine: NFC with 4 Kbyte RAM buffer and ECC
* Integrated M-PHY interface.
* Integrated SPI/I2C engine: up to 65 MHz for HSMCI and SPI clock lines
* Integrated Self Test Core that exclude 90% faults in production.
* Integrated CCID Card Reader for Z3X Software Use
What you get with new hardware :
* Box to Host PC speed increase up to 35MB/sec
* JTAG Interface speed increase 20%
* eMMC ISP Speed increase up to 4MB/sec
* eMMC 8 Bit Speed up to 26MB/sec
* Compatibility with 99.9 host PC systems and OSes
* Compatibility with old Easy JTAG G1 ISP adapters ( 1bit )
* Adapter-less ISP ( all stuff inside the box )
* Compatibility with all market popular eMMC sockets ( 8 bit )
* True Plug and Play for modern Windows OS ( 8, 8.1 , 10 )
* Full Support for legacy OS like Windows XP

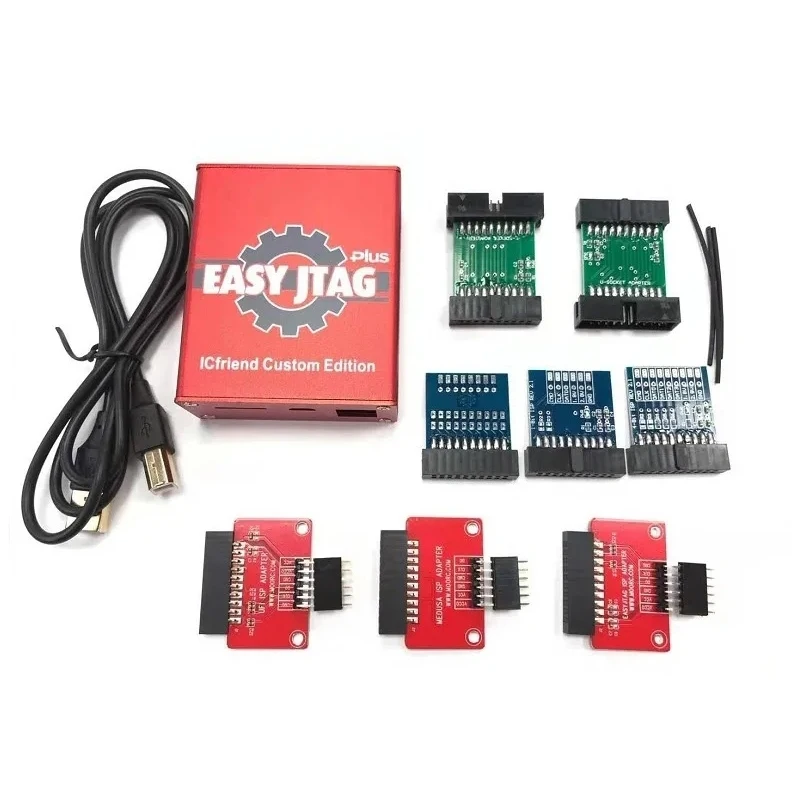

Z3x Easy JTAG Plus FULL PACKAGE Contents :
Easy-JTAG Plus Box Hardware
Z3X preactivated card with EasyJTAG PLUS Activation
USB A-B cable

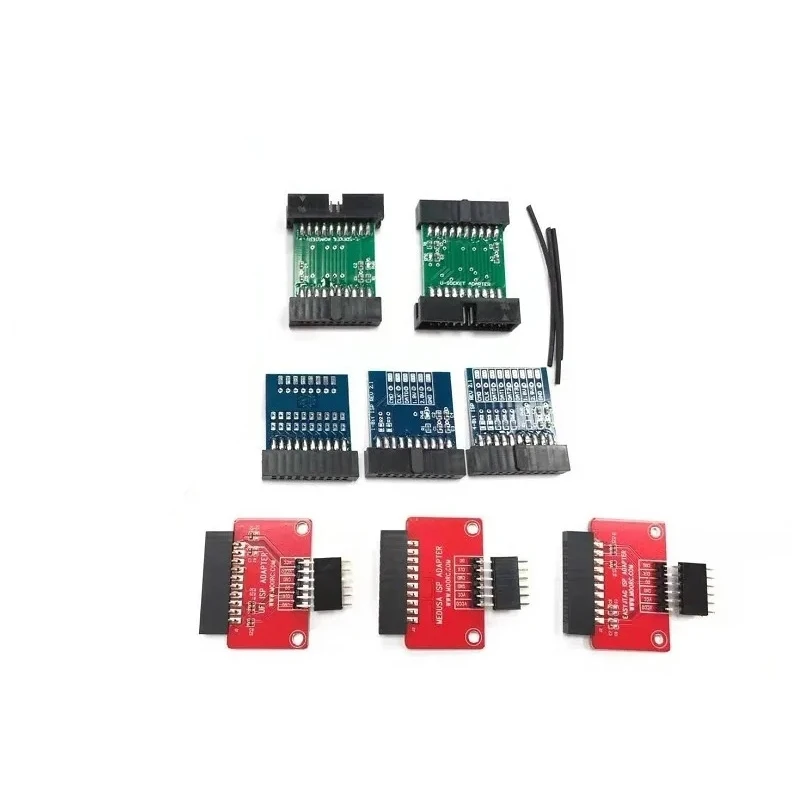

Adapter set – 5 pcs. (JTAG, ISP 1BIT, ISP 4BIT, U-SOCKET, E-SOCKET)
Adapter Red set – 3 pcs ( UFI ISP Adaptor , Medusa ISP Adaptor , Easy Jtag ISP Adaptor )
Remarks
* UFS and NAND protocols due to high speed connection rates requires special sockets and will be released in the future software
and firmware releases.
** 4-BIT ISP technology is currently under testing and will be added in the future firmwares.
This Upgraded PLUS version features ultra fast data transfer, has the possibility of increasing functionality in the future:
hardware of the new box is ready to support new protocols like UFS* and NAND*.
Box Features
* One click device repair
* Boot repair
* Data recovery
* eMMC firmware repair
* Partition management
* eMMC service operations
* SPI memory programming
Socket Features
* Combining the top quality materials with best engineering and elegantly designed hardware for the powerful eMMC Socket.
* Made from the high quality materials
* Over 10K cycles of lifetime performance in your service center
* Wide range of eMMC IC supported by: BGA153/169, BGA162/186, BGA221, BGA529
* High-speed up to 30 MB per second over 8 bit bus.
* EMI resistant design, low noise components
* Integrated power logic. Additional power source is no more need
* Surge protection - smart fuse driven (0.5A threshold)
Software Features
* DUMP AND PINOUTS DATABASE
Free access to large dump and pinouts database and constantly updated software tools
* EASY JTAG TOOL
The main application allowing you to use most of the product features. It's the most powerful tool of all
* EASY JTAG PLUS TOOL
Lightweight software, made especially for mobile phones repair, eMMC memory chips replacement and user data recovery
* EASY JTAG SPI FLASHER
Identifying, reading, writing, verifying and erasing flash chips. It is designed to flash BIOS images on mainboards, routers,
e.t.c.
* EASY JTAG SINGLE PACKAGE REPAIR
Create user customized repair packages. This is partition layout, pinout, eMMC preconfig and instructions
* EASY JTAG API
Access to most useful box functionality to create your own decisions
Main benefits of new Z3x Easy Jtag Plus Box
* Updated CPU AT SAM3X8E vs LPC1768 in old box.
* Updated FPGA SPARTAN6 vs SPARTAN3 in old box
* Updated Power Logic – Full Digital PWM with ADC control.
* MicroUSB Connector if additional power required.
* VCC and VCCQ overload protection.
* Updated host interface: USB 2.0 Device/Mini Host: 480 Mbps
* Integrated ISP engine: Z3X High Power Pro Engine
* ISP Support 1 and 4 bit connection now **
* Added eMMC 8 bit high speed interface up to 48Mhz
* Integrated NAND engine: NFC with 4 Kbyte RAM buffer and ECC
* Integrated M-PHY interface.
* Integrated SPI/I2C engine: up to 65 MHz for HSMCI and SPI clock lines
* Integrated Self Test Core that exclude 90% faults in production.
* Integrated CCID Card Reader for Z3X Software Use
What you get with new hardware :
* Box to Host PC speed increase up to 35MB/sec
* JTAG Interface speed increase 20%
* eMMC ISP Speed increase up to 4MB/sec
* eMMC 8 Bit Speed up to 26MB/sec
* Compatibility with 99.9 host PC systems and OSes
* Compatibility with old Easy JTAG G1 ISP adapters ( 1bit )
* Adapter-less ISP ( all stuff inside the box )
* Compatibility with all market popular eMMC sockets ( 8 bit )
* True Plug and Play for modern Windows OS ( 8, 8.1 , 10 )
* Full Support for legacy OS like Windows XP
Z3x Easy JTAG Plus FULL PACKAGE Contents :
Easy-JTAG Plus Box Hardware
Z3X preactivated card with EasyJTAG PLUS Activation
USB A-B cable
Adapter set – 5 pcs. (JTAG, ISP 1BIT, ISP 4BIT, U-SOCKET, E-SOCKET)
Adapter Red set – 3 pcs ( UFI ISP Adaptor , Medusa ISP Adaptor , Easy Jtag ISP Adaptor )
Remarks
* UFS and NAND protocols due to high speed connection rates requires special sockets and will be released in the future software
and firmware releases.
** 4-BIT ISP technology is currently under testing and will be added in the future firmwares.
Z3X Easy-Jtag Plus RED Edition is an innovative all in one service tool for phone and phone boot repair, data recovery, SPI memory programming and many other features. Supports eMMC, ISP, JTAG, SPI, NAND and many more protocols.
Z3X Easy-Jtag Plus – Outstanding features:
One click device repair
Boot repair
Data recovery
eMMC firmware repair
Partition management
eMMC service operations
SPI memory programming
Z3X Easy-Jtag Plus – Hardware features:
Updated Host MCU SAM3X8E (comparing to LPC1768 in old box)
Updated high-speed FPGA SPARTAN6 (comparing to SPARTAN3 in old box)
Updated power management subsystem – full digital PWM with ADC control
Added Micro-USB connector (if additional power required)
Added VCC and VCCQ switch with overcurrent protection
Updated USB device interface: USB 2.0 480 Mbps (high speed)
Integrated ISP engine: Z3X high power pro engine (4 MB/s)
ISP support 1 and 4 bit* connection
Added eMMC 8-bit high-speed interface up to 42 MHz
Integrated NAND* engine: NFC with 4 KB RAM buffer and ECC
Integrated M-PHY* interface
Integrated SPI engine: up to 21 MHz clock for popular SPI memory flash IC
Integrated self-test core that excludes 90% faults in production
Integrated CCID card reader for Z3X Software Use
Z3X Easy-Jtag Plus – Hardware benefits:
Box to Host PC speed increased up to 40 MB/sec
JTAG Interface speed increased by 20%
eMMC 1 Bit ISP Speed increased up to 4 MB/sec
eMMC 4 Bit ISP Speed increased up to 12 MB/sec (eMMC 5.0+) **
eMMC 4 Bit Speed up to 18 MB/sec
eMMC 8 Bit Speed up to 28 MB/sec (eMMC 5.0+)
Compatible with 99% host PC systems and OS
Compatible with old Easy JTAG 1st generation ISP adapters (1 bit)
Compatible with most of the popular eMMC sockets (with supplied adapters)
Plug and Play for Windows OS 8/ 8.1/10
Full support for Windows XP
Z3X Easy-Jtag Plus – Outstanding features:
One click device repair
Boot repair
Data recovery
eMMC firmware repair
Partition management
eMMC service operations
SPI memory programming
Z3X Easy-Jtag Plus – Hardware features:
Updated Host MCU SAM3X8E (comparing to LPC1768 in old box)
Updated high-speed FPGA SPARTAN6 (comparing to SPARTAN3 in old box)
Updated power management subsystem – full digital PWM with ADC control
Added Micro-USB connector (if additional power required)
Added VCC and VCCQ switch with overcurrent protection
Updated USB device interface: USB 2.0 480 Mbps (high speed)
Integrated ISP engine: Z3X high power pro engine (4 MB/s)
ISP support 1 and 4 bit* connection
Added eMMC 8-bit high-speed interface up to 42 MHz
Integrated NAND* engine: NFC with 4 KB RAM buffer and ECC
Integrated M-PHY* interface
Integrated SPI engine: up to 21 MHz clock for popular SPI memory flash IC
Integrated self-test core that excludes 90% faults in production
Integrated CCID card reader for Z3X Software Use
Z3X Easy-Jtag Plus – Hardware benefits:
Box to Host PC speed increased up to 40 MB/sec
JTAG Interface speed increased by 20%
eMMC 1 Bit ISP Speed increased up to 4 MB/sec
eMMC 4 Bit ISP Speed increased up to 12 MB/sec (eMMC 5.0+) **
eMMC 4 Bit Speed up to 18 MB/sec
eMMC 8 Bit Speed up to 28 MB/sec (eMMC 5.0+)
Compatible with 99% host PC systems and OS
Compatible with old Easy JTAG 1st generation ISP adapters (1 bit)
Compatible with most of the popular eMMC sockets (with supplied adapters)
Plug and Play for Windows OS 8/ 8.1/10
Full support for Windows XP
Z3X Easy-Jtag Plus UFS BGA- 95 socket by EasyJTAG Advantages:
High quality and high positioning accuracy
Power indicator
ECDSA Protected Serial Number (protected from illegal copying)
Life span: ≥30,000 times
Supported memory IC (Regularly Updated):
Samsung KLUAG2G1BD-E0B2
Samsung KLUBG4G1BD-E0B1
Samsung KLUBG4G1BD-E0B2
Samsung KLUBG4G1BE-E0B1
Samsung KLUBG4G1BB-E0B1
Samsung KLUCG8G1BD-E0B1
Samsung KLUCG8G1BD-E0B2
Samsung KLUDGAG1BD-E0B1
Toshiba THGLF2G8J4LBATD
Toshiba THGLF2G8J4LBATC
Toshiba THGLF2G8J4LBATG
Toshiba THGLF2G9J8LBATD
Toshiba THGLF2G9J8LBATC
Toshiba THGLF2G9J8LBATG
Package Content:
Z3X Easy-Jtag Plus BGA-95 Socket Adapter - 1 pc.
* Developer provides support only for those phones which are on the list of supported. Not all servicing features can be applied
to some supported models, due to difference of hardware / software versions. Complete list of supported models you can find on the
official product page, or on the GSM forum.
High quality and high positioning accuracy
Power indicator
ECDSA Protected Serial Number (protected from illegal copying)
Life span: ≥30,000 times
Supported memory IC (Regularly Updated):
Samsung KLUAG2G1BD-E0B2
Samsung KLUBG4G1BD-E0B1
Samsung KLUBG4G1BD-E0B2
Samsung KLUBG4G1BE-E0B1
Samsung KLUBG4G1BB-E0B1
Samsung KLUCG8G1BD-E0B1
Samsung KLUCG8G1BD-E0B2
Samsung KLUDGAG1BD-E0B1
Toshiba THGLF2G8J4LBATD
Toshiba THGLF2G8J4LBATC
Toshiba THGLF2G8J4LBATG
Toshiba THGLF2G9J8LBATD
Toshiba THGLF2G9J8LBATC
Toshiba THGLF2G9J8LBATG
Package Content:
Z3X Easy-Jtag Plus BGA-95 Socket Adapter - 1 pc.
* Developer provides support only for those phones which are on the list of supported. Not all servicing features can be applied
to some supported models, due to difference of hardware / software versions. Complete list of supported models you can find on the
official product page, or on the GSM forum.
Z3X Easy-Jtag Plus BGA-153 Socket Adapter Advantages:
High quality and high positioning accuracy
Power indicator
ECDSA Protected Serial Number (protected from illegal copying)
Life span: ≥30,000 times
Supported memory IC (Regularly Updated):
SKHynix H28S7Q302BMR
SKHynix H28S8Q302CMR
SKHynix H28U62301AMR
SKHynix H28U64222MMR
SKHynix H28U74301AMR
SKHynix H28U74303AMR
SKHynix H28U78222MMR
SKHynix H28U88301AMR
Samsung KLUBG4G1BD-B0B1
Samsung KLUBG4G1CE-B0B1
Samsung KLUCG2K1EA-B0C1
Samsung KLUCG4J1CB-B0B1
Samsung KLUCG4J1ED-B0C1
Samsung KLUCG4J1ZD-B0CP
Samsung KLUDG4U1EA-B0C1
Samsung KLUDG8J1CB-B0B1
Samsung KLUDG8V1EE-B0C1
Samsung KLUEG8U1EA-B0C1
Samsung KLUEG8U1EM-B0B1
Samsung KLUEG8U1EM-B0C1
Micron MTFC32GAMAKAM-WT
Sandisk SDINDDH4-128G
Sandisk SDINDDH4-256G
Sandisk SDINDDH4-32G
Sandisk SDINDDH4-64G
Toshiba THGAF4G8N2LBAIRB
Toshiba THGAF4G9N4LBAIR
Toshiba THGAF4T0N8LBAIRB
Toshiba THGAF8G8T23BAILB
Toshiba THGAF8G9T43BAIRB
Toshiba THGAF8T0T43BAIRB
Toshiba THGAF8T1T83BAIRBToshiba THGAF9G8L2LBAB7
Toshiba THGAF9G8L2LBAZZA
Toshiba THGAF9G9L4LBAZZA
Toshiba THGBF7G8K4LBATRB
Toshiba THGBF7G8K4LBATR
Toshiba THGBF7G9L4LBATR
Toshiba THGBF7T0L8LBATAB
Toshiba THGBF7T0L8LBATA
Toshiba THGBF7T0L8LBATG
Toshiba THGLF2G8D4KBADR
Toshiba THGLF2G8J4LBATR
Toshiba THGLF2G9J8LBATR
Kingston UFS32G-T811-A60
High quality and high positioning accuracy
Power indicator
ECDSA Protected Serial Number (protected from illegal copying)
Life span: ≥30,000 times
Supported memory IC (Regularly Updated):
SKHynix H28S7Q302BMR
SKHynix H28S8Q302CMR
SKHynix H28U62301AMR
SKHynix H28U64222MMR
SKHynix H28U74301AMR
SKHynix H28U74303AMR
SKHynix H28U78222MMR
SKHynix H28U88301AMR
Samsung KLUBG4G1BD-B0B1
Samsung KLUBG4G1CE-B0B1
Samsung KLUCG2K1EA-B0C1
Samsung KLUCG4J1CB-B0B1
Samsung KLUCG4J1ED-B0C1
Samsung KLUCG4J1ZD-B0CP
Samsung KLUDG4U1EA-B0C1
Samsung KLUDG8J1CB-B0B1
Samsung KLUDG8V1EE-B0C1
Samsung KLUEG8U1EA-B0C1
Samsung KLUEG8U1EM-B0B1
Samsung KLUEG8U1EM-B0C1
Micron MTFC32GAMAKAM-WT
Sandisk SDINDDH4-128G
Sandisk SDINDDH4-256G
Sandisk SDINDDH4-32G
Sandisk SDINDDH4-64G
Toshiba THGAF4G8N2LBAIRB
Toshiba THGAF4G9N4LBAIR
Toshiba THGAF4T0N8LBAIRB
Toshiba THGAF8G8T23BAILB
Toshiba THGAF8G9T43BAIRB
Toshiba THGAF8T0T43BAIRB
Toshiba THGAF8T1T83BAIRBToshiba THGAF9G8L2LBAB7
Toshiba THGAF9G8L2LBAZZA
Toshiba THGAF9G9L4LBAZZA
Toshiba THGBF7G8K4LBATRB
Toshiba THGBF7G8K4LBATR
Toshiba THGBF7G9L4LBATR
Toshiba THGBF7T0L8LBATAB
Toshiba THGBF7T0L8LBATA
Toshiba THGBF7T0L8LBATG
Toshiba THGLF2G8D4KBADR
Toshiba THGLF2G8J4LBATR
Toshiba THGLF2G9J8LBATR
Kingston UFS32G-T811-A60
ufs BGA 153 254 297 153(UFS4.0) Work with Easy j-tag Plus Box iOS Android Mobile Phone Repair Flash Unlock BGA-153 Socket BGA-95 BGA-297 Socket UFS BGA-153 UFS BGA-95 UFS/Emmc Nand Socket Full Set UFS BGA-254 MMC254 2 in 1 Medusa Pro2 Octoplus Sigma Box Nck Pro2 Hydra Tool Z3X Team Products for Samsung LG HTC Huawei Sony Motorola Xiaomi OPPO VIVO Tecno Infinix Google ZTE Alcatel Software BGA-169 BGA-162 BGA-186 BGA-221 BGA-529 Socket Adapter
Product Name | Original 2024 The newest version IC friend ufs 4 in1 socket Adapter | ||||||
Model Number | support ufs BGA 153 254 297 153(UFS4.0) | ||||||
Usage | Mobile Phone Repair Tools | ||||||
Brand | EASY JTAG PLUS BOX | ||||||
Function 1 | for Samsung LG HTC Huawei Sony Motorola Xiaomi OPPO | ||||||
Function 2 | for VIVO Tecno Infinix Google ZTE Alcatel Software | ||||||
Function 3 | Work with Easy j-tag Plus Box iOS Android Mobile Phone Repair Flash Unlock | ||||||
Function 4 | BGA-153 Socket BGA-95 BGA-297 Socket UFS BGA-153 UFS BGA-95 UFS/Emmc Nand Socket Full Set UFS BGA-254 MMC254 | ||||||
Function 5 | Medusa Pro2 Octoplus Sigma Box | ||||||
Function 6 | EASY JTAG PLUS BOX Work Android Mobile Phone Repair Flash Unlock | ||||||
Compatability | Android system | ||||||
FAQ
Q: What's your minimum order quantity?
A:Our MOQ is 10pcs/order, accepting models and colors mixture. For new clients, sample order for evaluation can be supported, but the unit price is difference from wholesale price.
A:Our MOQ is 10pcs/order, accepting models and colors mixture. For new clients, sample order for evaluation can be supported, but the unit price is difference from wholesale price.
Q: Can I print my own brand logo on your product?
A:OEM orders are highly welcomed. Please write us the details of your logo, user manual and box design (if you have) before you send us inquiry. In this way we can offer you most accurate answer at the first time.
A:OEM orders are highly welcomed. Please write us the details of your logo, user manual and box design (if you have) before you send us inquiry. In this way we can offer you most accurate answer at the first time.
Q: What's your warranty policy?
A:When you get the goods, please check the models, quantity, quality and our company sticker. If you have any problem of the goods,please contact our sales. No responsibility for expire.
A:When you get the goods, please check the models, quantity, quality and our company sticker. If you have any problem of the goods,please contact our sales. No responsibility for expire.
Q:What are the terms of payments you offer?
A:Payment of the goods should be set in USD or RMB on the basis of goods exchanging. We accept payment of T/T, Western Union,Paypal and cash only
A:Payment of the goods should be set in USD or RMB on the basis of goods exchanging. We accept payment of T/T, Western Union,Paypal and cash only
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
