Product Overview

Description











Performance Features

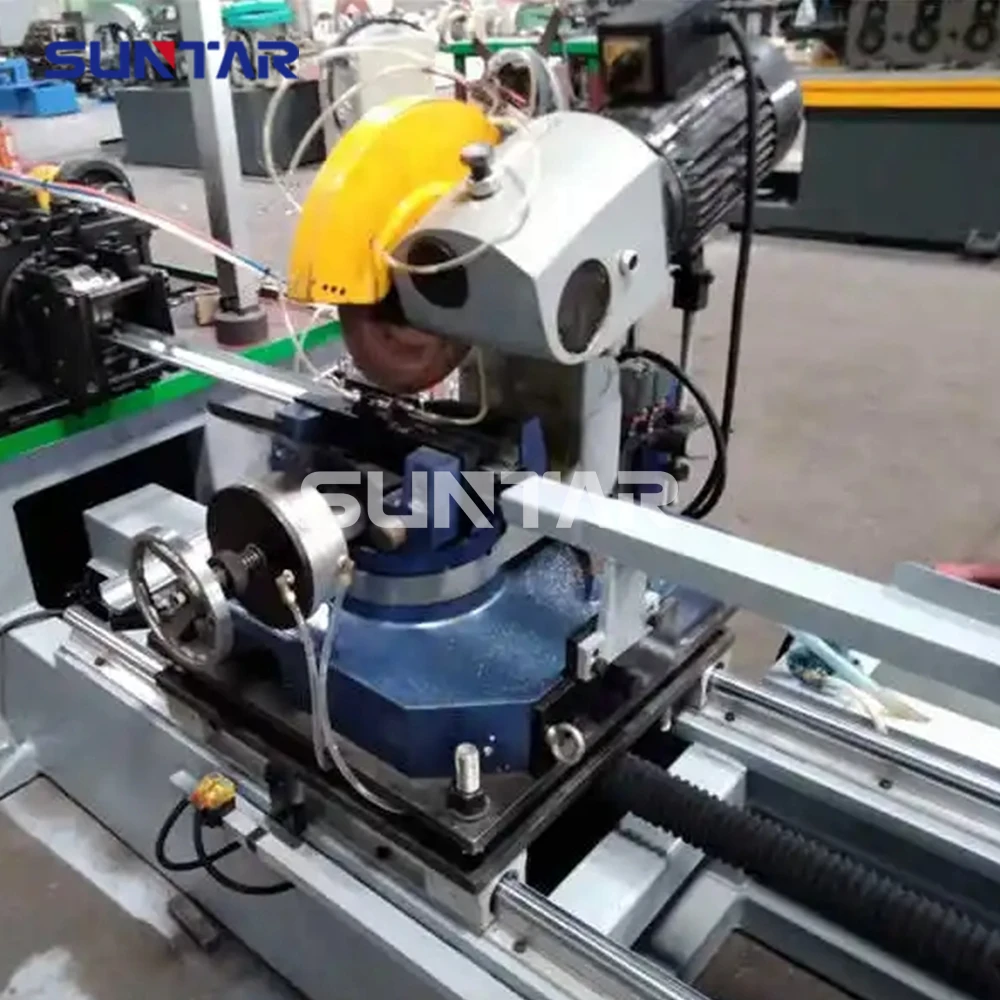

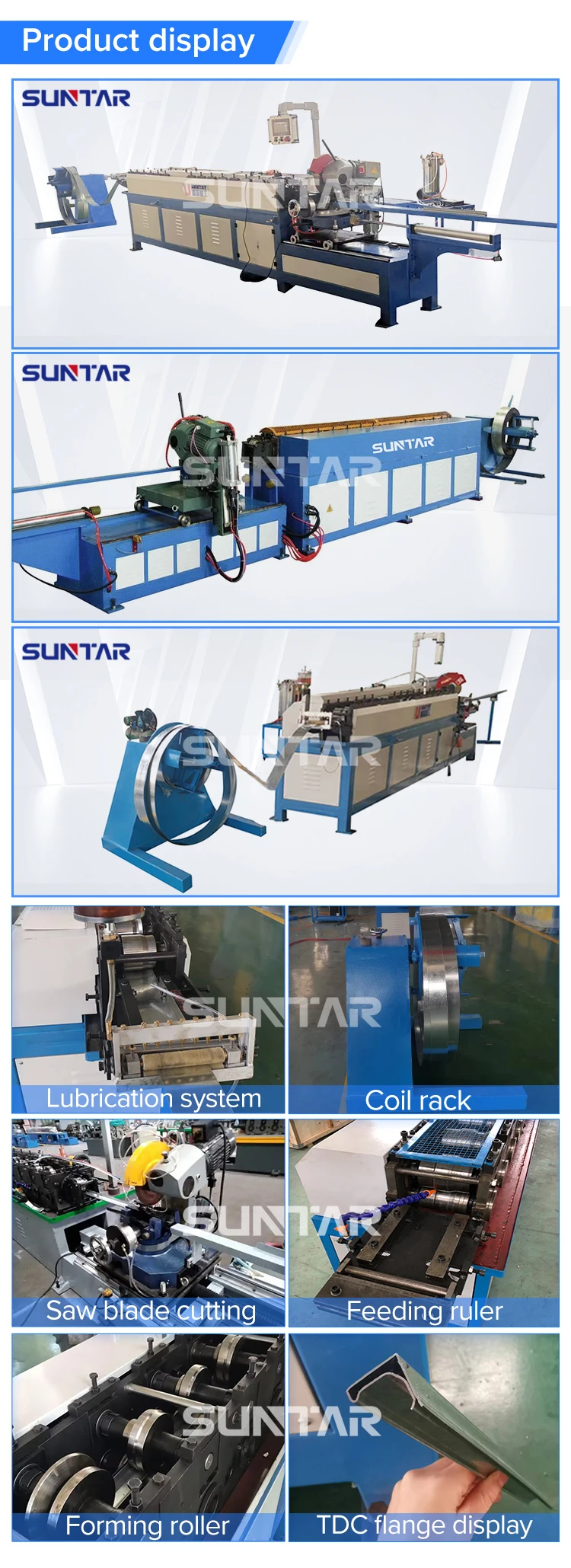

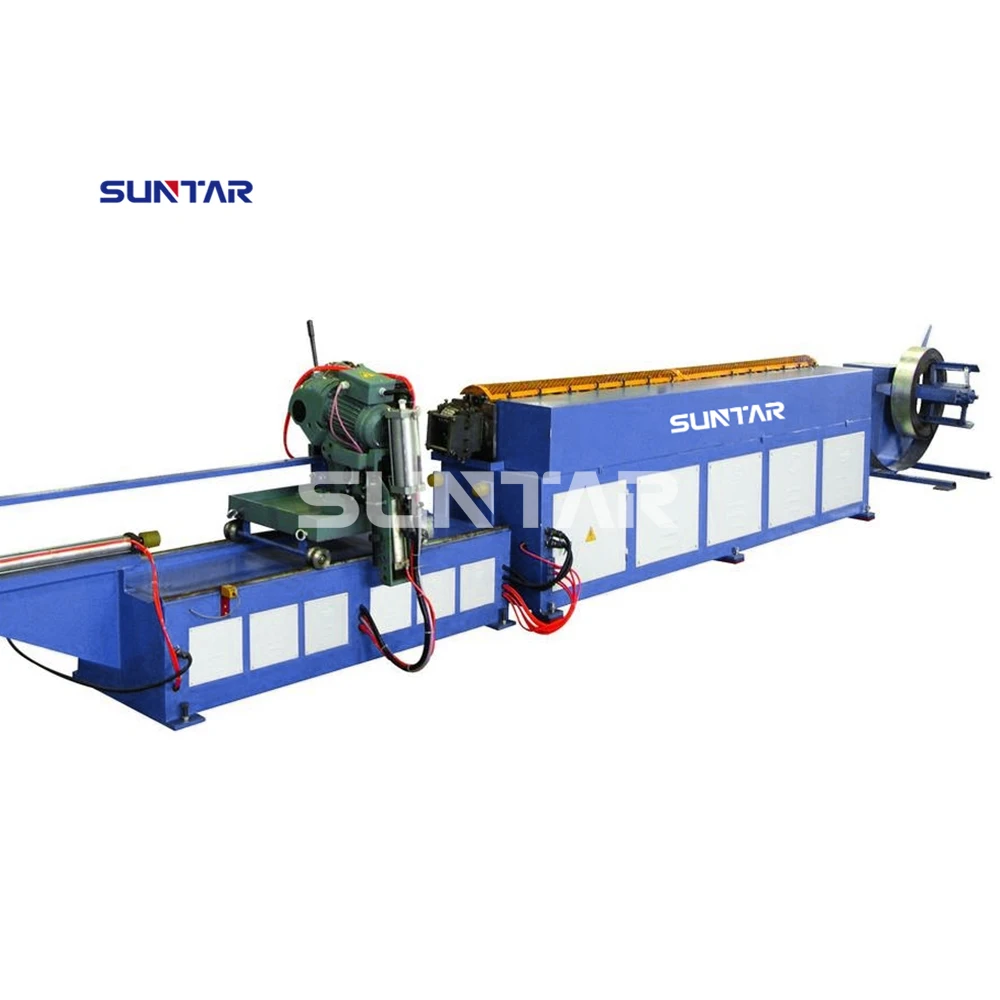

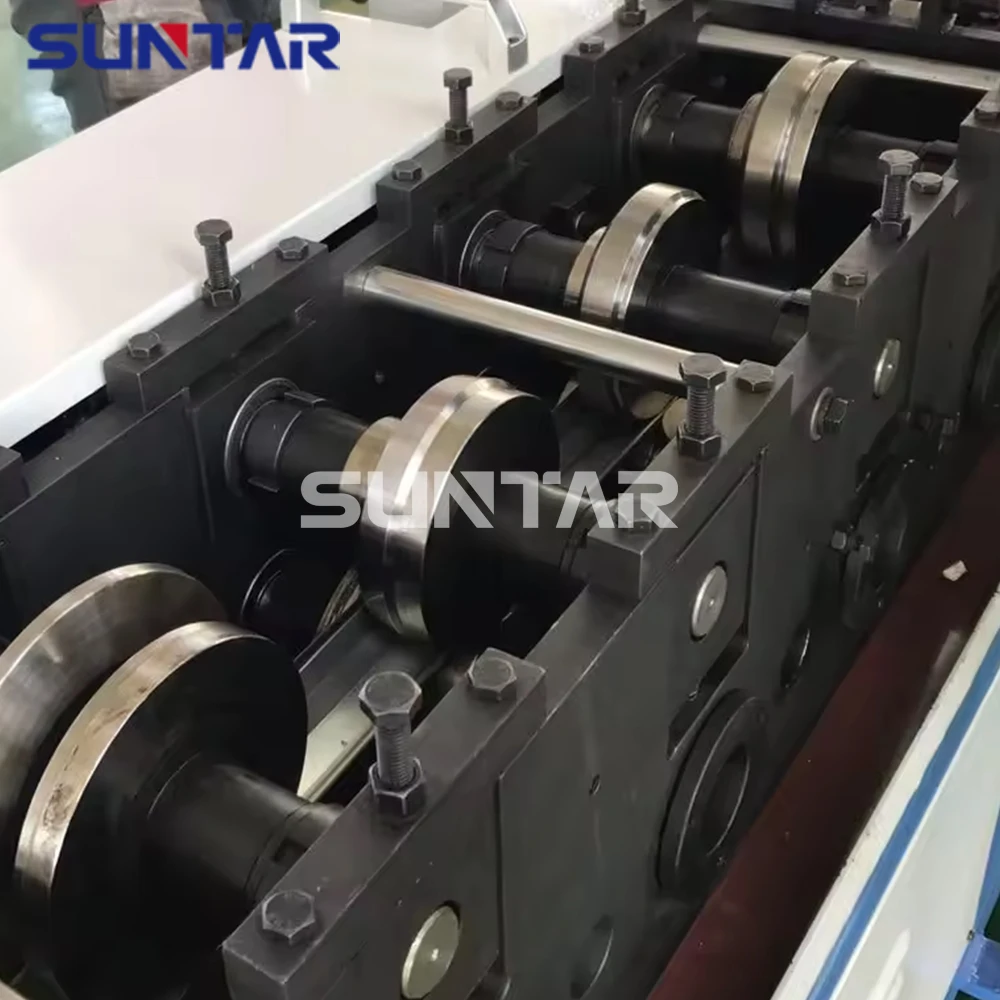

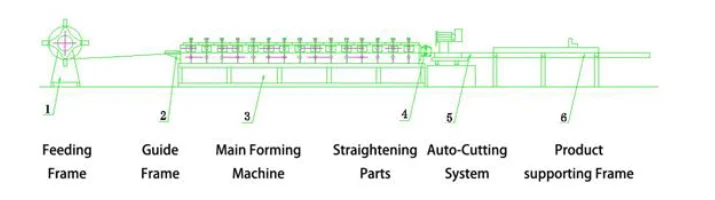

TDC flange making machine is one of the major systems for universal flange making in the world. It has the characteristics of time saving, material saving, high work efficiency, better sealing, sturdy and durable, and strong connection. It is best suitable for ducts with a large cross-section of general purpose duct. The TDC flange making machine is mainly composed of a coil decoiler, the rolling forming main body and a cutting part. The cutting part can be divided into a grinding wheel cutting and keep cutting, and the cutting system can realize the cutting of the length. The burr is small and can be fully automated. Its working speed is 5-7 m/min. There are 4 types according to its working performance and flange forming strength and sealing strength: T-20, T-30, T-35,T-40.


Main Technical Parameters


Model
Sheet thickness(mm)
Power
(kw)
Dimensions(mm)
L*W*H
Weight
(kg)
T-20
0.8
3.7
5800x600x1150
2000
T-30
1.0
3.7
5800x600x1150
2200
T-35
1.0
3.7
 6000x600x1200
3000
T-40
1.2
4.0
 6000x600x1200
3000
