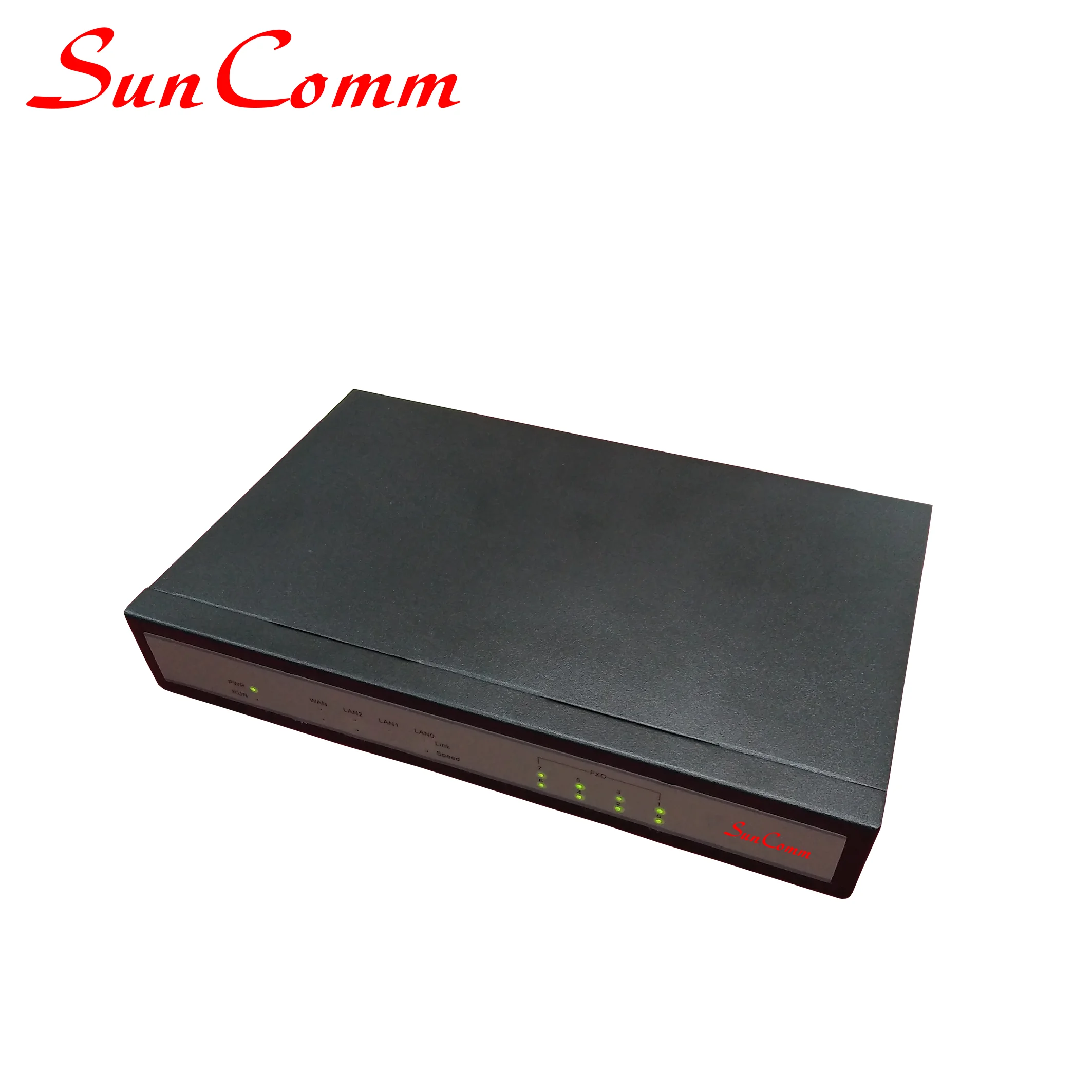

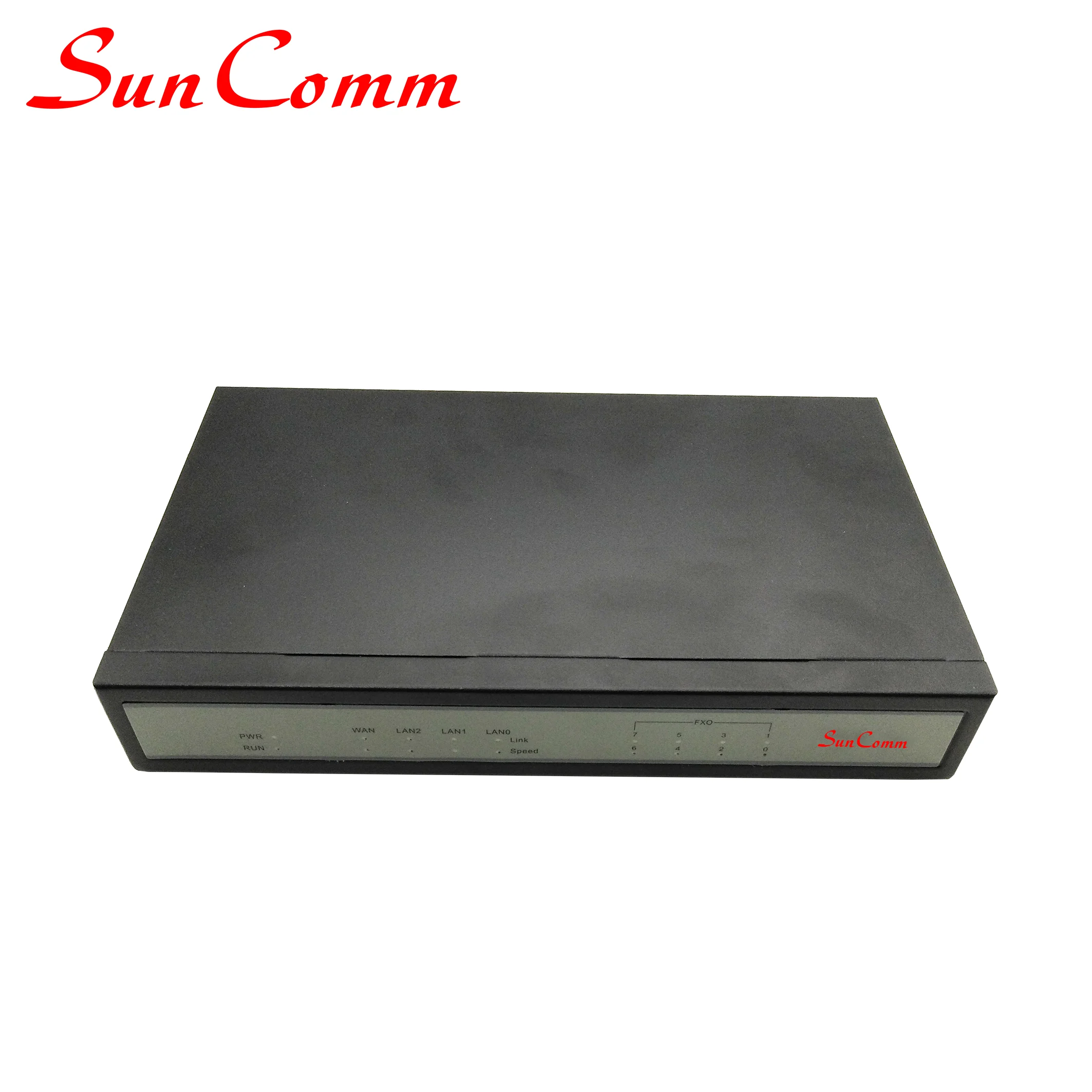

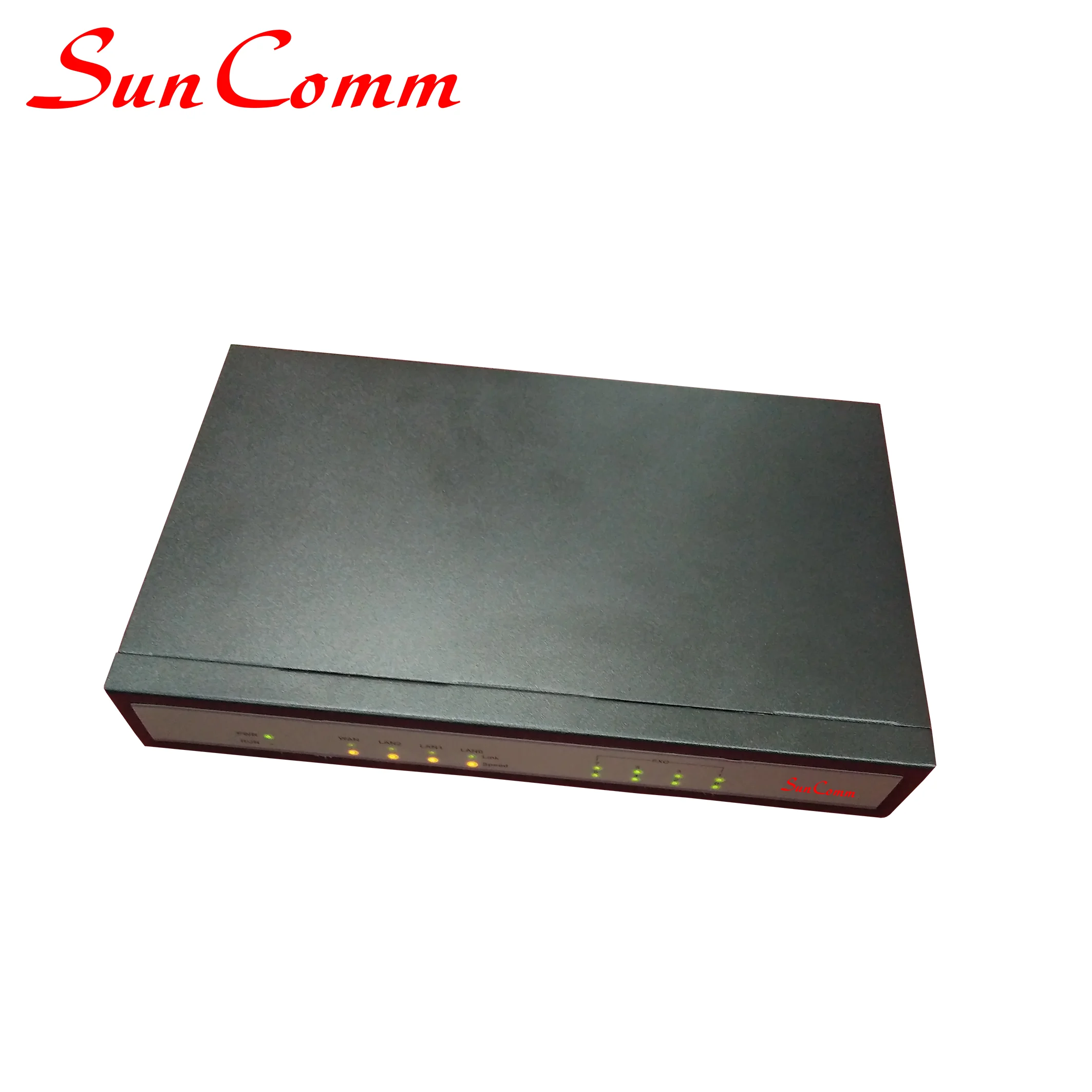

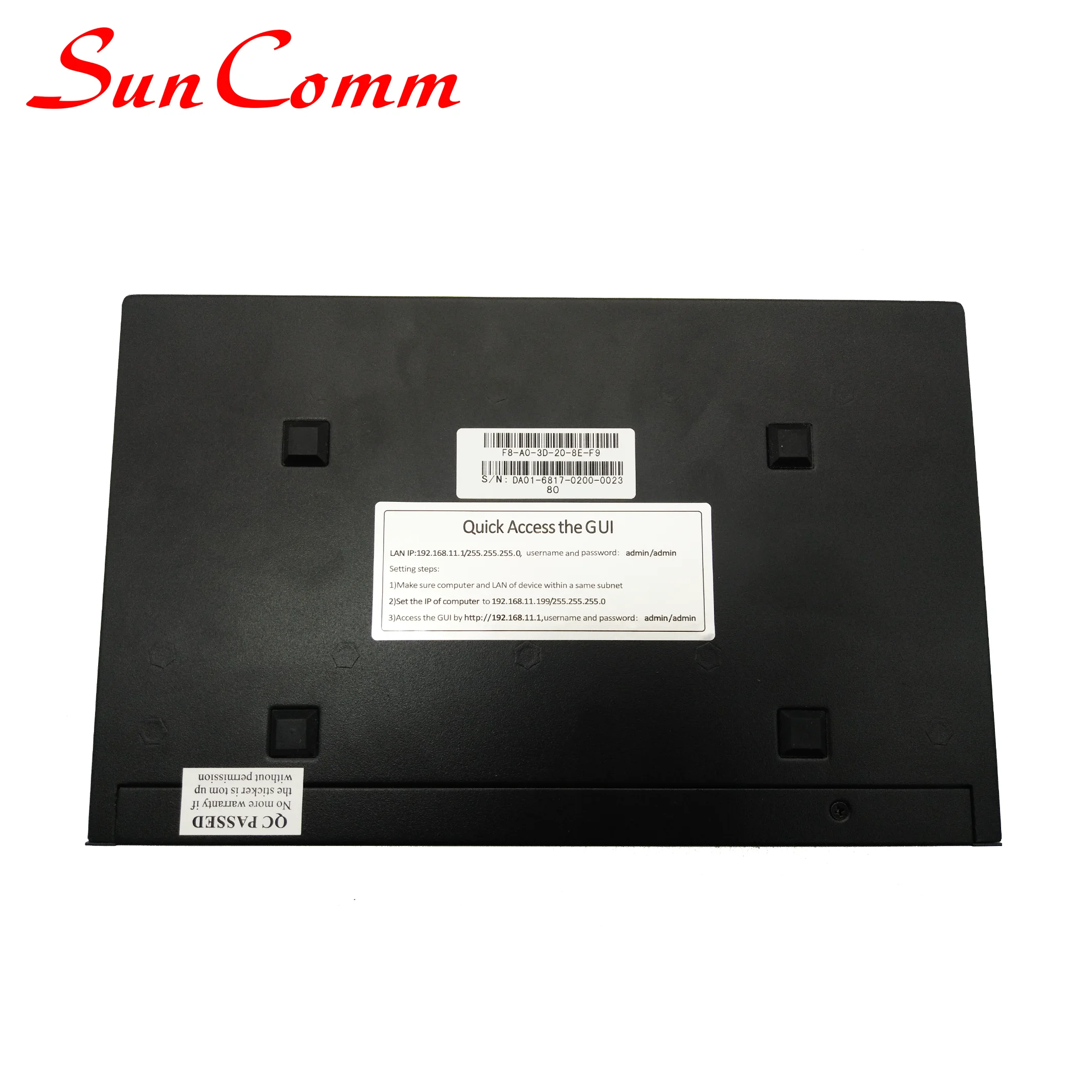

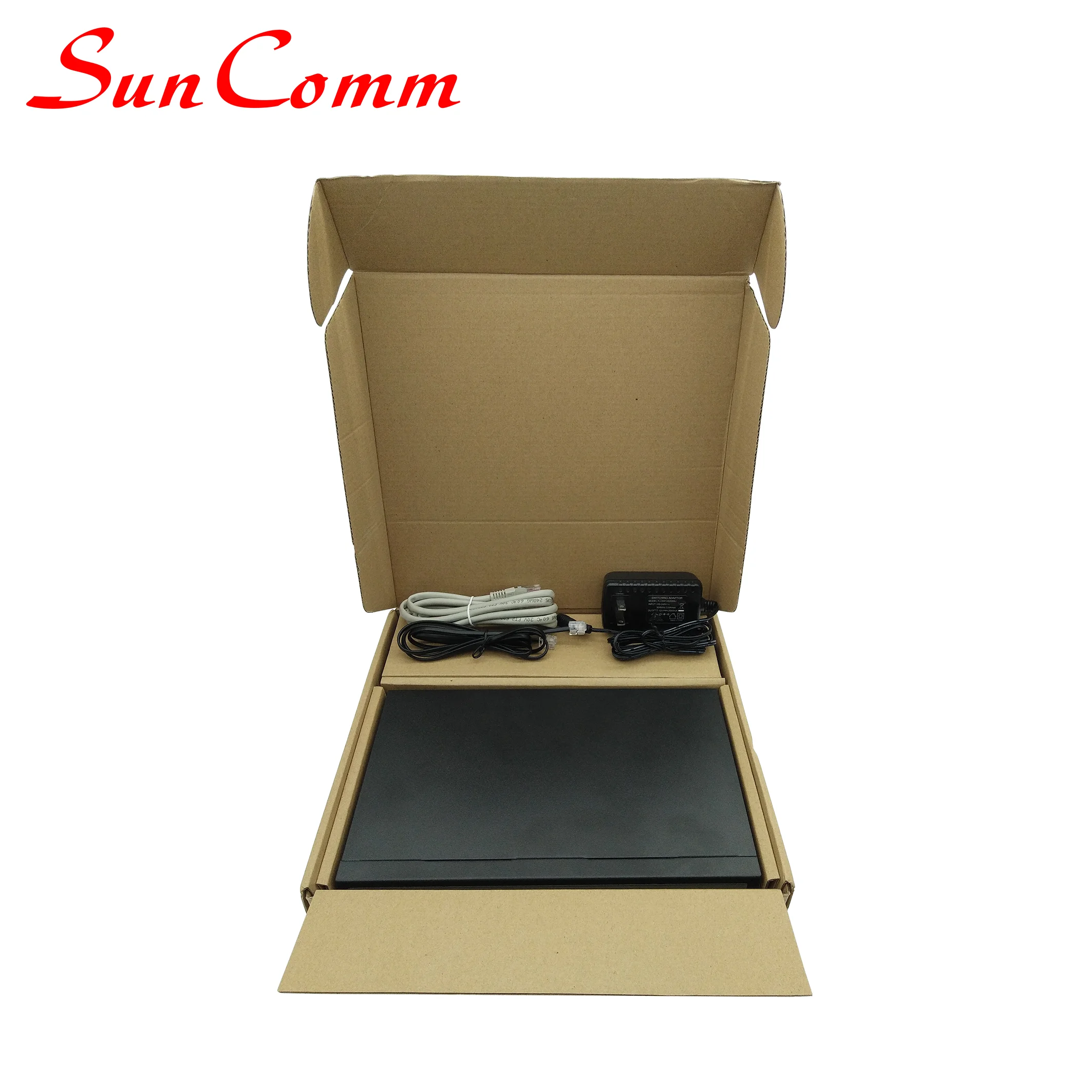

SC 08 S VoIP Terminal with 8 FXS Connections

Key benefits

• Primary and secondary SIP account


• Flexible setup FXO/FXS port group


• IP trunk


• Flexible routing and manipulation


• Data/Voice/Management VLAN


• Voice and FAX all in one


• SNMP


• Firmware update automatically /configure update

Protocol

• SIP V2.0 (RFC 3261,3262,3264)


• SDP (RFC 2327)


• REFER (RFC 3515)



• RTP/RTCP (RFC 1889,1890)


• STUN (RFC 3489)


• ARP/RARP (RFC 826/903)


• SNTP (RFC 2030)



• DHCP/PPPoE



• TFTP/HTTP/HTTPS



• DNS/DNS SRV (RFC 1706/RFC 2782)


• VLAN 802.1P/802.1Q


• Diff Serve

Voice & Fax

• G.711A/U law, G.723.1, G.729A/B



• Comfort Noise Generation(CNG)



• Voice Activity Detection(VAD)



• Echo Cancellation(G.168)



• Adaptive (Dynamic) Jitter Buffer



• Programmable Gain Control



• T.38/Pass-through/Modem FAX mode,



• Up to 14.4kbps



• DTMF mode: Signal/RFC2833/INBAND

FXO Features

• Busy tone detection



• No current take out stitches



• Detection Voice interrupted



• Detection One stage dialing



• Two stage dialing



• PSTN exterior ports polling



• Polarity Reversal



• FAS( Fake billing correction )



• DC/AC impedance config



• Caller ID detection (Bellcore Type 1&2, ETSI,DTMF)

Private Service

• Inquire LAN port IP *158#


• Inquire WAN port IP *159#



• Get IP address *150*



• Restart *111#



• Factory reset *166*000000#

Maintain & Upgrade

• Web based configuration



• Telnet configuration



• Data backup/restore



• Support English and Chinese language



• Firmware upgrade by TFTP



• Web & telnet login password modify



• Factory reset



• Automatic time synchronization



• SNMP



• IVR local maintenance management

Network Features

• NAT (Rout& Bridge)


• Static IP, PPPoE, DHCP



• DHCP server



• MAC address clone



• DMZ



• IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP,



• Ping, NTP, SNTP, Http, DNS, Tracert



• Static/dynamic ARP

Physical properties

• Power: input:100-240V,50-60Hz,1.2A Max
  8FXO output:12VDC,2A



• power consumption(W): 8FXO:20



• Temperature(operation): 0 ℃ ~ 45 ℃
  (storage): -20 ℃ ~80 ℃



• Operation Humidity: 10%-90%



• no condensation



• Dimension(w/D/H):
  8FXO 242*152*40mm 1kg


Call & Routing

• FXO port group



• IP Trunk



• Primary and secondary SIP account



• 32 inbound routing



• 32 outbound routing



• Number manipulation



• Dial plan set

We also have CE Certifications for SC-368W,  SC-9039-3G,  SC-396-GP3G/ SC-393-GP3G,    SC-9068-GH3G,  SCG-31/SCG-31P,  SCG-4Qe/ SCG-8Qe, SC-9029-RA,SC-9079-3G,  SC-9010-GP/GP2, SC-9029-RA -RoHS certificate ,Reach
