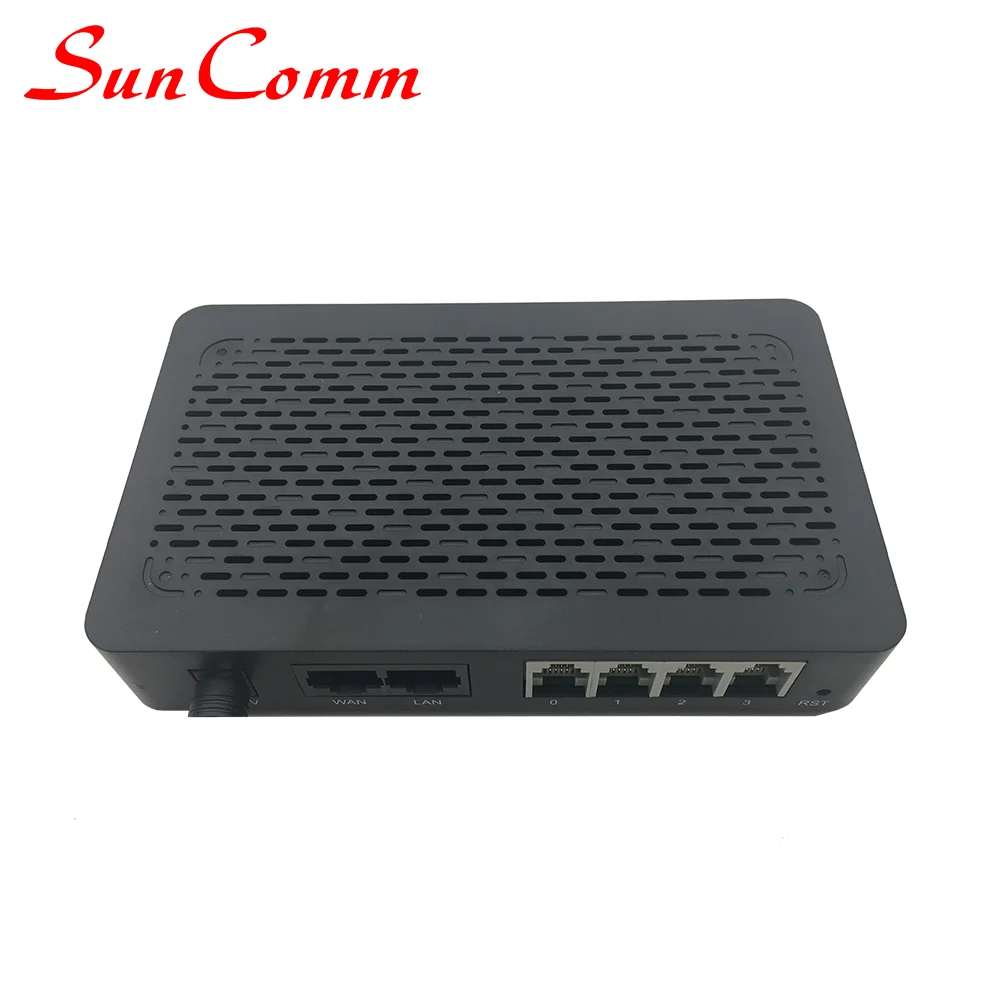

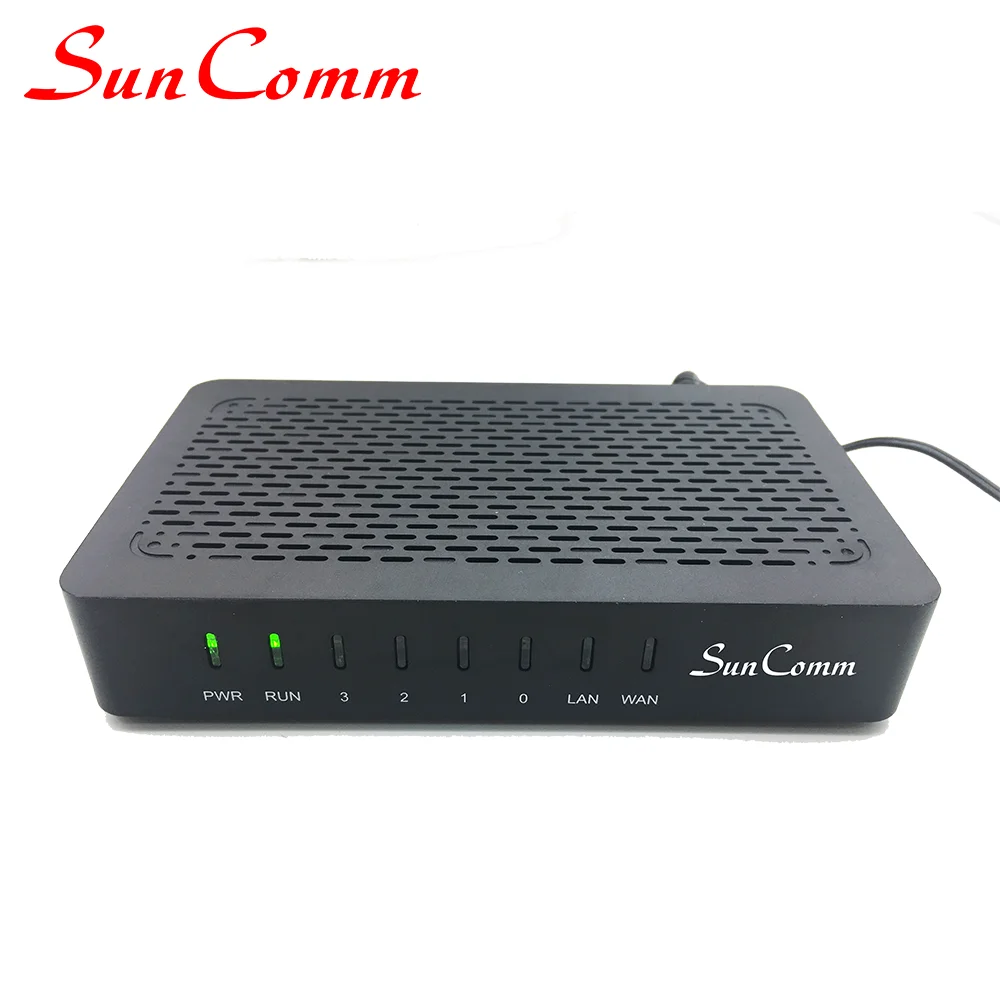

SC 04 S VoIP Access Point with 4 FXS Ports
SC-04-S VoIP Access Point with 4 FXS Ports
SC-04-S VoIP Access Point with 4 FXS Ports
SC-04-S VoIP Access Point with 4 FXS Ports
SC-04-S VoIP Access Point with 4 FXS Ports
SC-04-S VoIP Access Point with 4 FXS Ports
SC-04-S VoIP Access Point with 4 FXS Ports

SC 04 S VoIP Access Point with 4 FXS Ports

Share on (10000018800544):


Price:$84.00 - $98.00

Quantity:


Product Overview

Description

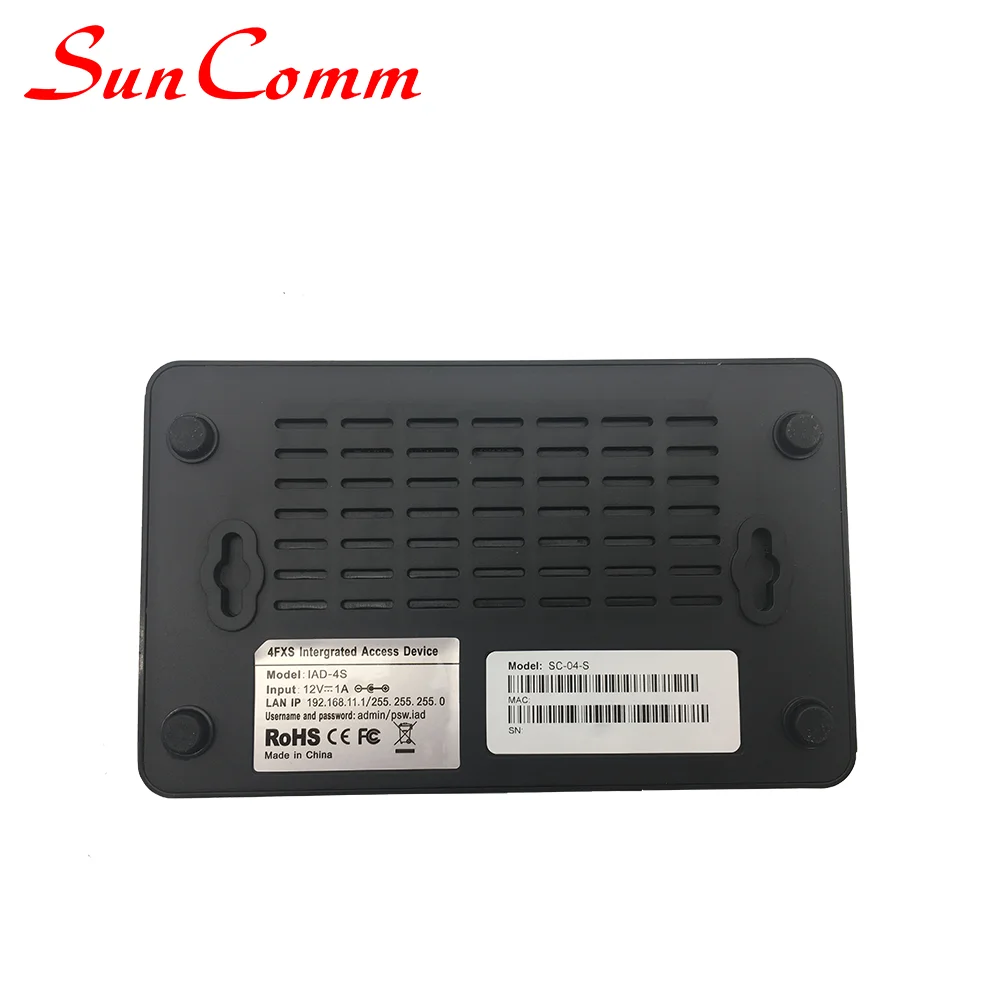

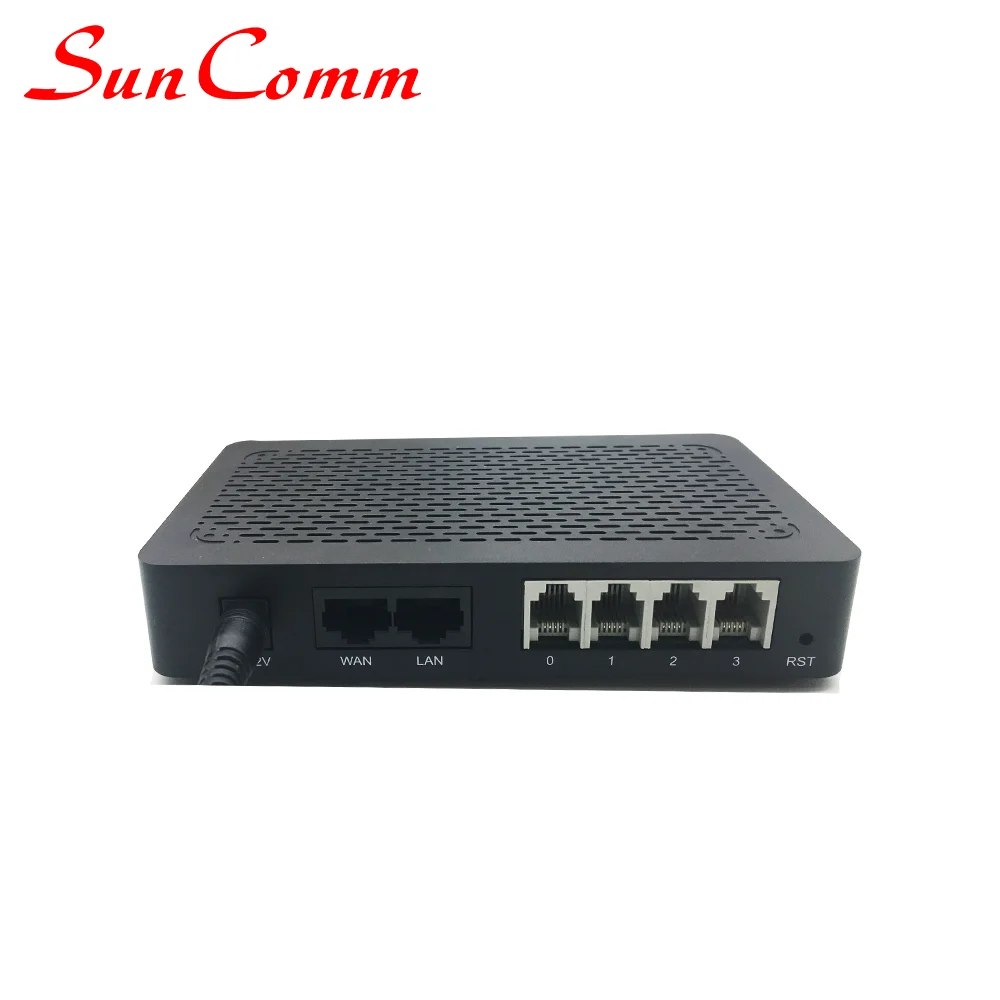

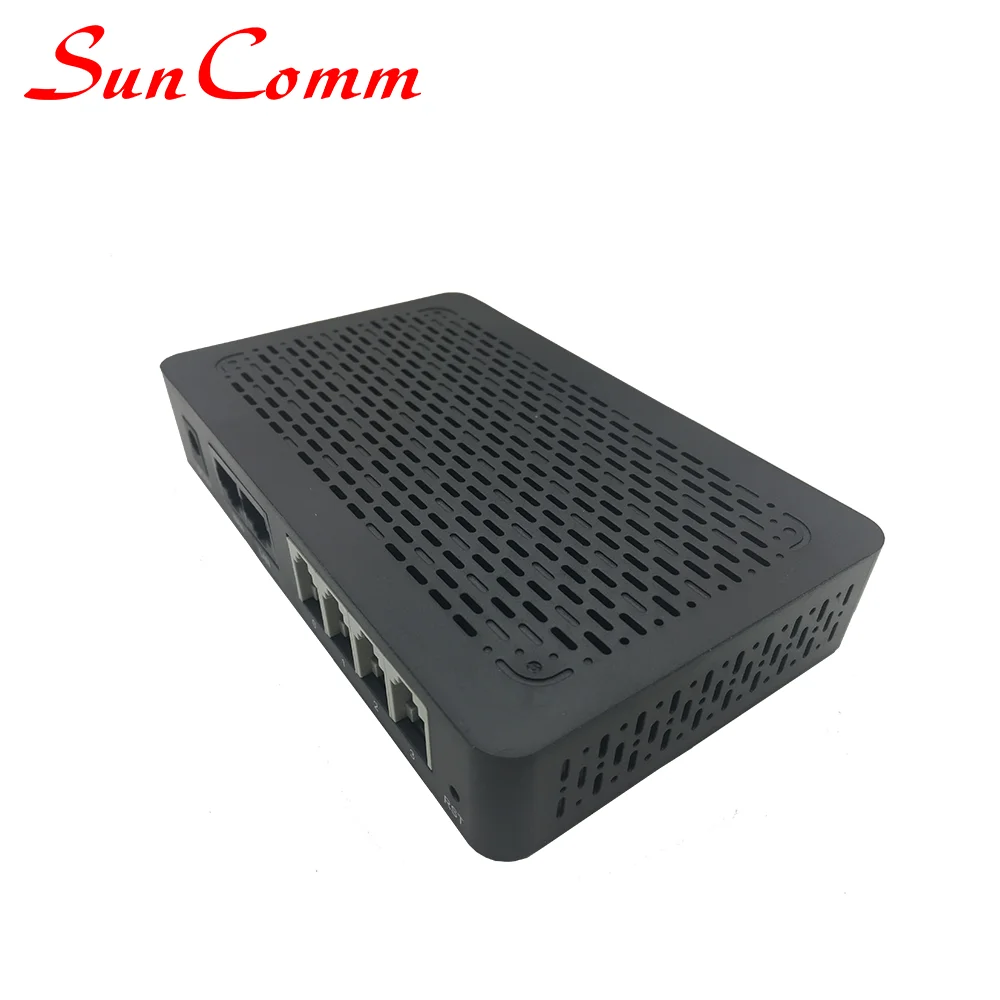

SC-04-S VoIP Access Point with 4 FXS PortsSC-04-S SIP Gateway.pngSC-04-S SIP Gateway(4).pngSC-04-S SIP Gateway(2).pngSC-04-S SIP Gateway(3).png



Product Description





key benefits


 Primary and secondary SIP account


 Flexible setup FXO/FXS port group


 IP trunk


 Flexible routing and manipulation


 Data/Voice/Management VLAN


 Voice and FAX all in one


 SNMP


 Firmware update automatically /configure update


Protocol


 SIP V2.0 (RFC 3261,3262,3264)


 SDP (RFC 2327)


 REFER (RFC 3515)


 RTP/RTCP (RFC 1889,1890)


 STUN (RFC 3489)


 ARP/RARP (RFC 826/903)


 SNTP (RFC 2030)


 DHCP/PPPoE


 TFTP/HTTP/HTTPS


 DNS/DNS SRV (RFC 1706/RFC 2782)


 VLAN 802.1P/802.1Q


 Diff Serve


Voice & Fax


 G.711A/U law, G.723.1, G.729A/B


 Comfort Noise Generation(CNG)


 Voice Activity Detection(VAD)


 Echo Cancellation(G.168)


 Adaptive (Dynamic) Jitter Buffer


 Programmable Gain Control


 T.38/Pass-through/Modem FAX mode,


 Up to 14.4kbps DTMF mode: Signal/RFC2833/INBAND


FXO Features


 Busy tone detection


 No current take out stitches


 Detection Voice interrupted


 Detection One stage dialing


 Two stage dialing


 PSTN exterior ports polling


 Polarity Reversal


 FAS( Fake billing correction )


 DC/AC impedance config


 Caller ID detection (Bellcore Type 1&2, ETSI,DTMF)


Private Service


 Inquire LAN port IP *158#


 Inquire WAN port IP *159#


 Get IP address *150*


 Restart *111#


 Factory reset *166*000000#


Maintain & Upgrade


 Web based configuration


 Telnet configuration


 Data backup/restore


 Support English and Chinese language


Firmware upgrade by TFTP


 Web & telnet login password modify


 Factory reset


 Automatic time synchronization


 SNMP


 IVR local maintenance management


Network Features


 NAT (Rout& Bridge) Static IP, PPPoE, DHCP


 DHCP server


 MAC address clone


 DMZ


 IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP,


 Ping, NTP, SNTP, Http, DNS, Tracert


 Static/dynamic ARP


Physical properties


Power: input:100-240V,50-60Hz,1.2A Max


 4FXO output: 12VDC,1A


 8FXO output:12VDC,2A


 16FXO optput:110-240VAC, 0.5A


 power consumption(W): 4FXO:12;


 8FXO:20;16FXO:48


 Temperature(operation): 0 ℃ ~ 45 ℃


 (storage): -20 ℃ ~80 ℃


 Operation Humidity: 10%-90%


 no condensation


 Dimension(w/D/H):


 4/8FXO 242*152*40mm 1kg


 16FXO 442*280*44mm 3.0kg


Call & Routing


 FXO port group


 IP Trunk


 Primary and secondary SIP account


 32 inbound routing


 32 outbound routing


 Number manipulation


 Dial plan set
