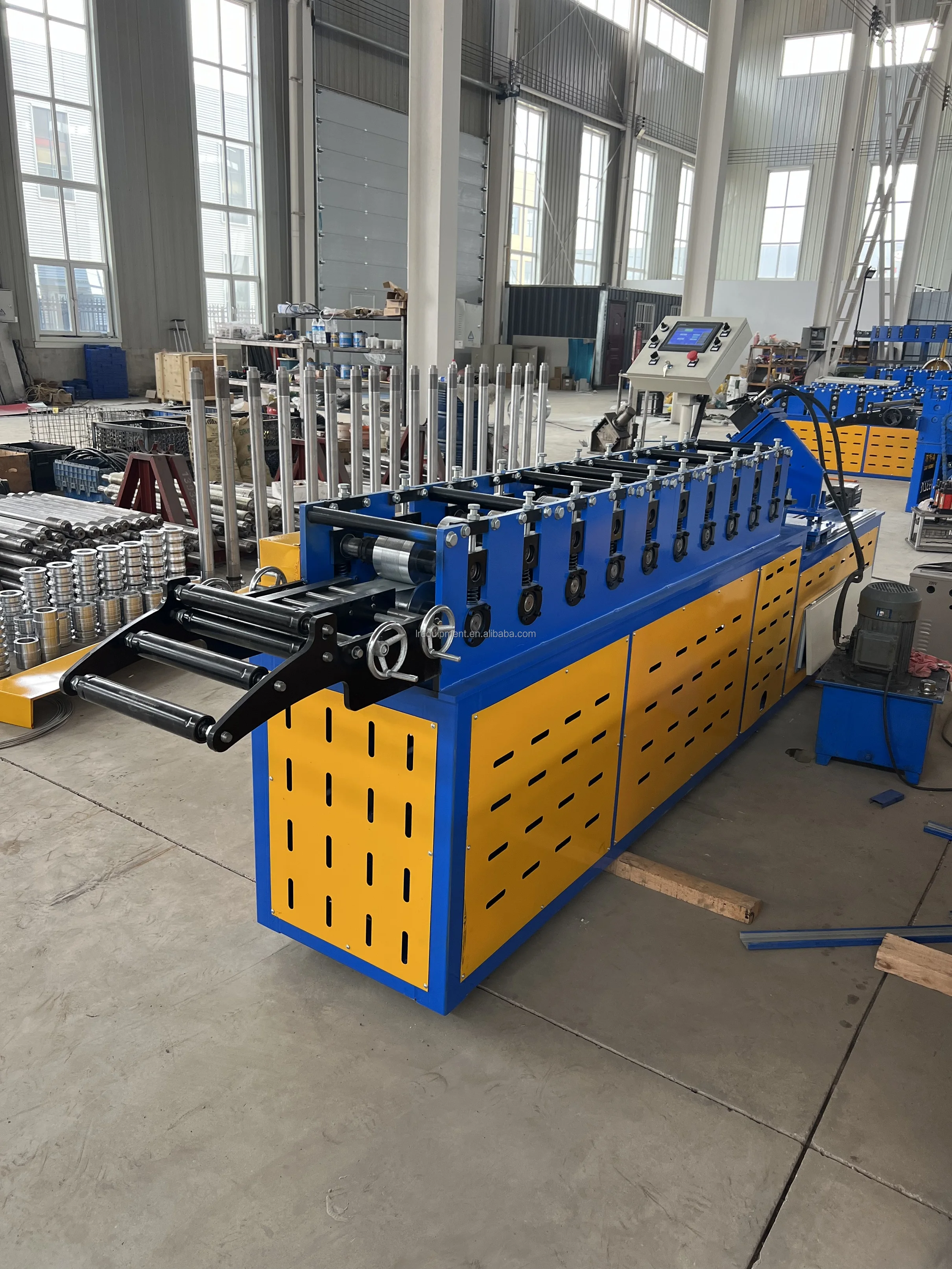

Light Steel Frame Keel C Channel Stud And Track Cold Roll Forming Machine Price For Sale
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (10000018982734):
Product Overview
Description
Products Description

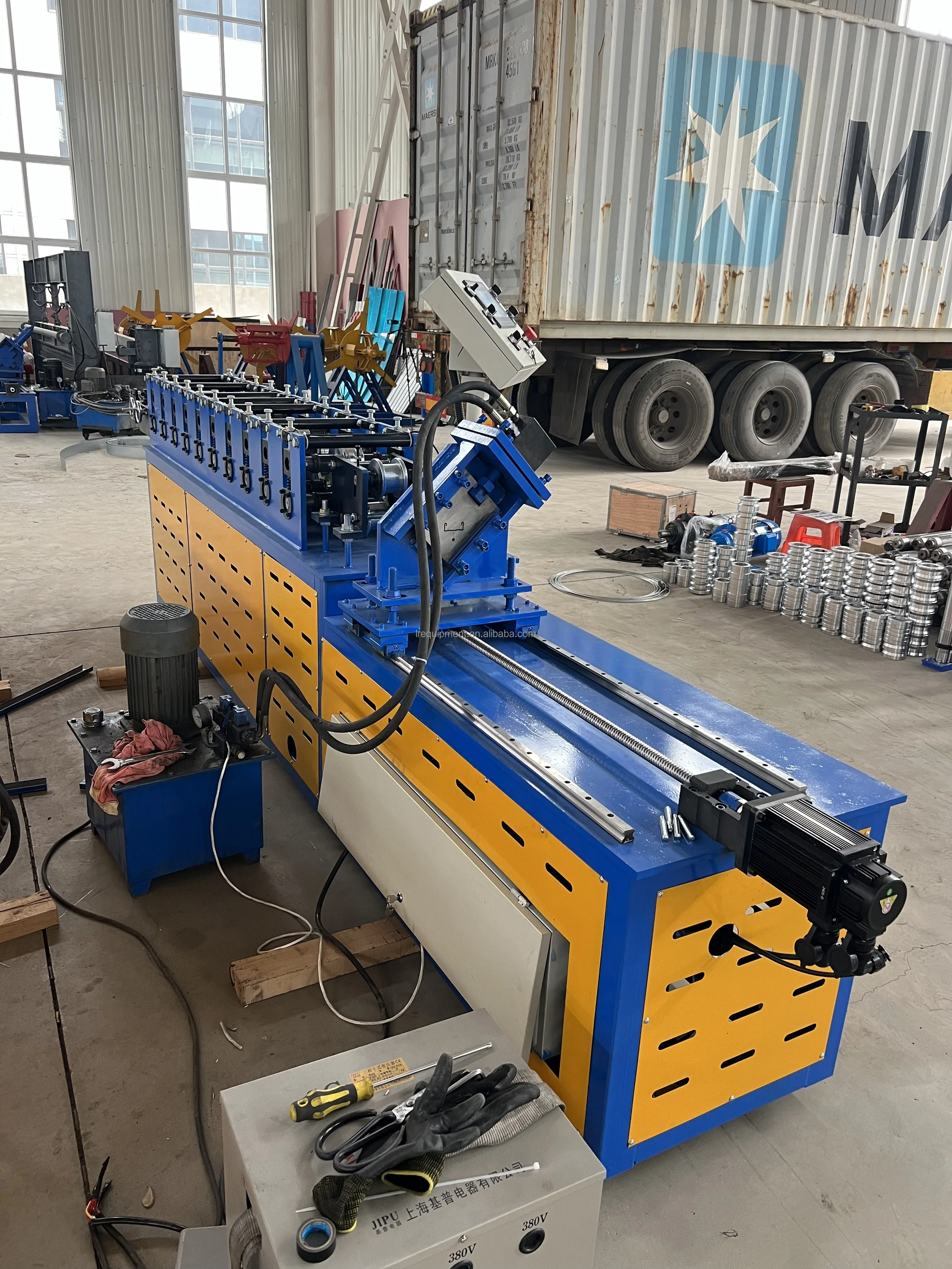

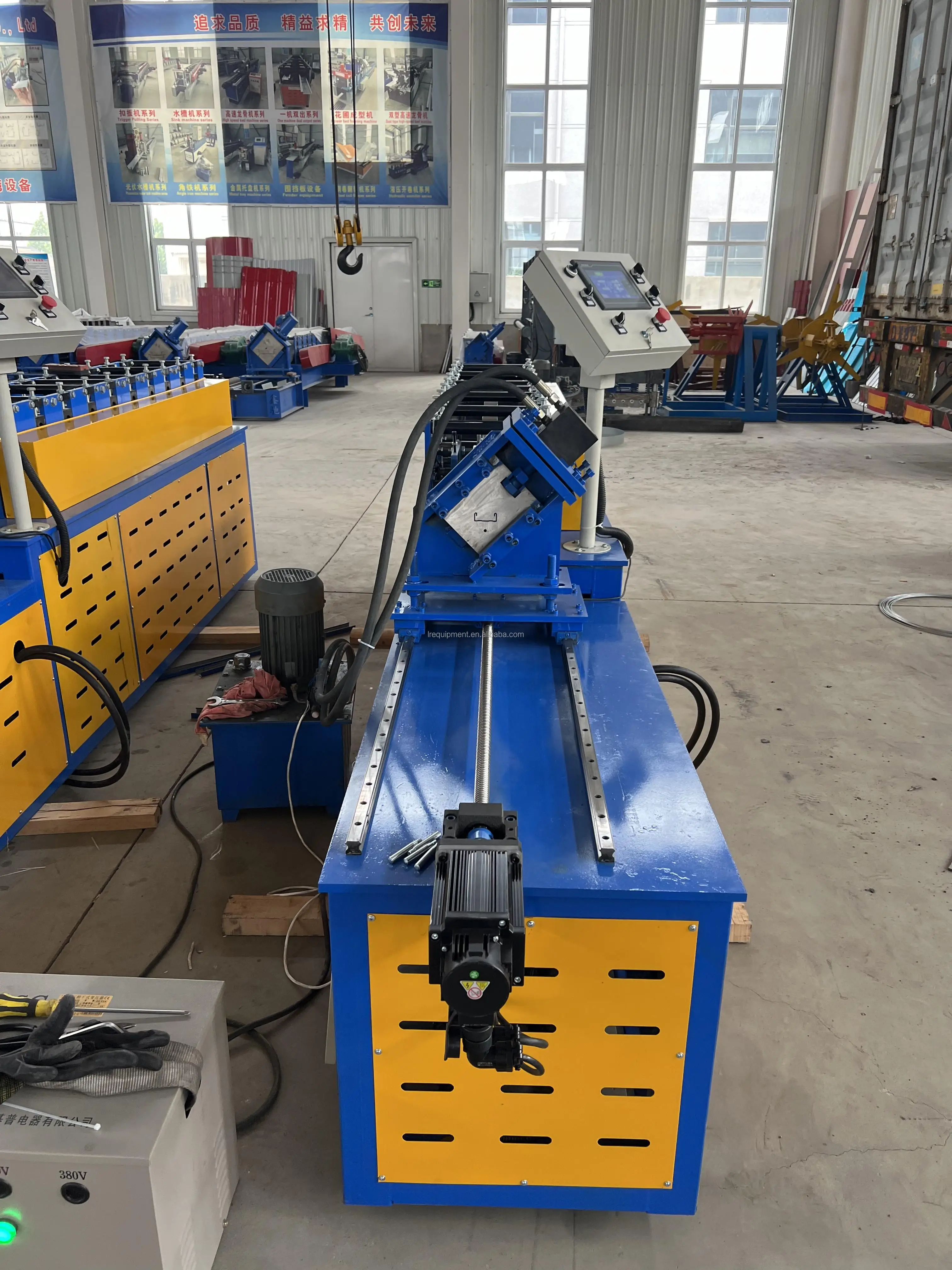

Light Steel Frame Keel C Channel Stud And Track Cold Roll Forming Machine Price
1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 17+ years experience;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 50m/min;
5) . Very easy to install and operate the roll forming machine.
2). Choose the best material and components, and adopting our 17+ years experience;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 50m/min;
5) . Very easy to install and operate the roll forming machine.
Product Paramenters
1 | Model NO. | CU channel | Roll Forming | Three types |
2 | Coil width | According the profile | Rolling Speed | 30m/min(not include cutting time) |
3 | Rolling Thickness | 0.4-0.8mm GI | Control System | PLC (Panasonic) as list in the note |
4 | Decoiler | 3 ton manual de-coiler | Roller Stations | Cassette1: About 13stations+ one station of rectify Cassette |
5 | Correction | 1 station | Punching system | 1 set for logo |
6 | Roller Material | Gcr15, quenched and coated with chrome | Shaft Material and DIA | ¢65mm, material is 45# forge steel |
7 | Main Motor Power | 11kw | Hydraulic Station Power | 5.5kw |
8 | Hydraulic Pressure | 12-16Mpa | Material Of Cutting | Cr12Mov quenching 58-62ºC |
Configuration
1.5/3ton Feeding rack
Coil Width: Max. 800mm
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.

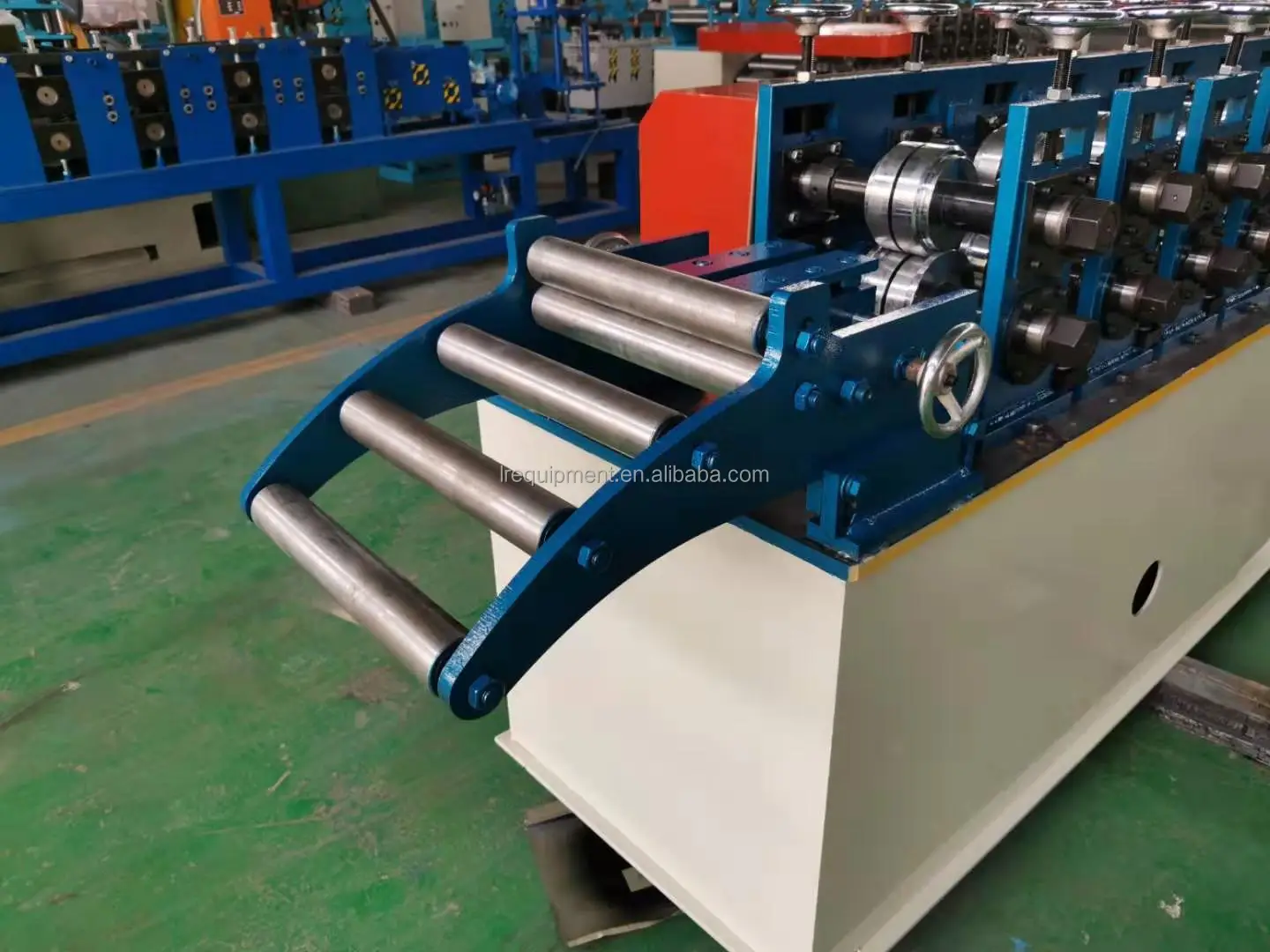

Feeding Type:Adjustable
Feeding Width Range: 170-550mm
Adjustable Center of The Forming Rollers and of Sufficient Length to Prevent Laternal Movement of The Strip on its Entry to
Leveling Device. And The Material of Rollers Could Stop Scratching The Zinc of The Steel.
Feeding Width Range: 170-550mm
Adjustable Center of The Forming Rollers and of Sufficient Length to Prevent Laternal Movement of The Strip on its Entry to
Leveling Device. And The Material of Rollers Could Stop Scratching The Zinc of The Steel.

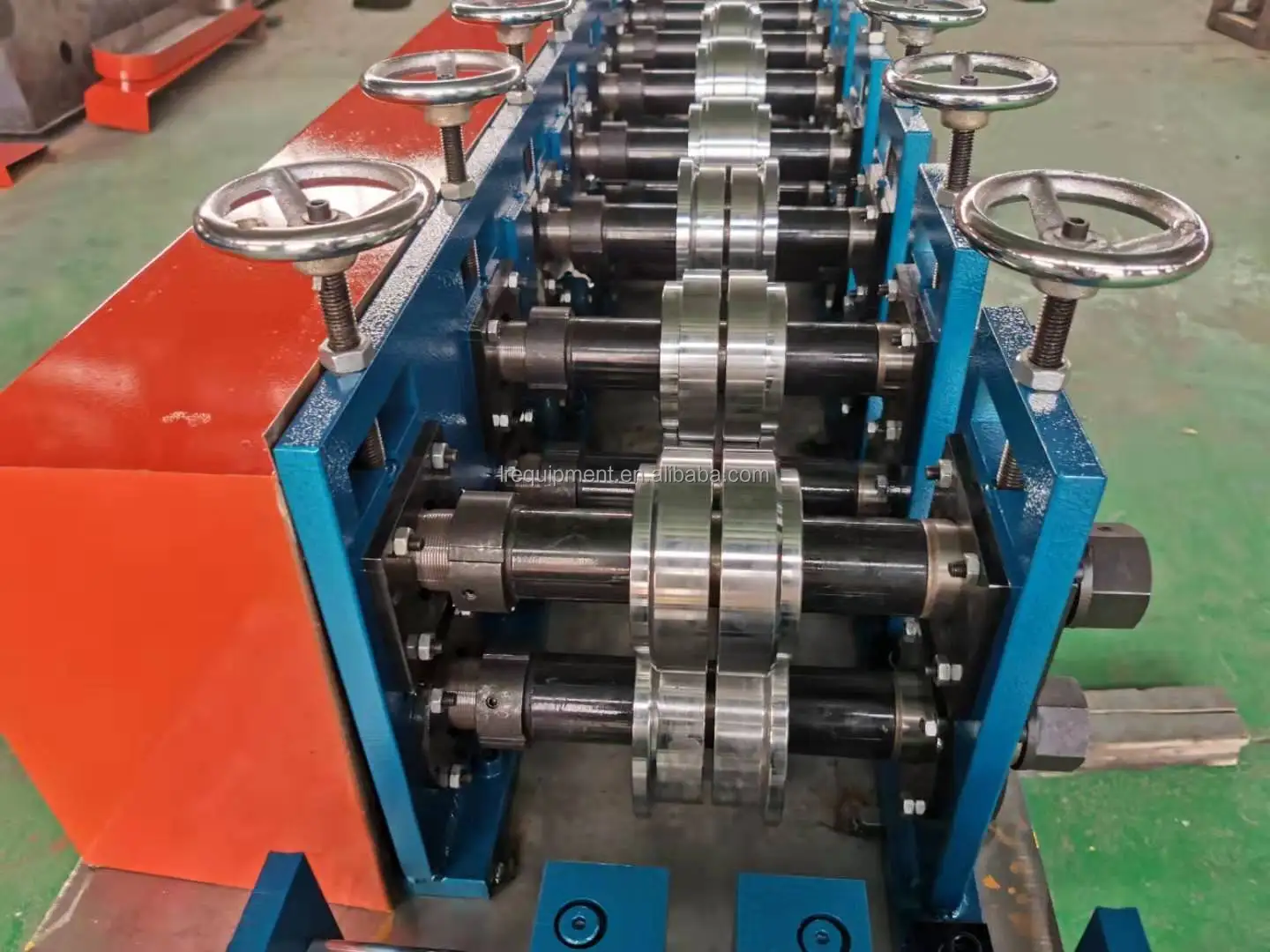

1. Machine frame:350mm H beam structure , 300H supporter
2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.
3. Roller Material:Main rollers:GCr15
Supporting side rollers:Cr12 Roller
4. Shafts Material:Motor drive shaft: 40Cr steel
Other roll shaft: 45# steel
6. Forming speed: 0-30 m/min
7. Transmission way: By chain
2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.
3. Roller Material:Main rollers:GCr15
Supporting side rollers:Cr12 Roller
4. Shafts Material:Motor drive shaft: 40Cr steel
Other roll shaft: 45# steel
6. Forming speed: 0-30 m/min
7. Transmission way: By chain
Cutting Blade: Cr12MoV
Cutting Tolerance: ±1.5mm/12m
Cutting Type: The Unbridled Shearing System, You can Cut All Size Products by Adjusting the Blade, It is much Easier than
Traditional Shearing System.
Feature: PLC Automatic Size Adjustment, You Can Adjust the Rollers by Using Buttons on the PLC Cabinet Screen, It can Save A
Lot Labor and Time.
Cutting Tolerance: ±1.5mm/12m
Cutting Type: The Unbridled Shearing System, You can Cut All Size Products by Adjusting the Blade, It is much Easier than
Traditional Shearing System.
Feature: PLC Automatic Size Adjustment, You Can Adjust the Rollers by Using Buttons on the PLC Cabinet Screen, It can Save A
Lot Labor and Time.
4/5/5/7/5 kW air-cooled hydraulic pump station Hydraulic station pressure in 10-12mpa plus 45 hydraulic oil Advantages: can be 24
hours uninterrupted work will not produce hydraulic pump station overheating phenomenon
hours uninterrupted work will not produce hydraulic pump station overheating phenomenon

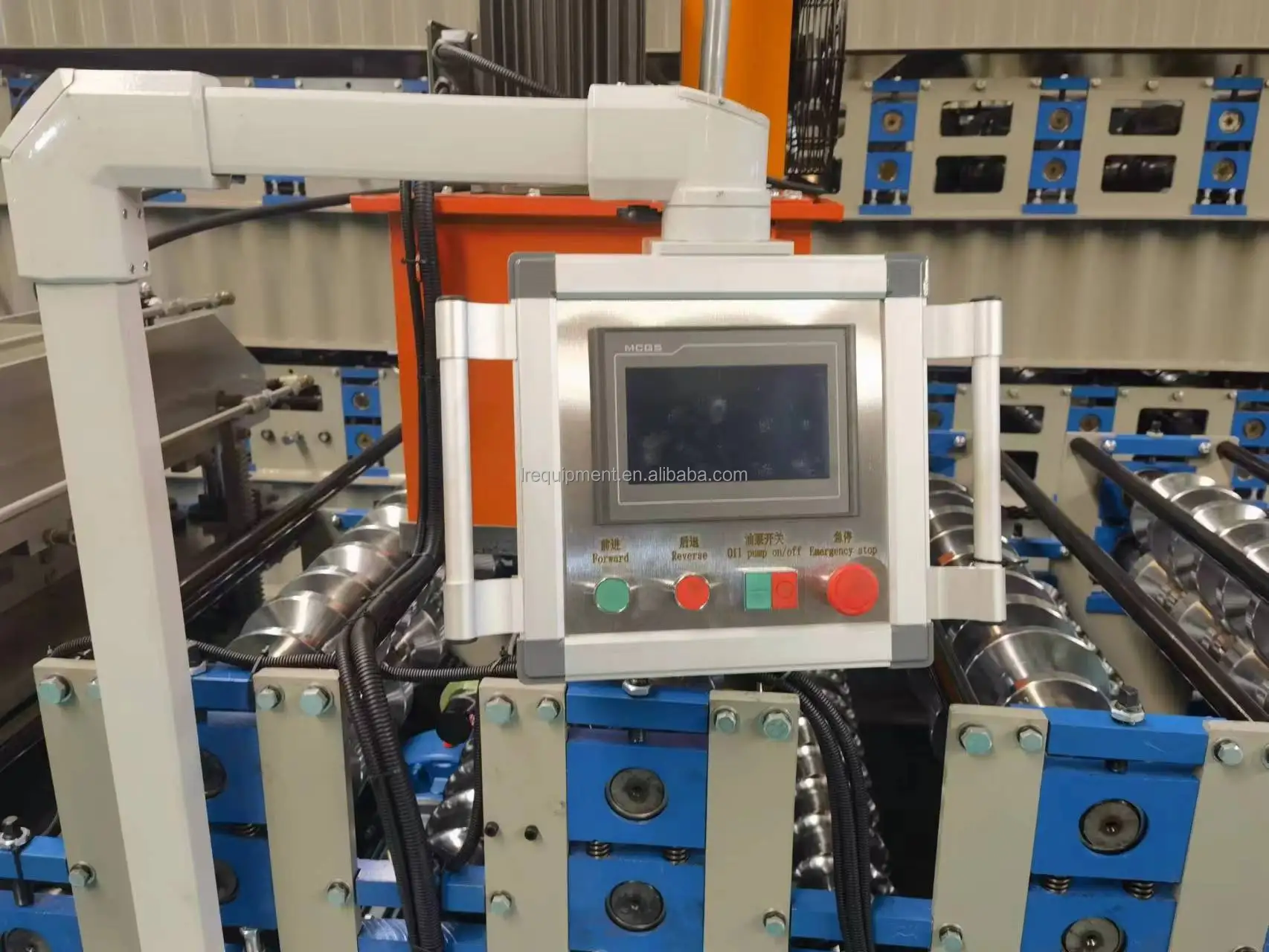

PLC: Delta/Panasonic/Siemens/Schneider
Touch Screen: Delta or Others
Electrical Components: Schneider or Others
Length Encoder: Japan Omron
Languages: Chinese + English (+As Customized)
All of These Parts are World Fomous Brands, Accurate and Durable, and If it doesn't work, You can Buy Parts very easy.
Touch Screen: Delta or Others
Electrical Components: Schneider or Others
Length Encoder: Japan Omron
Languages: Chinese + English (+As Customized)
All of These Parts are World Fomous Brands, Accurate and Durable, and If it doesn't work, You can Buy Parts very easy.

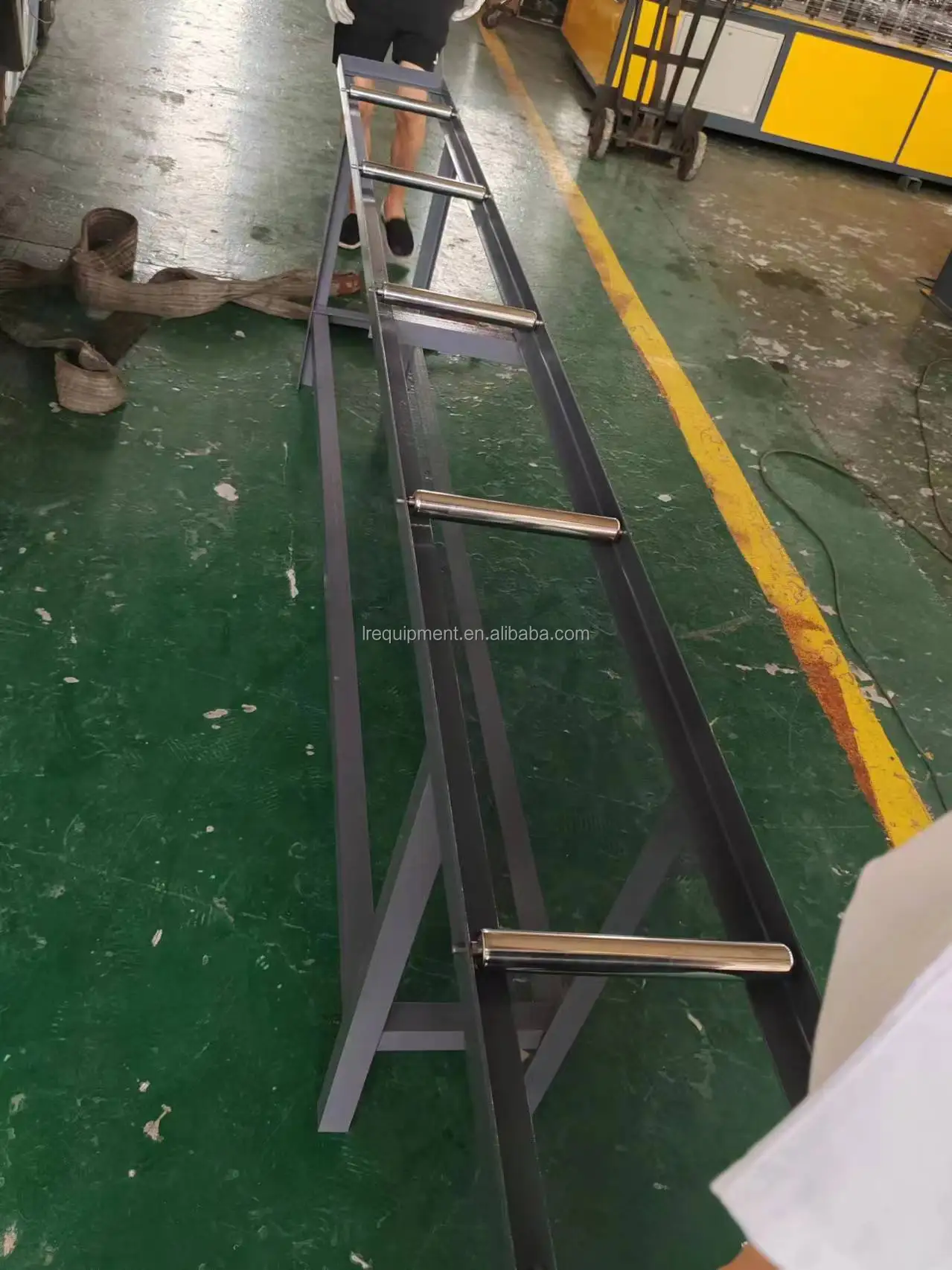

Length: customized as per profile, usually 3mWidth:500-1200mm

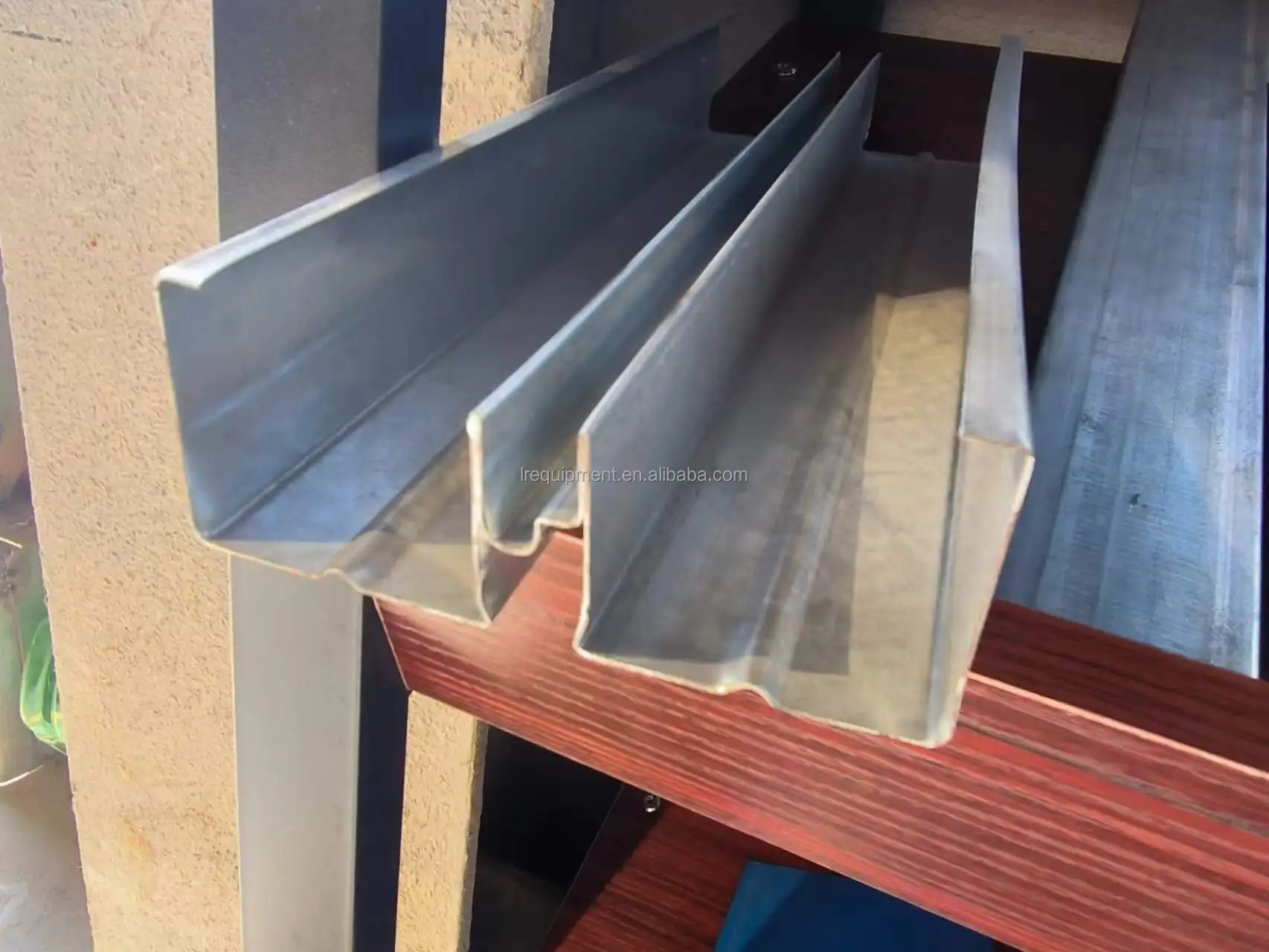

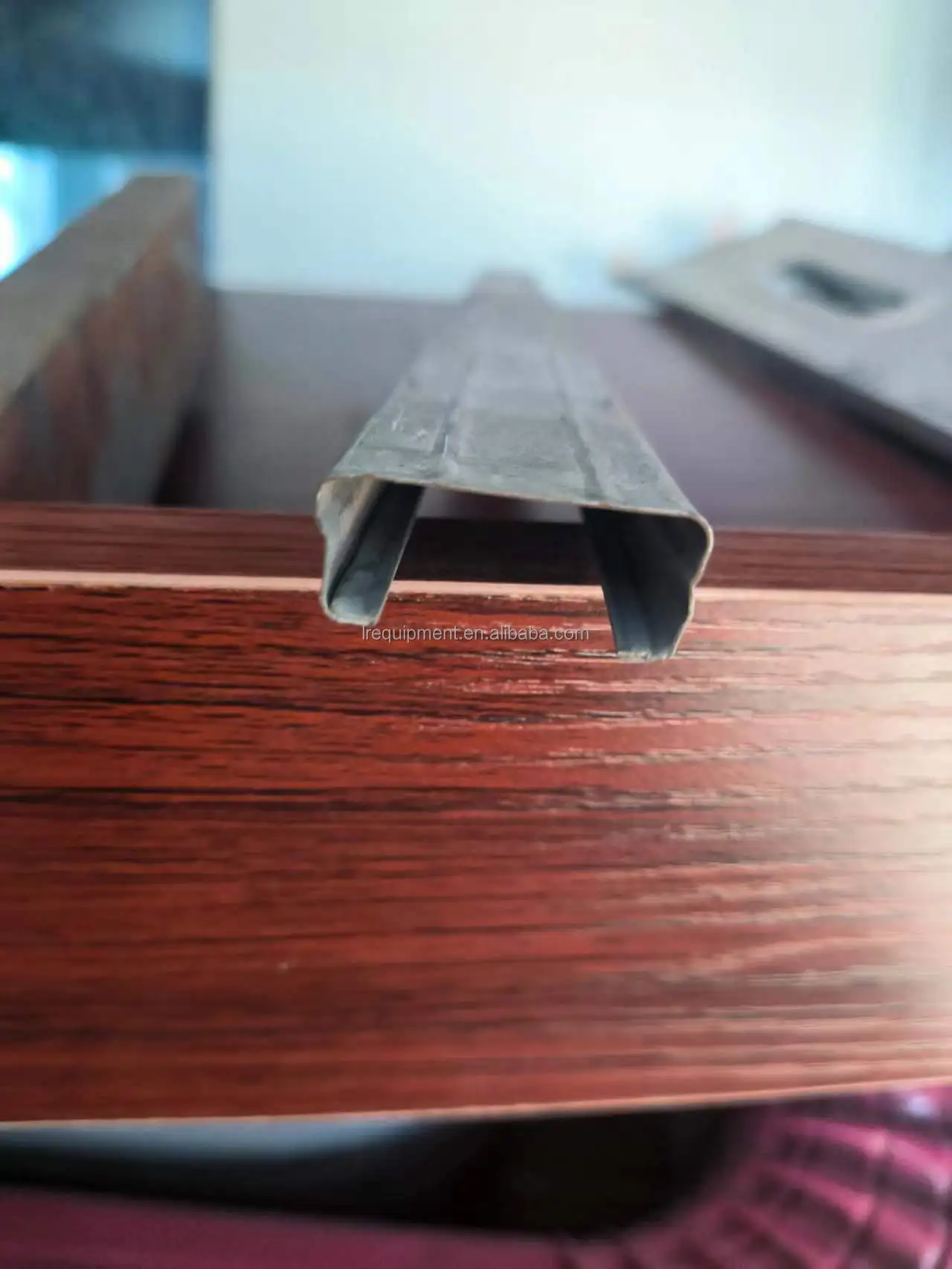

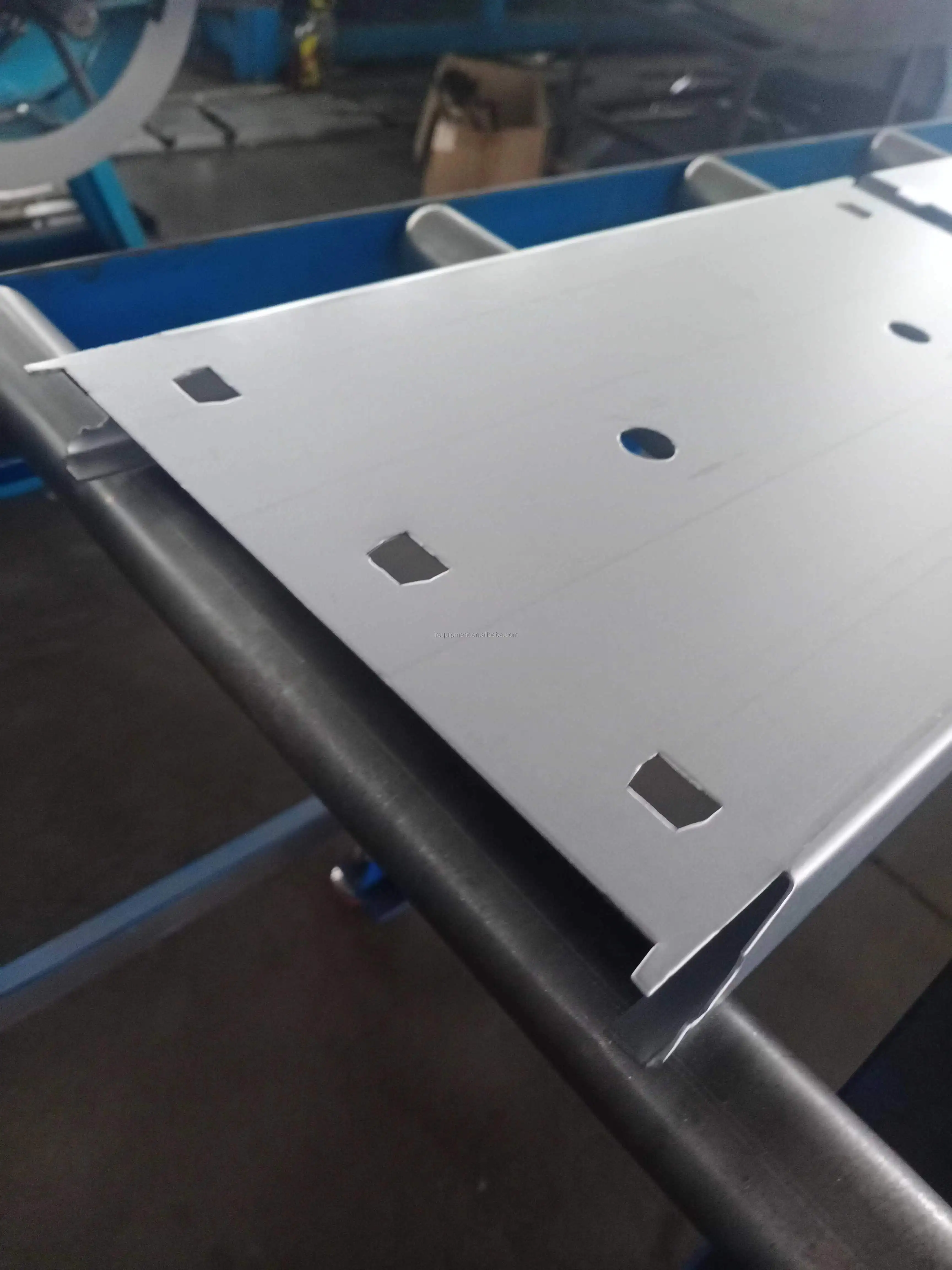

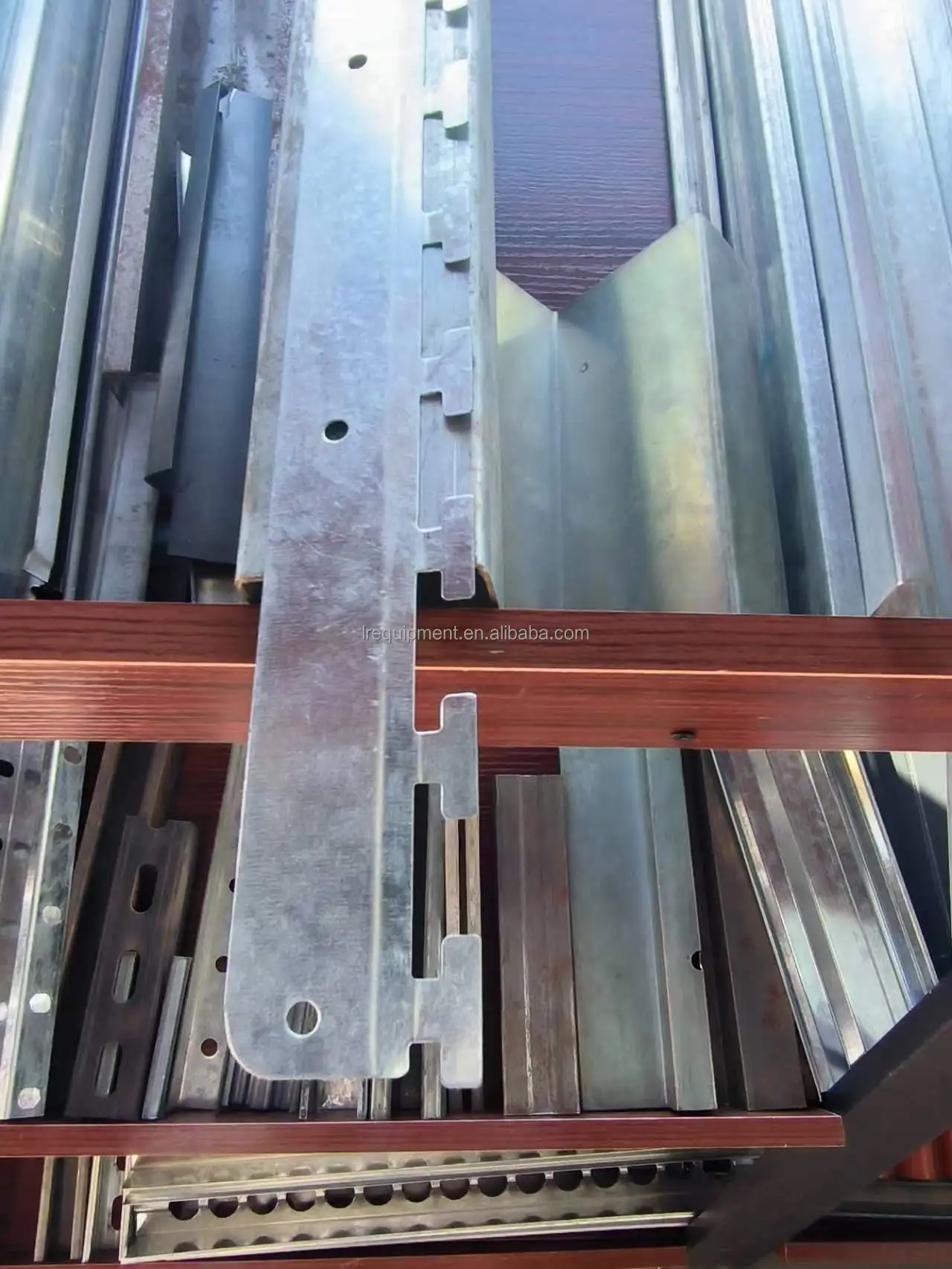

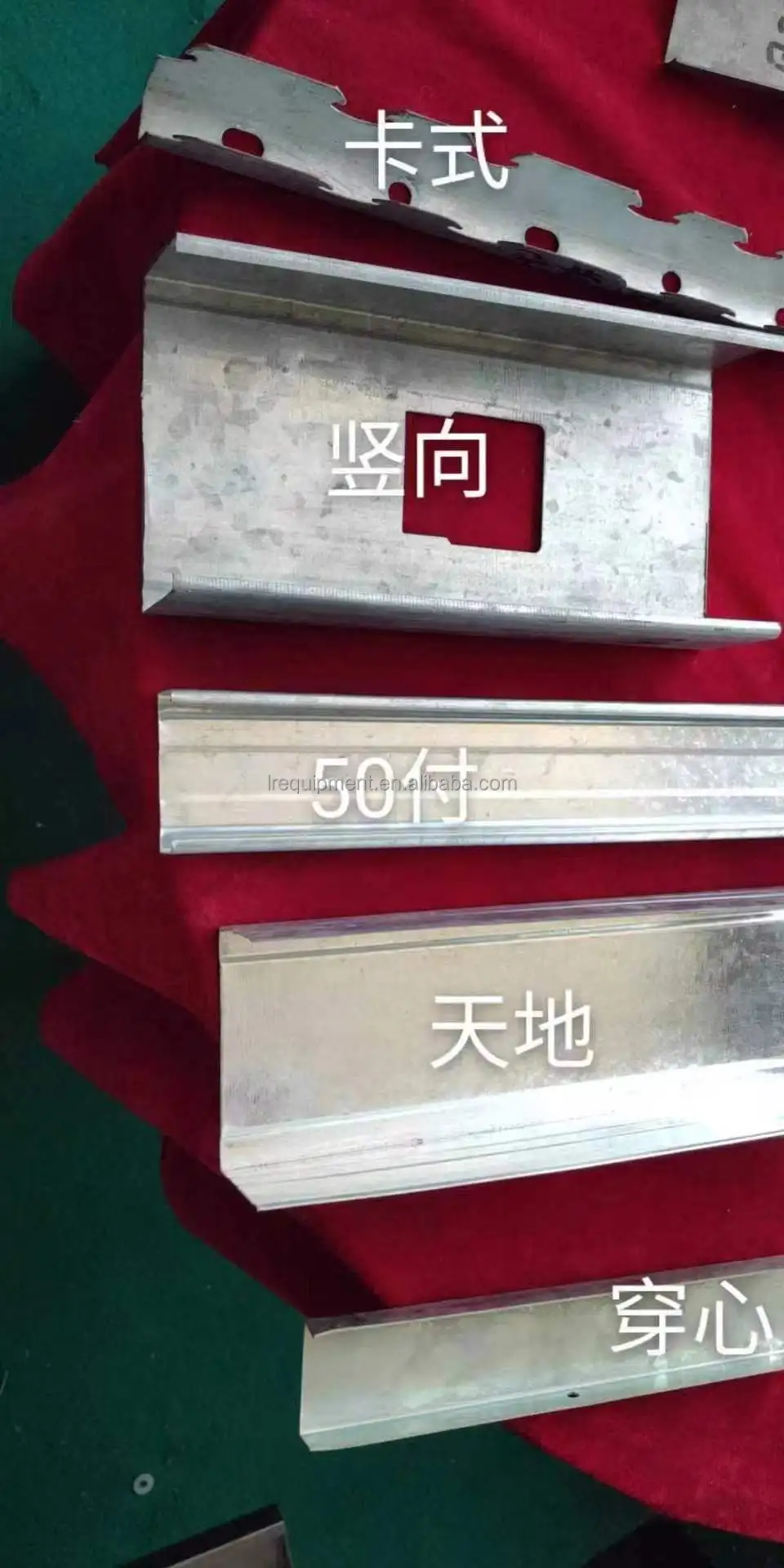

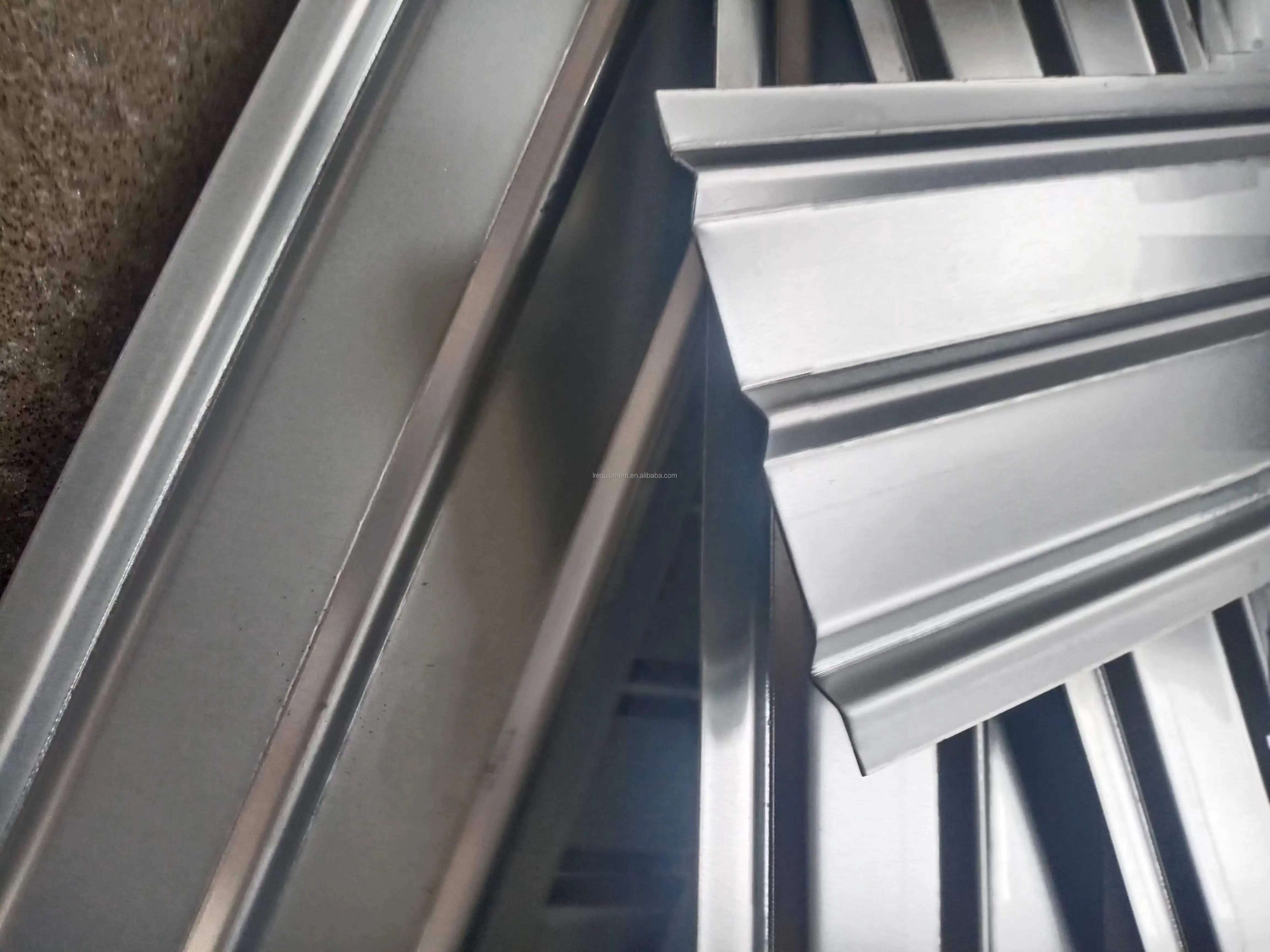

Forming profile show
Recommend Products
Product packaging

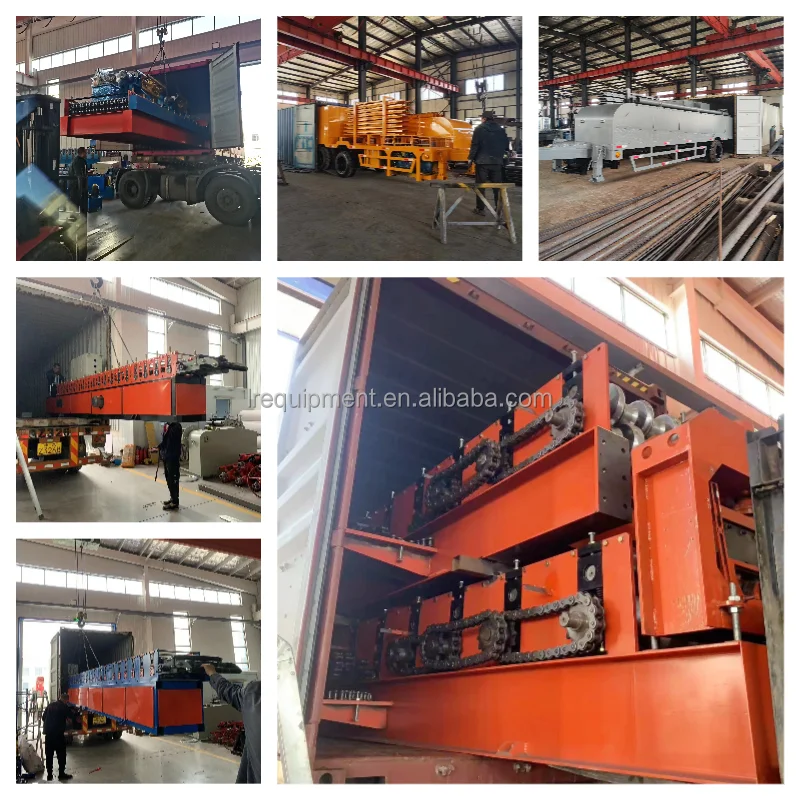

Packing & Delivery
1.Packing:
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
Certifications
Warranty
Warranty offer
warranty: 2 years warranty from date of shipment
guarantee:
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period
guarantee:
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period
