Roller glass coating machine
US $10000-$13000
Automatic Vertical Insulating Glass Production Line Automatic IGU Line for glass processing
- Category: >>>
- Supplier: Shandong Zhengke Automation Co. Ltd.
Share on (10000019038052):
Product Overview
Description
Products Description

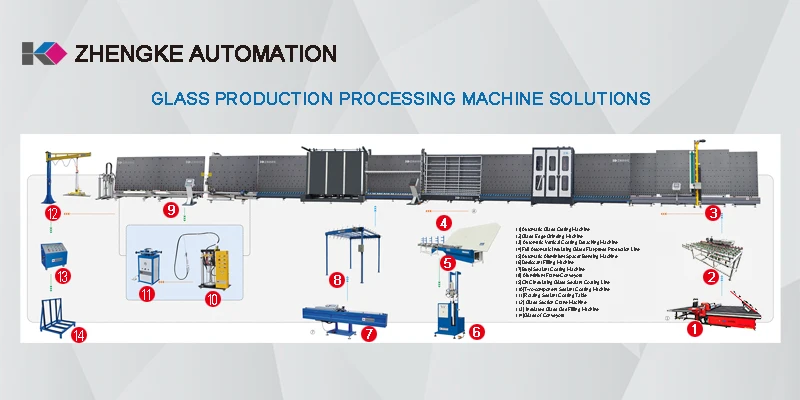

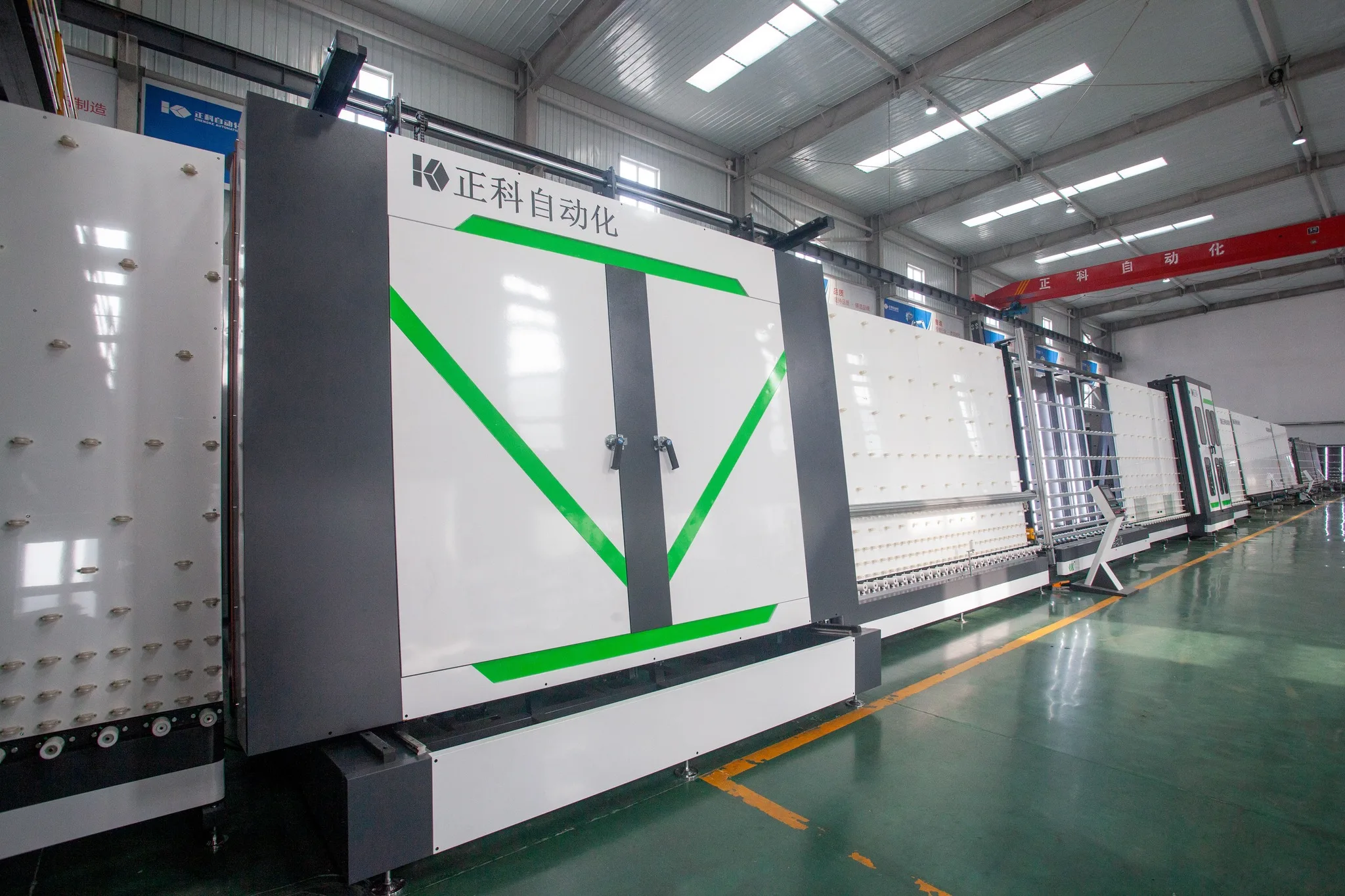

Automatic insulating glass production line
1. Automatic glass cutting upper piece machine
2. Glass edge grinding machine
3. Automatic vertical coating detaching machine
4. Full automaticinsulating glass flat-press production line
5. Automatic aluminium spacer bending machine
6. Desiccant filling machine
7. Butyl sealant coating machine
8. Aluminium frame conveyors
9. CNC insulating glass sealant coating line
10. Two component sealant coating machine
11. Rotaing sealant coating table
12. Glass suction crane machine
13. Insulating glass aerator
14. Glass of conveyors
3. Automatic vertical coating detaching machine
4. Full automaticinsulating glass flat-press production line
5. Automatic aluminium spacer bending machine
6. Desiccant filling machine
7. Butyl sealant coating machine
8. Aluminium frame conveyors
9. CNC insulating glass sealant coating line
10. Two component sealant coating machine
11. Rotaing sealant coating table
12. Glass suction crane machine
13. Insulating glass aerator
14. Glass of conveyors
Features
1.PLC control, touch sensitive screen human-machine interface, operation is more convenient and intuitive.
2.The production line can identify coated glass and low-E glass, feeding automatic sheet arrangement(independent transmission).
3.Numerical control insulating glass production line, which can save work time and improve production efficiency.
4.Produce the Step IG Unit and three Piece IG production according to the customers' different request.
5.Specially designed for step insulating glass and Two, three and four layers of insulating glass processing.
6.Segmented acceleration, plate pressure maintenance big pressure, automatic positioning system for glass.
2.The production line can identify coated glass and low-E glass, feeding automatic sheet arrangement(independent transmission).
3.Numerical control insulating glass production line, which can save work time and improve production efficiency.
4.Produce the Step IG Unit and three Piece IG production according to the customers' different request.
5.Specially designed for step insulating glass and Two, three and four layers of insulating glass processing.
6.Segmented acceleration, plate pressure maintenance big pressure, automatic positioning system for glass.
Product Paramenters
Model | LB2000A | LBCQ2000A | LB2500A | LBCQ2500A |
Power | 380V50Hz 25kW | 380V50Hz 30kW | 380V50Hz 35kW | 380V50Hz 35kW |
Air Pressure | 0.6~0.8Mpa | 0.6~0.8Mpa | 0.6~0.8Mpa | 0.6~0.8Mpa |
Max working Size | 2000x2500mm | 2000x2500mm | 2500x3500mm | 2500x3500mm |
Min working Size | 280x480mm | 280x480mm | 280x480mm | 280x480mm |
Glass washing thickness | 3-18mm | 3-18mm | 3-18mm | 3-18mm |
Insulating glass thickness | ≤80mm | ≤80mm | ≤80mm | ≤80mm |
Transfer Speed | 0~50m/min | 0~50m/min | 0~50m/min | 0~50m/min |
Washing speed : | 2~15m/min | 2~15m/min | 2~15m/min | 2~15m/min |
Overall dimension | 21000x2600x3250mm | 20000x2600x3050mm | 24500x2700x3550mm | 24800x2700x3550 mm |
Name | Brand | Origin |
PLC | Panasonic | Japan |
Frequency Converter | Panasonic | Japan |
Photoelectric switch | Omron | Japan |
Breaker | Schneider | France |
Connector | ABB | Switzerland |
Relay | Schneider | France |

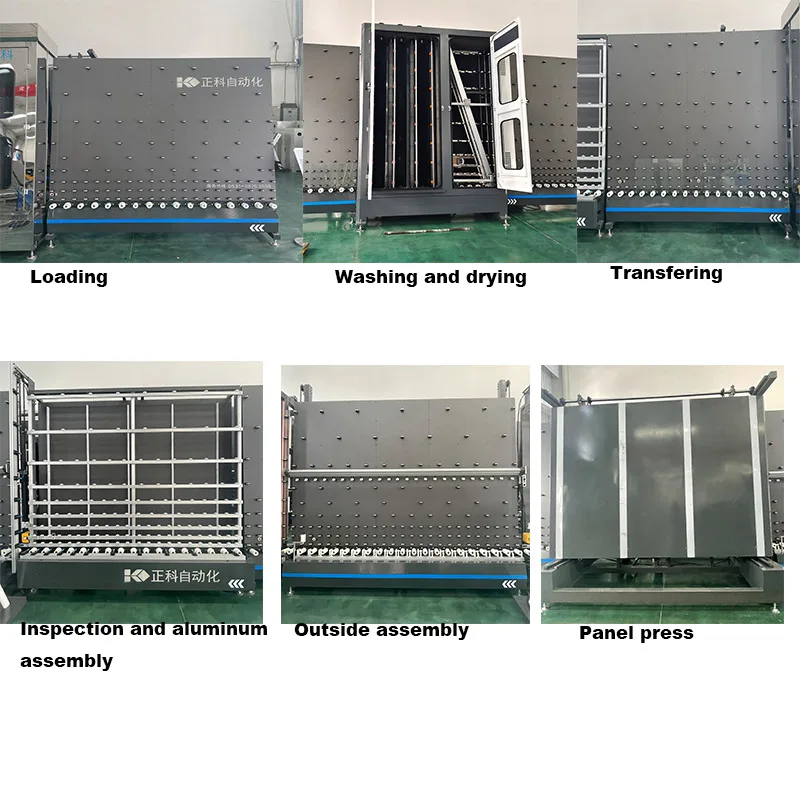

Details Images
Washing section
Three pairs of soft brushes are equipped with high-pressure water sprayers for cleaning, all with stainless steel glass doors to
facilitate replacement of clogged nozzles.
facilitate replacement of clogged nozzles.
Drying section
A pair of aluminum tilted air knives, the front wind knife can be adjusted forward and backward according to the thickness of the
glass.
glass.
Aluminum frame assembly section
There are glass positioning and aluminum frame positioning devices, which can complete the glass positioning and aluminum frame
. According to the different thickness of glass,
the aluminum frame positioning and the lower positioning cylinder stroke can be adjusted.
. According to the different thickness of glass,
the aluminum frame positioning and the lower positioning cylinder stroke can be adjusted.
Panel press section
bidirectional linear square guide rails, and the rear panel has automatic guiding and positioning function, it is equipped with a
pressure regulating function, and the pressure holding time can be adjusted according to the size of the glass.
pressure regulating function, and the pressure holding time can be adjusted according to the size of the glass.

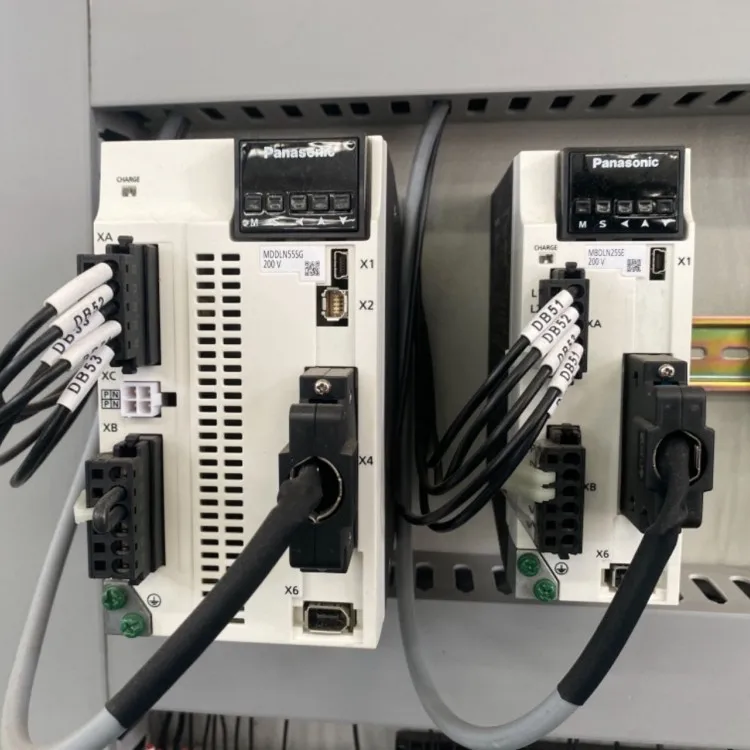

Electrical components
The main low-voltage electrical components (Panasonic inverter, Panasonic PLC, Qilike vacuum system, touch screen, etc.) and transmission motors are famous brands.

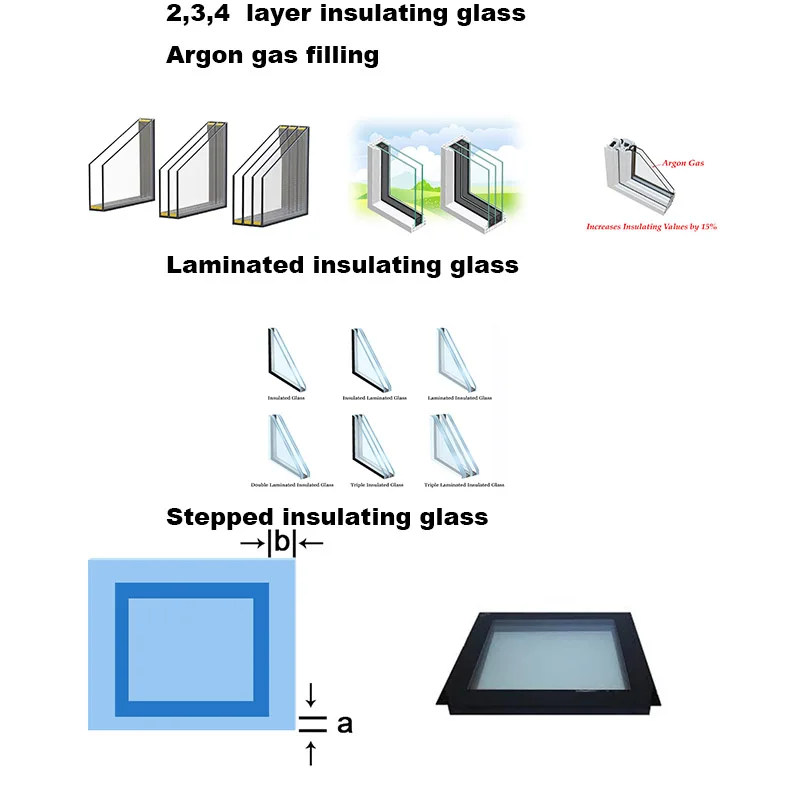

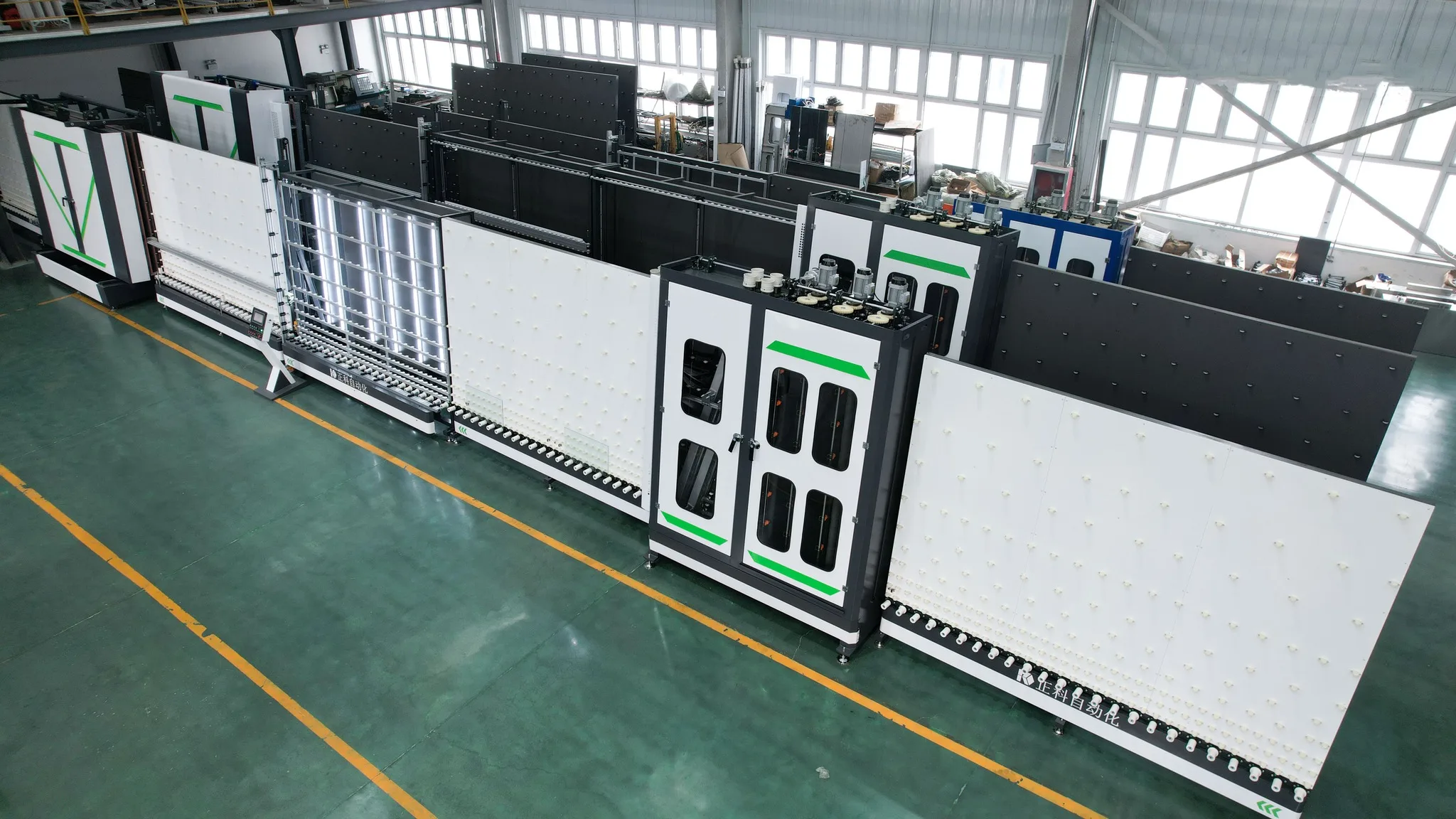

Sample photos

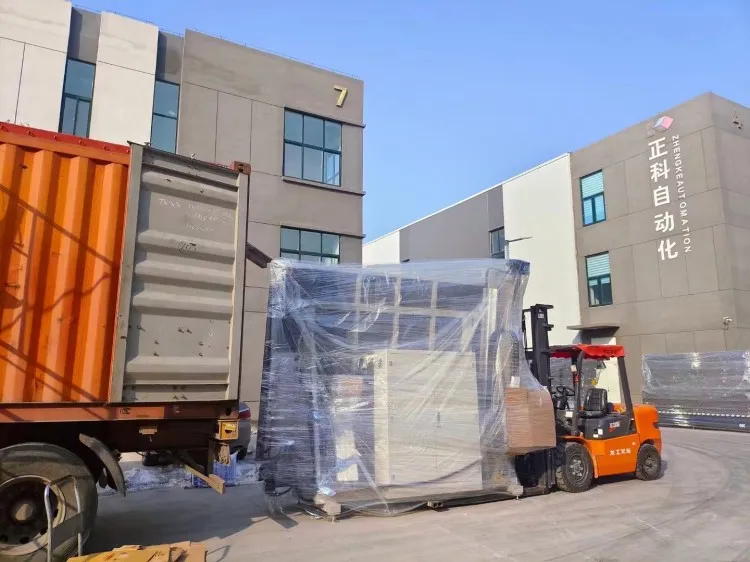

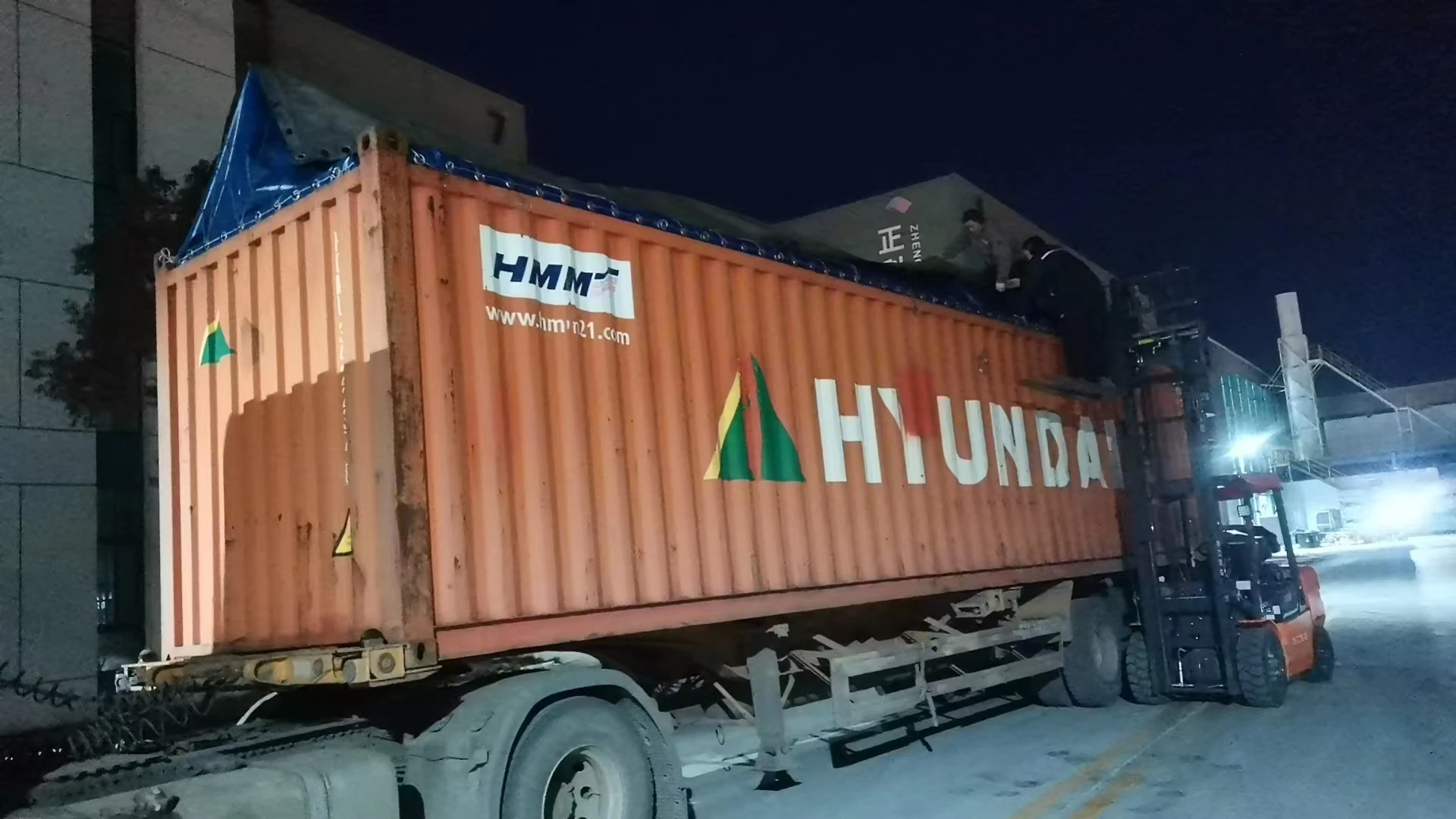

Product packaging

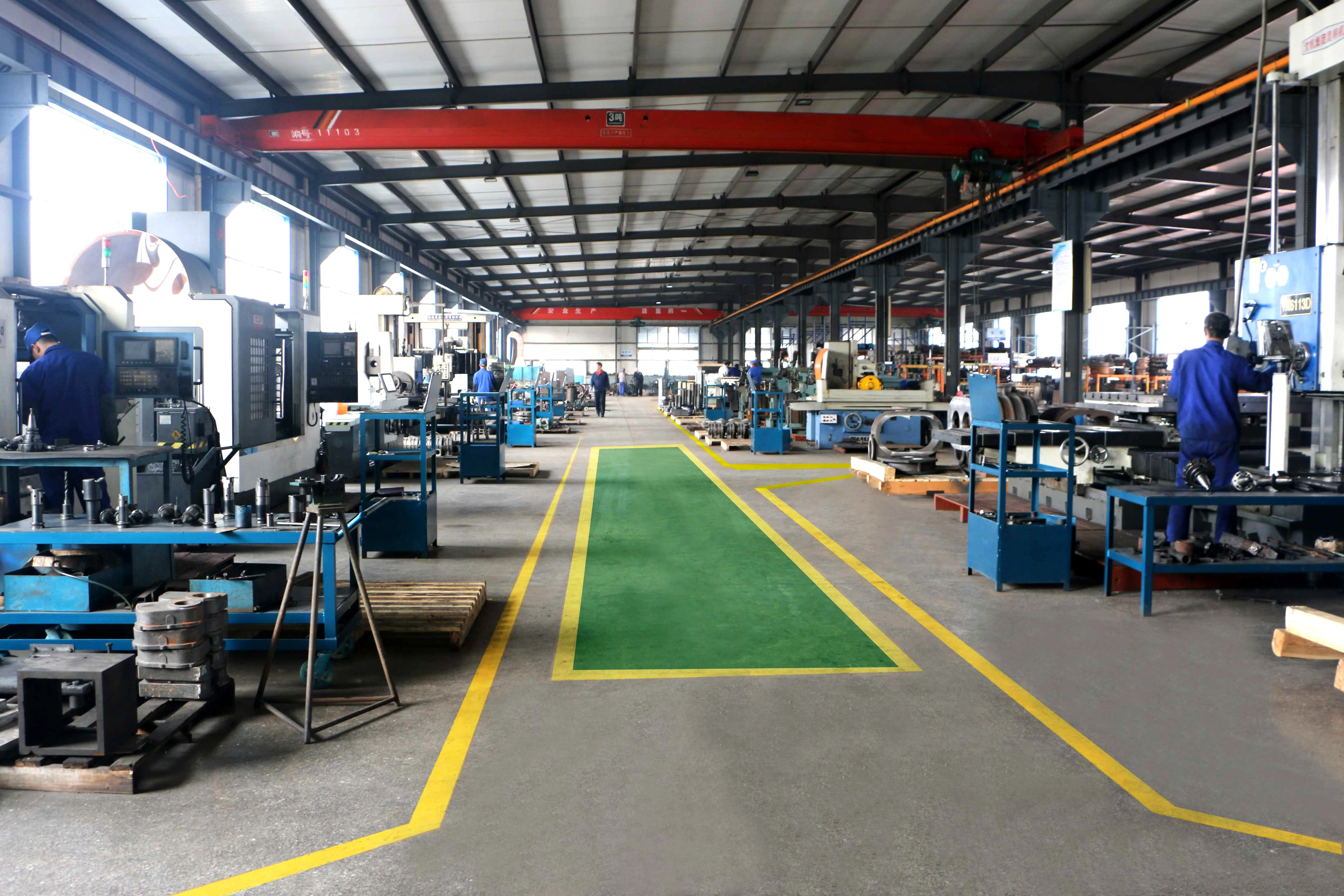

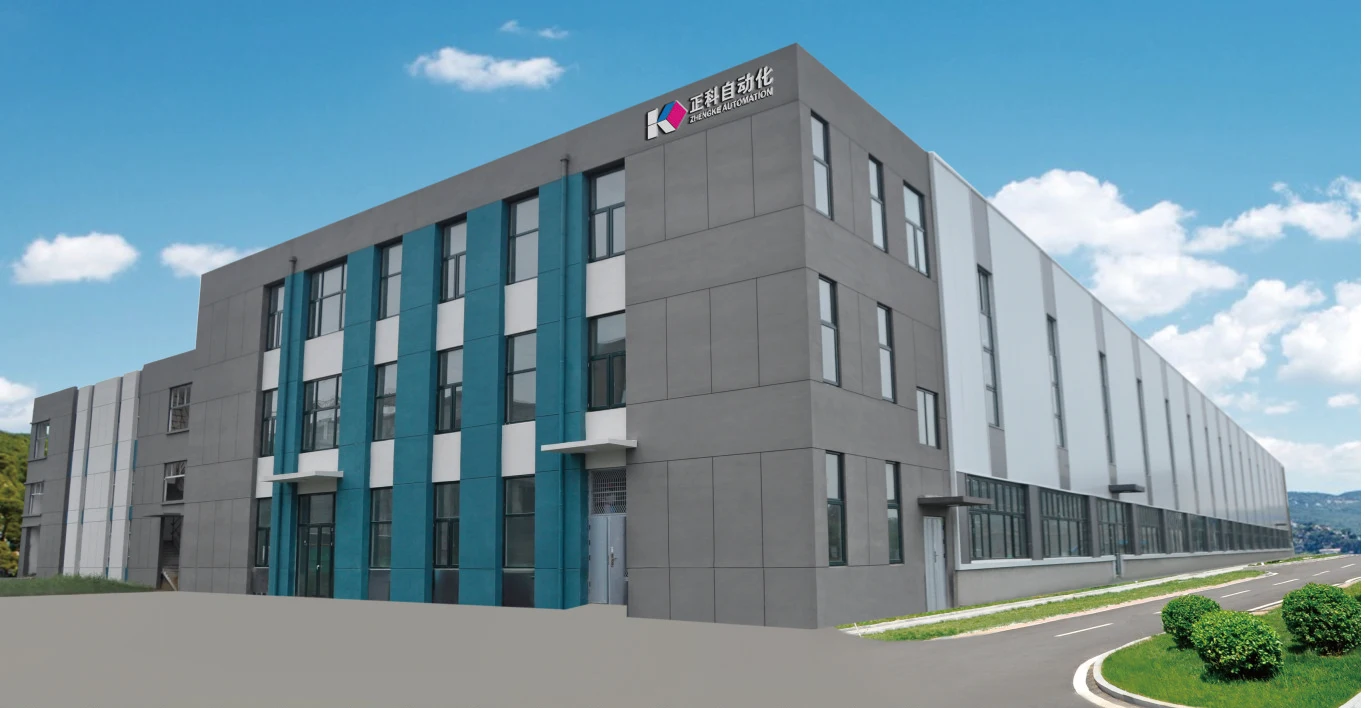

Company Profile
The company mainly produces insulating glass equipment, distribution of glass cutting, edging equipment, toughening, laminating and other related equipment. The company has more than 1500 terminal customers, with good reputation, won the recognition of the majority of customers.
We have 2 independent technical patents, 12 Copyrights and 2 trademarks. The company developed a series of two-component glue machine advanced technology, sensitive reversing, continuous stability, high production efficiency, high degree of automation, easy to use; Widely used in two-component silicone structural adhesive, polysulfide adhesive, polyamine glue and other high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency caused by manual work, is the ideal glass bonding production equipment.
The company adheres to the business philosophy of "Honest and trustworthy, and prosper enterprises with science and technology", based on talent, technology, service and reputation, not only to provide customers with high quality glue coating equipment, but also to provide you with case debugging equipment, technical consulting guides, staff operation training and other comprehensive after-sales service, so as to relieve customers of worries.
We have 2 independent technical patents, 12 Copyrights and 2 trademarks. The company developed a series of two-component glue machine advanced technology, sensitive reversing, continuous stability, high production efficiency, high degree of automation, easy to use; Widely used in two-component silicone structural adhesive, polysulfide adhesive, polyamine glue and other high accurate ratio, uniform mixing and fast operation occasions. Solve the phenomenon of high waste and low efficiency caused by manual work, is the ideal glass bonding production equipment.
The company adheres to the business philosophy of "Honest and trustworthy, and prosper enterprises with science and technology", based on talent, technology, service and reputation, not only to provide customers with high quality glue coating equipment, but also to provide you with case debugging equipment, technical consulting guides, staff operation training and other comprehensive after-sales service, so as to relieve customers of worries.
Exhibition
Certifications
FAQ
Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.
Q:How long is your delivery time?
A: Generally it is 5-10 working days if the goods are in stock, 20-30 working days if the goods are not in stock. The specific delivery time needs to be confirmed based on the quantity and time of the order.
Q:How long is your delivery time?
A: Generally it is 5-10 working days if the goods are in stock, 20-30 working days if the goods are not in stock. The specific delivery time needs to be confirmed based on the quantity and time of the order.
Q: Could you cutomize the machine according to our requirements?
A: Yes, please tell us your detail requirements.
A: Yes, please tell us your detail requirements.
Q: How about the after-service?
A: We will provide 24 hours on line service and professional on line training.
Q: How about the machine warranty?
A: We provide 1 year warranty, Lifetime service
A: We will provide 24 hours on line service and professional on line training.
Q: How about the machine warranty?
A: We provide 1 year warranty, Lifetime service
