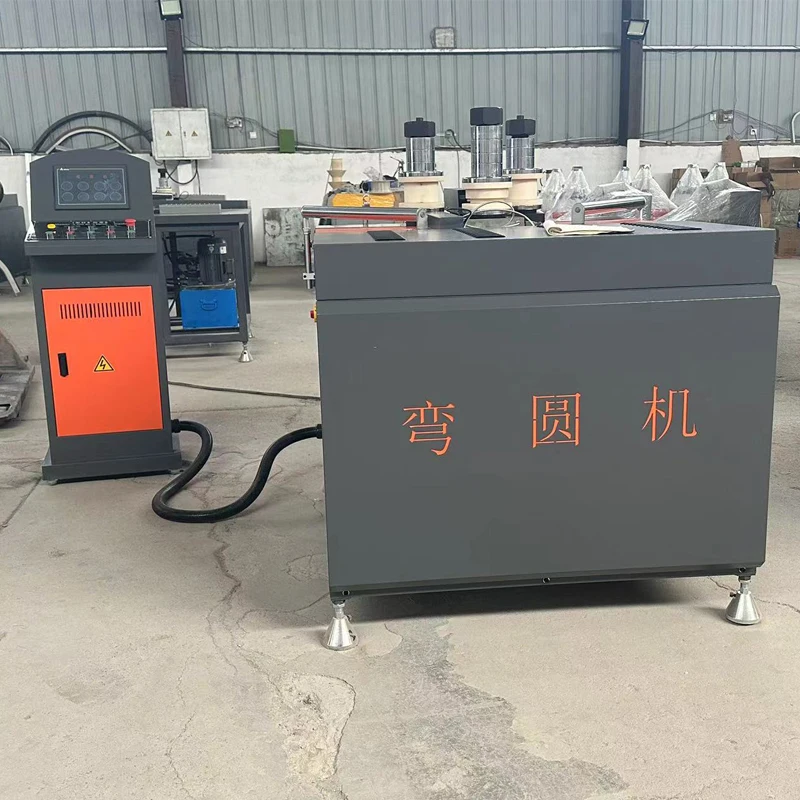

Good Quality Manual Aluminium Bending Machine For Sale
- Category: >>>
- Supplier: Shandong Zhengke Automation Co. Ltd.Shandong Ltd.
Share on (10000019059260):
Product Overview
Description

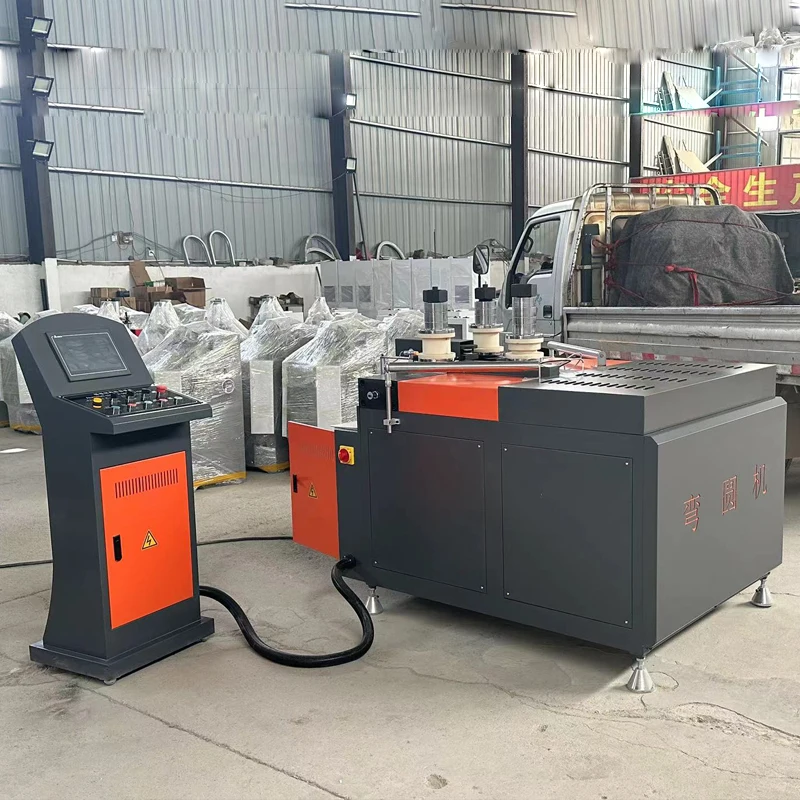

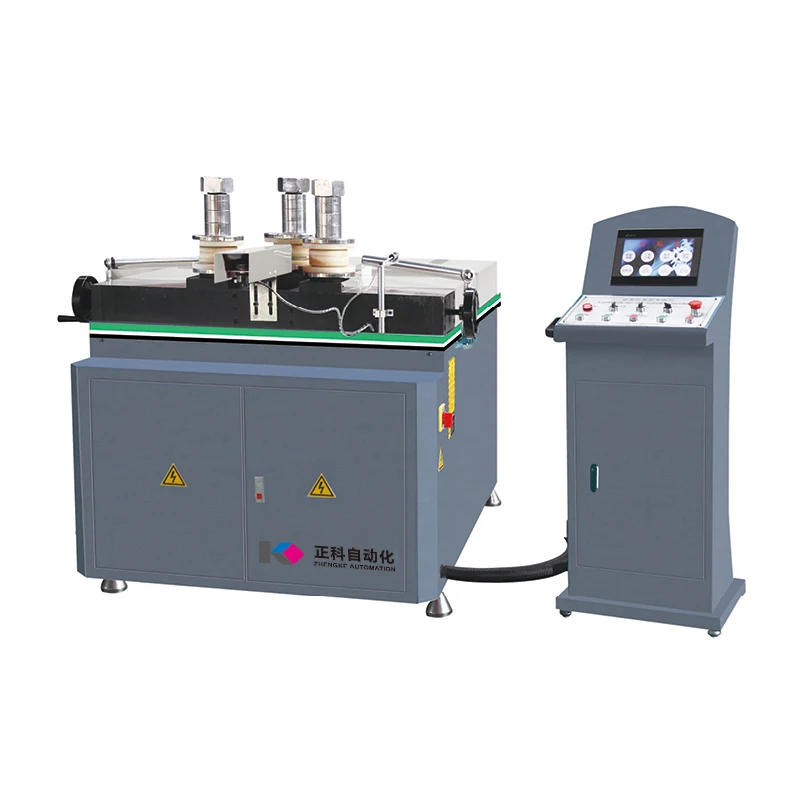

CNC Aluminium Profiles Bending Machine
Product Description
1.In the aspect of special-shaped arc processing, multi-radius bending can be formed once (multi-curvature), which can effectively improve the processing efficiency and save labor.
2.Ordinary arc can be machined in one time with high efficiency.It can also be molded several times according to the actual situation, effectively ensuring the appearance of arc and the practicality of equipment.
3.Adopt the imported hydraulic system, so that the machinein the working state of 20 tons of pressure, the positioning accuracy of the working shaft is less than 0.01mm repeated control accuracy
4.Accurate radius (R) control and easy completion of continuous machining of multi-arc and complex graphics.
5.Grating ruler: double drive grating ruler with anti-interference module, good arc bending repeatability.
6.X axis rotation using Amoxin direct motor control: high positioning accuracy, constant torque, not due to the high and low speed change.
7.CNC control system completely solves the smooth and symmetric transition of different curvature of workpiece.

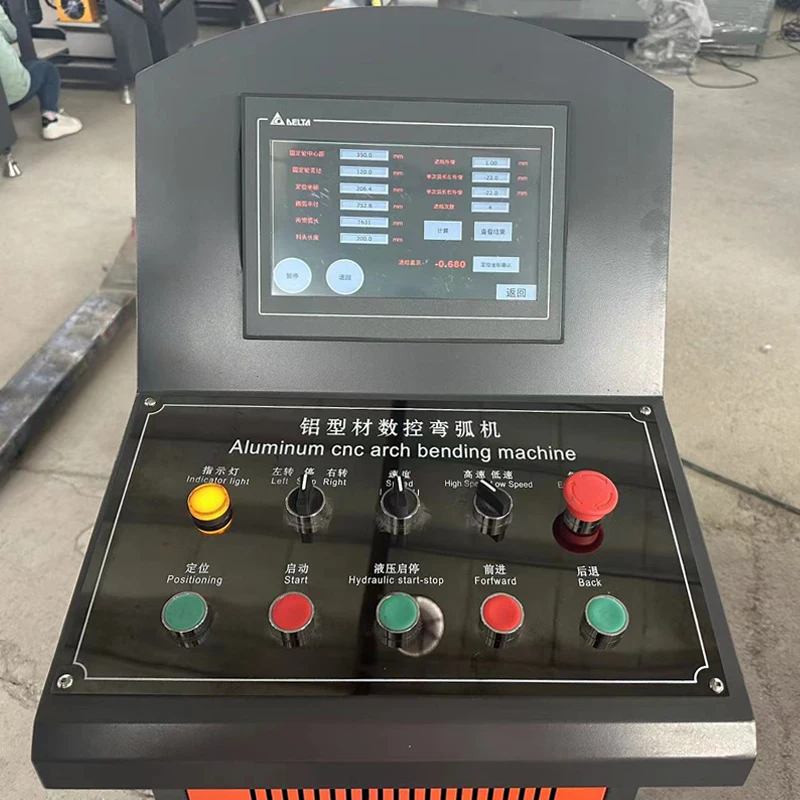

8.Humanized control system, flexible, simple,It is easy to understand and easy to use; Completely solve reliance on skilled workers.
9.Exquisite mold design technology perfectly solve the product wrinkle, scratches, distortion, and other quality problems to meet your high quality requirements for products.
10.Unique core algorithm, rich rolling and bending processing parameters, simple operation, simple and practical.
11.Automatic feeding calculation, reduce your material waste.
Specification
Total power | 5.2KW |
Power supply | 3phase4wire AC380V,50HZ |
Roller rotation speed | 0-15rpm |

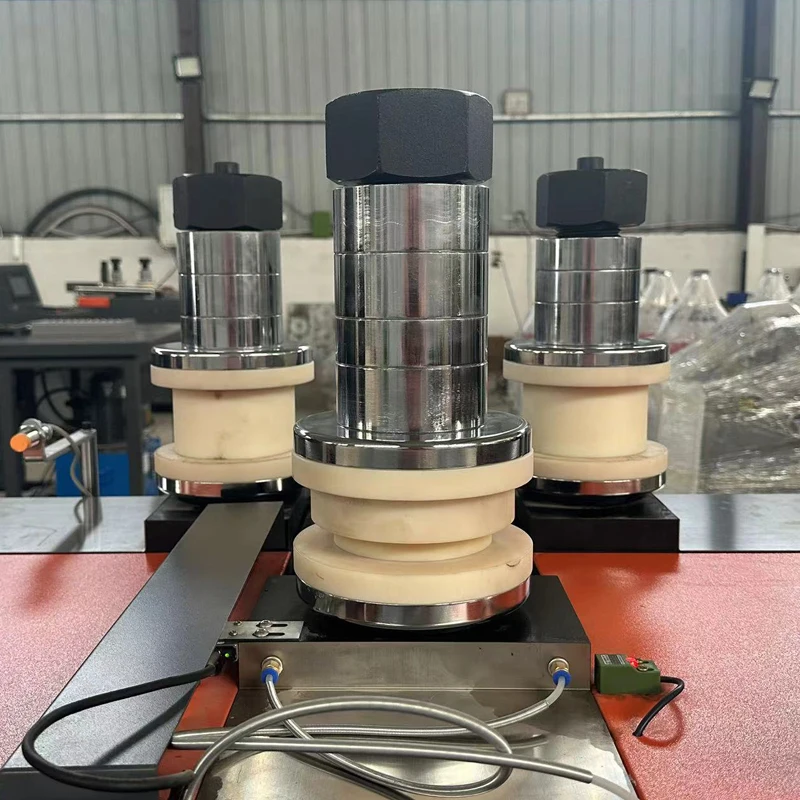

Max diameter of roller mold | 300mm, material: chromium 12 molybdenum-vanadium, nylon |
Roller diameter | 60/mm (customizable) (Chromium 12 molybdenum-vanadium, heat treatment) |
Fixed axis center distance | 350-750mm adjustable |
The driving force of Y-axis oil cylinder | 20 tons |
Positioning accuracy of Y-axis oil cylinder | <= plus or minus 0.01mm |
X-axis and Y-axis maximum torque | 2300 n. M |
Y axis feed stroke | 0-220mm |
Roller shaft length | 200mm |
Range of processed profiles | 150* 150mm in height and width |
X axis positioning accuracy | <0.1mm;Repeat positioning accuracy of Y-axis is 0.01mm |
Minimum machining radius | 100mm(depending on actual size of material) |
External dimension of operation box | length * width * height =500*510*1500mm |
Host external dimension | length * width * height =1300*1100*1500mm |
Total weight | 1000kg |

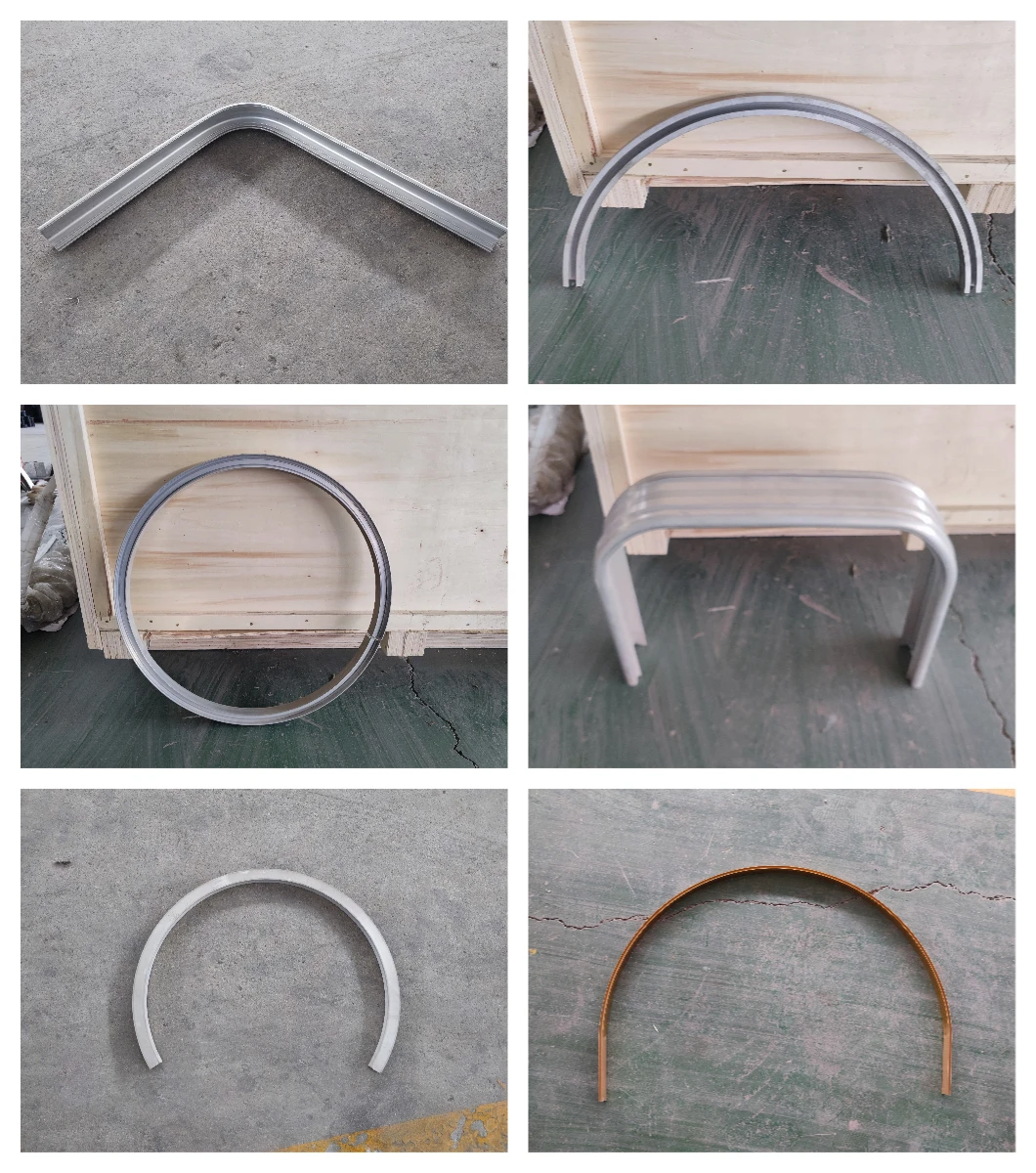

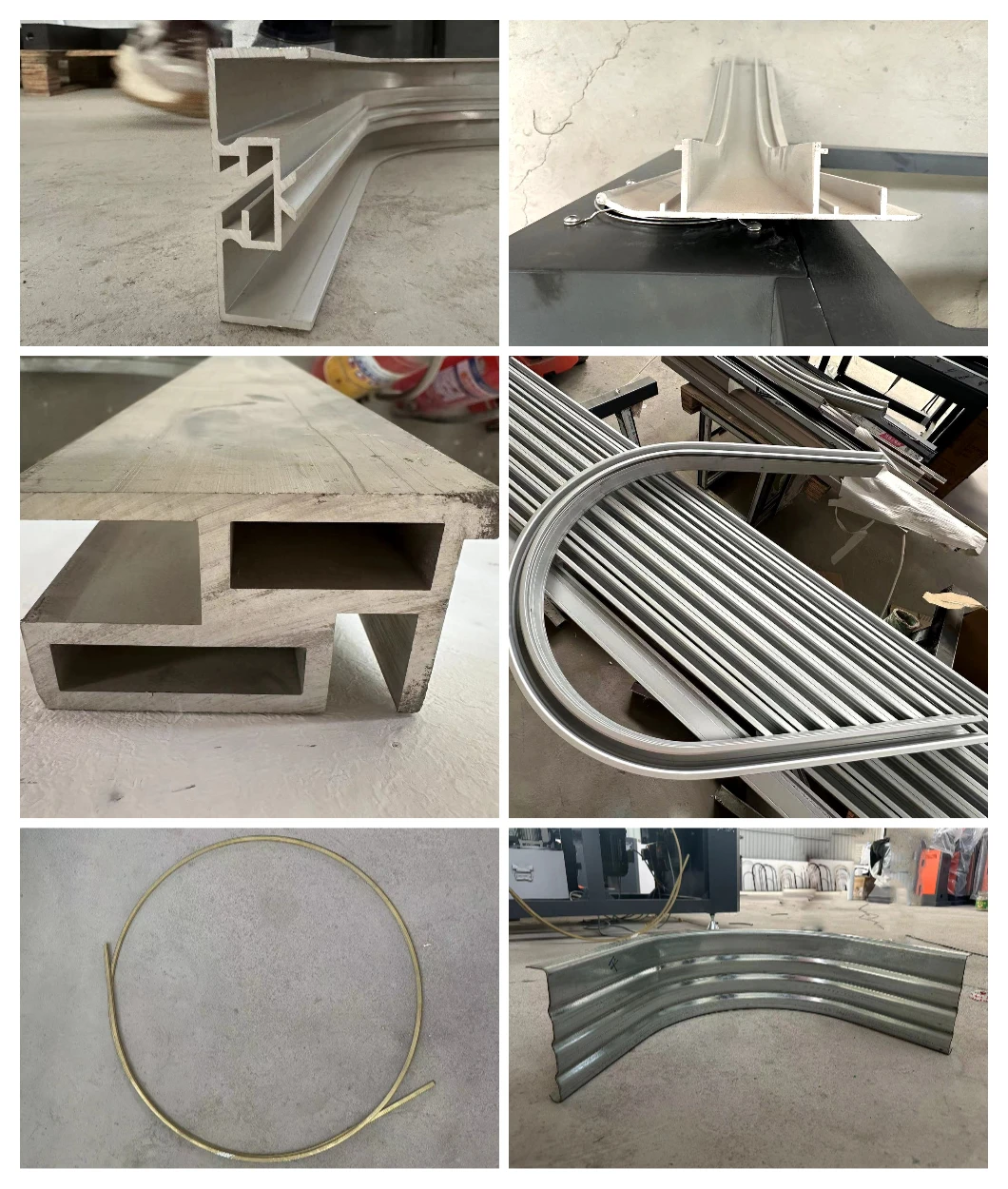

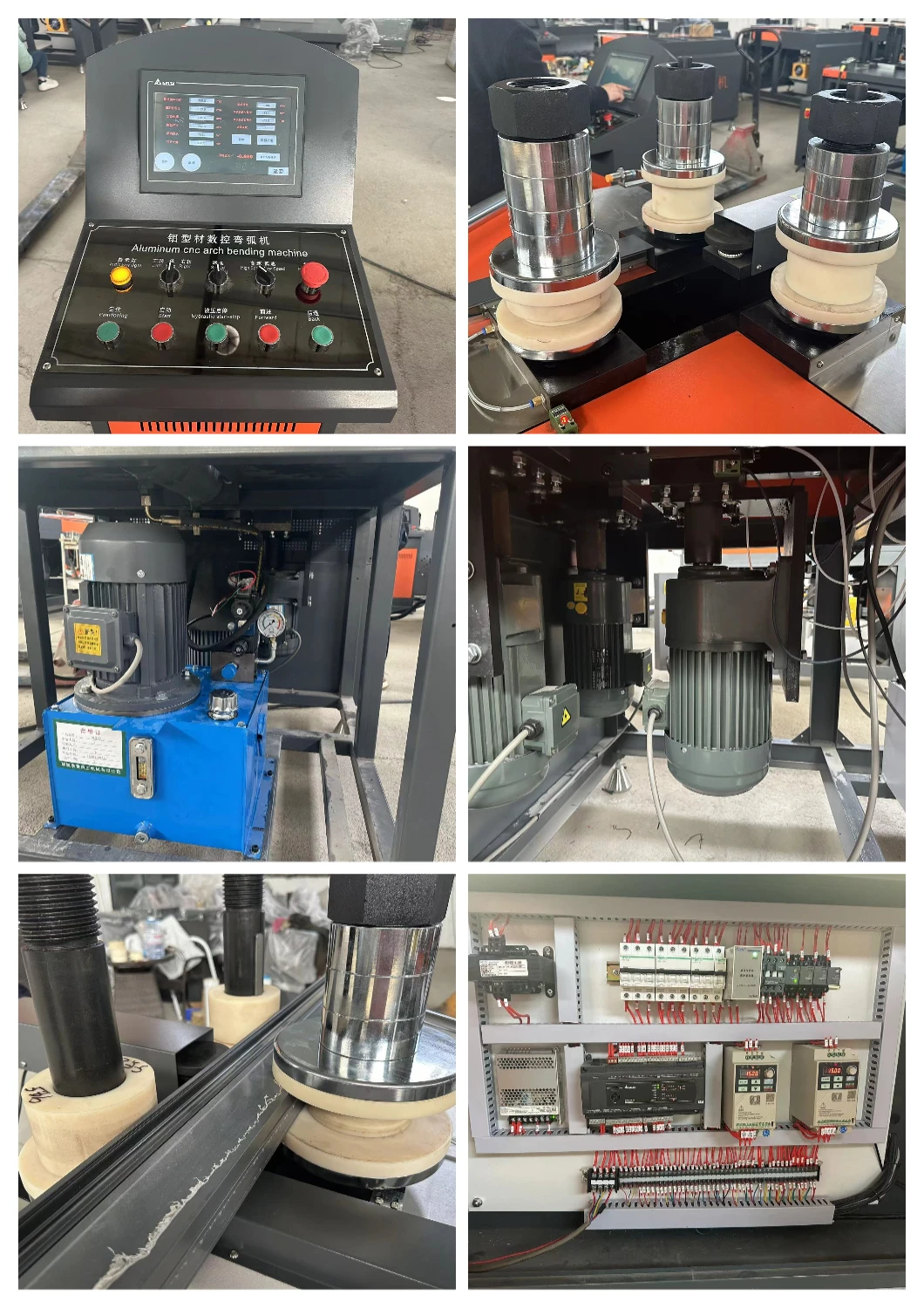

Details Images

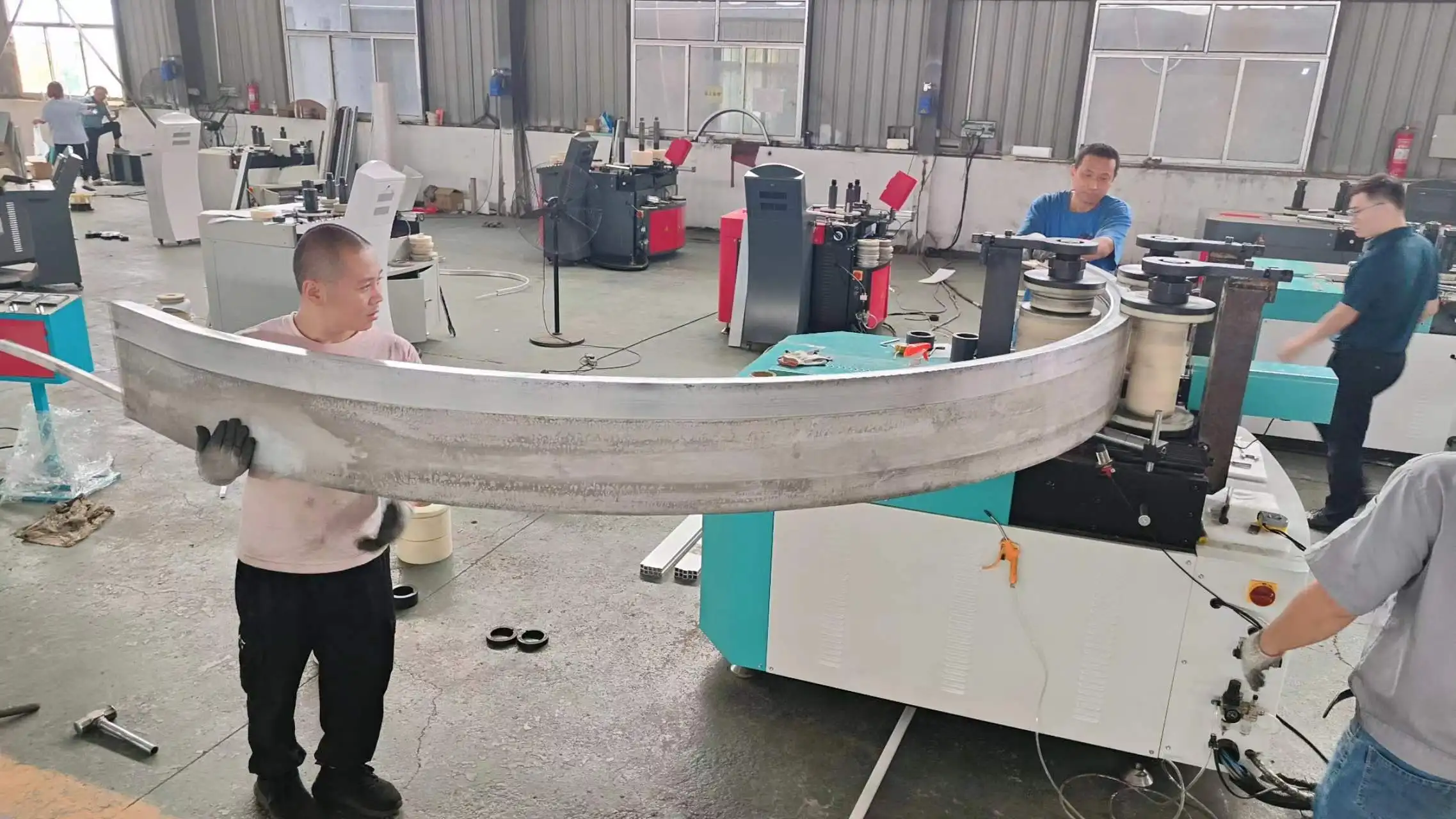

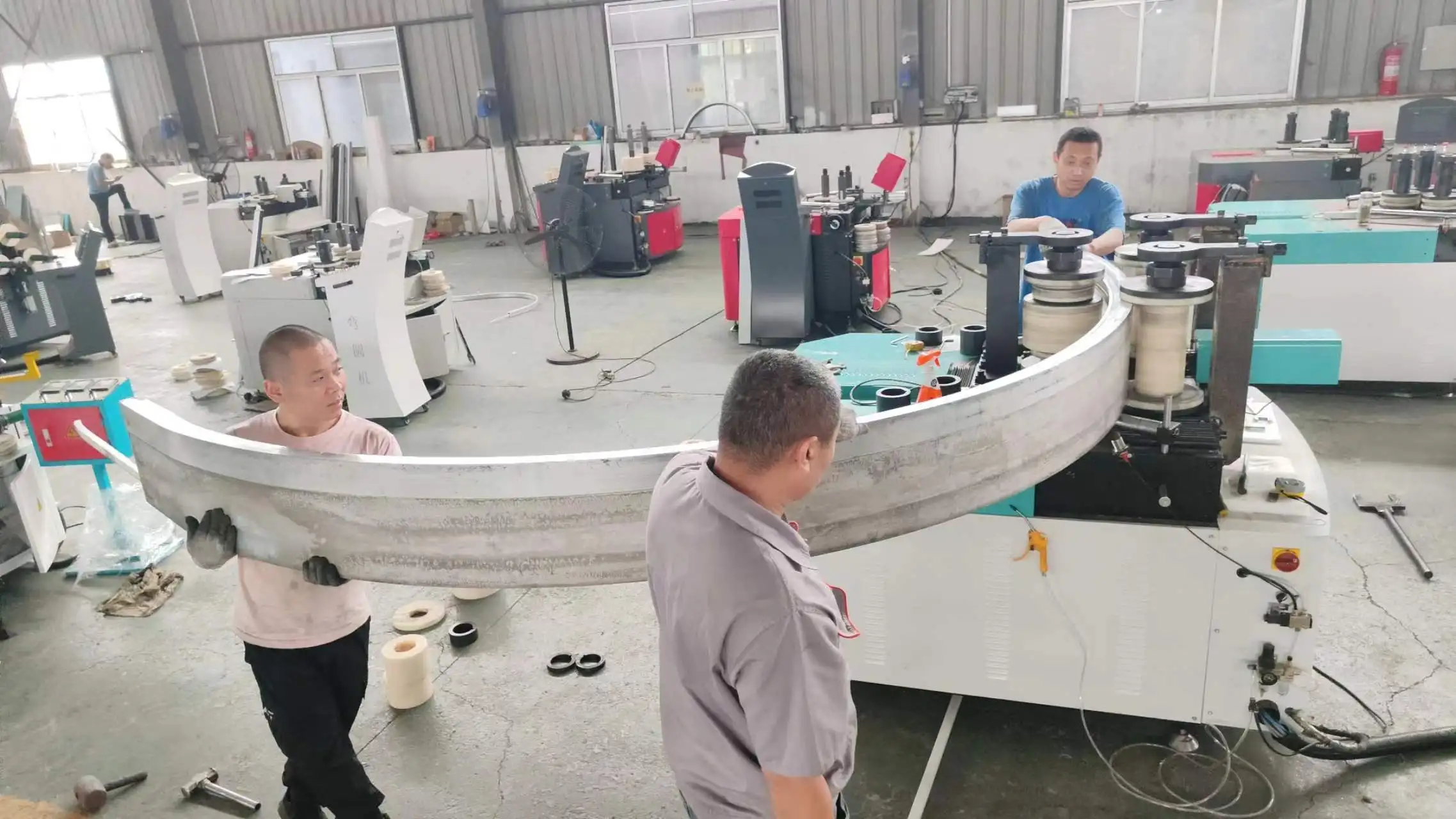

The aluminum profile bending machine bends the ultra-wide and ultra-thick aluminum profiles for the revolving door in the hotel lobby
Exhibition
Packing & Delivery
Company Profile
Shandong Zhengke Automation Co., Ltd was founded in 2014, located in Jiyang Industrial Park, Jinan, Shandong Province. The company covers an area of (5000) square meters, the core team of 50 people. Have independent technology design, research and development team. Have modern office space. Is the domestic professional glass machinery high-tech enterprises.
The company mainly produces insulating glass production line，glass cutting machine, glass edging machine，glass washing machine, glass toughening machine, glass laminating machine and other related glass machines. The company has more than 1500 terminal customers, with good reputation, won the recognition of the majority of customers.We have 2 independent technical patents, 12 Copyrights and 2 trademarks.
we can offer:
1) Good quality products
2) Highly competitive prices
3) State-of-art technology support
4) Smooth communication
5) Good after-sales service
Certifications
FAQ
1.Question:Are you a manufacturer?
Answer :
Yes,we are the professional glass processing machines manufacturer, which has 10-years history since 2014.
2.Question: How about the service ?
Answer :
1).Timely reply it at once on Alibaba store , WhatsAPP and Email.
1).Timely reply it at once on Alibaba store , WhatsAPP and Email.
2).24 hours online for after-sale service.
3).More than 10 years experience in this glass processing machine field.
4).Fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3).More than 10 years experience in this glass processing machine field.
4).Fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer :
1). Our guarantee for 1 year.
1). Our guarantee for 1 year.
2). 24 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Question: Do you provide equipment operation training?
Answer :
Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer :
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our glass processing machine.
Answer :
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our glass processing machine.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
