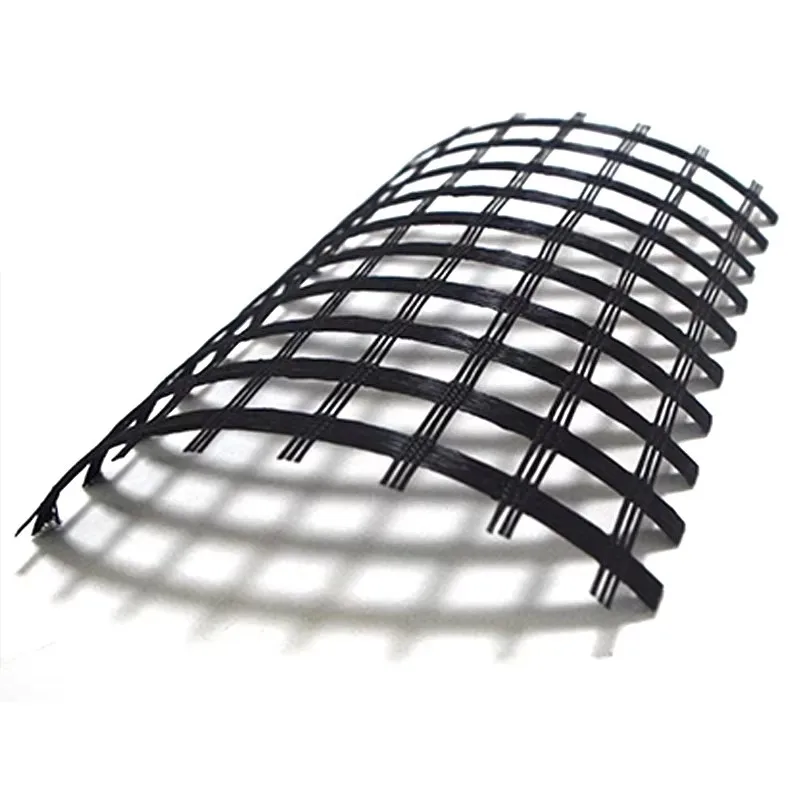

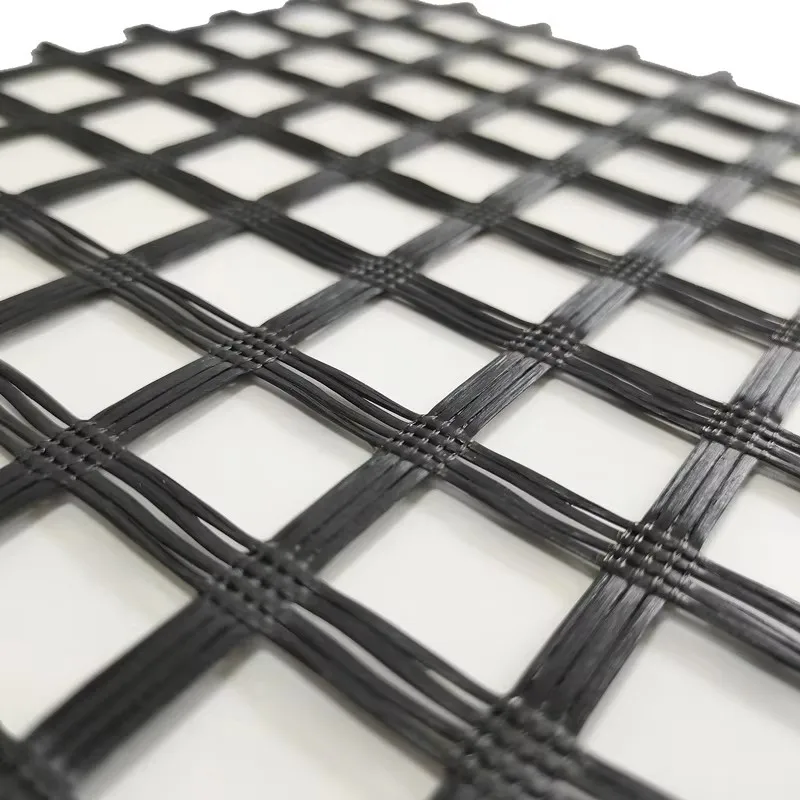

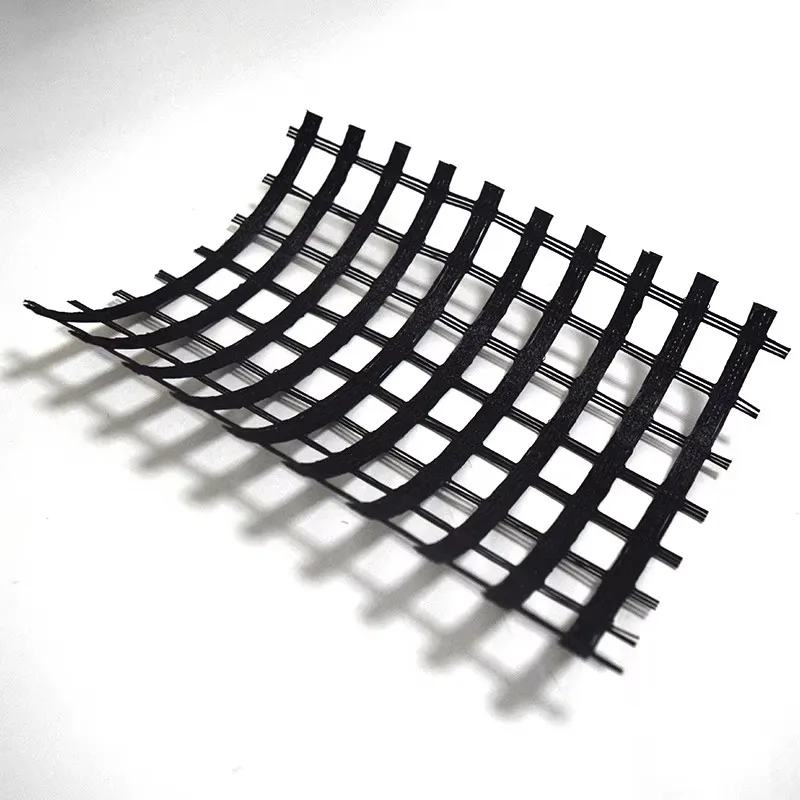

factory low price construction used carbon fiber grid fabric,building using carbon fiber reinforcement mesh fabric,10mm
- Category: >>>
- Supplier: Taian Lin Yuan Engineering Materials Co. Ltd.Taian Ltd.
Share on (10000019164031):
Product Overview
Description
Products Description
Features
1. High tensile strength
2. High tear-resistance
3. Low creep behaviors
4. Anti-corrosive
5. Anti-aging and alkali-resistant
Introduction

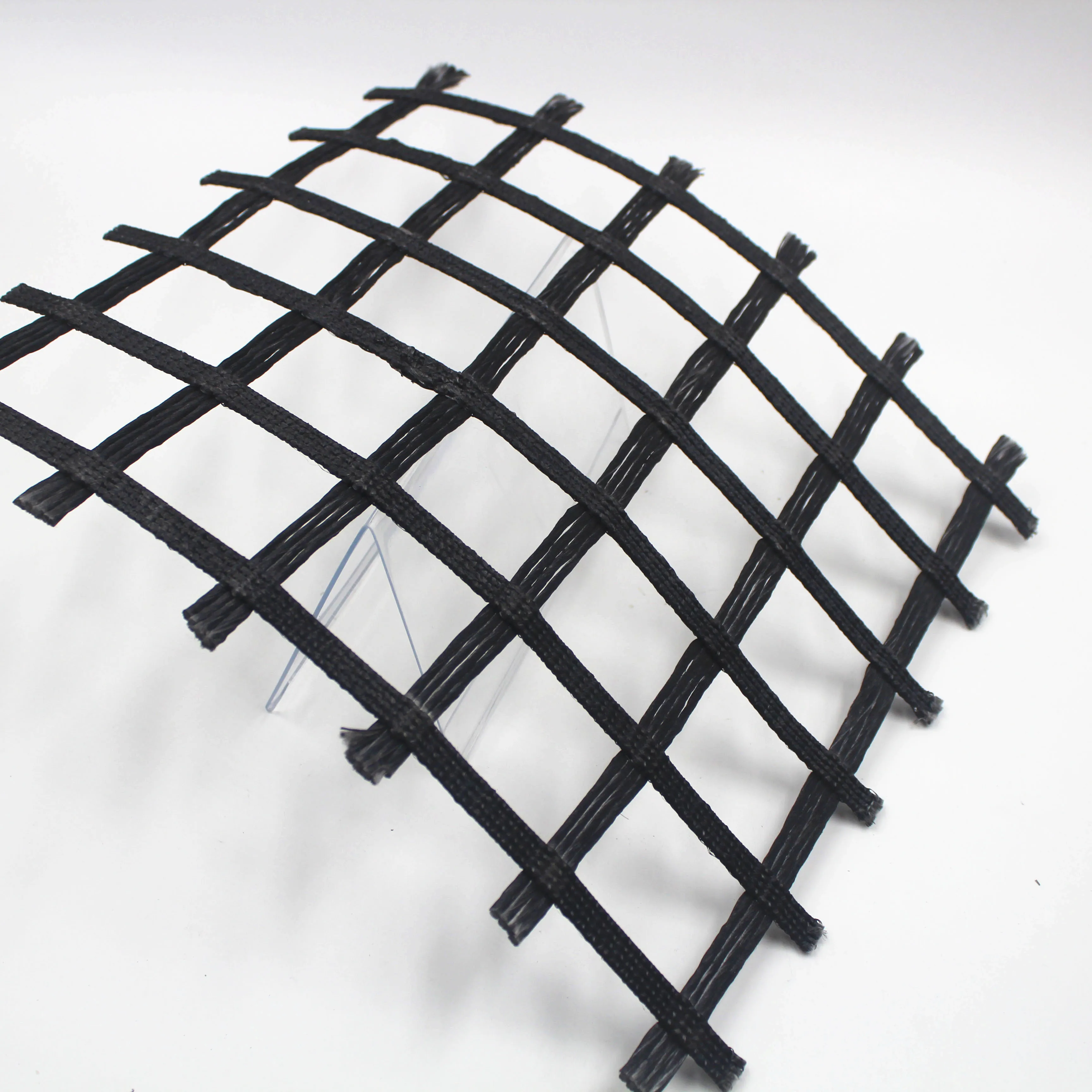

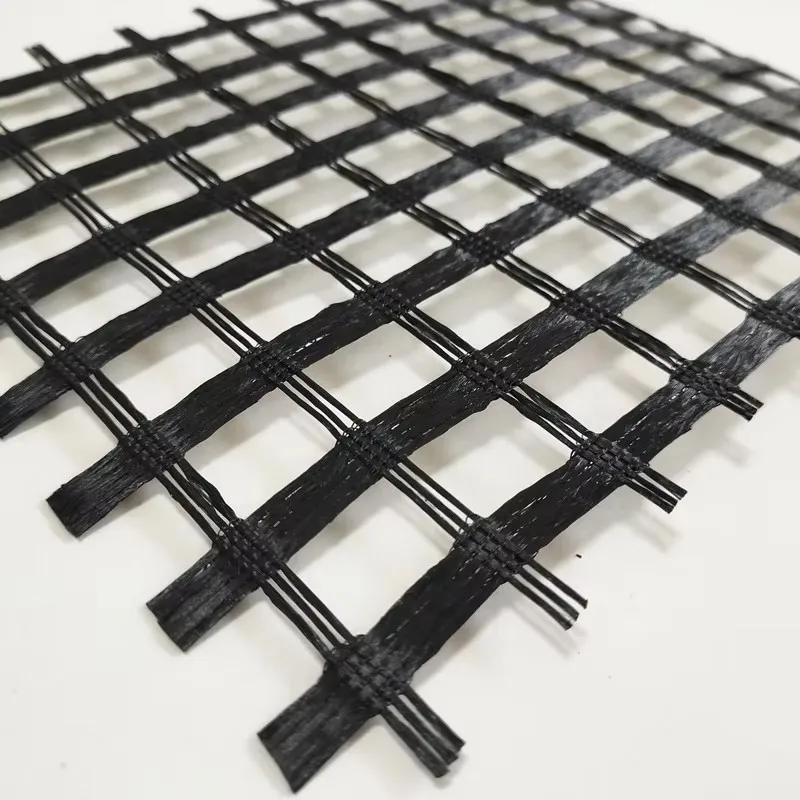

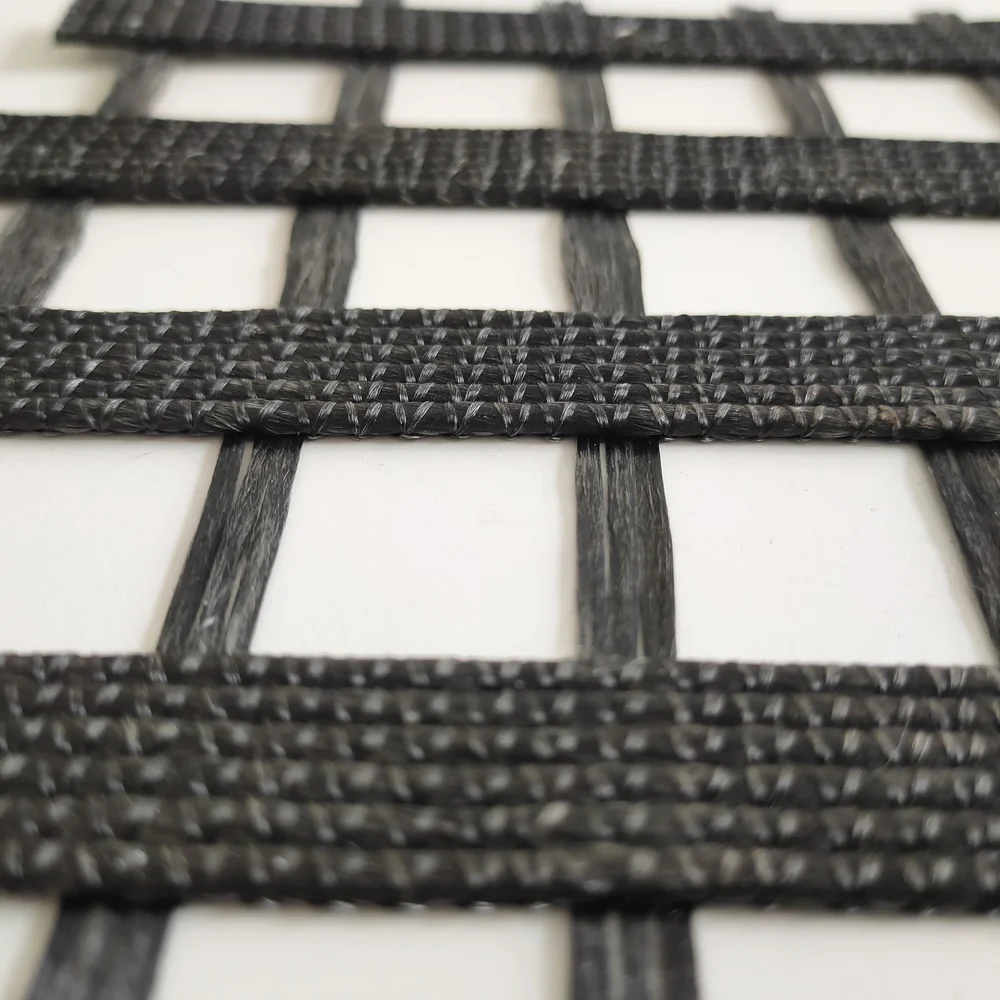

Polyester geogrid is a new kind of earthwork base material; which is used to strength the road surface and roadbed. Composing of high-strength polyester yarns, coatedd with an inorganic sizing agent.

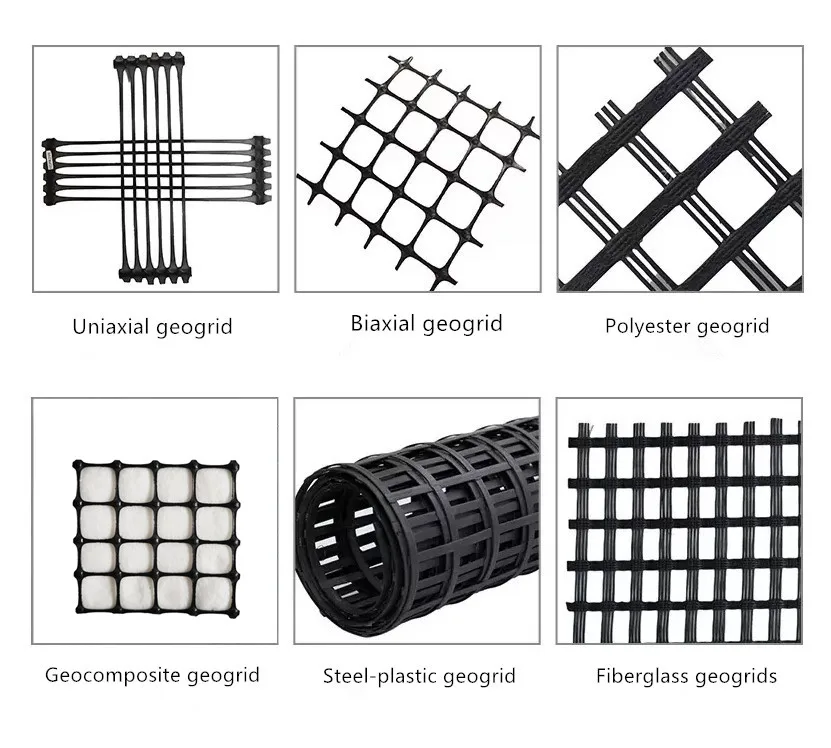

Biaxial Polyester Geogrid
Unaxial Polyester Geogrid
Spec | JBGS 55-30 | JBGS 60-30 | JBGS 80-30 | JBGS 100-30 | JBGS 120-30 | JBGS 150-30 | JBGS 200-30 | JBGS 300-30 | ||||||||||
Tensile strength ≥（kN/m） | warp | 55 | 60 | 80 | 100 | 120 | 150 | 200 | 300 | |||||||||
weft | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||||||||||
Elongation≤（%） | 13 or 10 | |||||||||||||||||
Grid size(mm) | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | |||||||||||||||||
Width(m) | 2 or 2.5 or 3.95 or 5.0 or 5.2 or 5.95 | |||||||||||||||||
NOTES: Other tensile strength can be made: 400-50, 500-50, 600-100, 700-100, 800-100 etc. | ||||||||||||||||||
Spec | JBGS 30-30 | JBGS 50-50 | JBGS 60-60 | JBGS 80-80 | JBGS 100-100 | JBGS 120-120 | JBGS 150-150 | |||||||||
Tensile strength ≥（kN/m） | warp | 30 | 50 | 60 | 80 | 100 | 120 | 150 | ||||||||
weft | 30 | 50 | 60 | 80 | 100 | 120 | 150 | |||||||||
Elongation≤（%） | 13 or 10 | |||||||||||||||
Grid size(mm) | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | |||||||||||||||
Width(m) | 2 or 2.5 or 3.95 or 5.0 or 5.2 or 5.95 | |||||||||||||||
NOTES: Other tensile strength can be made: 200-200, 400-400, 600-600, 800-800, 1200-1200 etc. | ||||||||||||||||
Best Seller Products

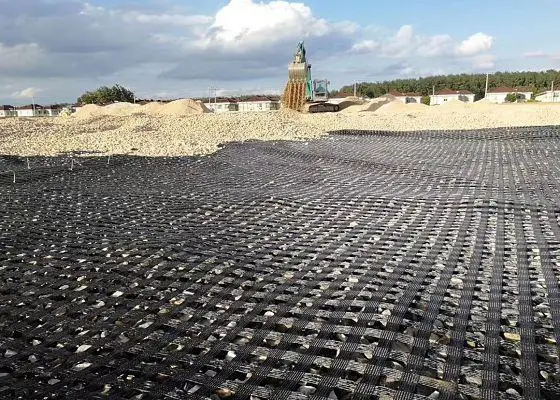

Application

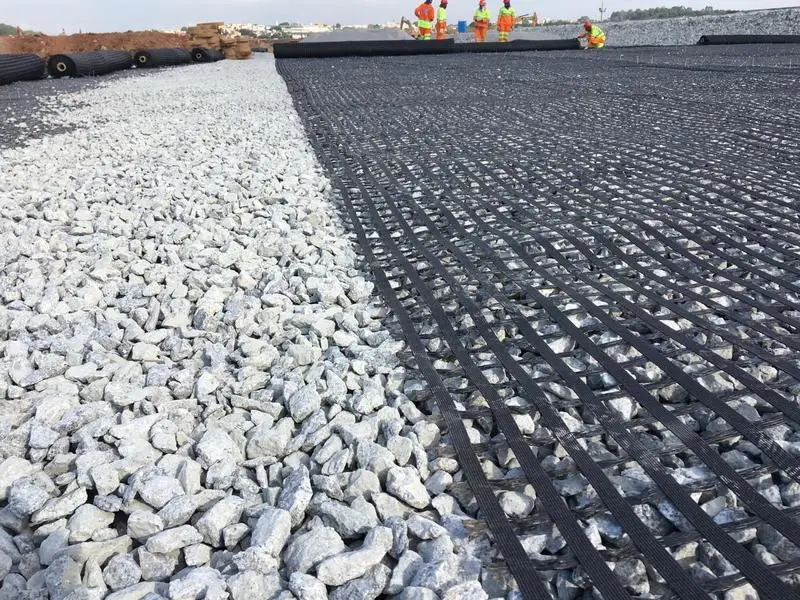

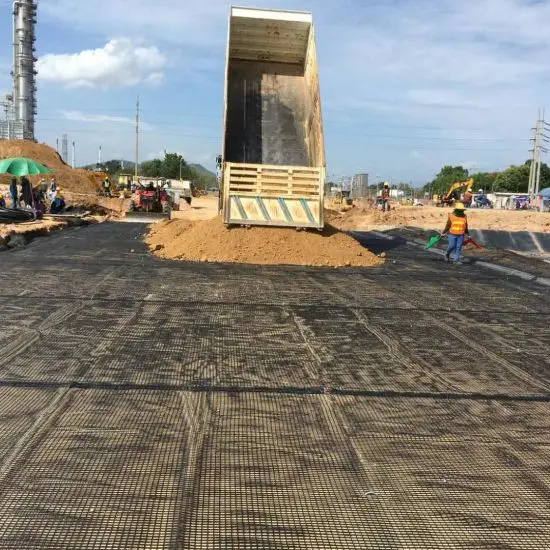

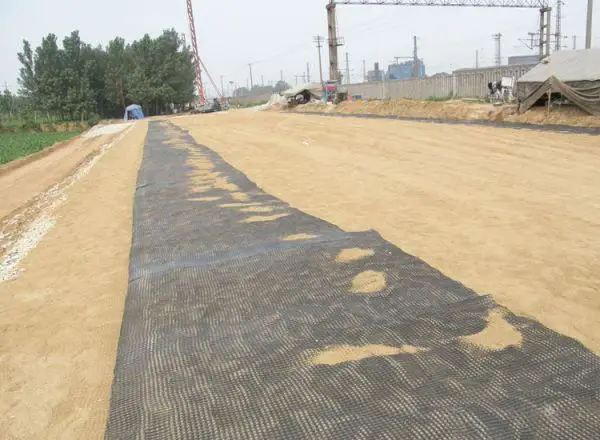

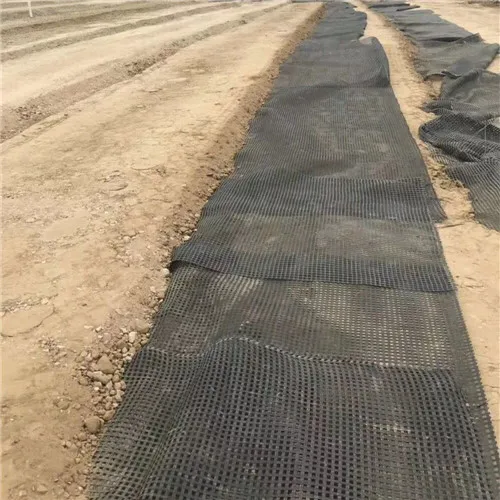

1. Reinforcement of soft soil subgrades of various roads such as highways, railways and municipal roads can effectively improve the strength of subgrades and delay road reflection cracks.

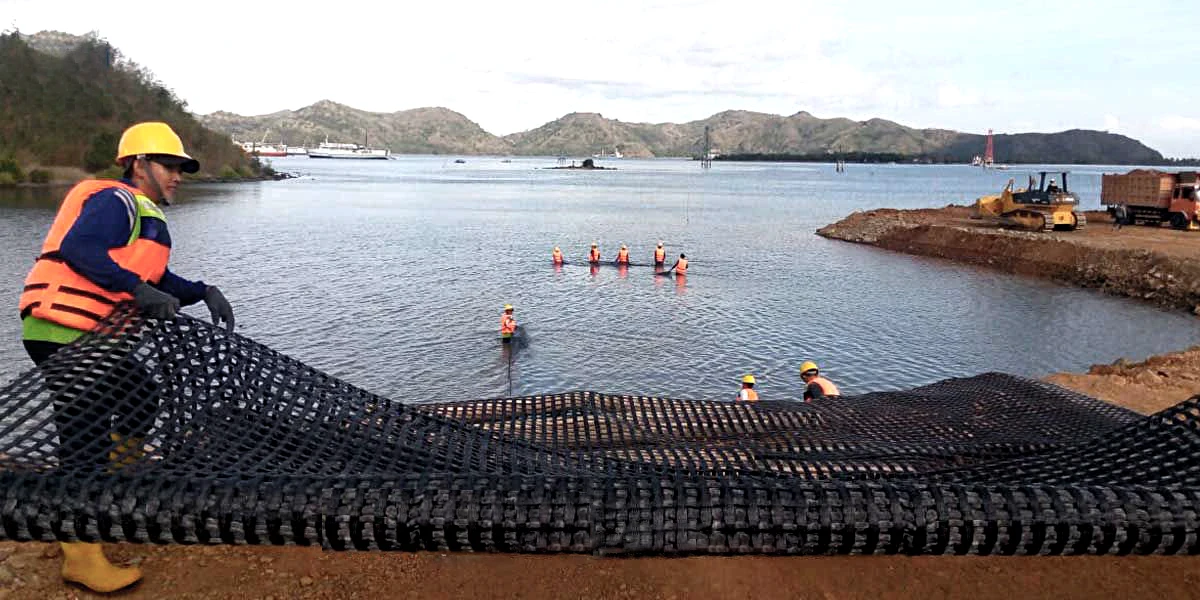

2. Reinforcement and isolation of dams and river channels in water conservancy projects strengthens the soft soil foundation, enhances its protective capacity, and improves the bearing capacity and stability of the foundation.
3. Used for reinforcement of embankment slopes and retaining walls to enhance overall strength.
2. Reinforcement and isolation of dams and river channels in water conservancy projects strengthens the soft soil foundation, enhances its protective capacity, and improves the bearing capacity and stability of the foundation.
3. Used for reinforcement of embankment slopes and retaining walls to enhance overall strength.

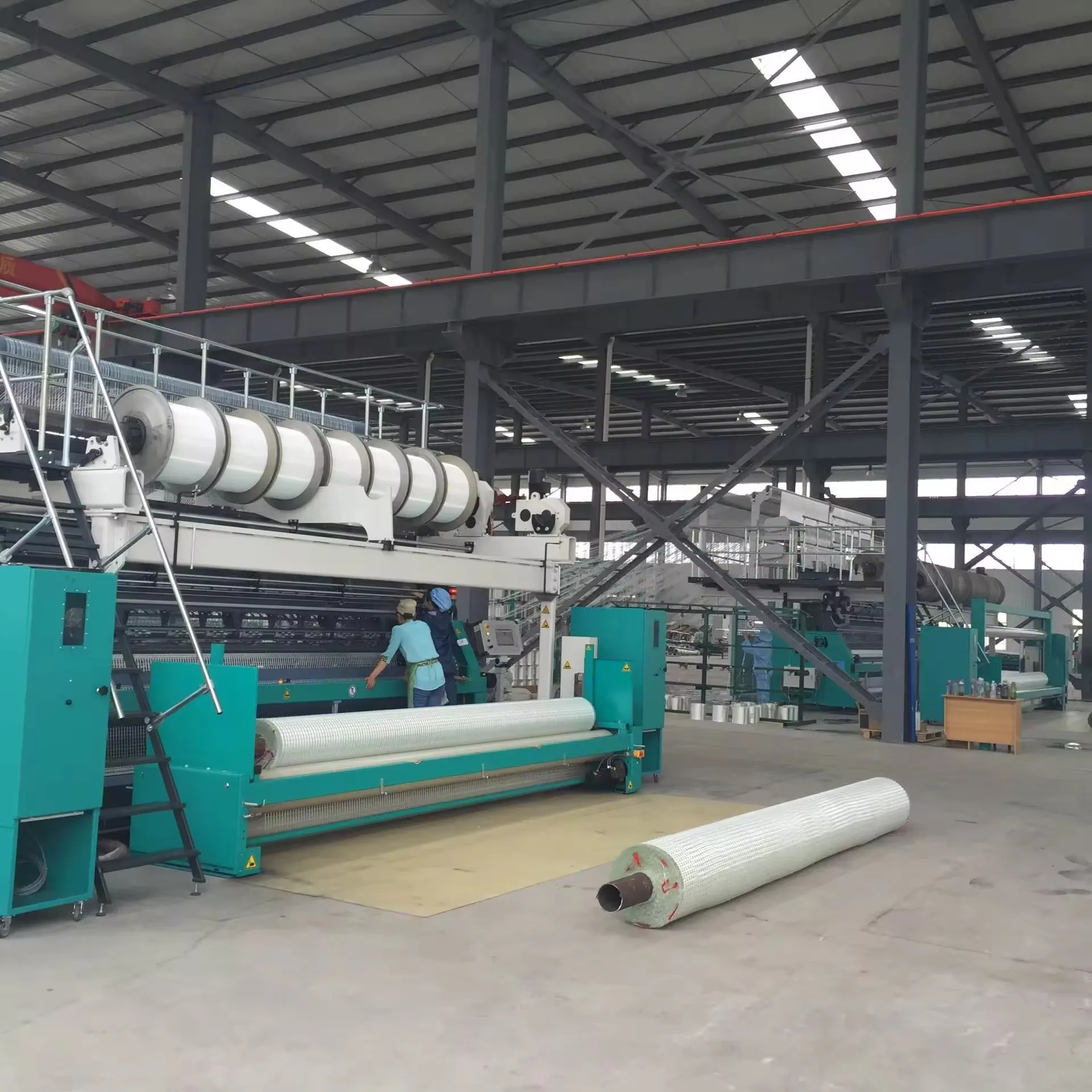

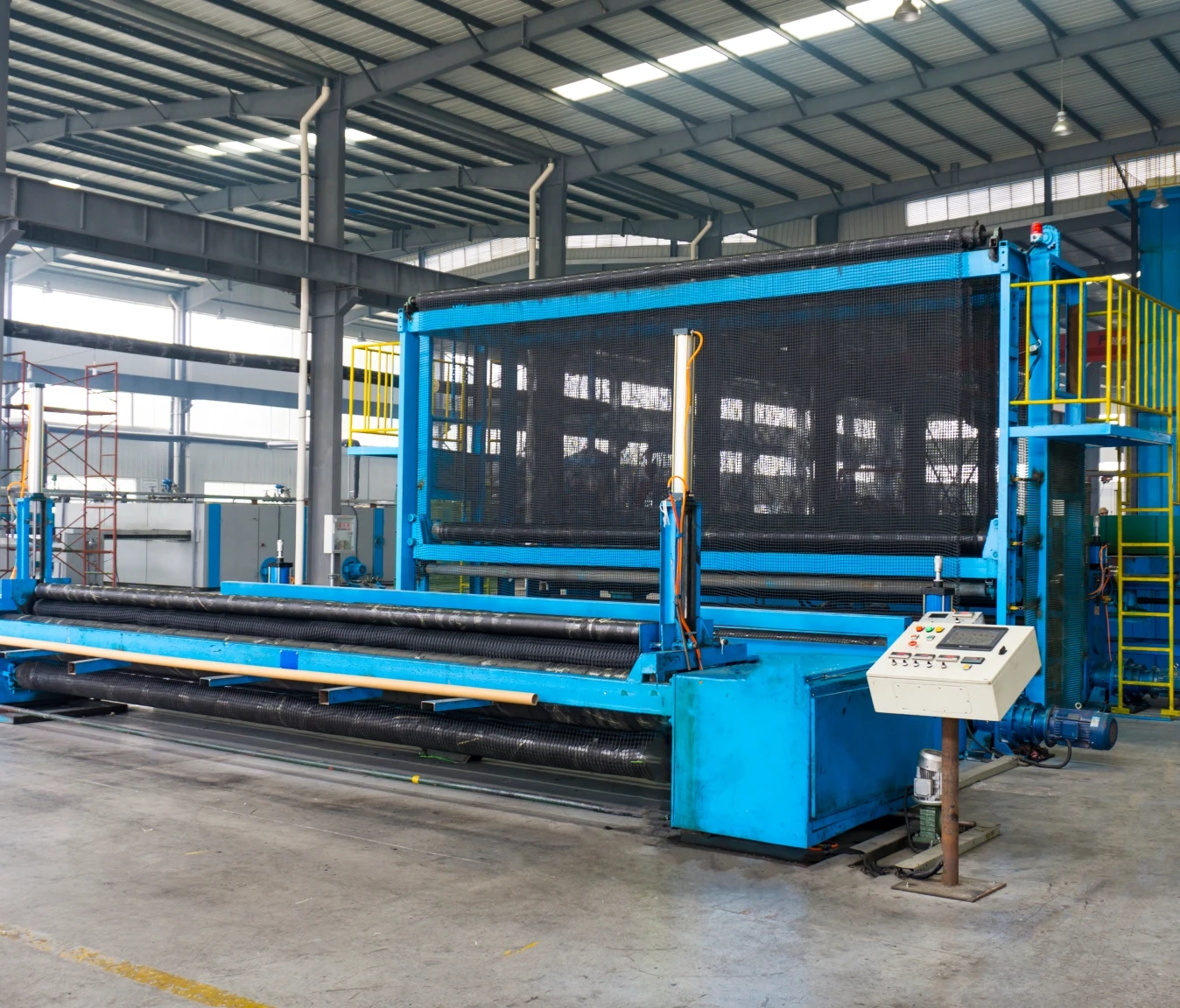

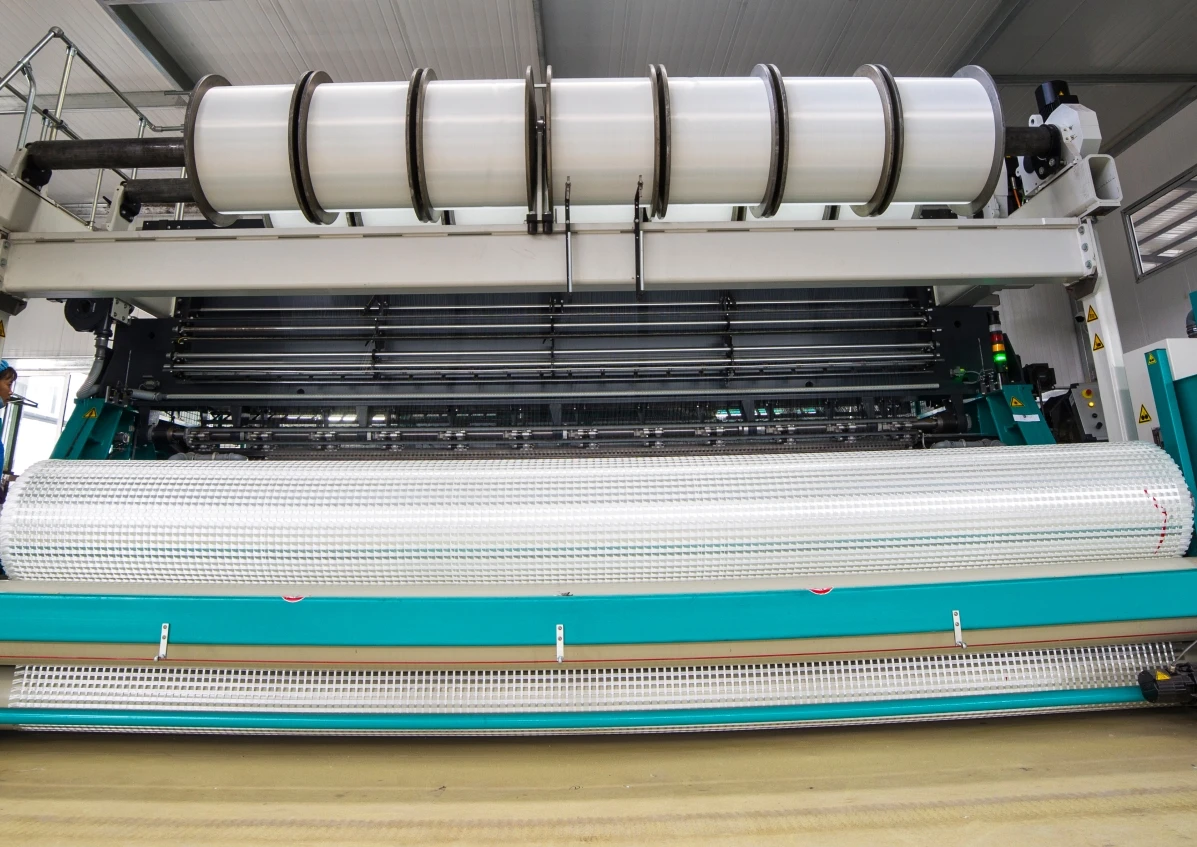

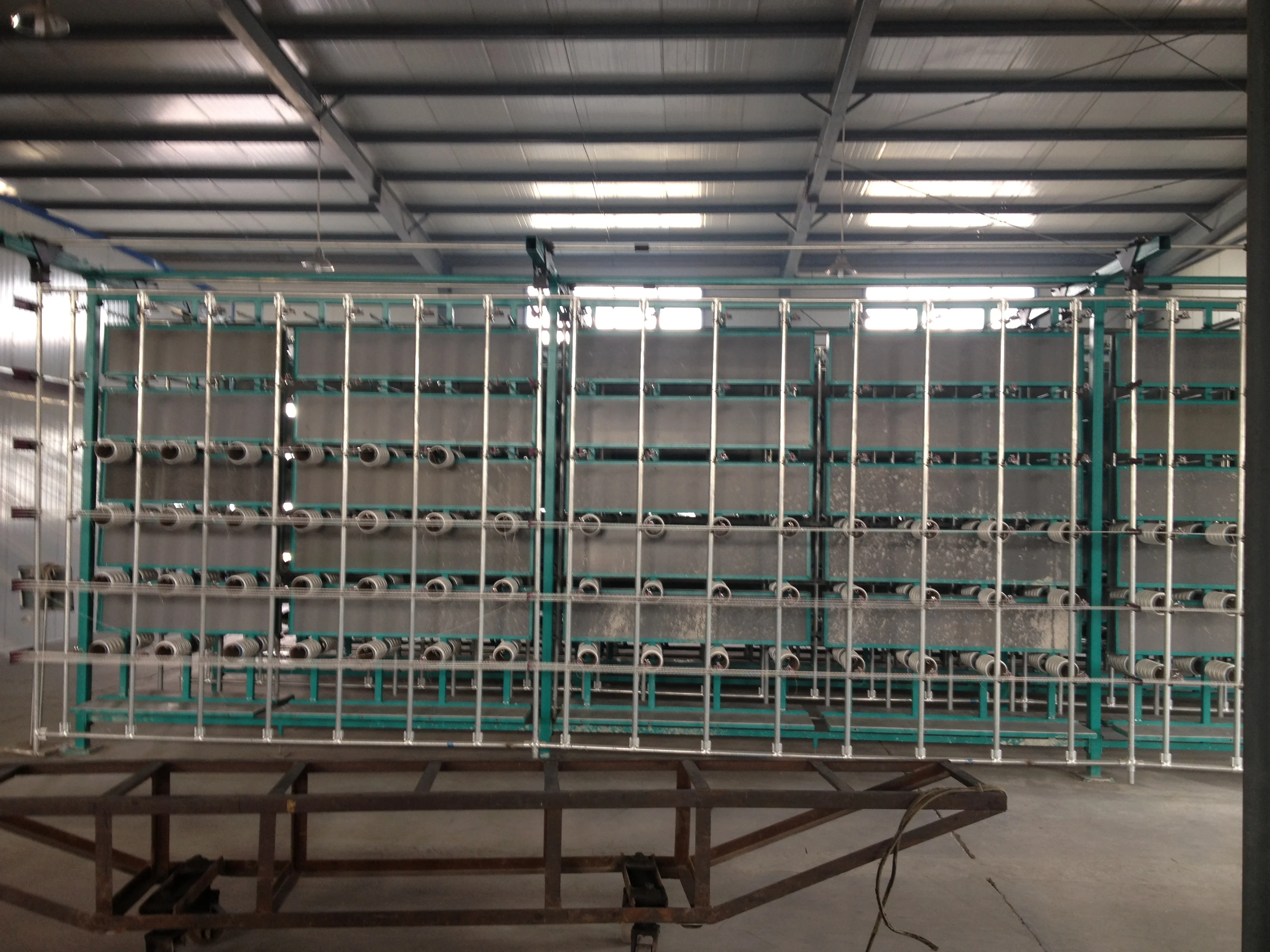

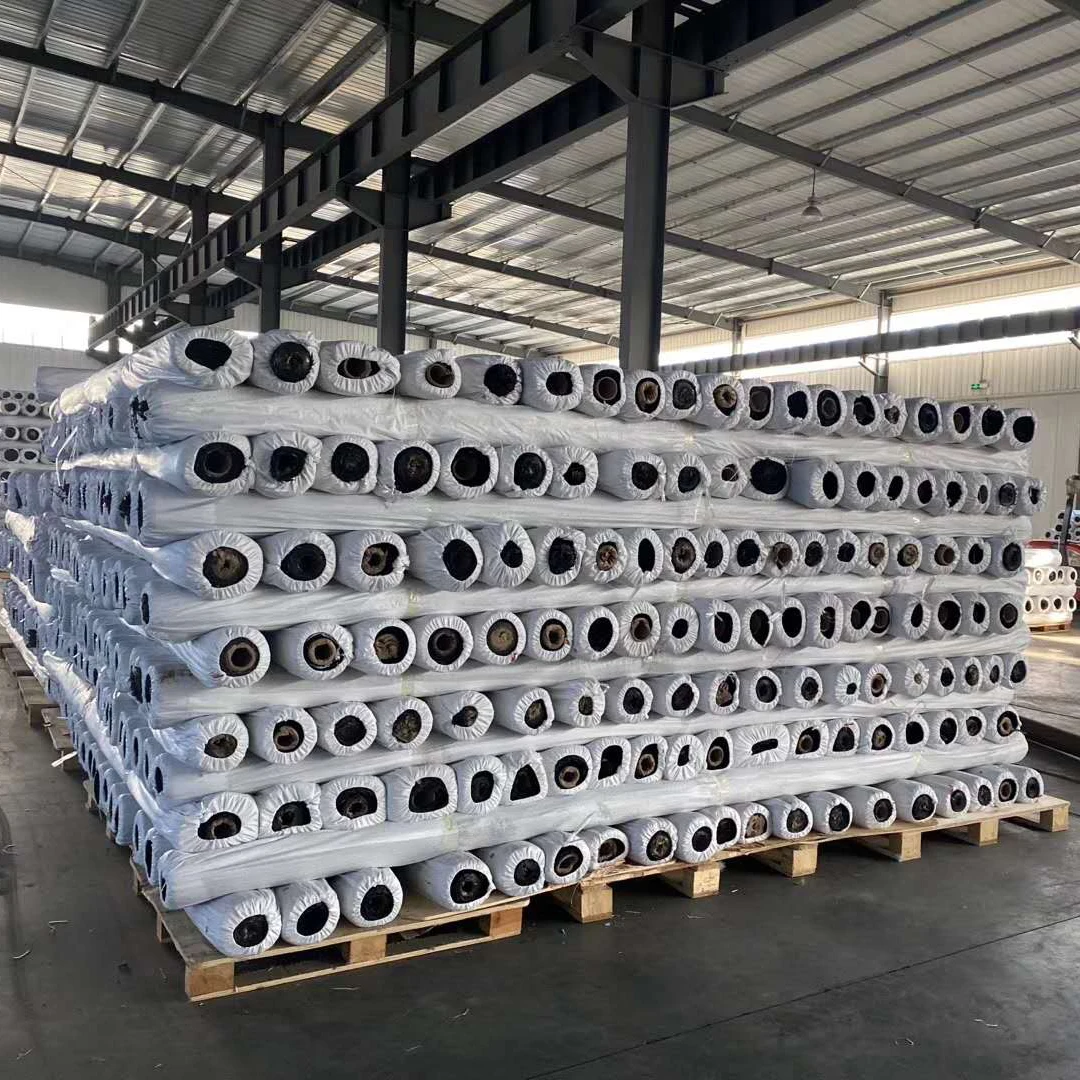

Production Display

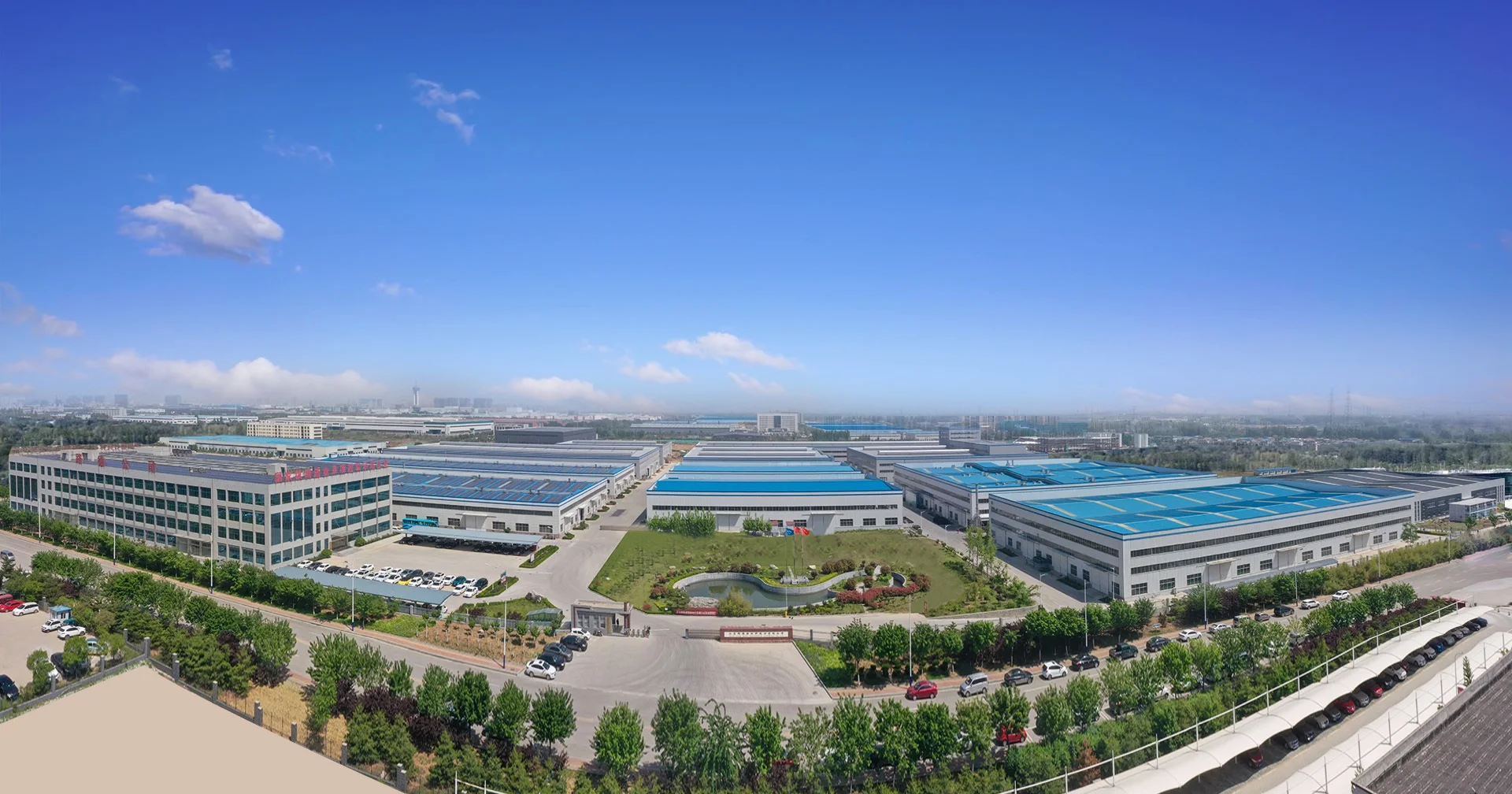

Company Introduction
Taian Lin Yuan Engineering Materials Co., Ltd., established in 2014. We are focusing on earthwork materials and many relevant products. We always offer customization to every customer for different demands, which means we can offer different width and length. different materials quality, different using fields. Our products include Polyester warp knitting geogrids, glass fiber geogrids, plastic geogrids, geotextiles, geomembrane, composite geomembrane, new three-dimensional geogrids, geogrids etc. Which can be applied to a wide ranges like Railway, highway subgrade reinforcement, water conservancy dam reinforcement, tunnel, subway and other engineering fields. Our annual outputs have exceeded 300 million square meters, exporting to more than 30 countries.
Engineering materials products are mainly used in highway, railway, water conservancy, electric power, water and soil conservation and environmental greening and other infrastructure areas, has been widely applied to tongsan expressway, shanghai-hangzhou inter-city railway, basis of high-speed railways, the qinghai-tibet railway, beijing-shanghai expressway, the beijing-shanghai high-speed railway, mansion deep railway, Shi Wuke designed, shanghai-nanjing intercity railway and hangzhou customer designed, an hundreds of national key projects such as railway; The company has successively won the bidding of various national key projects;
Our products are well known by the engineering experts and the majority of users; We are using complete and scientific quality management system. Please trust us!
Engineering materials products are mainly used in highway, railway, water conservancy, electric power, water and soil conservation and environmental greening and other infrastructure areas, has been widely applied to tongsan expressway, shanghai-hangzhou inter-city railway, basis of high-speed railways, the qinghai-tibet railway, beijing-shanghai expressway, the beijing-shanghai high-speed railway, mansion deep railway, Shi Wuke designed, shanghai-nanjing intercity railway and hangzhou customer designed, an hundreds of national key projects such as railway; The company has successively won the bidding of various national key projects;
Our products are well known by the engineering experts and the majority of users; We are using complete and scientific quality management system. Please trust us!

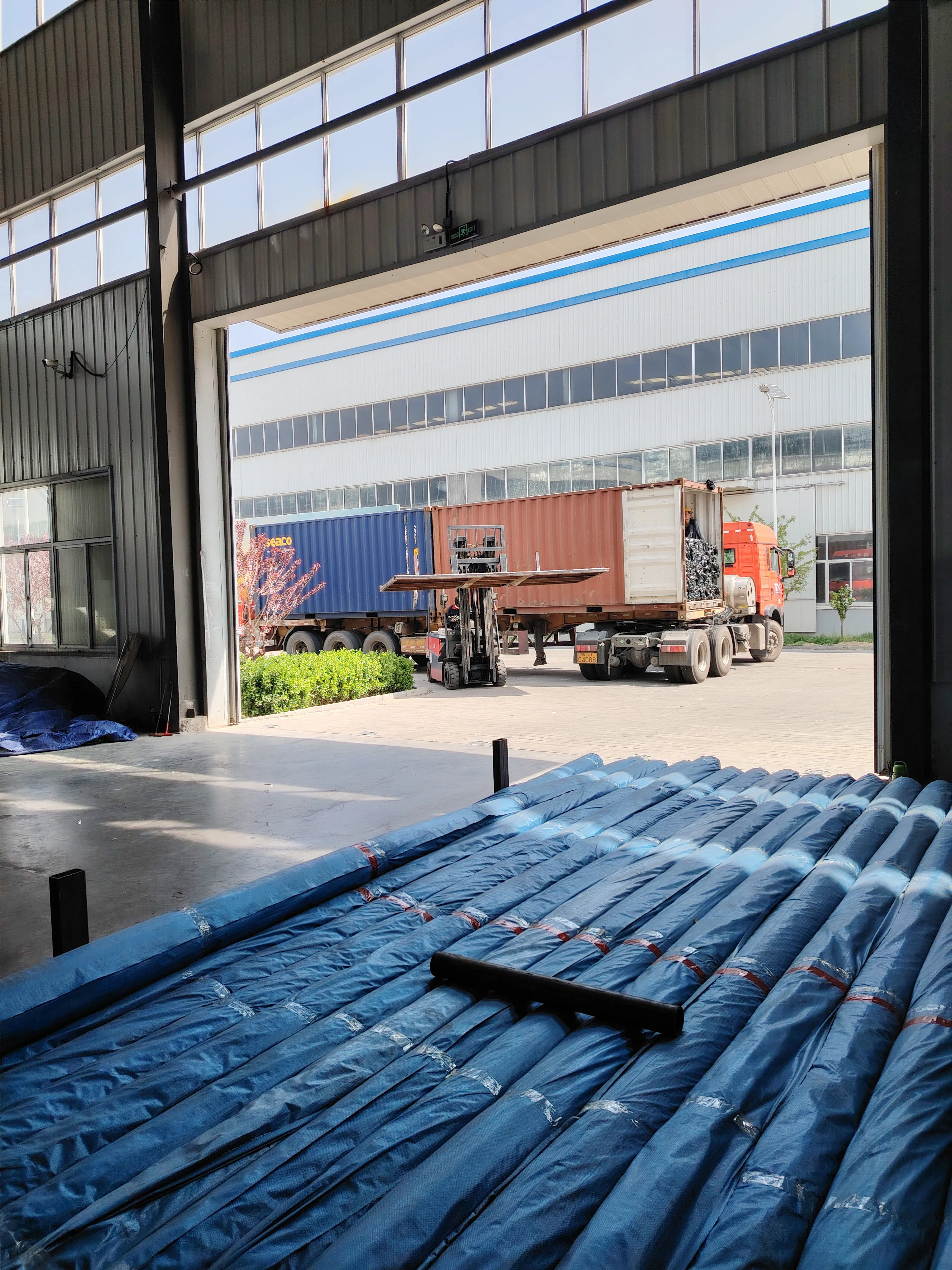

Packaging & Shipping
