Product Overview

Description

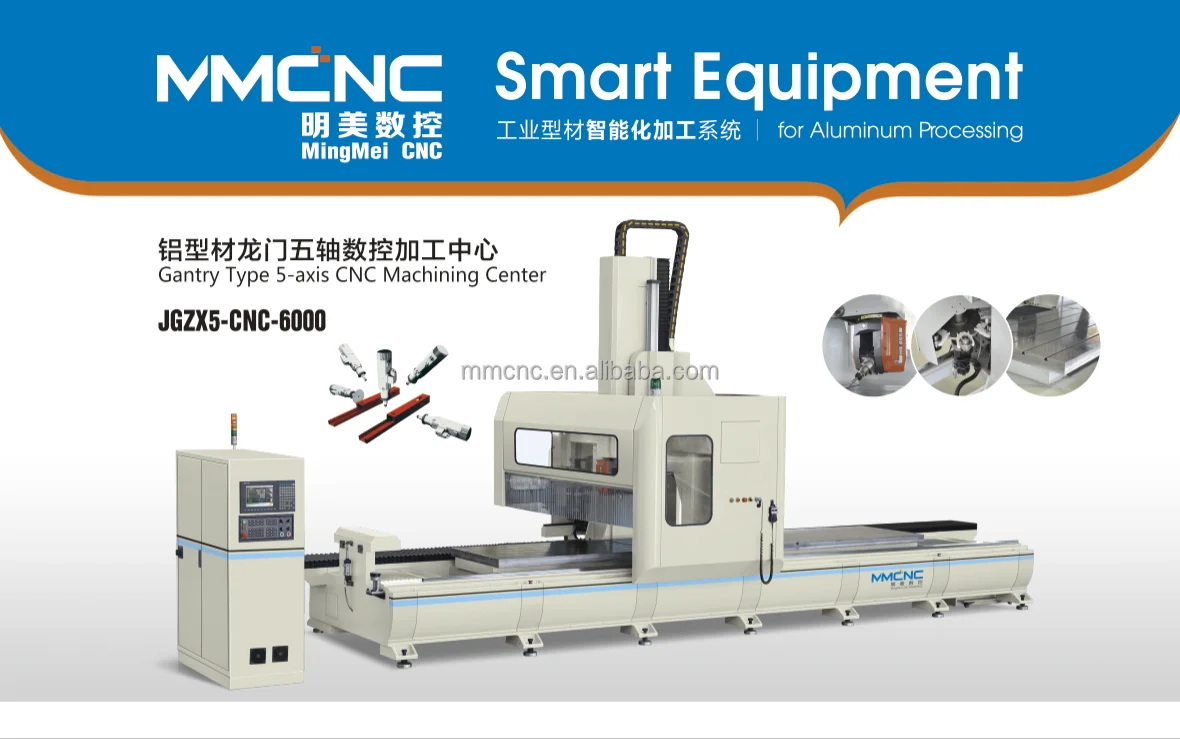

JGZX5-CNC-6000


CNC Gantry  5-axis Machining Center for Aluminum


.png


1.Equipment Features

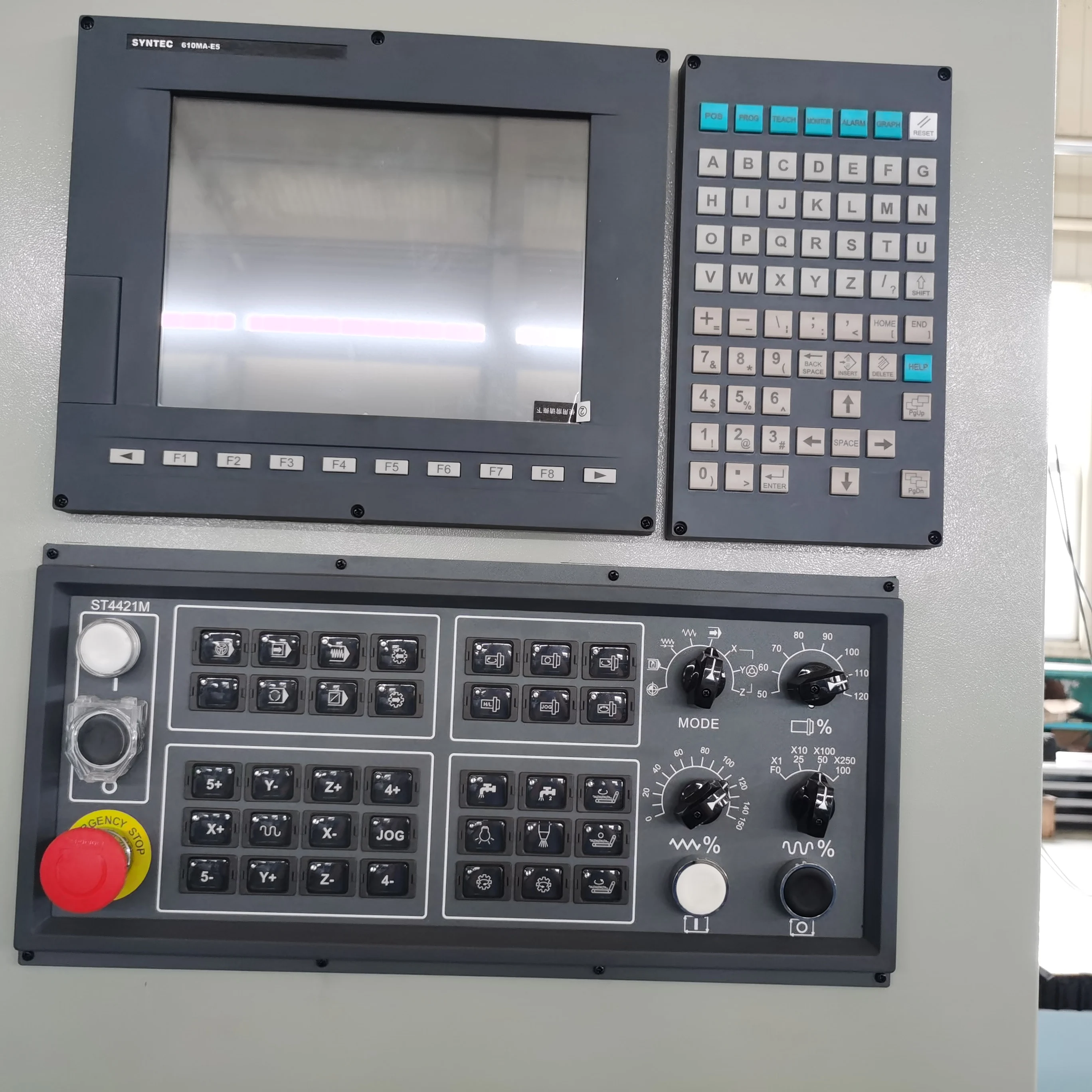

1.1  Adopt Taiwan SYNTEC 5-axis CNC system with RTCP function, imported servo motor and driver to ensure fast positioning and stable operation
1.2  The CNC system has a file storage unit that can store tens of thousands of different program files. It is convenient for operators to use during the production process. The CNC system has functions such as fault detection, breakpoint recovery, and power failure recovery. The control system adopts modularization
The structure is convenient for service and maintenance at the production site.
1.3  Adopt advanced CNC system to meet various processing requirements such as drilling, milling, tapping, sawing, etc.

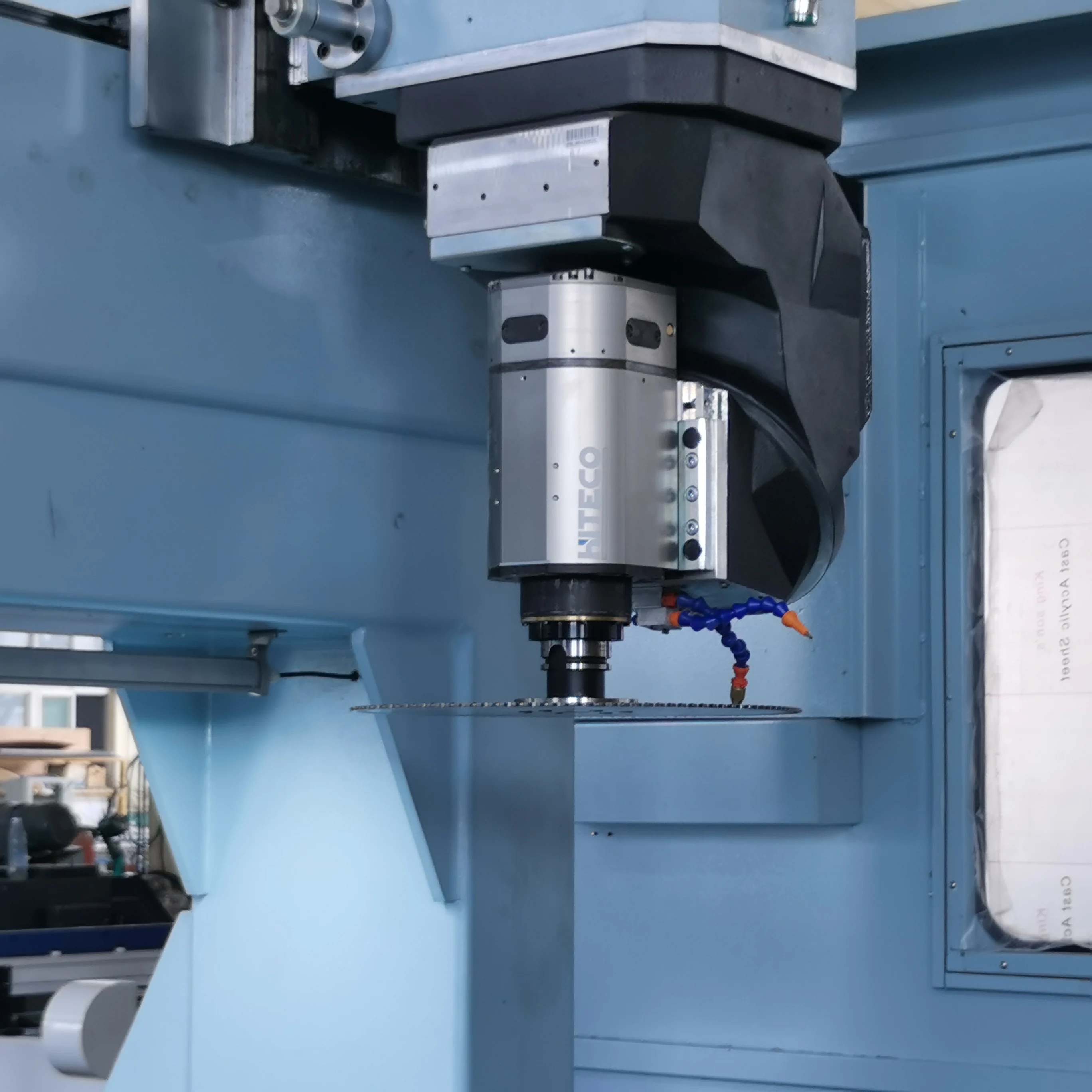

1.4  The five-axis spindle adopts Italian 12KW automatic tool change and tool setting function. Realize multi-faceted and multi-angle processing of various aluminum profiles. With cutting function, it can realize multi-directional and multi-angle precise cutting.

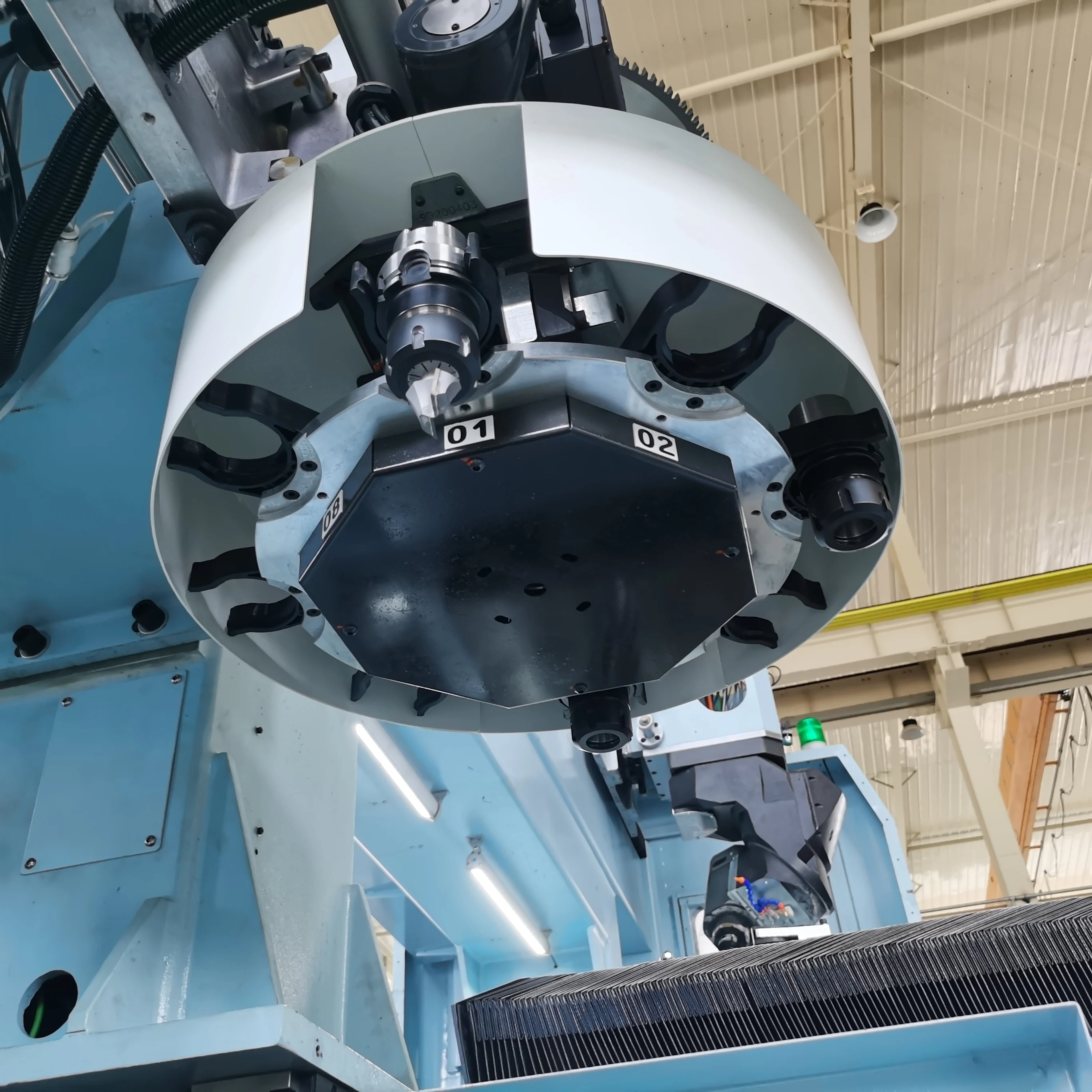

1.5  Tool magazine, 8 disc knives, and 8 straight line knives meet the requirements of fast tool change for different hole positions in profile processing.
1.6  It can realize dual-zone working mode, that is, one zone works while another zone loads/uploads parts. The machine can realize alternating work.
2.Technical Parameter:


1.Power supply: 380V/50Hz


2.Working pressure: 0.6~0.8MPa


3.X, Y, Z Axis stroke: 5000/400/600mm


4.x, Y, Z Axis speed: 50/30/30m/min


5.Tool magazine quantity: 8+8 PCS


6.Tool magazine type: Disc type + Linear type


7.Tool shank type: HSK-F63


8.Worktable size : 5000 x 1000mm


9.Max rotary speed: 18000/24000rpm


10.Power:12 kW


11.Touque: 15.3N.m


12.Overall dimension: 8500 x 3000 x 3000mm


13.Weight: about 9000kg

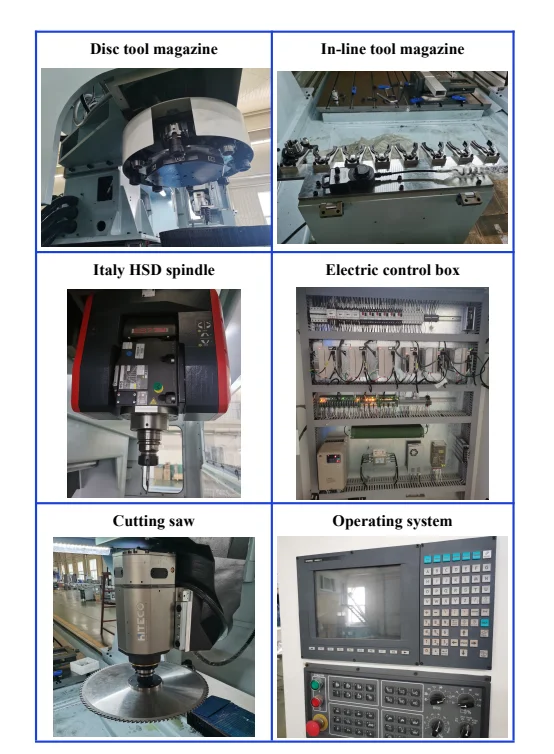

 3.The details of the machine




Company Certificates







Packing


According to Customers’ location and the machine size , we will provide professional packing can save sea freight for customers. .jpg (2).jpg





Our Services


Professional Production Team:
We Have Experienced Workers,Provide Clients High Assembling for Fast Quality Delivery Customize:
Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Machine
7*24H Service:
7*24H Service Provide Professional Fast Response
Parts Support:
Abundant Parts Supply Provide Lasting Support for Worldwide Clients.











Company Information


MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.Company cover an area of 70000
square meters and 200 staffs.
MMCNC machine include Processing machine for making aluminum PVC window and door a
s well as curtain wall, such as-
Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine
have got CE,ECM,EEC authorization .and it has won good market reputation.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success! _.jpg.jpg2.jpg.jpg





FAQ


We will try our best to meet your requirements


1. Can I have samples of this type of machine to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2.Http:www.mingmeijiqi.com
3. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
4. What's the payment method?
L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union
5.What’s your warranty?
a.The warranty time is one year.
b.We can send you free components to you if your machines are in guarantee time.
c.We can send our engineers to repair your machines
6.Why choose us?
We are China Leading Manufacture; Alibaba Assessed Gold Supplier;Professional
and patient sales;Best quality with reasonable price.
