Complete Set Solar Panel Power System 10kw 15kw 20kw Solar Energy Residential Hybrid Off Grid Solar System
- Category: >>>
- Supplier: Foshan Sunchees Energy Technology Co. Ltd.
Share on (10000019581004):
Product Overview
Description
Product Description
What home loads can be running by 10kw home solar system? | ||||||||
Load name | Load's watt | Qty | Total watt | |||||
lights | 11W | 20 | 220W | |||||
Fan | 80W | 4 | 320W | |||||
Computer(LCD display) | 150W | 2 | 300W | |||||
Printer | 250W | 1 | 250W | |||||
Fax machine | 150W | 1 | 150W | |||||
Refrigerator(200L) | 120W | 2 | 240W | |||||
Washing machine | 300W | 1 | 300W | |||||
Microwave | 1500W | 1 | 1500W | |||||
Electric cooker | 300W | 1 | 300W | |||||
Air conditioner(1HP) | 750W | 4 | 3000W | |||||
Satellite TV receiver/VCD | 25W | 1 | 25W | |||||
Color TV(32 inch) | 150W | 2 | 300W | |||||
Water pump | 200W | 1 | 200W | |||||
Total | 7105W | |||||||
System power generation | ||||||||
Calculate local peak sunshine time | 7 hours/ day | |||||||
Solar panel can generate | 39.3kwh | |||||||
Battery discharge power | 26.6kwh | |||||||
Specification
item | OFF grid solar power system |
Warranty | 2years |
Free installation service | NO |
Place of Origin | China |
Brand Name | sunchees |
Model Number | SP-10Kw |
Application | Home, Commercial, Industrial |
Solar Panel Type | Monocrystalline Silicon |
Battery Type | Lead-Acid, Lithium Ion |
Controller Type | MPPT |
Mounting Type | Ground Mounting, Roof Mounting |
Load Power (W) | 10kw |
Output Voltage (V) | 220V |
Output Frequency | 50HZ |
Work Time (h) | 12 |
Certificate | CE ROHS |
Pre-sales project design | Y |
Product name | Off-grid Solar Power System |
Solar panel | Mono |
Inverter | solar inverter with MPPT charger controller |

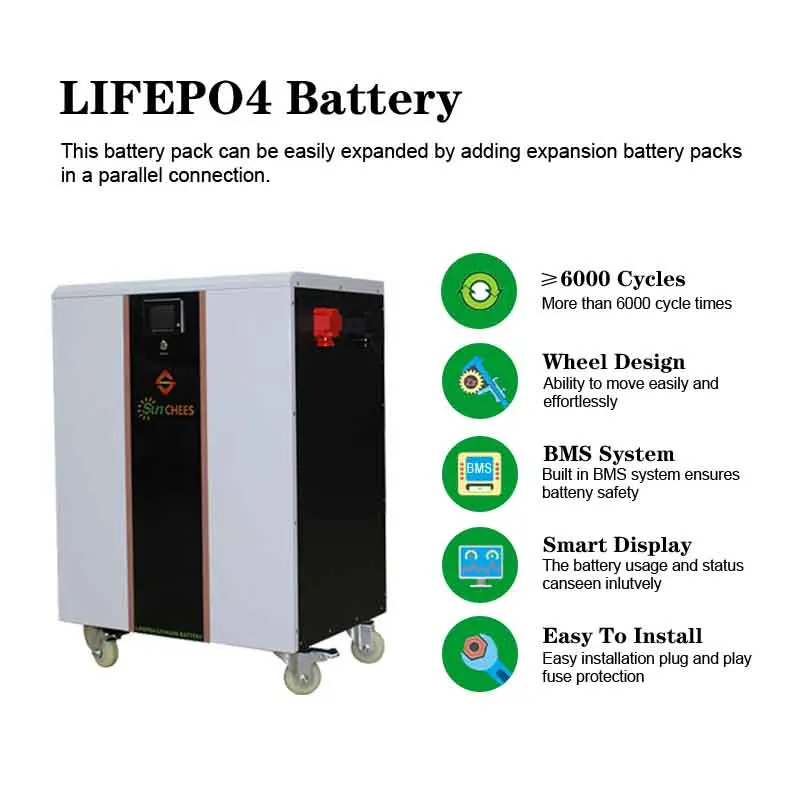

Battery | lithium battery |
Function | solar charger power for home use |
Installation Site | Outdoor |
Load | Home Appliance |
Capacity | 10Kva solar power system |
Warranty | 25 Years Life Time |
Protection | Overloads |
Our company
SUNCHEES Can Provide What Service To Your ?
1: Professional R&D Team
We have 12+ years professional R&D team to provide customers best design , professional install/ test guide and after sale sevice, sunchees products are successfully sold to more than 130 countries，Won five-star praise from 100% customers
2: OEM/ODM Service
Sunchees can offer OEM service as per your specific requirements ,Customize the solar system and solar air conditioner solutions in the practical application，Three new products lead the market every year.
3: Perfect after-sales service system
Once the order is confirmed, we will arrange production immediately. Powerful productivity and automation.Can promise delivery in the short term. Such as:Sampleorder(1set-10set)delivery time:5-7 workday , Bulk order:(20-100set) delivery time: 10-20 workdays.
1.Regardless of the size of the contract, we will strictly implement the provisions stipulated in the contract as scheduled with high quality and quantity; If we can't deliver on time, we will pay 5% of the total amount as
liquidated damages to your company;
liquidated damages to your company;
2. In the process of production, we will arrange a special person to feedback the production progress of the goods regularly;
3. We will pay a return visit to the implementation of each contract, to ensure that the goodstimely arrives in the hands of customers.

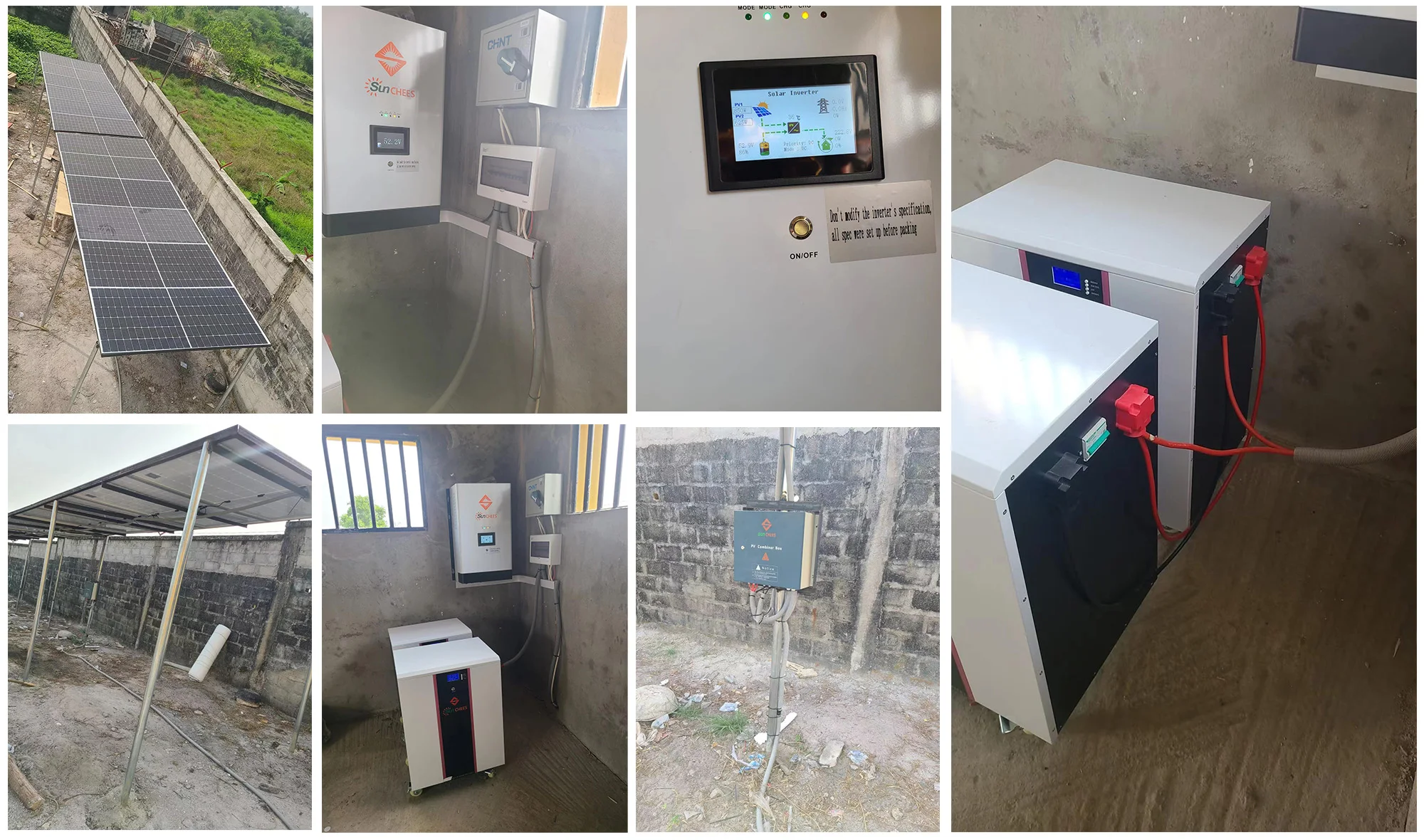

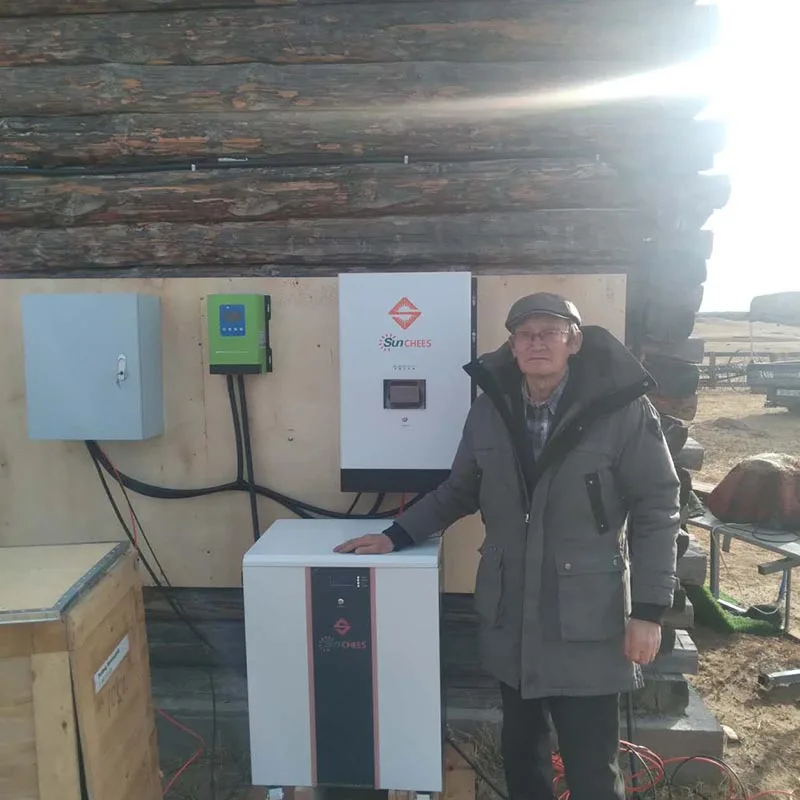

Customer case
Certifications
FAQ
Q: What can be included for this system from Sunchees?

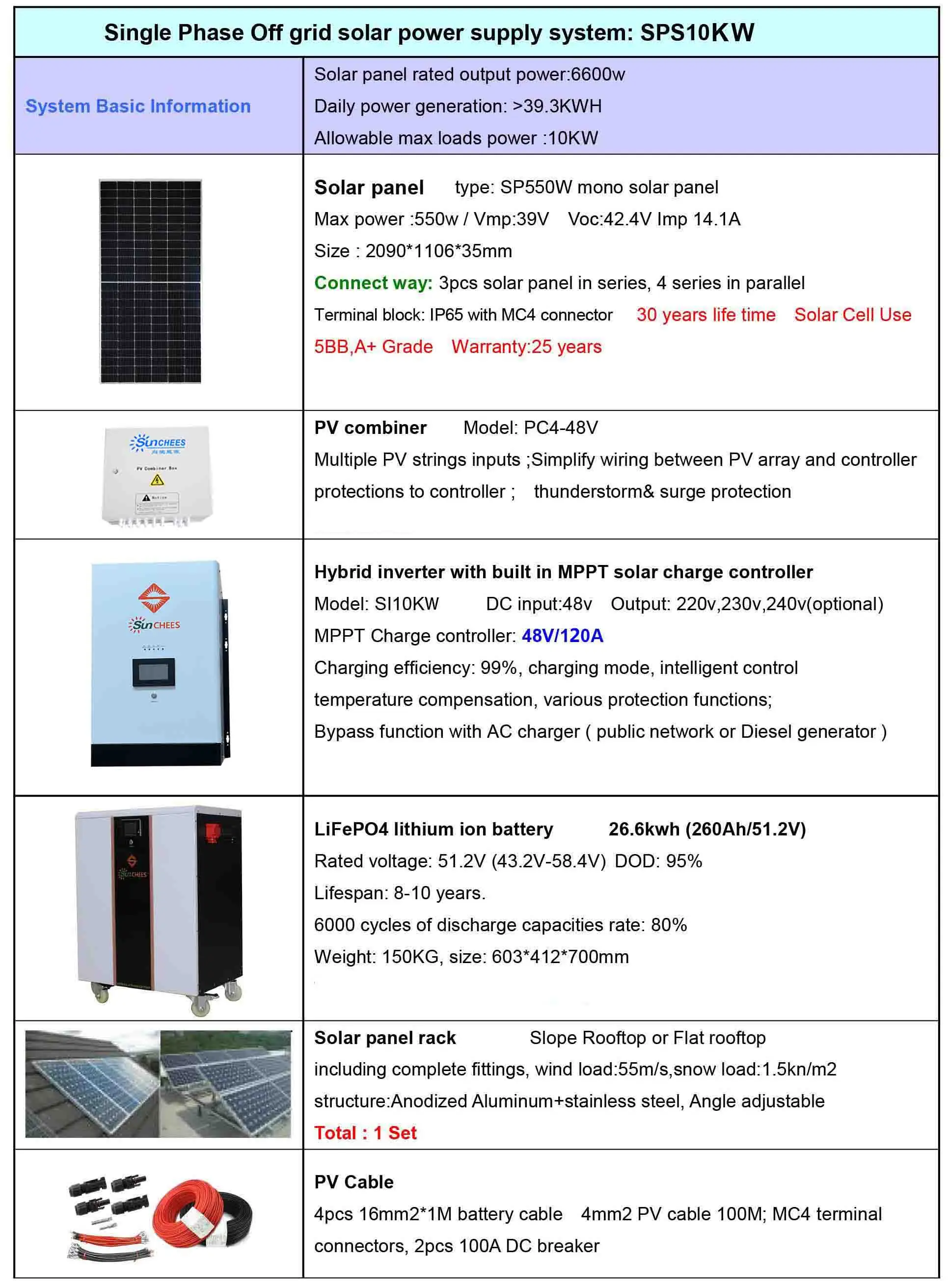

A: This system includes: solar panel, PV array combiner, Hybrid solar inverter with built-in MPPT controller, Maintenance-free Gel battery, Mounting structure, cables etc.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes, we can provide complete set solution. If you don't need complete set, basic parts are available too.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams make solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. Same power system may be with different configuration.
Q: Who will arrange the shipment?
A: We are doing FOB trade term. If you need, we could help you to arrange the shipment, we have long-term cooperation with good service forwarders.
Q: What's the difference between off grid and on grid solar power system?

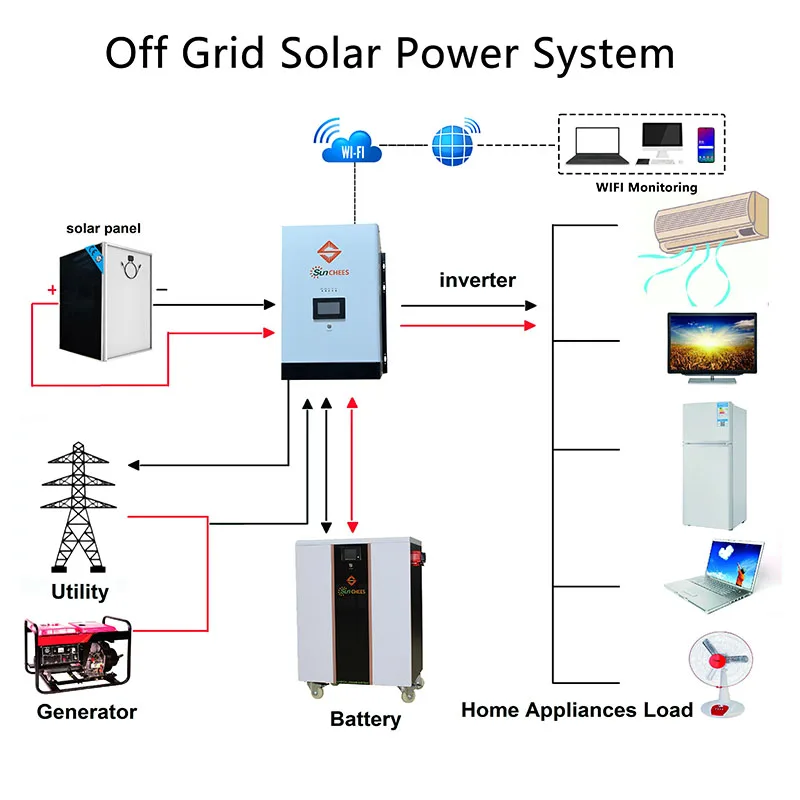

A: Off grid solar power system doesn't connect to the power grid. In general, the system includes solar panels, charge
controller,batteries and off-grid inverter. This system will convert the solar power into electricity and store in the batteries,
and the batteries will supply appliances the electricity to work through the inverter. On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted into electricity and the electricity will be supplied to appliances directly. When there is no sunshine, the power grid will take place of the system and supply appliances the electricity to work.
Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. The inverter not only can connect to national grid but also can connect to third generator, as like diesel generator. When there is no sunshine and battery power is used out, the inverter will automatically switch to use national grid power and take the load and charge the battery at the same time. Please tell our sales before production.
Q: What is the lifetime of the solar power system?
A: Solar panel lifetime are 25 years, battery lifetime is 6~8 years. The whole set system can supply free power at least 6 years.When battery reaches its life expectancy, just change new one then the system will continue working. Sunchees always insists onhigh quality goods, we never sell cheap quality products that can only use few months. We are not doing one-time business!
If you have more questions, welcome to contact us freely, Choose Sunchees, Choose Satisfaction!
A: This system includes: solar panel, PV array combiner, Hybrid solar inverter with built-in MPPT controller, Maintenance-free Gel battery, Mounting structure, cables etc.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes, we can provide complete set solution. If you don't need complete set, basic parts are available too.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams make solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. Same power system may be with different configuration.
Q: Who will arrange the shipment?
A: We are doing FOB trade term. If you need, we could help you to arrange the shipment, we have long-term cooperation with good service forwarders.
Q: What's the difference between off grid and on grid solar power system?
A: Off grid solar power system doesn't connect to the power grid. In general, the system includes solar panels, charge
controller,batteries and off-grid inverter. This system will convert the solar power into electricity and store in the batteries,
and the batteries will supply appliances the electricity to work through the inverter. On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted into electricity and the electricity will be supplied to appliances directly. When there is no sunshine, the power grid will take place of the system and supply appliances the electricity to work.
Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. The inverter not only can connect to national grid but also can connect to third generator, as like diesel generator. When there is no sunshine and battery power is used out, the inverter will automatically switch to use national grid power and take the load and charge the battery at the same time. Please tell our sales before production.
Q: What is the lifetime of the solar power system?
A: Solar panel lifetime are 25 years, battery lifetime is 6~8 years. The whole set system can supply free power at least 6 years.When battery reaches its life expectancy, just change new one then the system will continue working. Sunchees always insists onhigh quality goods, we never sell cheap quality products that can only use few months. We are not doing one-time business!
If you have more questions, welcome to contact us freely, Choose Sunchees, Choose Satisfaction!
