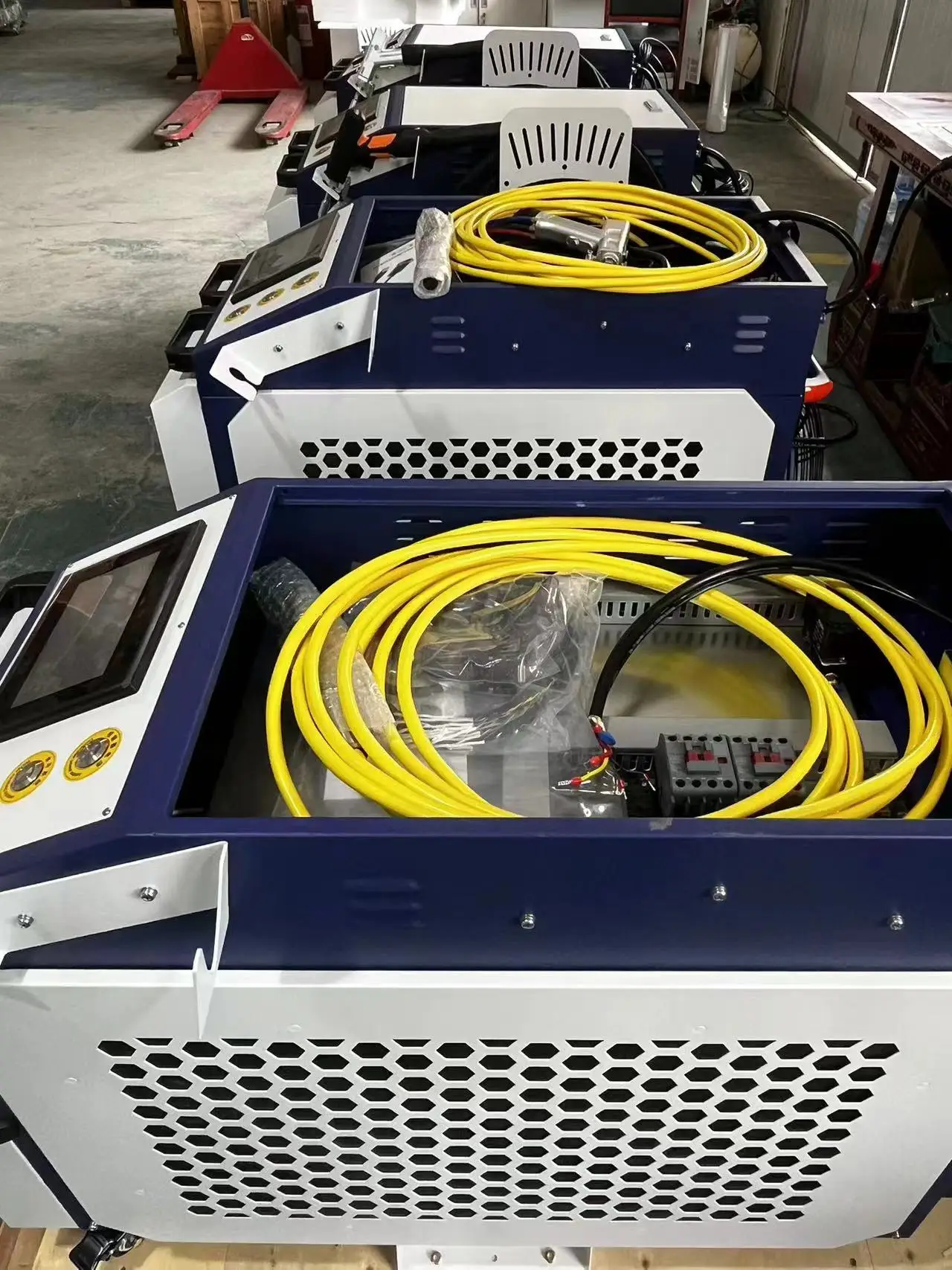

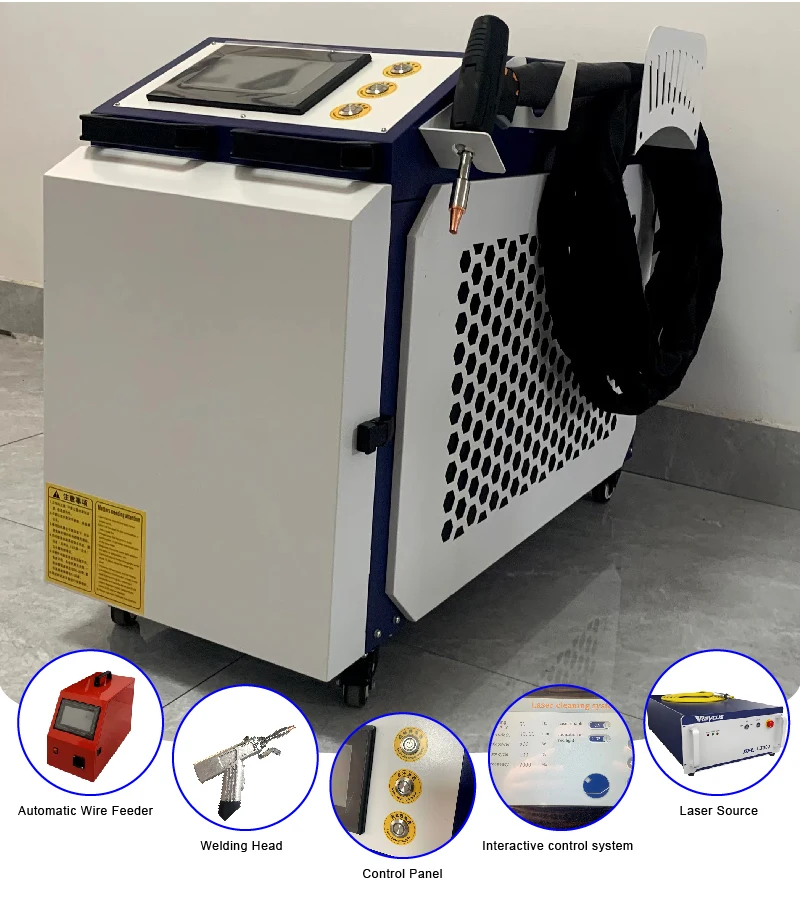

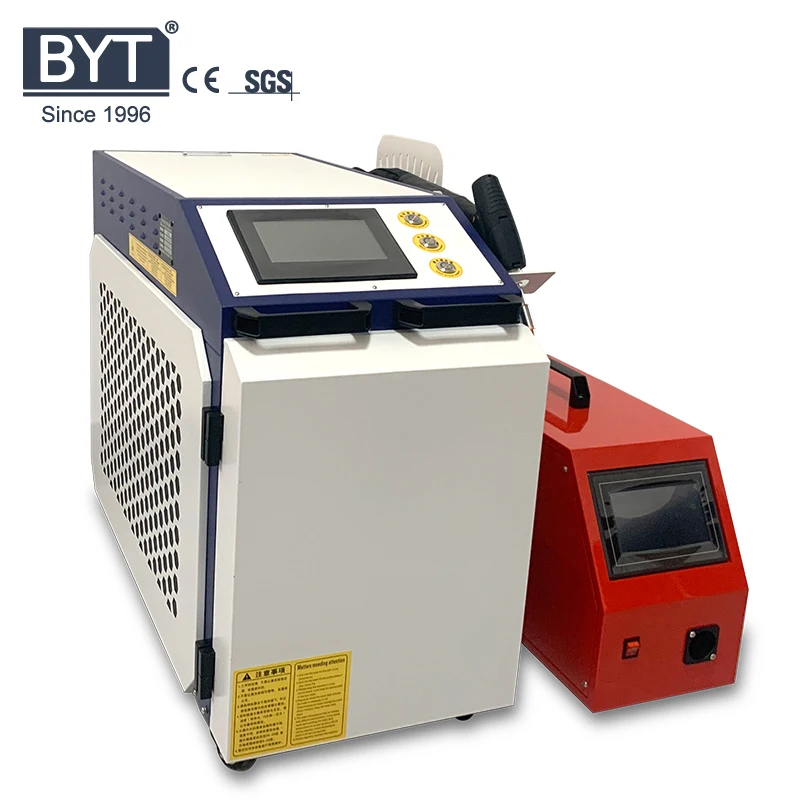

3 In 1 Handheld Laser Welding Machine 1500W water cooling fiber laser welding machine stainless steel aluminum copper welding
- Category: >>>
- Supplier: Shandong Yuantong Century Intelligent Technology Co. Ltd.
Share on (10000019588331):
Product Overview
Description
Product Description
Application field:
This type Fiber welding use integrated design concept, small but smart, mobile use is more convenient。
This type Fiber welding use integrated design concept, small but smart, mobile use is more convenient。
Uses the latest generation of lightweight intelligent swing welding head (weight of about 0.75kg), the width of the welding path can be adjusted.
Operation is more flexible and simple and don’t need professional welder technology.
Widely used in sheet metal processing, advertising signs, stainless steel kitchenware, food machinery, chassis cabinets, doors and windows guardrail, aluminum art and iron, biological fermentation, air conditioning refrigeration, HVAC environmental protection, display shelves, advertising models, animal husbandry equipment, auto parts, RV yachts, aerospace, stainless steel products act.
Specification
Model | BHJ-1500W | BHJ-2000W | BHJ-3000W | ||
Working voltage | 220V 50HZ 20A | ||||
Fiber laser brand | Raycus/MAX | ||||
Power | 6KW | 7.5KW | 11KW | ||
Fiber device | 1500W | 2000W | 3000W | ||
Max welding thickness | 0.4＜ SS ＜4mm 0.4＜ CS ＜4mm 0.4＜ Alu ＜3mm | 0.4＜SS ＜6mm 0.4＜CS ＜6mm 0.4＜Alu ＜4mm | 0.4＜SS ＜8mm 0.4＜CS ＜8mm 0.4＜Alu ＜6mm | ||
Function | Welding,cutting ,cleaning ,and weld pass clean | ||||
Laser running mode | Continuous/modulated/argon arc | ||||
Welding head configuration | Built-in water-cooled welding torch | ||||
laser wavelength | 1070nm | ||||
Fiber length | 10m | ||||
Welding speed | 0-120mm/s | ||||
Positioning way | Red light | ||||
Working environment | -15-35℃ ＜70% Without condensation | ||||
Language | 19 kinds language | ||||
Welding wire diameter/weigt | Welding wire diameter/weigt | ||||
Chilling system | Special built-in water cooler, Double circulation system,Heat exchange titanium tube, Over temperature alarm,Flow protection, water level protection | ||||
Overall size | 1100*770*850mm | 1100*770*850mm | 1100*770*850mm | ||
Net weight | 140KG | 140KG | 140KG | ||
Our Service
Keep Quality and Service Be Our First Responsibility
Sales Service
Sales Service
1.Technical people have professional english ability and directly with customer communication.\\
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.
Our Company
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4:What's the guarantee, in case the machine breaks down?
The machine has 2 year's guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5:How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other
certificates as required by clients.
Q6:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q7:How's the payment?
Telegraphic Transfer(T/T).
Q8:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q9:How is the packing?
Water-proof plastic film package with foam protection in each corner of laser machine
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4:What's the guarantee, in case the machine breaks down?
The machine has 2 year's guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5:How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other
certificates as required by clients.
Q6:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q7:How's the payment?
Telegraphic Transfer(T/T).
Q8:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q9:How is the packing?
Water-proof plastic film package with foam protection in each corner of laser machine
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
