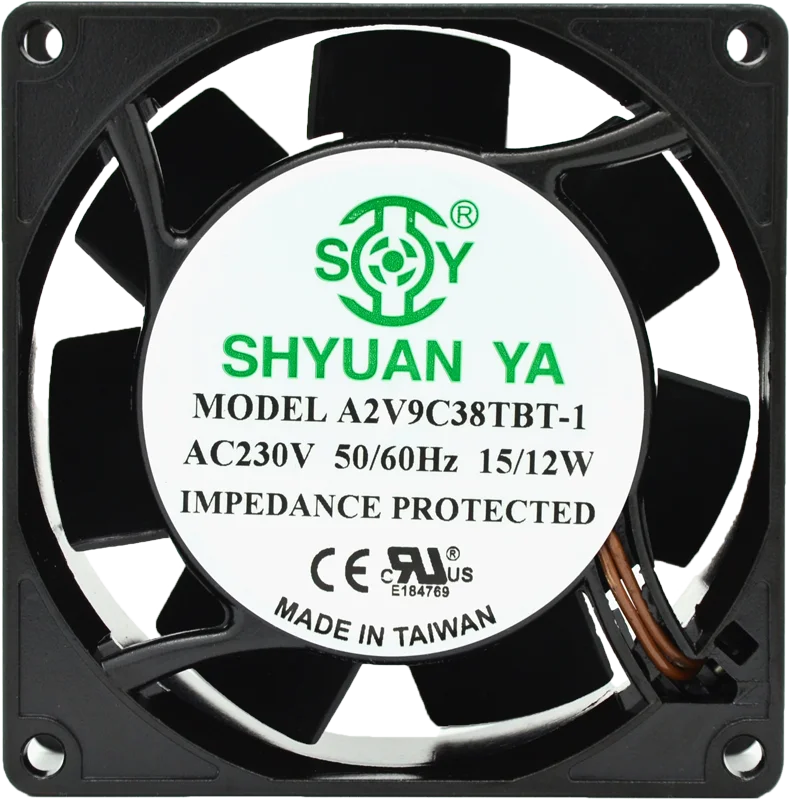

92x38mm Industrial Motor Solar Exhaust Blower Small Machine Ventilation Fan
- Category: >>>
- Supplier: LIANG HERNG ELEC MACH CO. LTD.
Share on (10000019762830):
Product Overview
Description
Specification | ||

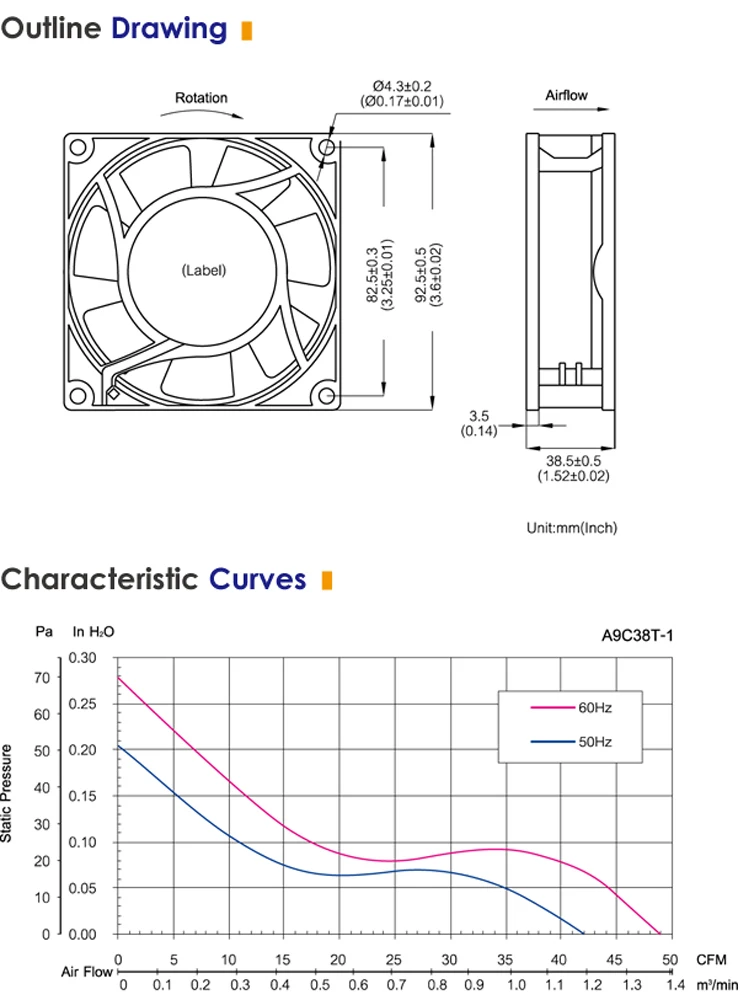

Air Flow | 42~49 CFM | |

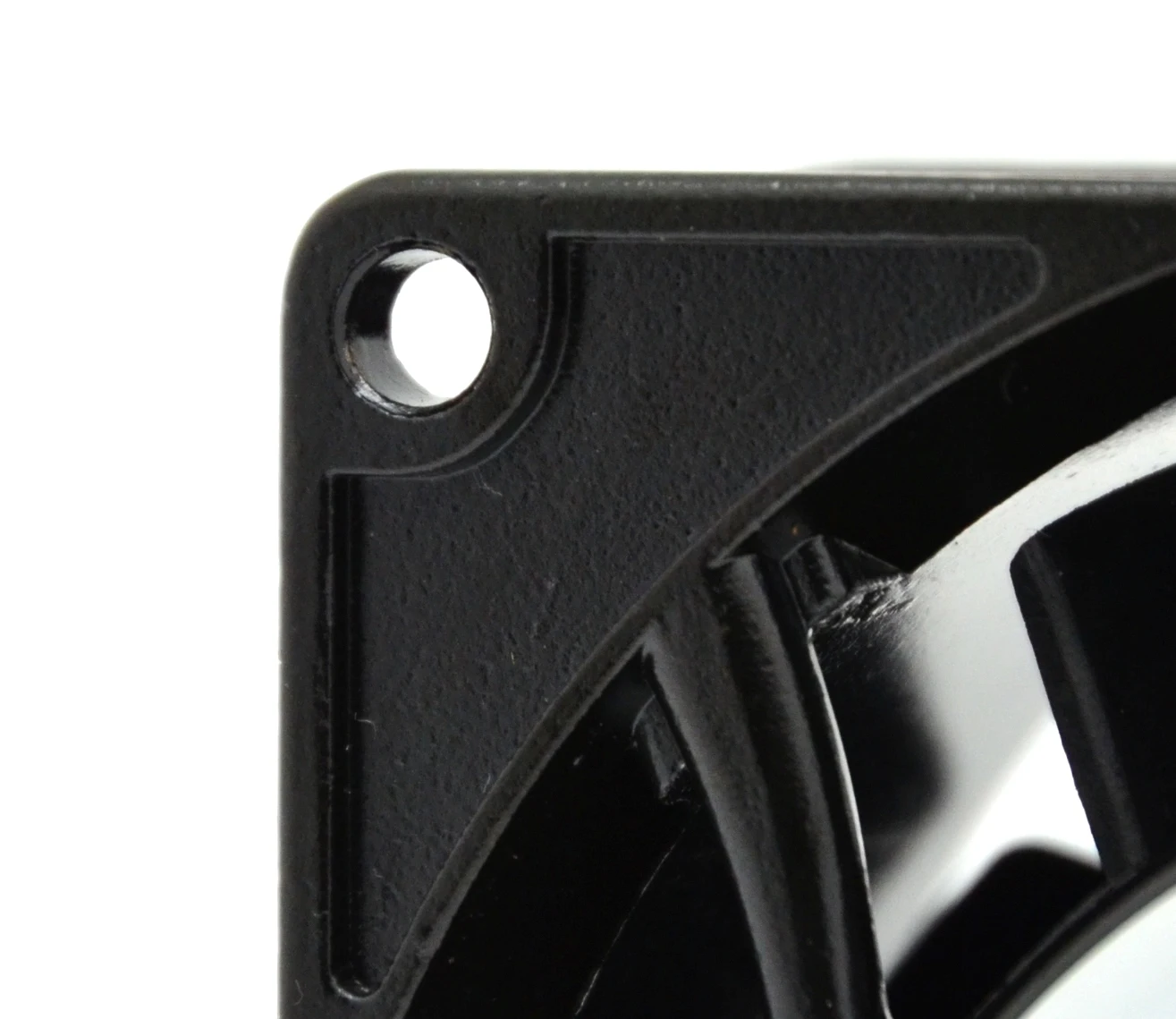

Housing | Die-Cast Aluminum | |
Impeller | Thermoplastic PBT, 94V-0 | |
Motor | Shaded-Pole Motor | |
Bearing | Ball or Sleeve | |

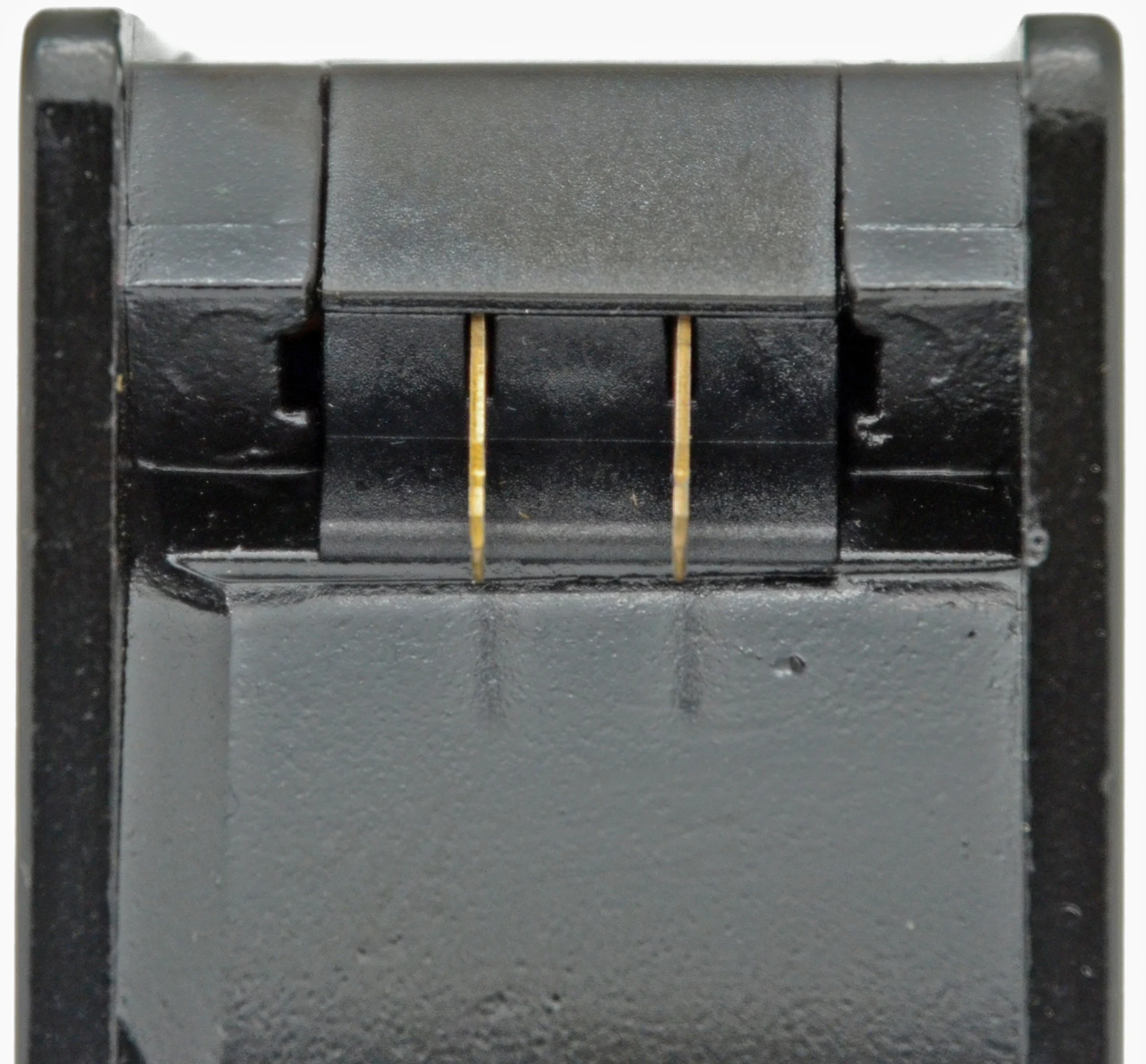

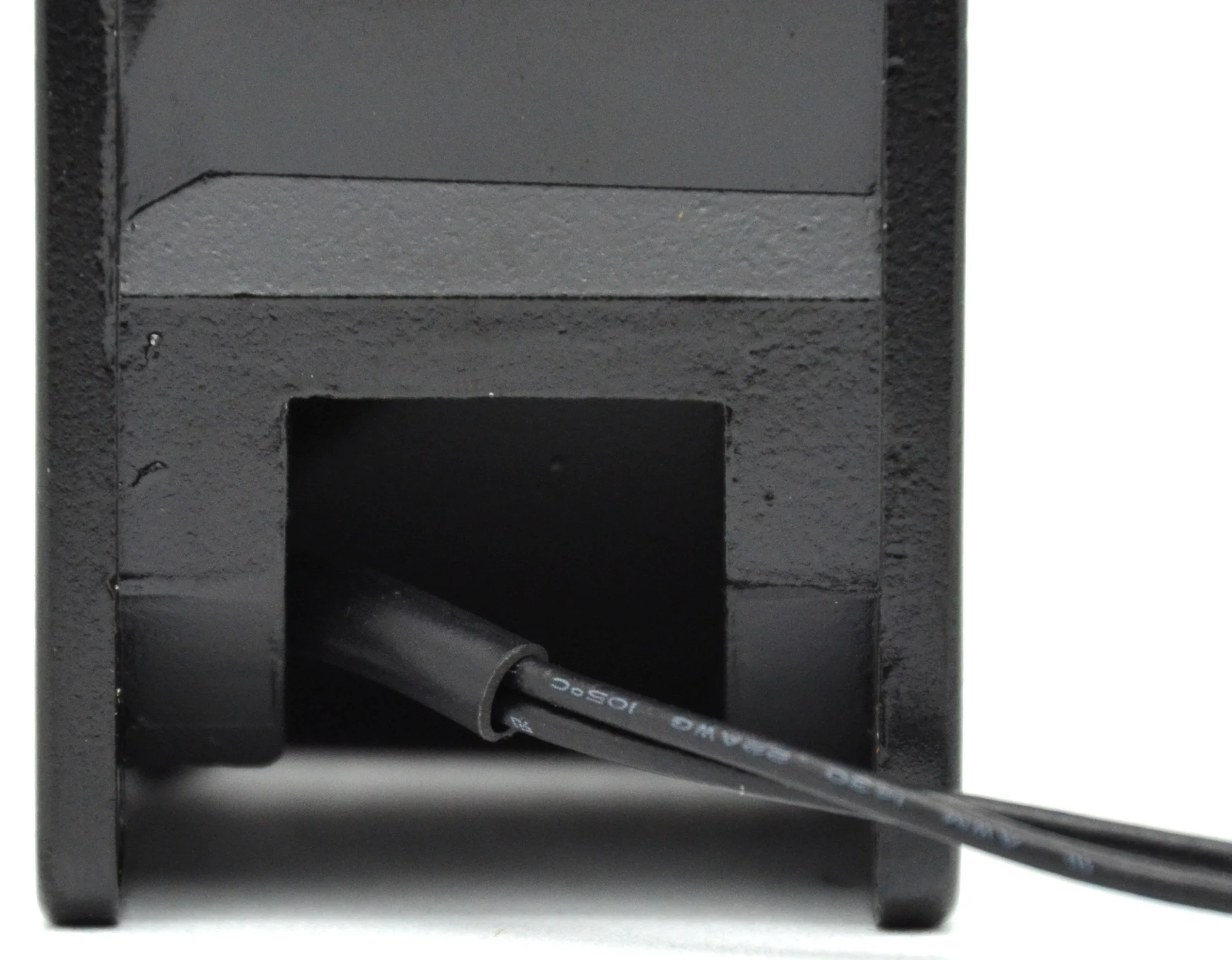

Termination | Terminals or Lead Wire 260mm 1430 AWG#22 | |
Insulation | Class “B” or “F” | |
Safety | Impedance Protected | |
Operating Temperature | -10°C to + 80°C | |
Certification | ce, RoHS, CUL | |
Related Products
Product Name | |||||
Air Flow | 18 ~ 22 CFM | 26 ~ 31 CFM | 30 ~ 36 CFM | ||
Housing | Die-Cast Aluminum, Painted Black | ||||
Impeller | Thermoplastic PBT, UL94V-0 | ||||
Motor | Shaded-Pole Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type | ||||
Product Name | |||||
Air Flow | 42~49 CFM | 61 ~ 72 CFM | 103 ~ 117 CFM | ||
Housing | Die-Cast Aluminum, Painted Black | ||||
Impeller | Thermoplastic PBT, UL94V-0 | ||||
Motor | Shaded-Pole Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type | ||||
Product Name | |||||
Air Flow | 107 ~ 123 CFM | 198 ~ 229 CFM | 178 ~230 CFM | ||
Housing | Die-Cast Aluminum, Painted Black | ||||
Impeller | Thermoplastic PBT, UL94V-0 | ||||
Motor | Shaded-Pole Motor | Capacitor Start Motor | Capacitor Start Motor / Shaded-Pole Motor | ||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type | -20°C to + 90°C | -20°C to + 80°C | ||
Product Name | |||||
Air Flow | 261 ~ 307 CFM | 342 ~ 394 CFM | 100 ~ 225 CFM | ||
Housing | Die-Cast Aluminum, Painted Black | ||||
Impeller | Injection Molded of Flame Retardant Polycarbonate, Black | Thermoplastic PBT, UL94V-0 | Thermoplastic PBT, UL94V-0 | ||
Motor | Capacitor Start Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to + 80°C | ||||
Product Name | |||
Air Flow | 376 ~ 434 CFM | 443 ~ 529 CFM | |
Housing | Die-Cast Aluminum, Painted Black | ||
Impeller | Injection Molded of Flame Retardant Polycarbonate, Black | Thermoplastic PBT, UL94V-0 | |
Motor | Capacitor Start Motor | ||
Insulation | Class “B” or “F” | ||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||
Operating Temperature | -20°C to + 80°C | -30°C to + 80°C | |
Questions & Answers
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
A: Generally, information about Size,Air Flow,Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
