20M3/H Low Rate Alkaline Water Electrolyzer Hydrogen Generator For Hydrogen Production
- Category: >>>
- Supplier: WOBO Industrial Group IncWOBO Inc
Share on (10000019798512):
Product Overview
Description
AEM PEM AWE SOEC ALK Alkaline Pure Water-electrolytic Hydrogen Making Equipment:
Fine Quality Hydrogen Gas Electricity Generator Alkaline Water-electrolytic Green Hydrogen Plant To Make Electric
Product Description
WATER ELECTROLYSIS HYDROGEN PRODUCTION TECHNOLOGY
The equipment utilizes water electrolysis to generate hydrogen and oxygen, separating them, and controls the hydrogen and oxygen levels to ensure the purity of the hydrogen gas. After hydrogen gas is washed, separated from liquid, and cooled, the product hydrogen gas is output.
It is flexible in application, offers high product purity, provides great operational flexibility, features simple equipment, and offers high levels of automation. It is suitable for various scenarios in industrial, commercial, and residential settings.
It is flexible in application, offers high product purity, provides great operational flexibility, features simple equipment, and offers high levels of automation. It is suitable for various scenarios in industrial, commercial, and residential settings.
Alkaline Water Electrolysis Hydrogen Production Hydrogenation Equipment Parameter | ||||||||||||||||
Specification | Working Pressure | Hydrogen Capacity | Oxygen Capacity | Rated total current | Rated Total Voltage | Hydrogen Purity | Oxygen Purity | Cooling Water Comsumption | ||||||||
WBHG5-3.2 | 3.2MPa | 5 Nm3/h | 2.5 Nm3/h | 740A | 34V | 99.999% | 99.999% | 1 t/h | ||||||||
WBHG10-3.2 | 3.2MPa | 10 Nm3/h | 5 Nm3/h | 740A | 66V | 99.999% | 99.999% | 2 t/h | ||||||||
WBHG20-1.6 | 1.6MPa | 20 Nm3/h | 10 Nm3/h | 1600A | 62V | 99.999% | 99.999% | 4 t/h | ||||||||
WBHG60-1.6 | 1.6MPa | 60 Nm3/h | 30 Nm3/h | 2800A | 104V | 99.999% | 99.999% | 12 t/h | ||||||||
WBHG100-1.6 | 1.6MPa | 100 Nm3/h | 50 Nm3/h | 4600A | 106V | 99.999% | 99.999% | 20 t/h | ||||||||
WBHG200-1.6 | 1.6MPa | 200 Nm3/h | 100 Nm3/h | 4600A | 210V | 99.999% | 99.999% | 40 t/h | ||||||||
WBHG250-1.6 | 1.6MPa | 250 Nm3/h | 125 Nm3/h | 7200A | 168V | 99.999% | 99.999% | 50 t/h | ||||||||
WBHG300-1.6 | 1.6MPa | 300 Nm3/h | 150 Nm3/h | 7200A | 202V | 99.999% | 99.999% | 60 t/h | ||||||||
WBHG500-1.6 | 1.6MPa | 500 Nm3/h | 250 Nm3/h | 13400A | 180V | 99.999% | 99.999% | 100 t/h | ||||||||
WBHG800-1.6 | 1.6MPa | 800 Nm3/h | 400 Nm3/h | 13400A | 288V | 99.999% | 99.999% | 160 t/h | ||||||||
WBHG1000-1.6 | 1.6MPa | 1000 Nm3/h | 500 Nm3/h | 17200A | 280V | 99.999% | 99.999% | 200 t/h | ||||||||
WBHG1200-1.6 | 1.6MPa | 1200 Nm3/h | 600 Nm3/h | 17200A | 336V | 99.999% | 99.999% | 240 t/h | ||||||||
Technical Features
1. The use of new polymer materials for sealing gaskets ensures the electrolyzer's tightness.
2. Employing asbestos-free separator cloths reduces energy consumption, promotes environmental friendliness, and eliminates carcinogens.
2. Employing asbestos-free separator cloths reduces energy consumption, promotes environmental friendliness, and eliminates carcinogens.
3. Eliminates the need for cleaning filters and offers other advantages.
4.Comprehensive interlocking alarm functions.
5. Utilizes independent PLC control with self-recovery functions in case of malfunctions.
6.Occupies a small footprint with a compact equipment layout.
7. Ensures stable operation with the capability for continuous operation throughout the year without shutdowns.
8. High level of automation enables unmanned operation on-site.
9. Provides smooth and safe operation with load adjustment flexibility from 20% to 120% flow rates.
10. Long equipment lifespan and high reliability.
10. Long equipment lifespan and high reliability.

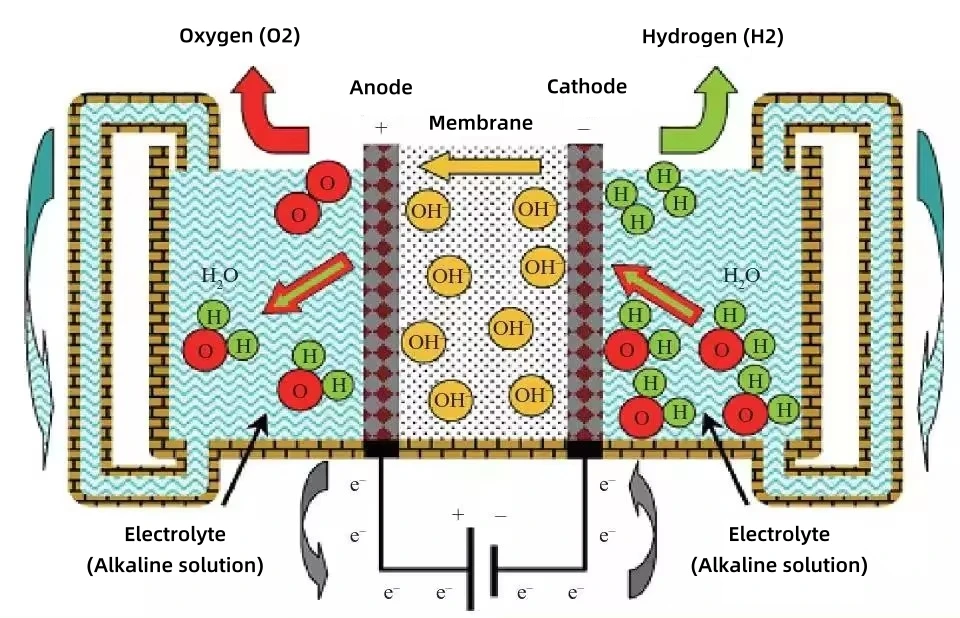

Technical Principle

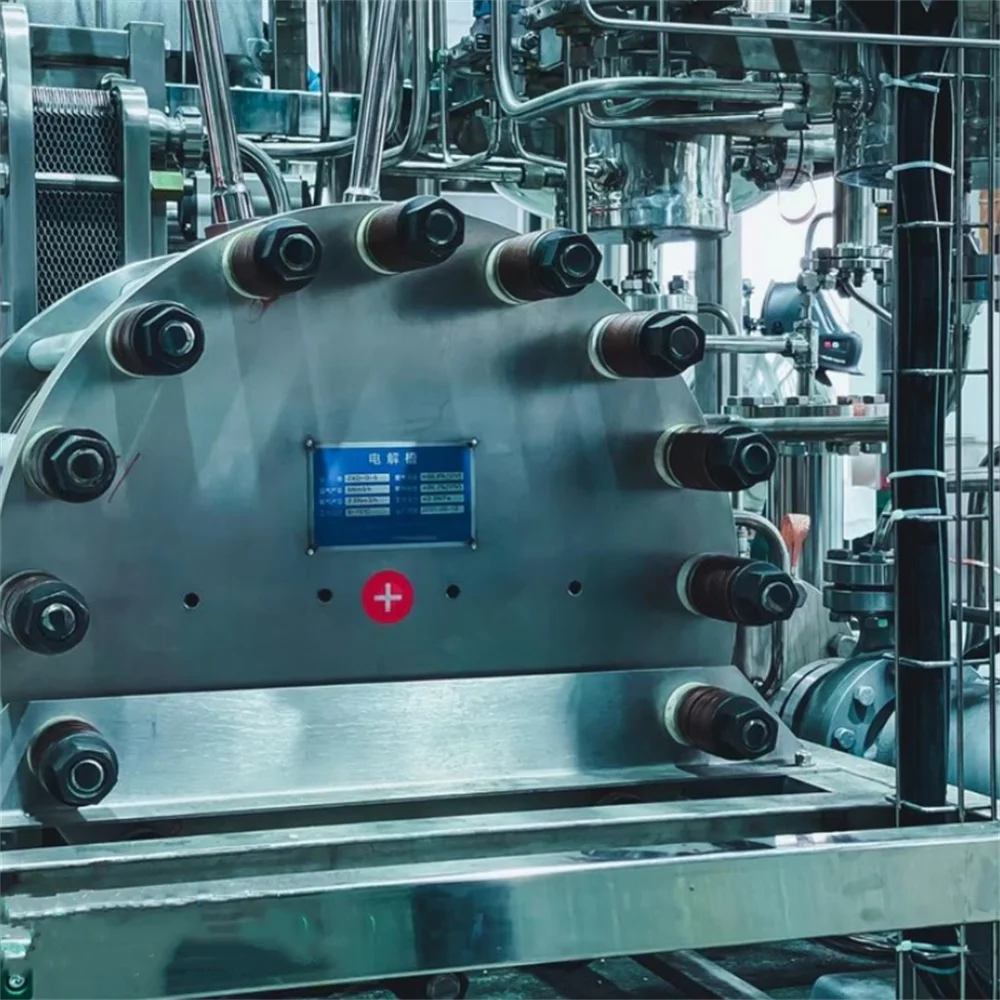

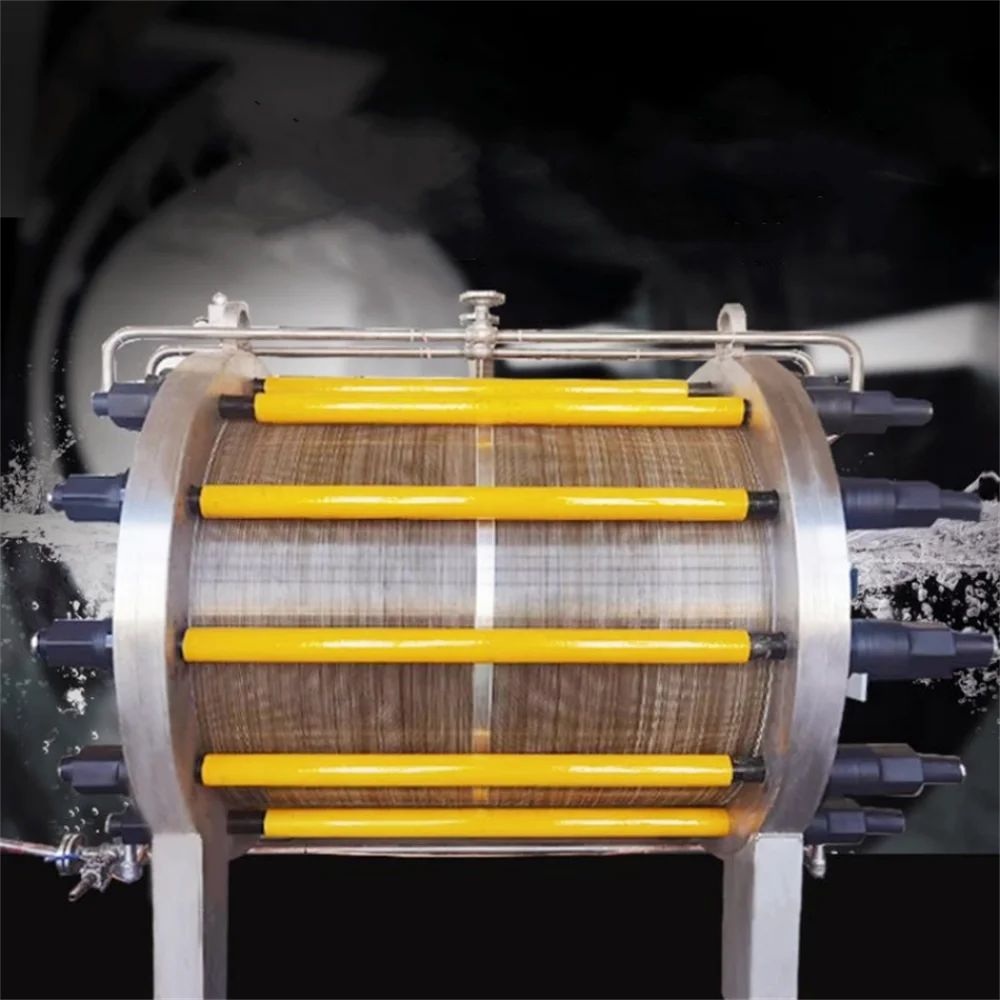

AWE Electrolyzer
When the electrolyzer is running, the electrolyte enters the electrolyzer from the inlet on the lower side, and the water is
electrolyzed into hydrogen and oxygen in each electrolytic cell. The mixture of hydrogen and electrolyte flows out from the outlet
on the hydrogen side, and the mixture of oxygen and electrolyte flows out from the outlet on the oxygen side.
electrolyzed into hydrogen and oxygen in each electrolytic cell. The mixture of hydrogen and electrolyte flows out from the outlet
on the hydrogen side, and the mixture of oxygen and electrolyte flows out from the outlet on the oxygen side.

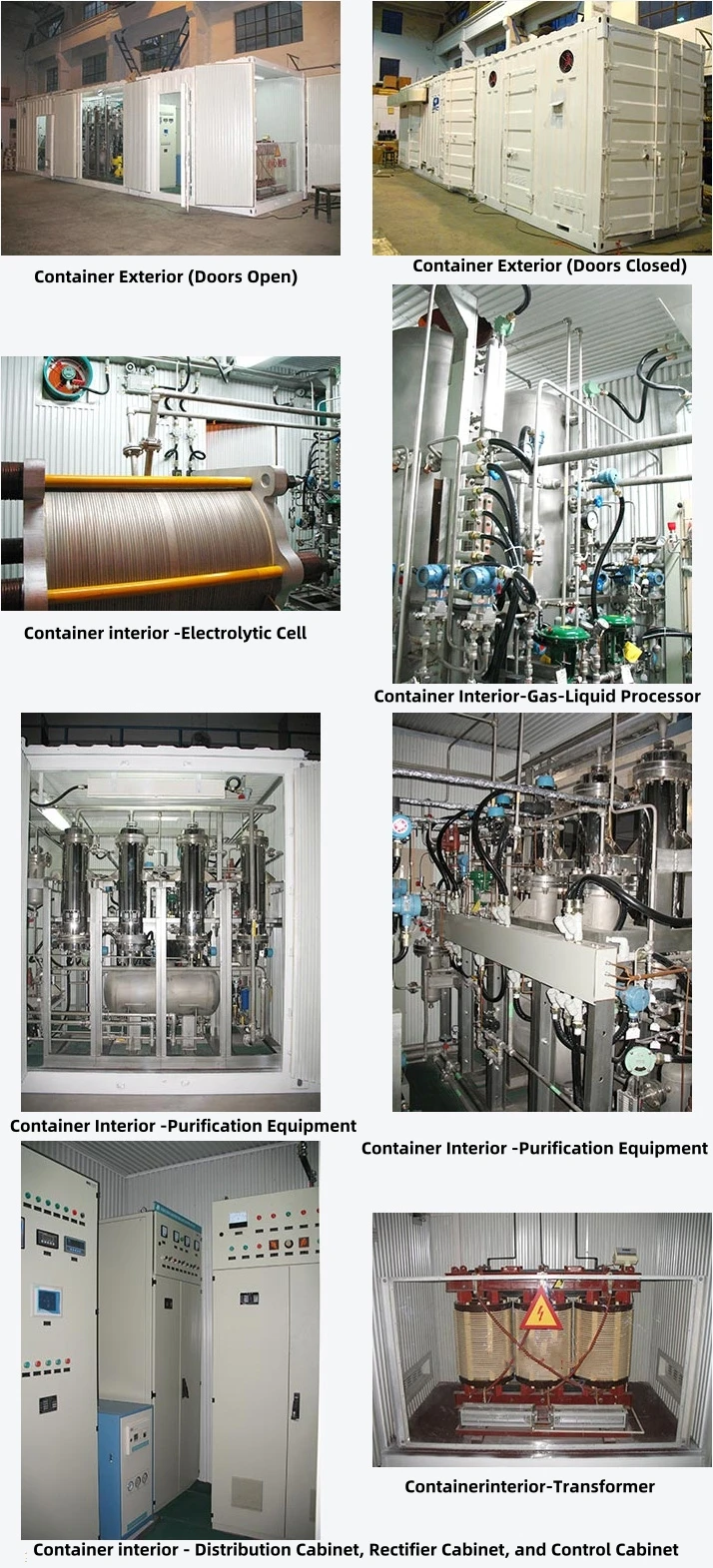

Project Case
Product Application
Water electrolysis hydrogen production equipment is crucial across multiple industries, including energy storage, hydrogen fuel cells, industrial processes, metal processing, renewable energy integration, electronics manufacturing, hydrogen refueling stations, environmental applications, and aerospace. This technology supports the transition to cleaner energy sources, reduces carbon emissions, and advances industrial and transportation sectors.
