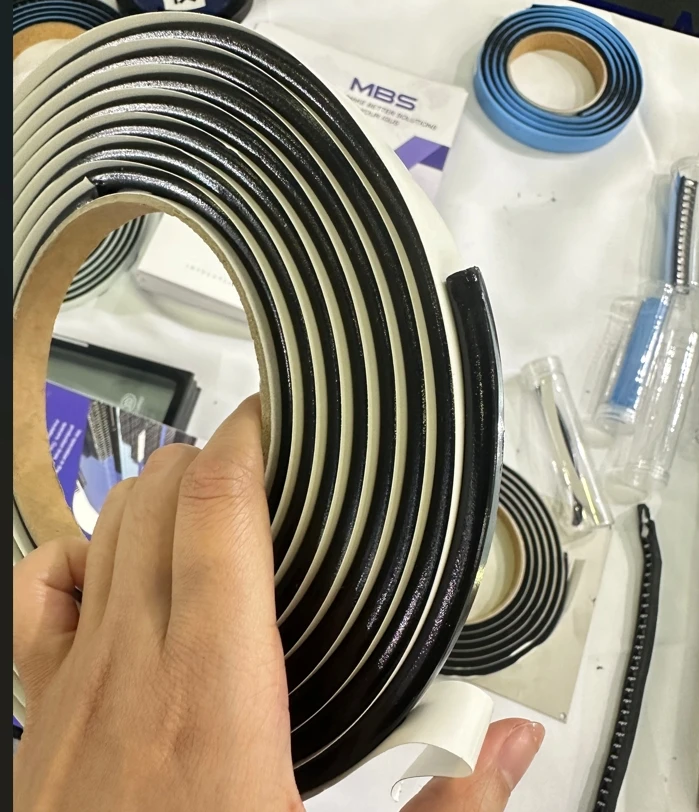

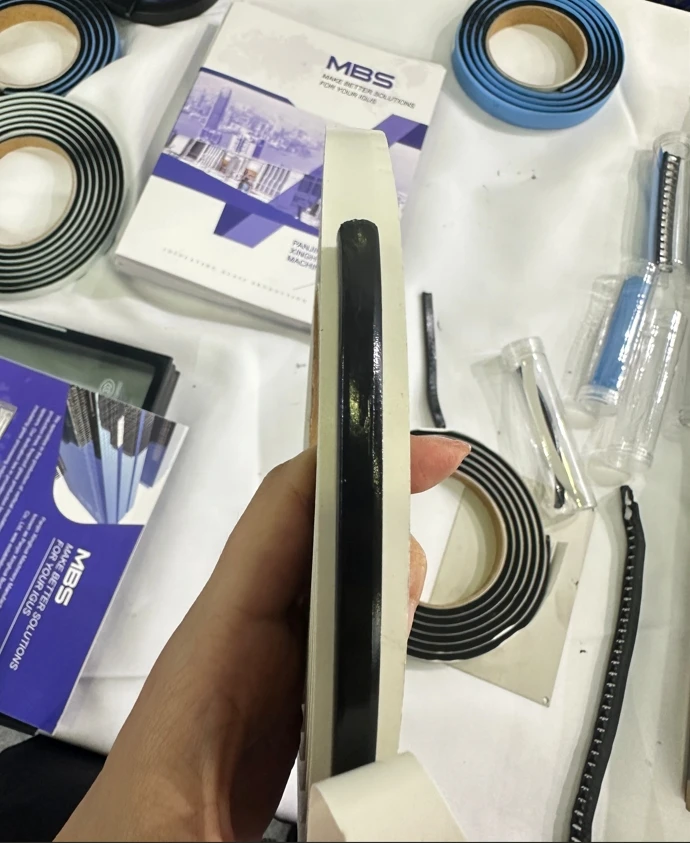

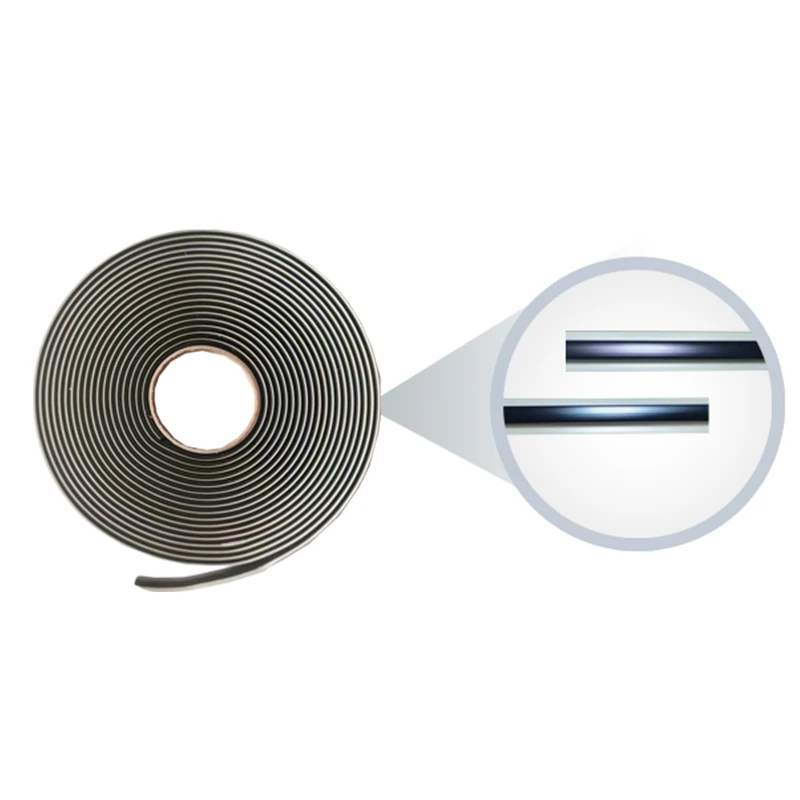

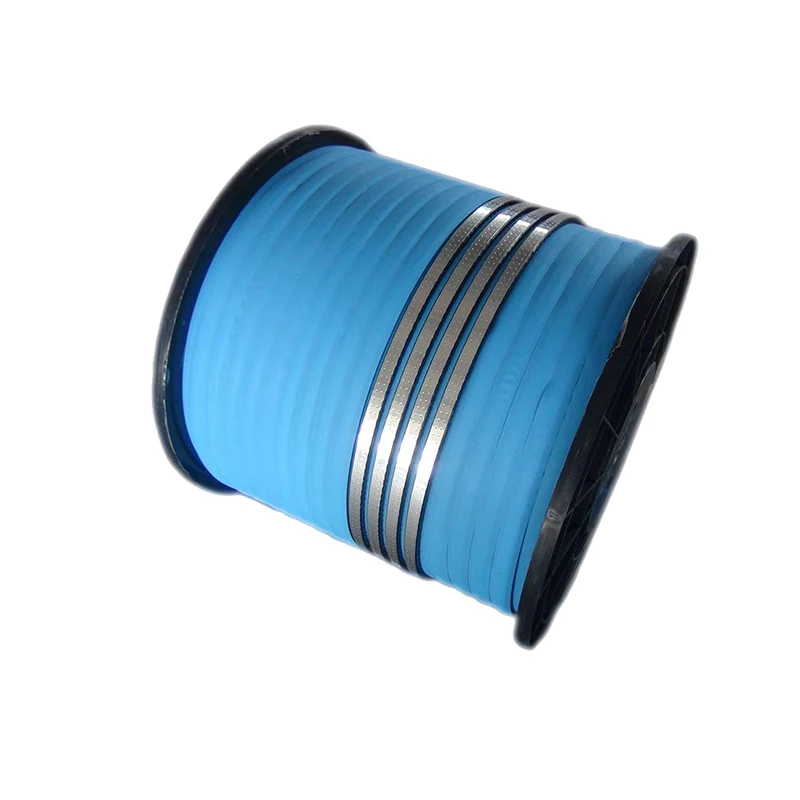

MBS Flexible Fireproof Glass Spacer for Fireproof Glass
- Category: >>>
- Supplier: Panjin Xinghua Machine Manufacturing Co. Ltd.
Share on (10000019843140):
Product Overview
Description
Horizontal Insulating Fireproof Glass Production Line
Product Overview
Features of Horizontal Insulating Fireproof Glass Production Line:

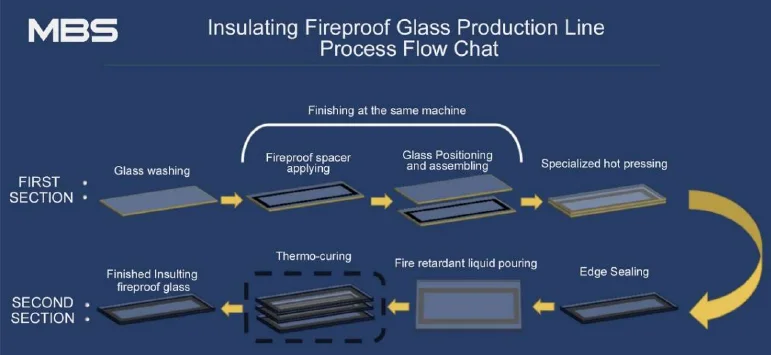

1. The MBS Horizontal Insulting Fireproof glass production line is controlled by the industrial computer system with human machine interface operation and multi axis servo motor drive can achieve automatic glass cleaning, automatic glass transmission, automatic spacer applying, automatic replacement of suction cups, multi-layer glass automatic lamination, intelligent tracking heating press with 14 pairs of progressive pressing rollers. High degree of automation.
2. Touch screen operation interface. It can easily switchbetween automatic and manual operations to complete various parameter settings and modifications.
3. The conveyor has added side loading glass function and pause inspection function to reduce the uncleaned glass automatic entering the lamination section.
4. Automatic spacer applicator can automatically complete the 3-20mm fireproof sealing spacer application and insulating assembling process based on the automatic measurement of glass size, all spacer’s position is completely consistent with perfect assembling accuracy.
5. The suction cup automatic replacement system automatically replaces suction cups according to the size of the glass, which is convenient, fast, safe, and reliable.
6. Intelligent tracking heating system automatically heats the glass edges spacers by radiation according to the glass size, ensuring uniform heating of multi-layer glass spacers to achieve higher bonding effect.
7. Adopting 14 pairs of nitrile rubber pressure rollers for gradual pressing, servo driven automatic adjustment of pressing height, with high pressing accuracy.
3. The conveyor has added side loading glass function and pause inspection function to reduce the uncleaned glass automatic entering the lamination section.
4. Automatic spacer applicator can automatically complete the 3-20mm fireproof sealing spacer application and insulating assembling process based on the automatic measurement of glass size, all spacer’s position is completely consistent with perfect assembling accuracy.
5. The suction cup automatic replacement system automatically replaces suction cups according to the size of the glass, which is convenient, fast, safe, and reliable.
6. Intelligent tracking heating system automatically heats the glass edges spacers by radiation according to the glass size, ensuring uniform heating of multi-layer glass spacers to achieve higher bonding effect.
7. Adopting 14 pairs of nitrile rubber pressure rollers for gradual pressing, servo driven automatic adjustment of pressing height, with high pressing accuracy.
8. The entire production line adopts FCS to ensuring smooth and reliable operation.
Product Paramenters
Specification | F1820 | F2025 | F2532 | ||
Size: length*width*height (m) | 18 * 4 * 3.2 | 20 * 4.5 * 3.2 | 22 * 5 * 3.2 | ||
Max Glass (mm) | 1800 * 2000 | 2000 * 25000 | 2500 * 3200 | ||
Min Glass (mm) | 400 * 400 | 400 * 400 | 400 * 400 | ||
Electrical Power | 90 KW | 90KW | |||
IGUs thickness | 12-50mm | ||||
Conveying Speed | 0-45m/min | 0 - 45m/min | 0 - 45m/min | ||
IG Types | Double/Triple glazing glass fireproof glass | ||||
Production Time | 50 Days | ||||
FAQ
Q1: Are you a manufacturer?
Yes, we have our own worshop in Panjin city. We are the professional insulating glass processing machines manufacturer with 20 years experience.
Q2: What do you supply?
Q3: How about the service ?
1). Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2). Our professional technicians will install and adjust the line at your plant and help train the workers.
3). 24-7 online technical support after sale. Point-to-point service help you solve the problems timely.
Q4: What's the guarantee ?
1). Our guarantee for 12 months.
2). Life time parts repair and replacement
Yes, we have our own worshop in Panjin city. We are the professional insulating glass processing machines manufacturer with 20 years experience.
Q2: What do you supply?
We are specialized in manufacturing glass spacers for different glass, and glass machines like vertical and horizontal warm-edge insulating glass production lines, fireproof glass production lines, and inlaid glass production lines, etc. Furthermore, we are also selling full range of related accessories for glass production line.
Q3: How about the service ?
1). Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2). Our professional technicians will install and adjust the line at your plant and help train the workers.
3). 24-7 online technical support after sale. Point-to-point service help you solve the problems timely.
Q4: What's the guarantee ?
1). Our guarantee for 12 months.
2). Life time parts repair and replacement
