Product Overview
Description
Specification

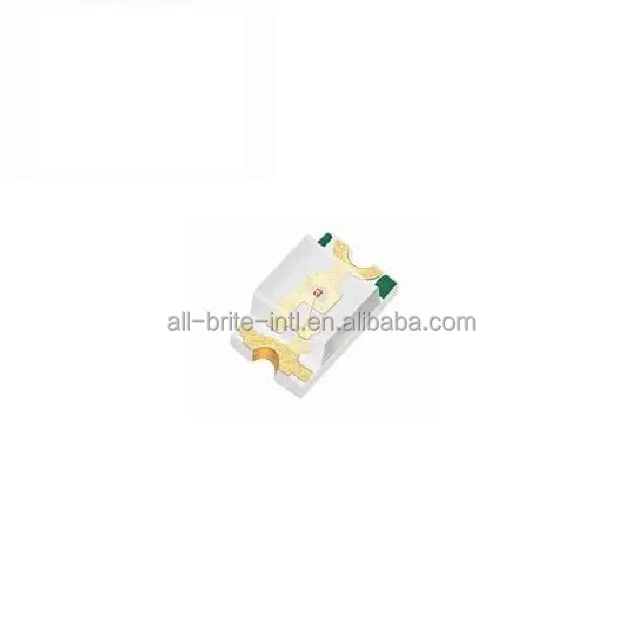

1206 Photo Transistor 940nm LED
A1206T-20LPT942AA-A
Product Description
Applications
* Top view, wide view angle, single color Chip LED.

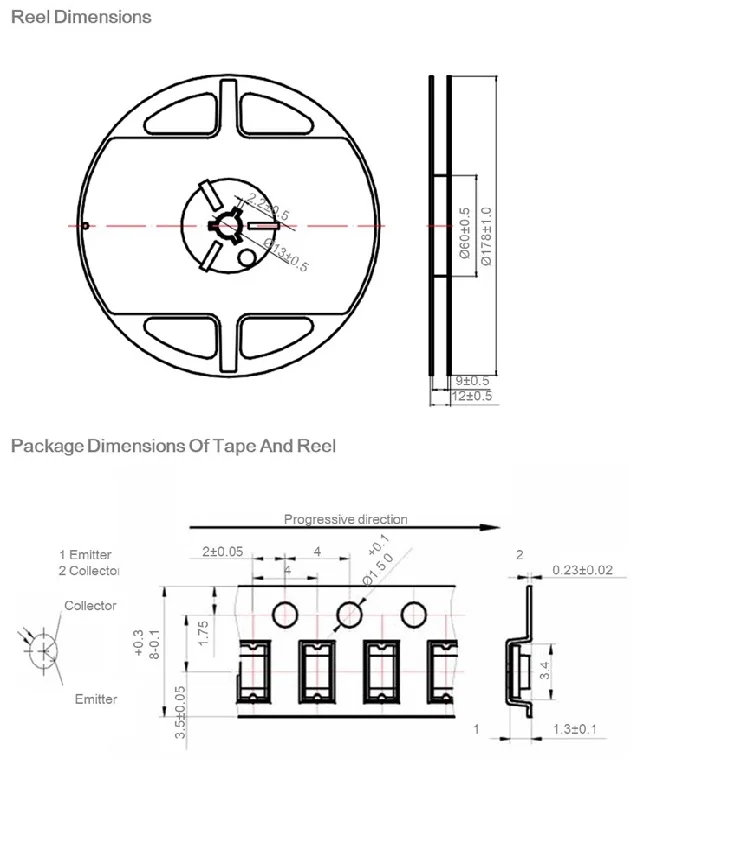

*Package in 8mm tape on 7" diameter reels.
*Compatible with automatic Pick & Place equipment.
*Compatible with Infrared and Wave soldering reflow solder processes.
*EIA STD package.
*I.C. compatible.
*Pb free product.
*Meet RoHS Green Product.
*Moisture sensitivity level: 3
*Package in 8mm tape on 7" diameter reels.
*Compatible with automatic Pick & Place equipment.
*Compatible with Infrared and Wave soldering reflow solder processes.
*EIA STD package.
*I.C. compatible.
*Pb free product.
*Meet RoHS Green Product.
*Moisture sensitivity level: 3

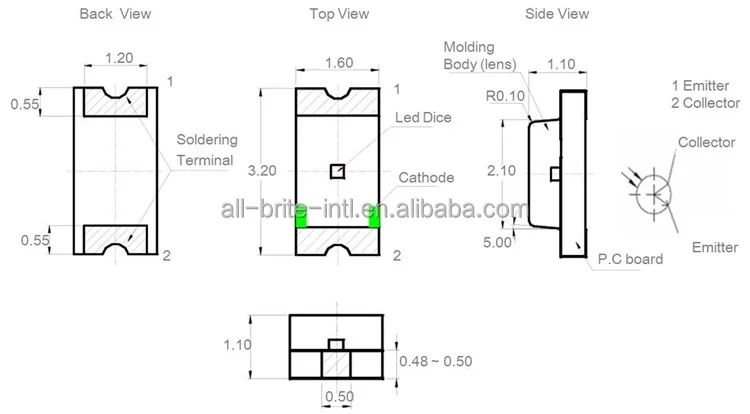

Package Outline Dimensions

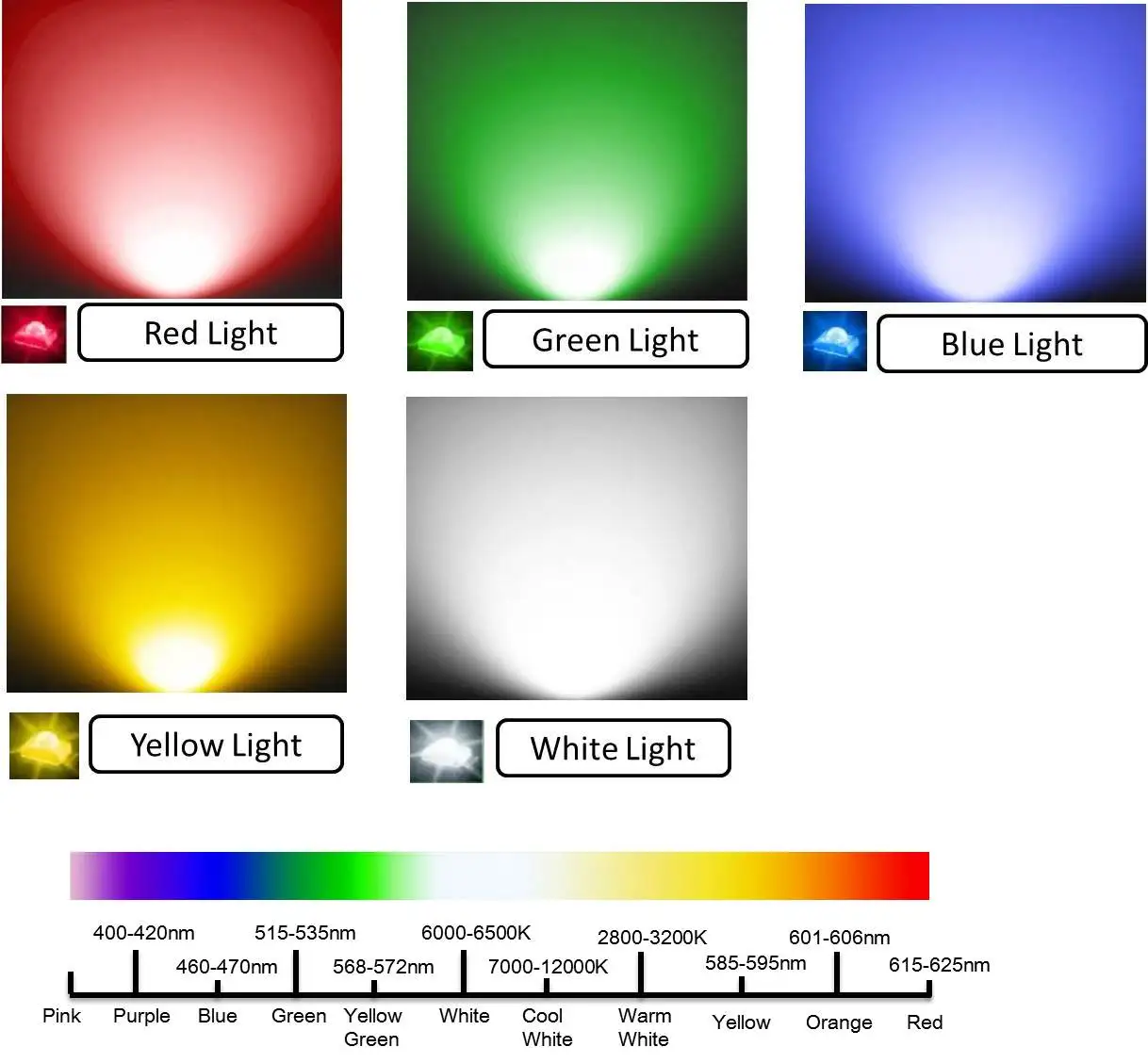

Luminous Color
Absolute Maximum Ratings(Ta=25℃)
Parameter | Symbol | Rating | Unit | |
Power Dissipation Per Chip | PD | 100 | mW | |
Collector-Emitter Voltage | V(BR)CEO | 30 | mV | |
Operating Temperature Range | Topr | -40℃ to 85℃ | ||
Storage Temperature Range | Tstg | -40℃ to 85℃ | ||

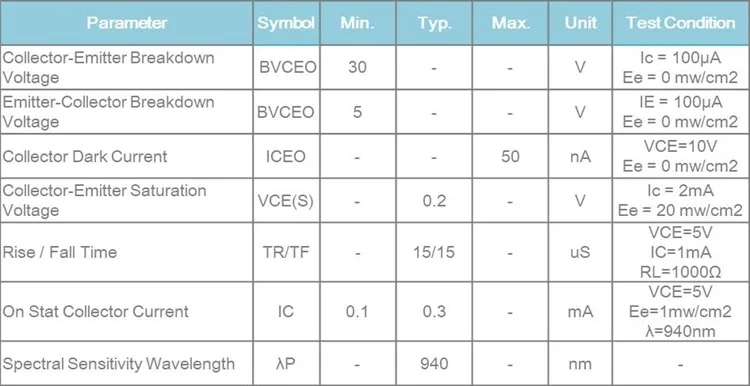

Electro-Optical Characteristics(Ta=25℃)
Application
Recommended Products
Company Information
All Brite International
All Brite International is founded by a group of highly experienced professionals who are passionate with LED lighting industry. We are aiming to develop a series of innovative LED lighting products to accelerate the market acceptance of LED lighting products, and further to take over the traditional lighting products.
Our competitive advantage mainly comes from a combination of seasoned product development engineers and highly effective production facilities. In addition to that, we provide a total solution of LED Lighting by applying our core advantage in Thermal, Electrical, Mechanical and Optical parts. Benefit from LED's continue improving cost-efficiency, we will dedicate our effort and creativity to develop LED application products to meet market demand.
Custom-Made LED Modules/Lights (ODM Service)
1. Prototype Development : We provide comprehensive LED lighting solution as well as development of new lighting applications to our customers. Based on client's requirement we provide quick design and small quantity samples for client to review their design before mass production.
2. Mass production Service: We assist our customers to applied LED into application products in different fields
2. Mass production Service: We assist our customers to applied LED into application products in different fields
LED Module/Products Assembly Service (OEM Service)
We adopt customers’ design and provide assistance starting from materials purchasing, to module assembling to end-items assembling. We will utilize our leading LED knows-how on top of our efficient production facilities and tight budget control. As a result, we are able to provide our customers low cost yet high quality OEM service.
Architectural Lighting Project Support
We will act according to customers’ specific needs, manage an architectural lighting project. Starting from selection of lighting sources, Lighting Fixture and development of control system. We provide customers a tailor-made architectural lighting project solution.
Certifications
Payment Terms
We accept official Bank Wire transfer and for sample amount payment customer can use
Paypal, Western Union, Alipay and Ecrow ...etc.
Shipping Delivery
We can ship by Courier Service such as Fedex, DHL, TNT, UPS EMS ...etc.
Also, Air Freight and Sea Freight depends on clients needs.
FAQ
Q1. Sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Lead time?
A:1-2 weeks depends on different items
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q5. How to process an order?
A: please kindly contact us for more detail
