Product Overview
Description
Product Description
The gummy candy line was specially innovated by our R&D department according to the market, which can produce gummywith multiple shapes and variety colors on base of advanced technology process. It is an ideal machine to produce superiorquality gummy candy of single color and double color; By change-over molds or depositors, different color and different shape of gummy can be also produced. The on-line mixer achieves the quantitative dosing and mixing of the flavor, color and acid. High degree of automation can produce super quality of gummy, at the same time it saves the manpower and the space occupation.

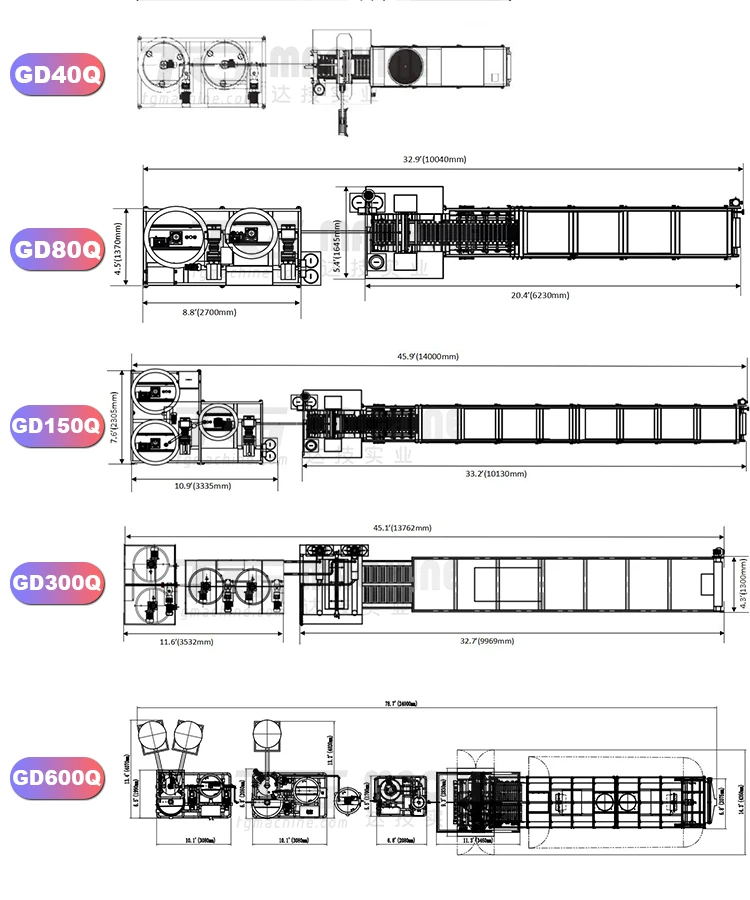

Model | GD150Q | GD300Q | GD450Q | GD600Q | |||
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h | |||
Candy Weight | According to the size of candy | ||||||
Working Condition | 20~25° temperature humidity 55% | ||||||
Electric Power Needed | 16kw/380v | 26kw/380v | 32kw/380v | 36kw/380v | |||
Total Length | 18m | 20m | 20m | 22m | |||
Weight Of Machine | 3000kg | 4500kg | 5000kg | 6000kg | |||

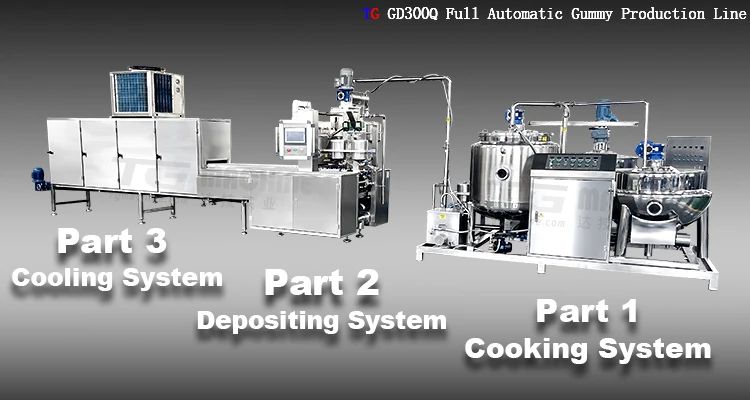

Product Detail

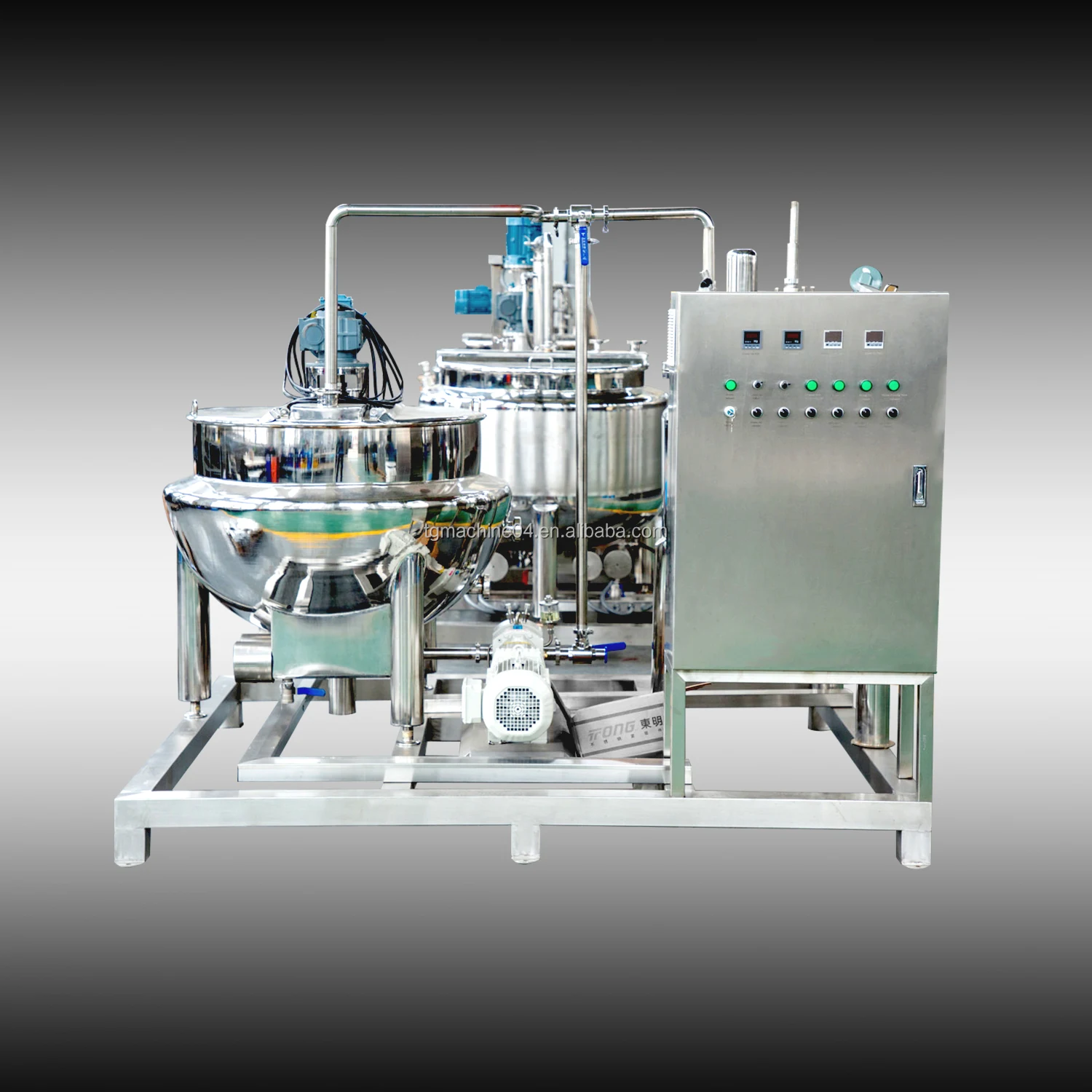

Part 1:Cooking System
Cooking system is consists of jacket cooker and storage tank.Jacket cooker can dissolve sugar and maltose rapidly, reach full uniform effects of dissolving Storage tank is used to storage liquid and decrease the temperature of liquid.

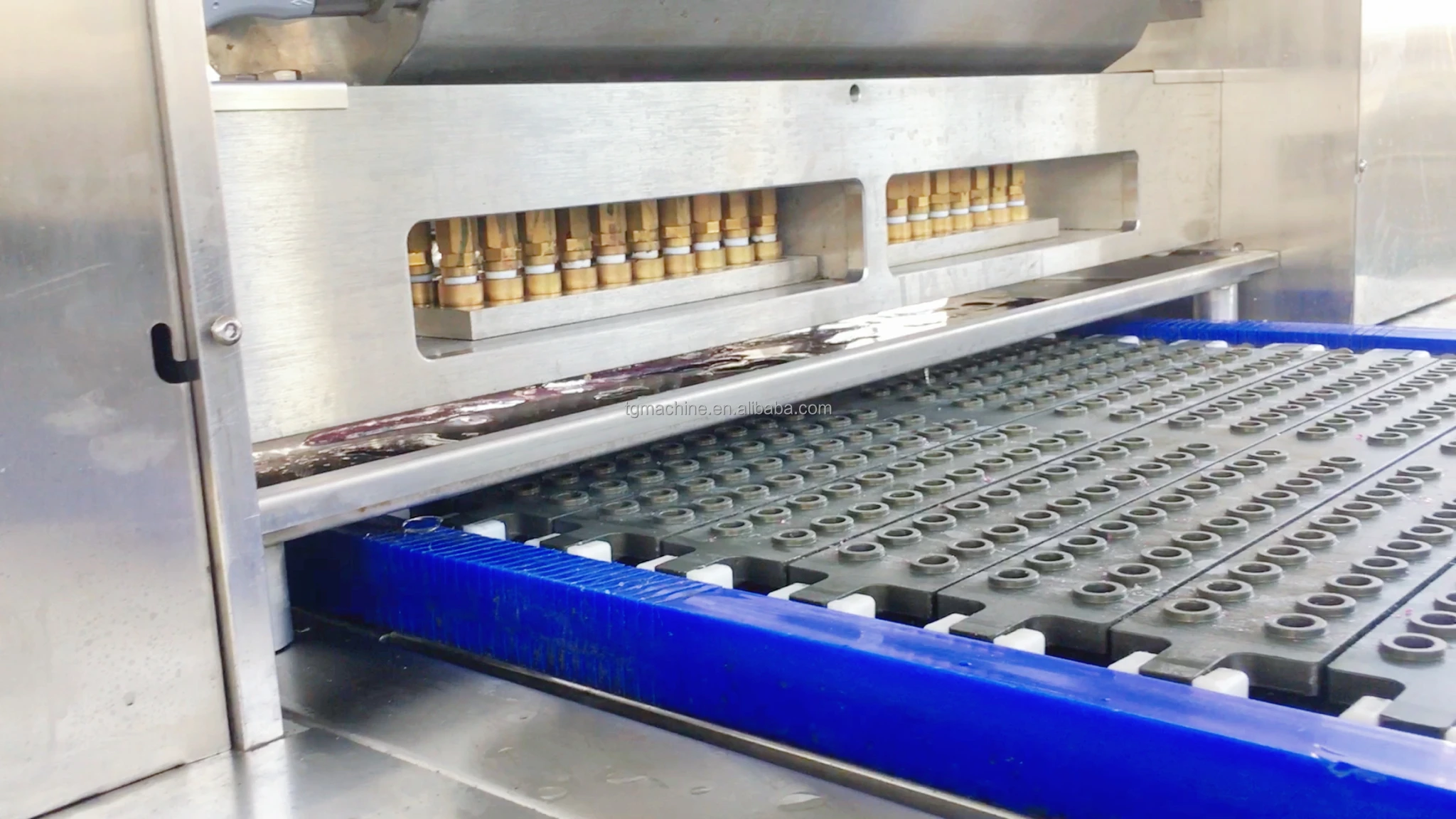

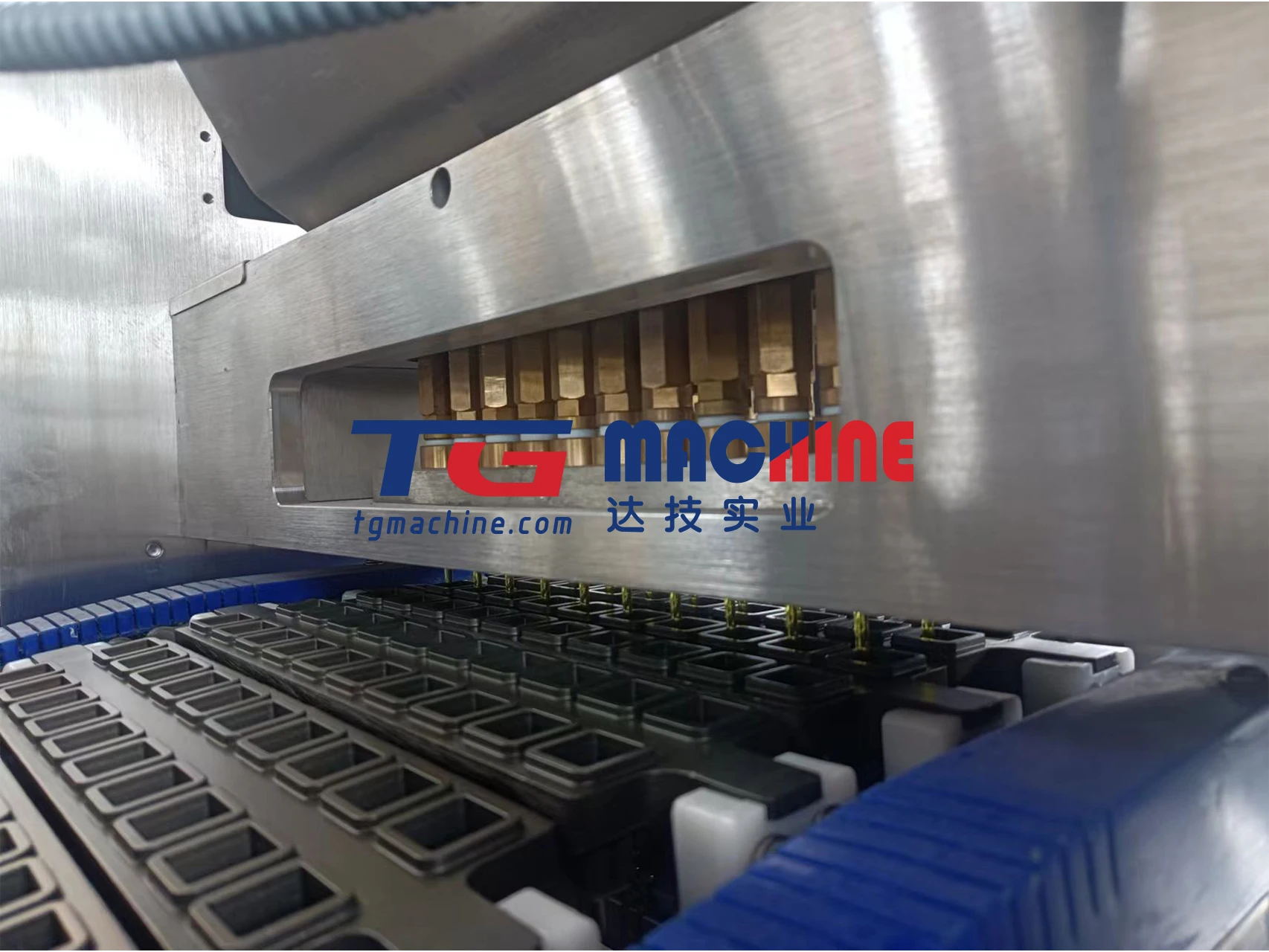

Part2:Depositing System
High accuracy fabrication technology for deposit piston and copper makes the same candy weight.Flavor and color mixer can effectively mix flavor color and other ingredients.The an oil-spraying machine makes the candy easier to demold.

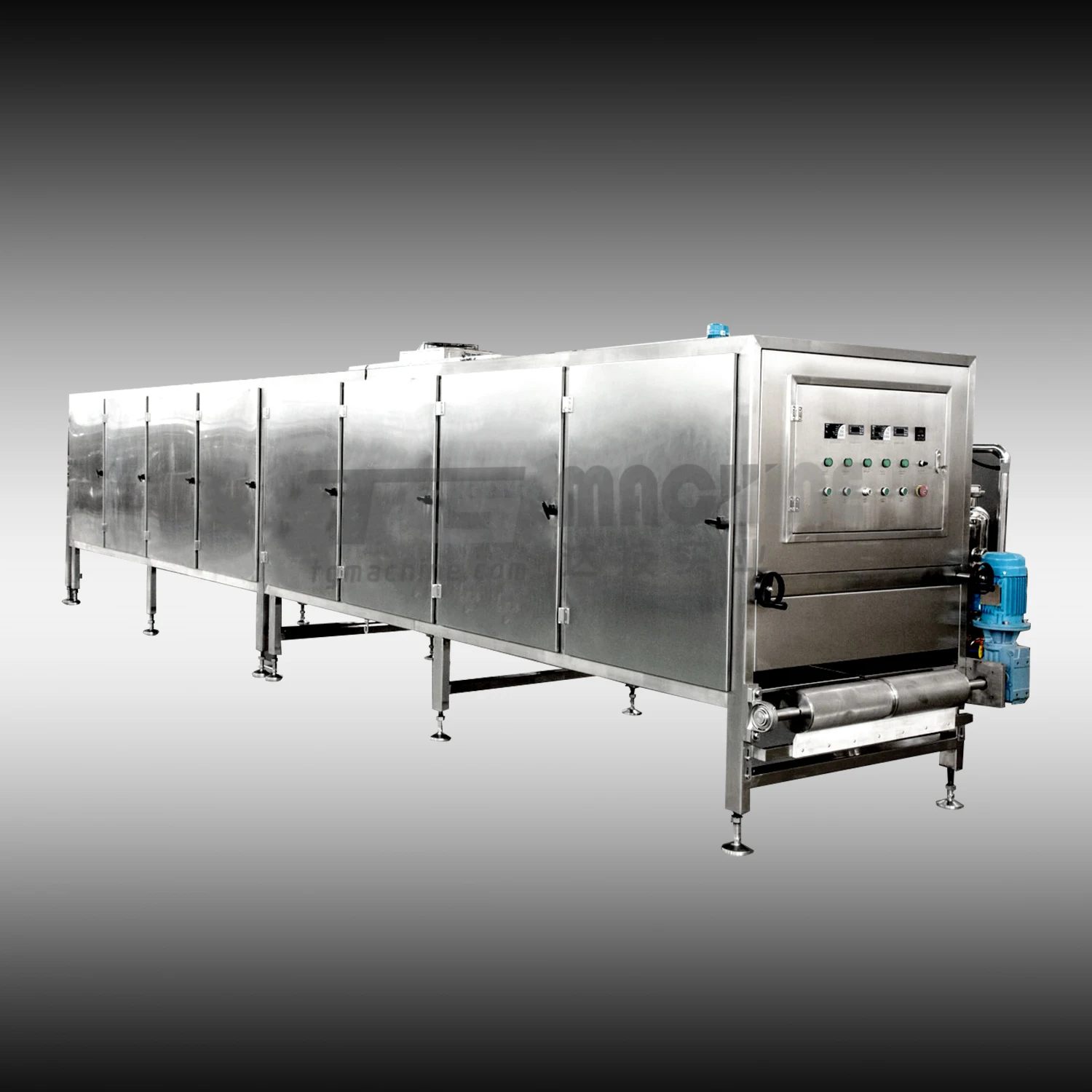

Part3:Cooling System
The cooling system is used to cool the temperature of the candy.Stable running with low noise and long life. it is much stronger than other factory with 1mm or 2mm thickness frame.
Other Parts

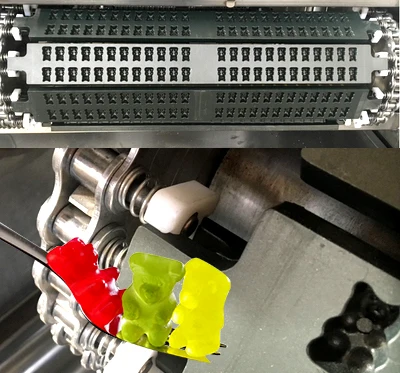

Pour the boiled syrup into the hopper and deposit it into the mold.

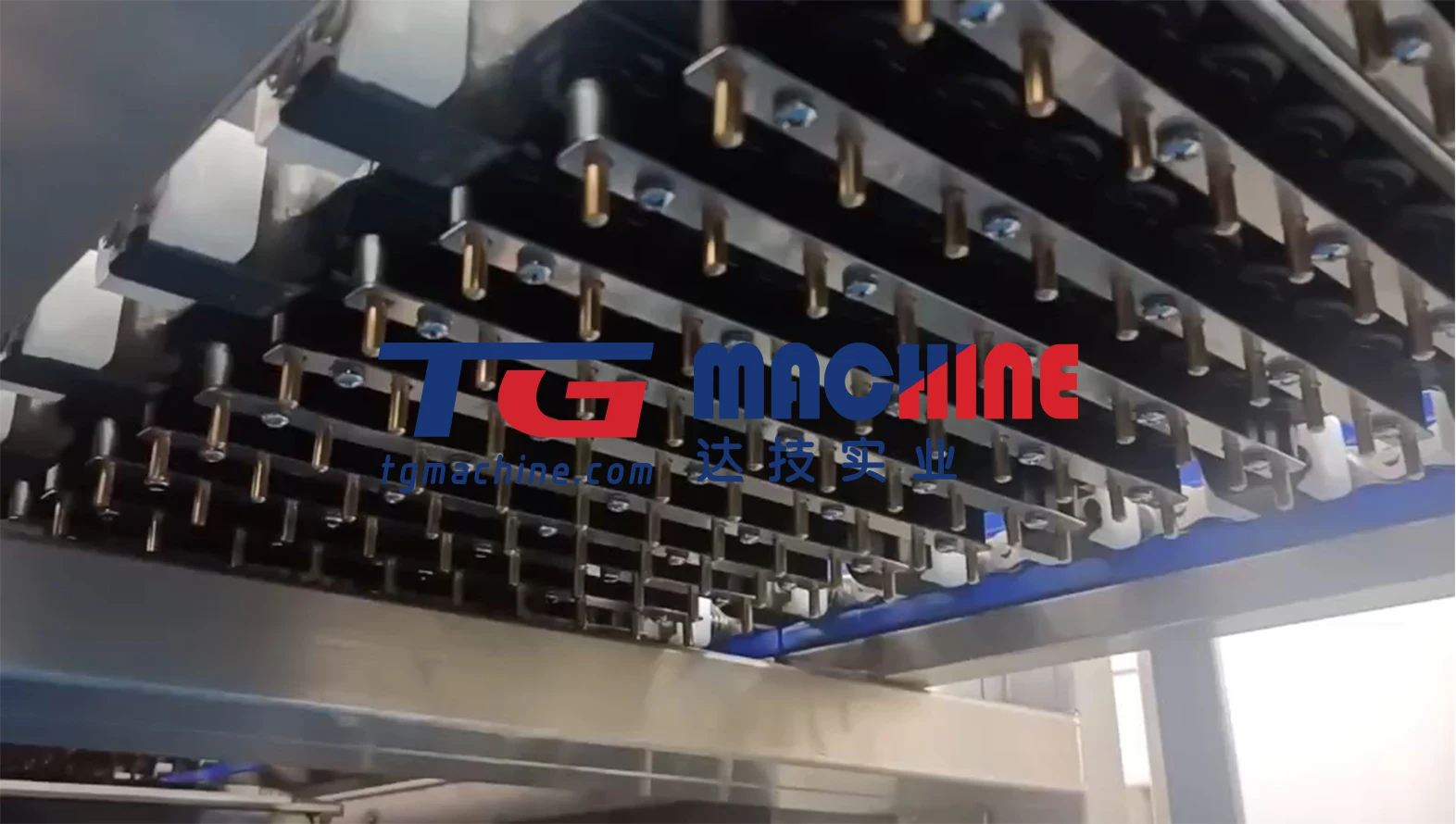

After cooling, the mold will be extruded, and then the candy will be extruded.

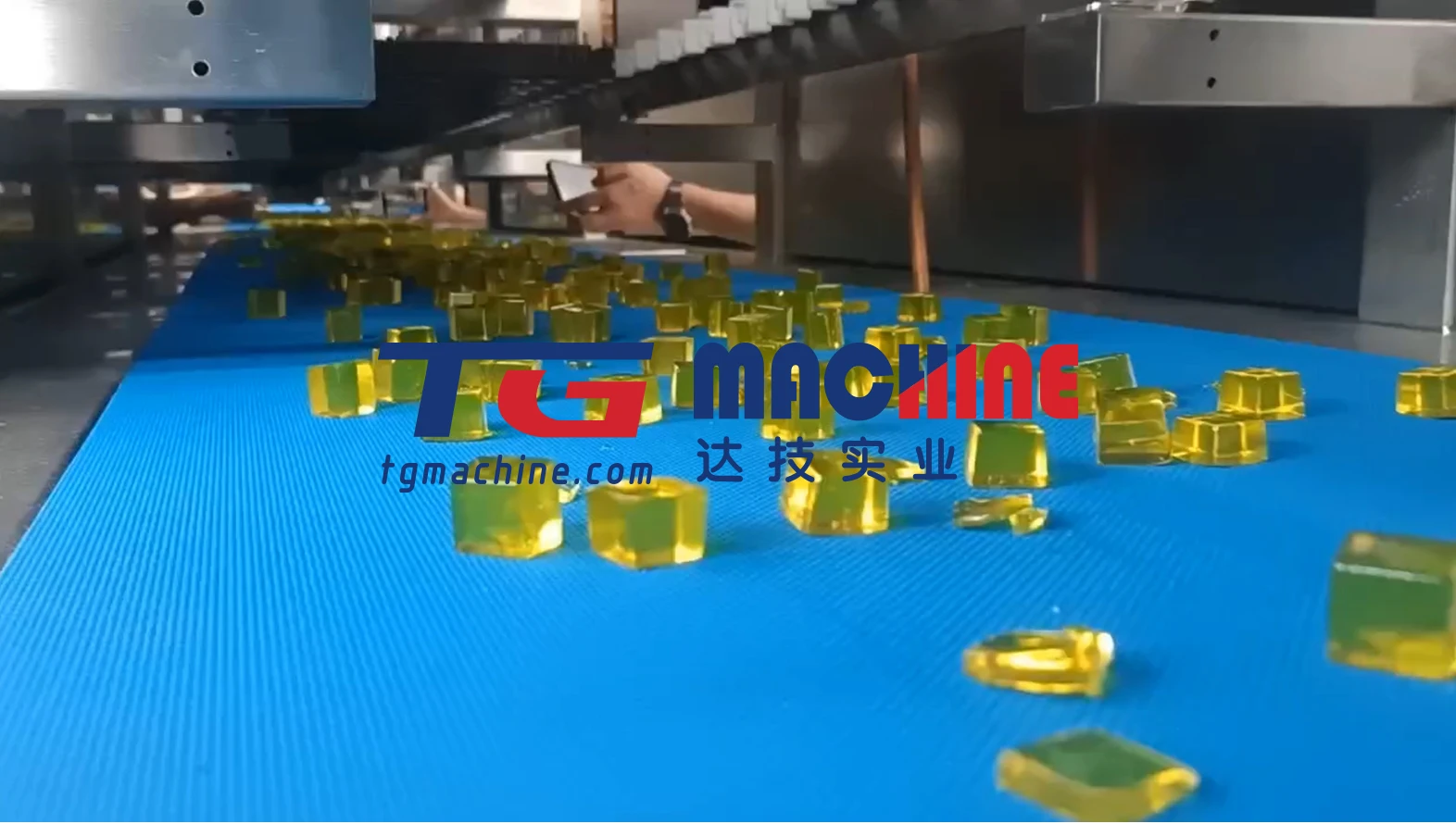

The gummy candy is sent to the outlet by the conveyor belt, during which it will be cooled again.
The finished gummy candy falls into a special plastic plate and is collected.

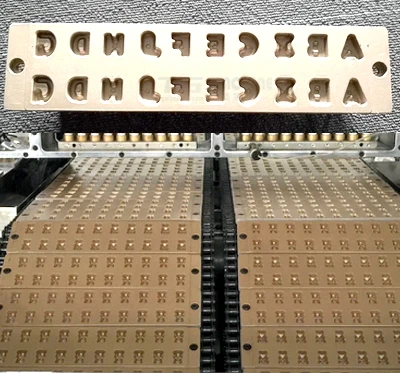

TG Machine Department of candy mold manutacturing is specialized in design, aluminum alloy molds, silicone molds and food-grade PC molds.development, manutacturing and global sales of aluminum alloy molds,silicone molds and tood-grade PC molds. They always gives top priority tocustomers' demands. Our experts provide you with technical support,technical advisory, solutions, timely communication and short delivery time at any time.

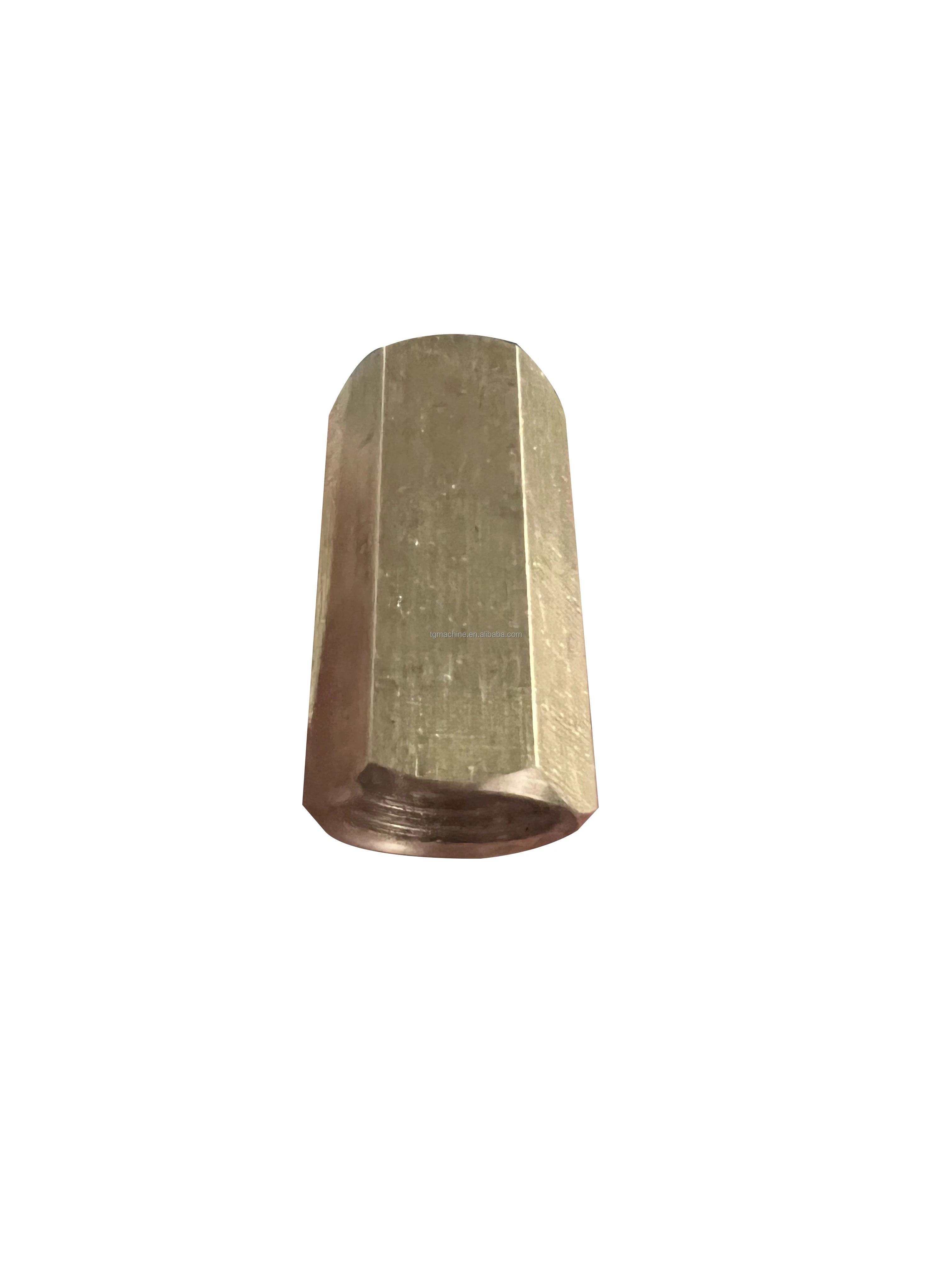

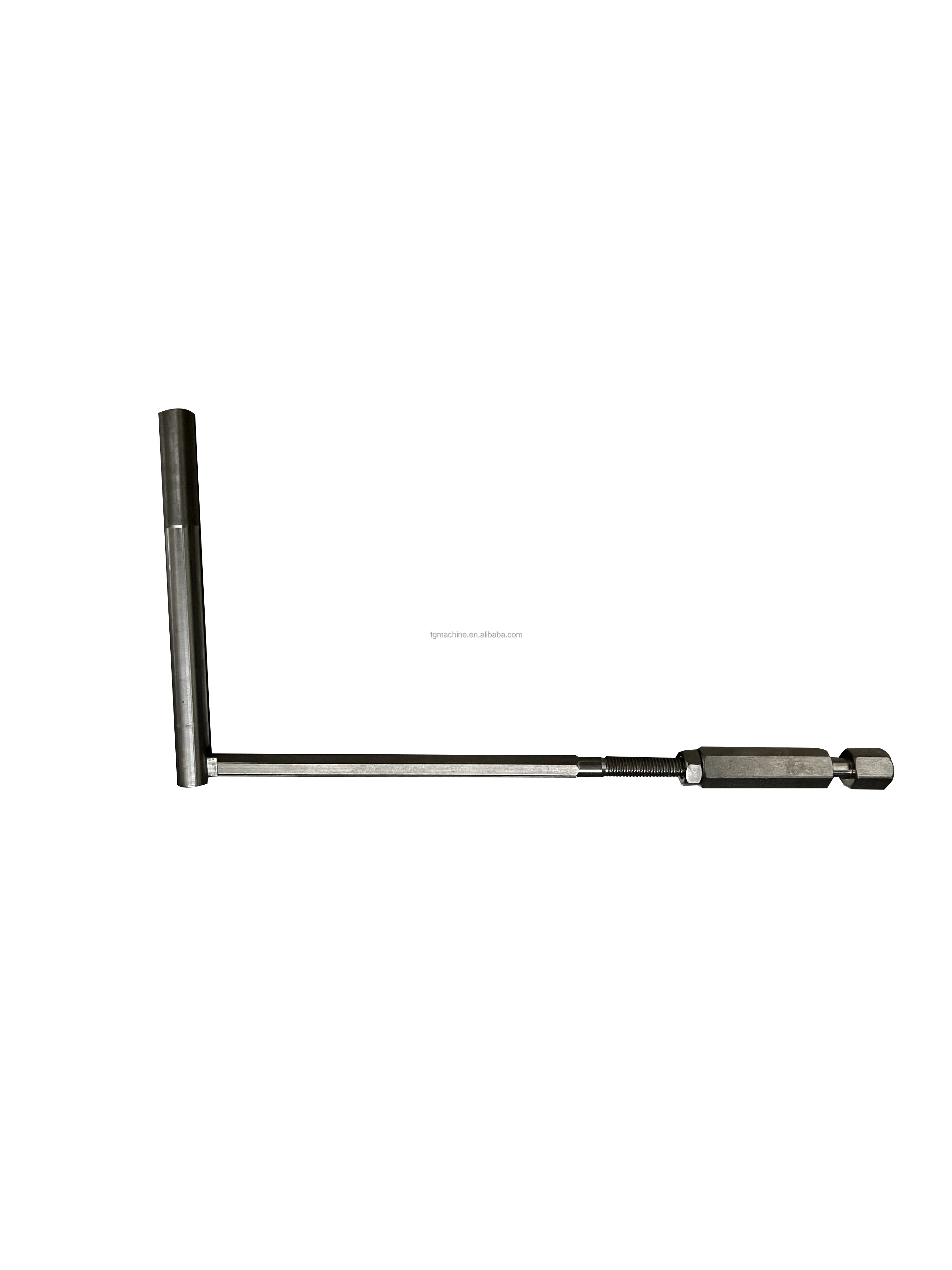

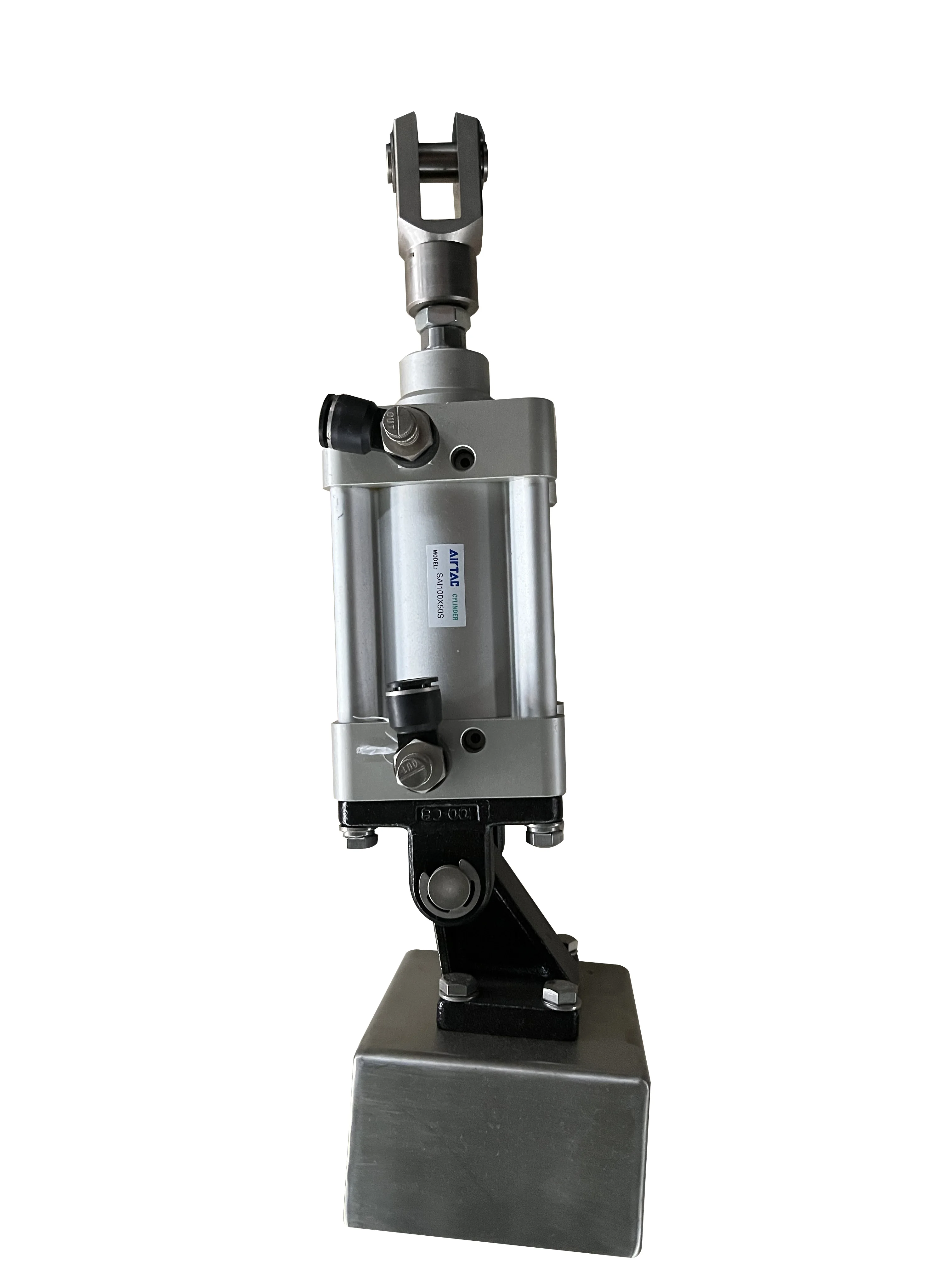

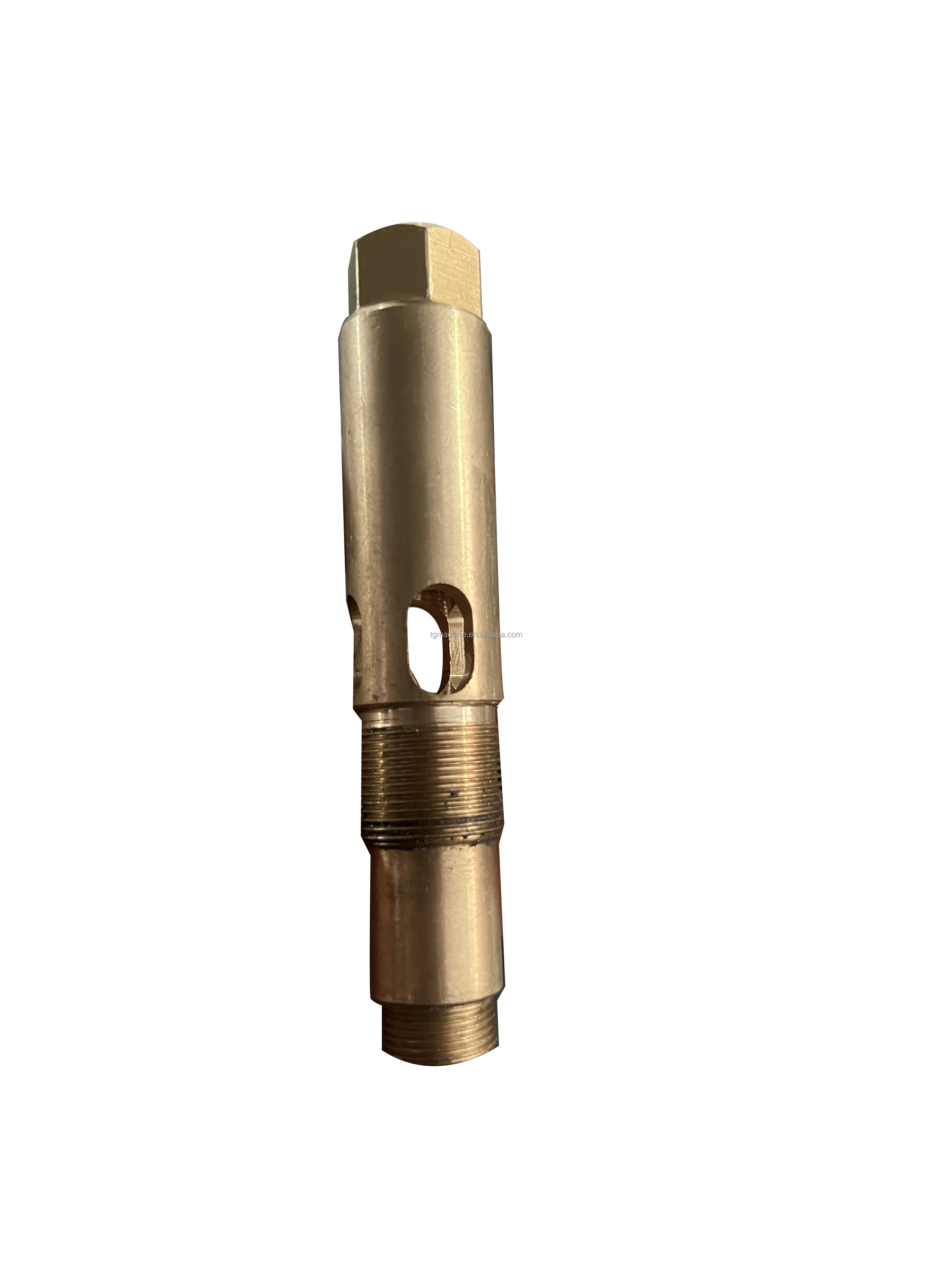

Display of some accessories
Finished Products
Company Introduction
Shanghai Target Industry Co., Ltd.
TGMachine is proud of the machine design with sanitary and easy washing structure for Gummy candy with Vitamin and Minerals. Etc functional products. It is ideal equipment that can produce good quality gummies with the saving of both the manpower and the space occupied. Optional with Touch screen, SERVO and PLC for Automatic operation, one shot system can make one color, two color or multi-color, center filled Gummy candy (optional) also available just change the manifold and nozzles. The cooling tunnel includes automatic Chain type/Air Knife/Brush de molding system as option. The complete line was designed according to machine standard, higher level sanitary structure design and fabrication, all stainless steel materials are SUS304 and SUS316L in the line and it can be equipped with UL certified or CE certified components for CE or UL certificated.
Packing & Delivery
1.We provide shipping methods:Courier service,Air transport,Sea Transport
2.Delivery term :EXW,FOB,CIF,CNF, Door to Door etc.
FAQ
Q:What is your after-sales service?
A: 1) Expatriate Maintenance.
2）Online Vedio Technical Support .
3）Free Spare Parts.
4）Perfect Quality Program,100% Test Before Delivery.
2）Online Vedio Technical Support .
3）Free Spare Parts.
4）Perfect Quality Program,100% Test Before Delivery.
Q:Are you trading company or manufacturer ?
A:We integrate industry and trade, which is our advantage. We can give you lower priceand more comprehensive service
Q:Do you provide any recipes for the product?
A:Yes,we will provide a basic recipe. and clients can add different color and flavor on that base.
Q:What are the advantages of your product over others?
A:We are more concerned about food safety than them, so our machine can be washed with water all over the body, and the pouring part has no sanitary defects; We can adjust the configuration of the machine according to your budget /output and give you a satisfactory answer.
Q:Do you provide any recipes for the product?
A:Yes,we will provide a basic recipe. and clients can add different color and flavor on that base.
Q:What are the advantages of your product over others?
A:We are more concerned about food safety than them, so our machine can be washed with water all over the body, and the pouring part has no sanitary defects; We can adjust the configuration of the machine according to your budget /output and give you a satisfactory answer.
Company Introduction

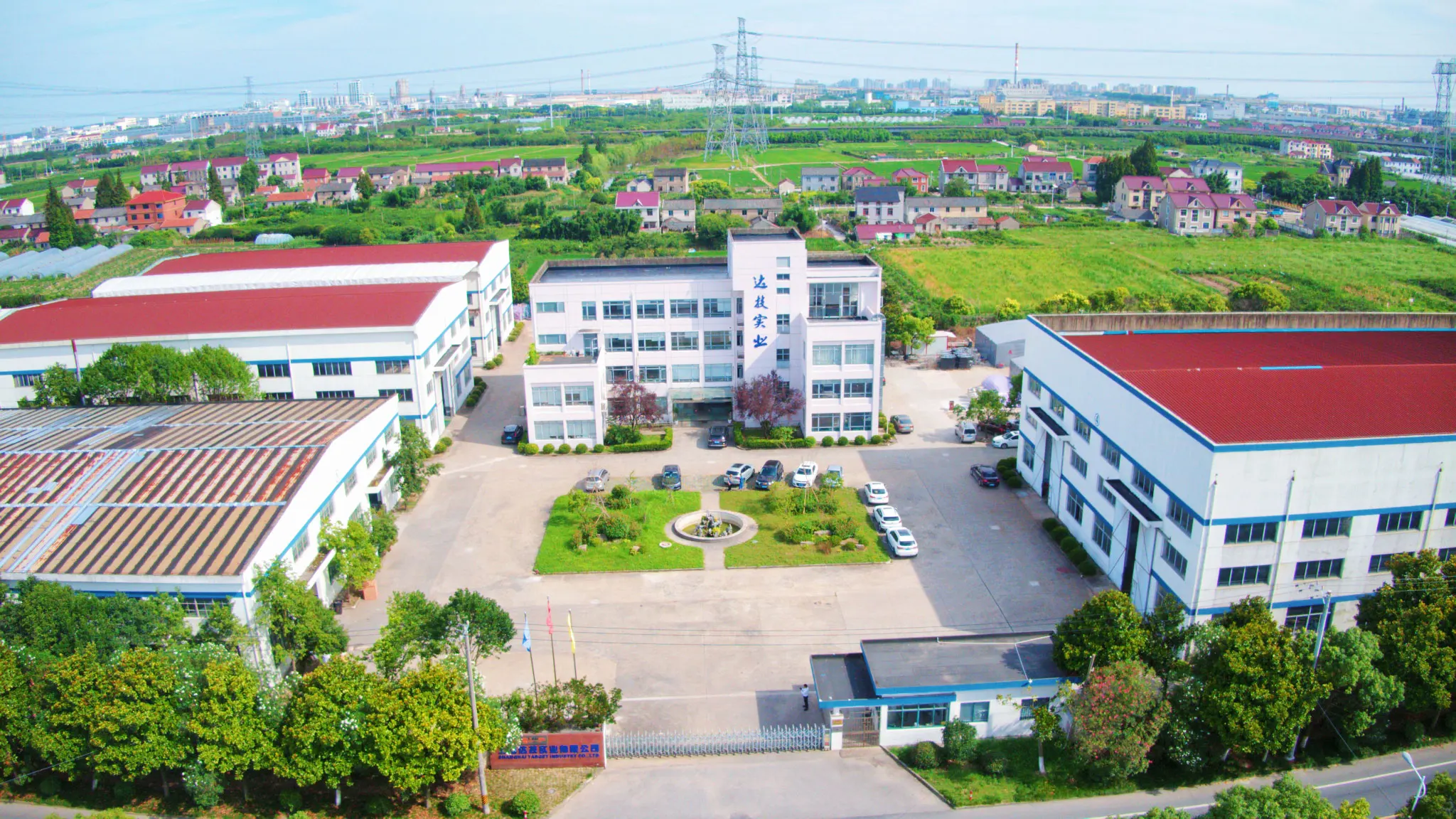

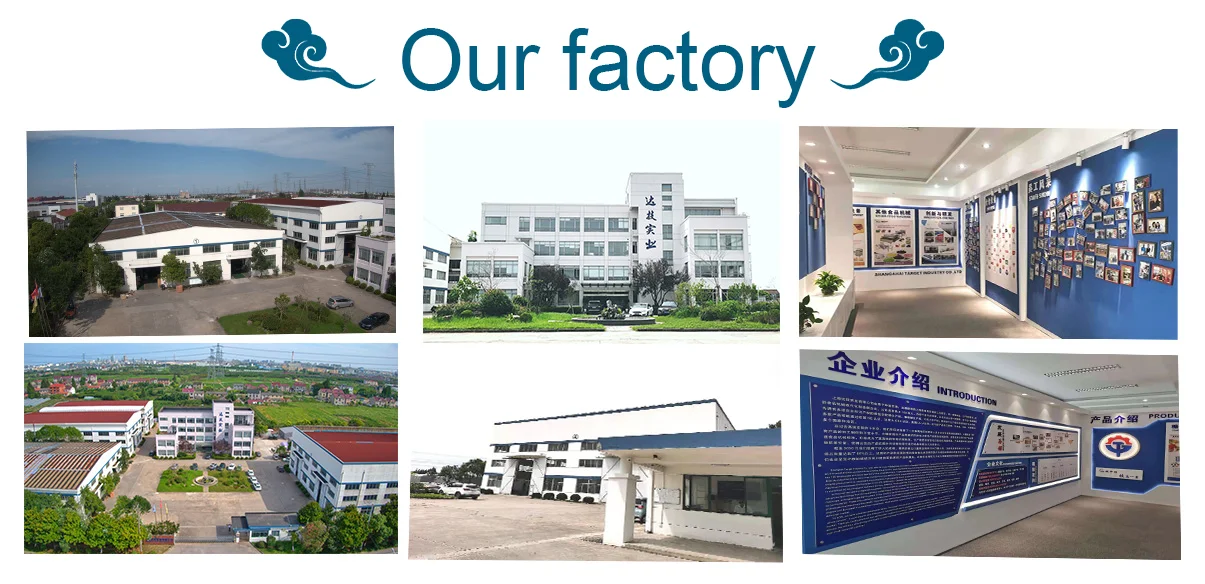

Shanghai target industry Co.,Ltd (TG machine) was founded in 1982, we are a manufacturer of candy machines, biscuit machines,chocolate machines and other food machinery.

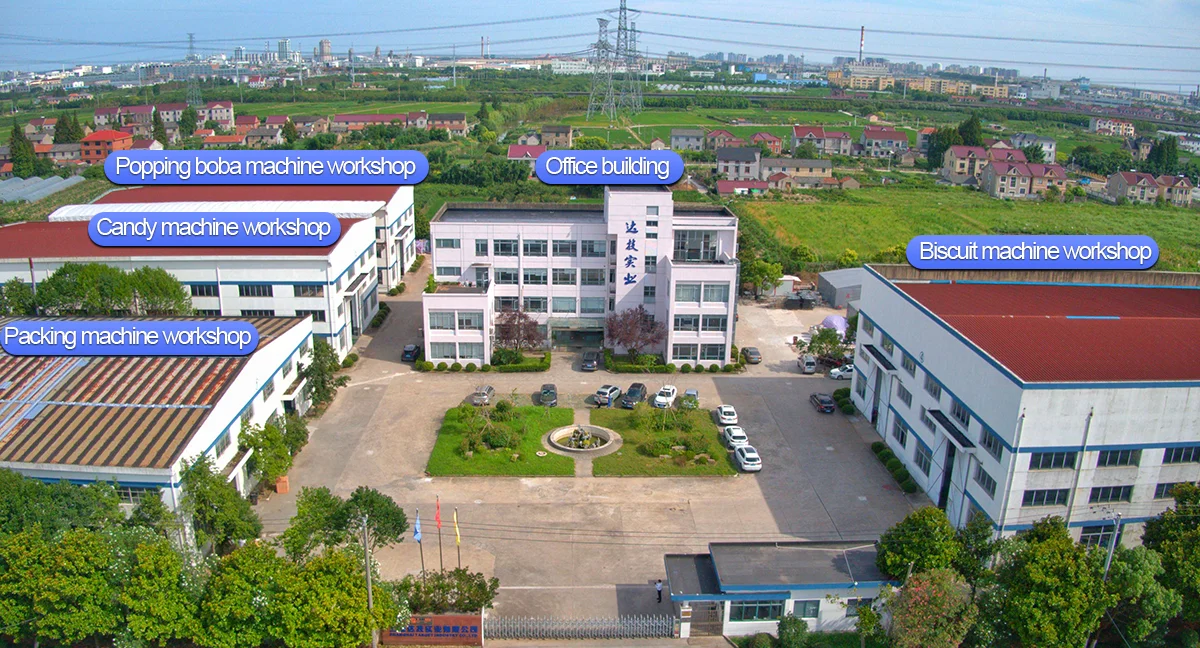

Nowadays, TG machine always stands in the leader position in food machinery innovation and developing. The factory area is more than 20000 square meters, including five modern workshops, over 100 employees and has CNC machine, computer controlled laser etc.
In 2005, TG machine has passed ISO9001 international quality management system certification standards and most of the products proved by CE.
TG machine exported its products to East European, South America, Middle East, Southeast Asia etc..Rely on high quality products and satisfying service, TG machine gains its good reputation and popularity.
In 2005, TG machine has passed ISO9001 international quality management system certification standards and most of the products proved by CE.
TG machine exported its products to East European, South America, Middle East, Southeast Asia etc..Rely on high quality products and satisfying service, TG machine gains its good reputation and popularity.
