Hydrogen Separation and Recovery Membrane System From High-Pressure Ammonia Synthesis Vent Gas
High Economic Value High-Pressure Ammonia Synthesis Vent Gas H2 Separation Membrane Unit Purge Gas Hydrogen Refining Plant




Product Description


Hydrogen Recovery from High-Pressure Ammonia Synthesis Vent Gas
This product uses the latest membrane separation technology and is designed for the recovery of hydrogen from high pressure air discharge during the production of synthetic ammonia. The equipment has the advantages of compact structure, small footprint, easy operation and low maintenance cost. It is suitable for synthetic ammonia production enterprises of various sizes to help enterprises achieve energy saving and emission reduction goals.




Technical Principle

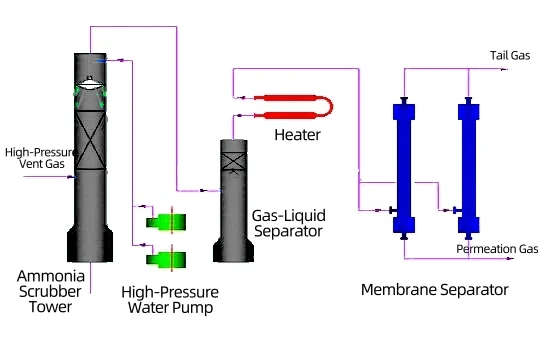

Hydrogen Recovery from High-Pressure Ammonia Synthesis Vent Gas Hydrogen is the primary raw material for ammonia synthesis. During the ammonia synthesis process, in order to maintain a high partial pressure of hydrogen in the synthesis reactor and sustain the ammonia conversion rate, it is necessary to periodically vent a portion of the recycle gas to reduce the inert gas content. However, this also results in the loss of a significant amount of hydrogen in the vent gas. By using membrane separation equipment to recover hydrogen from the vent gas, it can be utilized to increase ammonia production or produce other hydrogenated products, leading to substantial economic benefits:

1. Increase ammonia production by 3-4%
2. Save 50 KWH per ton of ammonia




Feature
Data
Membrane material
Polymer corrosion resistant material; High permeability, high selectivity
Separation rate
≥95%
H2 Recovery Purity
95-99.999 mol%.
Max. Capacity
Customization


Product Feature


Features:
• Efficient recovery: hydrogen recovery rate of more than 95%, significantly improving resource utilization.

• Energy saving and environmental protection: reduce hydrogen waste, reduce production costs and reduce environmental pollution.

• Easy operation: high degree of automation, simple operation and easy maintenance.

• Compact structure: the equipment covers a small area and is suitable for various production environments.


Application


The high purity hydrogen gas recovered from synthetic ammonia purge gas is widely used in petroleum refining, ammonia gas and methanol production, metal smelting, hydrogen fuel cell, medical treatment, aerospace chemical industry, metallurgical and chemical industry and so on.




Company Profile


Wobo's products cover the fields of new energy, energy, metallurgy, petrochemical, electronics, food, machinery, building materials, medicine, new materials, petrochemical, chemical fiber, heat treatment, glass, national defense and aerospace, and are sold to more than 100 countries and regions.

We strive to provide products with the highest quality and service, and complete with the highest standards. All our products have undergone rigorous testing, and now we have obtained CE,ISO,ASME . Our goal is 100% customer satisfaction,we will provide high-quality productsand value-added services.




Rating & Reviews


Customer evaluation
After using this hydrogen separation system, our production efficiency has been significantly improved, and energy costs have been significantly reduced. ----- Mr. Denis


Customer evaluation
Since the use of this hydrogen recovery system, our production costs have been significantly reduced and the environmental benefits are significant. ----- Mr. Tim


FAQ
Warranty Policy
* Warranty Period: All products come with 18 months free warranty from the date of purchase.
* Warranty Coverage: During the warranty period, we will repair or replace parts free of charge for defects related to product quality.
* Out-of-Warranty: Repairs after the warranty period will incur a fee. Please contact customer service for details.

Return and Exchange Policy
* Return/Exchange Conditions: If there is a quality issue or if the product does not match the order, please contact customer service within 7 days of receiving the item to request a return or exchange.
* Return/Exchange Process: Call our customer service hotline or send an email to request a return or exchange. We will provide you with the return address and instructions.

Technical Support
* Support Service: We offer 24/7 technical support via phone, email, and online chat.
* Remote Support: Technical assistance is available through phone, email, and online chat.
* On-Site Support: For issues requiring on-site attention, we will arrange for a technician to visit.

Customer Feedback
* We value your feedback. Please share your experience via our customer service hotline or email. Your input helps us improve our service quality.

Training and Support
* New Customer Training: After purchase, we provide detailed training and user guides for the product.
* Extended Warranty: You can choose to purchase an extended warranty for additional coverage.
* Custom Services: We offer personalized customization services based on your needs. Please consult customer service for details.
