SSPT400 III Pass Through Type Industrial Parts Washing/Cleaning Machine for Efficient and Automated Cleaning
- Category: >>>
- Supplier: SS ENGINEERS AND CONSULTANTS
Share on (10000020373016):
Product Overview
Description
Select Your Language
Products Description
Product | SSPT400-III Pass-Through Type Industrial Parts Washing/Cleaning Machine for Efficient and Automated Cleaning |
Place Of origin | India |
Brand Name | SS ENGINEERS & CONSULTANTS |
WhatsApp No. | +91 9851446644 |
Email ID | kirti.sripumps@gmail.com |
Profile Manufacturer | Exporter, Wholesaler and Manufacturer of High quality * Industrial Washer Machine * Milk Processing Machine * Food Processing as per their Customization |
Products | * Automobile bins washer * Dishes & Bowls washer * Egg tray/Egg washer * Crates washer * LPG cylinder washer * Pallet washer * Tin Cooling conveyor * Bucket/Mould/Tray (Confectionary) washers |
Business Model | Manufacturing on order basis, Trade shows and exhibitions. |
Importer-Exporter Code(IEC) | 2609001223 |
HSN-Code | 84222000 |
Payments | 50% of order amount at the time of ordering and the remaining once the goods are ready before shipment |
Payment modes | T/T BANK WIRE TRANSFER, L/C, PayPal |
Delivery Time | Order delivery time – 3 to 6 weeks |
Parameter | Details |
Model | SSPT400-III |
Name | Pass Through Brass Parts Washing Machine |
Workpiece | Brass Parts (20-50kg) |
Cleaning Medium | Water Agent Cleaning Agent |
Transporting Speed | 0.15—1.5M/min |
Transporting Mesh Belt Width | 400mm |
Passing Height | 200mm |
Cleaning Pressure | 200Kpa |
Rinsing Pressure | 200Kpa |
Cleaning Water Pump | Q=30T, H=30M, 5.5KW |
Washing Liquid Electrical Heating | Power 3 x 9=27KW |
Strong Wind Fan | 3KW |
Hot Air Heating Power | 36KW |
Transmission Motor Power | 0.75KW |
Allowed Max. Workpiece Size | 400 x 100mm (Length x Width) |
Loading Height | 850mm |
Total Power | 50KW |
Overall Dimension of the Machine | 6000mm x 1700mm x 2200mm (Customized) |
Voltage | 230V/ 3Ph/ 50Hz (Customized) |
Color | Customized |

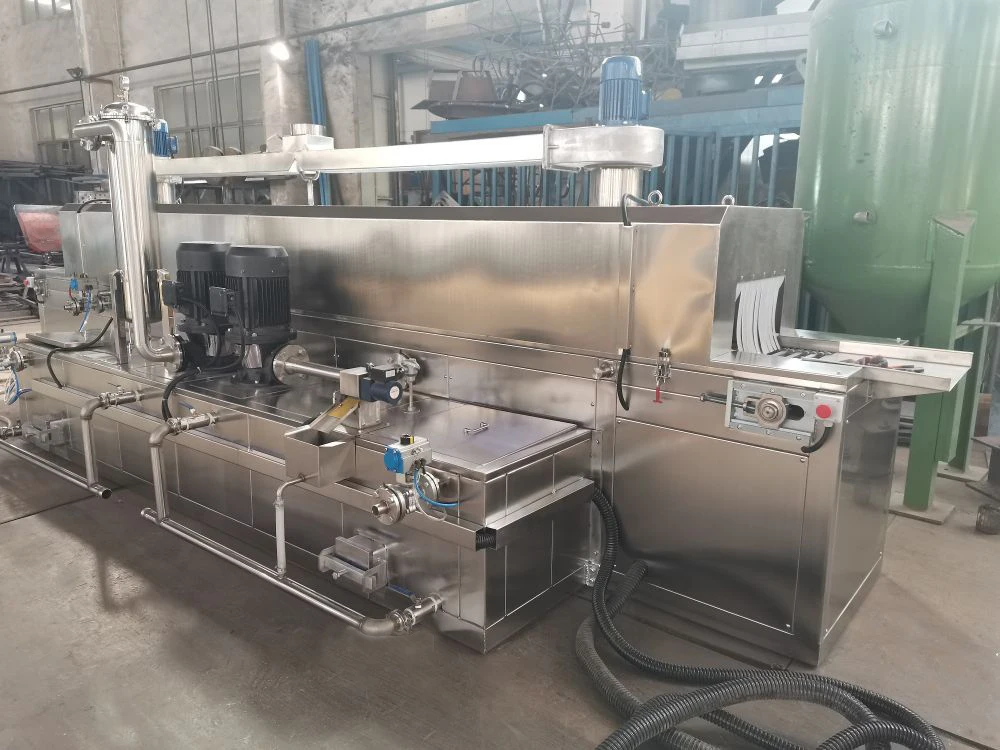

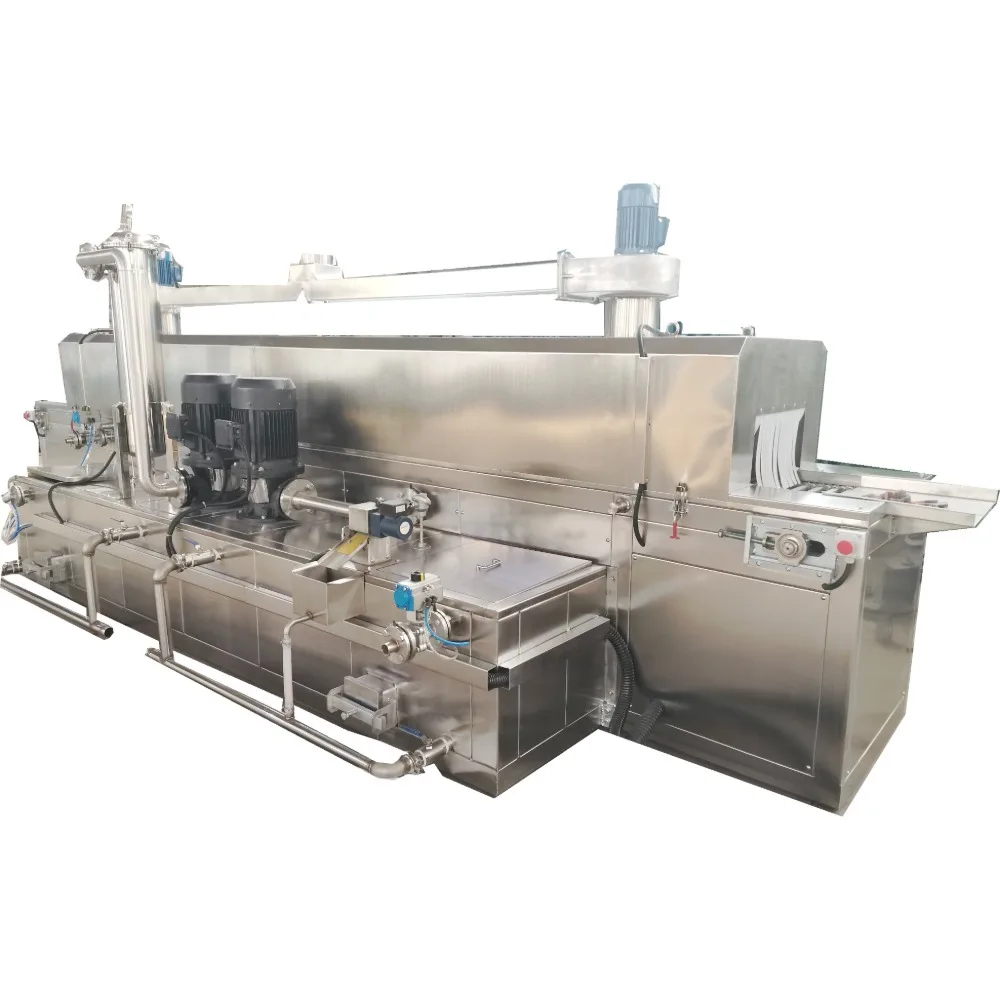

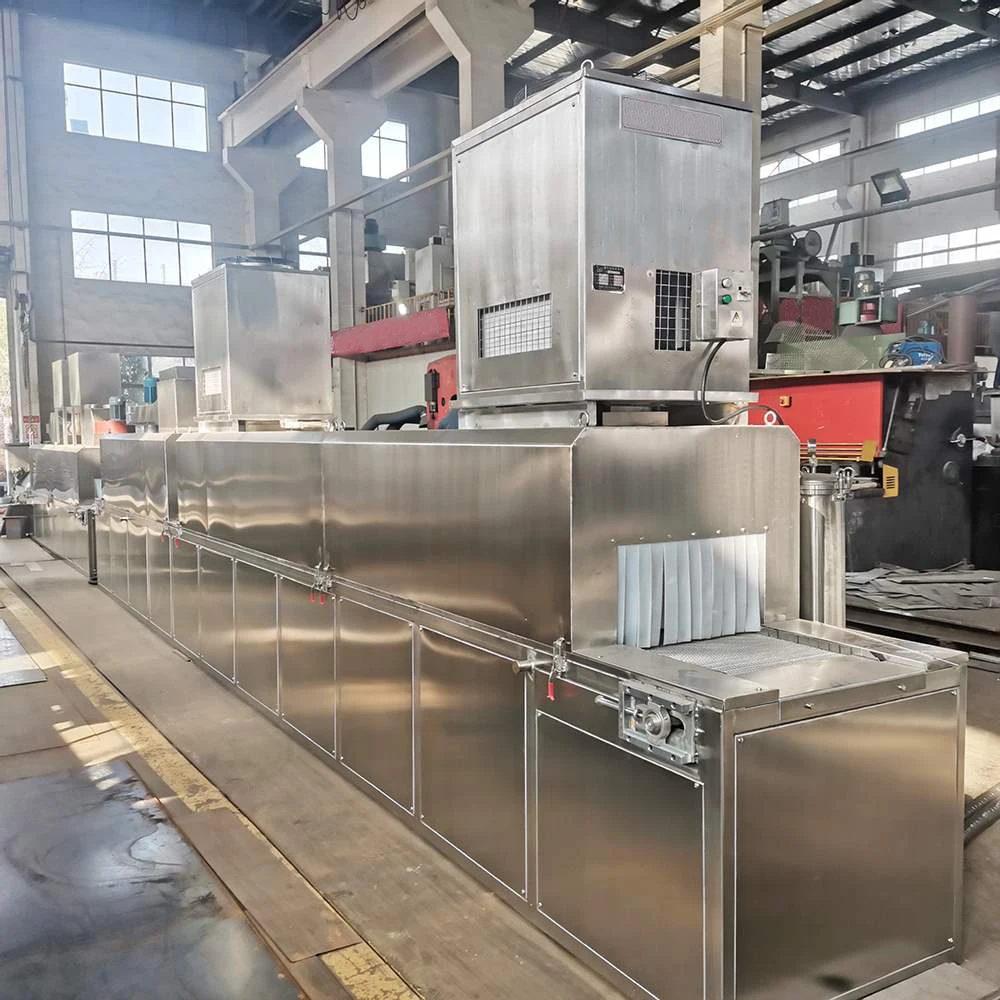

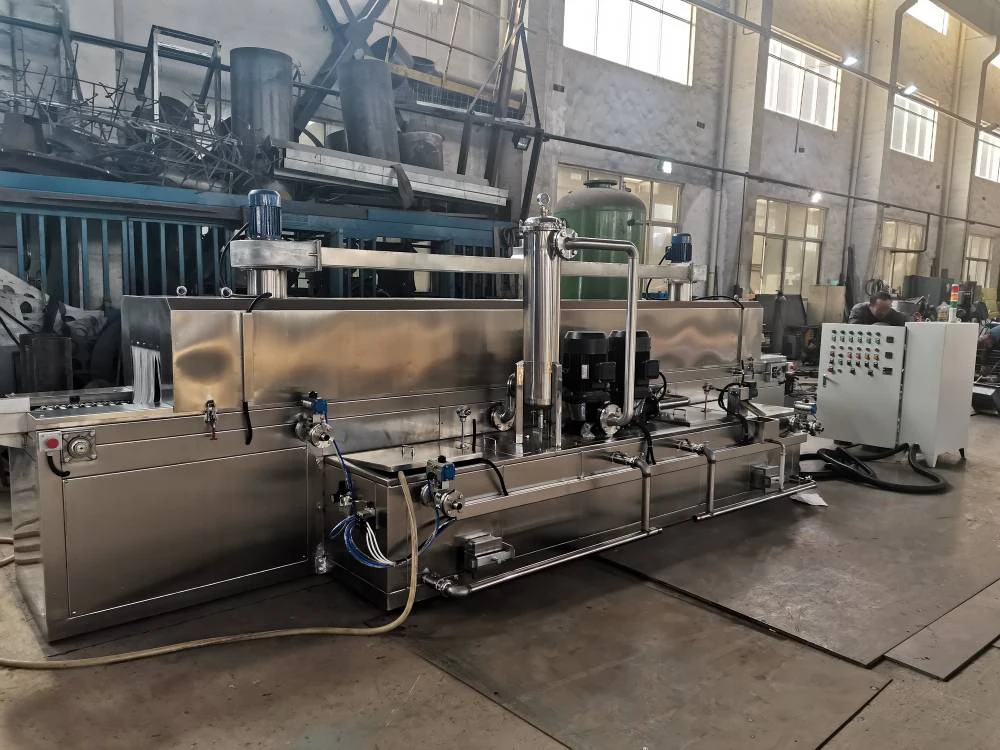

The Pass Through Brass Parts Washing Machine utilizes a conveying chain transmission structure and water-based cleaning agents for effective cleaning. It performs cleaning, rinsing, high-pressure air drying, and hot air drying of brass parts.
Process Flow:-
* Manual Loading
* Spray Cleaning
* Spray Rinsing
* High-Pressure Air Drying
* Hot Air Drying
* Unloading
* Manual Loading
* Spray Cleaning
* Spray Rinsing
* High-Pressure Air Drying
* Hot Air Drying
* Unloading
Structure and Composed Devices:-
The machine consists of the following components:
1. Machine Body
* Made from 304 stainless steel.
* Includes a flowing tank connecting the washing and rinsing systems.
* The seal plate uses cold-rolled plate with surface spray.
2. Upper Cover
* Removable structure made of 304 stainless steel for easy maintenance.
* Contains isolation plates and soft curtains, with a mist exhaust fan at the top.
* The drying station's upper cover is double-layered with Q235 steel and a 40mm insulating layer.
3. Transmission System
* Comprises a 0.75KW motor and BW1815 pin wheel reducer with frequency control.

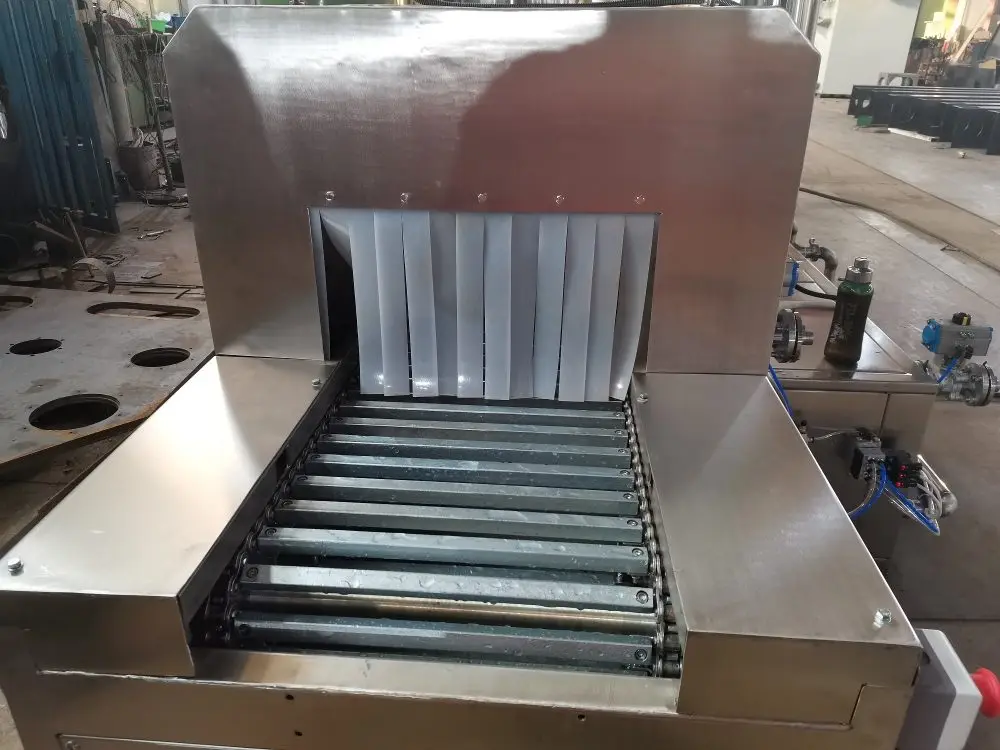

* Utilizes a compression-type stainless steel mesh belt to prevent brass parts from falling.
* Features anti-slide edges and is supported by spherical bearings for smooth transport.
4. Spray Cleaning System
* Includes a vertical liquid water pump (ISL65-50-160, Q=30T, H=30M, 5.5KW) and adjustable nozzles.
* Achieves cleaning through a dense spray surface at 300Kpa pressure.
* The cleaning liquid is recycled after filtering and can be heated to 70°C.
5. Oil-Water Separation System
* The oil-water separator removes floating oil from the cleaning liquid, improving its effectiveness.
6. Spray Rinsing System
*Features adjustable nozzles and a vertical pump for efficient rinsing, mirroring spray cleaning system.
7. Cleaning Circulating Water Tank
* Composed of a 0.4m³ cleaning tank and rinsing tank with heating and level control systems.
* Features a double-layer heat insulation structure with 40mm insulation thickness.
8. Filter System
* Three-level filtration: 20 mesh coarse, 40 mesh insert, and 50µm precision.
9. Strong Wind Blowing
* Equipped with a 3KW fan to dry water droplets via air jets.
10. Hot Air Drying System
* Composed of a hot air heater, circulating fan, and temperature control system.
* Heats air to 130°C for drying, with a well-insulated chamber made of 304 stainless steel.
11. Mist Exhaust Fan System
* Removes mist from the machine; requires external steam exhaust piping.
12. Electric Control System
* Control console next to the operator, using trusted components from leading domestic brands.
Prices: Excluding packing, freight, insurance, taxes. Octroi payable separately. Prices subject to change. | ||||||||
Design: Modifications possible, additional features at extra cost. Drawings require approval. | ||||||||
Payment:50% advance with purchase order and remaining 50% against proforma invoice before dispatch. | ||||||||
Delivery: Approx. 6-8 weeks from order/payment/clarifications. No liability for delays. | ||||||||
Inspection: Final inspection at our works before dispatch. | ||||||||
Warranty: 12 months for defects in design, material, or workmanship. Electrical components under manufacturer's warranty. | ||||||||
Performance tolerance: 10%. Installation, commissioning, and maintenance as per our guidelines. | ||||||||
Exclusions: Civil works, electrical work, utilities, raw materials for trials. | ||||||||
Payment Delay: Suspension of supplies, interest charges, storage charges. | ||||||||
Price Escalation: Price adjustments based on cost variations. | ||||||||
Subcontracting: Permitted without prior approval. | ||||||||
Order Cancellation: Not allowed. Cancellation charges applicable. | ||||||||
