Greensun 5MW 10MW PV Ground Mounting On Grid Container Solar Power Plant Farm Agricultural System
- Category: >>>
- Supplier: Hefei Greensun Solar Energy Tech Co. LimitedHefei Limited
Share on (10000020454859):
Product Overview
Description
Products Description
Configuration
Container Battery Energy Storage System | Greensun Solar Lithium Solar Energy Storage System ESS Container | |||||||
Module | LFP-300KWH | LFP-500KWH | LFP-1MWH | LFP-2MWH | ||||
PCS | 150KW | 250KW | 500KW | 1MW | ||||
Storage Battery | Lithium Battery Packs BMS/MBMS/EMS Protection; GEL/OPZV Batteries Optional | |||||||
Module model | 51.2V 280AH | |||||||
Initial battery nominal energy | 300KWH | 500KWH | 1MWH | 2MWH | ||||
Battery voltage range | 500V-850V | |||||||
Data Monitor | EMS monitor system | |||||||
Communication Interface | RS232, RS485, CAN | |||||||
Container | 20/40H Container (Including air conditioning, lighting, electrical appliances, internal copper cables and fire protection systems, etc.) | |||||||
Details Images

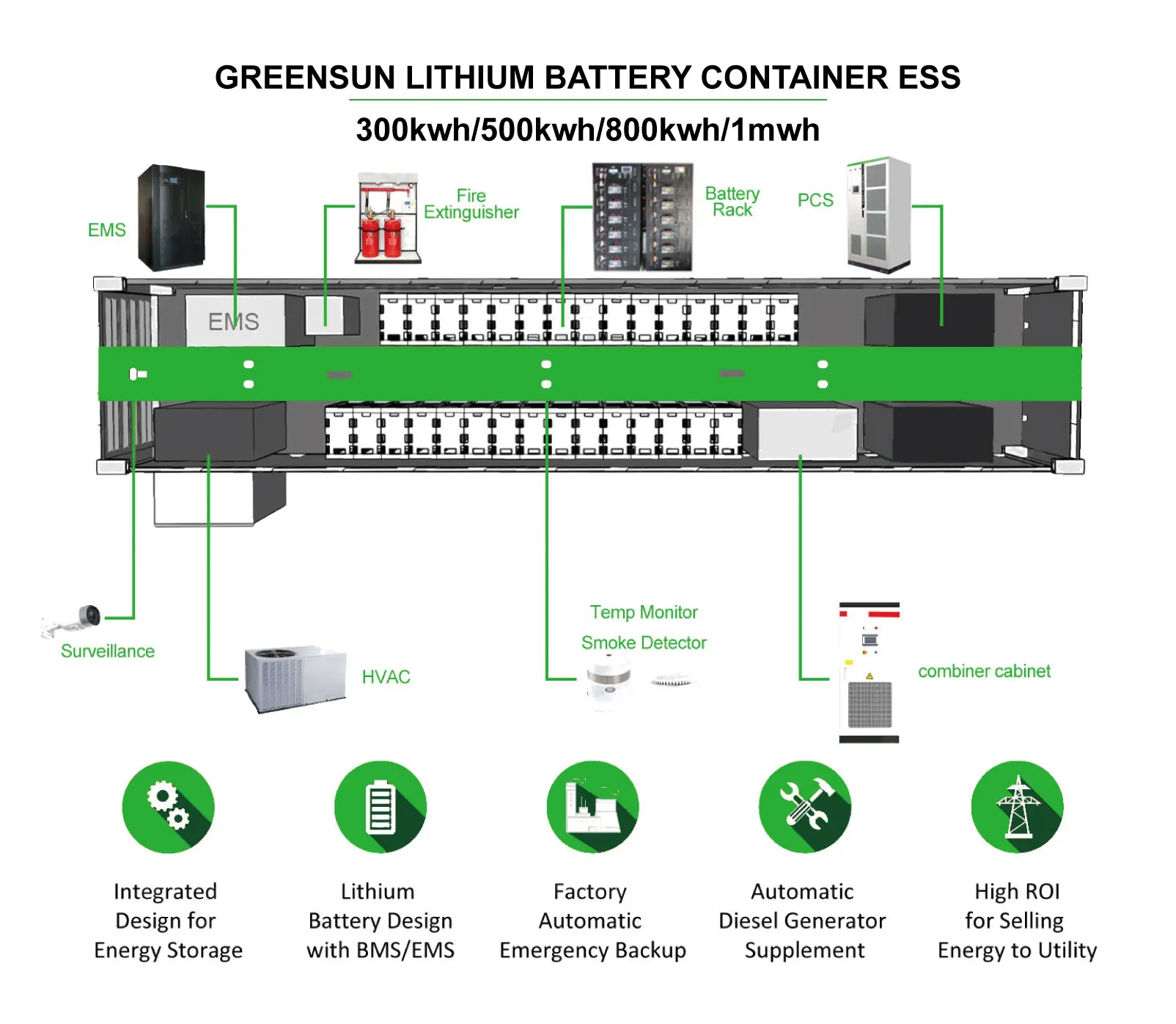

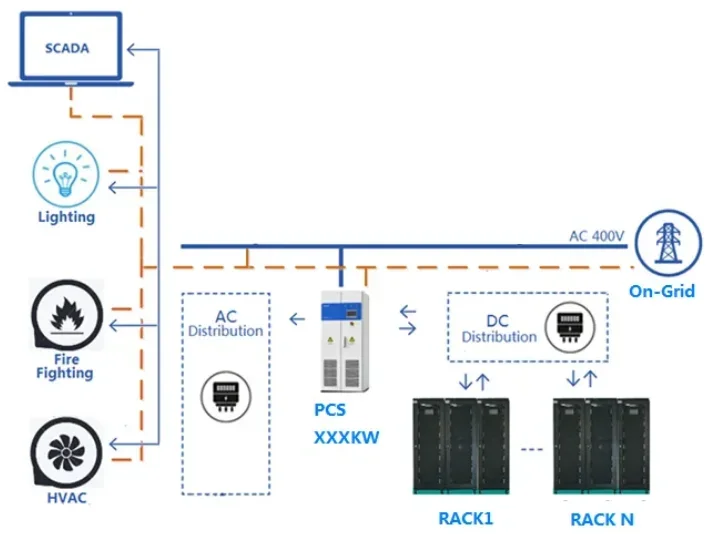

System Function Diagram
This ESS(Energy Storage System) contains:
● LiFePO4 Battery System
● PCS Inverter
● HVAC(Heating, Ventilation and Air Conditioning) ( 1 Set)
● Fire Fighting, Lighting System ( 1 Set )
● Thunder-proof, AC& DC Distributor, optional parts
● SCADA(Supervisory Control And Data Acquisition) System
All of the above are designed in a 20/40ft Standard Container.
This ESS(Energy Storage System) contains:
● LiFePO4 Battery System
● PCS Inverter
● HVAC(Heating, Ventilation and Air Conditioning) ( 1 Set)
● Fire Fighting, Lighting System ( 1 Set )
● Thunder-proof, AC& DC Distributor, optional parts
● SCADA(Supervisory Control And Data Acquisition) System
All of the above are designed in a 20/40ft Standard Container.

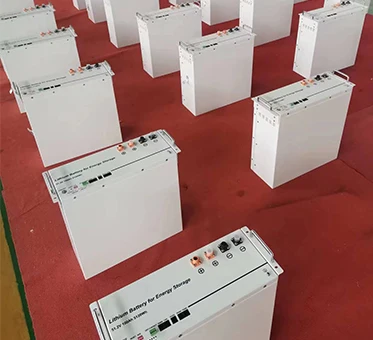

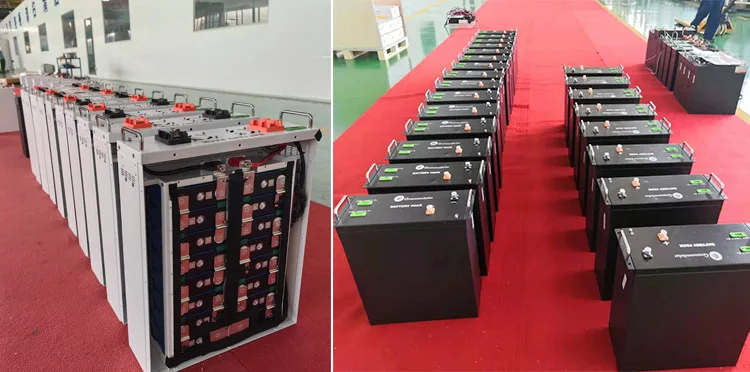

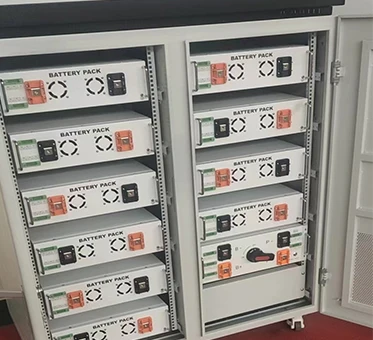

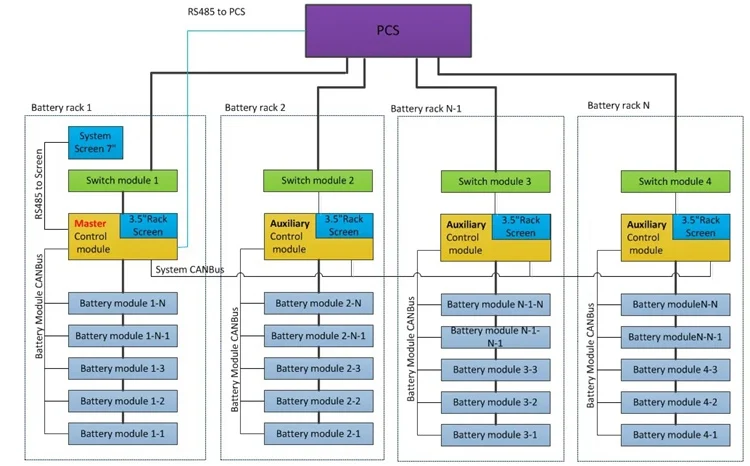

Battery System Introduction:
Battery Features:
◆Using long lifetime (≥6000cycles)，high efficient ( reach 98%)、High safety LFP cells；
◆Actively balance management, improve battery efficiency, maintain battery consistency, and increase the cycle life.
◆Complete fault and operation log recording function, system.
◆Info storage time last one month ;
◆Support RS485、Ethernet communication；
◆Battery design according to UL1973 standard
Battery Features:
◆Using long lifetime (≥6000cycles)，high efficient ( reach 98%)、High safety LFP cells；
◆Actively balance management, improve battery efficiency, maintain battery consistency, and increase the cycle life.
◆Complete fault and operation log recording function, system.
◆Info storage time last one month ;
◆Support RS485、Ethernet communication；
◆Battery design according to UL1973 standard

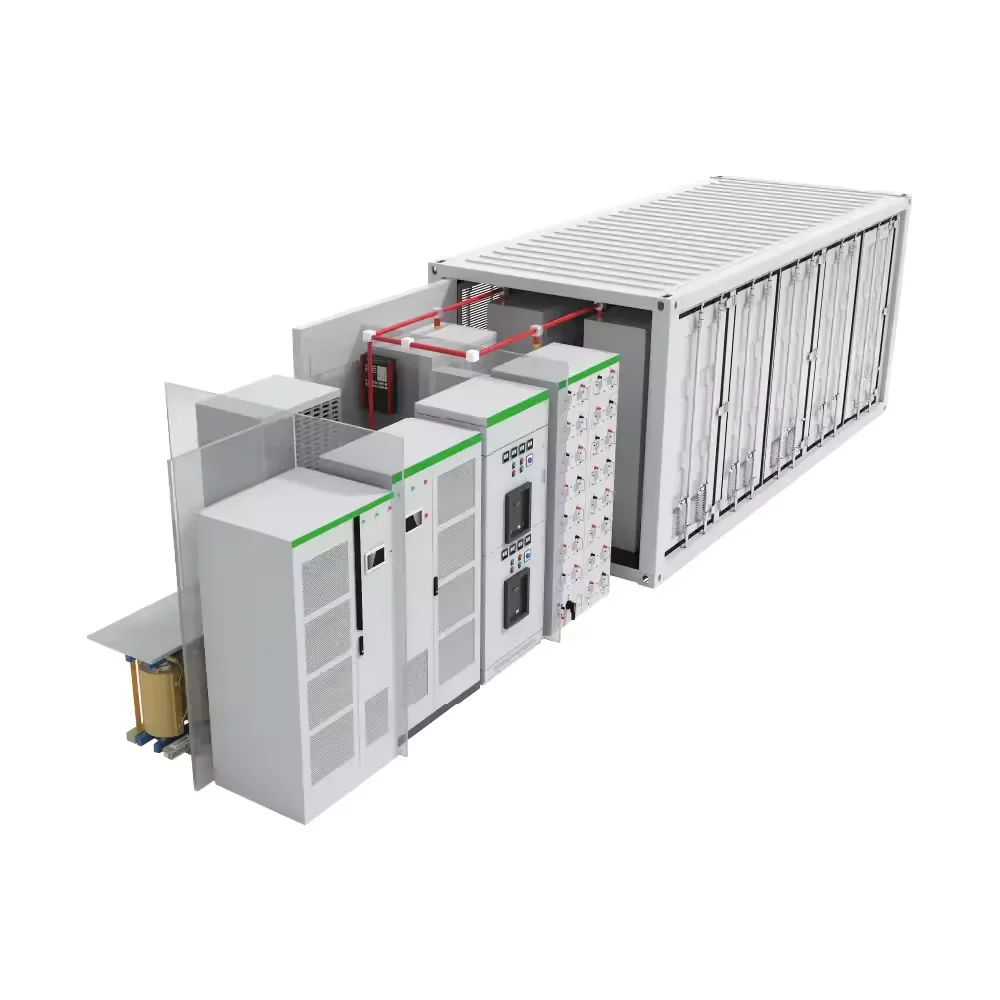

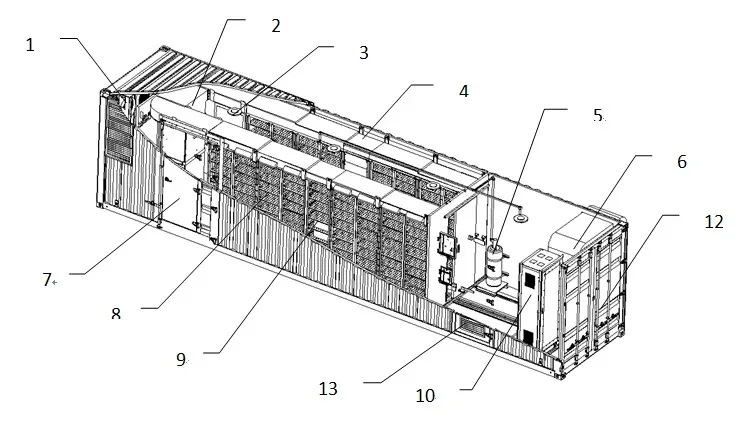

Megawatt Mobile Box ESS Structure Oblique View
1. air conditioning outdoor unit
2. air conditioning indoor unit
3. monitoring system cabinet
4. stepped air duct
5. fire protection system
6. bidirectional converter
7. sub-mother door
8. battery rack
2. air conditioning indoor unit
3. monitoring system cabinet
4. stepped air duct
5. fire protection system
6. bidirectional converter
7. sub-mother door
8. battery rack
9. main control frame
10. power distribution cabinet
11. battery rack air duct
12. double door
13. grid-type ventilation escape door
14. battery module
15. main control box.
10. power distribution cabinet
11. battery rack air duct
12. double door
13. grid-type ventilation escape door
14. battery module
15. main control box.

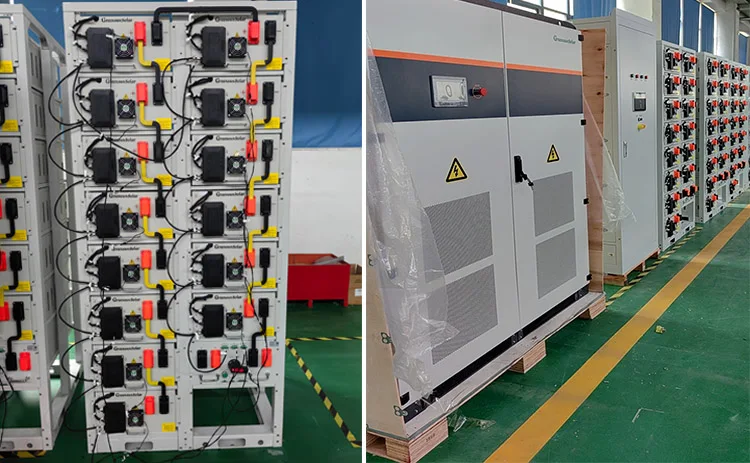

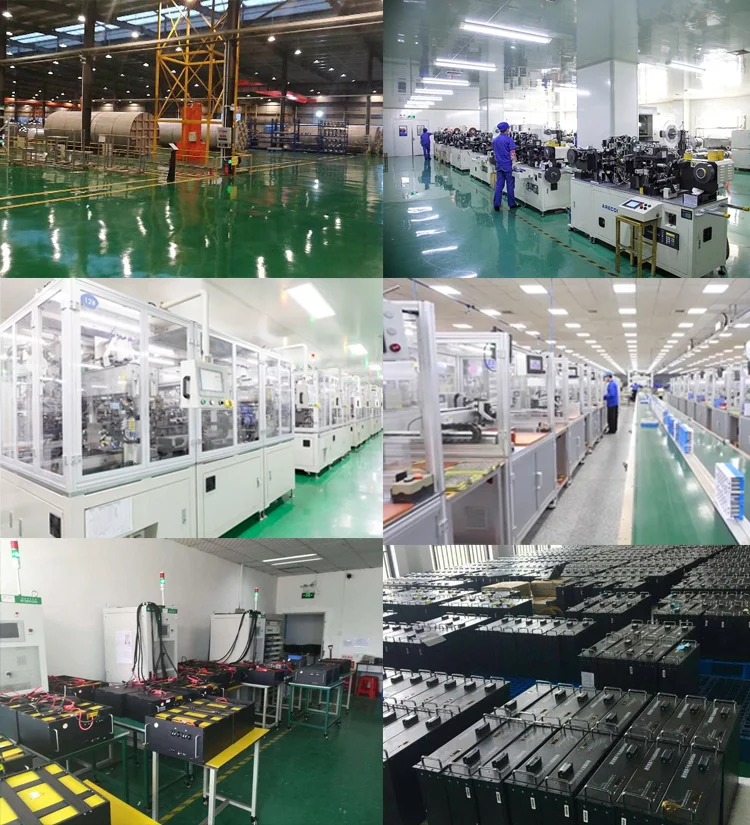

Factory & Production
Packing & Delivery
By Express | TNT, UPS, DHL, FEDEX , Door to Door Service | ||||
By Air | Any Cargo Airport in China | ||||
By Sea | Any available in China, such as Shanghai and Ningbo | ||||
Payment & Warranty
Payment:
T/T(Telegraphic Transfer), Western Union, L/C at sight, Paypal, Credit Card and on-line payment.
Alibaba Trade Assurance Payment, which can offer 100% protection for you until you receive your products.
More info about it please click the below picture:

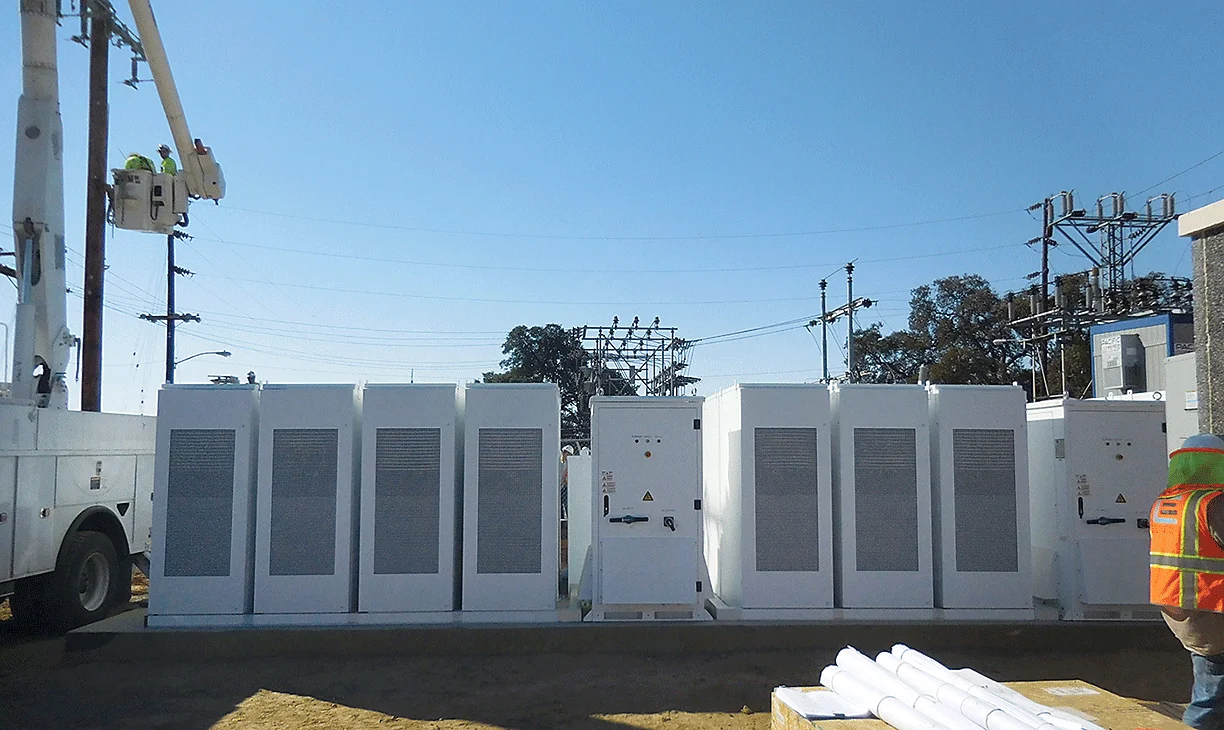

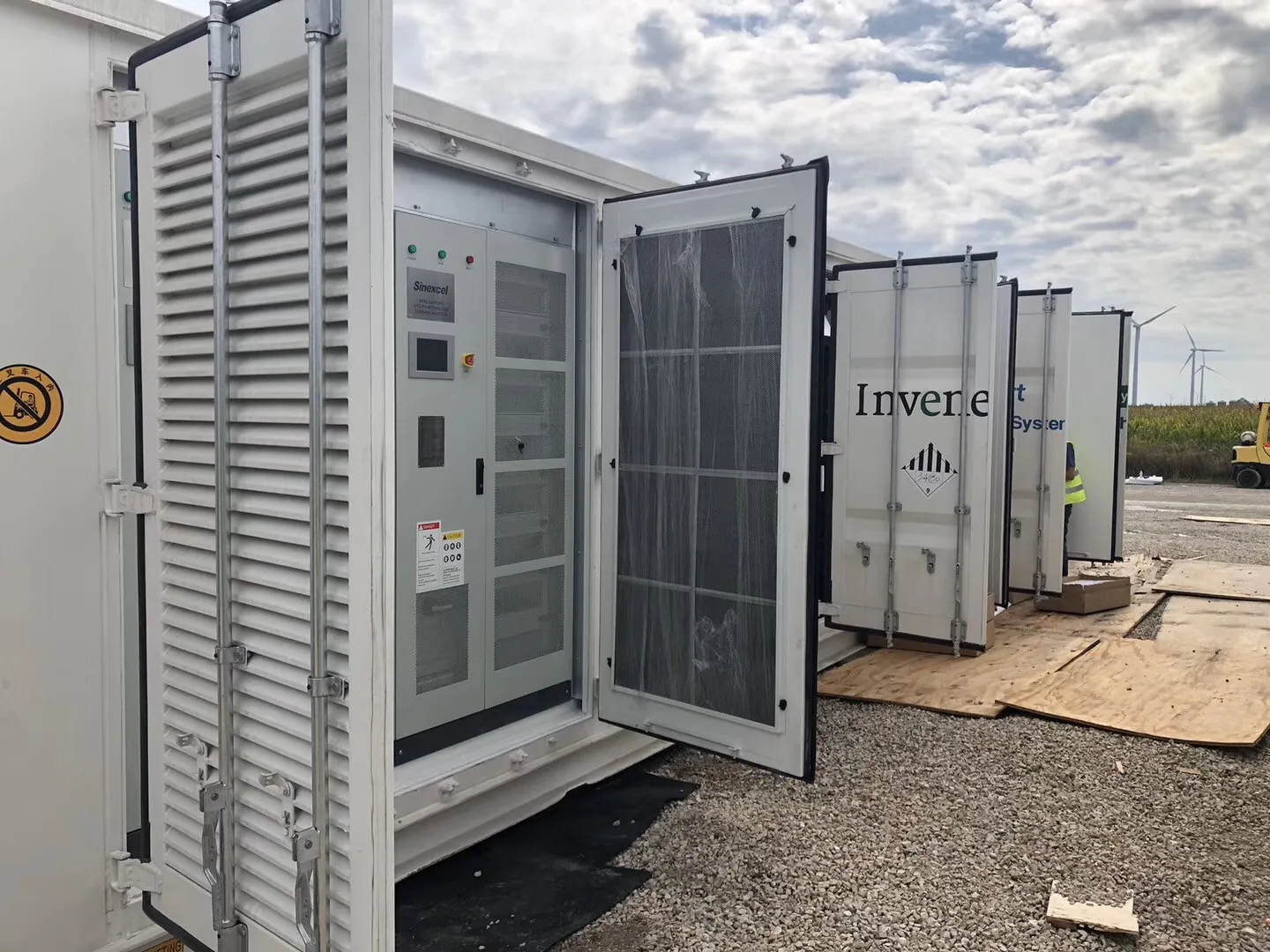

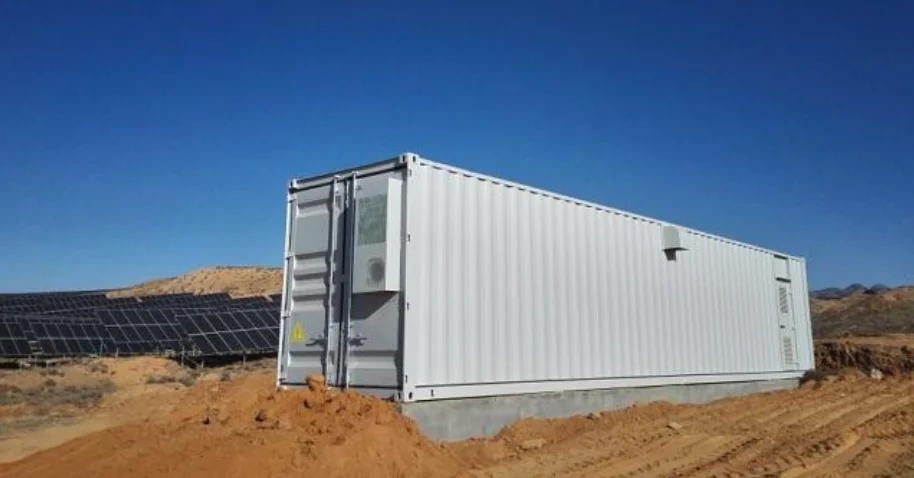

Project
