Horizontal Directional Drilling Machine for Underground Pipeline Installation in Urban Areas
- Category: >>>
- Supplier: Constant Heavy Industry Machinery (jining) Co. Ltd.Constant Ltd.
Share on (10000020712618):
Product Overview
Description
Product Description
Note：
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,please contact us or send us inquiry,then we can give you detail quotation list
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,please contact us or send us inquiry,then we can give you detail quotation list
This kind of horizontal directional drilling machine is generally suitable for steel pipes and PE pipes with diameters of
φ300~φ2000mm. It is suitable for a variety of soil conditions from soft soil to hard rock, and has broad application prospects.
φ300~φ2000mm. It is suitable for a variety of soil conditions from soft soil to hard rock, and has broad application prospects.

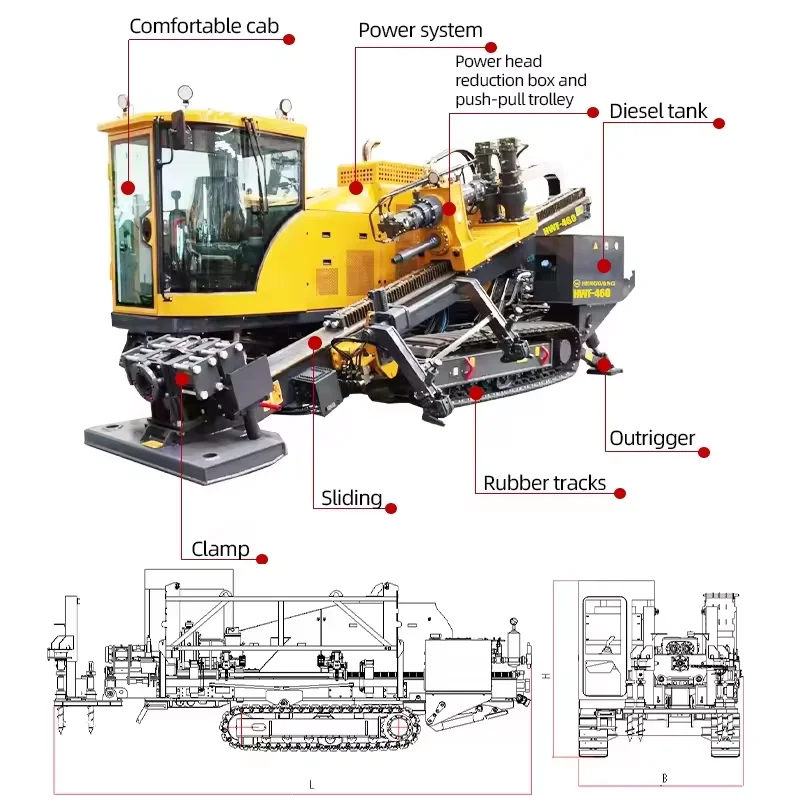

Drilling rig composition:
1.Drilling rig system
2.steering system
3.Mud pump system

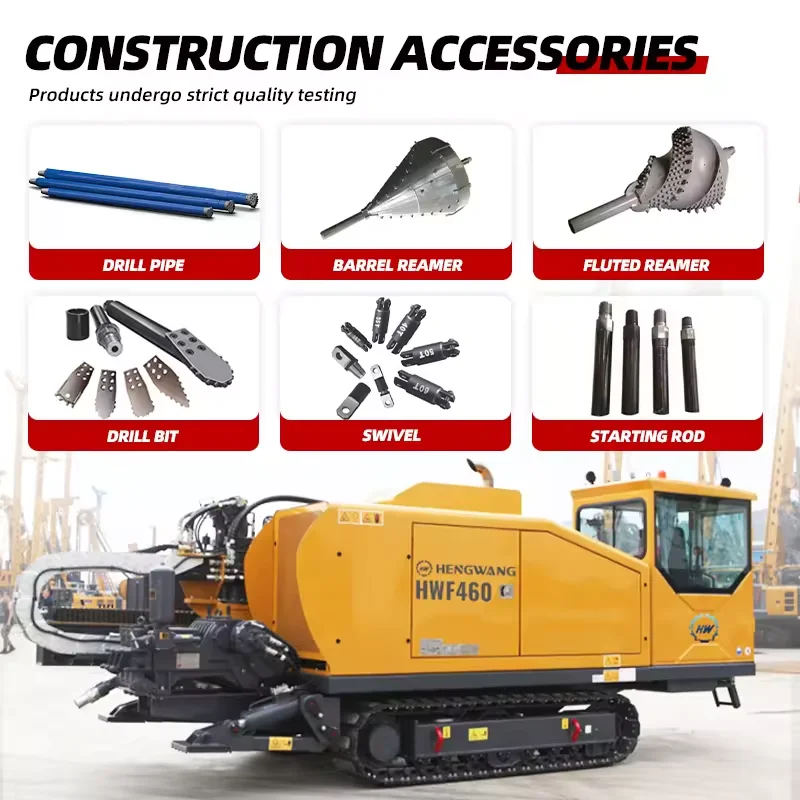

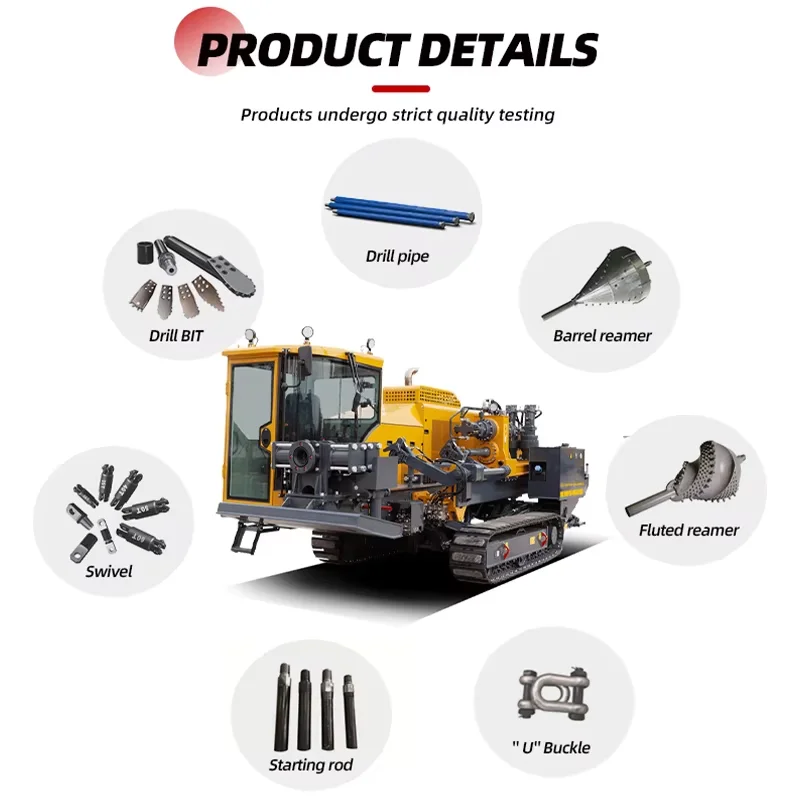

4.Drilling tools and auxiliary tools
1.Drilling rig system
2.steering system
3.Mud pump system
4.Drilling tools and auxiliary tools
Model | HWF460 | |||||
pushing force | 450KN | |||||
Max Drilling speed | 140m/min | |||||
drilling pipe diameter*length | φ83×3 | |||||
Maximum angle of penetration | 20degree | |||||
Max flow of mud pump | 450L/min | |||||
Dimension(L*W*H) | 6500*2250*2450mm | |||||
weight | 12500kg | |||||
Why choose this drilling rig？
1* Directional drilling construction will not hinder traffic, will not damage green spaces and vegetation, and will not affect the normal life and work order of shops, hospitals, schools and residents. It solves the interference of traditional excavation construction on residents' lives, traffic and environment. , damage and adverse effects to the foundations of surrounding buildings.

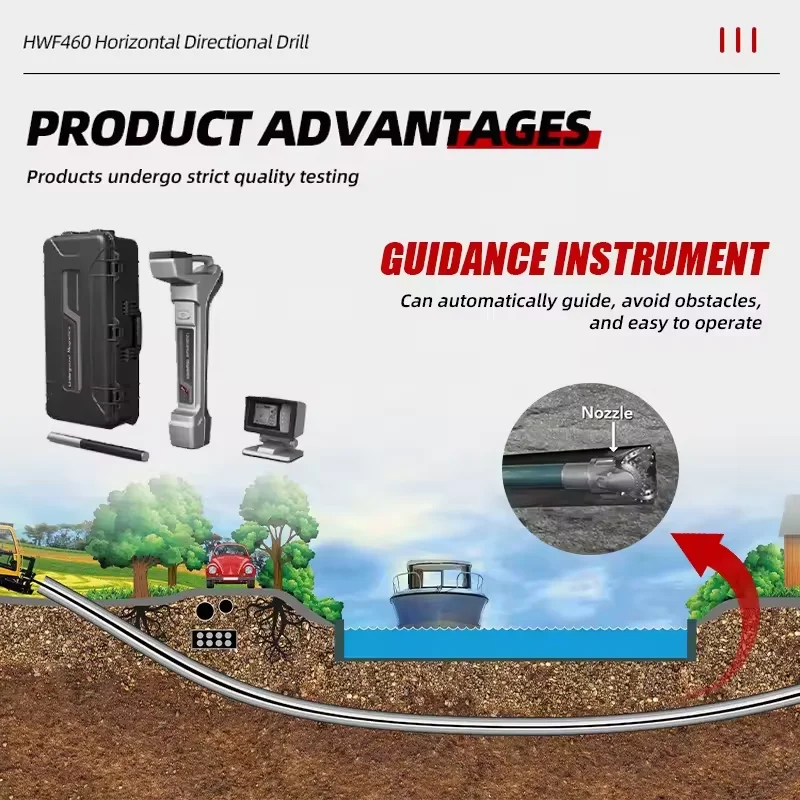

2.* Modern crossing equipment has high crossing accuracy and is easy to adjust the laying direction and burial depth. The arc-shaped laying distance of the pipeline is long, which can fully meet the design requirements for burial depth, and can allow the pipeline to bypass underground obstacles.
3.* The burial depth of urban pipe networks is generally less than three meters. When crossing rivers, the burial depth is generally 9-18 meters under the river bed. Therefore, horizontal directional drilling rigs are used to cross, which has no impact on the surrounding environment, does not damage the landform and environment, and adapts to various environmental protection measures.
2.* Modern crossing equipment has high crossing accuracy and is easy to adjust the laying direction and burial depth. The arc-shaped laying distance of the pipeline is long, which can fully meet the design requirements for burial depth, and can allow the pipeline to bypass underground obstacles.
3.* The burial depth of urban pipe networks is generally less than three meters. When crossing rivers, the burial depth is generally 9-18 meters under the river bed. Therefore, horizontal directional drilling rigs are used to cross, which has no impact on the surrounding environment, does not damage the landform and environment, and adapts to various environmental protection measures.

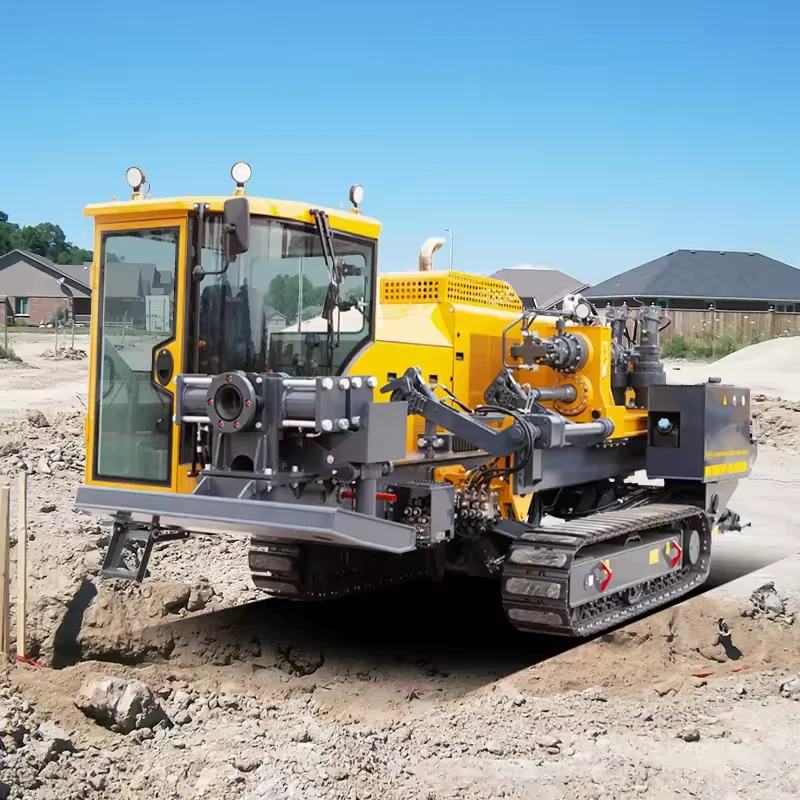

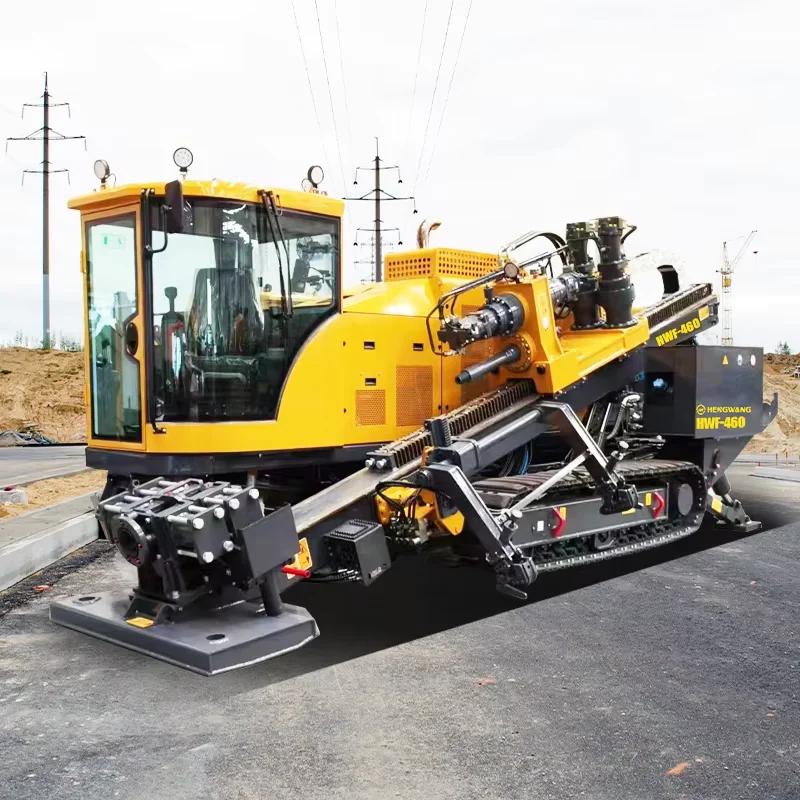

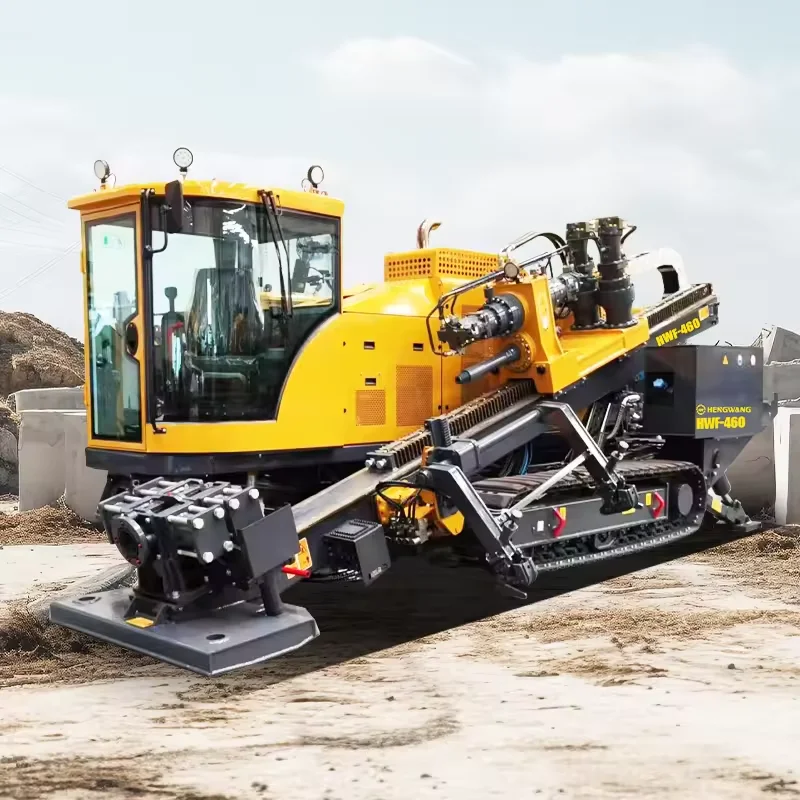

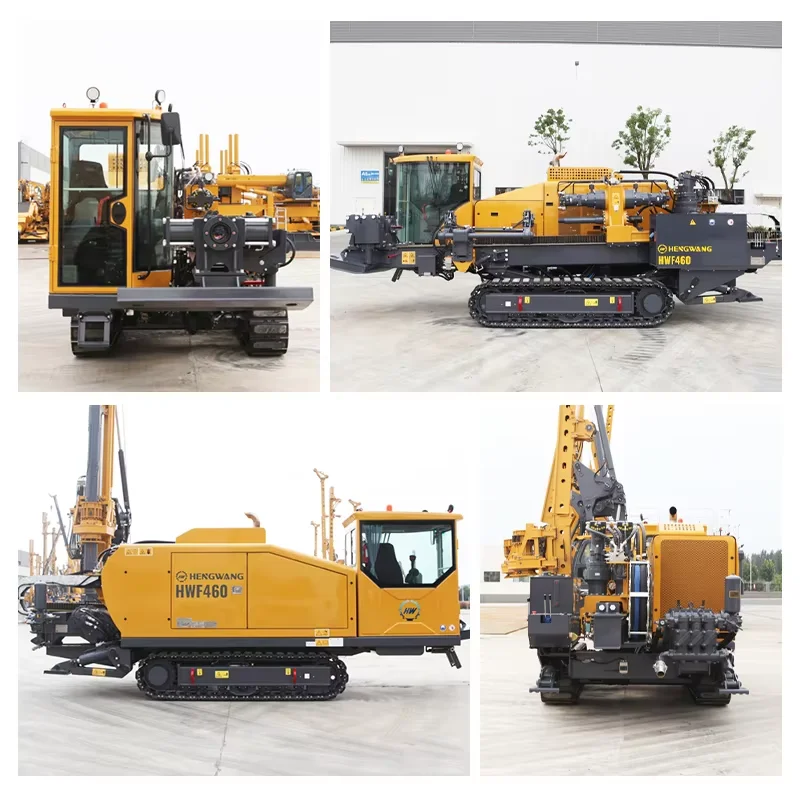

Detailed Images

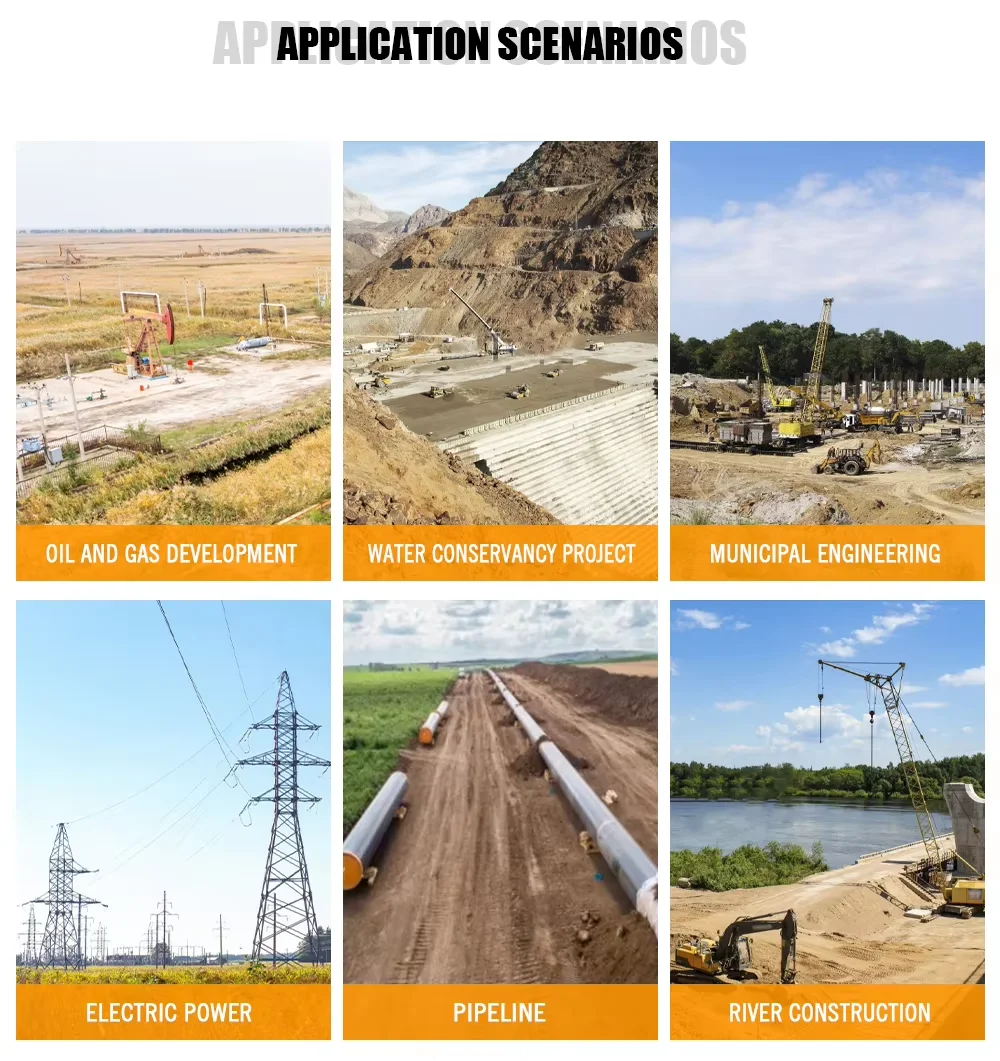

Application
Horizontal directional drilling machine is a construction machine that lays a variety of underground public facilities(pipes,cables, etc.) without excavating the ground surface. It is widely used in flexible pipelines such as water supply,electricity,telecommunications, natural gas, coal gas, and oil. During paving construction, it is suitable for sandy soil, clay,etc.
General application, any special requirements, please consult us.

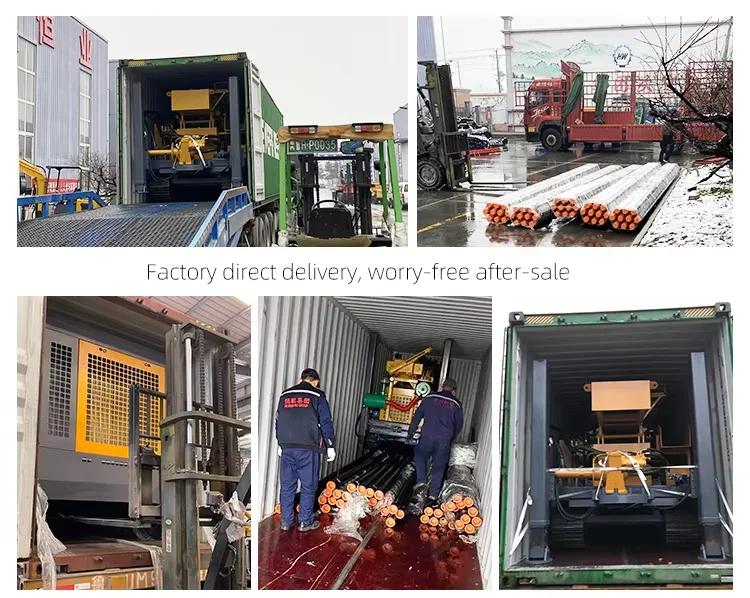

Packaging & Shipping
1 Set Shipped with 20GP;
2 set needs a 40GP;
2 set needs a 40GP;
Our Company
Shandong Hengwang Group Co., Ltd. is located in Shiqiao Industrial Park, Jining City, Shandong Province, China. Our Group occupies an area of about 40,000 square meters.It is a comprehensive enterprise integrating piling and drilling rig design, manufacture and installation.pri
Cerficate: CE
Product Name: Drilling Rig
Certificate No.: M.2019.206.C3842
Certificate No.: M.2019.206.C3842
Cerficate: CE
Product Name: Pile Driver
Certificate No.: M.2019.206.C0231
Certificate No.: M.2019.206.C0231
Note:The above price is deposit price,please kindly know that
