Fast 400mm Sieve Machine Sugar Sucrose Glucose Vibrating Sieve For Sand
Fast 400mm Sieve Machine Sugar Sucrose Glucose Vibrating Sieve For Sand
Fast 400mm Sieve Machine Sugar Sucrose Glucose Vibrating Sieve For Sand
Fast 400mm Sieve Machine Sugar Sucrose Glucose Vibrating Sieve For Sand
Fast 400mm Sieve Machine Sugar Sucrose Glucose Vibrating Sieve For Sand
Fast 400mm Sieve Machine Sugar Sucrose Glucose Vibrating Sieve For Sand
Fast 400mm Sieve Machine Sugar Sucrose Glucose Vibrating Sieve For Sand

Fast 400mm Sieve Machine Sugar Sucrose Glucose Vibrating Sieve For Sand

Share on (10000020744954):


Price:$1,850.00 - $2,600.00

Quantity:


Product Overview

Description





Introduction & Application
The TP-ZS series vibrated filter is a type of precision powder griddle, characterized by low noise, high efficiency, and a quick 2-3 minute griddle replacement. Its fully enclosed structure makes it ideal for filtering particles and powder. Broadly speaking, this equipment serves as a filtration mechanical separation device used for treating solid phases in slurry. It consists of a screen and a vibrator. The coarseness of the screen is indicated by mesh size, with screens below 50 mesh considered coarse screens and those above 80 mesh considered fine screens.






The ZS series vibrating griddle operates by using an upright motor as the vibration source. Eccentric hammers are mounted on both the top and bottom of the motor, which convert rotational movement into horizontal, vertical, and inclined motions. These combined movements are then transferred to the griddle's surface. By adjusting the phase angles on both the top and bottom, you can alter the movement patterns of the griddle surface. Essentially, the operation relies on the interplay of vibrational force and the screening action of the griddle.






1. High efficiency and refined design ensure durability, making it suitable for any powders and liquids.
2. Easy to replace the mesh, simple operation, and convenient cleaning.
3. The mesh holes never get clogged.
4. Automatically discharges impurities and coarse materials, allowing continuous operation.
5. Unique mesh frame design extends the mesh's lifespan, with replacement needed only every 3-5 cycles.
6. Compact size and easy to move.
7. The griddle can have up to 5 layers, though 3 layers are recommended.





Model
TP-KSZP- 400
TP-KSZP- 600
TP-KSZP- 800
TP-KSZP- 1000
TP-KSZP- 1200
TP-KSZP- 1500
TP-KSZP- 1800
TP-KSZP- 2000
Diameter(mm)
Φ400
Φ600
Φ800
Φ1000
Φ1200
Φ1500
Φ1800
Φ2000
Effective area(m2)
0.13
0.24
0.45
0.67
1.0
1.6
2.43
3.01
Mesh
2-400
Material size(mm)
<Φ10
<Φ10
<Φ15
<Φ20
<Φ20
<Φ20
<Φ30
<Φ30
Frequency(rpm)
1500
1500
1500
1500
1500
1500
1500
1500
Power(Kw)
0.2
0.55
0.75
1.1
1.5
2.2
3
3
Height to 1st layer
605
605
730
810
970
1000
1530
1725
Height to 2nd layer
705
705
860
940
1110
1150
1710
1905
Height to 3rd layer
805
805
990
1070
1250
1300
1890
2085

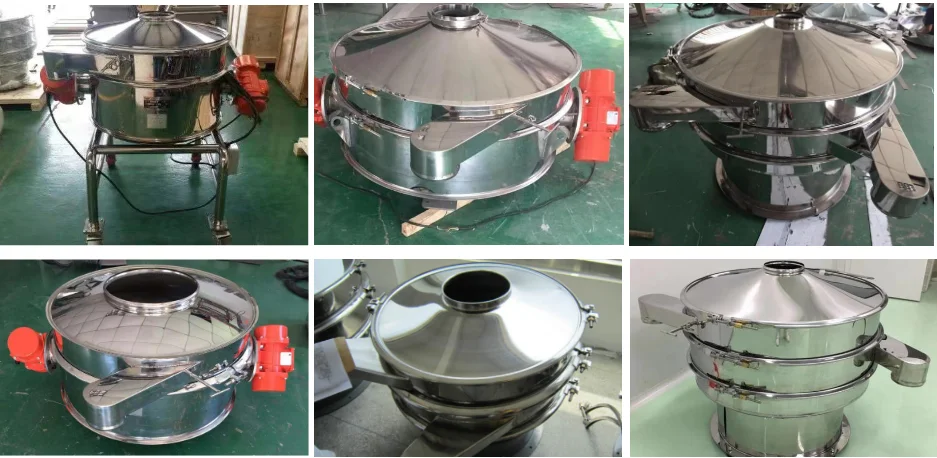

Straight discharge vibrating sieve

Rotary discharge vibrating sieve



Working principle

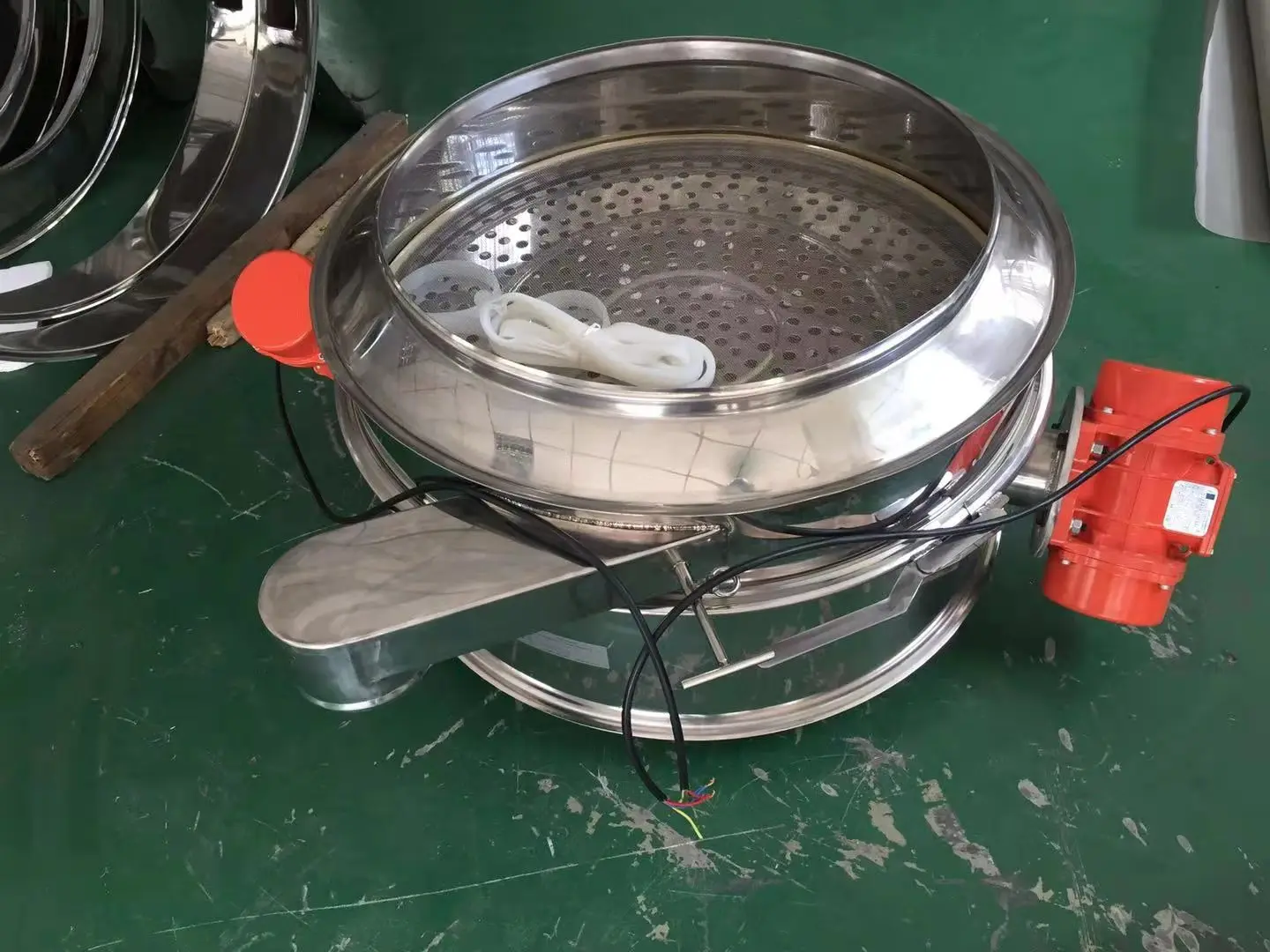

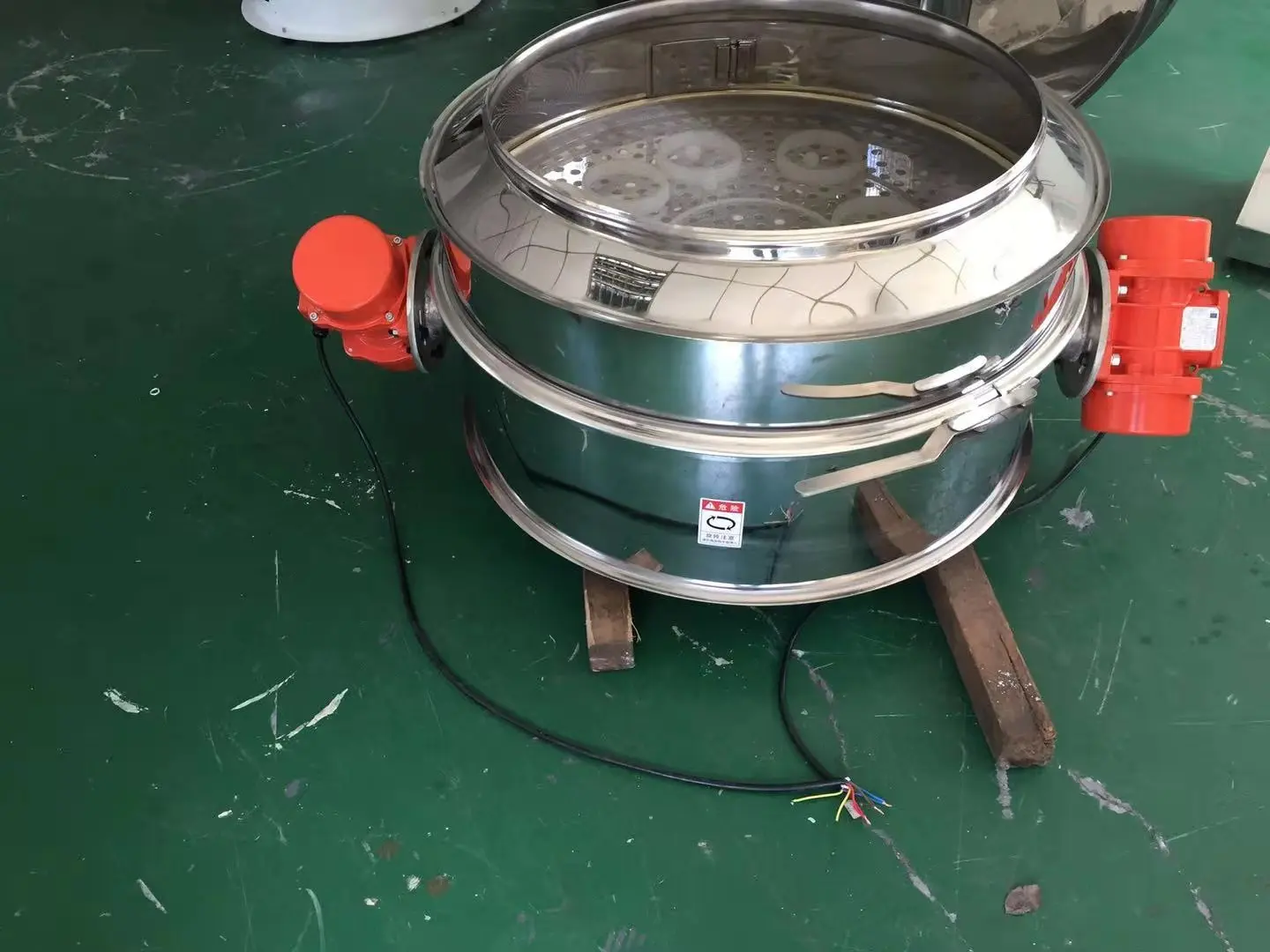

The vibrating motor is mounted on the side of the screen machine, and depending on the number of motors, the machine can be classified as either a single vibration source or a dual vibration source type. In a single vibration source direct discharge screen, the material on the screen surface moves up and down, which does not support automatic discharge. In contrast, the dual vibration source direct discharge screen uses the combined effect of two vibrating motors to drive the material in an elliptical motion on the screen surface, enabling quick and repeated separation and screening.
Production capacity
The up-and-down motion combined with the direct discharge method reduces the time needed to convey materials to the discharge port during the screening process, thereby increasing output. The production capacity of a direct discharge vibrating sieve is 2 to 5 times greater than that of a rotary vibrating sieve.
Precision
The screening mesh size ranges from approximately 2 to 200 mesh, providing a narrower range of screening precision. It is suitable for screening granular or coarser powdered materials and is often used as an intermediate step in fine and mining screening processes.
Working principle
The unbalanced weight hammer of the vibrating motor generates three-dimensional movements—horizontal, vertical, and inclined—driving the material to achieve high-precision screening and classification.
Production capacity
To ensure screening accuracy, after the material undergoes three-dimensional motion on the surface, it must continue to bounce under the influence of the vibration until it reaches the 360-degree rotatable discharge port on the side for smooth discharge. As a result, the capacity is somewhat lower compared to a direct discharge screen.
Precision
The screening precision can reach up to approximately 500 mesh, making it suitable for fine powdered products.


Domical vault
Eliminates the need for reinforcement ribs, making the lid stronger and easier to clean.
New design mesh screen
The mesh screen and mesh screen ring are bonded together with food-grade epoxy resin, making it easy to change the mesh size and clean.


Sealing ring
The sealing ring and epoxy resin will hide in the interlayer, without leakage and material hiding.
Quick-release seal
Allows for quick and easy disassembly, making cleaning simpler.


Both cover and inlet are finely polished and welding
Round and silicone bouncing cleaning ring and gasket.



Mesh Size Reference Chart


British (mesh)
American (mesh)
Tyler (mesh)
International standard sieve (mesh)
Micron comparison
Millimeter comparison
4
5
5
-----
4000
4.00
6
7
7
280
2812
2.81
8
10
9
200
2057
2.05
10
12
10
170
1680
1.68
12
14
12
150
1405
1.40
14
16
14
120
1240
1.20
16
18
16
100
1003
1.00
18
20
20
85
850
0.85
22
25
24
70
710
0.71
30
35
32
50
500
0.50
36
40
35
40
420
0.42
44
45
42
35
355
0.35
52
50
48
30
300
0.30
60
60
60
25
250
0.25
72
70
65
20
210
0.21
85
80
80
18
180
0.18
100
100
100
15
150
0.15
120
120
115
12
125
0.12
150
140
150
10
105
0.10
170
170
170
9
90
0.09
200
200
200
8
75
0.075
240
230
250
6
63
0.063
300
270
270
5
53
0.053
350
325
325
4
45
0.045
400
400
400
-----
37
0.037
500
500
500
-----
25
0.025
625
625
625
-----
20
0.020


Connect with ribbon mixer
Connect with feeding station
















1. Are you a factory or agent?
We are an OEM, we always design and manufacture our products ourselves, so we could provide
satisfactory technical and after-sales service. You could pay a visit to our factory any time you like.
2. How does your factory do regarding quality control?
Quality is priority! Every worker keeps the QC from the very beginning to the very end, all material
we used are meet GB standard, skillful workers care every detail in handing each process, Quality control department specially responsible for quality checking in each process.
3. Is there any spare parts?
Spare parts when there is big weight range/ special powder characteristics / special container / high
accuracy request / etc.
4. As a oversea buyer, l wonder if you could send us engineer for installation and maintenance?
The machines are test without problem before shipping. just connect to power the machine will work. We will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary in reasonable price.
Q: Why we can choose you?
A:1): Reliable---we are the real company, we dedicate in win-win
2):Professional---we offer the machine exactly you want
3): Factory---we have factory, so have reasonable price
Q:How about the price? Can you make it cheaper?
A:The price depends on the item your demand(model, quantity)Best quotation after receiving full description of the item.
Q:Delivery Time?
A:Normally, our delivery time is 25 days after we receive the deposit. If the order is big, we need to extend the delivery time.
