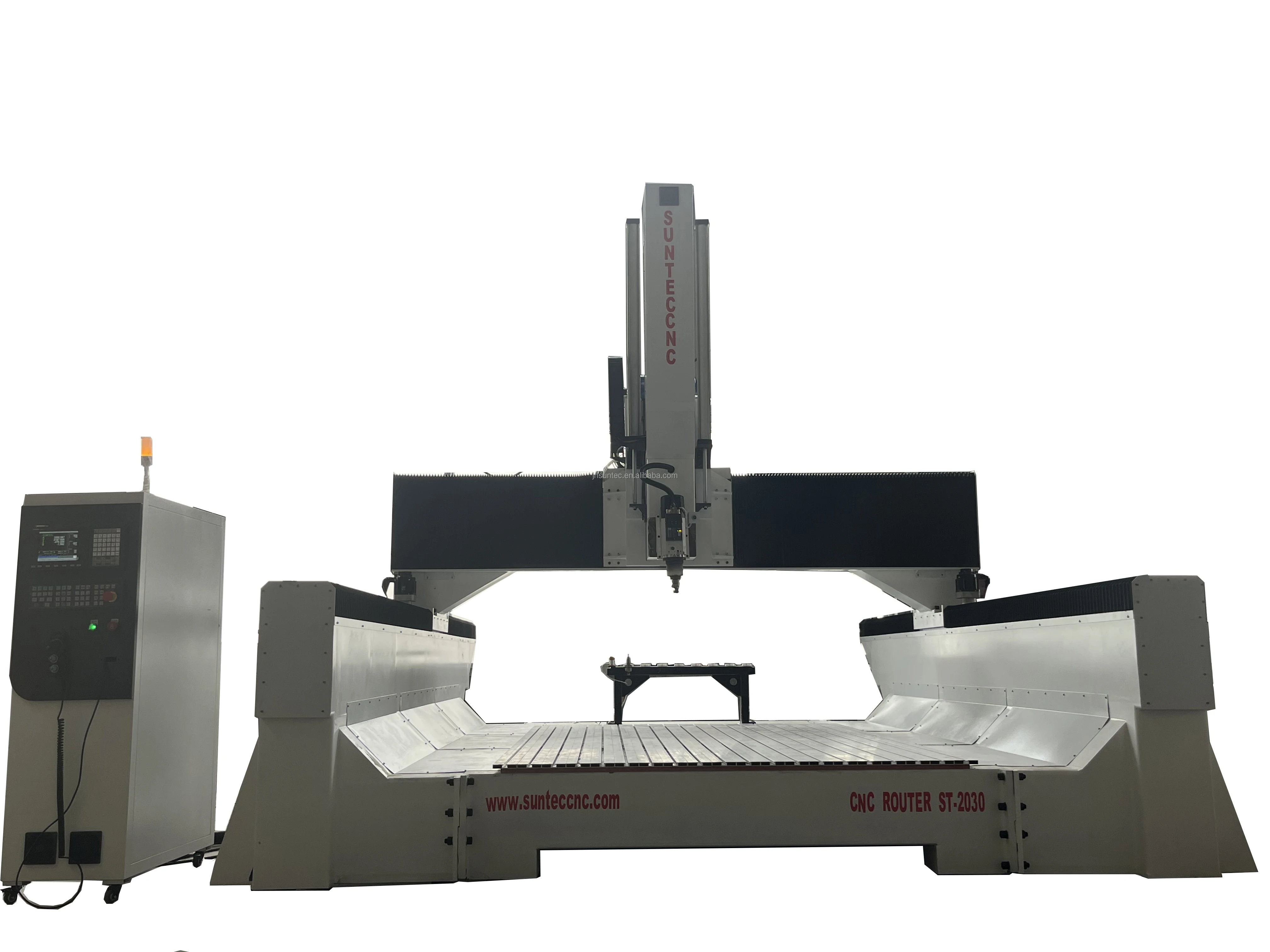

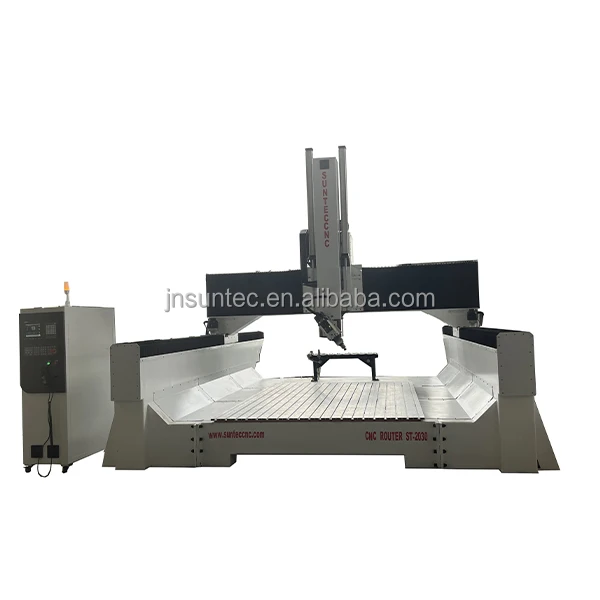

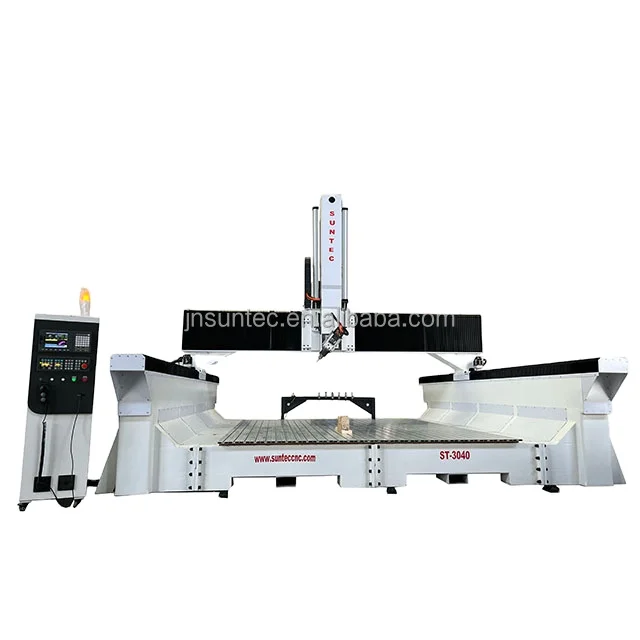

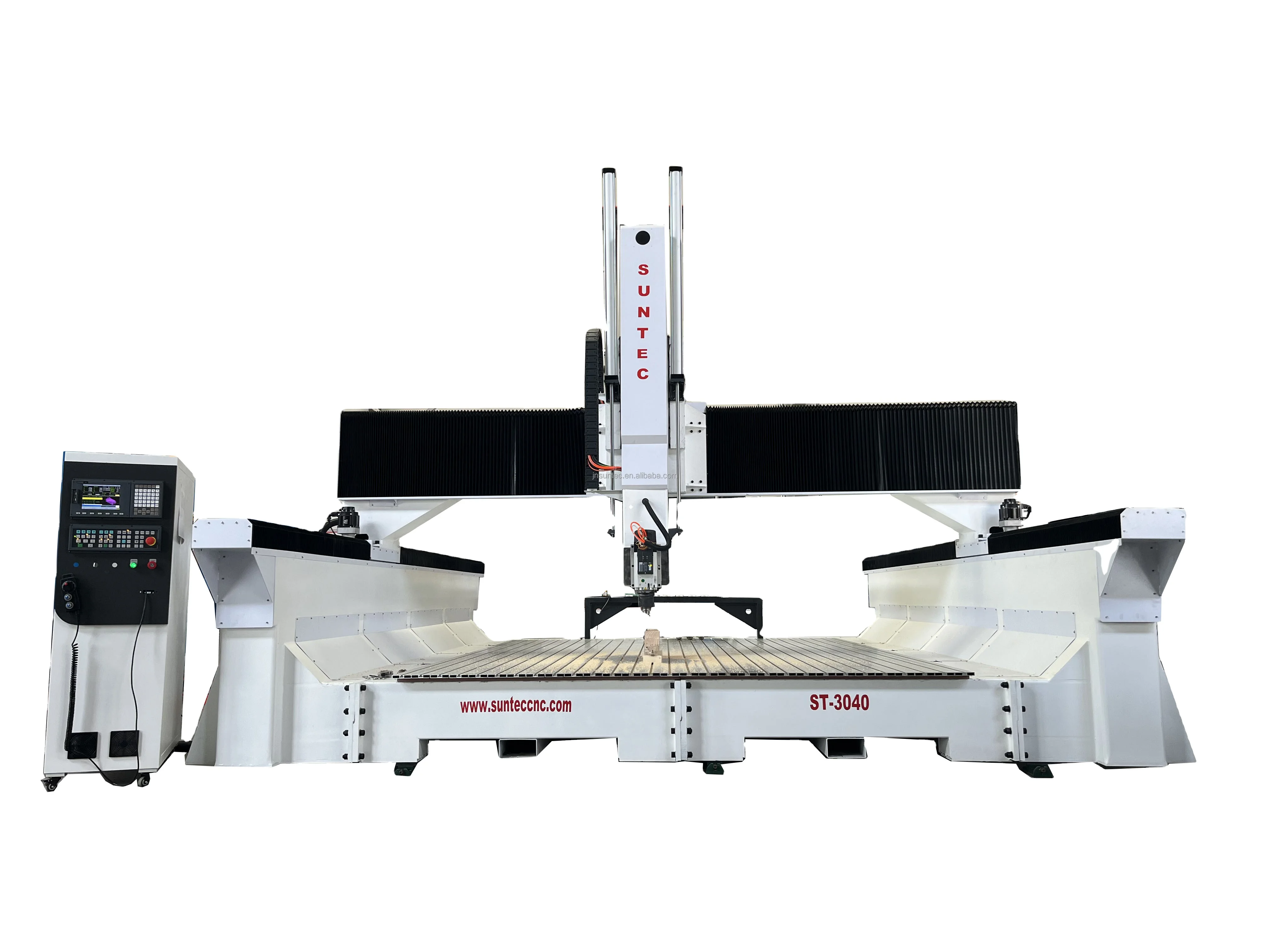

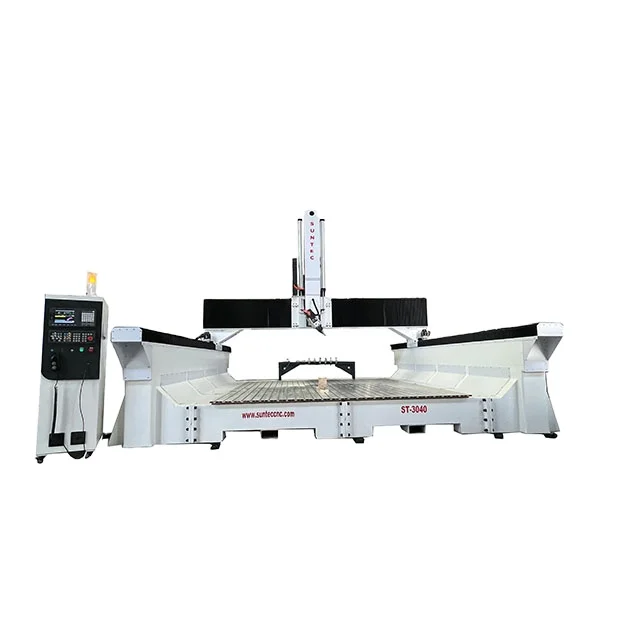

 china 2024   4 axis 1530 atc 3d cnc router on promotion atc 4 axis  5 axis cnc router center for woodworking marin









Main specification

A 4-axis CNC router is an advanced machine commonly used for mold making in various industries, including automotive, aerospace, and manufacturing. It offers greater flexibility and precision compared to 3-axis routers by enabling the tool to move in four different directions: X, Y, Z, and A-axis (which allows rotation along the X-axis).

Features of a 4-Axis CNC Router for Mold Making:

1.


   Enhanced Precision: The 4th axis adds the ability to rotate the workpiece, allowing for complex geometries and detailed mold designs that are difficult to achieve with a traditional 3-axis machine.





2.


   Complex Mold Shapes: With the 4th axis, you can easily create intricate 3D molds with undercuts, overhangs, and multi-sided designs. This is especially useful for producing detailed and highly accurate molds for products like automobile parts, aerospace components, or custom prototypes.





3.


   Continuous Machining: The rotary axis eliminates the need to reposition the workpiece manually. This capability reduces setup time and ensures consistency across multiple mold-making projects.





4.


   Materials: 4-axis routers are capable of working with a wide variety of materials, including:





   • Aluminum


   • Foam


   • Wood


   • Plastics


   • Resins






5.


   Automation & Efficiency: These machines are typically equipped with automatic tool changers (ATC), which enhance productivity by automatically switching between different cutting tools based on the task.





6.


   Reduced Errors: The 4th axis allows for precise control over angles and curves, reducing human error and ensuring a more accurate final product.




   Applications in Mold Making:




• Automotive Industry: Creating detailed molds for engine components, dashboards, and other automotive parts.


• Aerospace: Manufacturing molds for airplane components, turbine blades, and complex structural parts.


• Product Prototyping: Fast and efficient creation of molds for product prototypes and small-scale manufacturing.


• Custom Molds: Developing unique molds for artistic or customized items such as sculptures, jewelry, or bespoke manufacturing project

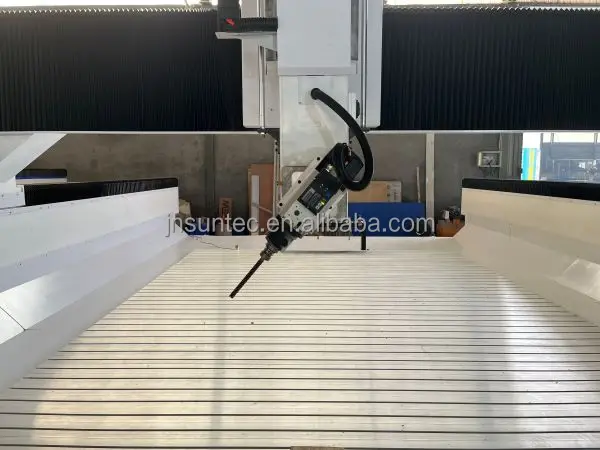

1. The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which we can design with  powermill  mastercam Software etc

2. We use top quality components for the machines, like HSD spindle, Syntec EZ-4M control system, Delta Inverter, Yaskawa servo motors, and separate control box, Hiwin  PMI linear and so on, to keep the machine in best condition even after many years working.

Yaskawa servo can make high resolution high torque  high precision lower fault .
3. With hard steel structure, all steel structure welding then heattreatment to reduce itself rigidity to make sure longlife uselife no deformed .then use 5 sides milling center to mill square guide railway to make sure high precsion  so it is  fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration. cast molding making , carbon material mold making , fiberglass mold making , plastic mold making , EPS mold making , 3d foam making , non-metal 3d model making . Aviation mold , millitary mold making  aluminum styrofoam mold making ship boats etc .





Number	Description	Parameter
1	X,Y,Z Working Area	2000x3000x1000mm
2	Table Size	4300×5840mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/1000mm
4	X,Y,Z Repositioning Accuracy:	±0.01mm
5	Table Surface	T-slot Combined (Option: T-slot Table)
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle)  4 Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	9.6kw HSD
13	Spindle Speed	0-24000RPM
14	Drive Motors	1300W Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec Control System
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	ISO30
21	X,Y Resolution	<0.01mm
22	Software Compatibility	powermill UG software
23	Running Environment  Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	5800X2100X2300mm
26	N.W.	6000KG
27	G.W.	7000KG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		Delta/ Panasonic Servo Motors
		Colombo Spindle



 PRODUCTION DETAILS

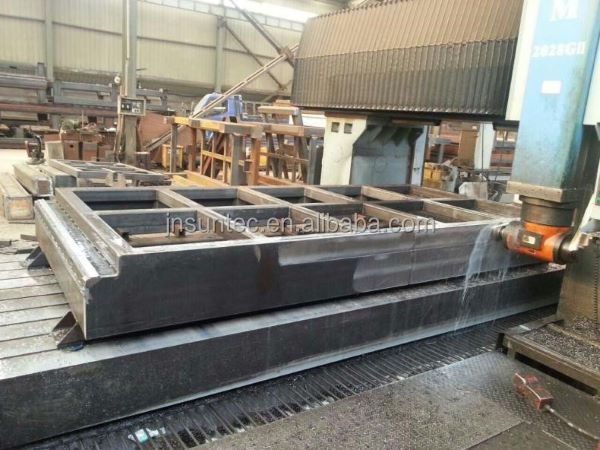

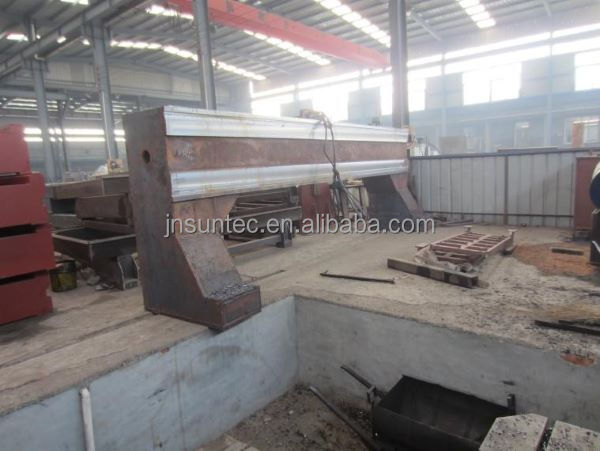

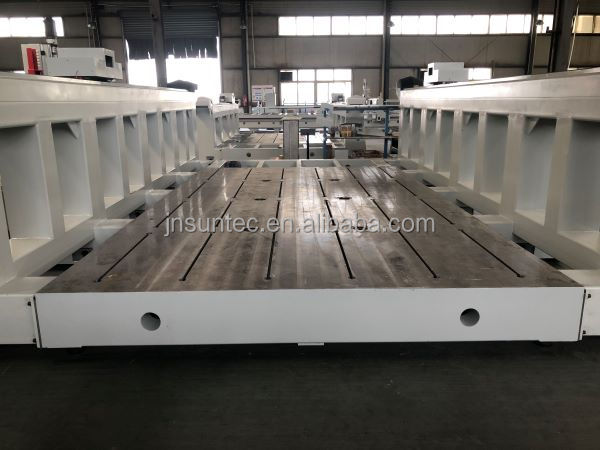

After welding then table flat producing to make sure table at same level  to make sure high precision

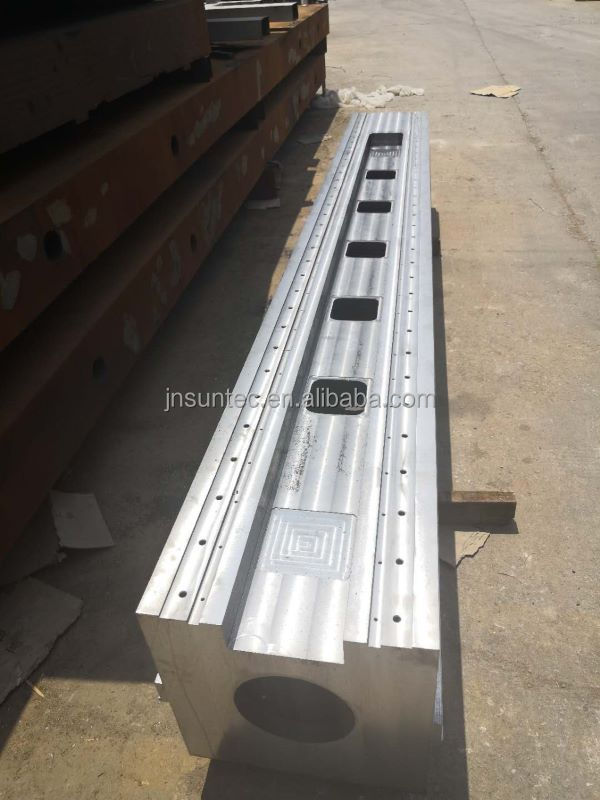

5 axis side milling center to milling square guide to make sure high precision





Sanding  to reduct steelitsel dust to make sure paiting well and no scrab

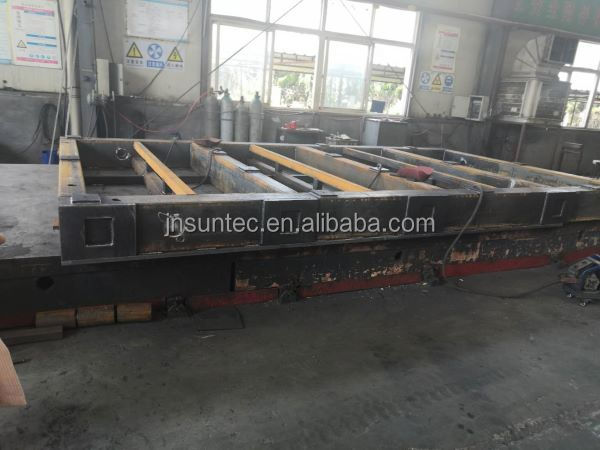

All structure  table heattreatment to deduct steel itself rigidity to make sure longlife use no deformed .

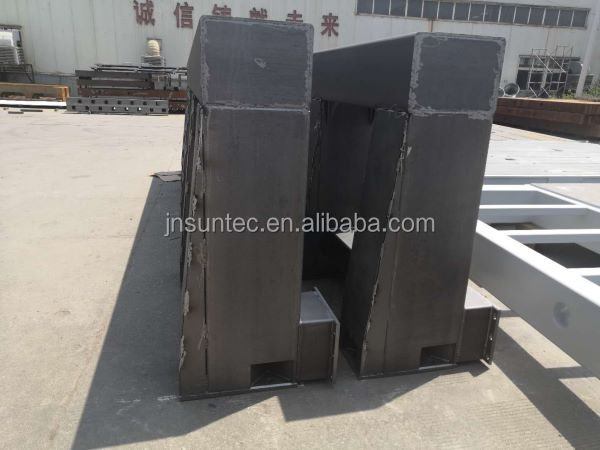

Heavy duty square gantry table milling by cnc center

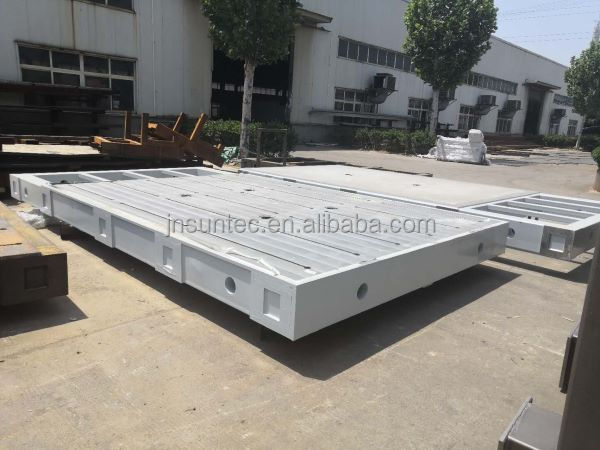

Steel plate table with T slot to bear heavy duty material to make sure table no deformed





 STEEL TABLE FOR OPTIONAL , NORMAL ALUMINUM TABLE WITH PVC , ALL ACCORDING YOUR REQUIRMENTS TO CHOOS E TABLE



9kw HSD spindle 24000 rpm cutter blade and spindle rotary at the same time all the time so it no swing cutter and ATC well . customer working 16 hours everyday using 6 years still well .

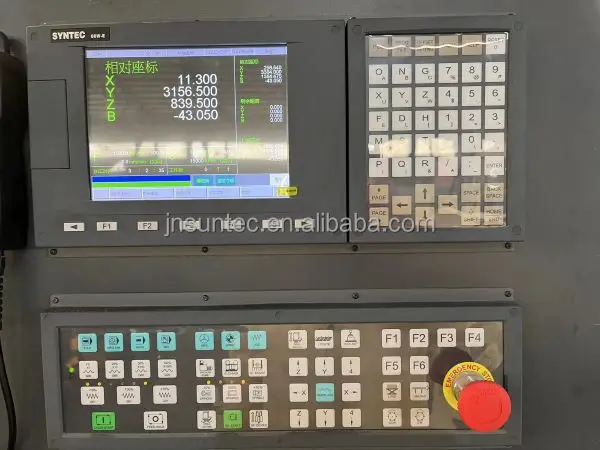

Syntec controller high sensitivity strong stability  controll ability and fast feedback , importantly it can second development if you want add one fuction just send you file then use directly ,

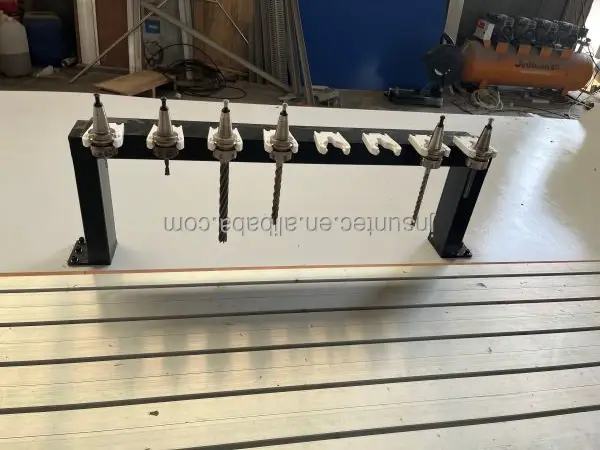

Automatic tool change 8 piece , cutter accordingyour material to choose , if you make mold first milling need rough milling need 150-200mm straight cutter then  fine miling need 50mm cutter to slow miling to make sure precision .







FEEDBACK





SUNTEC CNC IN UK CUSTOMER WORKSHOP FOR RACE CAR MOLD MAKING

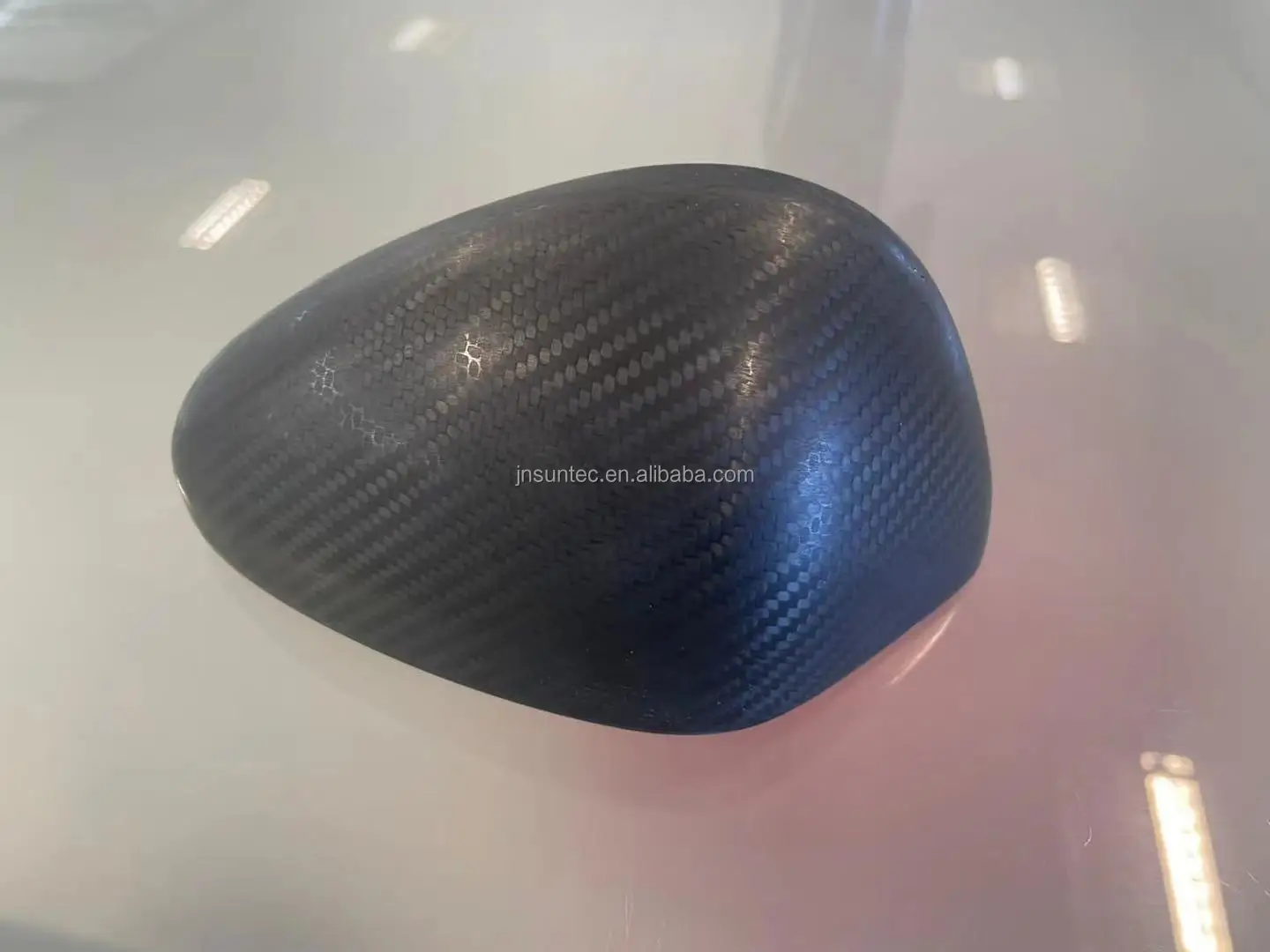

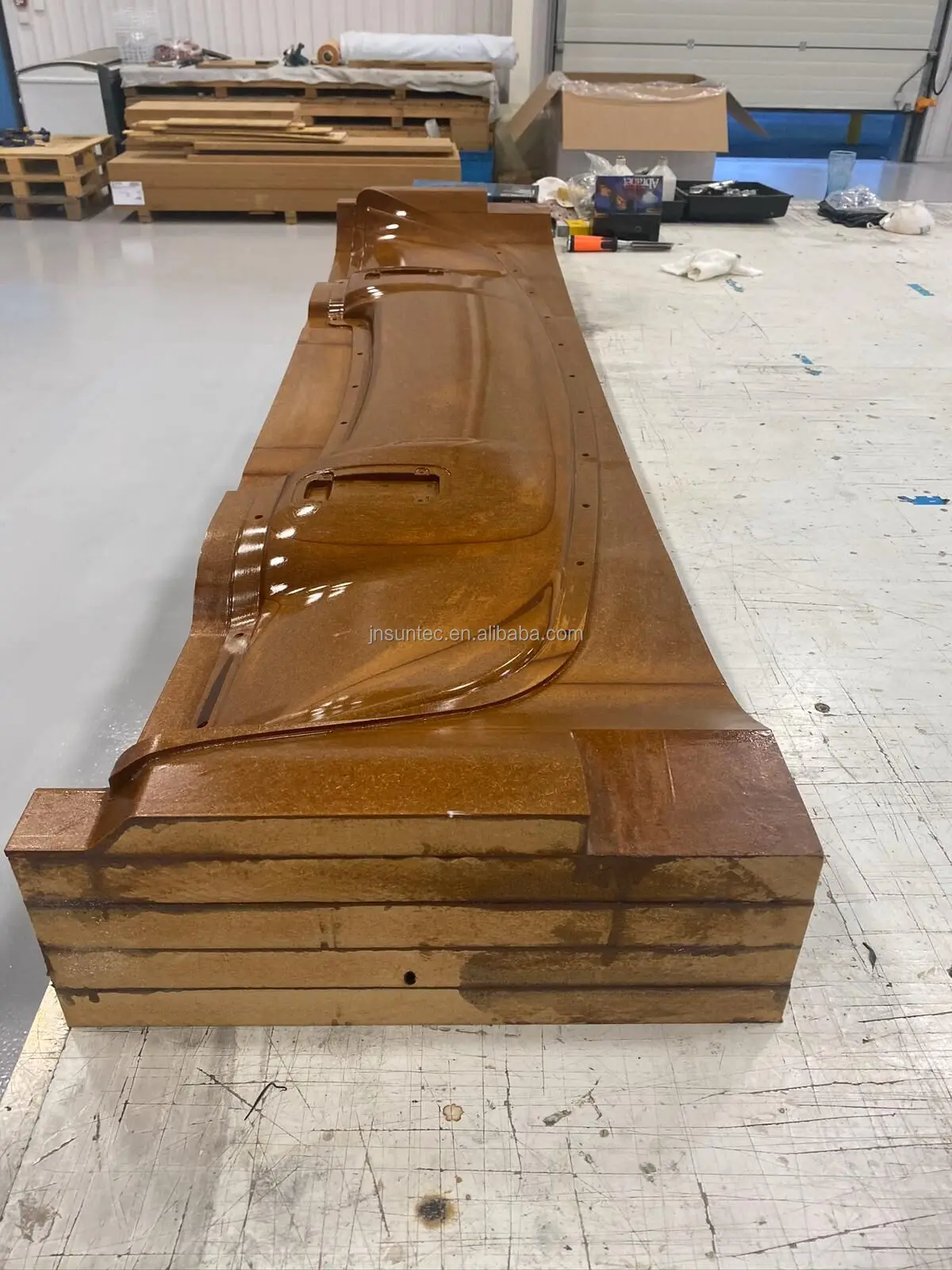

USING SUNTEC CNC FOR HARD WOOD MAMKING FOR RACE CAR BASIS , THEN SURFACE CARBON MATERIAL MOLD MAKING WHO USED OUR MACHINE 7 YEARS

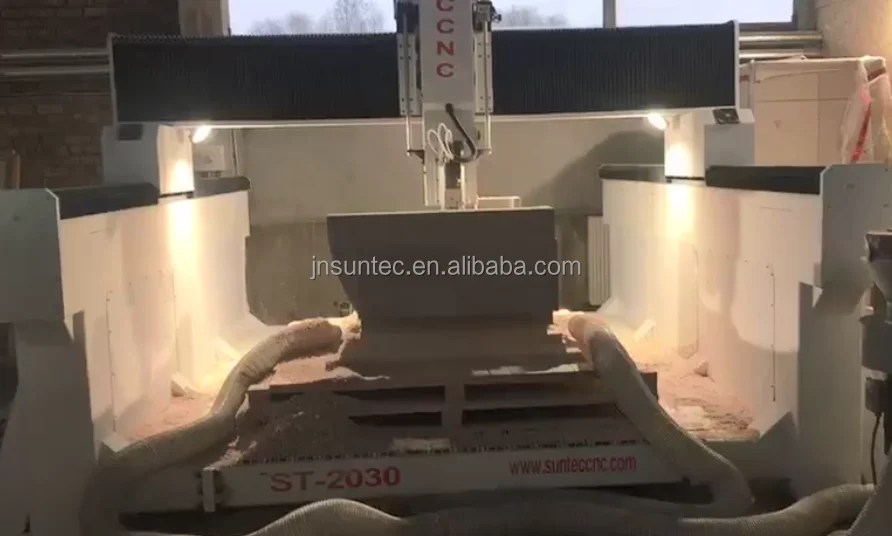

SUNTEC CNC IN FRANCE CUSTOMER WORKSHOP FOR 3D PERSON STYRO FOAM MOLD MAKING

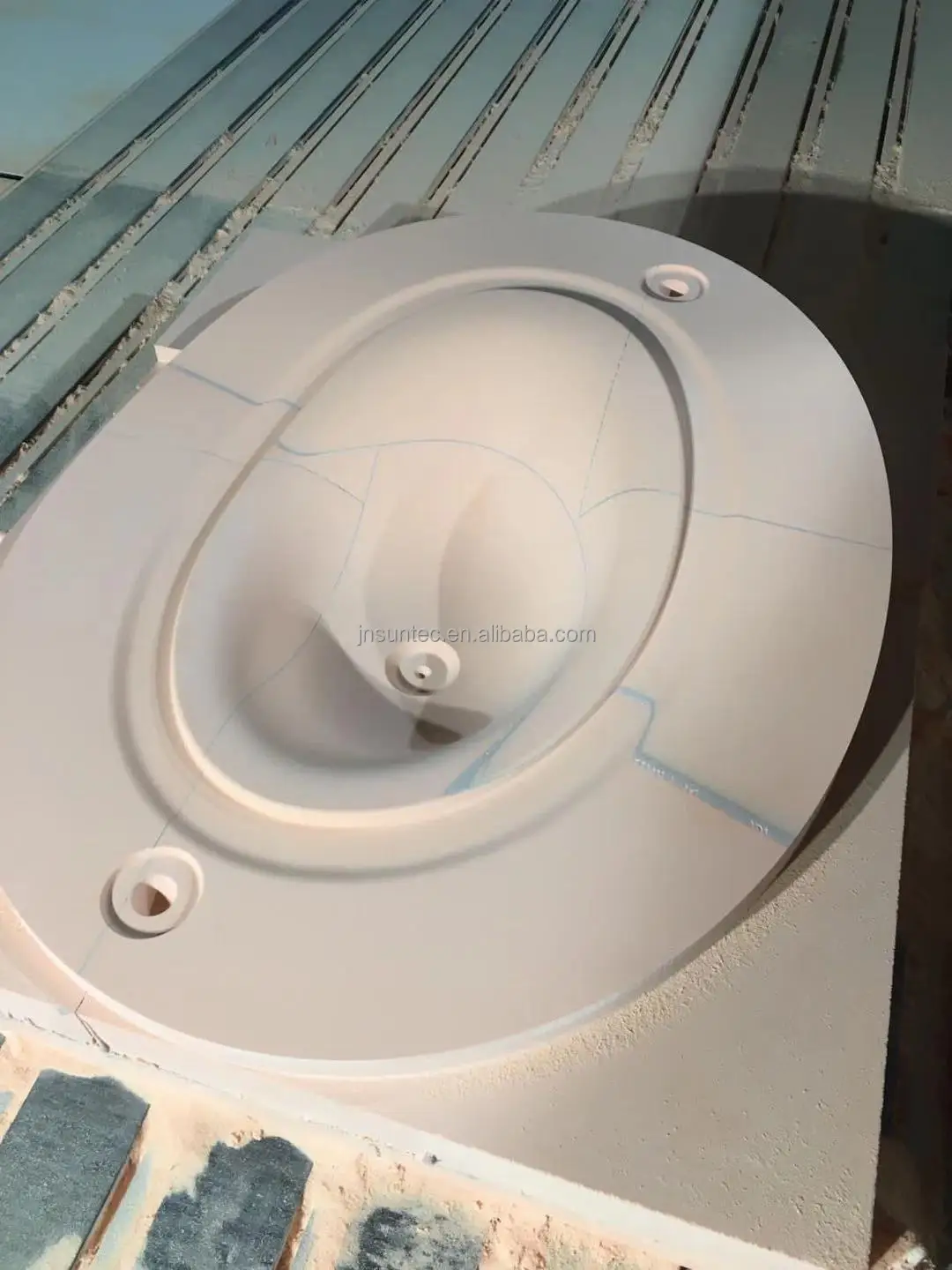

SUNTEC CNC IN SPAIN CUSTOMER WORKSHOP FOR FIBERGLASS MOLD CAR MAKING HIGH PRECISION





SUNTEC 4 AXIS CNC ROUTER ST-2030 IN LATVIA  FOR BATHROOM PARTS MAKING

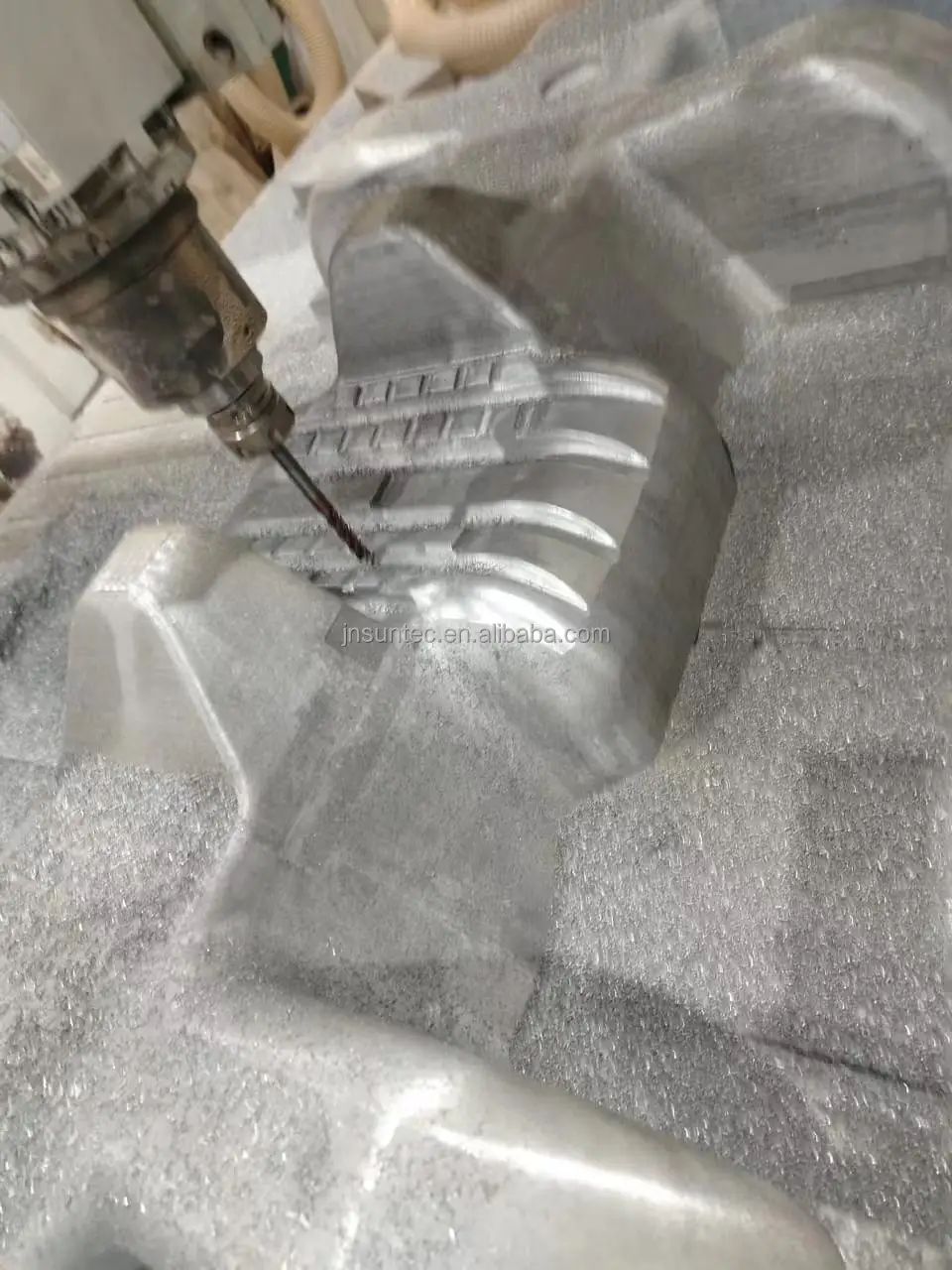

SUNTEC 4 AXIS CNC ROUTER ST-2030 FOR ALUMINUM MOLD MAKING IN POLAND



SERVICE

1. 24 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.

2. Our engineer could support you technology to your contry  if  necessary.

3. Our enginner could service on weekend even on vacation.

4. Our engineer could train you on at our factory for free.

5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by  cellphone.

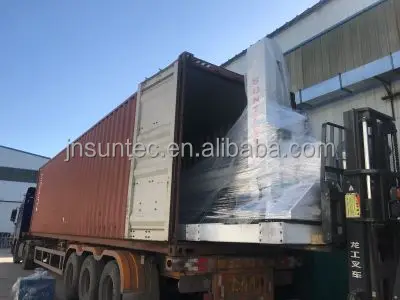

 package details
