AC1200 CATV ONU XPON Wifi5 ONT GPON EPON Dual Band With CATV 4GE 2.4G 5G VOIP CATV WIFI Router Optical Network
- Category: >>>
- Supplier: HOSECOM LIMITED
Share on (10000020962805):
Product Overview
Description
GPon EPon Dual Mode Adaptive AC1200 Wifi 5 Modem Router 4GE ONU FTTH XPon
The G1412C is a GPon and EPon dual mode adaptive optical terminal Unit that is highly integrated with dual-frequency Wi-Fi 5 AC1200. it supports ultra-bandwidth access through GEPon upstream technology and provides users with basic WiFi function, routing, and gigabit Ethernet function. The upstream network ports of the G1412C are GEPon ports. It has 4 GE RJ45 ports, 1 USB port, 1 VoIP port and WiFi 5 WLAN port. It has CATV interface to provide client TV access.
Product Description
Interface
1* G/EPON interface: SC/UPC/APC interface,
4* Ethernet interface: 10 MBPS/100 MBPS, 1000 MBPS, RJ- 45, IEEE802.3-2005 standard
1* VOlP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
1*CATV: C/N:≥43dB,C/CTB:≥55B,C/CSO>55dB, MER≥32dB, BER≤1*10E-6
1* USB interface: standard USB 2.0 interface
Dual-band WIFI5 AC1200 (2 x2 MIMO (2.4G&5G))
4* Ethernet interface: 10 MBPS/100 MBPS, 1000 MBPS, RJ- 45, IEEE802.3-2005 standard
1* VOlP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
1*CATV: C/N:≥43dB,C/CTB:≥55B,C/CSO>55dB, MER≥32dB, BER≤1*10E-6
1* USB interface: standard USB 2.0 interface
Dual-band WIFI5 AC1200 (2 x2 MIMO (2.4G&5G))
Specification

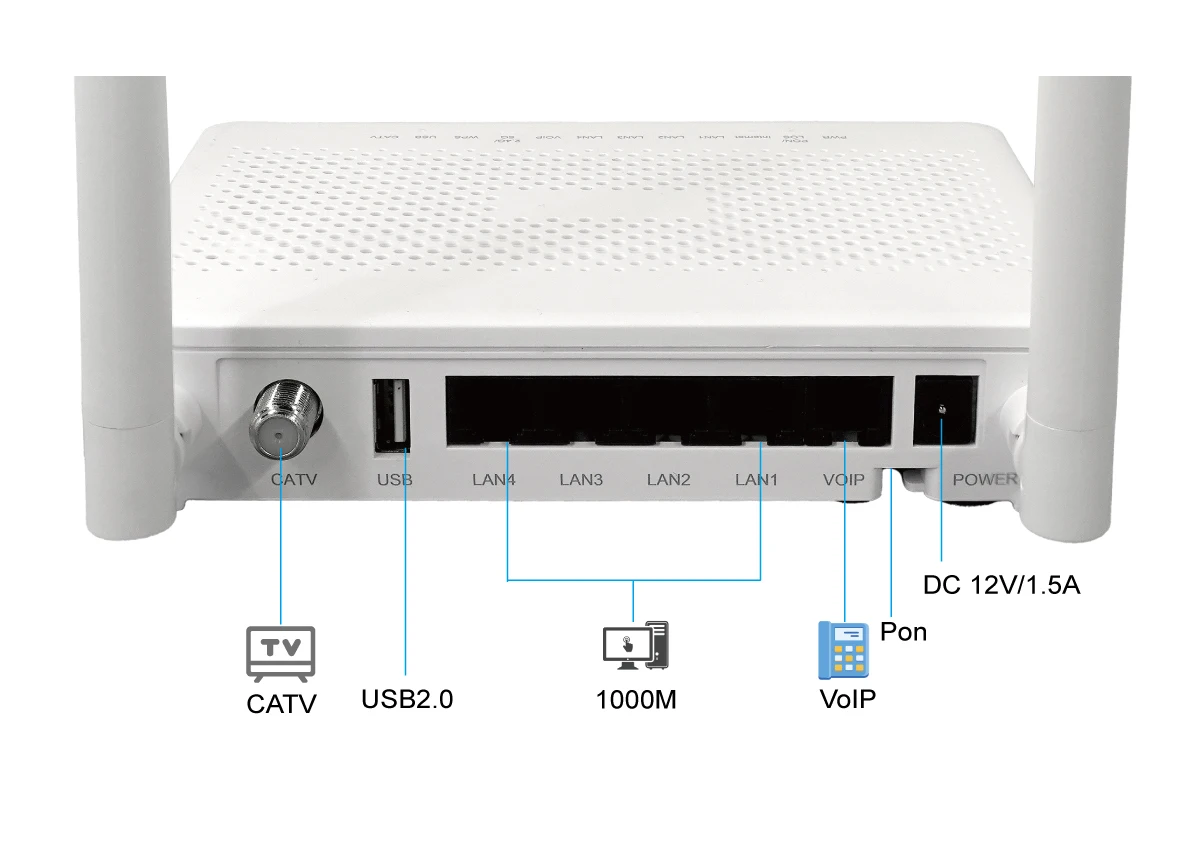

Hardware Parameters | ||
PORTS: | 4*RJ45(GE) | |
1*RJ11(POTS) | ||

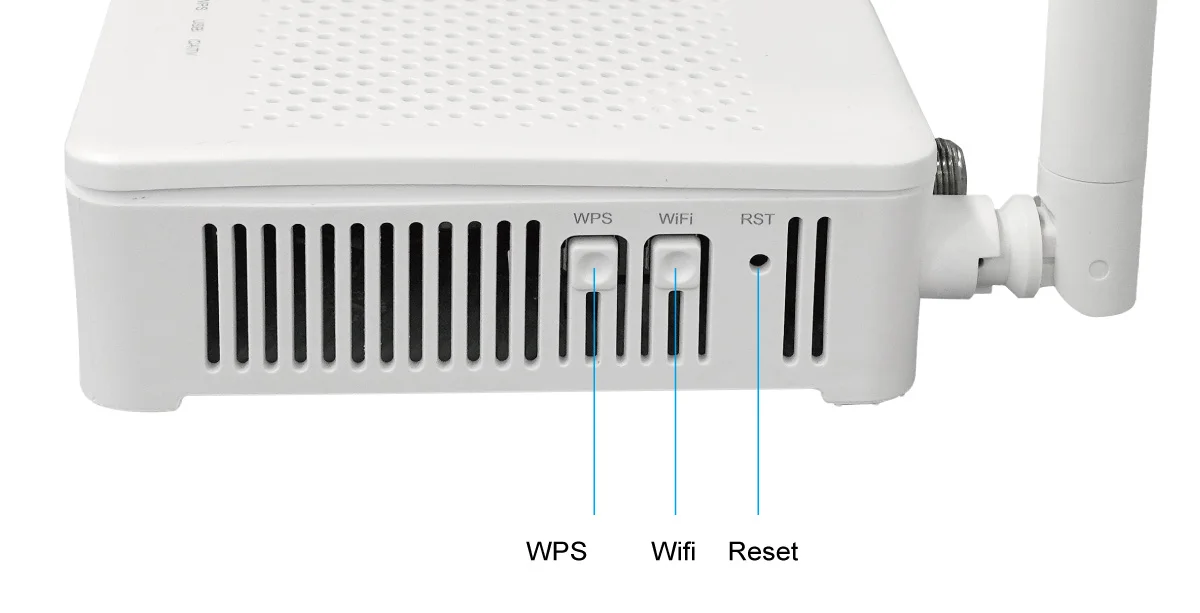

1*Reset+1*Power +1*LED | ||
button+1*WiFi button+1*WPS | ||
1*SC/UPC (or SC/APC) | ||
1*POTS | ||
1*DC | ||
1*CATV | ||
1*USB2.0 | ||
Size | 190mm*135mm*33mm(L*W*H) | |
consumption | ≤8W | |
LED | POWER+PON/LOS+NET+LAN+POTS+WiFi+WPS+USB | |
Interface Parameters | ||
G/EPON Port | GPON: Class B + | |
EPON: PX20+ | ||
GPON: Upstream1.25Gbps | ||
Downstream: 2.48Gbps | ||
EPON: Upstream1.25Gbps; | ||
Downstream: 1.25Gbps | ||
Ethernet Port | Ethernet port-based VLAN tags and tag removal | |
VLAN transparent and mark | ||
MAC address learning | ||
10/100/1000Mbps Autonegotiation | ||
VolP Port | Call waiting, Inconditional Call Forward | |
Call Forward if Busy,Call Forward if no reply and Three-party calls. | ||
G711A/G711U/G729/G722 | ||
SDP protocol (RFC 2327 and RFC 4566) | ||
T.30/T.38/G.711 faxmode | ||
WiFi5 | ||
WiFi protocol | 2.4GHz supports 802.11b/g/n | |
5GHz supports 802.11a/n/ac | ||
Transmit power | 2.4G 100mW,5G/200mW | |
Antenna gain | 5dBi | |
Antenna | dual-antenna MlMO (2.4G&5G) | |
WLAN penetrate | one reinforced concrete wall or two ordinary brick walls (non-reinforced concrete) | |
WLAN access capability | 64 client | |
channel | 2.4GHz(channel 1-13), 5GHZ(channel 36-161 ) | |
WPS | WLAN terminal devices with WPS, Push Button function establish connection within 2 minutes | |
WLAN security function | WPA-PSK, WPA2-PSK, WPA3, WPA-PSKNPA2-PSK, AES, AES+TKIP | |
Wifi rate | 2.4G 300Mbps , 5G 867Mbps | |
CATV | ||
Remote control CATV | ON/OFF | |
optical AGC | -10~+2dBm | |
Output level | 76dBuV | |
RF bandwidth | 47-1000 MHZ | |
In band flatness | +1.25dB | |
Qutput return loss | >12dB | |
CATV system parameters | C/N:> 43dB , C/CTB :≥55dB, C/CSO >55dB, MER ≥32dB, BER ≤1*10E-6 | |
customization
4GE ONU XPon Customization
Hosecom attaches great importance to the personalization needs of our customers, and we understand that it is the most important means for our customers to make a big move to their personal brand.
4GE ONU XPon LOGO Customization
There is no purchase quantity limit for logo customization, and a minimum of 1 product can also be customized LOGO.
Packaging customization
The minimum MOQ for packaging customization is 500pcs, because we have cooperative packaging production factories, we can provide lower MOQ order packaging customization service for small quantity customers.
4GE ONU XPon Hardware customization
Program development, hardware customization. We have a team of more than 80 engineers, we can provide hardware customization service according to customer's requirements, provide customers with product hardware solutions and make it a mature product.
4GE ONU XPon Software customization
Hosecom has industry veteran software engineers who have more than 10 years of software design experience and can provide our customers with product software and special function customization.
Packing&Delivery
We are committed to 100% quality inspection during the production of our products and 100% inspection before the products are shipped.
Company Profile
About Hosecom
HOSECOM Limited is an equipment manufacturer and supply chain service provider engaged in the research and development, production, and sales of network communication equipment. We are committed to providing a better network upgrade experience for global network communication services! To provide our customers with higher cost-effectiveness, more stable and reliable products. Personalized customization is a product solution we provide to users in different countries and regions around the world. We attach great importance to the personalized customization needs of small and medium-sized network service providers, truly achieving low minimum order quantity customization, fast customization, and fast delivery. Hosecom can provide OEM/ODM/JDM/SKD/CKD services.
Hosecom focuses on FTTX technology, with main products including OLT, ONU modems, wireless routers, network switches, and other finished products. It also provides semi-finished products, components, and even production line exports. Since 2012, Hosecom has over 10 years of industry experience, covering a wide range of domestic and global customers in China. We have established a research and development center in Shenzhen, China, with a research and development team of over 70 people. We have established two factories in Wuhu City, Anhui Province, China and Pingdingshan City, Henan Province, with an engineering and technical team of over 80 people! The annual production volume of network communication products in two factories can reach 20 million units!
10+ Years
Hosecom has More than 10 years of experience in R&D and production and sales.
70+
with A R&D team of over 70 engineers can develop and deliver quickly.
20M+
Annual production of ONUs, OLTs, Wifi routers, and other network equipment can reach 20 million units.
Our Advantage
1. More than 10 years experience in FTTX solution, R&D, production and sales in one.
2. Low MOQ can be customized, experienced R&D team can quickly customize your version and ship quickly.
3. 3 years warranty, within 1 year due to quality problems damage only replacement and not refund.
4. Technical support, engineers remotely assist you to solve technical problems, Top customers enjoy technical outbound door-to-door service once a year.
5. High compatibility, all our products do not have private protocols, you can expand your network at will, no late expansion concerns.
6. Strong delivery capacity, two factories, more than 1,200 production staff, more than 70 engineers team can quickly develop and deliver.
7. Focus on fiber optic network upgrading field, trustworthy supplier.
2. Low MOQ can be customized, experienced R&D team can quickly customize your version and ship quickly.
3. 3 years warranty, within 1 year due to quality problems damage only replacement and not refund.
4. Technical support, engineers remotely assist you to solve technical problems, Top customers enjoy technical outbound door-to-door service once a year.
5. High compatibility, all our products do not have private protocols, you can expand your network at will, no late expansion concerns.
6. Strong delivery capacity, two factories, more than 1,200 production staff, more than 70 engineers team can quickly develop and deliver.
7. Focus on fiber optic network upgrading field, trustworthy supplier.
Return policy and warranty
Worry-free ordering
At Hosecom, we offer a 3-year warranty on almost all of our products, and we strive to make our customers 100% satisfied and worry-free with the products they purchase from us. If you are experiencing any shipping or product issues and are frustrated, please contact us as soon as possible and our team will assist you immediately.
Return or Exchange
If you receive the product and find it damaged and unusable, we apologize, this may be due to logistics reasons for the damage, you can choose to return the product, please contact us in time, we will give you a full refund and no need to return the product to us. Alternatively, you can choose to exchange the product, we will send you a brand new product, and no need for you to pay extra, we bear all the costs.
Unsatisfactory product
If you receive the product for testing, and the test results can not meet your requirements, please contact us, our engineers will assist you to solve the problem. Good communication is a prerequisite for solving problems, our excellent engineers can solve most of the technical problems, we can also offer refunds, which are no problem.
Cancel unshipped orders
If you have placed an order and the product is not in production, you can cancel the order, please contact us before that, our factory needs to cancel the scheduled production before the product is produced.
The product is damaged during the warranty period
If the product is damaged during the warranty period due to quality reasons and not due to human damage, we will provide a replacement product free of charge. It may be sent to you separately or with your next order.
