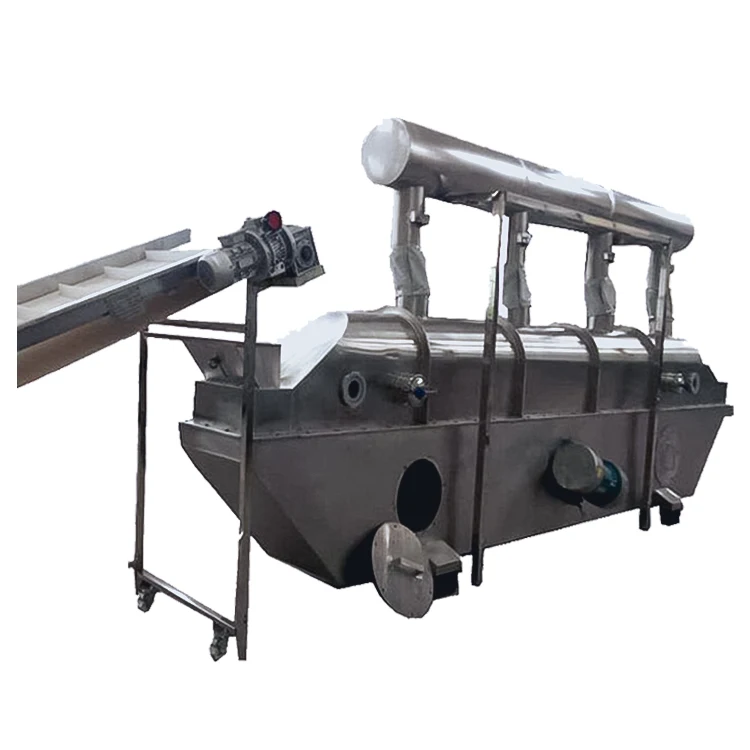

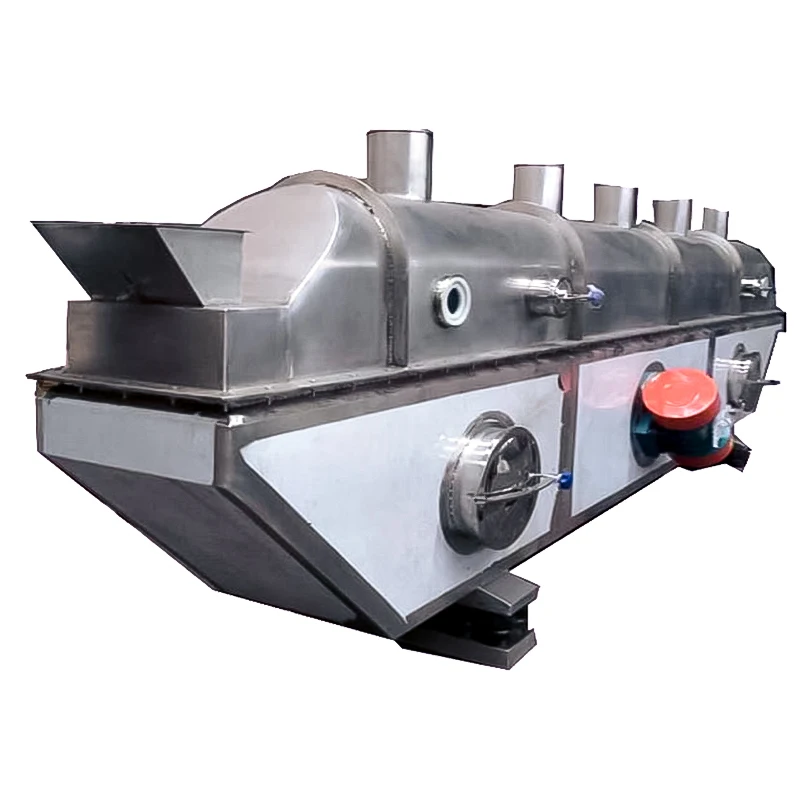

Hot sale Continuous Vibrating Fluid Bed Dryer Machine For Sugar,Food,Salt Drying Machine
- Category: >>>
- Supplier: Zhengzhou Great Machinery Equipment Co. Ltd.
Share on (10000021373352):
Product Overview
Description
Product Description

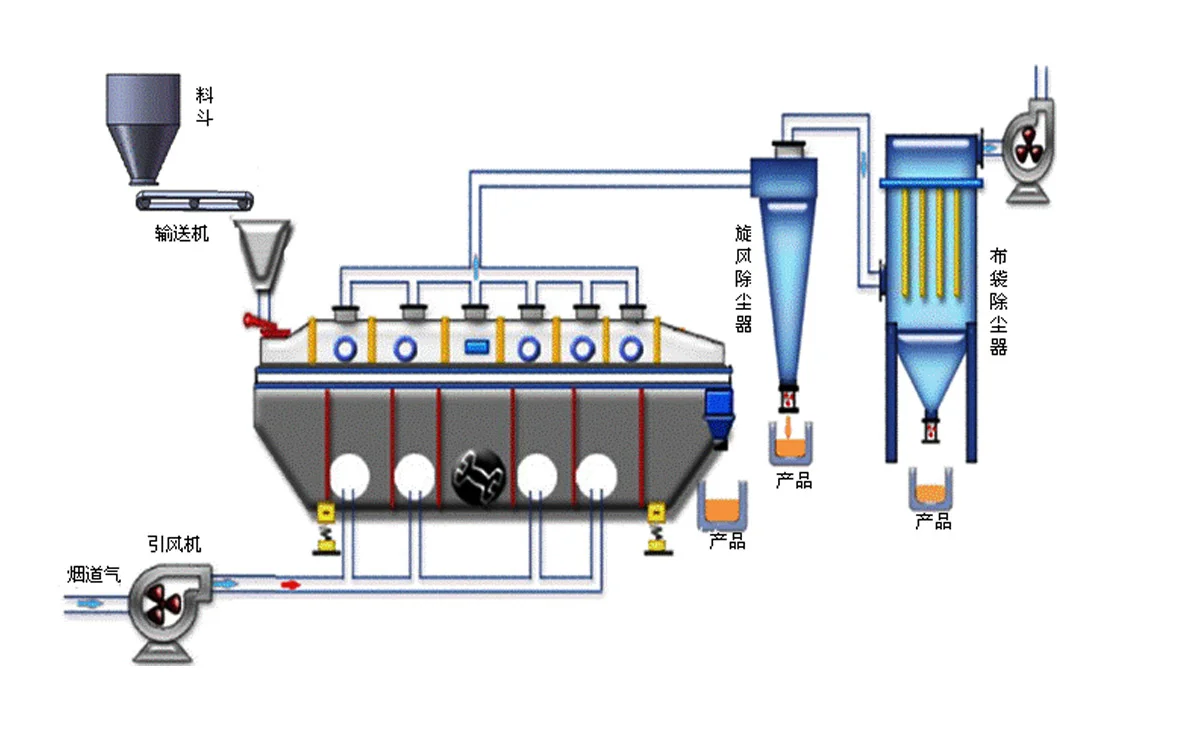

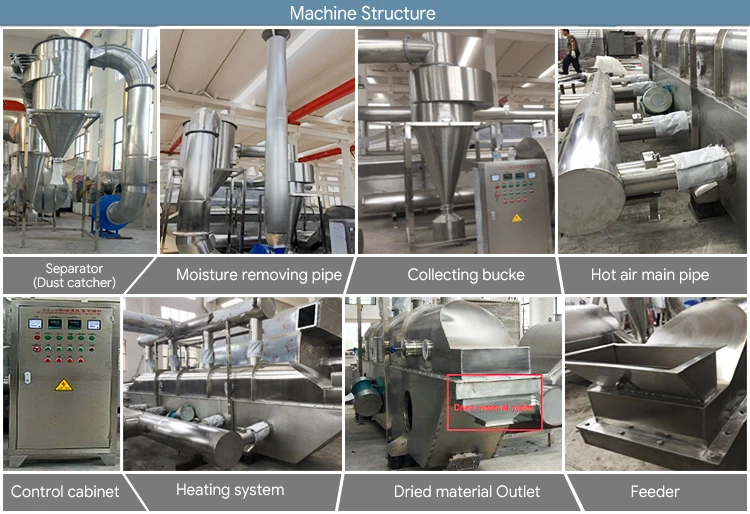

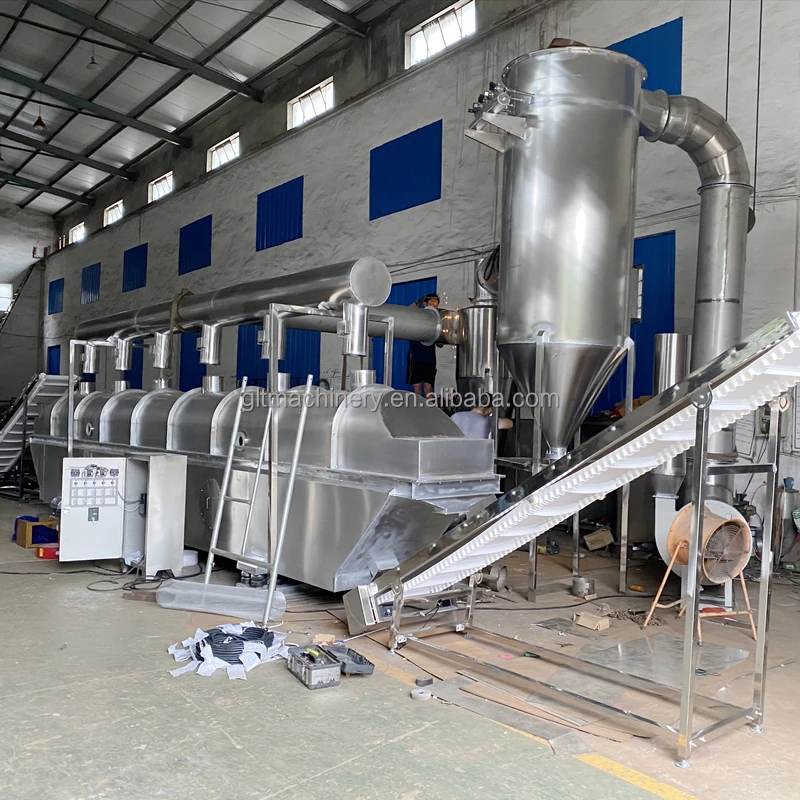

Working principle
The material enters the machine from the feed port. Under the action of vibration, the material is thrown along the horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air passes through the cyclone separator to remove dust. It is discharged from the exhaust port, and the dry material is discharged from the discharge port.
The material enters the machine from the feed port. Under the action of vibration, the material is thrown along the horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air passes through the cyclone separator to remove dust. It is discharged from the exhaust port, and the dry material is discharged from the discharge port.
Suitable for drying and cooling of powdery and granular materials in chemical, herbal, food, dehydrated vegetables, grain, minerals and other industries. Such as: salt, rice, citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, shredded radish, soybean meal, vinasse, seeds, slag, sugar, etc.
Specification
Model | Area of fluidized-bed(M2) | Temperature of inlet air（℃） | Temperature of outlet（℃） | Capacity to vapor moisture(kg/h) | Vibration motor | ||
Model | Powder(Kw) | ||||||
GRT-3X0.30 | 0.9 | 70-140 | 40-70 | 20-35 | GRTS31-6 | 0.8X2 | |
GRT-4.5X0.30 | 1.35 | 35-50 | GRTS31-6 | 0.8X2 | |||
GRT-4.5X0.45 | 2.025 | 50-70 | GRTS32-6 | 1.1X2 | |||
GRT-4.5X0.60 | 2.7 | 70-90 | GRTS32-6 | 1.1X2 | |||
GRT-6X0.45 | 2.7 | 80-100 | GRTS41-6 | 1.5X2 | |||
GRT-6X0.60 | 3.6 | 100-130 | GRTS41-6 | 1.5X2 | |||
GRT-6X0.75 | 4.5 | 120-170 | GRTS42-6 | 2.2X2 | |||
GRT-6X0.9 | 5.4 | 140-170 | GRTS42-6 | 2.2X2 | |||
GRT-7.5X6.0 | 4.5 | 130-150 | GRTS42-6 | 2.2X2 | |||
GRT-7.5X0.75 | 5.625 | 150-180 | GRTS51-6 | 3.0X2 | |||
GRT-7.5X0.9 | 6.75 | 160-210 | GRTS51-6 | 3.0X2 | |||
GRT-7.5X1.2 | 9.0 | 200-260 | GRTS51-6 | 3.7X2 | |||
Performance features:
●The material is heated evenly, the heat exchange is sufficient, the drying strength is high, and the energy-saving is about 30% compared with ordinary dryers.
●The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long life.
●Stable fluidization, no dead ends and blow-through phenomenon. The opening form of the bed and the opening rate is important. The final moisture and output can be controlled by the amplitude and the amount of feed.
●Good adjustability and wide adaptability.
●It has little damage to the surface of the material, and can be used for drying fragile materials, and the work effect will not be affected when the material particles are irregular. Significantly better than fluidized bed.
●The fully enclosed structure effectively prevents cross-contamination between materials and air, and the working environment is clean.
●The material is heated evenly, the heat exchange is sufficient, the drying strength is high, and the energy-saving is about 30% compared with ordinary dryers.
●The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long life.
●Stable fluidization, no dead ends and blow-through phenomenon. The opening form of the bed and the opening rate is important. The final moisture and output can be controlled by the amplitude and the amount of feed.
●Good adjustability and wide adaptability.
●It has little damage to the surface of the material, and can be used for drying fragile materials, and the work effect will not be affected when the material particles are irregular. Significantly better than fluidized bed.
●The fully enclosed structure effectively prevents cross-contamination between materials and air, and the working environment is clean.

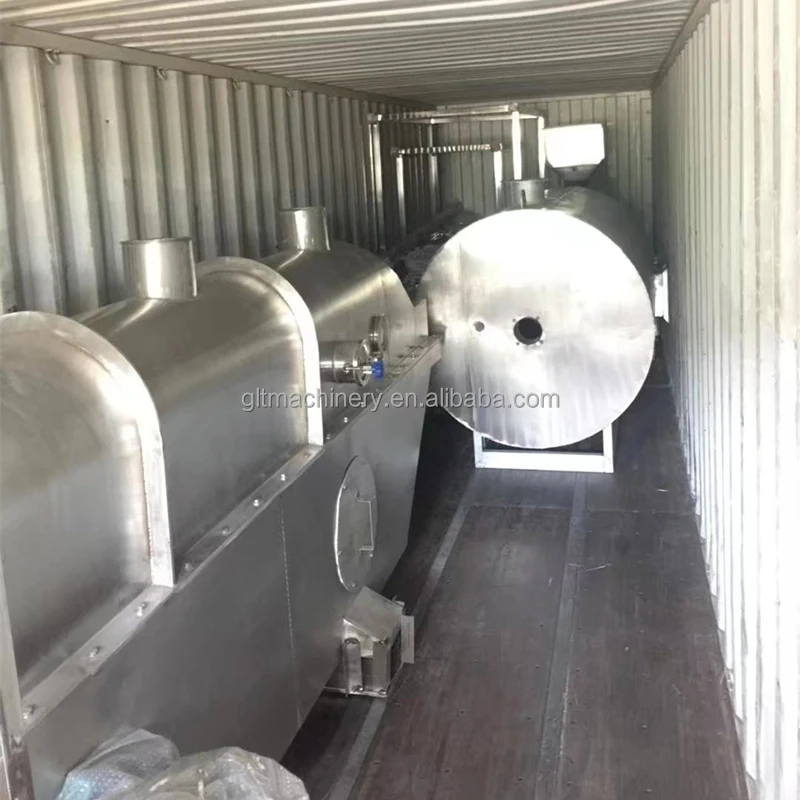

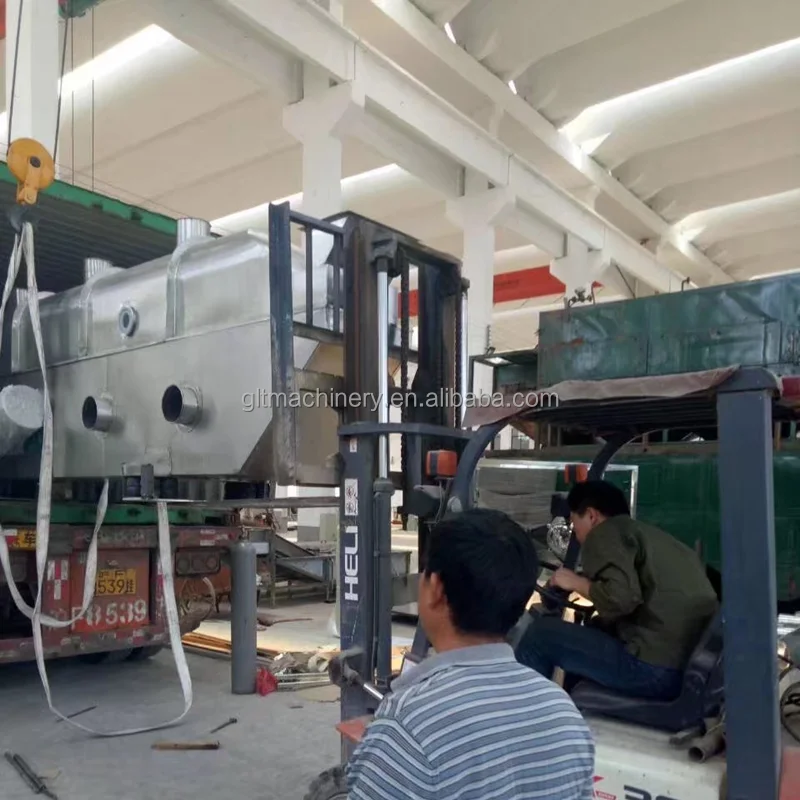

Packing and Shipping

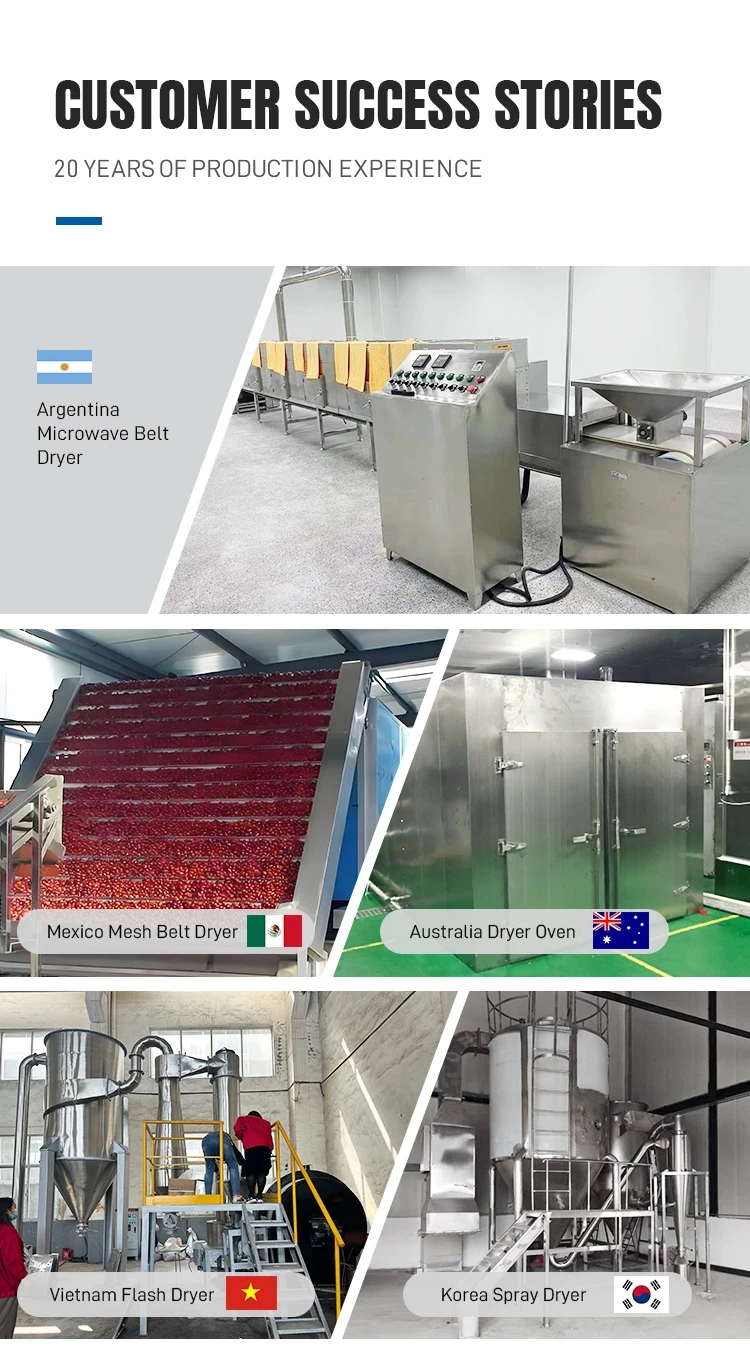

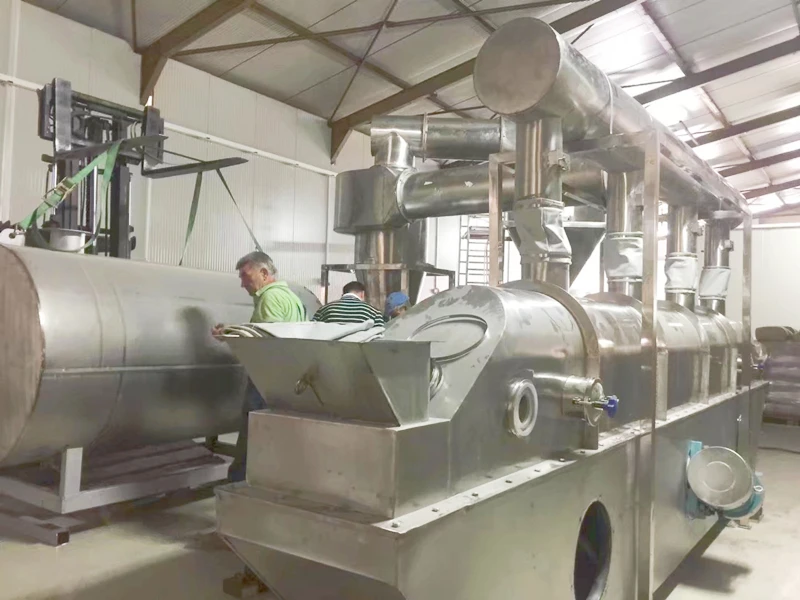

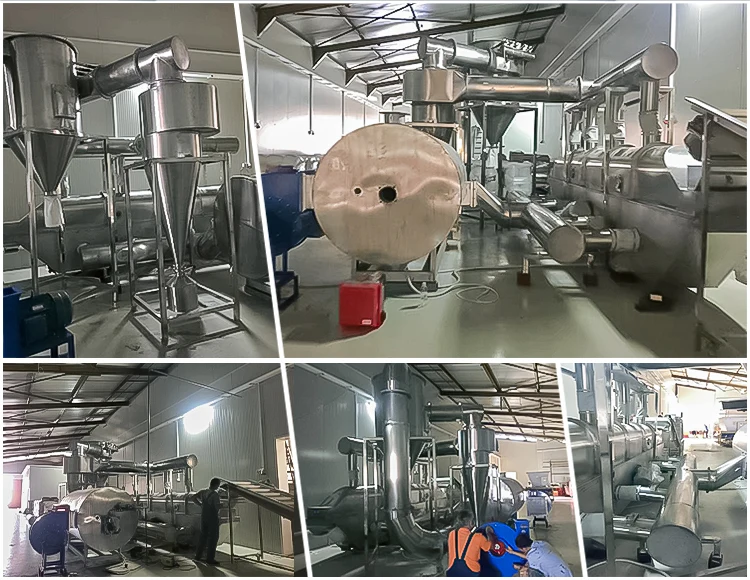

Customer Visits

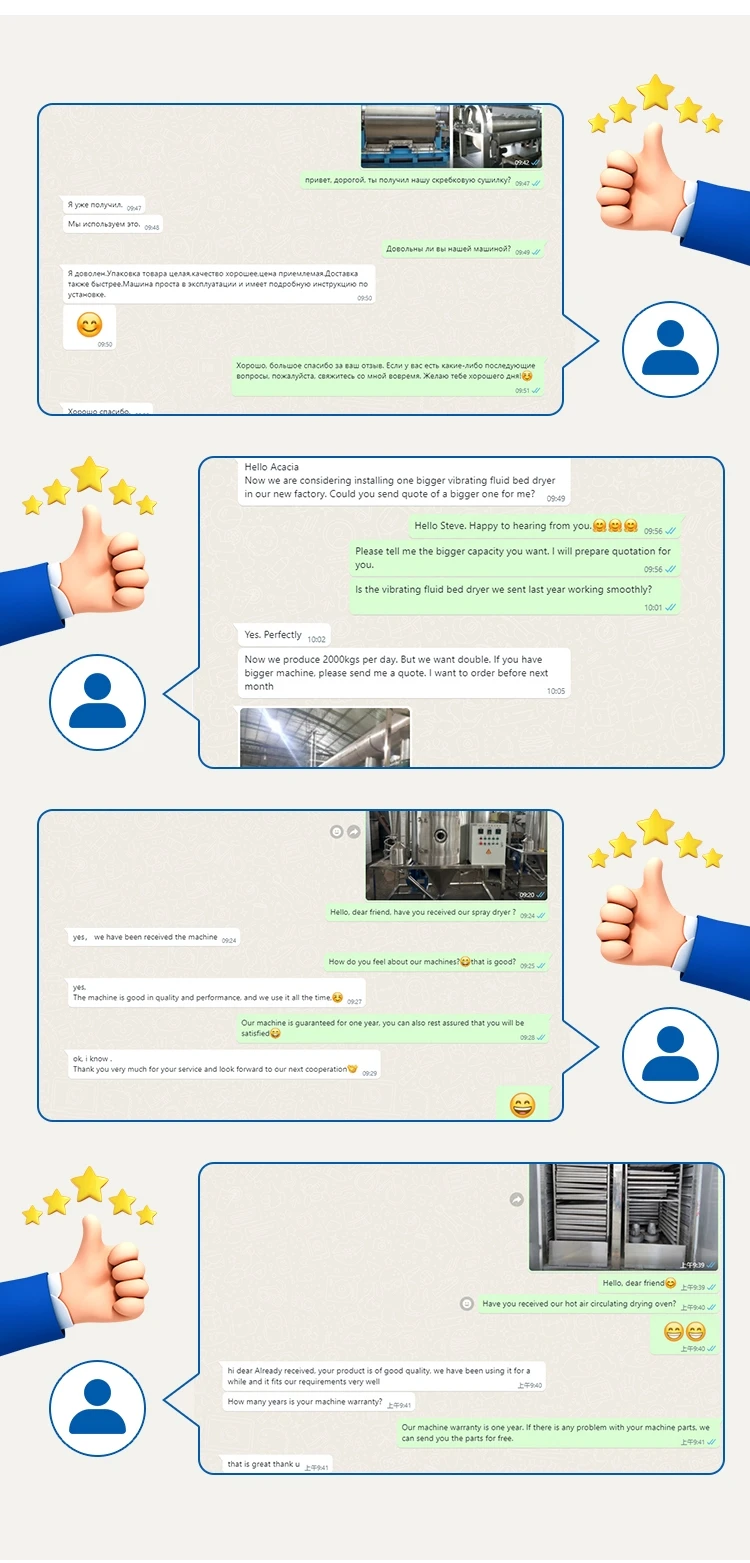

Customer Feedback

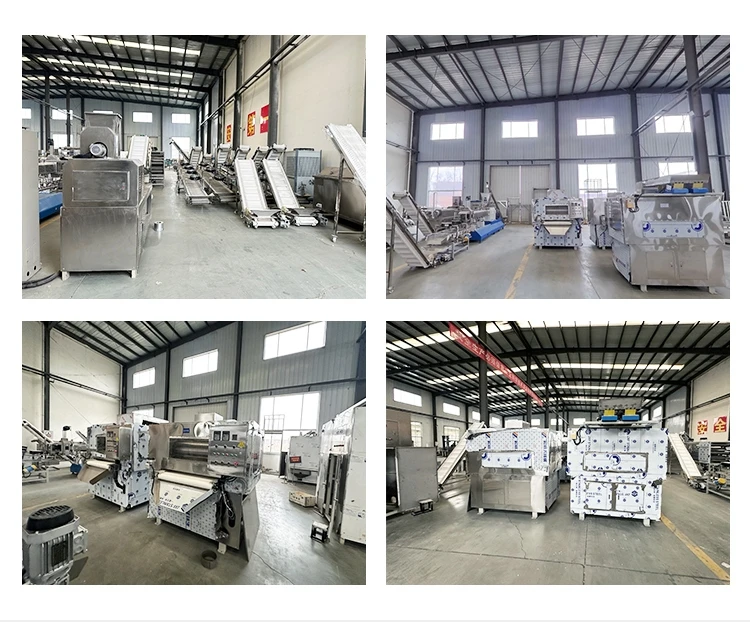

Company Information
Service
Pre-sale Service:
1. Provide comprehensive technical and consulting services; 2. Propose the most suitable solutions and equipment for customers
3.Free CAD design: we can do CAD design for you for free.
After-sales service
1. Fast and safe delivery;
2. Assisting customers in equipment foundation construction;
3. Dispatch engineers to install and debug the equipment;
4. Provide technical communication.
FAQ
1.Are you manufacturer or trader? Where are your factory located?
We are manufacturer with a history over 16 years and we are located in Henan,China.and we can provide the competitive price and good quality.
2.Can I use my own raw materials for extraction test?
Yes, of course. We can do tests and send videos and test reports for your reference.
3.How long is the delivery time?
For standard machines or Components, it would be 5-20 days; For non-standard machines and customized machines according to clients specific requirements, it would be appointment time.
4.Do you arrange shipment for the machines?
Yes, we will do that.We will assist you in arranging shipment.
5.Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
6.What kinds of certificate you have?
ISO9001,CE and so on.We can make other certificates according to customers' detailed requirements.
