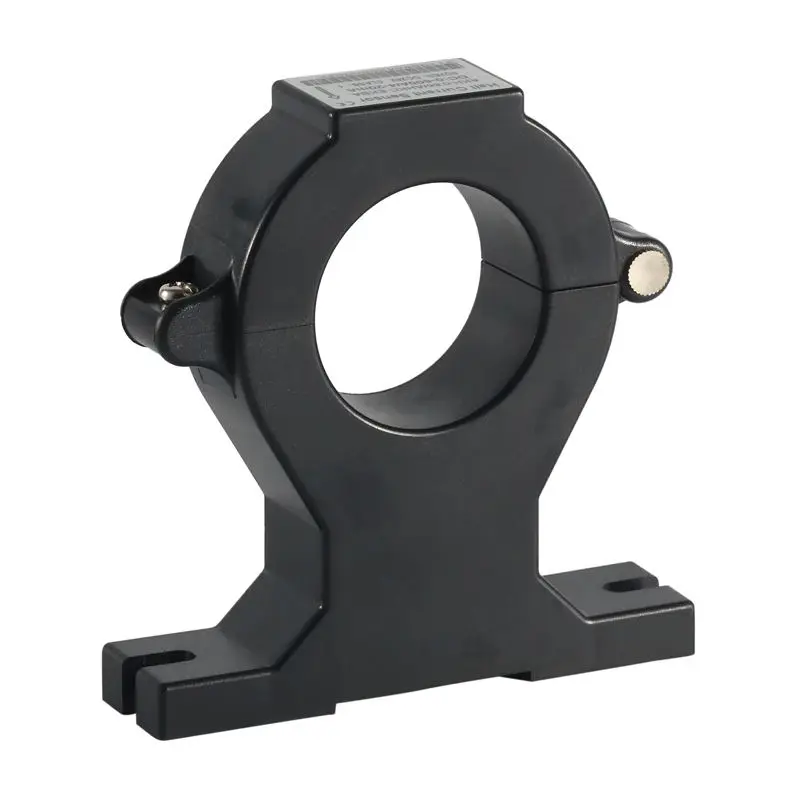

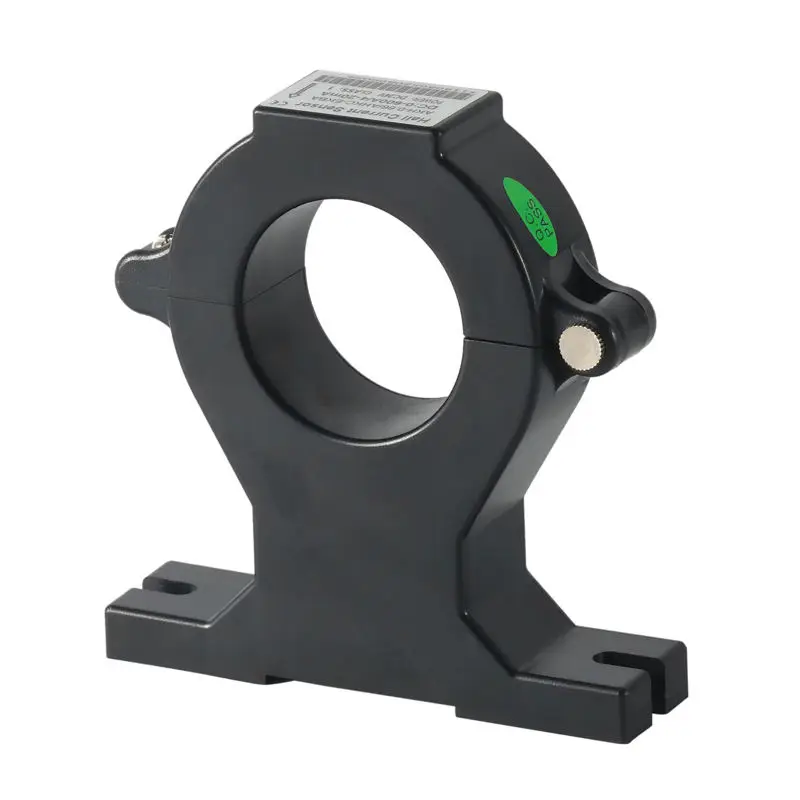

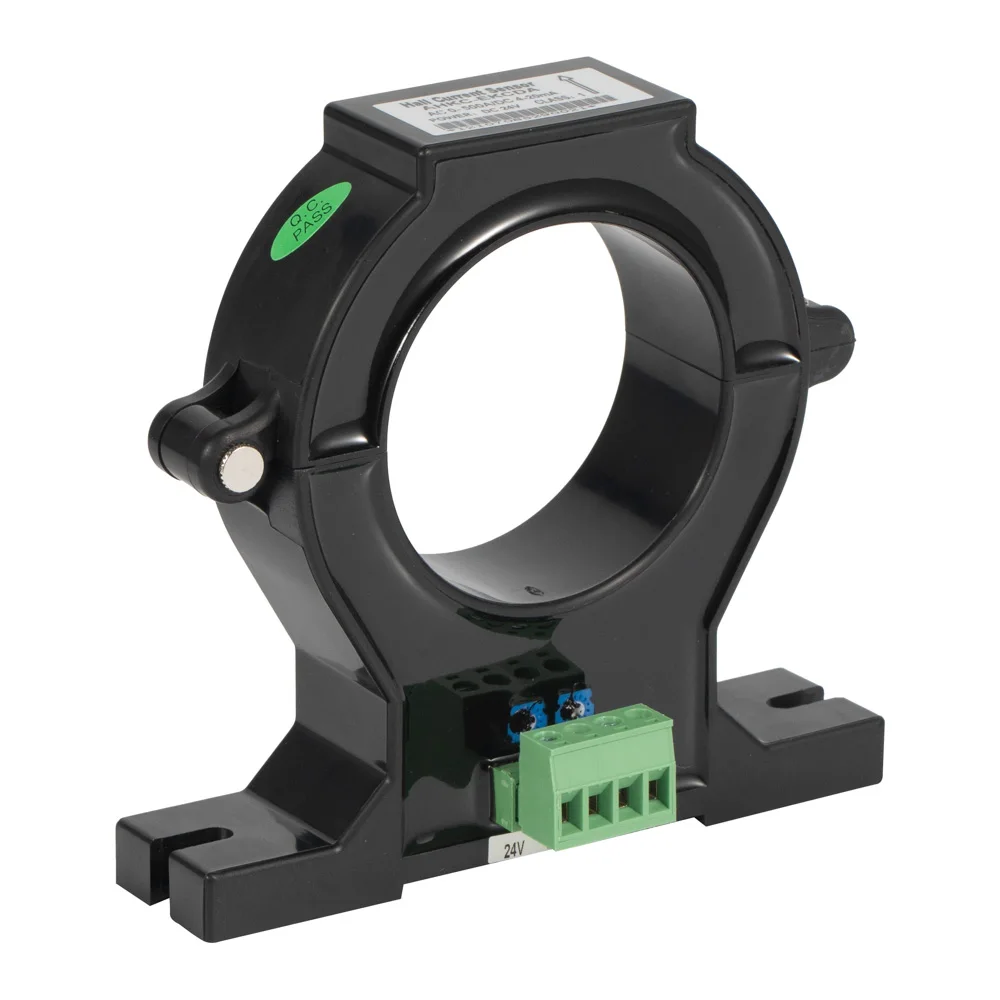

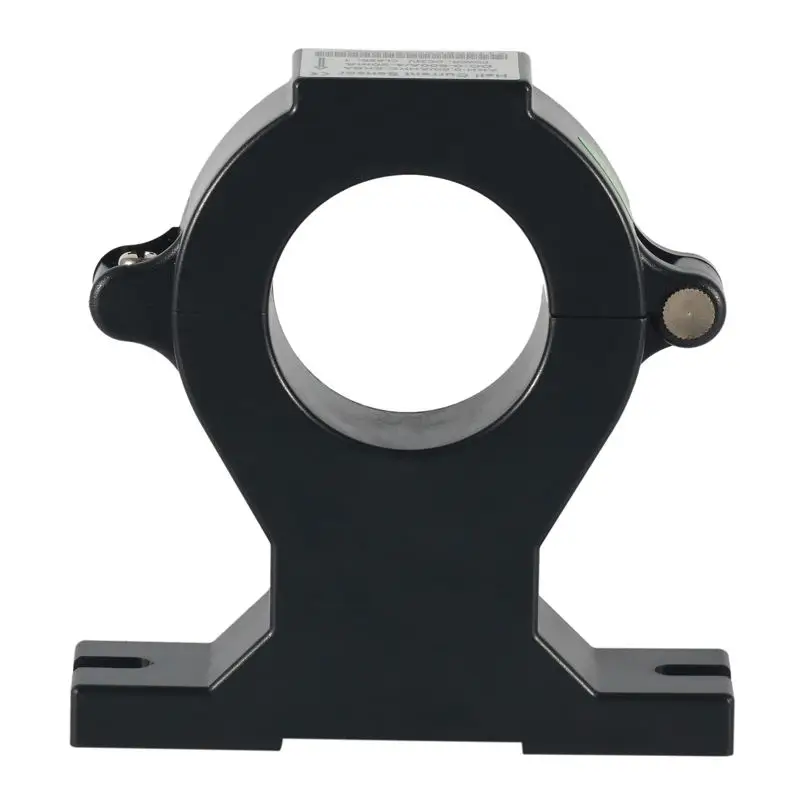

AHKC EKA 5G Telecom Station Class 1 Accuracy 20mm Round Hole DC Split Core Hall Effect Transducer
AHKC-EKA 5G Telecom Station Class 1 Accuracy 20mm Round Hole DC Split Core Hall Effect Transducer
AHKC-EKA 5G Telecom Station Class 1 Accuracy 20mm Round Hole DC Split Core Hall Effect Transducer
AHKC-EKA 5G Telecom Station Class 1 Accuracy 20mm Round Hole DC Split Core Hall Effect Transducer
AHKC-EKA 5G Telecom Station Class 1 Accuracy 20mm Round Hole DC Split Core Hall Effect Transducer
AHKC-EKA 5G Telecom Station Class 1 Accuracy 20mm Round Hole DC Split Core Hall Effect Transducer

AHKC EKA 5G Telecom Station Class 1 Accuracy 20mm Round Hole DC Split Core Hall Effect Transducer

Share on (10000021473710):


Price:

Quantity:


Product Overview

Description

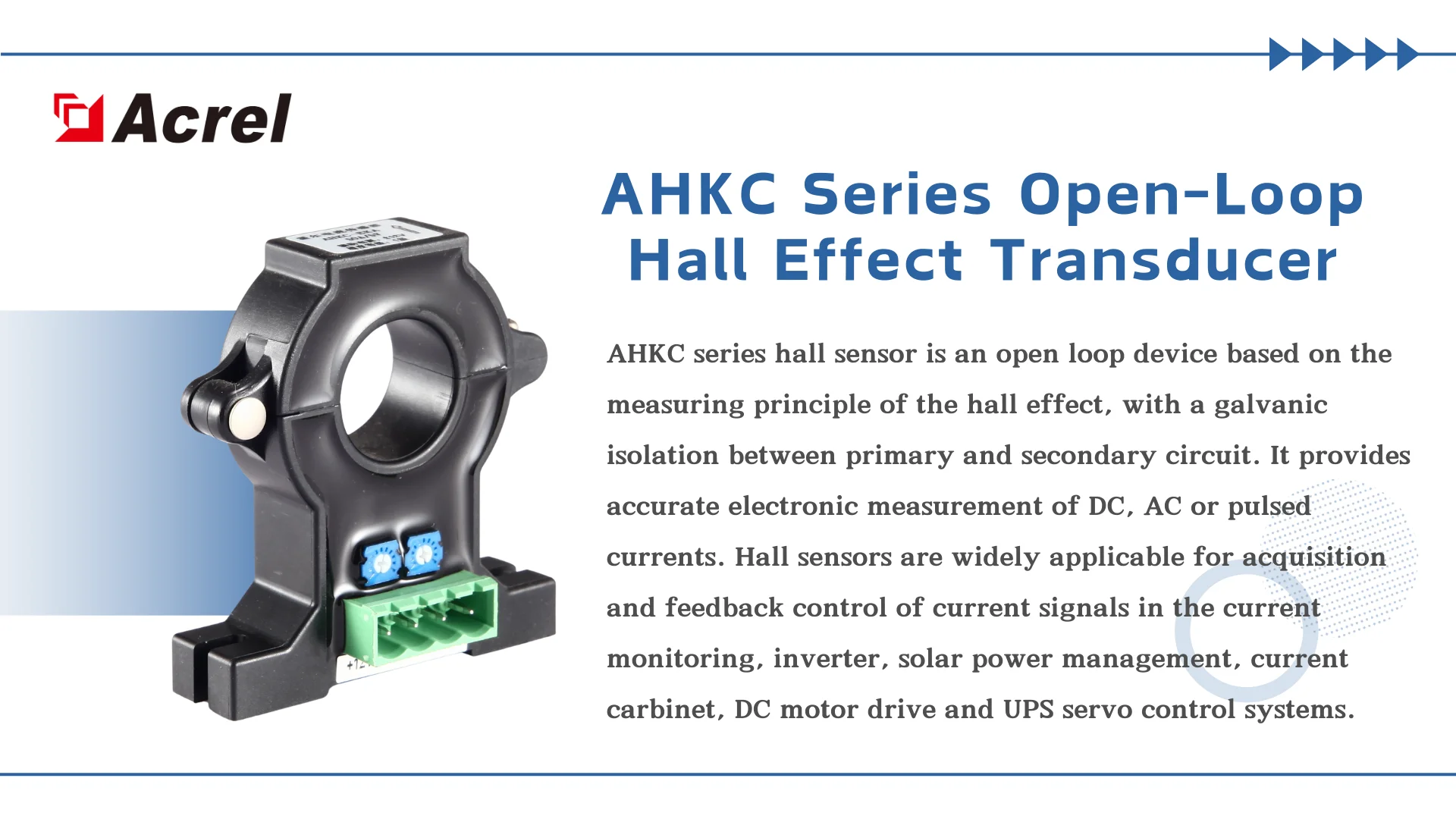

AHKC series hall sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents. Hall sensors are widely applicable for acquisition and feedback control of current signals in the current monitoring, inverter, solar power management, current carbinet, DC motor drive and UPS servo control systems.




Parameters
Index
Rated Input Current
0～(50-500)A
Rated Output Voltage
±5V/±4V
Accuracy Class
1.0
Power Voltage
DC±15V（allowable fluctuation±20%）
Zero Offset Voltage
±20mV
Offset Voltage Drift
≤±1.0mV/℃
Linearity
≤0.2%FS
Response Time
≤5us
Bandwidth
0～20kHz
Isolation Voltage
3.5kV/50Hz/1min
Operating Temperature
-40℃～85℃
Storage Temperature
-40℃～85℃
Consumption
≤0.5W


Model
Rated Current
Rated Output

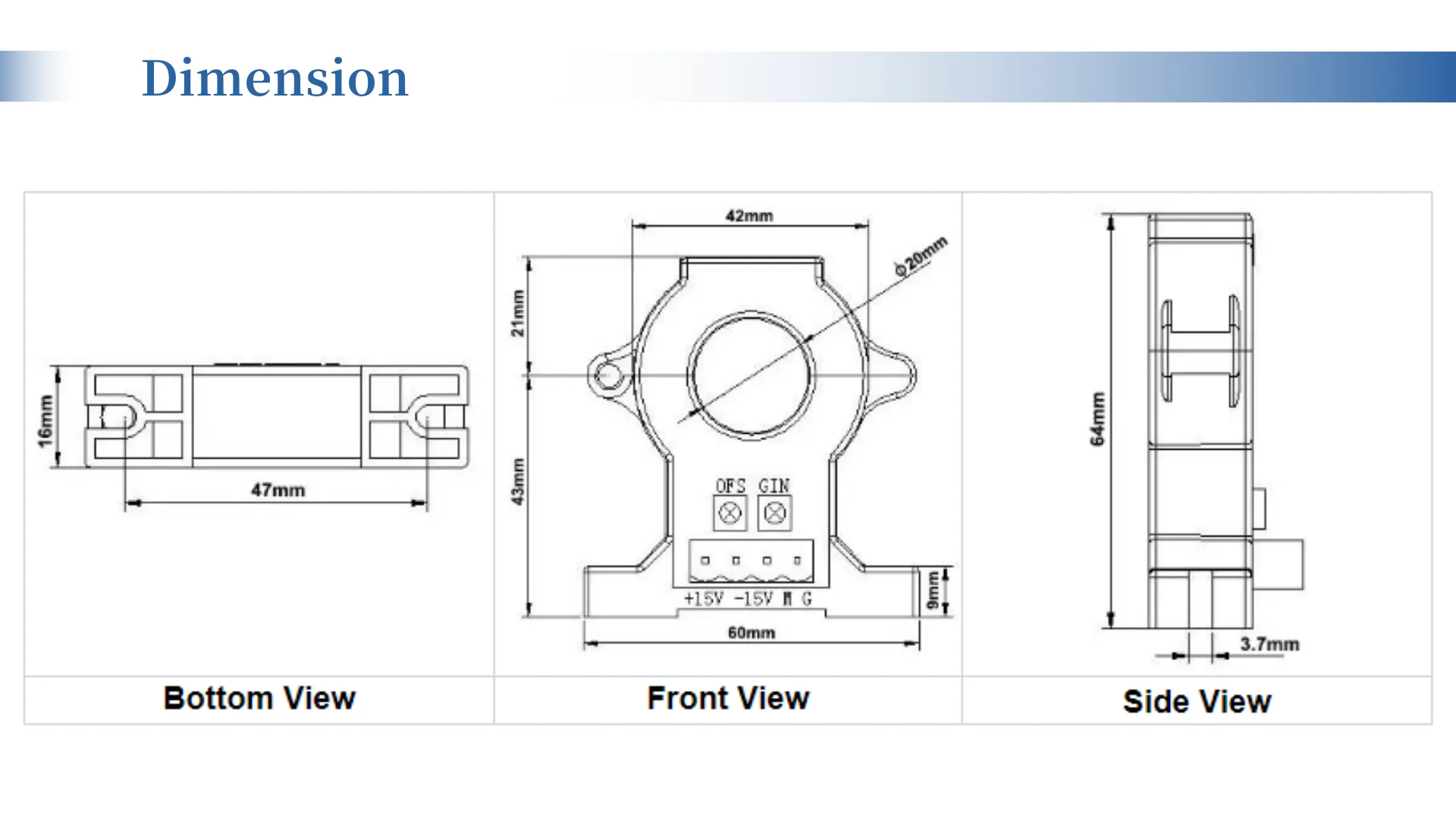

Measuring Aperture (mm)
Power Supply
AHKC-EKA
0～(50-500)A
5V/4V
Φ20
DC ±12V/±15V
AHKC-EKAA
DC 0～(50-500)A
DC 4-20mA
Φ20
DC 12V/24V
AHKC-EKDA
AC 0～(50-500)A
DC 4-20mA
Φ20
DC 12V/24V
AHKC-EKB
0～(200-1000)A
5V/4V
Φ40
DC ±12V/±15V
AHKC-EKBA
DC 0～(200-1000)A
DC 4-20mA
Φ40
DC 12V/24V
AHKC-EKBDA
AC 0～(200-1000)A
DC 4-20mA
Φ40
DC 12V/24V
AHKC-EKC
0～(500-1500)A
5V/4V
Φ55
DC ±12V/±15V
AHKC-EKCA
DC 0～(500-1500)A
DC 4-20mA
Φ55
DC 12V/24V
AHKC-EKCDA
AC 0～(500-1500)A
DC 4-20mA
Φ55
DC 12V/24V
AHKC-K
0～(400-2000)A
5V/4V
64×16
DC ±12V/±15V
AHKC-KAA
DC 0～(400-2000)A
DC 4-20mA
64×16
DC 12V/24V
AHKC-KDA
AC 0～(400-2000)A
DC 4-20mA
64×16
DC 12V/24V
AHKC-H
0～(500-3000)A
5V/4V
82×32
DC ±12V/±15V
AHKC-KA
0～(500-5000)A
5V/4V
104×36
DC ±12V/±15V
AHKC-HB
0～(2000-8000)A
5V/4V
132×52
DC ±12V/±15V
0～(10000-20000)A
5V/4V
132×52
DC ±12V/±15V
AHKC-HBAA
DC 0～(2000-8000)A
DC 4-20mA
132×52
DC 12V/24V
DC 0～(10000-20000)A
DC 4-20mA
132×52
DC 12V/24V
AHKC-HBDA
AC 0～(2000-8000)A
DC 4-20mA
132×52
DC 12V/24V
AC 0～(10000-20000)A
DC 4-20mA
132×52
DC 12V/24V
AHKC-LS
0～(100-2000)A
5V
100×42
DC 24V

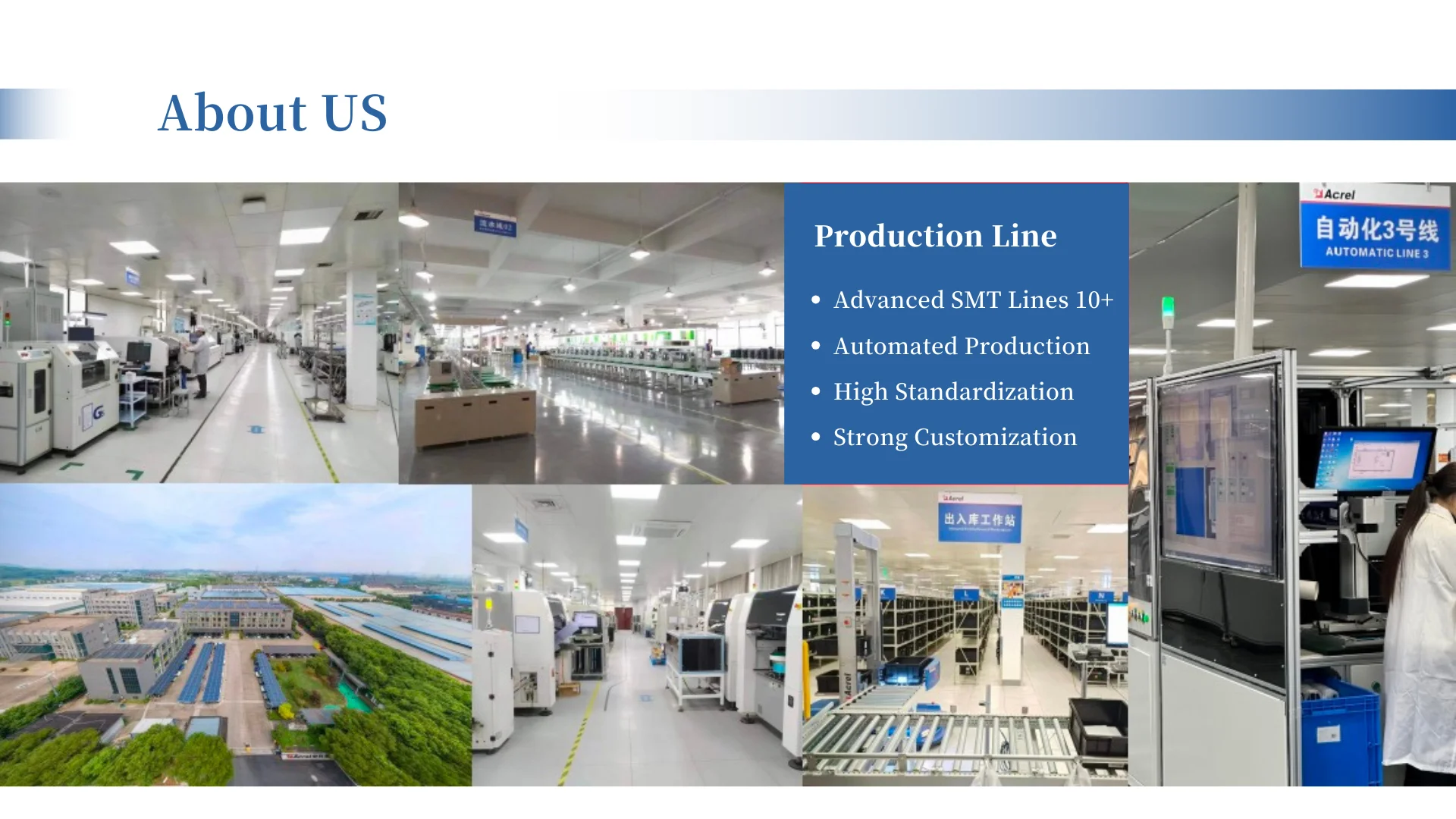

Acrel Co., LTD. (Stock code: 300286.SZ), established in 2003, is a high-tech joint-stock enterprise integrating research and development, production, sales and service, providing energy efficiency systems and electricity safety solutions for enterprises. Our company's solutions cover power, environmental protection, new energy, fire protection, data center, smart building, smart campus, smart hospital, smart factory, smart transportation, municipal engineering and other fields. At present, the company has more than 14,000 sets of system solutions operating around the world, for users to escort efficient and safe energy use, for enterprises to save energy consumption and realize the digital construction of energy to provide data services. As of December 31, 2021, the company has 5 trademarks and 299 patents obtained certificates, including 22 invention patents, 127 utility model patents, 150 appearance design patents and 252 software Copyrights.
