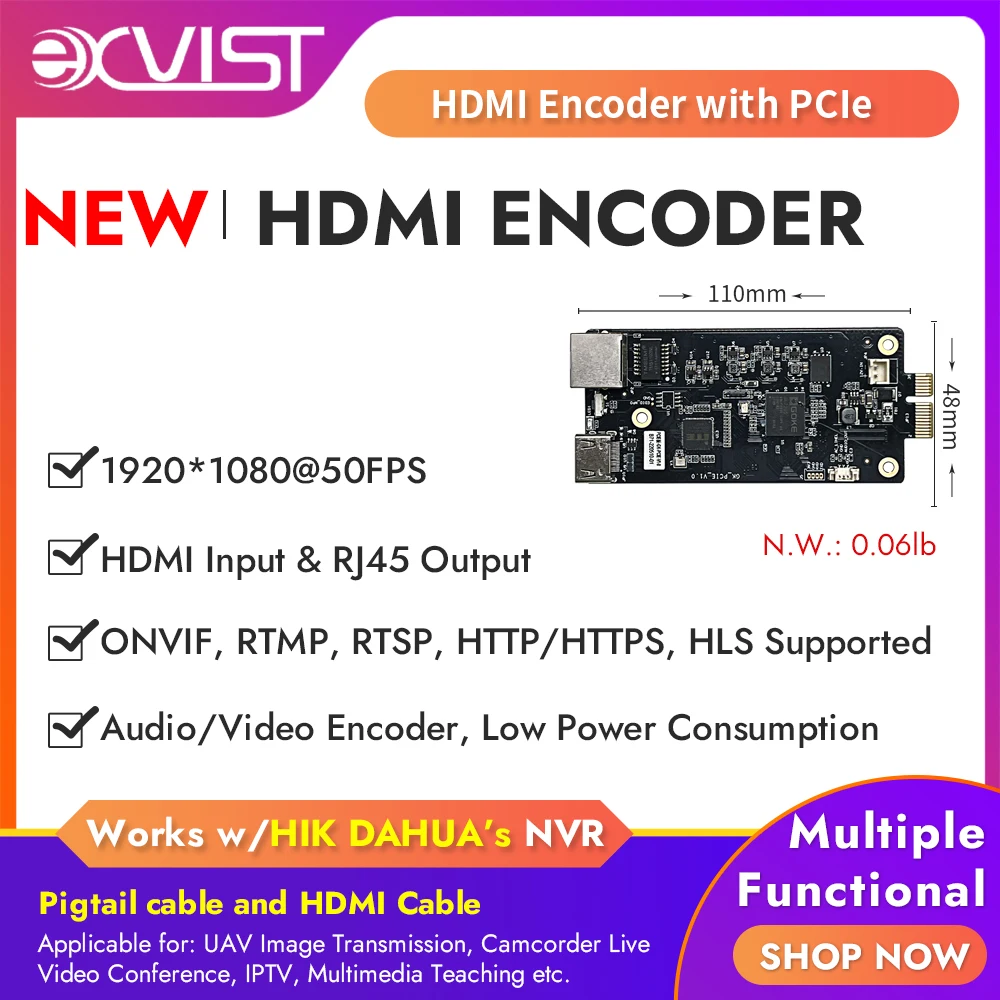

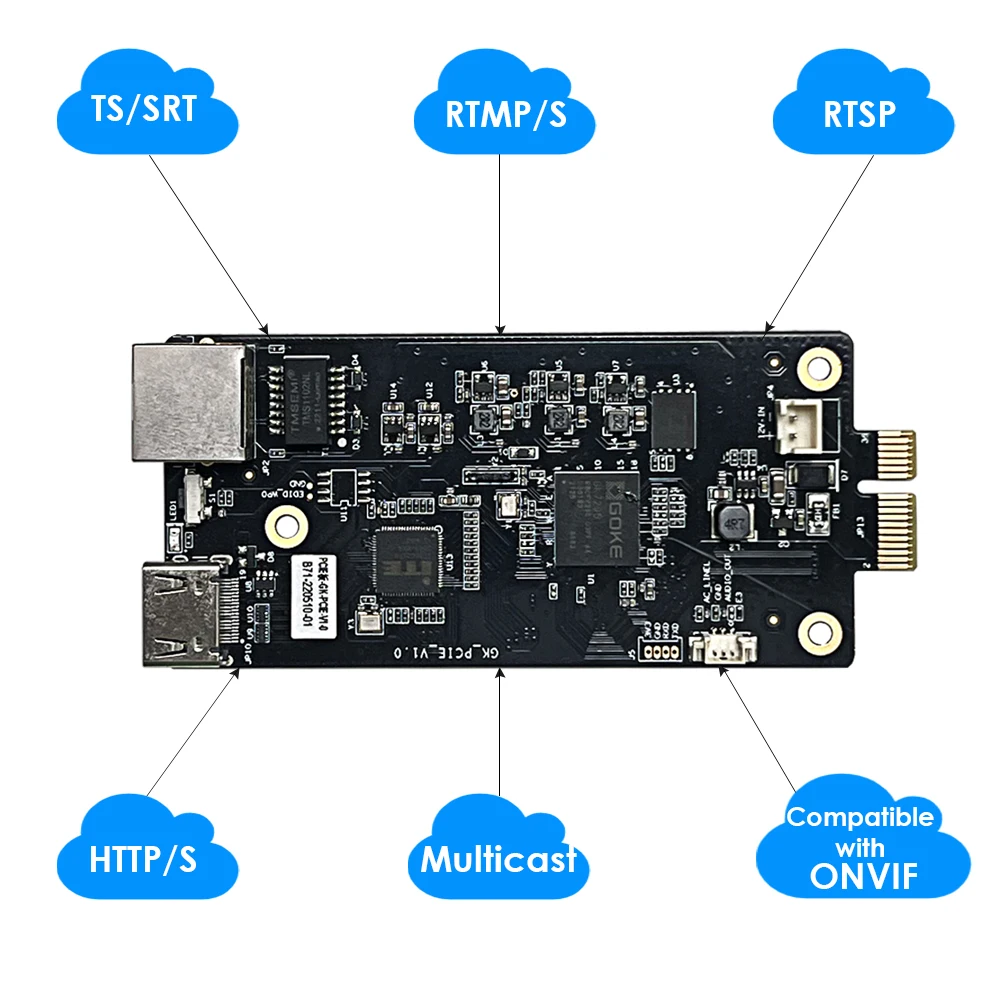

EXVIST 1080p H.265 HDTV Video Encoder PCIe Drone FPV IPTV Satellite Modulator YouTube Facebook Wowza Ustream Streaming Encoder
- Category: >>>
- Supplier: Shenzhen Exvist Technology Co. Ltd.
Share on (10000021772233):
Product Overview
Description
Specification
SOC | Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default) |
Model: ON-DMI-16EC (Max. 60fps) | |
Video Encoding: H.265/H.264 | |
Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR) | |
Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable) | |
Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps(Configurable) | |
Main Stream: 1920*1080, 1600*900, 1440*1050, 1440*900, 1360*768, 1280*1024, 1280*720 | |
Sub Stream: 704*576, 640*480, 640*352, 352*288, 320*240 | |
TS (Main Stream): //192.168.1.120/ts/1_0 | |
TS (Sub Stream): //192.168.1.120/ts/1_1 | |
HLS (Main Stream): //192.168.1.120/hls/1_0.m3u8 | |
HLS (Sub Stream): //192.168.1.120/hls/1_1.m3u8 | |
RTSP (Main Stream): rtsp://192.168.1.120:554/live/1_0 | |
RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1_1 | |
UDP: udp://@224.1.2.3:10000 | |
Protocols | TCP/IP, DHCP, DNS, DDNS, HLS, HTTP, HTTPS, RTP, RTSP, RTMP, SRT, TS, UDP, ONVIF |

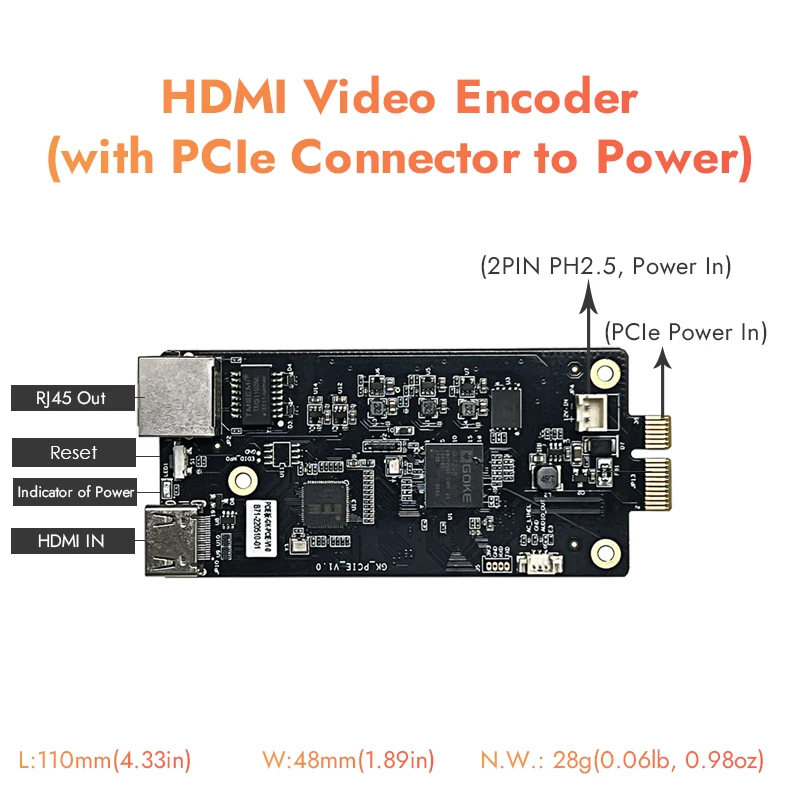

Network Port: RJ45 10M/100M Self Adaptive Ethernet Port | |
HDMI: 1ch HDMI Input | |
Audio: 1ch HDMI Audio Input | |
Power: 1ch DC12V Power Input(2PIN, PH2.5) or 1ch PCIe Power Input | |
Reset/Record: 1ch Reset(Press it for more than 5 seconds to reset) | |
Operating Temperature: -10℃~+55℃[14°F~131°F] | |
Operating Humidity: ≤95%(Non-Condensing) | |
Power Supply: DC12V 1A or Higher | |
Power Consumption: ≤3W | |
Unit Dimension: 110mm x 48mm x 19mm[4.33in x 1.89in x 0.75in] | |
Package Dimension: 130mm x 80mm x 70mm[5.12in x 3.15in x 2.76in] | |
Net Weight: 28g[0.06lb, 0.98oz] | |
Gross Weight: 100g[0.22lb, 3.53oz] | |
IPTV Satellite Modulator/Hotel TV System | |
CCTV Camera/Camcorder | |
UAV Image Transmission/DLSR Camera | |
Drone/DV/FPV/Medical Equipment | |
Digital Signage/Video Conference | |
Online Live Streaming Broadcast or Server | |
Teaching/Campus Broadcast/Telemedicine | |
Multimedia Stitching Display | |
NVR/Recording System | |
Help Center | EXVIST Cares: https://support.exvist.com |
Model Comparison
GK72 & PRO ENCODER SERIES | ||||||||
Part Number | ||||||||
Part Name | 1080P Basic HDMI Encoder w/SD Card Slot for Recording | 1080P WiFi HDMI Encoder w/SD Card Slot for Recording | 1080P PoE HDMI Encoder w/SD Card Slot for Recording | 1080P Mini HDMI Encoder w/SD Card Slot for Recording | ||||
Encoding | Max. 1ch Encoding | |||||||
Part Number | ||||||||
Part Name | 1080P Basic HDMI Encoder w/HDMI Loopout, SD Card Slot for Recording | 1080P WiFi HDMI Encoder w/HDMI Loopout, SD Card Slot for Recording | 1080P PoE HDMI Encoder w/HDMI Loopout, SD Card Slot for Recording | 1080P PoE VGA Encoder w/VGA Loopout | ||||
Encoding | Max. 1ch Encoding | |||||||
MC30 ENCODER SERIES | ||||||||
Part Number | ON-DMI-30B | ON-DMI-30BW | ON-DMI-30BP | ON-DMI-30D | ||||
Part Name | 1080P Basic HDMI Encoder w/HDMI Loopout, USB2.0 for Recording | 1080P WiFi HDMI Encoder w/HDMI Loopout, USB2.0 for Recording | 1080P PoE HDMI Encoder w/HDMI Loopout, USB2.0 for Recording | 1080P Basic HDMI Encoder w/Screen, HDMI Loopout, USB2.0 for Recording | ||||
Encoding | Max. 1ch Encoding | |||||||
Part Number | ON-DMI-30DW | |||||||
Part Name | 1080P WiFi HDMI Encoder w/Screen, HDMI Loopout, USB2.0 for Recording | |||||||
Encoding | Max. 1ch Encoding | |||||||
TV30 CODEC SERIES | ||||||||
Part Number | ||||||||
Part Name | 1080P Basic HDMI Encoder|Decoder w/HDMI Loopout, USB2.0 for Recording | 1080P WiFi HDMI Encoder|Decoder w/HDMI Loopout, USB2.0 for Recording | 1080P PoE HDMI Encoder|Decoder w/HDMI Loopout, USB2.0 for Recording | 1080P Basic HDMI Encoder|Decoder w/Screen, HDMI Loopout, USB2.0 for Recording | ||||
Encoding|Decoding | Max. 2ch encoding & decoding, including 1ch HDMI input, up to 3ch decoding input | |||||||
Part Number | ||||||||
Part Name | 1080P WiFi HDMI Encoder|Decoder w/Screen, HDMI Loopout, USB2.0 for Recording | |||||||
Encoding|Decoding | Max. 2ch encoding & decoding, including 1ch HDMI input, up to 3ch decoding input | |||||||
SS50 CODEC SERIES | ||||||||
Part Number | ||||||||
Part Name | 1080P Basic HDMI Encoder|Decoder w/HDMI Loopout, Dual USB2.0 for Webcam/Recoding/Playing | 1080P WiFi HDMI Encoder|Decoder w/HDMI Loopout, Dual USB2.0 for Webcam/Recoding/Playing | 1080P PoE HDMI Encoder|Decoder w/HDMI Loopout, Dual USB2.0 for Webcam/Recoding/Playing | 1080P Basic HDMI Encoder|Decoder w/Screen, HDMI Loopout, Dual USB2.0 for Webcam/Recoding/Playing | ||||
Encoding|Decoding | Max. 4ch encoding & decoding, including 1ch HDMI input, up to 4ch decoding input, up to 2ch USB input | |||||||
Part Number | ||||||||
Part Name | 1080P WiFi HDMI Encoder|Decoder w/Screen, HDMI Loopout, Dual USB2.0 for Webcam/Recoding/Playing | |||||||
Encoding|Decoding | Max. 4ch encoding & decoding, including 1ch HDMI input, up to 4ch decoding input, up to 2ch USB input | |||||||
SS52 ENCODER SERIES | ||||||||
Part Number | ||||||||
Part Name | 4K Basic HDMI Encoder w/HDMI Loopout, Dual USB2.0 for Recoding/Playing | 4K WiFi HDMI Encoder w/HDMI Loopout, Dual USB2.0 for Recoding/Playing | 4K PoE HDMI Encoder w/HDMI Loopout, Dual USB2.0 for Recoding/Playing | 4K Basic HDMI Encoder w/Screen, HDMI Loopout, Dual USB2.0 for Recoding/Playing | ||||
Encoding | Max. 1ch Encoding | |||||||
Part Number | ||||||||
Part Name | 4K WiFi HDMI Encoder w/Screen, HDMI Loopout, Dual USB2.0 for Recoding/Playing | |||||||
Encoding | Max. 1ch Encoding | |||||||
Product Description

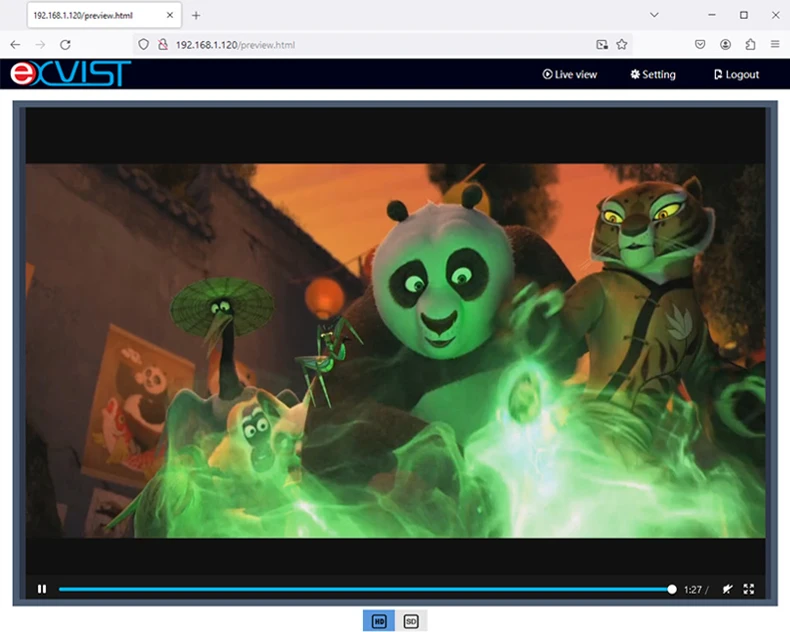

H.265 Preview
EXVIST's HDMI encoder specifically supports H.265 Preview, offering enhanced video compression capabilities for improved efficiency and quality in previewing content.

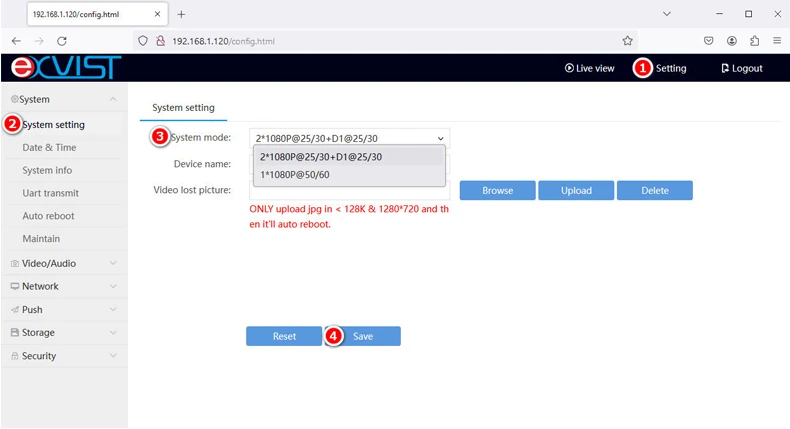

System Mode Switchable
You can achieve smooth video streaming at 50/60fps by adjusting the system mode of the encoder to optimize the frame rate for a higher quality viewing experience.

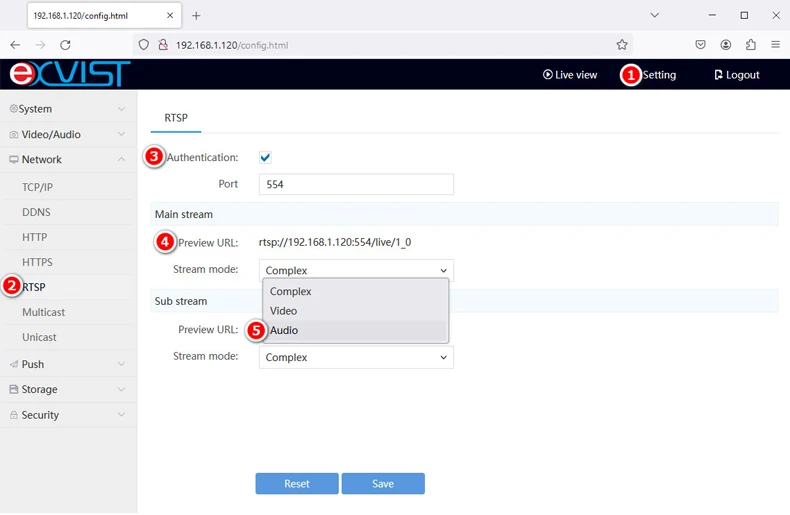

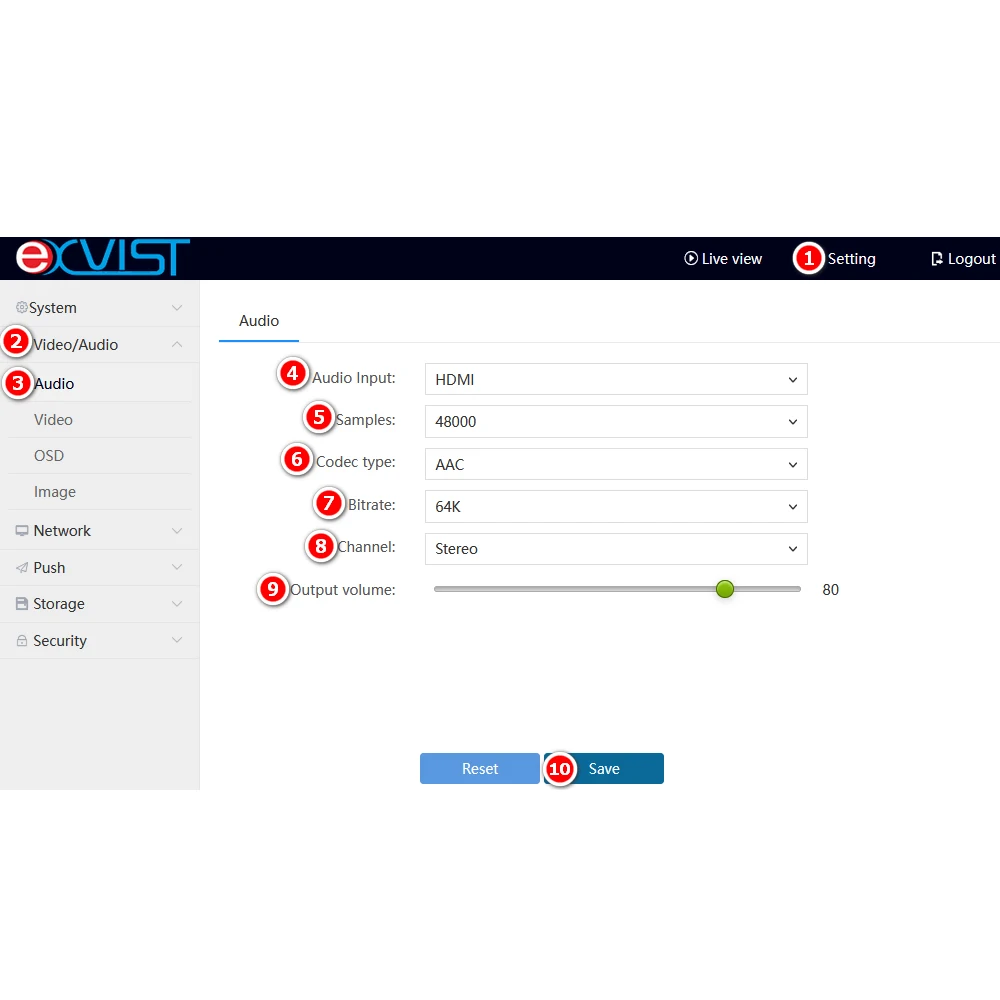

Audio Encoder
Transforming the device into an audio encoder is simple – just select the audio stream exclusively to focus on capturing and encoding audio content.

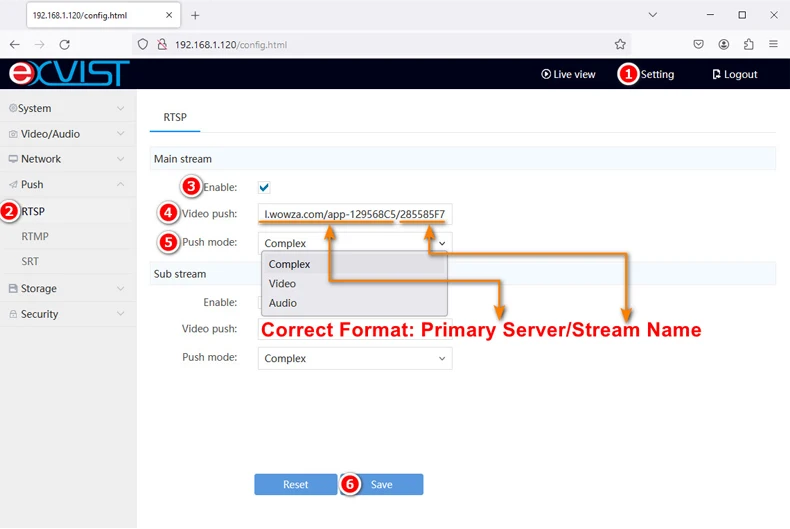

RTSP Push to Wowza Video
This encoder not only supports pulling RTSP streams to Wowza Streaming Engine but also allows for pushing RTSP streams to Wowza Video, providing versatile options for streaming video content.

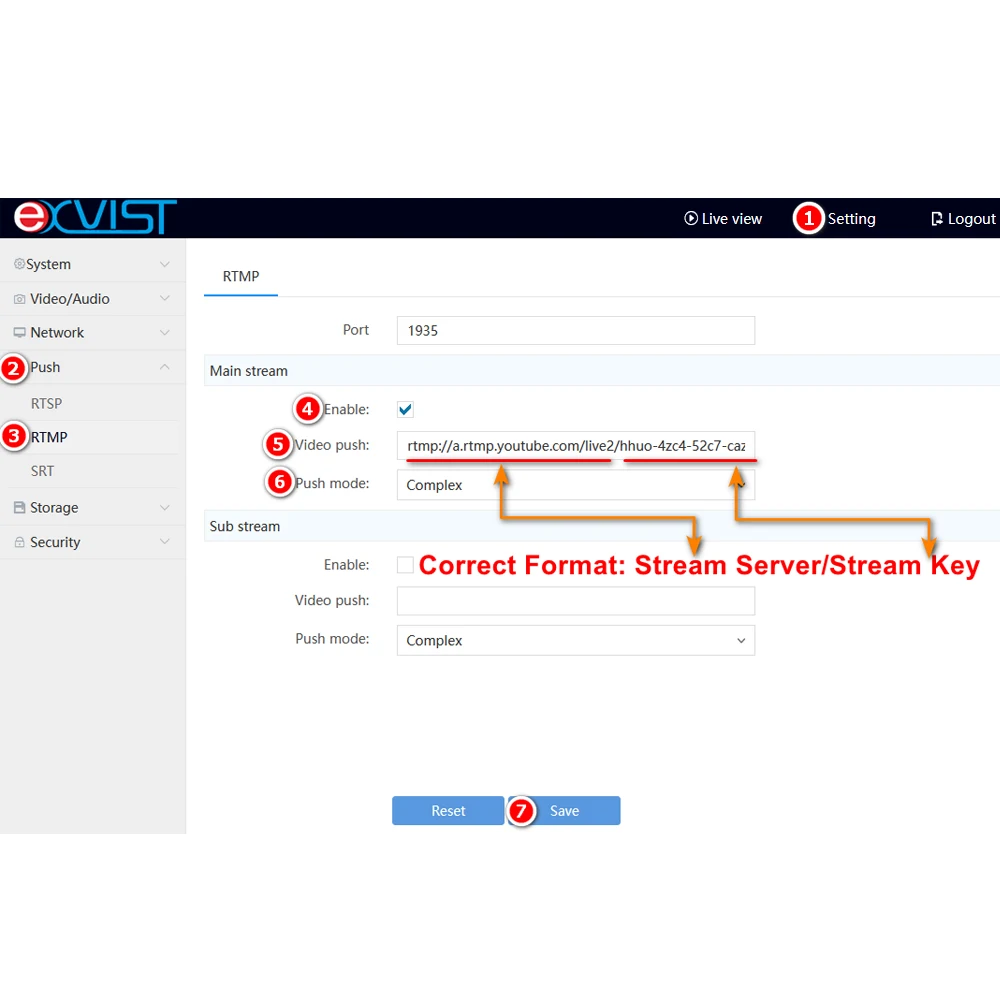

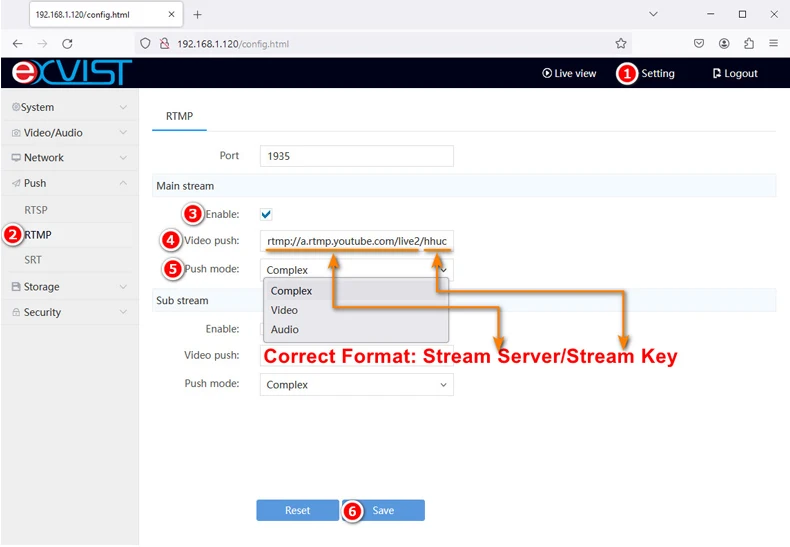

RTMP Push to YouTube etc
Effortlessly stream video to platforms like YouTube and Facebook by leveraging the standard RTMP protocol for seamless integration and broadcasting.

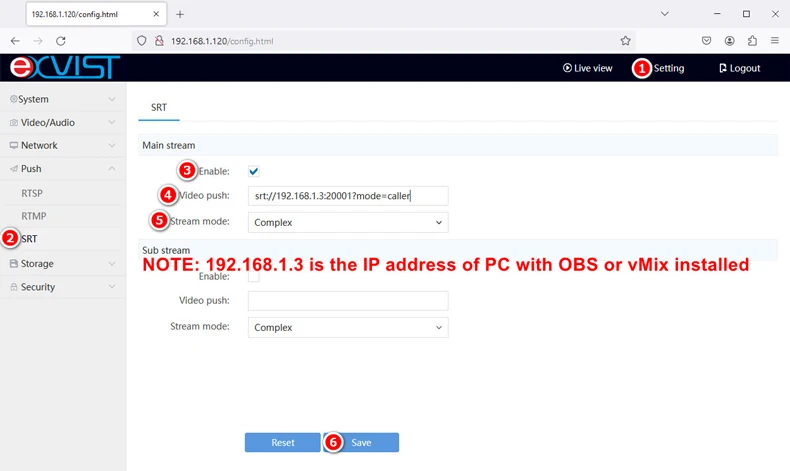

SRT Caller Mode
By following the steps to activate the caller mode within your local area network, you can easily enable the SRT protocol for seamless transmission.

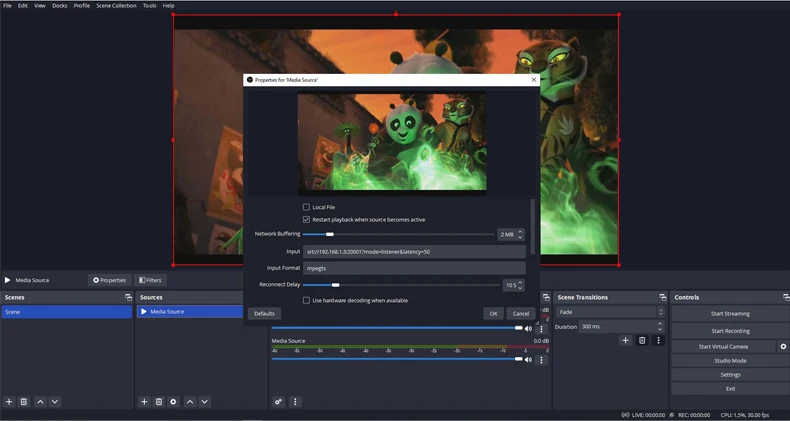

Get Stream into OBS via SRT Caller Mode
Simply paste the correct format in the SRT URL column, and you'll be able to view the video feed in OBS.

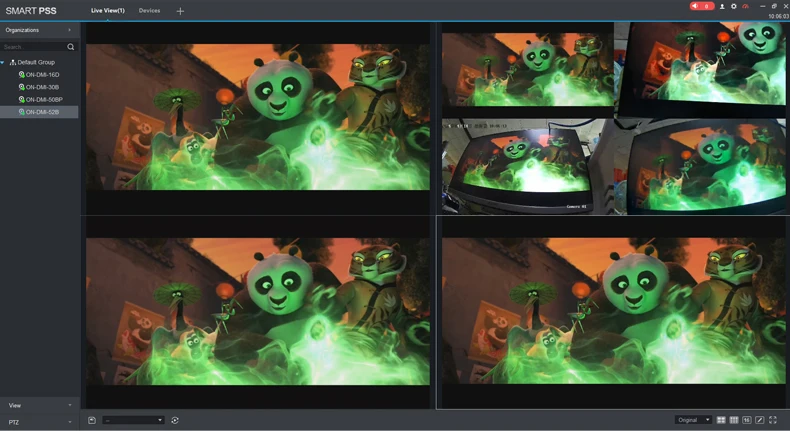

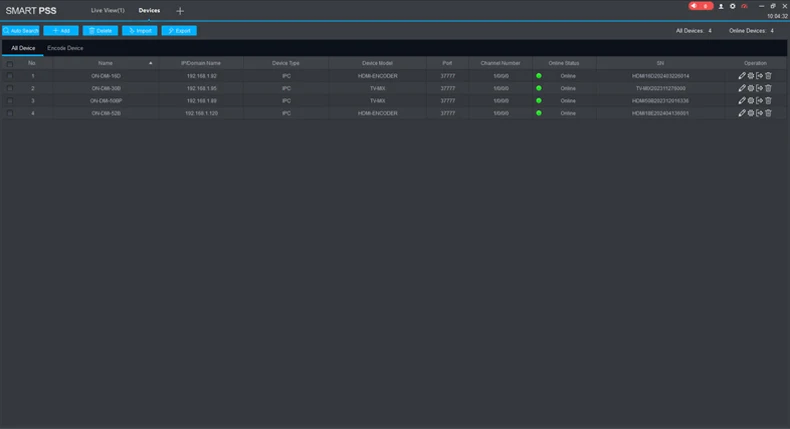

Connect to SmartPSS
This video encoder is a great choice for CCTV surveillance purposes as it can be seamlessly added and managed within SmartPSS, offering a user-friendly experience for surveillance system operations.

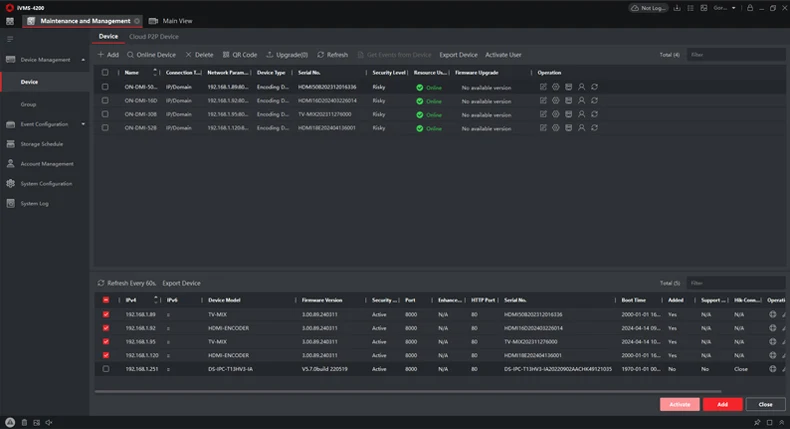

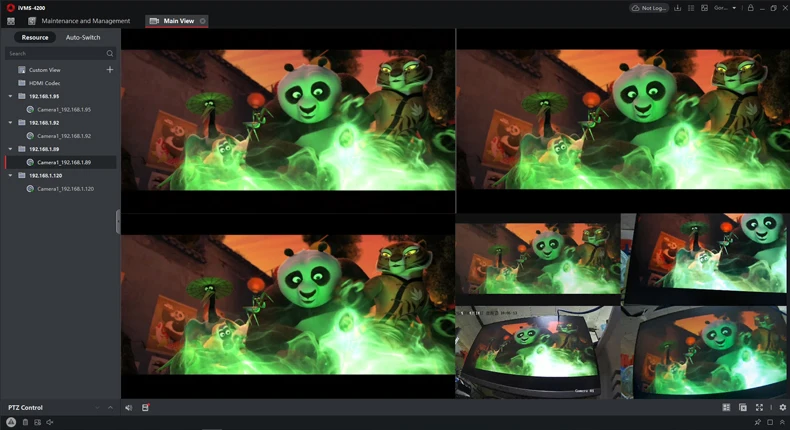

Connect to iVMS-4200.
Additionally, if you prefer not to use SmartPSS, this encoder is a suitable choice for iVMS-4200, offering compatibility with the HK protocol for optimal functionality within that software.

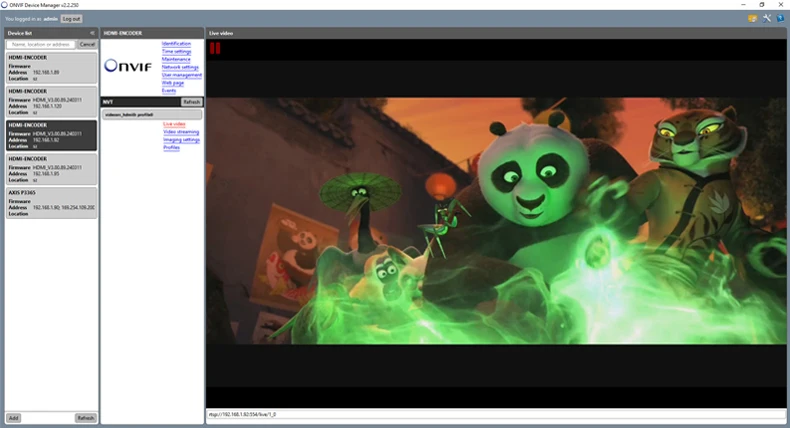

Compatible with ONVIF
Effortlessly access live video feed in the ONVIF Device Manager as this encoder is compatible with ONVIF standards.

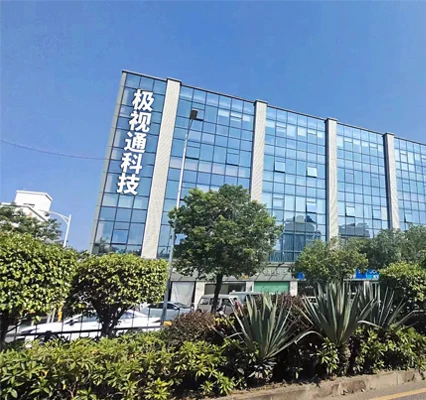

About Us
SHENZHEN EXVIST TECHNOLOGY CO., LTD.
Established in year 2017 in Shenzhen China, EXVIST is a National High-tech Enterprises specializing in R&D, sales and production of IP solutions, a professional encoder & extender manufacturer serving the partners around the world in the markets of Audio and Video. EXVIST have been providing customers with more professional and customized services for a long time, and supporting them to win customers and projects in the increasingly competitive market.
We aim to meet the needs of a changing world by harnessing the power of our technological innovations and our team, while helping you protect your employees, customers and assets, especially during this challenging time.
We’re committed to delivering high-quality, innovative solutions with a best-in-class sales and support team that is focused on your success. EXVIST’s extensive and diverse global team consists of professionals to provide the best support including the ODM/OEM or retails.
We focus on your success, on providing our customers with IP-based audio & video products and solutions with core competitiveness, let our customers focus on customer service, market development and brand promotion, and to achieve a win-win situation.
EXVIST, Your Reliable IP Audio&Video Solutions ODM/OEM Partner! Official web: https://www.exvist.com.
We aim to meet the needs of a changing world by harnessing the power of our technological innovations and our team, while helping you protect your employees, customers and assets, especially during this challenging time.
We’re committed to delivering high-quality, innovative solutions with a best-in-class sales and support team that is focused on your success. EXVIST’s extensive and diverse global team consists of professionals to provide the best support including the ODM/OEM or retails.
We focus on your success, on providing our customers with IP-based audio & video products and solutions with core competitiveness, let our customers focus on customer service, market development and brand promotion, and to achieve a win-win situation.
EXVIST, Your Reliable IP Audio&Video Solutions ODM/OEM Partner! Official web: https://www.exvist.com.

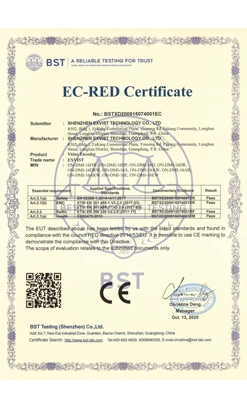

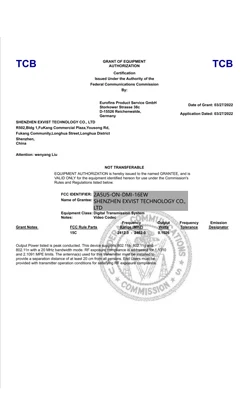

Certifications

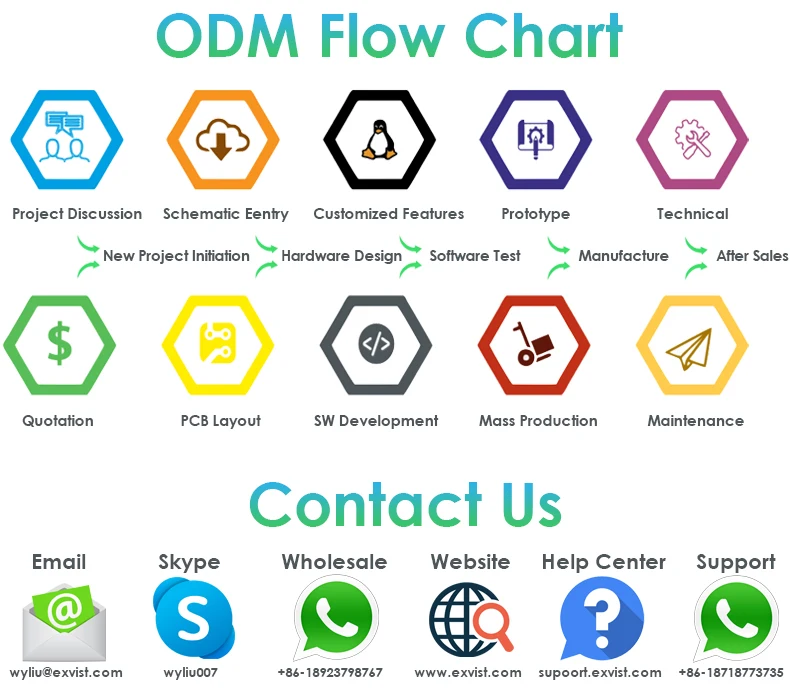

OEM & ODM
