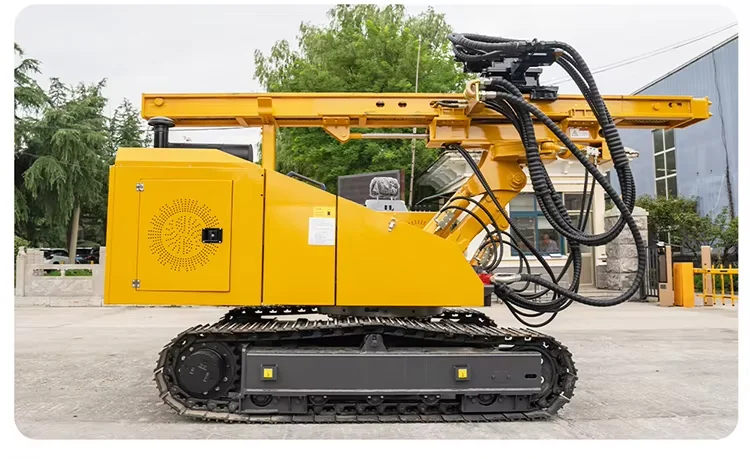

HengWang HWL300R-Z Hydraulic power Solar pile driver
































Specification


Model
HWL300R-Z
Remark
Hammer impact
780J
Joule,we can make more powrful impact as your demand
Pile length
0-4000
mm
Duplex gear pump pressure
20
Mpa
Duplex gear pump displacement
40
ml/r
Hydraulic system pressure
20
Mpa
Main valve flow
120
L/Min
Overall Machine weight
6
T
Diesel engine power
80
KW
Rated Speed
2400
R/min
Starting Voltage
24
V
Rotation angle
360
°
Rotation semi diameter(rotating shaft to Pod distance)
1925
mm
Effective press pile stroke
0.-6000
mm
Dimension(LXWXH)
5600*2150*2800
mm
Track shoe
350
mm
Walking motor total displacement
1575
ml/m
Walking motor rated pressure
18
Mpa
Walking motor output torque
4300
N.M
Walking motor rotate speed
50
r/min
Press Pile Diameter
0-600
mm
Drilling Depth
0-4000
mm
Operating Speed (m/min)
1.5
90s/per pile
Number of impacts / strokes per 1 minute
900
times/min
Maximum length of Piles to be rammed
4
M
Walking speed
5-10
Km/hr
Gradeability
0-35
°
Oil tank capacity
200
L
Hydraulic tank capacity (L)
500
L


Product Usage

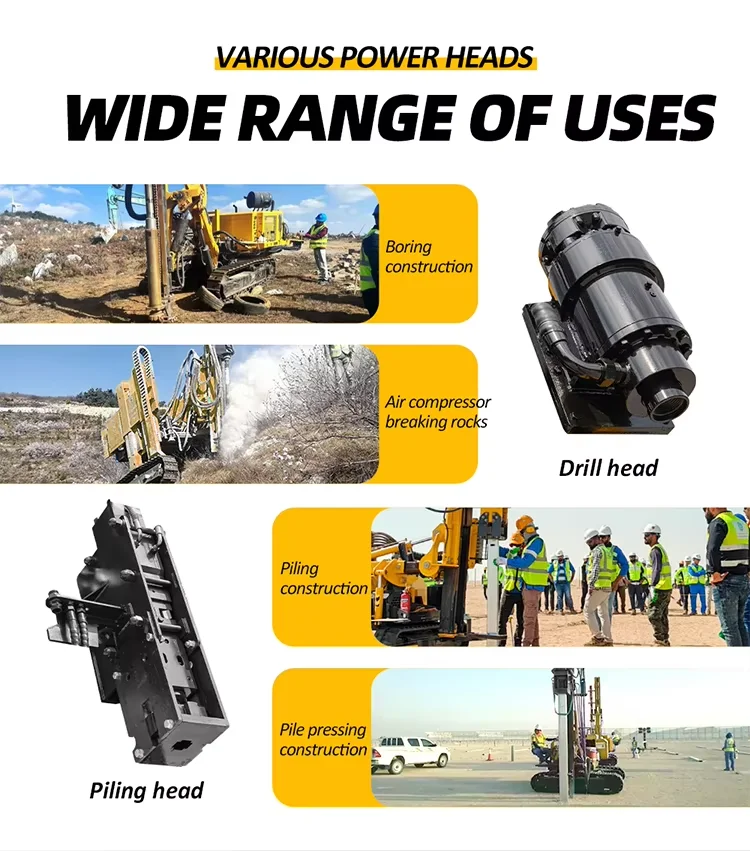

The solar pile driver can used for piling,pulling and drilling.
General application,any special requirements,Please let us know.

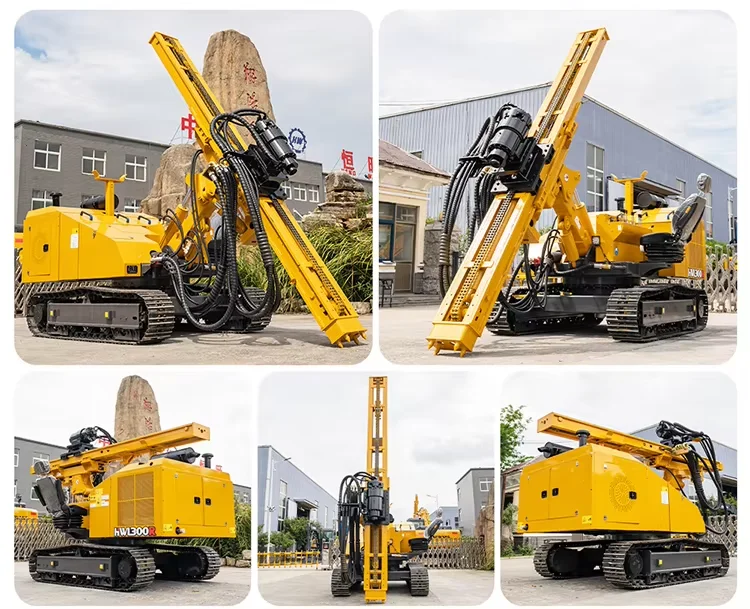

Model
HWL300R
Rotation angle
360°
Pile length
0-3000mm
Diesel engine power
80KW
Drilling Depth
0-3000mm
Overall Machine weight
5.8T


Model
HWL500R
Rotation angle
360°
Pile length
0-5000mm
Diesel engine power
80KW
Drilling Depth
0-5000
Overall Machine weight
6T


Model
HWL600R
Rotation angle
360°
Pile length
0-6000mm
Diesel engine power
85KW
Drilling Depth
0-6000mm
Overall Machine weight
6.5T
