Surgical table Multi functional surgical table Mobile operating table Medical operating bed With Factory Prices
- Category: >>>
- Supplier: Shandong Chenhong Medical Technology Co. Ltd.Shandong Ltd.
Share on (10000022402565):
Product Overview
Description
Product Details

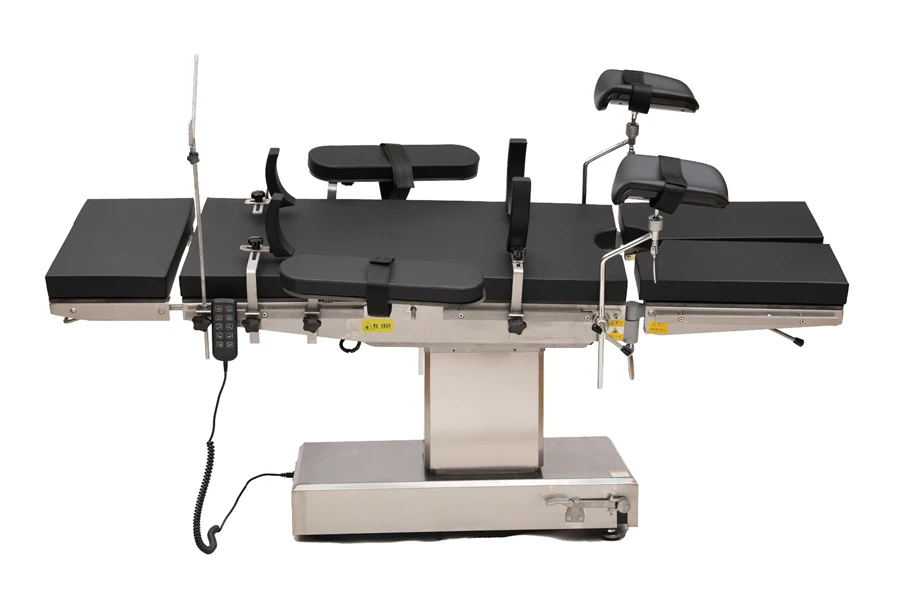

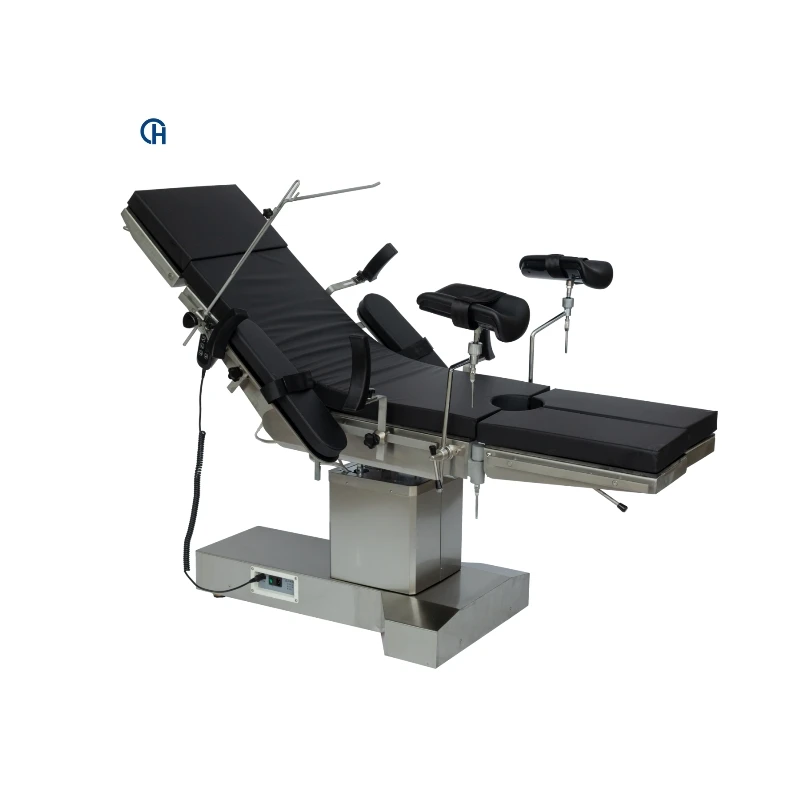

I. Product introduction:

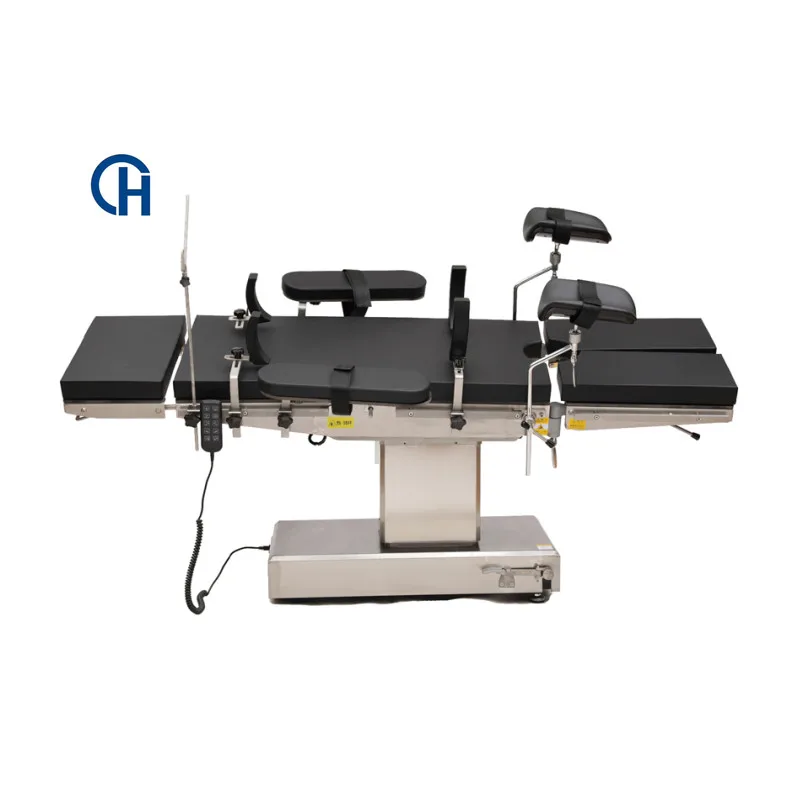

The electric comprehensive surgical table is for use in comprehensive surgeries in thoracic-abdominal surgery, surgery, cerebral surgery, ophthalmology, E.N.T., obstetrics and gynecology and other departments. It can be used with C-type arm X-ray machines.
II. Unique product advantages:

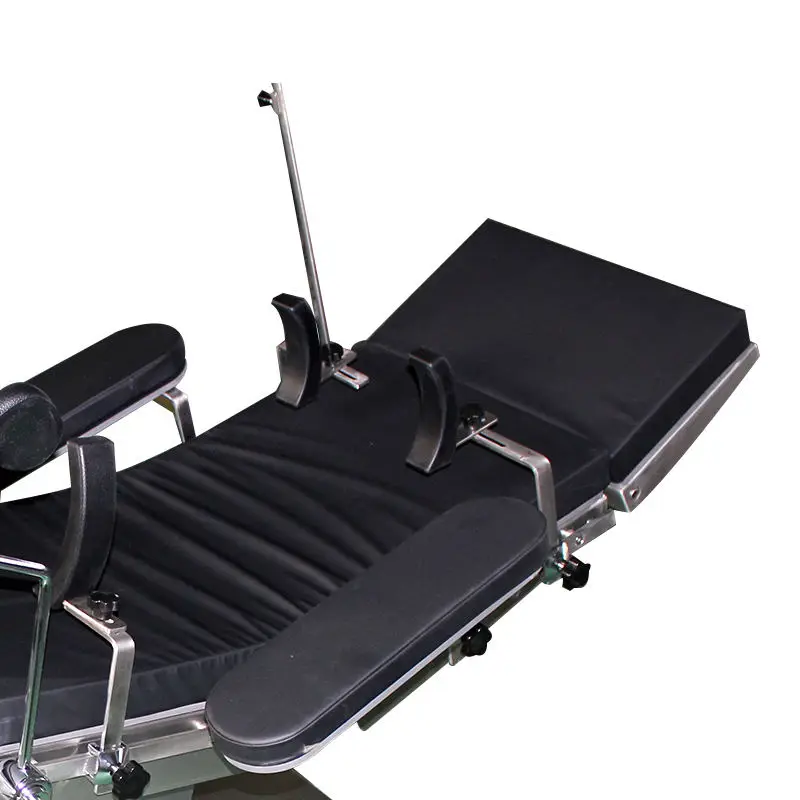

1. Main actions of the surgical table: lifting and lowering, forward & backward tilting, leftward and rightward tilting of table top, turning of back board and translation of table body are controlled by an electric device composed of a controller and an electric push rod; turning of head board and leg board is controlled by a gas spring; lifting of waist board is mechanically controlled.
2. The table top can be moved longitudinally and can be used for radiographic examination or imaging combined with a C-shaped arm;
3. The table top is made of high-strength and X-ray radio-transparent composite materials to meet the need of clinical X-ray imaging.

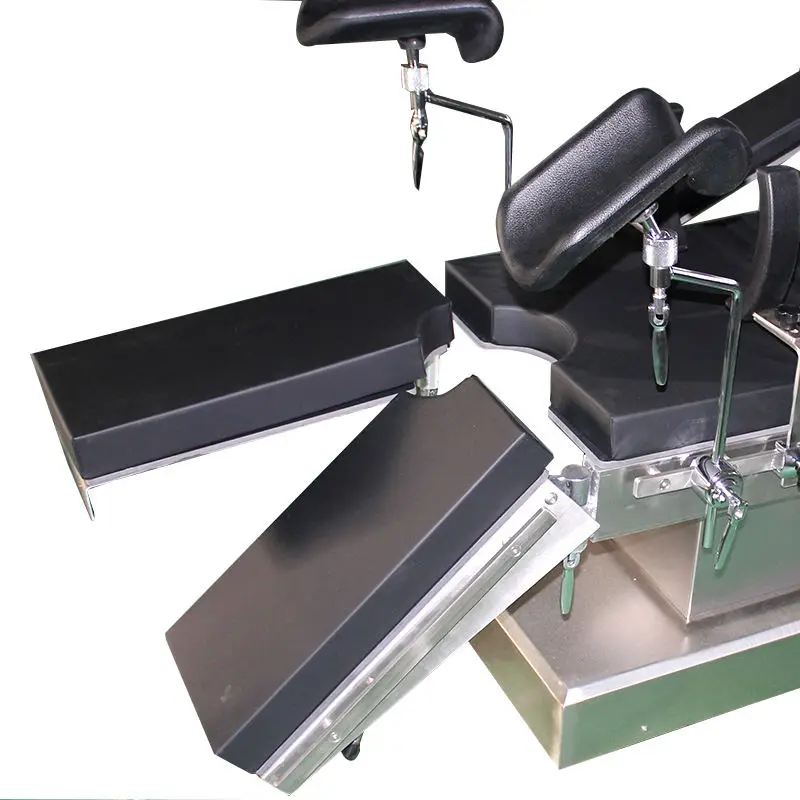

4. The head and leg boards are detachable and the leg board can be rotated outward and folded downward manually to facilitate operations and better meet the need of various surgical positions as well as provide more flexible operating space for medical staff.
5. The base of the surgical table can move or keep still. The bottom of the base is equipped with wheels for flexible movement and reliable immobilization;
6. The electrically controlled part is mainly composed of a power adapter, control button box, etc. Power supply used by the surgical table: the external 220V AC is transformed into 24V DC by a power adapter to drive the motor.
The electric comprehensive surgical table is for use in comprehensive surgeries in thoracic-abdominal surgery, surgery, cerebral surgery, ophthalmology, E.N.T., obstetrics and gynecology and other departments. It can be used with C-type arm X-ray machines.
II. Unique product advantages:
1. Main actions of the surgical table: lifting and lowering, forward & backward tilting, leftward and rightward tilting of table top, turning of back board and translation of table body are controlled by an electric device composed of a controller and an electric push rod; turning of head board and leg board is controlled by a gas spring; lifting of waist board is mechanically controlled.
2. The table top can be moved longitudinally and can be used for radiographic examination or imaging combined with a C-shaped arm;
3. The table top is made of high-strength and X-ray radio-transparent composite materials to meet the need of clinical X-ray imaging.
4. The head and leg boards are detachable and the leg board can be rotated outward and folded downward manually to facilitate operations and better meet the need of various surgical positions as well as provide more flexible operating space for medical staff.
5. The base of the surgical table can move or keep still. The bottom of the base is equipped with wheels for flexible movement and reliable immobilization;
6. The electrically controlled part is mainly composed of a power adapter, control button box, etc. Power supply used by the surgical table: the external 220V AC is transformed into 24V DC by a power adapter to drive the motor.
III. Technical parameters
Length of table top | 2020(±20) mm |
Width of table top | 500(±20) mm (without side guide) |
Height of table top (electric) | Minimum 730(± 20) - maximum 1030(± 20)mm (electric) |
Longitudinal translation of table top | 380±20mm (electric); |
Forward and backward tilting angles of table top (electric) | Forward tilting ≥20°, backward tilting ≥20° |
Leftward and rightward titling angles of table top (electric) | Leftward tilting ≥20°, rightward tilting ≥20° |
Head board turning angle (manual) | Upward turning ≥35°, downward turning ≥90° |
Upward turning angle of back board (electric) | Upward turning ≥71°, downward turning ≥15° |
leg board turning angle (manual) | Upward turning ≥15°, downward turning ≥90°, axle type, expandable angle 180°, detachable |
Rated load-bearing | 185kg |
Waist bridge lifting distance | 120mm(±10) |
Company Profile

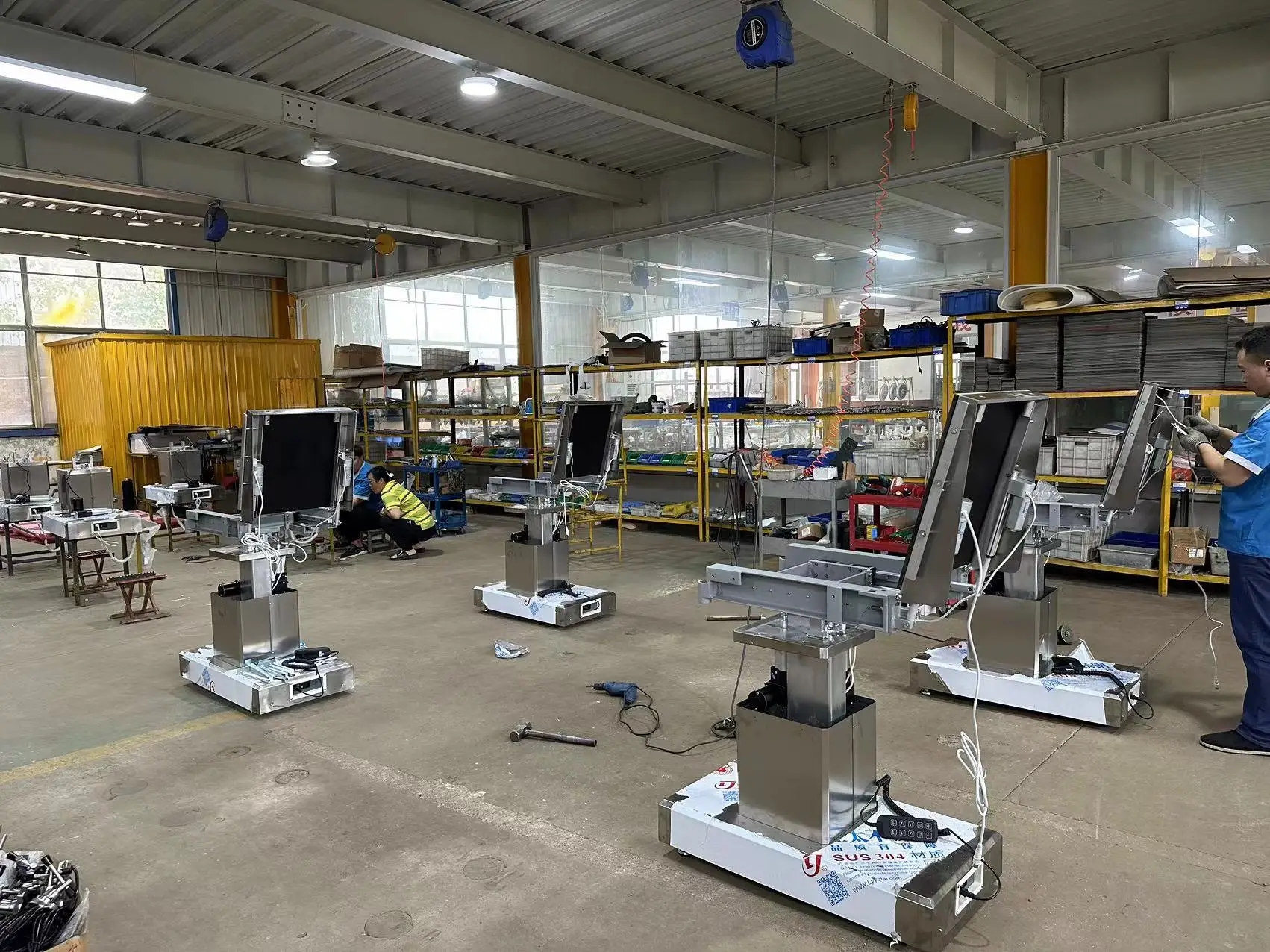

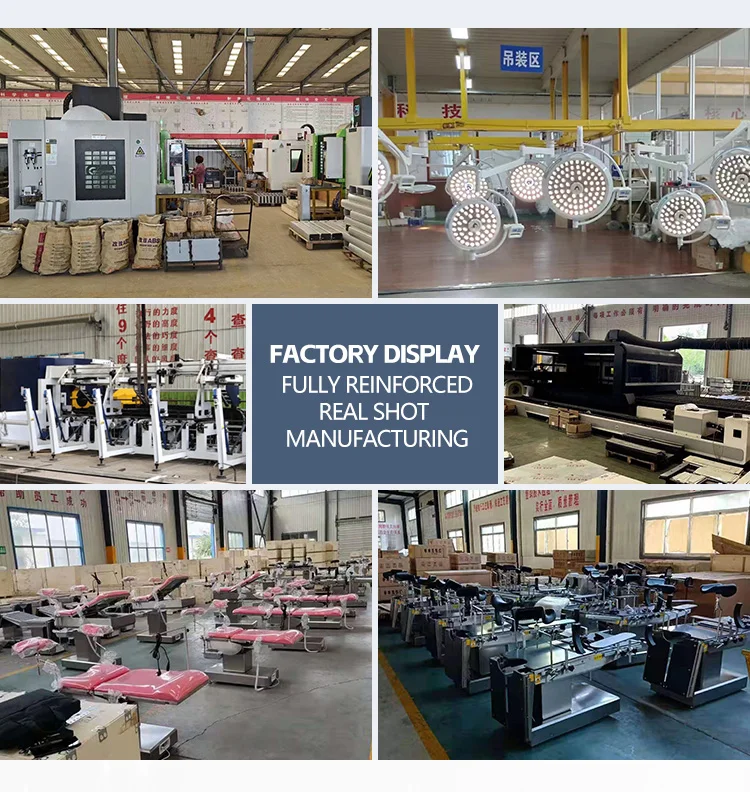

ChengHong Medical Group is a professional medical equipment manufacturer with certificates, such as CE,ISO9001,ISO13485,SGS,factory base located in Qufu city of Shandong province, China. We are professional manufacturer for operating lamp, operating table, obstetric table ,medical pendant and medical trolley series with more than 20 years experience, we have two brand of CHENHONG and LEKANG and we have R&D center in Shandong to launch new products to meet the needs for hospital every year. Our products have been exported to the United States, Europe, Southeast Asia, the Middle East and the South America market etc. It is our aim to build long-term cooperation with our clients and to serve human's health care!
Certifications
Exhibition
FAQ
Q: Are you manufacturer ? A: Yes,we have our own R&D team and sales team,We provide you one-stop service. Q: Do you have CE,ISO
9001,ISO13485? A: Yes,our products are approved by CE, ISO 9001 ,ISO13485. Q: Is OEM &ODM available in your factory ? A: Yes, you
just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your packing details? A: 1.Wooden case or carton package,standard export packages 2.All of the productions are
inspected carfully by QC before delivery. Q: What is your delivery time? A: Normally we do not have inventory, shadowless lamps,
medical pendant towers, operating table production needs to be customized products according to the height of the operating room,
the voltage of the customer's country, plugs, gas terminals, etc.
9001,ISO13485? A: Yes,our products are approved by CE, ISO 9001 ,ISO13485. Q: Is OEM &ODM available in your factory ? A: Yes, you
just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your packing details? A: 1.Wooden case or carton package,standard export packages 2.All of the productions are
inspected carfully by QC before delivery. Q: What is your delivery time? A: Normally we do not have inventory, shadowless lamps,
medical pendant towers, operating table production needs to be customized products according to the height of the operating room,
the voltage of the customer's country, plugs, gas terminals, etc.
