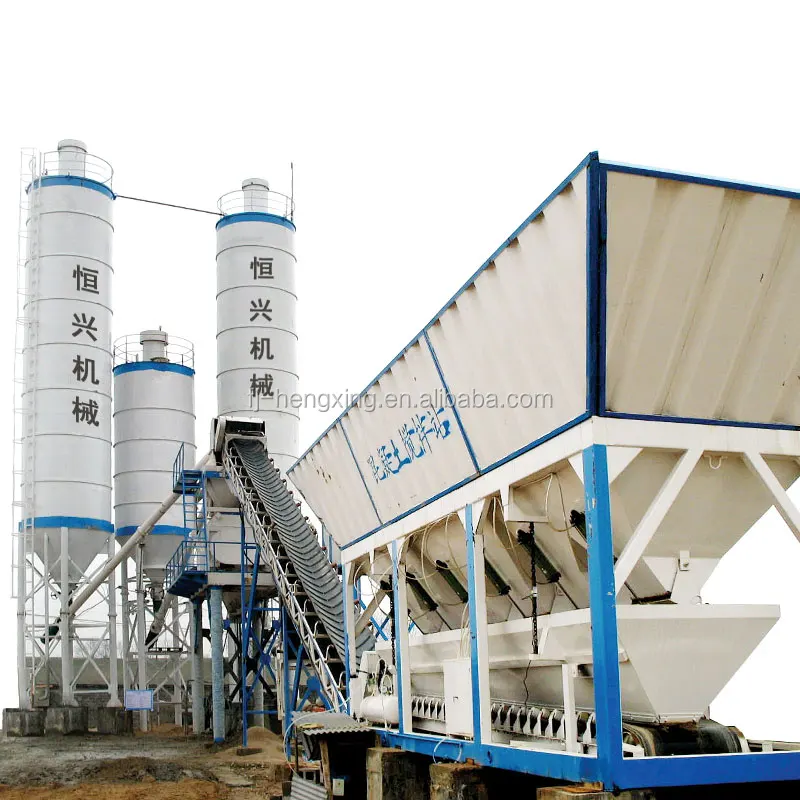

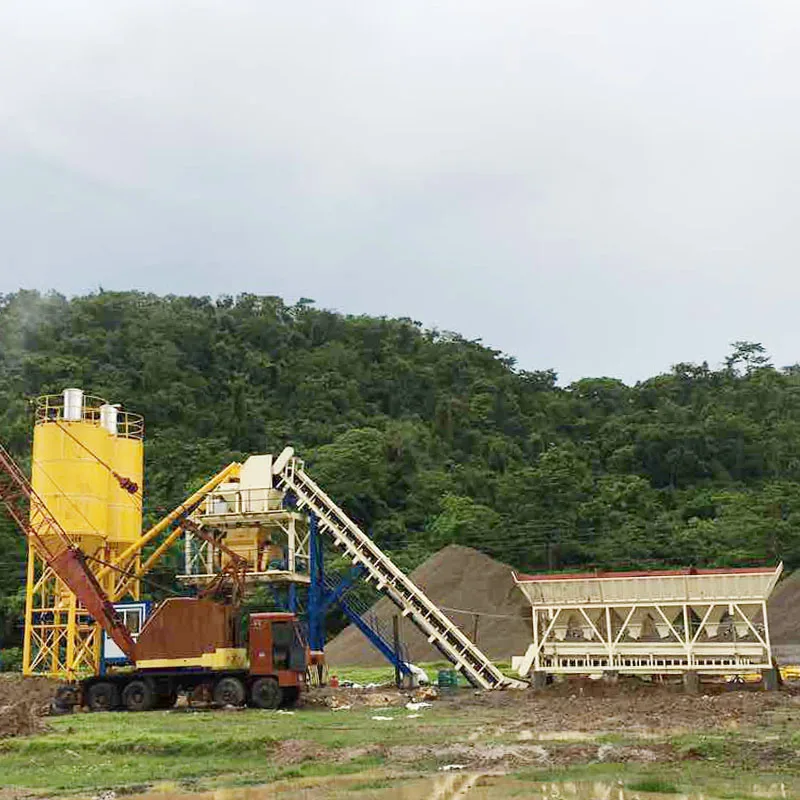

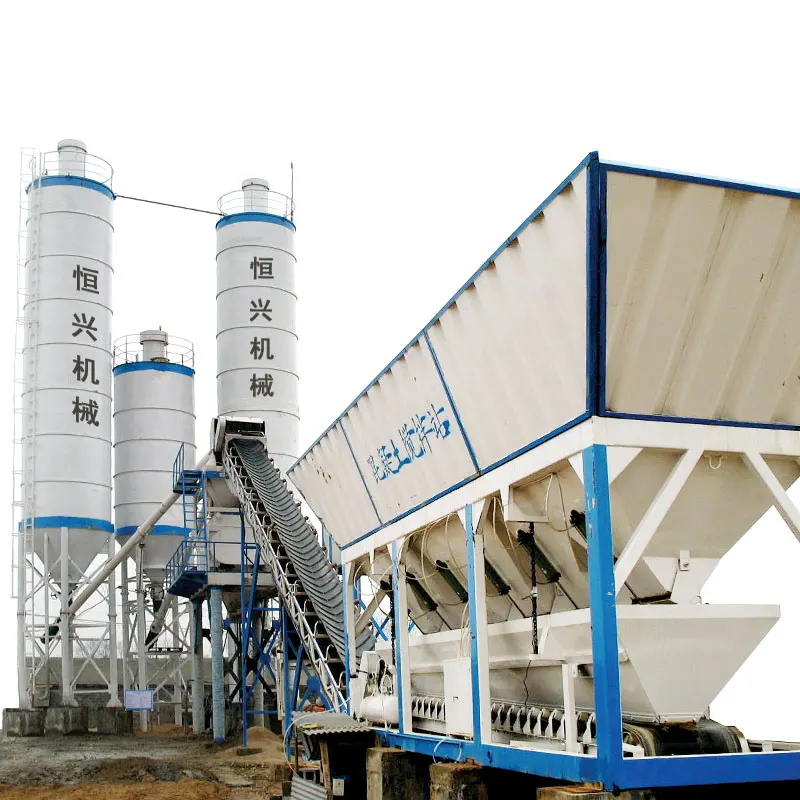

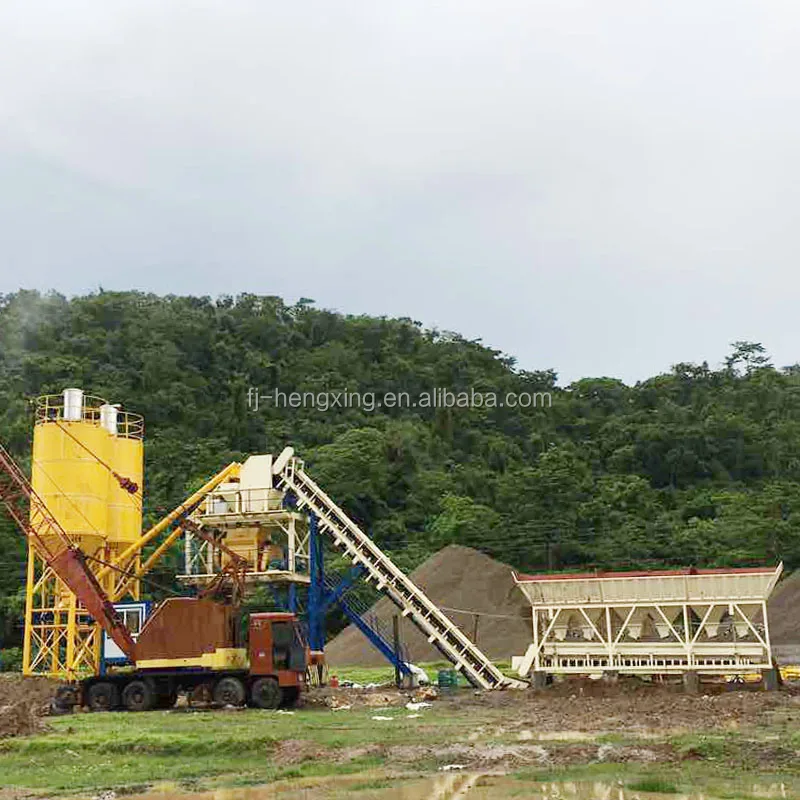

HZS50 Concrete Mixing Plant Road Works Beton Mixing Plant Price Modular Concrete Mixing Plant Factory
- Category: >>>
- Supplier: QUANZHOU HENGXING INDUSTRY MACHINERY CO. LTD
Share on (1001580524):
Product Overview
Description
Product Description
HZS50 Concrete Mixing Plant Road Works Beton Mixing Plant Price Modular Concrete Mixing Plant Factory features:
Batching system:
Station is equipped with two or three bin and can be used for more than three kinds of aggregate gradation need.

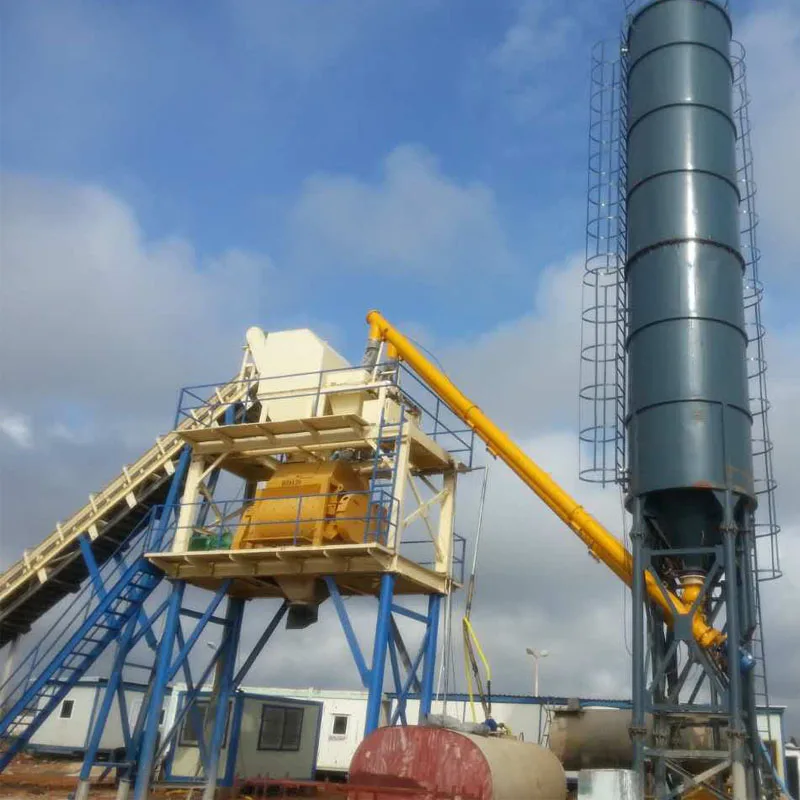

Mixing system:
Dual-axial mixing machine, strong mixer ability, stirring evenly, quickly for all kinds of tower of concrete slump and it can achieve good mixing effect on the ratio of various mixture materials. Mixing blade, lining board adopts high chromium wear-resistant alloy materials.
Control system:
The machine control system adopts industrial control computer. Realize the material metering station, transporting, mixing, unloading of automatic production process.
Hoisting system of the aggregate
The measured aggregate released by belt machine, fall in aggregate inclined belt, conducted by the inclined belt ascending to the blender mixing.
HZS50 Concrete Mixing Plant Road Works Beton Mixing Plant Price Modular Concrete Mixing Plant Factory technical parameters:
hot sale stationalized Concrete Bacthing Equipment Technical Specifications | |||||
Model | HZS50 | HZS75 | HZS 150 | ||
Productions(m3/h) | 50 | 75 | 150 | ||
Mixer | Type | JS1000 | JS1500 | JS3000 | |
Power | 2*22 | 2*30 | 2*55 | ||
Output(m3) | 1 | 1.5 | 3 | ||
Grain Size(mm) | ≤60 | ≤80 | ≤150 | ||
Batcher | Hopper Capacity(m3) | 3*9 | 2*30 | 4*20 | |
Hopper Quantity | 3 | 3 | 4 | ||
Conveyor Capacity(t/h) | 200 | 200 | 400 | ||
Weighing Scope Accuracy | Aggregate(kg) | 2500±2% | 3500±2% | 6500±2% | |
Cement(kg) | 600±1% | 900±1% | 1800±1% | ||
Water(kg) | 200±1% | 300±1% | 600±1% | ||
Admixture(kg) | 10±1% | 30±1% | 50±1% | ||
Power (kw) | 80 | 108 | 175 | ||
Discharge Height (m) | 3.8 | 3.8 | 3.8 | ||
Packaging & Shipping
Our Services
Pre-sale service: plant/site plan, solve technical problems and auxiliary configuration advice, revenue
analysis.
Sale service: door-to-door installation, on-site training operation technology, user training mechanical and electrical maintenance personnel free of charge.
After-sales service, guarantee the supply of spare parts, product quality strictly implement "Five Guarantee", one year warranty, life-long after-sales service.
FAQ
Remarks:
1, Payment Terms: 30% as downpayment by T/T. the remaining 70% shall pay off before
all items being delivered
2, Delivery Way: FOB Xiamen
3, Delivery Time: 35-40 days after receiving your 30% down payment.
4, Warranty: within one year from delivery.
