hydraulic elbow making machine
- Category: Pipe Making Machinery >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (1003355480):
Product Overview
Description
MACHINE DESCRIPTION

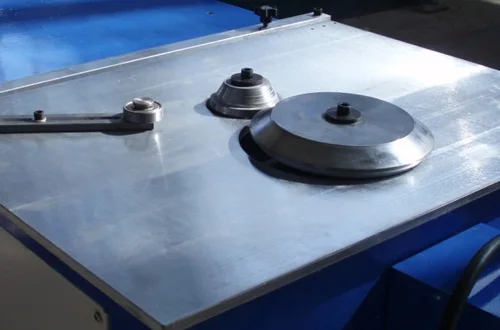

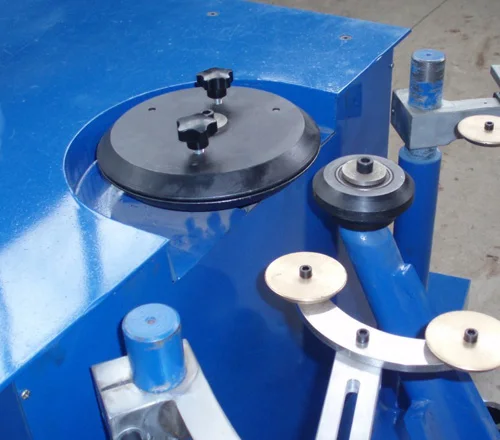

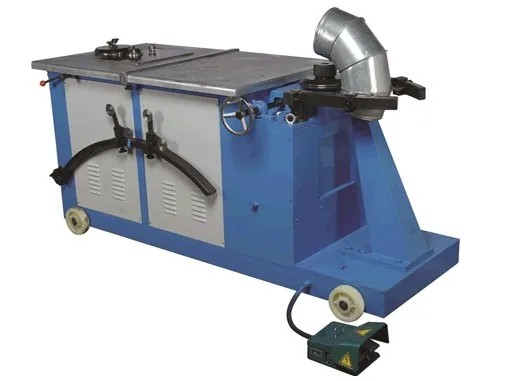

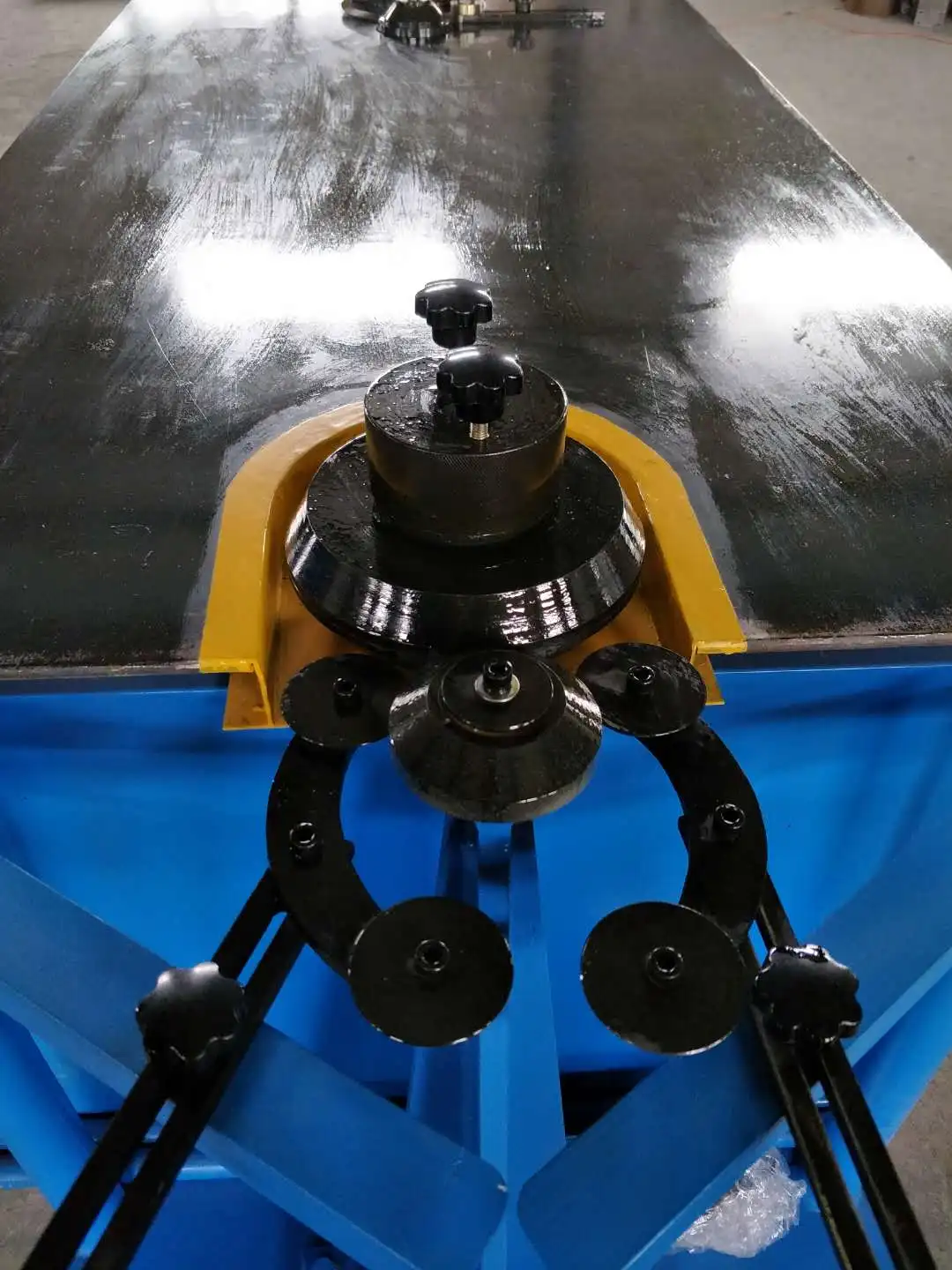

This hydraulic elbow making machine is for producing round elbows in ventilation & air conditioning system.
MAIN FEATURES
-- Full hydraulic type
-- Diameter ranges from 125-1250mm,
-- Diameter ranges from 125-1250mm,
-- Light and small, suitable for site work
MACHINE SPECIFICATION
No. | Item | Data | ||
1 | Diameter range | 125-1250mm | ||
2 | Width of strip | Standard 137mm | ||
3 | Sheet thickness | Stainless steel | 0.4-0.8mm | |
4 | Galvanized steel | 0.4-1.2mm | ||
5 | Aluminum | 0.4-1.2mm | ||
6 | Max. Forming speed | 120m/min | ||
7 | Hydraulic oil | 55L | ||
8 | Consumption of com-pressed air | 75L/hour 6bar | ||
9 | Motor power | 4kW + 120w cooling fan | ||
10 | Weight | 750kg | ||
11 | Dimension (L x W x H) | 2650 x 700 x 950mm | ||
