Product Overview
Description
Kaishan small crawler portable full hydraulic water well drilling rig/180m well digging machines/water borehole drilling machine
Range of application
KW180 series water well drilling rig is a light, high efficiency, multifunction hewn hole drilling equipment, it is widely used in industrial and agricultural water conservancy projects,such as drilling wells, testing wells or
geothermal heating. This drilling rig can work in different strata, the hole diameter can up to 300mm.
Advantage
1. Safe and stable traveling system.
2. Centralized operating system of Mobile Drilling Rig for Sale.
3. Powerful feeding and rotating system of Mobile Drilling Rig for Sale.
4. Easy operation and high efficiency as the hydraulic feeding be taken.
5. As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relift.
The pressure indicator of bottom hole can observe and control the well conditions easily.
6. Close levers, convenient to operate.
7. Compact size and light in weight are easy to set up and transport on working plains and mountain area.
KW180 water well drilling rig Technical Parameter
Model No | KW180 water well drilling rig |
Drilling Hole Diameter | 110-202mm |
Drilling Depth | 180m |
Working pressure | 10.5-24.6bar |
Air consumption | 16-30m³/min |
Propeller Shaft Stress | 0-2.5T |
Lifting power | 5T |
Pulling Force of Landing Leg Cylinder | 32T(4 legs) |
Stroke of Landing Leg Oil Cylinder | 0.4m |
Sliding Plate Stroke | 2380mm |
Slow Lifting Speed | 8m/min |
Slow Pushing Speed | 0-15m/min |
Fast Lifting Speed | 26m/min |
Fast Pushing Speed | 51m/min |
Rotation torque | 4200N.m |
Rotation Speed | 33-67r/min |
Lifting Power of Hoist | 1T |
Diesel Engine model | YCD4R23T8-80 |
Engine Power | 58kw |
Travelling speed | 0-2.5 km/h |
Climb capacity | 20° |
Weight | 4500kg |
Dimension | 4600*1550*2350mm |

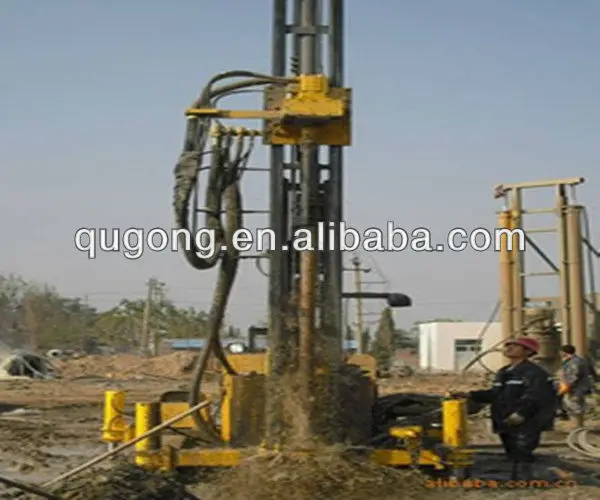

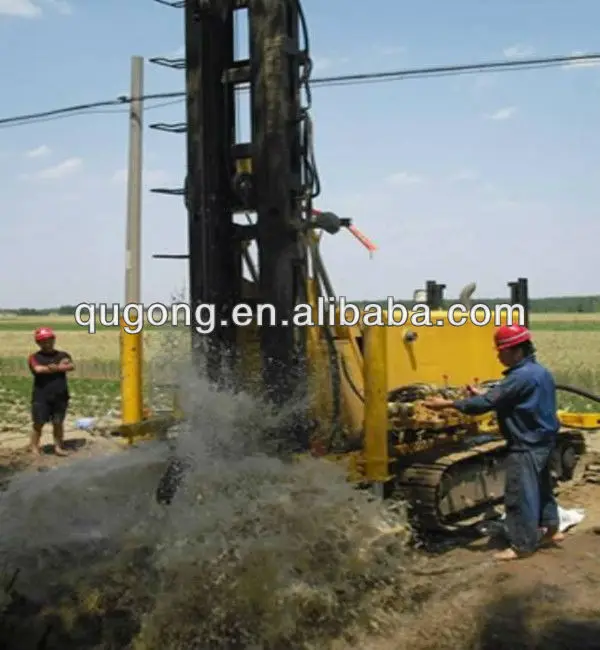

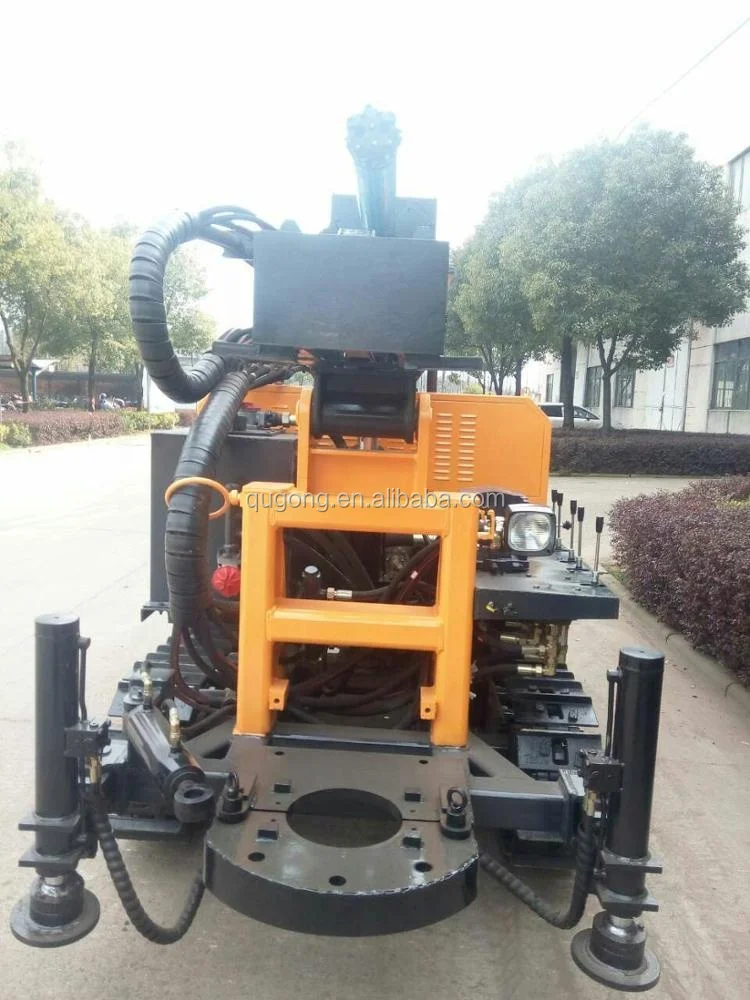

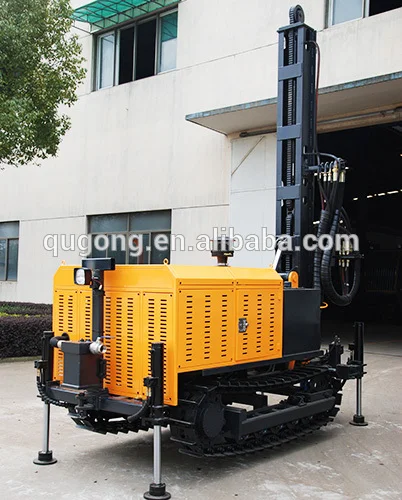

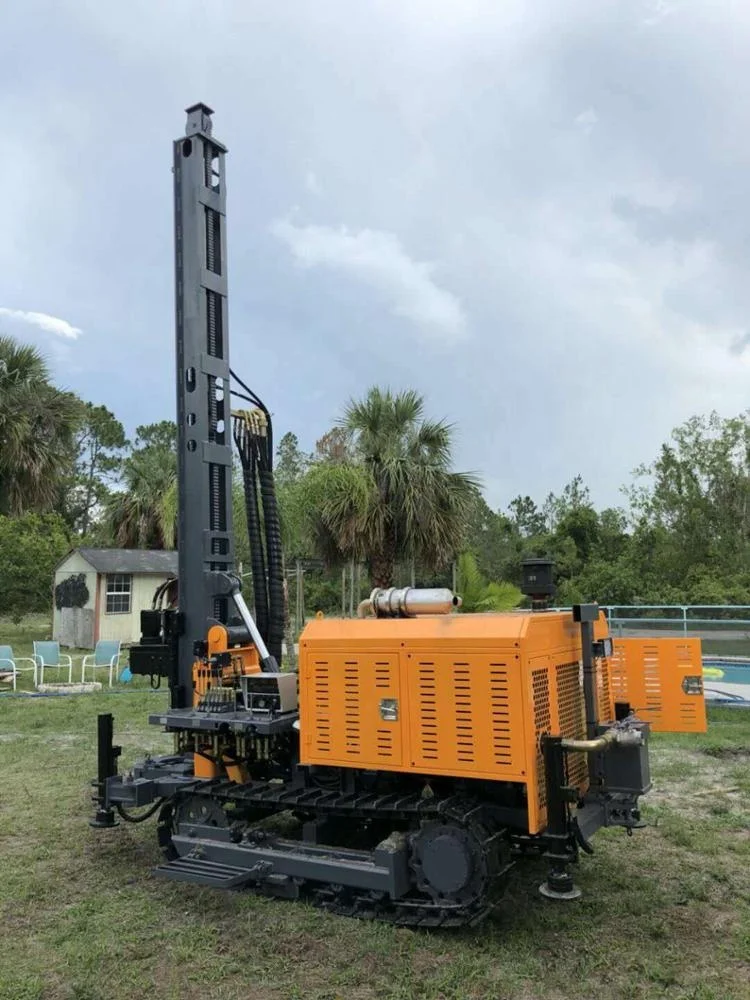

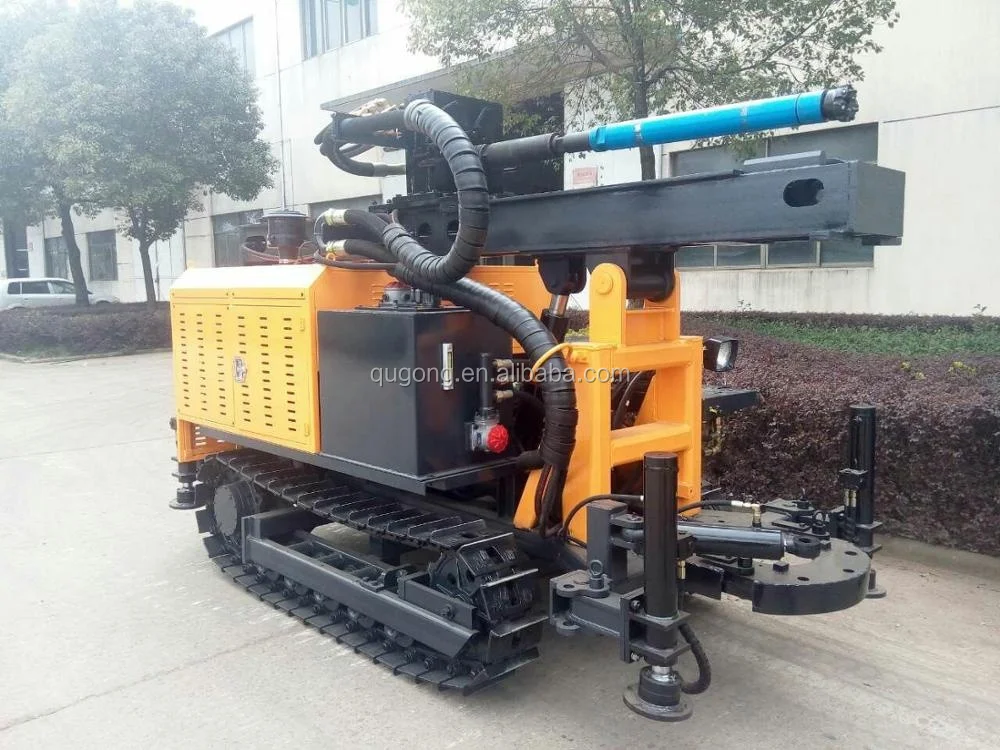

Water Well Drill Rig Pictures

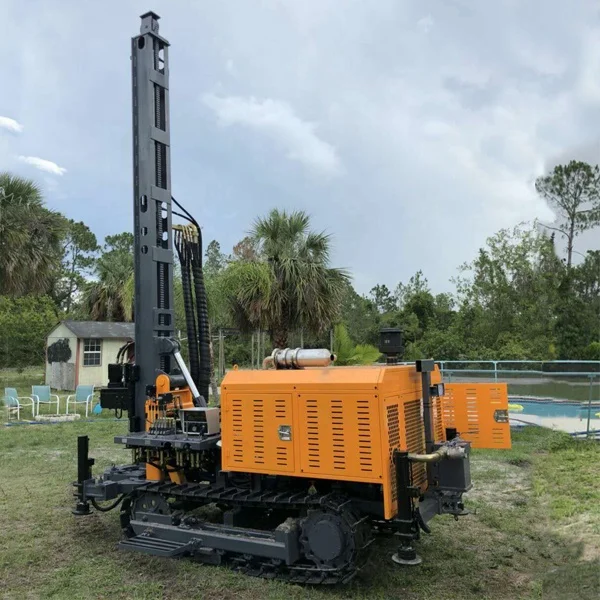

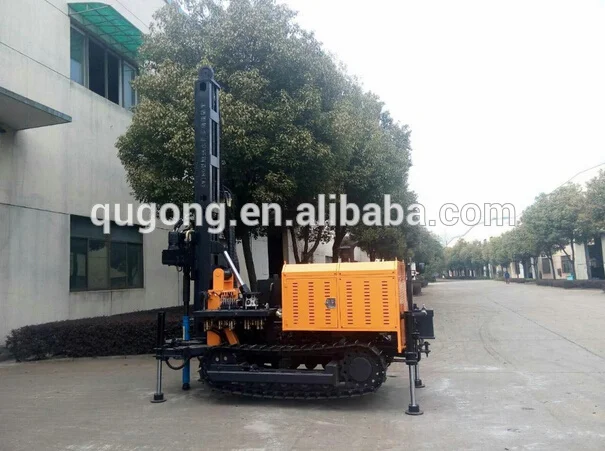

KW180

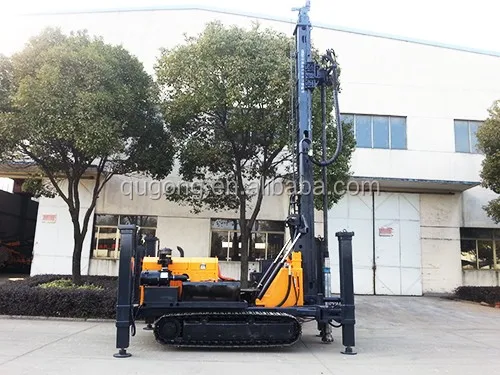

KW400
KW600

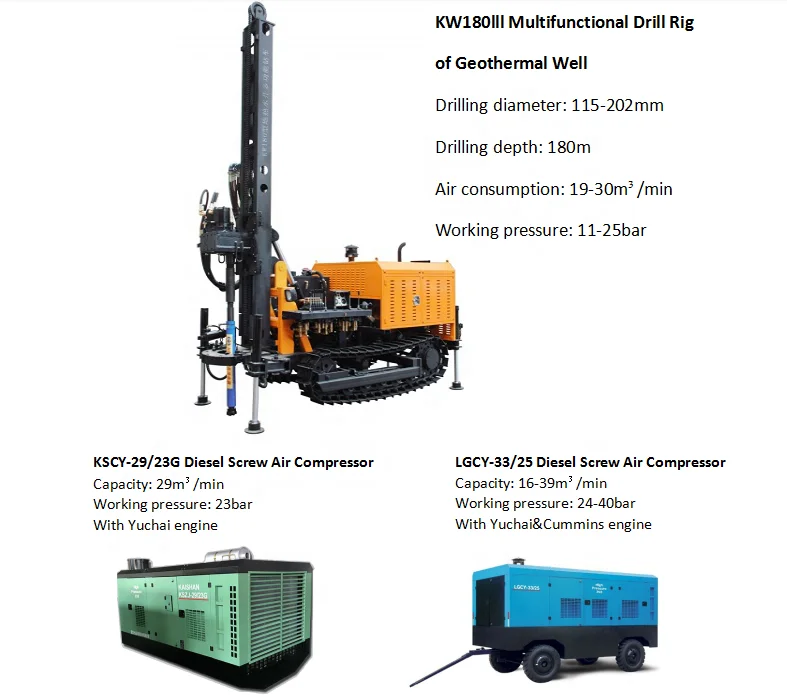

Matched compressor

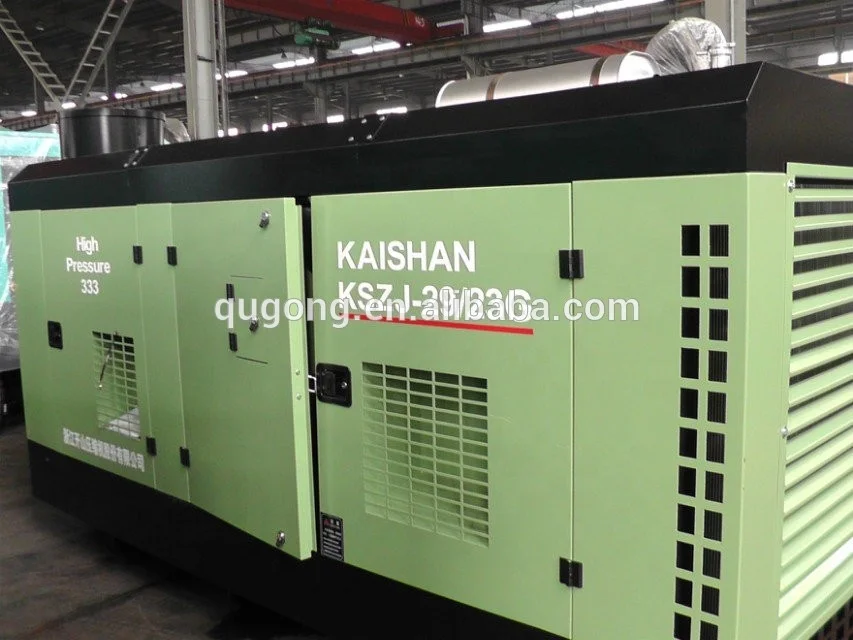

KSZJ series air compressor for water well drill rig

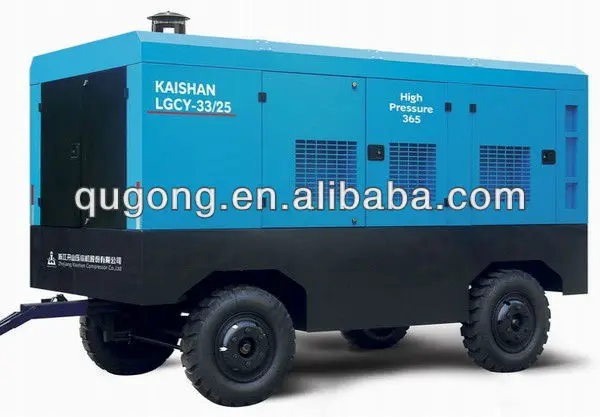

LGCY-33/25 air compressor
LGCY-33/25 Diesel Driven portable Screw Air Compressor | |
Model No: | LGCY-33/25 Kaishan brand |
Air capacity(m³/min/cfm) | 33 |
Work pressure(Bar/Psig) | 25 |
Compression Stage | Double |
Diesel engine Model No. | Cummins QSZ13-C550,550HP Or Yuchai YC6K550L,550HP |
Dimension/mm | 4700*2100*2500 |
Weight(KG) | 6500 |
