TOPLED Street Video outdoor led large screen display p6 P8 P10 P12 P16 P20 P25 oled commercial advertising display screen
- Category: >>>
- Supplier: Shenzhen Topled Optotech Co. Ltd.
Share on (1003783499):
Product Overview
Description
TOPLED Street Video outdoor led large screen display p6 P8 P10 P12 P16 P20 P25 oled commercial advertising display screen
Product Description
Features
1. The front maintaining is easy to maintain and save time.
2. Ultra bright LED lamp, and the best raw materials to made into plastic parts.
3. Chip encapsulation uses golden pure wire to solder, red chip encapsulation uses double pure golden wires to keep stability.
4 The copper silvering trestle.
5. High-end specialized outdoor glue.
6. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
7. Plated signal and power connector.
8. Pure-copper environmental flat cable,pure-copper power wire.

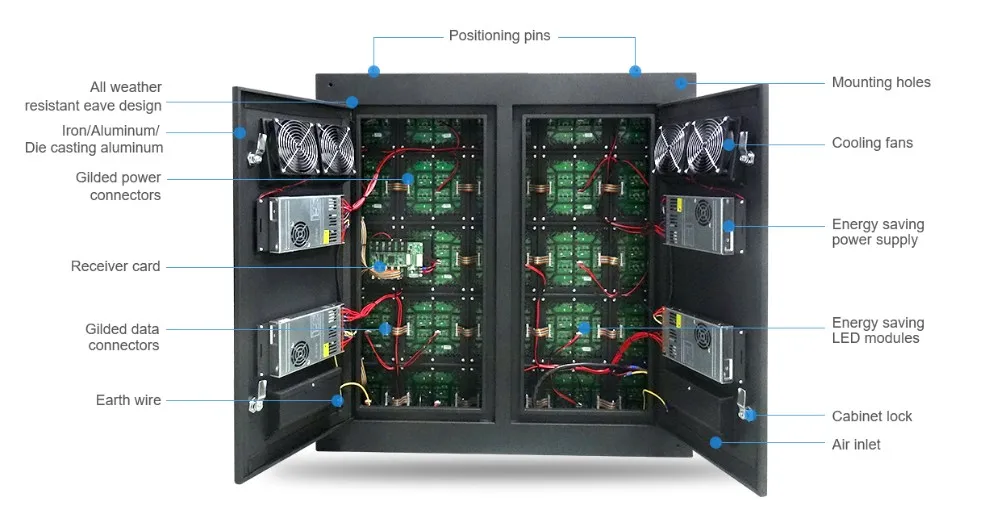

Outdoor Iron cabinet:
Parameters
Name | Parameter |
Pixel Pitch(mm) | 16mm |
Physical Density | 3906 |
LED Configuration | 1RGB |
LED type | SMD3535 |

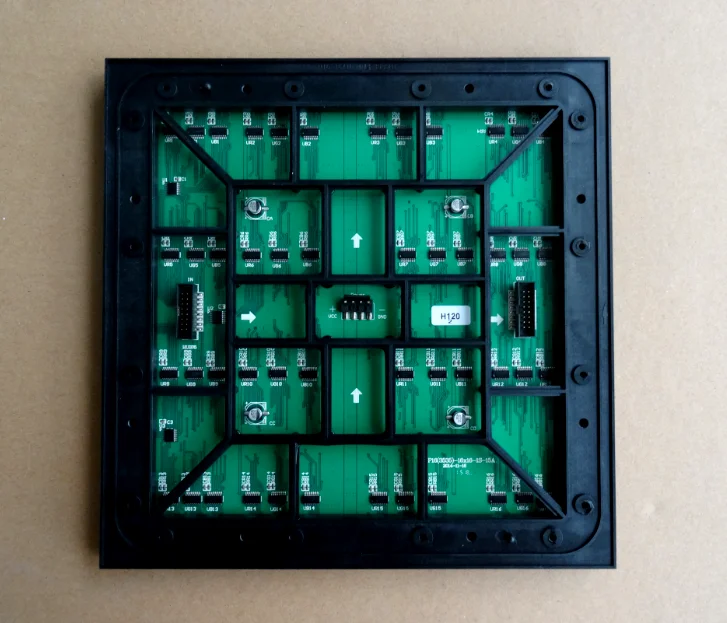

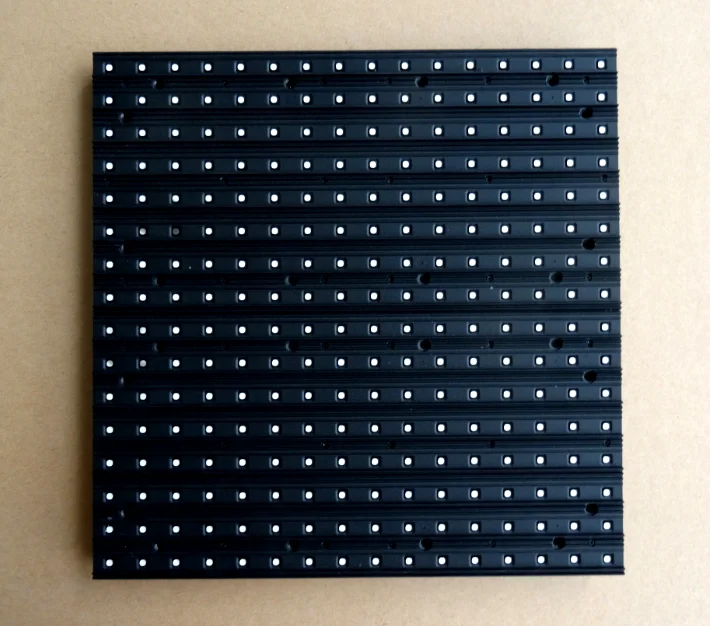

Module Size | 256×256 |
Module Resolution | 16×16 |
Module Power Consumption | 60W |
Driving Mode | Constant Current IC |
Scanning Mode | Static |
Horizontal Viewing Angle | ≥140(+10/-10) |
Vertical Viewing Angle | ≥120(+10/-10) |
Brightness | 8000 |
Grey Scale | 16bit |
Cabinet Resolution | 128×128 |
Cabinet Max Consumption | 800 |
Cabinet Average Power Consumption | 240 |
Cabinet Size | 1024×1024 |
Cabinet Weight(kg) | 45kg |
Cabinet Thickness | 100mm |
Cabinet Material | Iron/Aluminum |
Color | >16.7 |
Input Voltage | AC 110V~220V +/-10% |
Frame Frequency | 50~60 |
Protection Level | IP65 |
Working Temperature(℃) | -20° -+65° |
Storage Humidity Range(RH) | 10%~90% |
Life Span(H) | 100,000 hours |
Attention
In order to offer you a suitable solution, Please state general info about your project.

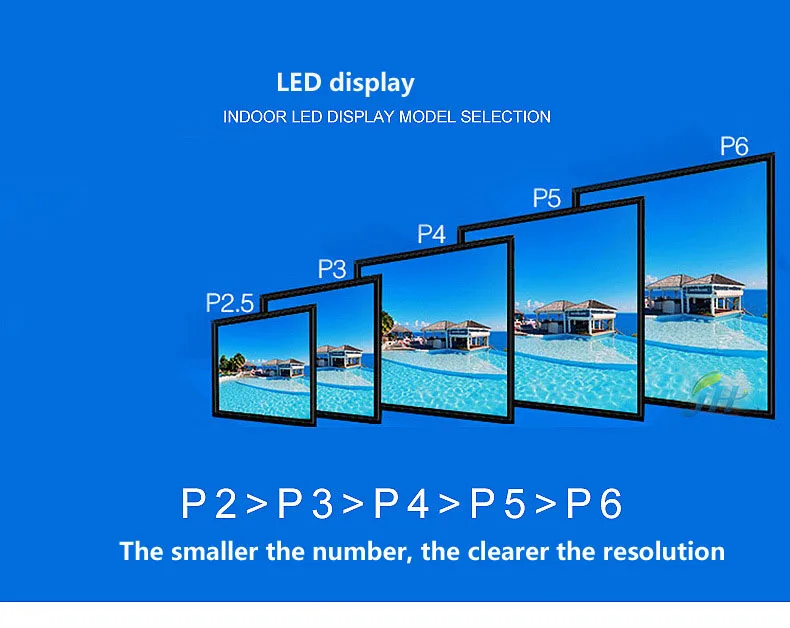

1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building, ect)
4. Purpose. ( what are you going to do with the LED Screen)
Outdoor led display installation diagram

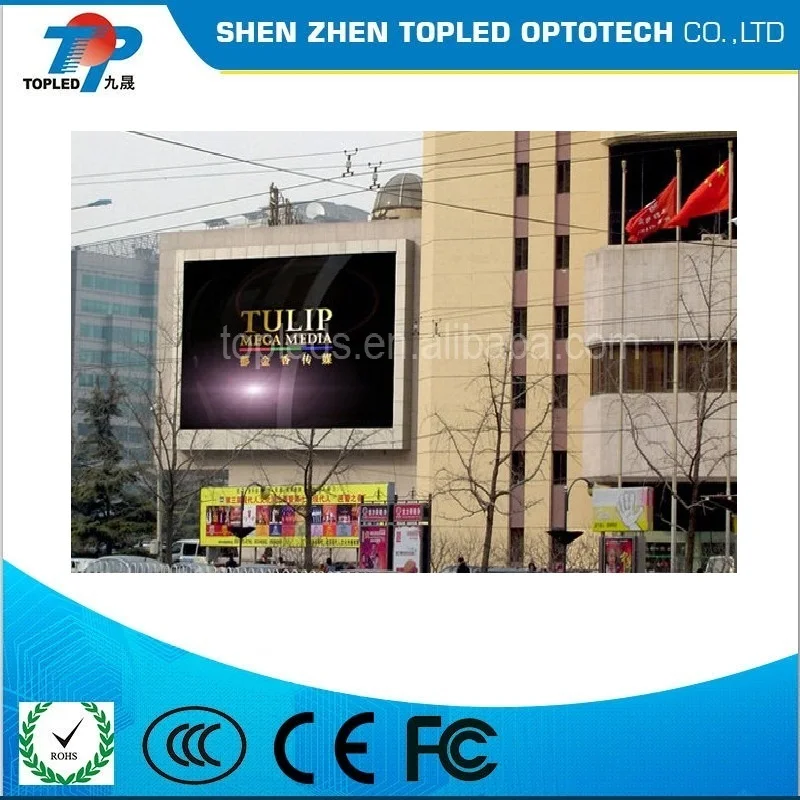

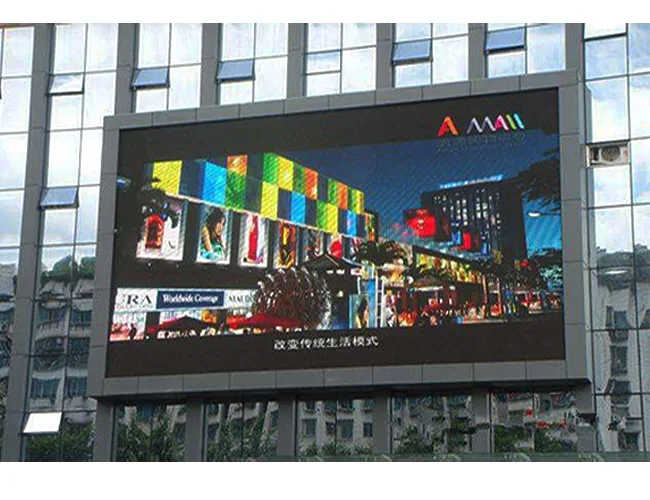

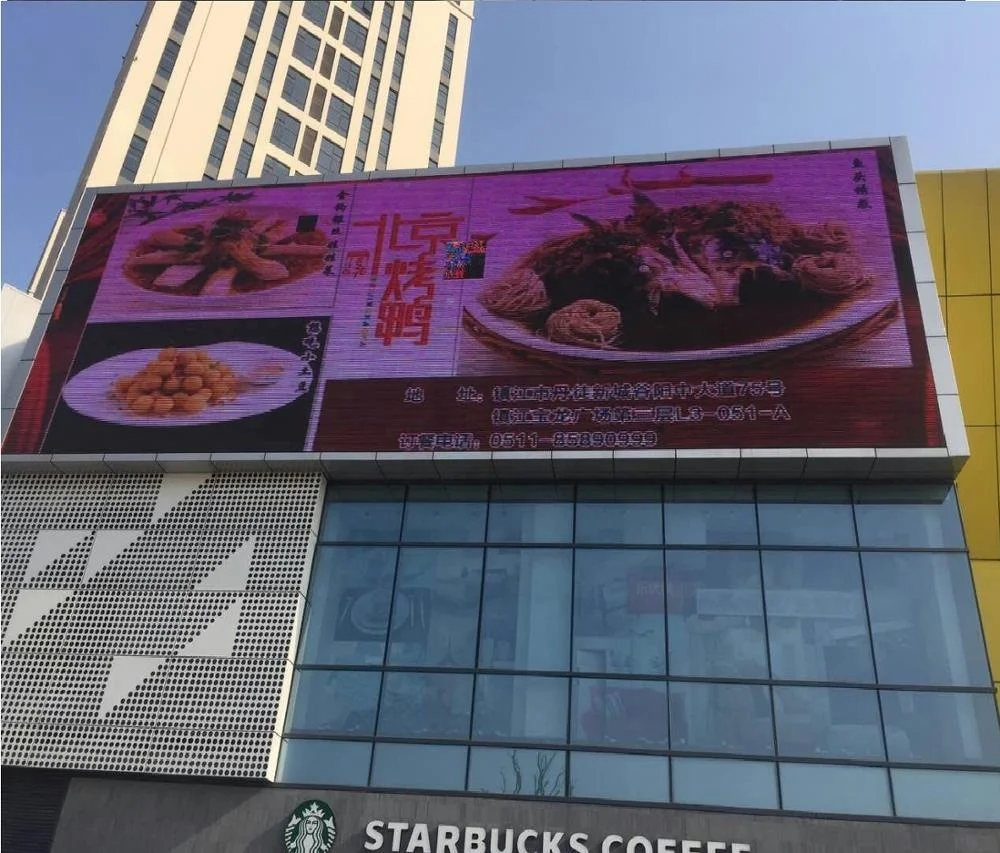

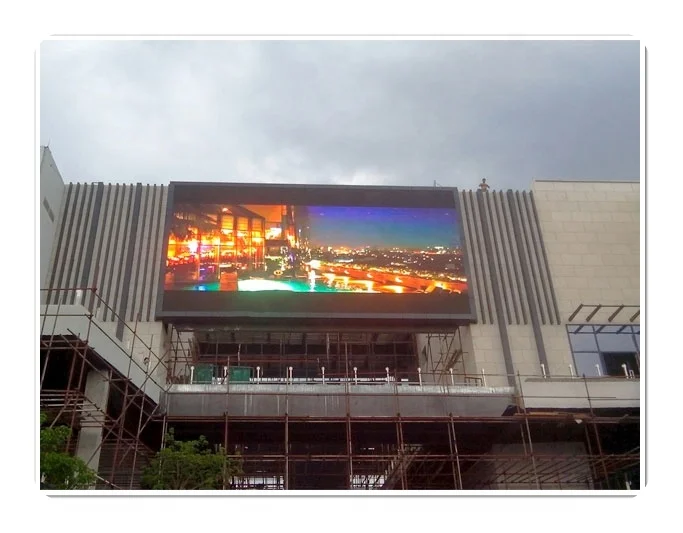

Successful Cases

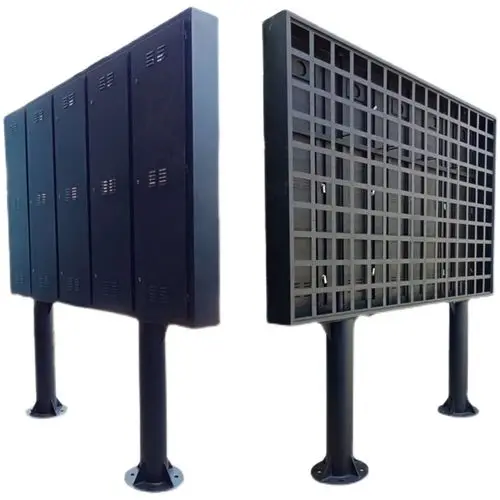

Led display installation methods
Packaging & Shipping
.

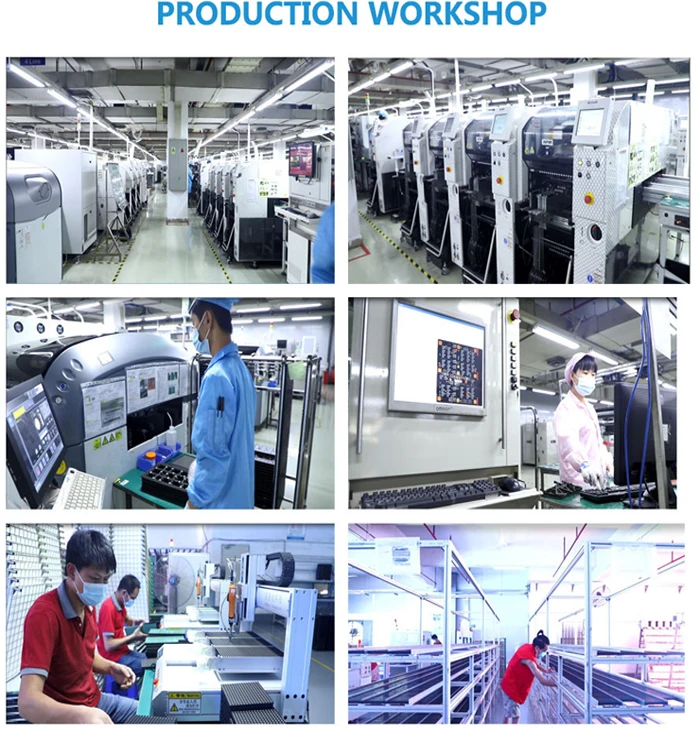

Company Information
Why choose us/trust us?
Our Services
FAQ
Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T,Western Union,Paypal and MoneyGram.
Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.
Q:I haven't done business with you guys before,how can i trust your company?
A:TOPLED company has been in Alibaba.com for almost 14 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years. what's more,we've got quite a lot authority certificates,for example,CE, UL, RoHS, FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $416,000, and it is still going up.
Q:What's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order. As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after
Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
